Kingston HR3000 ENGINE LATHES

Price on Request

Make:

Kingston

Model:

HR3000

Year:

1982

Ref #:

178327

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

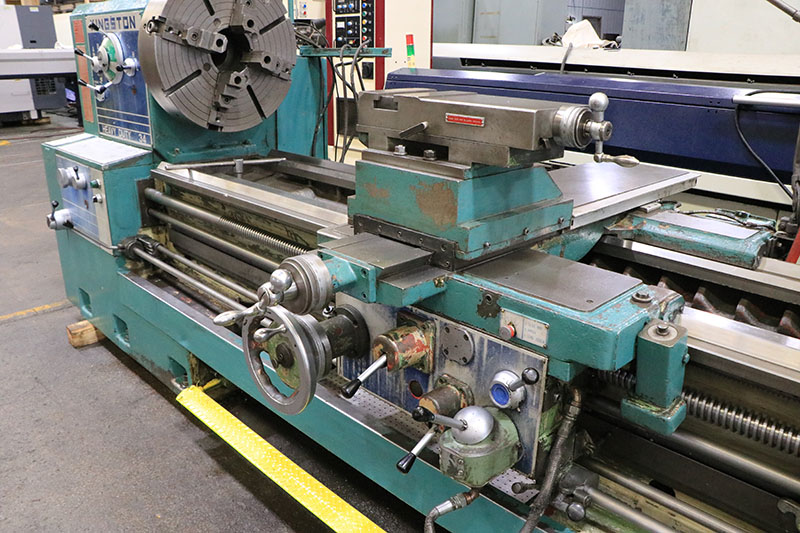

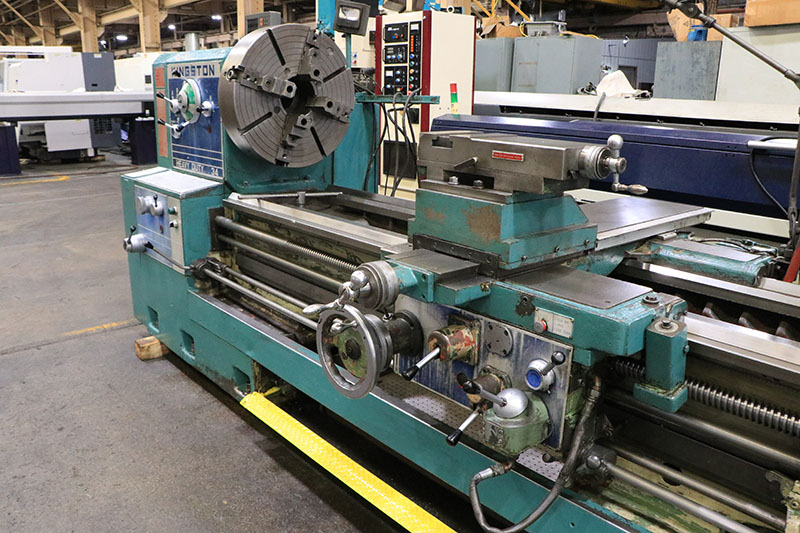

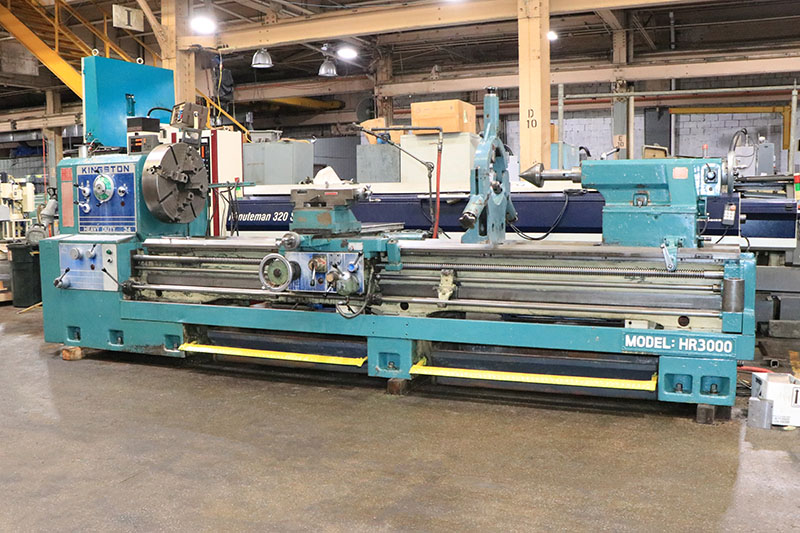

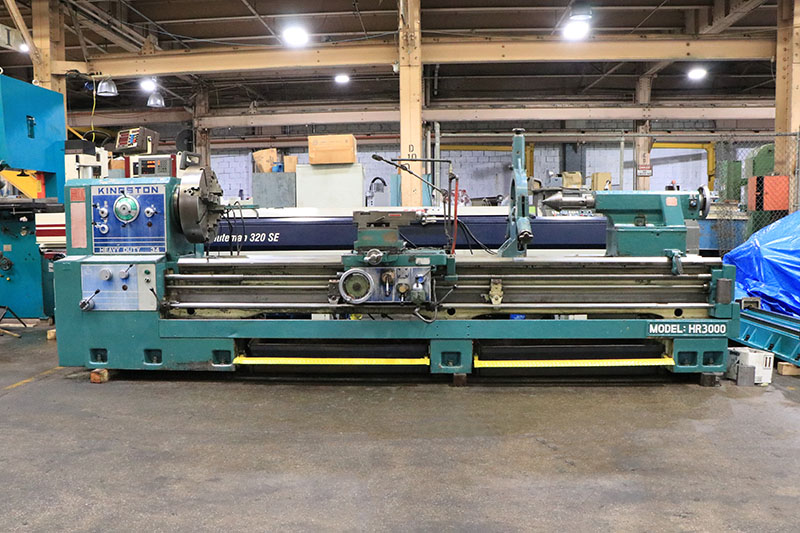

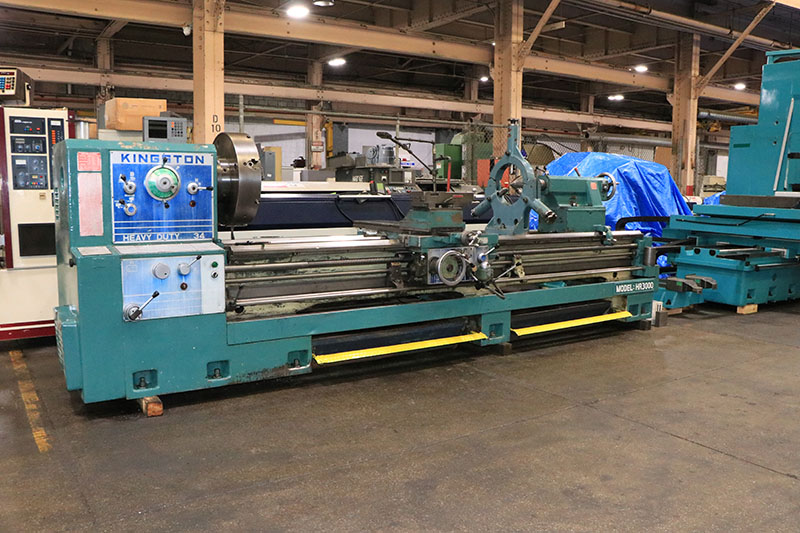

34"/41" X 120" KINGSTON GAP BED ENGINE LATHE

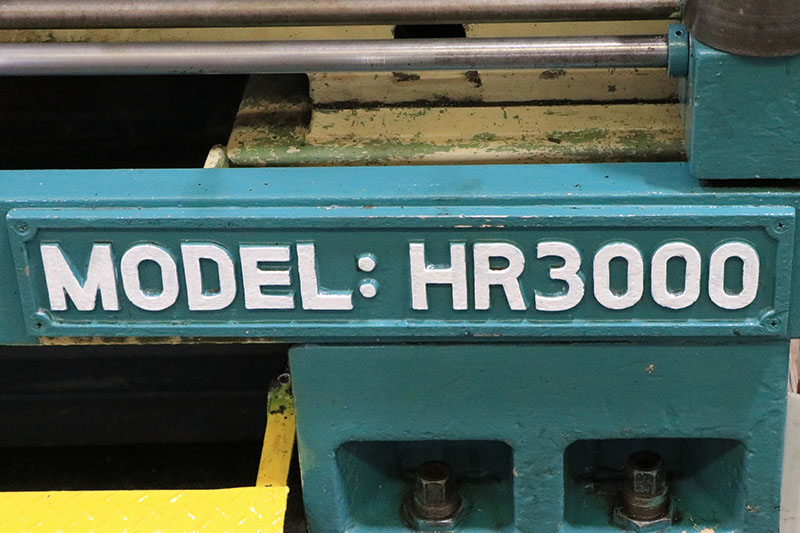

MODEL: 34" HR-3000,  S/N: 03700701A,  YEAR: 1982



SPECIFICATIONS:

SWING OVER BED........................ 34"

SWING OVER CROSS SLIDE................ 24-3/4"

SWING IN REMOVABLE GAP................ 44-1/4"

SPINDLE NOSE CAMLOCK.................. D1-11"

HOLE THROUGH SPINDLE.................. 4-1/16"

DISTANCE BETWEEN CENTERS.............. 120"

SPINDLE SPEED RANGE (16).............. 8 - 800 RPM

LONGITUDINAL FEED RANGE (40).......... .0024" - .0337" IPR

CROSS FEEDS HALF OF LONGITUDINAL SETTING

ENGLISH THREADING RANGE(40)........... 2 - 28 TPI

METRIC THREADING RANGE(31)............ 1 - 14MM

TAILSTOCK SPINDLE DIAMETER............ 5-1/8"

TAILSTOCK SPINDLE TRAVEL.............. 11-3/4"

TAILSTOCK SPINDLE TAPER............... #6MT

APPROXIMATE FLOOR SPACE............... 55"W x 200"L

APPROXIMATE WEIGHT.................... 12,500 LBS.



EQUIPPED WITH:

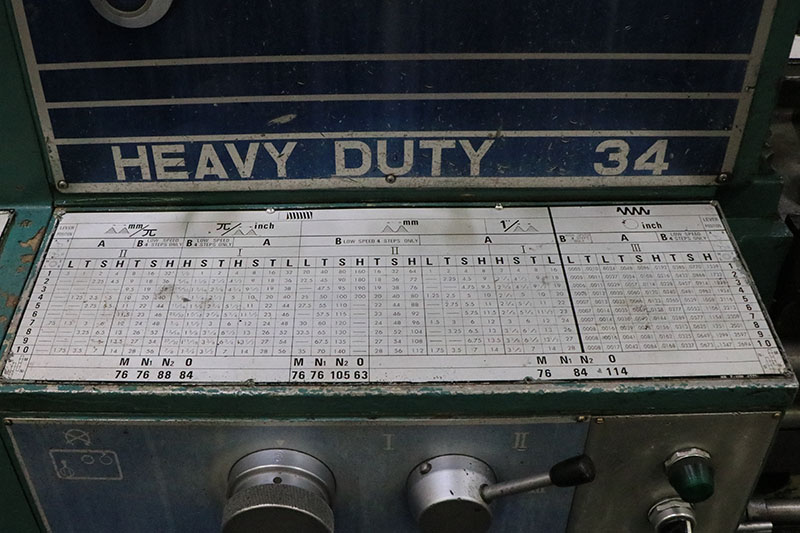

- INCH & METRIC THRADING CAPABILITY

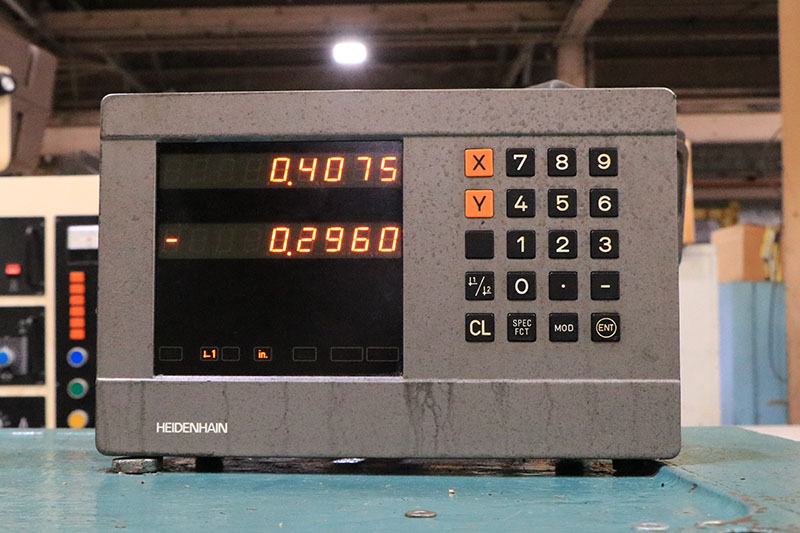

- HEIDENHAIN TWO AXIS DIGITAL READOUT

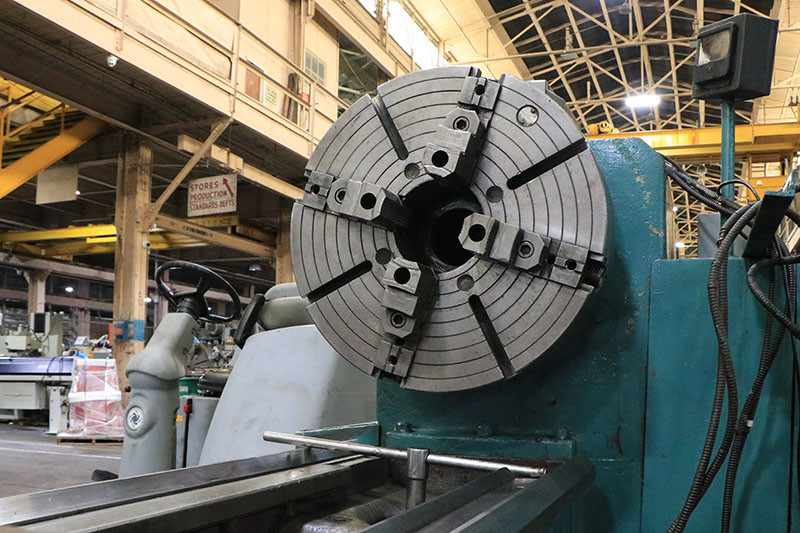

- 24" CUSHMAN 4-JAW CHUCK

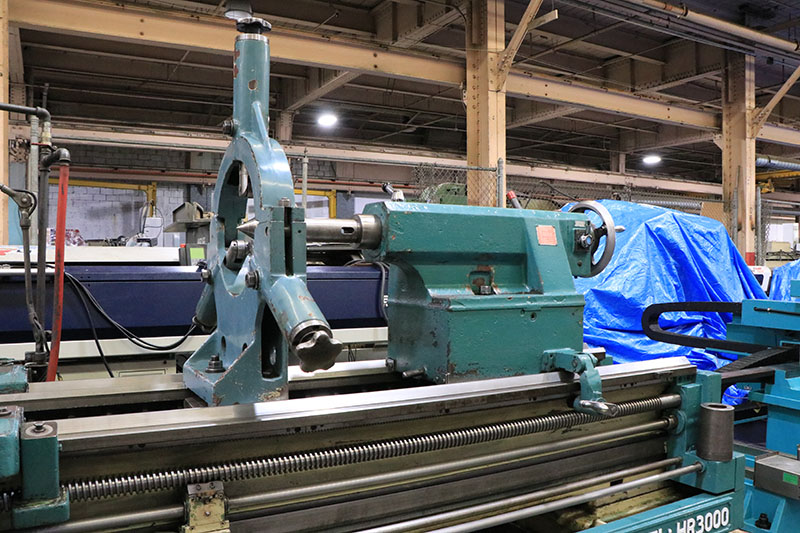

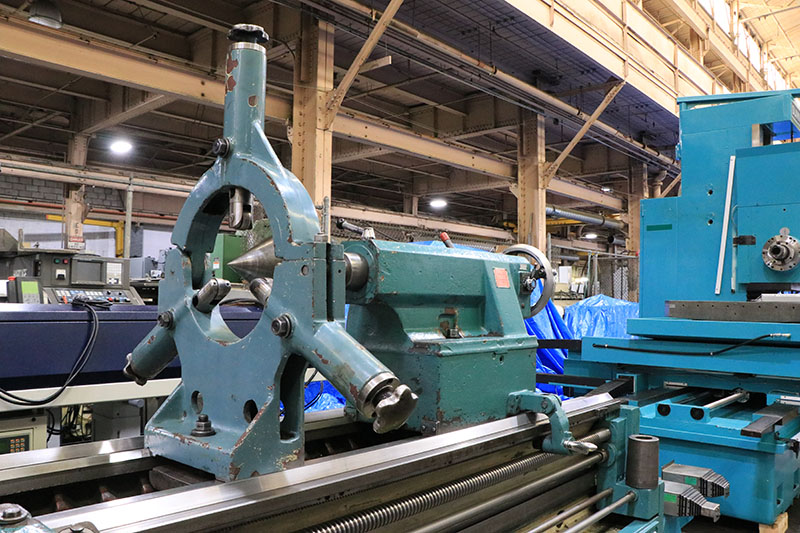

- 13" CAPACITY ROLLER TYPE STEADY REST

- RAPID TRAVERSE

- TWO SPEED TAILSTOCK

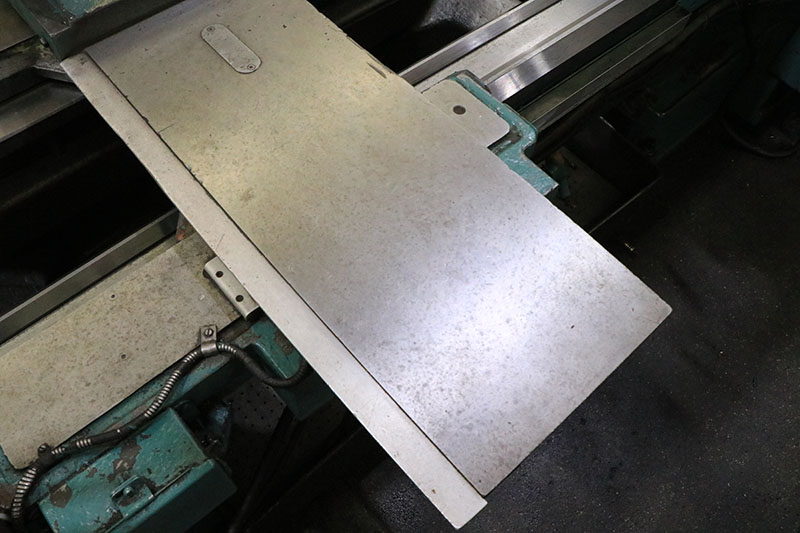

- COOLANT SYSTEM WITH REMOVABLE CHIP PANS

- 20 HORSE POWER MAIN DRIVE MOTOR



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
