Kitamura Mycenter HX1000i HORIZONTAL MACHINING CENTERS (HMC's)

Price on Request

Make:
Kitamura
Model:
Mycenter HX1000i
Year:
2010
Ref #:
158294

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

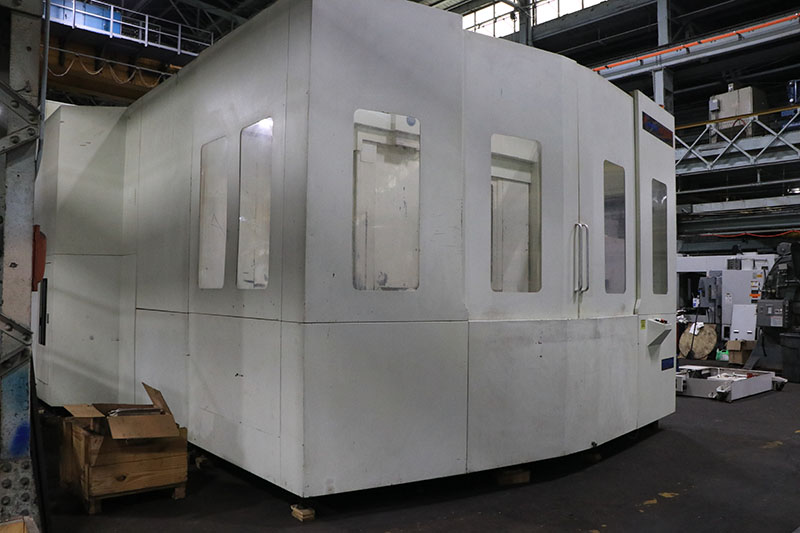

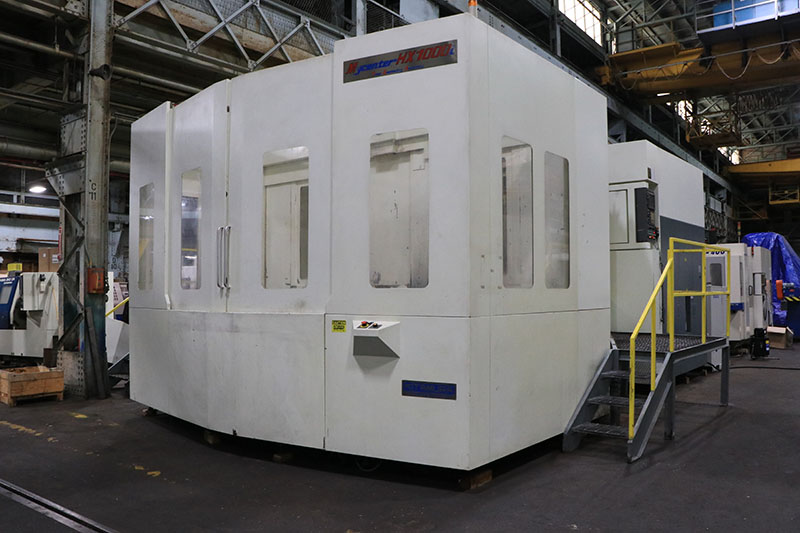

KITAMURA HORIZONTAL MACHINING CENTER

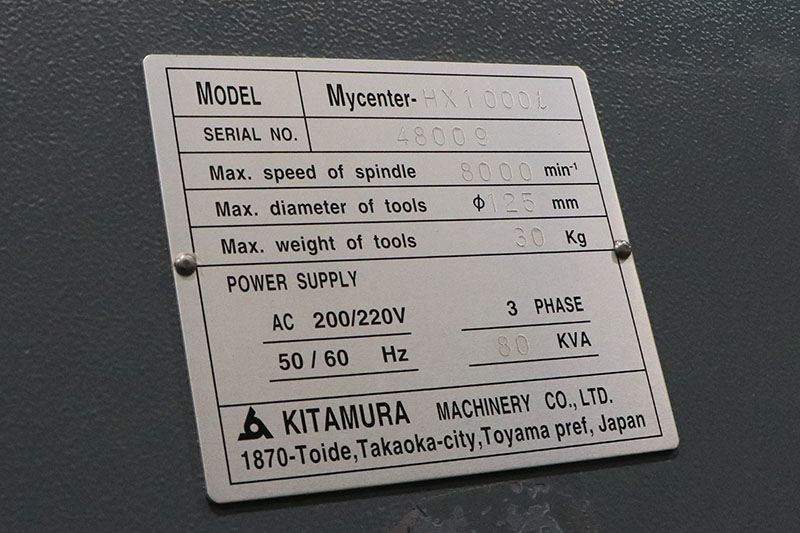

MODEL: HX1000i,  S/N: 48009, MFG: 2010
39" PALLETS, FULL 4TH, TSC, PROBING, 150 ATC,

SPECIFICATIONS:

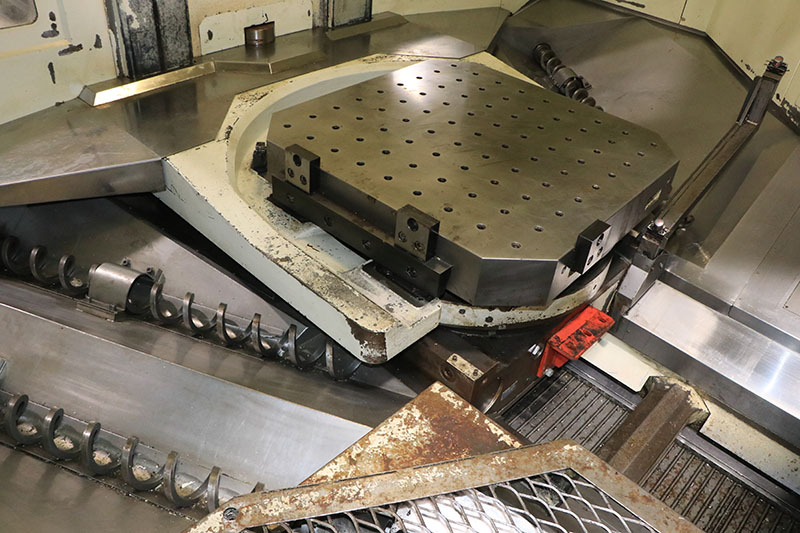

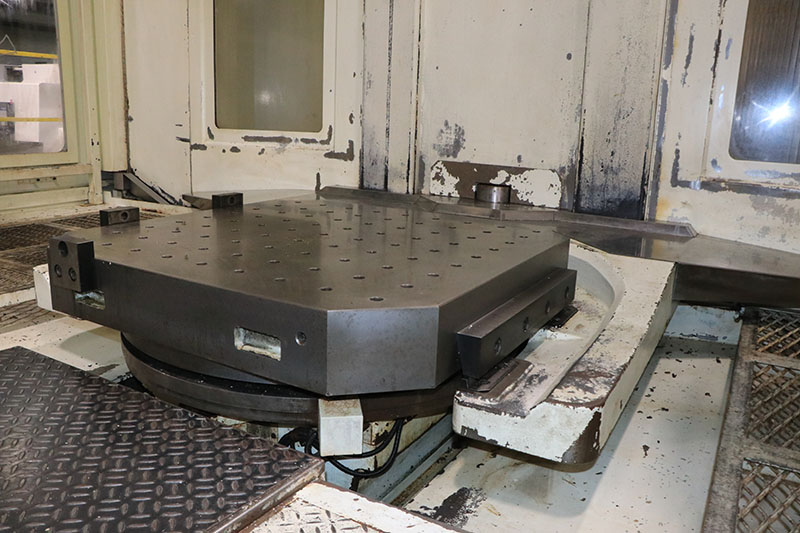

PALLET SIZE...................... 39.37" X 39.37"
PALLET INDEXING.................. FULL 4TH AXIS
NUMBER OF PALLETS................ (2)
TABLE LOAD CAPACITY.............. 6,600 LBS
X-AXIS TRAVEL.................... 80.31"
Y-AXIS TRAVEL.................... 51.97"
Z-AXIS TRAVEL.................... 53.94"

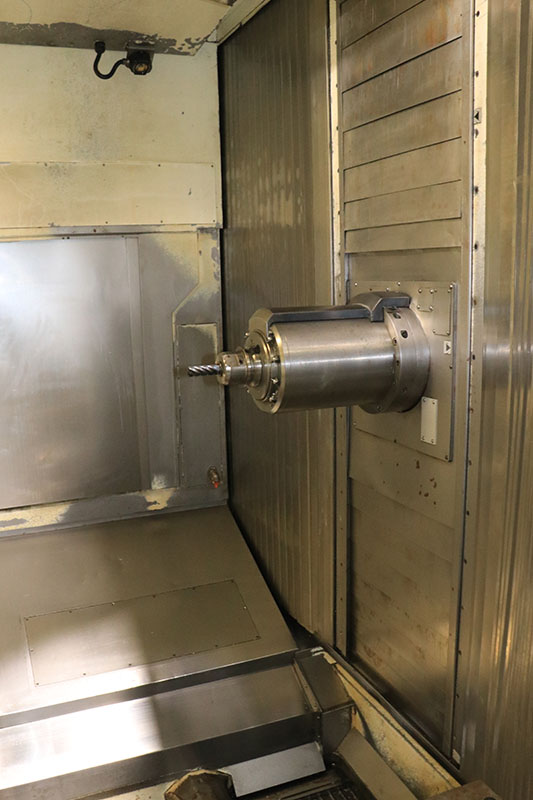

SPINDLE SPEED.................... 8,000 RPM (4-STEP, GEAR DRIVEN)
SPINDLE MOTOR.................... 40/30 HP
SPINDLE TAPER.................... BT 50
CUTTING FEED RATE (X/Y/Z)........ 1417 IPM
RAPID TRAVERSE RATE (X/Y/Z)...... 1417 IPM

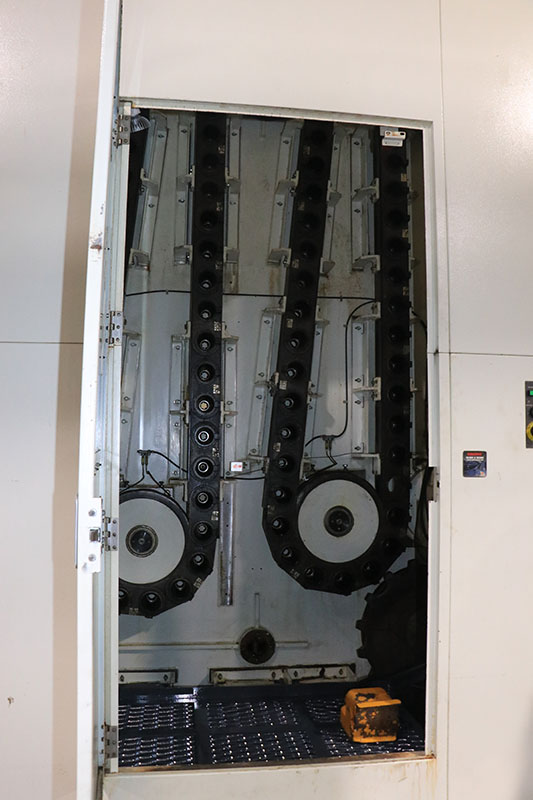

TOOL POSITIONS................... 150 ATC

EQUIPPED WITH:

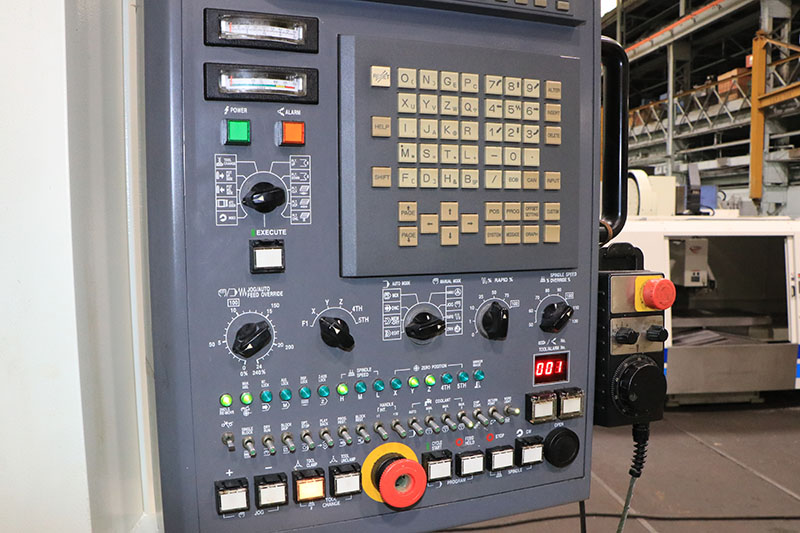

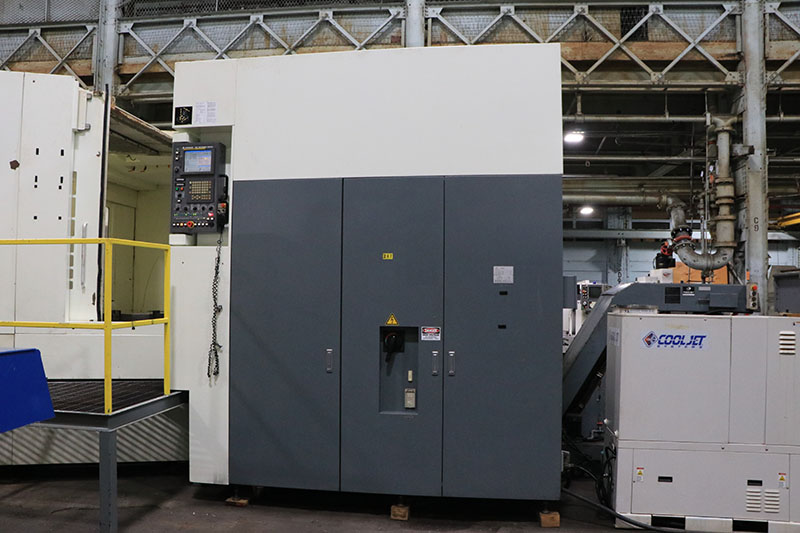

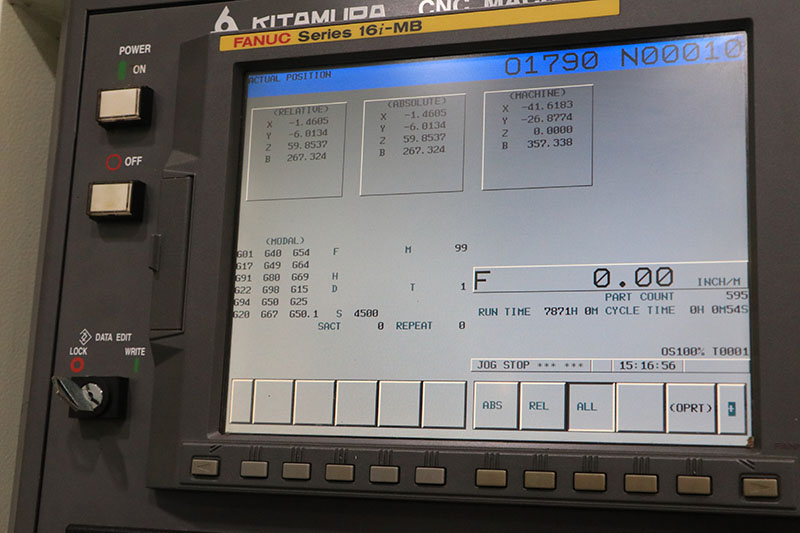

FANUC MODEL: 16i-MB CONTROL
HIGH-PRESSURE THROUGH-SPINDLE COOLANT (1,000 PSI)

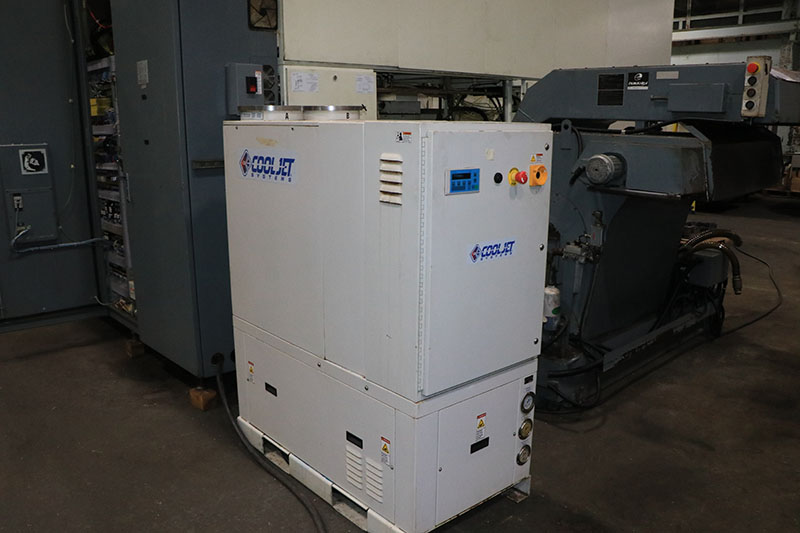

COOLJET HIGH-PRESSURE COOLANT SYSTEM
FULL 4TH AXIS PALLET CONTOURING
RENISHAW PROBING SYSTEM

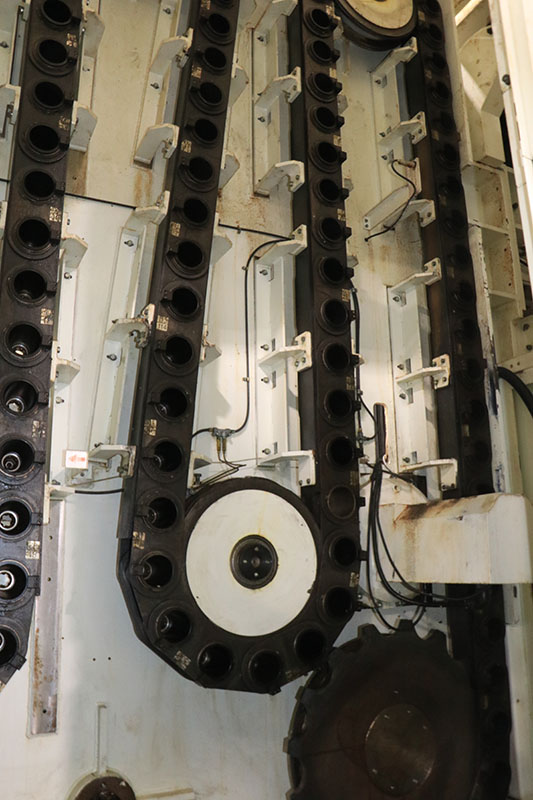

150 TOOL POSITIONS

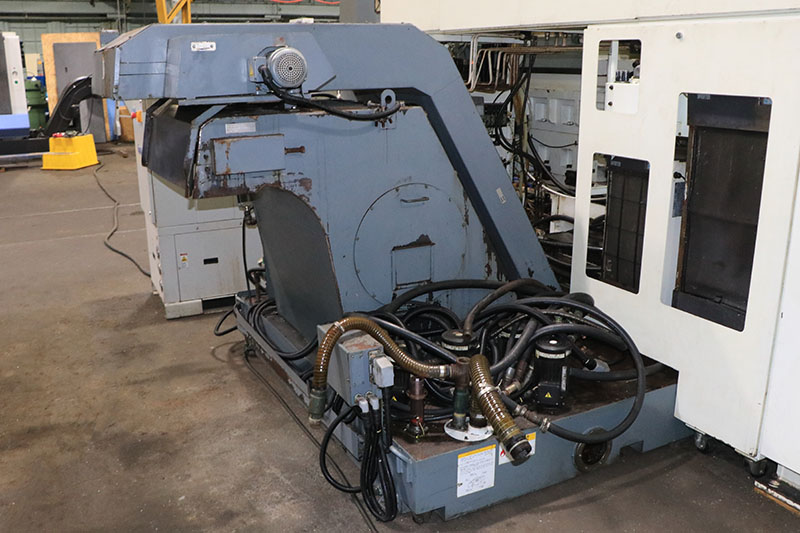

CHIP CONVEYOR
GEARBOX
BOX WAY
LINEAR SCALE FEEDBACK (ALL AXES)
TWIN BALL SCREWS & TWIN SERVO MOTORS
AI NANO HIGH PRECISION CONTOUR CONTROL (500 BLOCK LOOK AHEAD)
TOOL RETRACT & RECOVER
PROGRAM RESTART
APPROX (70) BT50 TOOL HOLDERS

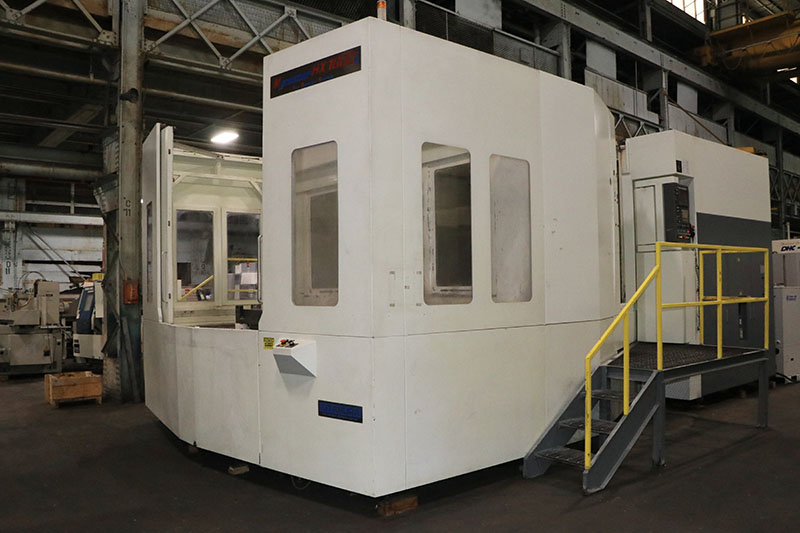

(2) HEAVY DUTY FIXED CUSTOM ENTRY PLATFORMS WITH HANDRAILS

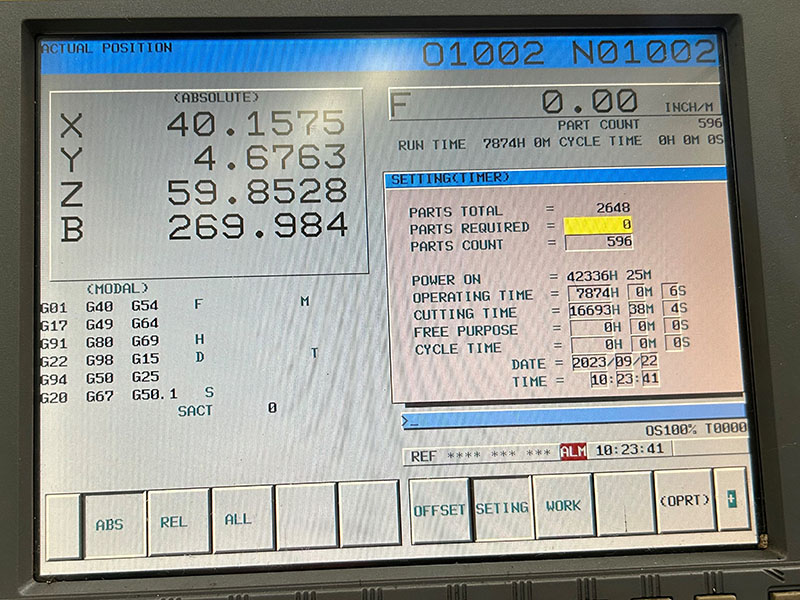

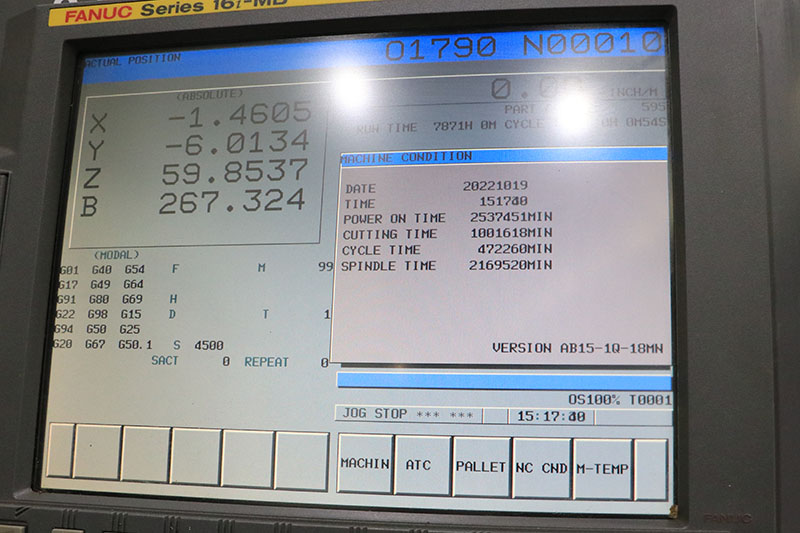

** AS OF OCTOBER/2022, CUTTING TIME - 16,629 HOURS **

MACHINE CUT PRIMARILY ALUMINUM & STAINLESS
REPLACEMENT COST OF SYSTEM, AS EQUIPPED - $1,500,000
