Kiwa KNH-426X HORIZONTAL MACHINING CENTERS (HMC's)

$39,500

Make:
Kiwa
Model:
KNH-426X
Year:
2002
Ref #:
162466

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

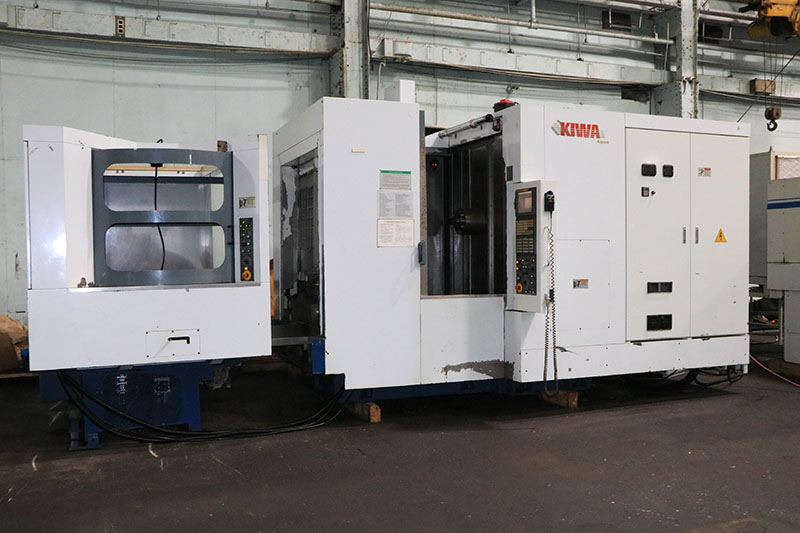

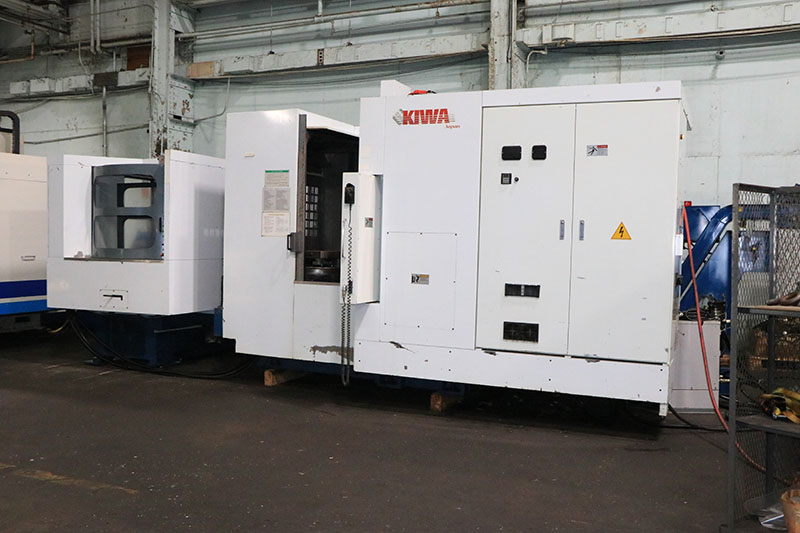

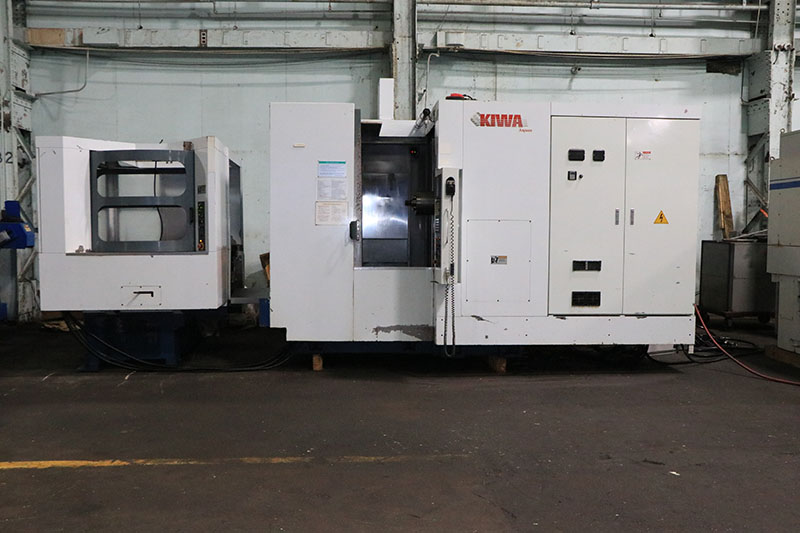

KIWA 4-AXIS HORIZONTAL MACHINING CENTER

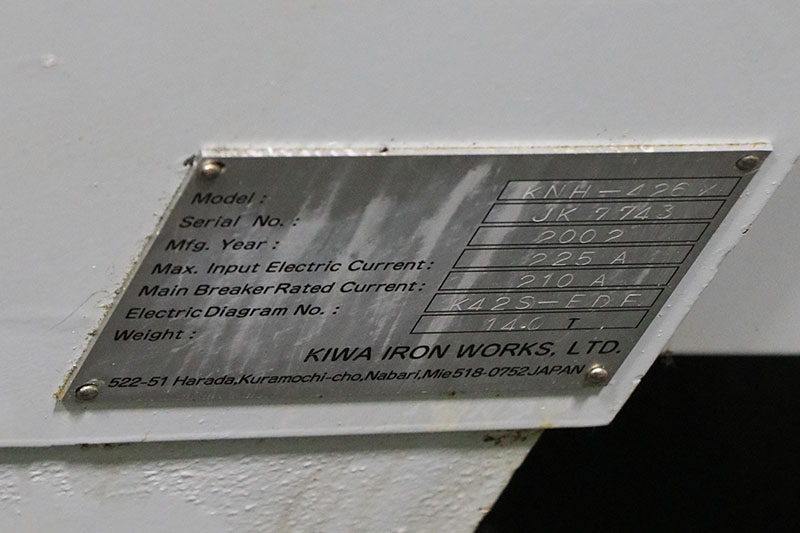

MODEL: KNH-426X 6APC,  S/N: JK7743,  NEW: 2002

SPECIFICATIONS:
PALLET SIZE .......................... 15.7" X 15.7" (400mm)
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 23.6" (600mm)
  Y-AXIS TRAVEL ...................... 24" (610mm)
  Z-AXIS TRAVEL ...................... 26.2" (665mm)
SPINDLE TO PALLET TOP ................ 3.1" - 27.1"
SPINDLE NOSE TO PALLET CENTER ........ 5.9" - 32.1"
MAXIMUM WORKPIECE WEIGHT ............. 881 LBS.
MAXIMUM WORPIECE SIZE ................ 24" x 27.6"

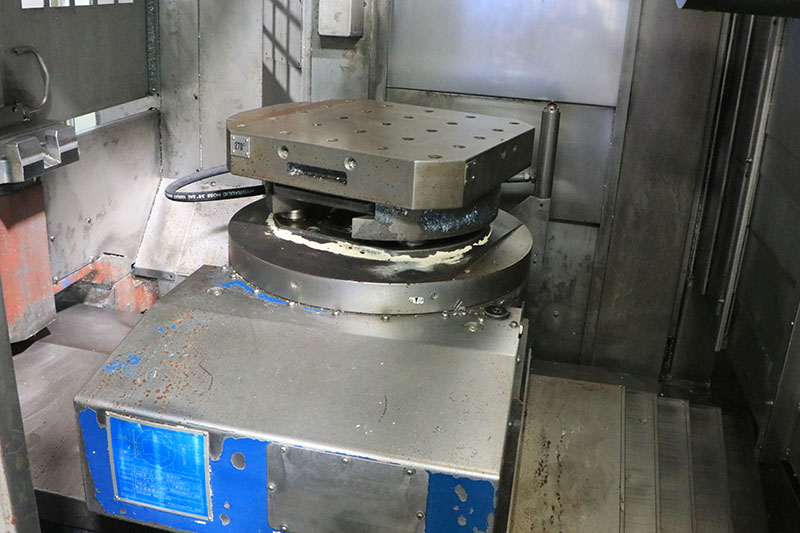

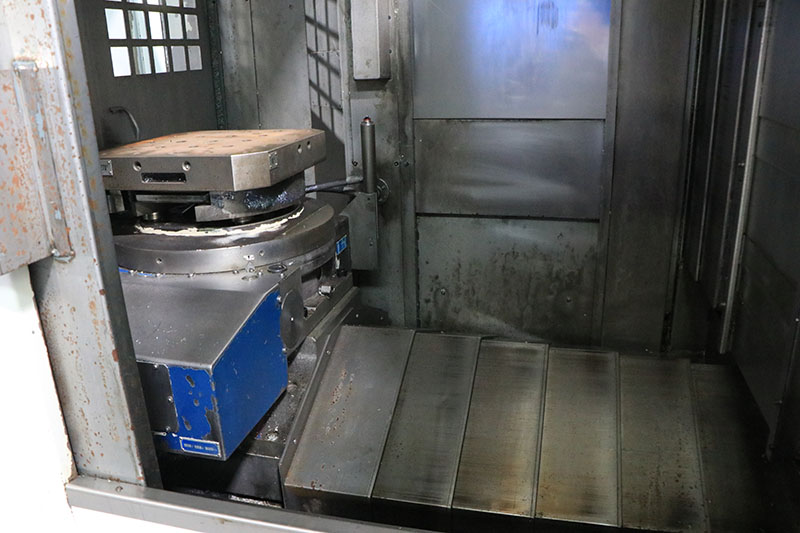

NUMBER OF PALLET STATIONS ............ 6
PALLET INDEXING ...................... .001 DEGREE
RAPID TRAVERSE RATE (X/Y/Z) .......... 2,362 IPM
SPINDLE TAPER ........................ CT #40 BIG PLUS
SPINDLE SPEEDS ....................... 0 - 12,000 RPM
TOOLCHANGER CAPACITY ................. 120 STATIONS
SPINDLE DRIVE ........................ 35 HP
APPROXIMATE MACHINE DIMENSIONS ....... 125" x 216" x 110.4"H
APPROXIMATE MACHINE WEIGHT ........... 31,000 LBS

EQUIPPED WITH:

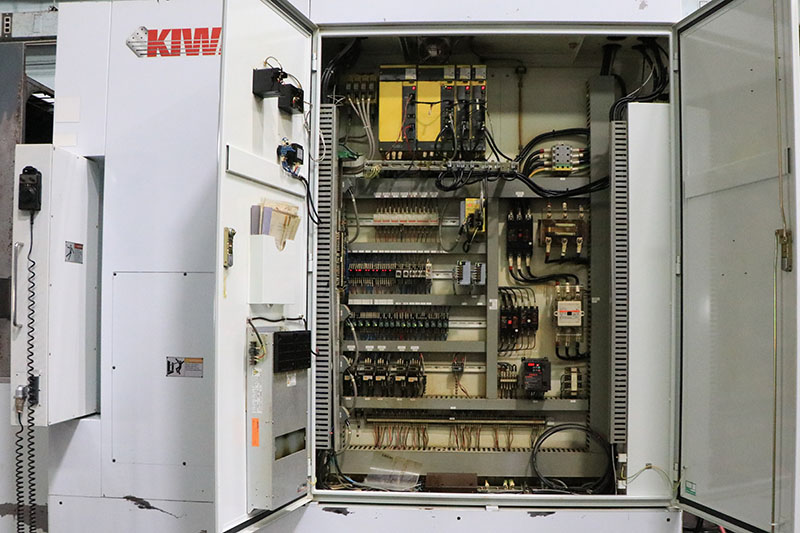

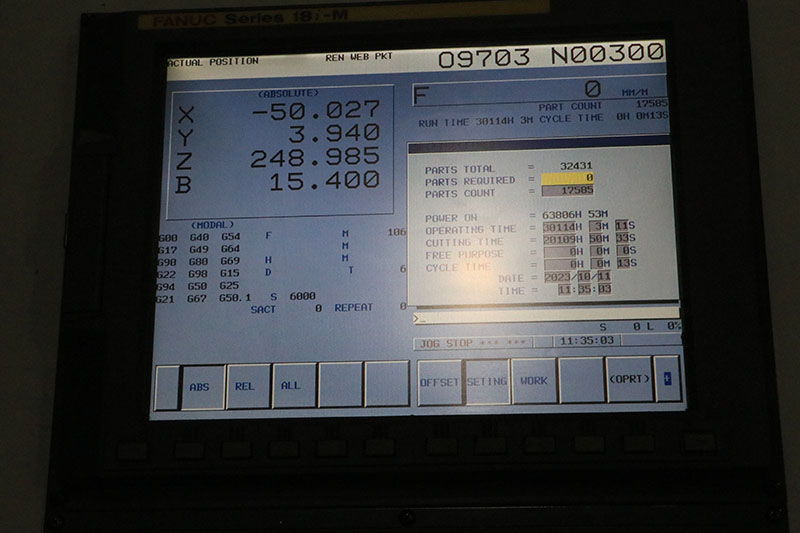

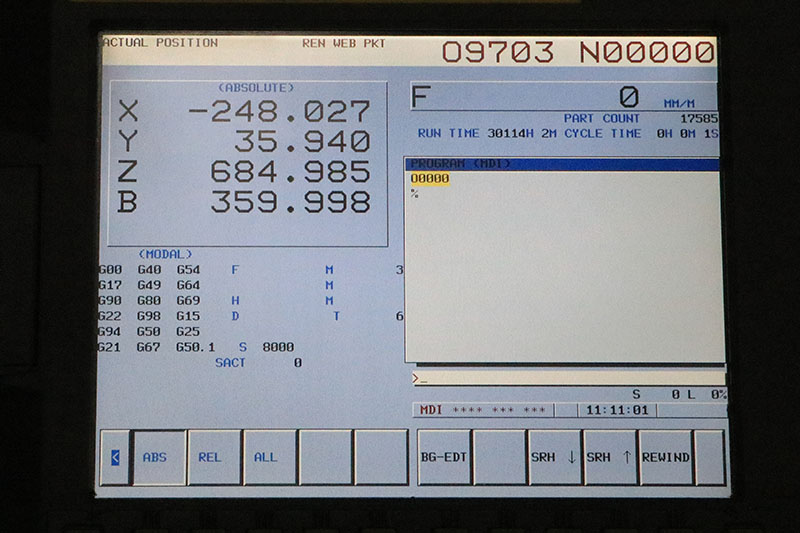

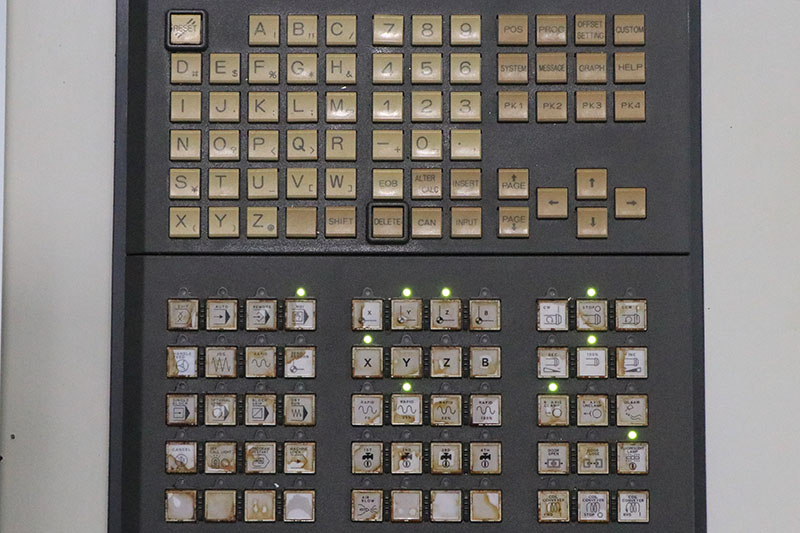

-FANUC MODEL: 18iMB CONTROL

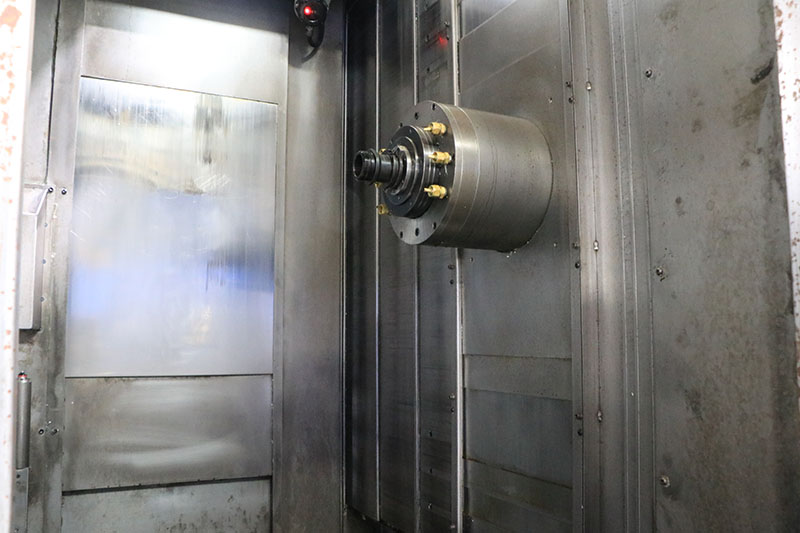

-35 HP SPINDLE DRIVE, 12,000 RPM SPINDLE
-THRU-SPINDLE COOLANT

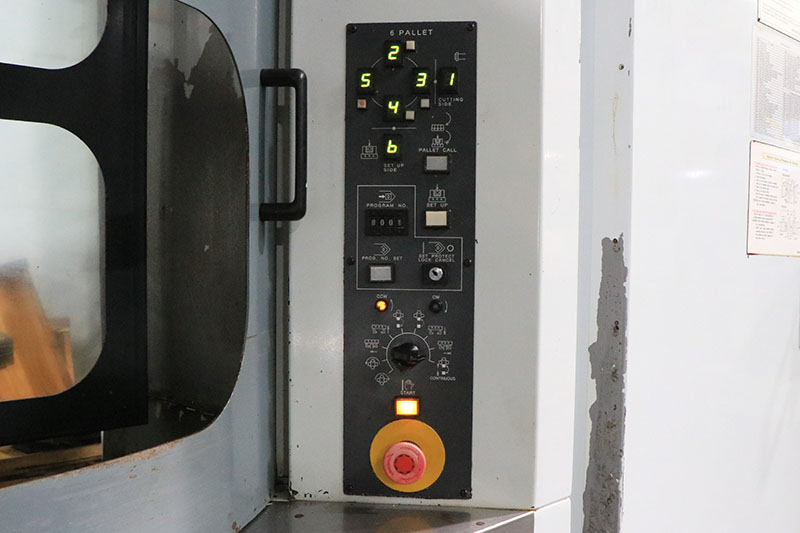

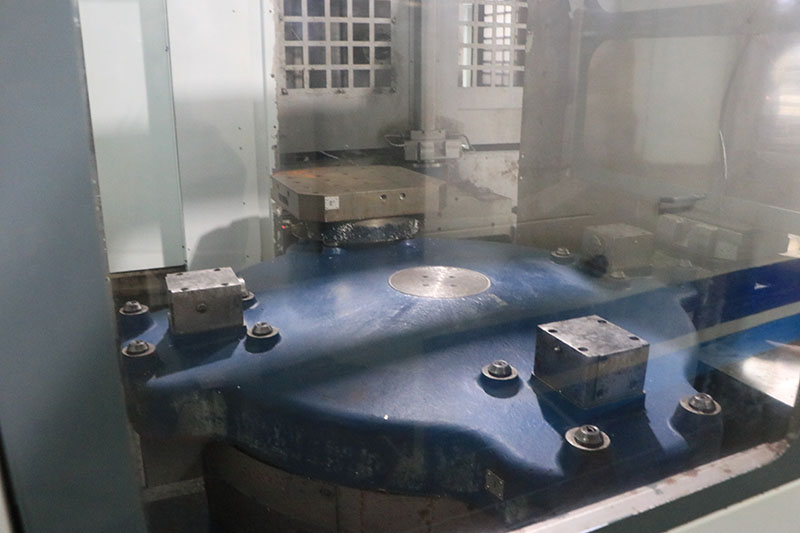

-6 PALLET (AUOTMATIC PALLET CHANGER)

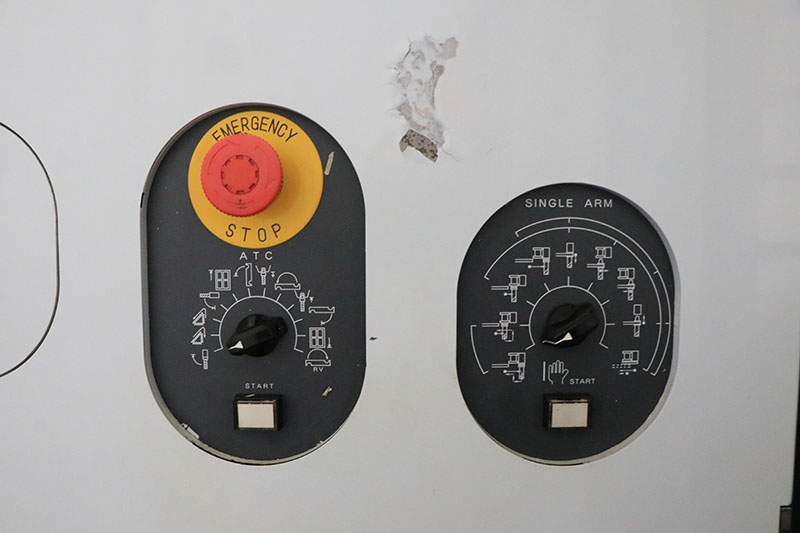

-120 STATION AUTOMATIC TOOL CHANGER
-MARPOSS TOOL SETTING PROBE
-RENISHAW MP700 OPTICAL TYPE SPINDLE PROBE
-CHILLER
-MICROFINE 2-CHIP CONVEYOR

 INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
