Kuraki KBM-11X CNC TABLE TYPE HORIZONTAL BORING MILLS

Price on Request

Make:: Kuraki

Model:: KBM-11X

Year:: 2002

Ref #:: 178954

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

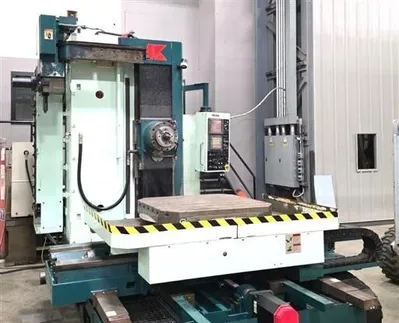

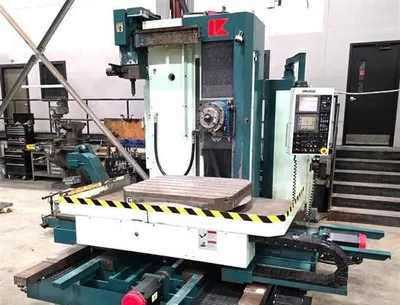

4.3" KURAKI CNC TABLE TYPE
HORIZONTAL BORING MILL
MODEL: KBM-11X, NEW: 2002

SPECIFICATIONS:

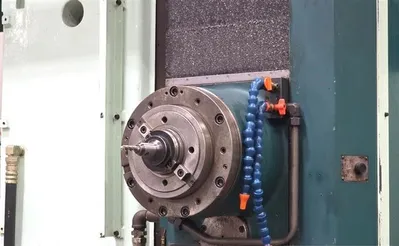

SPINDLE DIAMETER ................ 4.33"
TAPER IN SPINDLE ................ #50
VERTICAL TRAVEL, Y-AXIS ......... 47.24"
CROSS TRAVEL, X-AXIS ............ 59.06"
SADDLE TRAVEL, W-AXIS ........... 27.57"
SPINDLE TRAVEL, Z-AXIS .......... 13.78"
SPINDLE SPEEDS, 2-RANGES ........ 5-3000 RPM

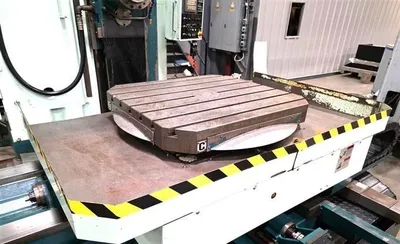

ROTARY TABLE SIZE ............... 37.4" X 41.34"
TABLE LOAD CAPACITY ............. 7,500 LBS.
ROTARY TABLE, INDEXING .......... 0.001 DEGREES
MACHINE WEIGHT .................. 33,000 LBS.

EQUIPPED WITH:

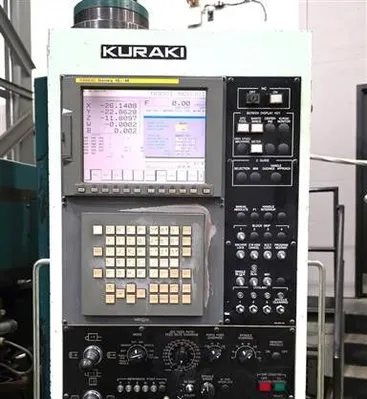

FANUC 16IMB 4-AXIS CNC CONTROL
30-STATON AUTOMATIC TOOL CHANGER
B-AXIS ROTARY TABLE
COOLANT SYSTEM
FULL CHIP AND SPLASH ENCLOSURE
CHIP AUGER AND CHIP CONVEYOR
30 HP SPINDLE MOTOR
