Toshiba BTD-110.R16 CNC TABLE TYPE HORIZONTAL BORING MILLS

Price on Request

Make:: Toshiba

Model:: BTD-110.R16

Year:

Ref #:: 178868

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

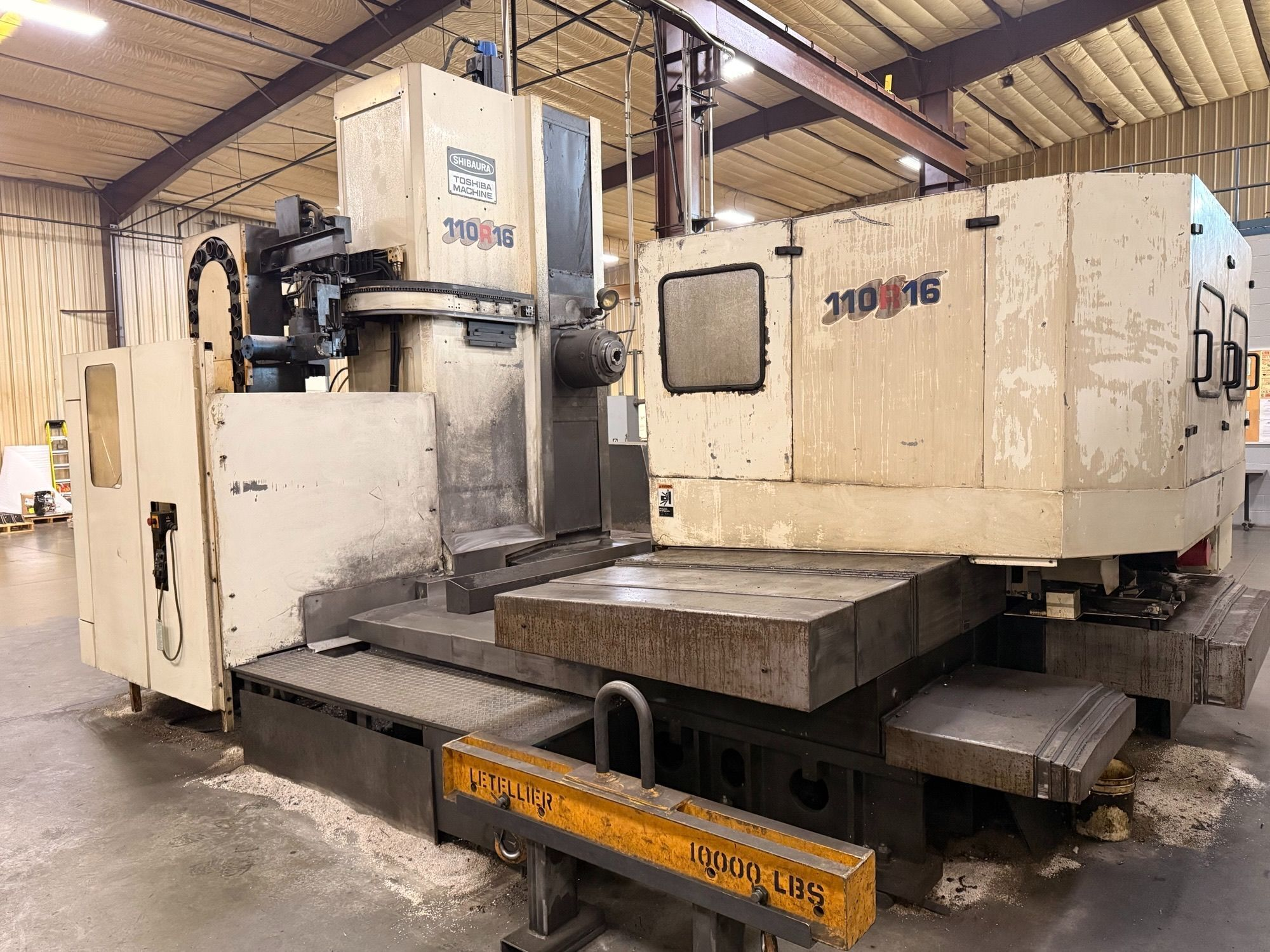

4.3" TOSHIBA CNC TABLE TYPE
HORIZONTAL BORING MILL
MODEL: BTD-110.R16

SPECIFICATIONS:
X-AXIS TRAVEL (CROSS MOVEMENT OF TABLE) .... 78.7"
Y-AXIS TRAVEL (VERTICAL TRAVEL OF SPINDLE) . 59.1"
Z-AXIS TRAVEL (LONGITUDINAL TRAVEL OF TABLE) 57.1"
W-AXIS TRAVEL (SPINDLE EXTENSION) .......... 15.7"
TABLE WORKING SURFACE ...................... 55.1" X 63"
TABLE LOADING CAPACITY ..................... 13,860 LBS
B-AXIS TABLE INDEXING ...................... 0.0001 DEGREE
SPINDLE SPEEED RANGE ....................... 5 TO 3,000 RPM

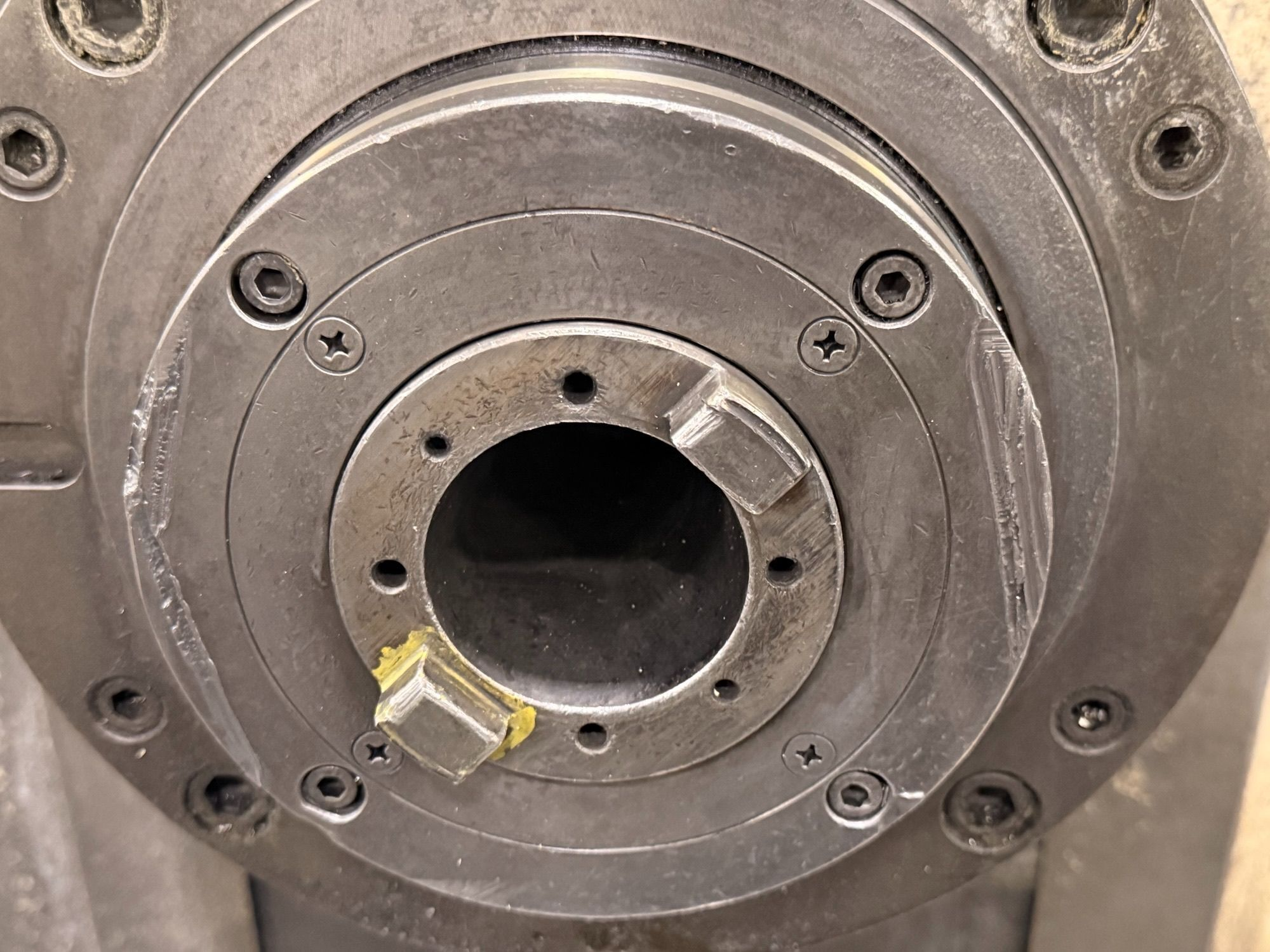

SPINDLE TAPER .............................. CAT-50
DIMENSIONS ................................. 201" X 236" X 156" H
WEIGHT ..................................... 61,600 LBS

EQUIPPED WITH:

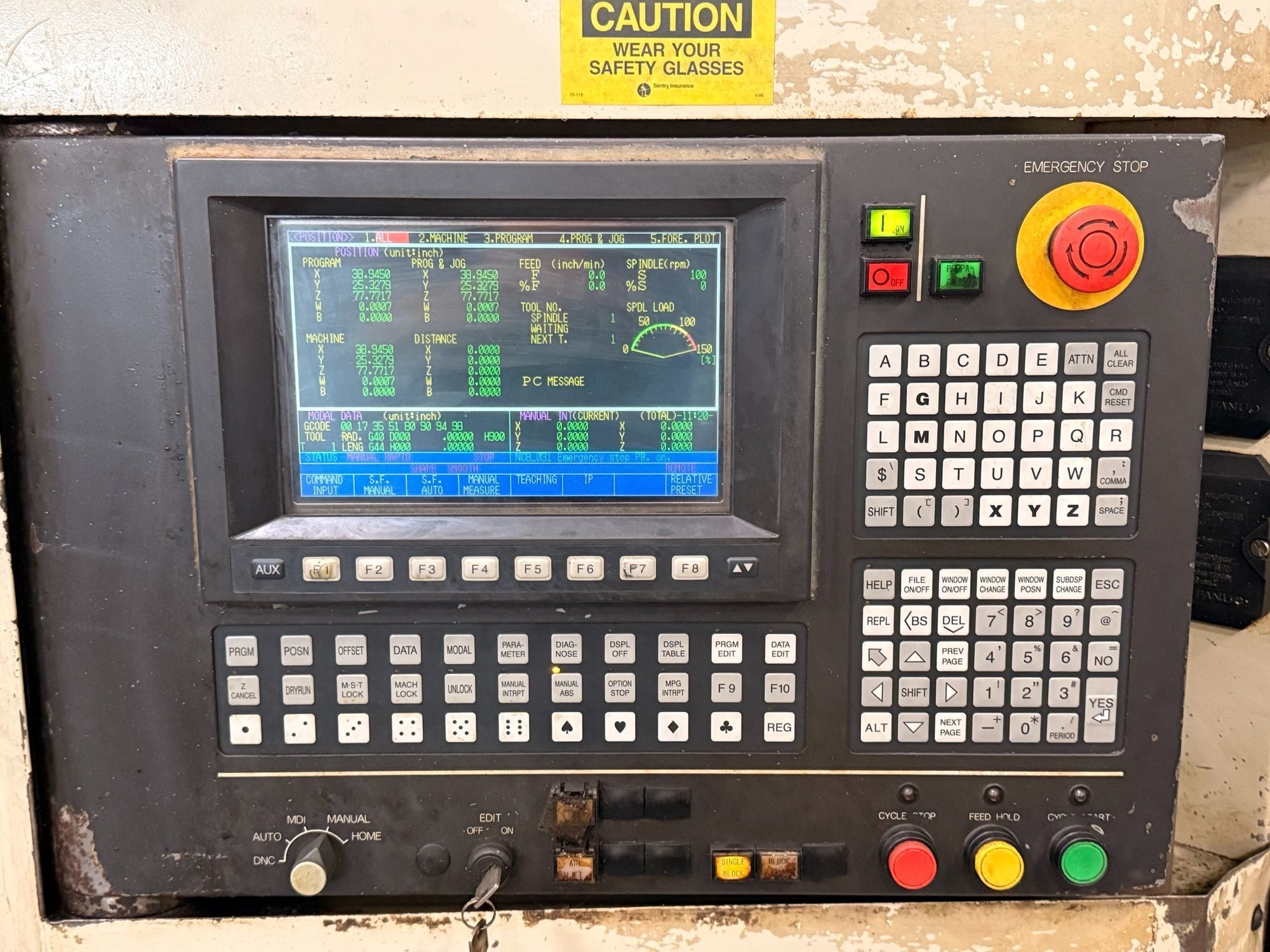

TOSHIBA TOSNUC 888 CNC CONTROL
HIGH SPEED SPINDLE OPTION 40 TO 8,000 RPM
FULL MANUAL PENDANT CONTROL
CHIP CONVEYOR
TABLE GUARDS
INSPECT UNDER POWER IN PLANT
