LeBlond 15" Regal Servo-Shift ENGINE LATHES

$8,950

Make:
LeBlond
Model:
15" Regal Servo-Shift
Year:
1979
Ref #:
163929

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

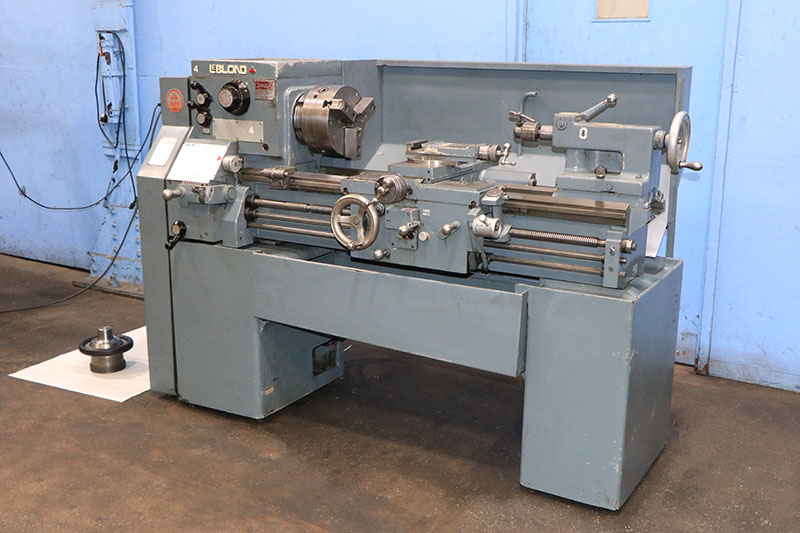

15" x 30" LEBLOND SERVO SHIFT ENGINE LATHE
MODEL: 15" REGAL, S/N: 11C-1463, NEW: 1979

SPECIFICATIONS:
SWING OVER BED .................... 15-1/2"
SWING OVER CROSS SLIDE ............ 9-1/2"
DISTANCE BETWEEN CENTERS .......... 30"
SPINDLE NOSE ...................... L1
HOLE THRU SPINDLE ................. 2-17/64"
SPINDLE SPEED RANGE (12) .......... 30 - 1,200 RPM
LONGITUDINAL FEED RANGE (48) ...... .0018" - .104" IPR
CROSS FEEDS HALF THE VALUES OF LONGITUDINAL
THREADING RANGE ENGLISH (48) ...... 2 - 112 TPI
TAILSTOCK SPINDLE TRAVEL .......... 5"
TAILSTOCK SPINDLE TAPER ........... #4 MT
APPROX WEIGHT ..................... 3,300 LBS
APPROX DIMENSIONS ................. 80"L x 40"W x 51"H

EQUIPPED WITH:
9" 3-JAW CHUCK
HARDINGE-SJORGEN 5C COLLET CHUCK
FOURWAY TOOLPOST
THREAD DIAL INDICATOR
JACOBS DRILL CHUCK
MICROMETER CARRIAGE STOP
COOLANT SYTEM WITH REMOVEABLE CHIP PAN
5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
