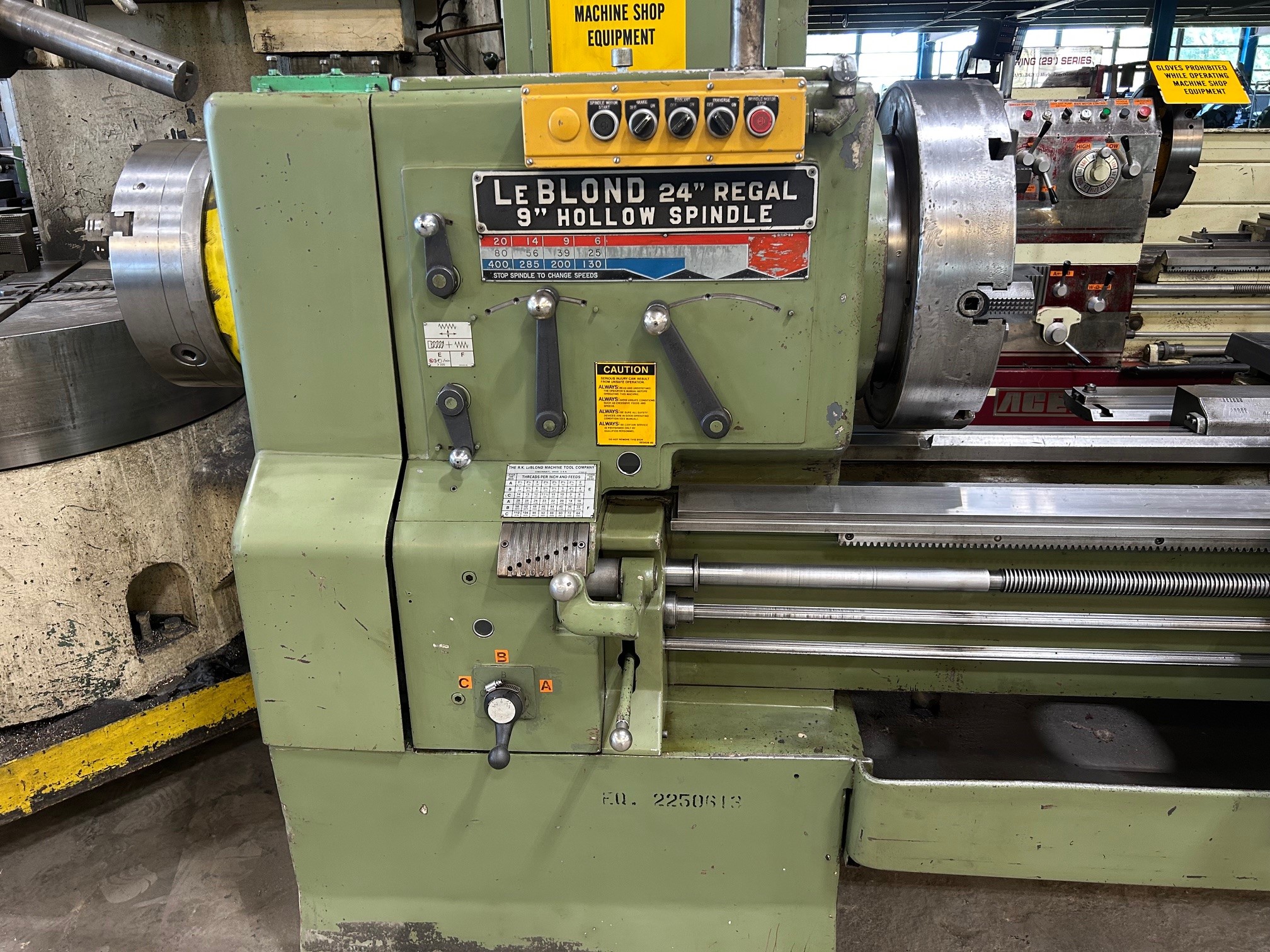

LeBlond 24" REGAL 9" Hollow Spindle HOLLOW SPINDLE ENGINE LATHES

Price on Request

Make:: LeBlond

Model:: 24" REGAL 9" Hollow Spindle

Year:

Ref #:: 178579

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

26" X 144" LEBLOND REGAL ENGINE LATHE

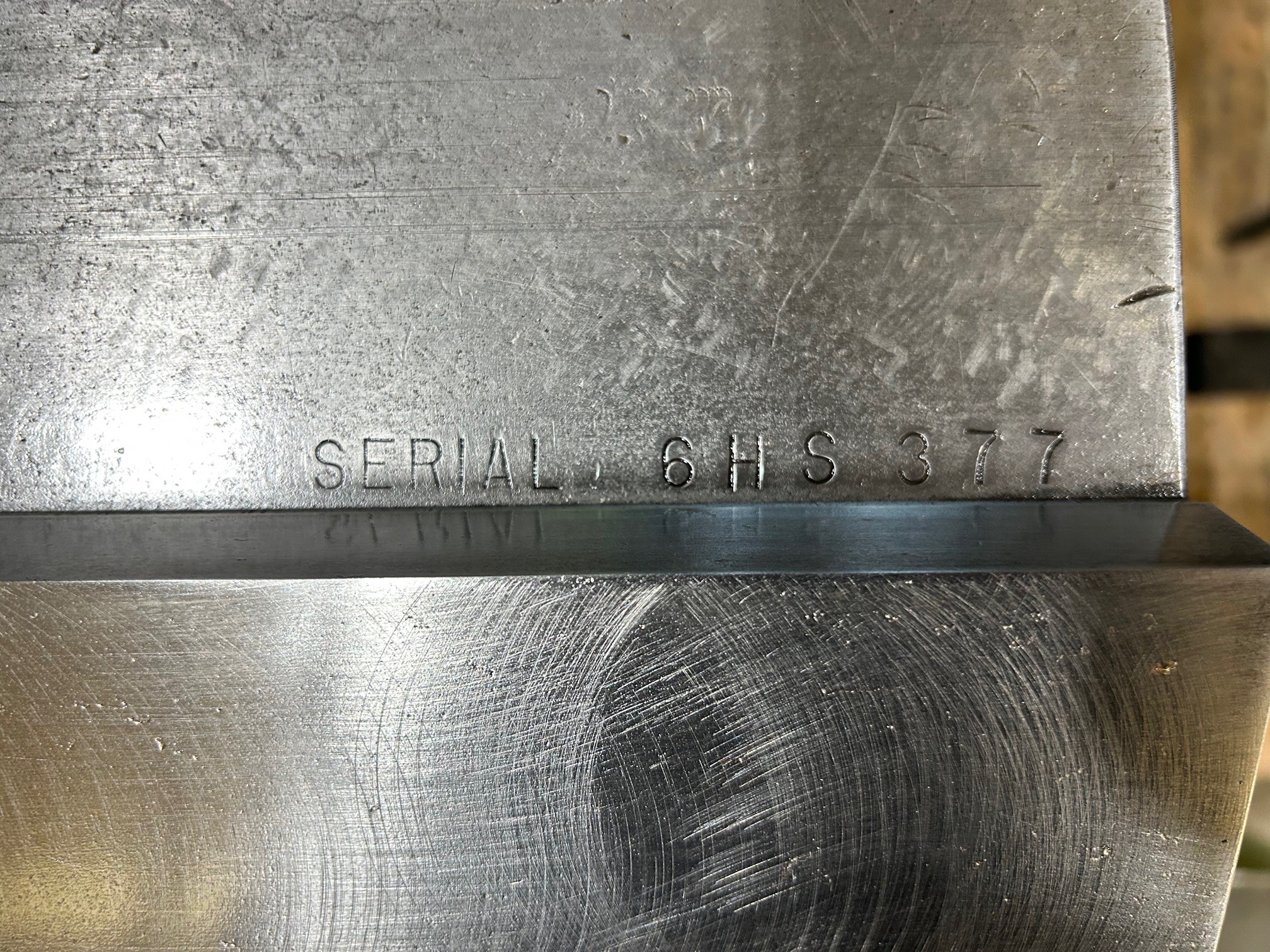

MODEL: 24" REGAL 9" HOLLOW SPINDLE,  S/N: 6H377

SPECIFICATIONS:
SWING OVER BED AND CARRIAGE WINGS ... 26"
SWING OVER CROSS SLIDE  ............. 18-1/4"
DISTANCE BETWEEN CENTERS ............ 240"
SPINDLE NOSE FLANGED ................ 15"
HOLE THRU SPINDLE ................... 9"
WIDTH OF BED ........................ 17"
SPINDLE SPEED RANGE (12) ............ 6 – 400 RPM
FEED RANGE (48) ..................... 0.0036" - .205" IPR
THREADING RANGE ENGLISH (48) ........ 2 – 112 TPI
TAILSTOCK SPINDLE TRAVEL ............ 7-1/2”
TAILSTOCK SPINDLE DIAMETER .......... 3-1/8”
TAILSTOCK SPINDLE TAPER ............. #5 MORSE
APPROX. WEIGHT  ..................... 10,500 LBS
APPROX. DIMENSIONS .................. 220”L X 60”W X 56”H

EQUIPPED WITH:

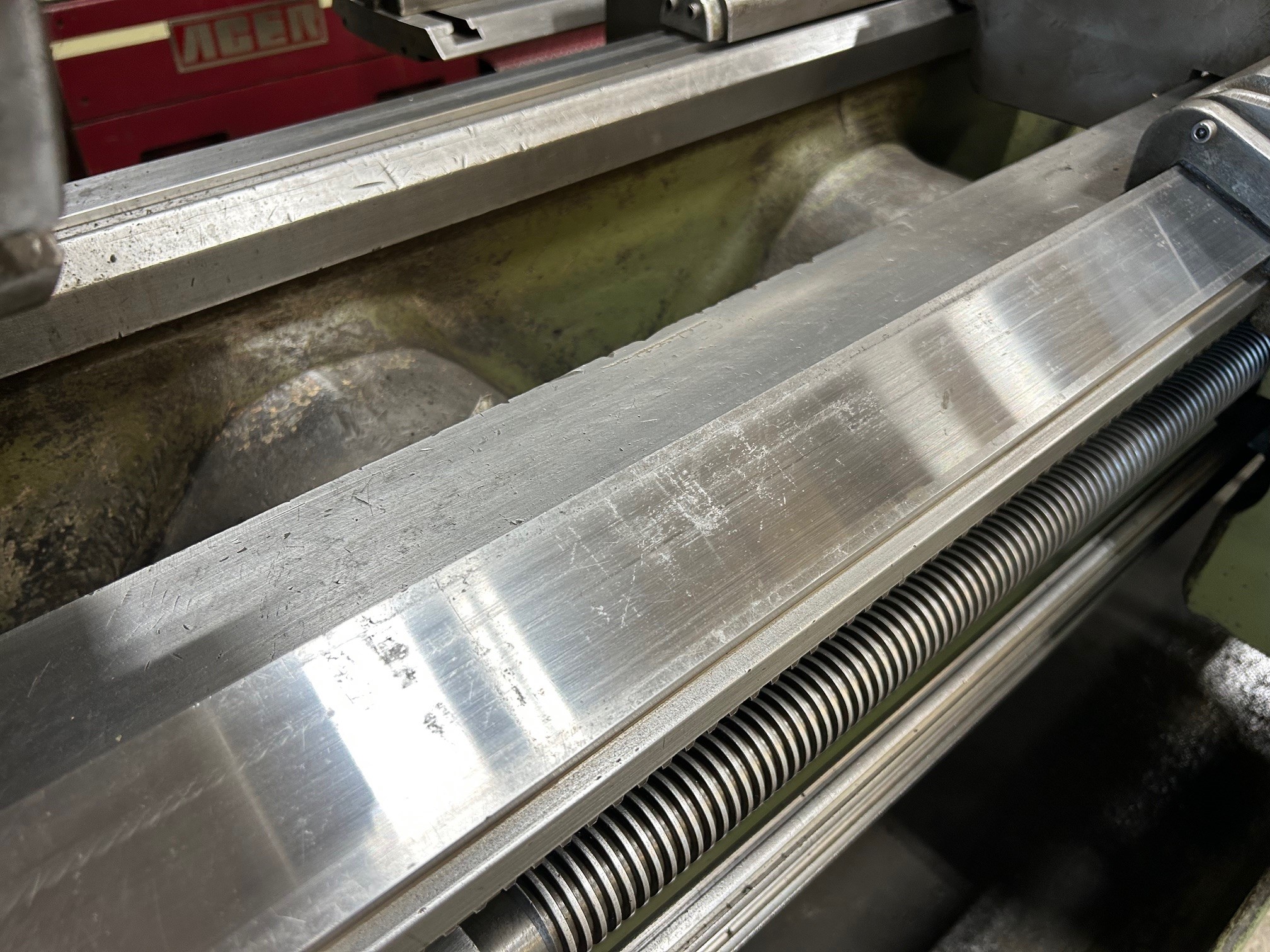

HARDENED AND GROUND STEEL BEDWAYS
TAPER TURNING ATTACHMENT

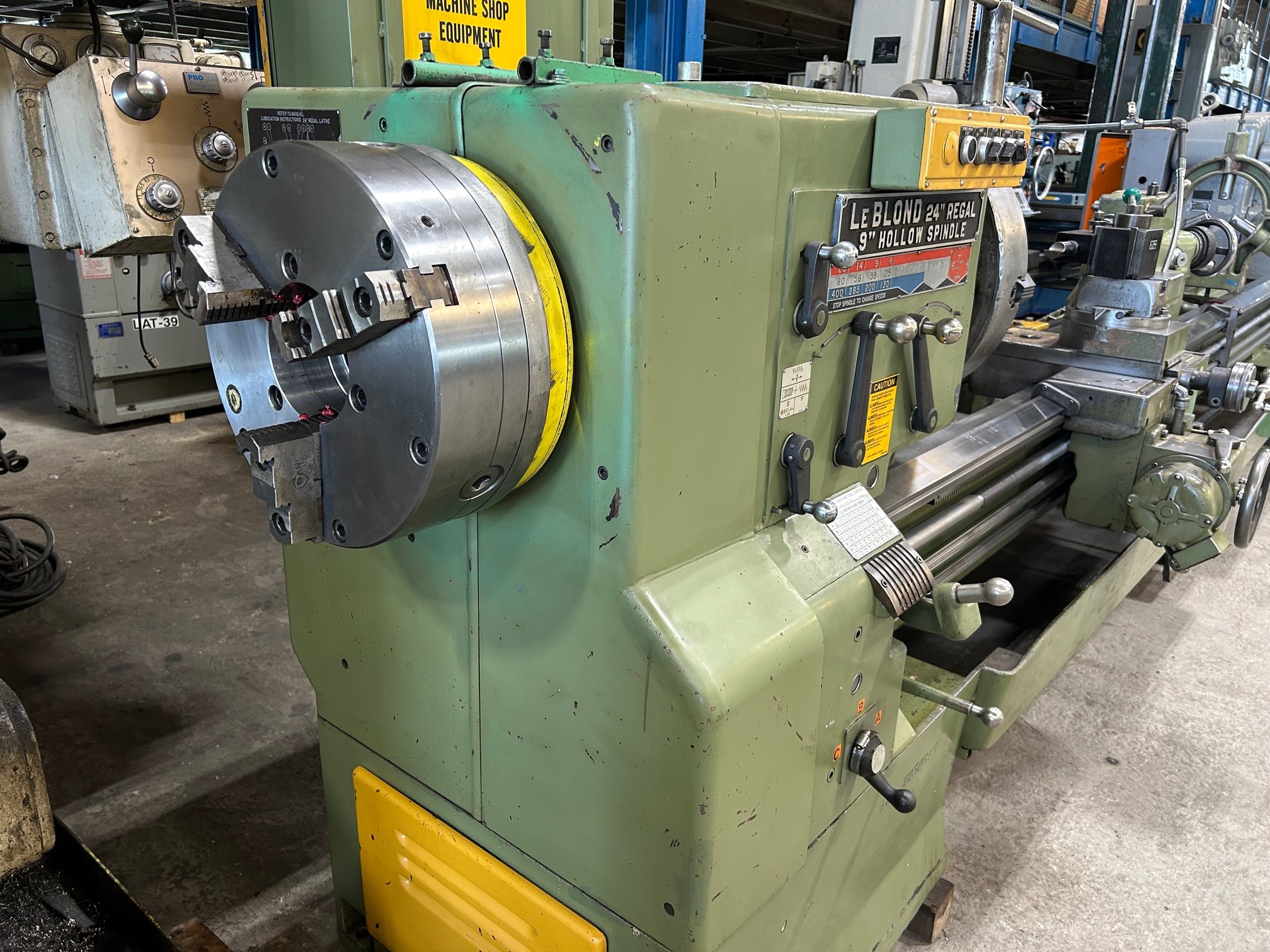

20" DIAMETER 3-JAW CHUCK

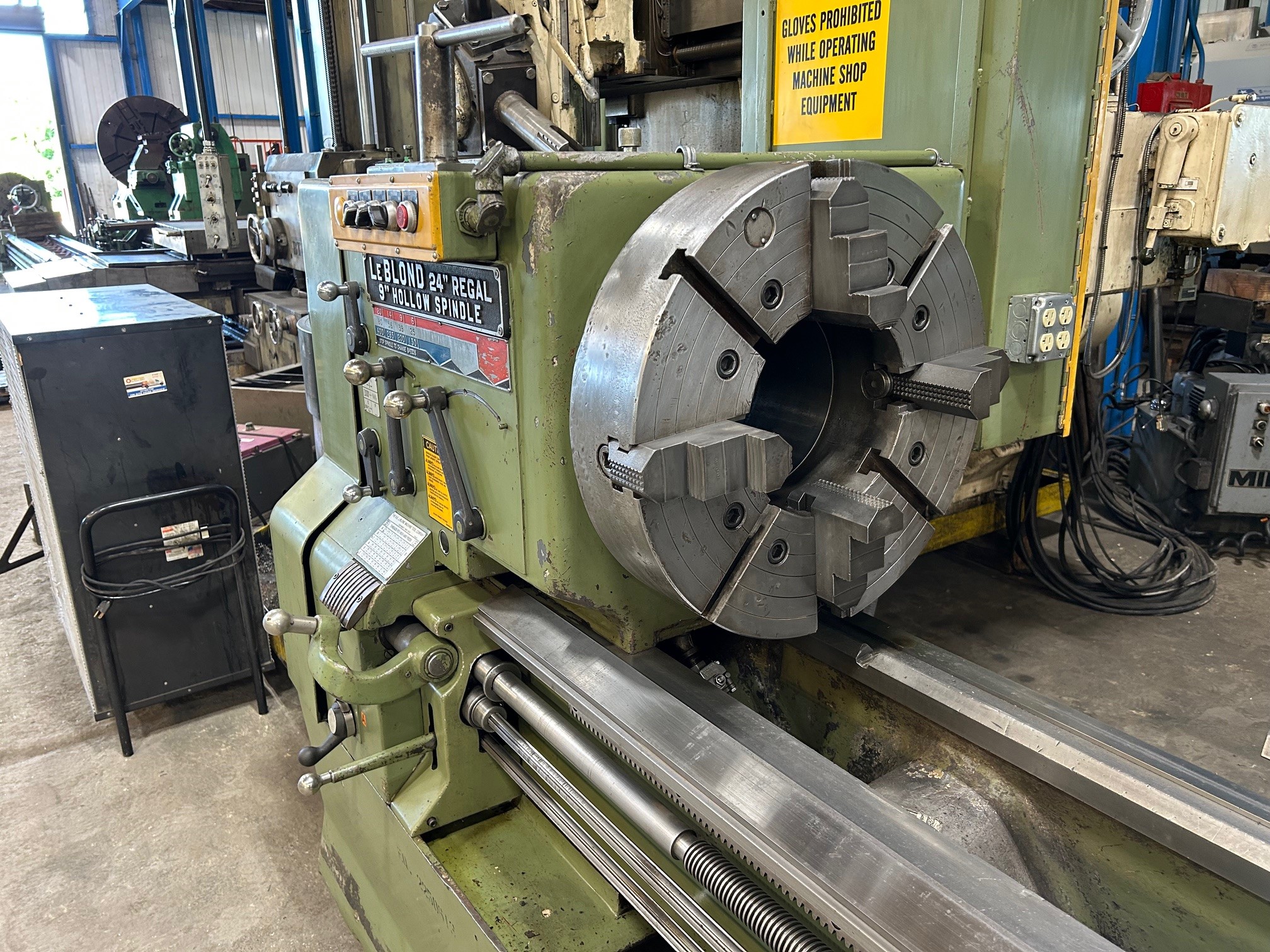

16" DIAMETER 3-JAW  CHUCK WITH 9" HOLE THRU

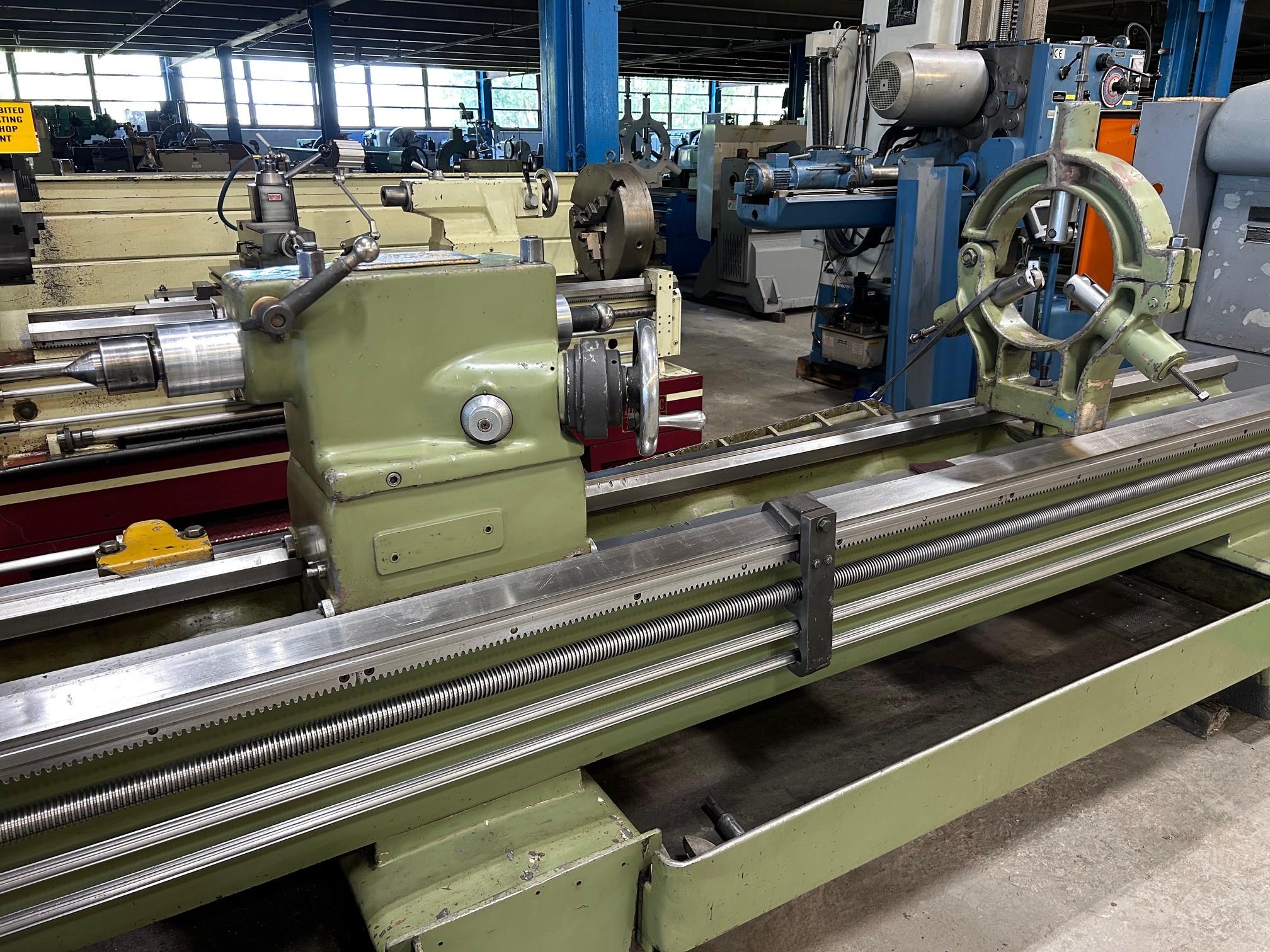

ROLLER TYPE STEADY REST

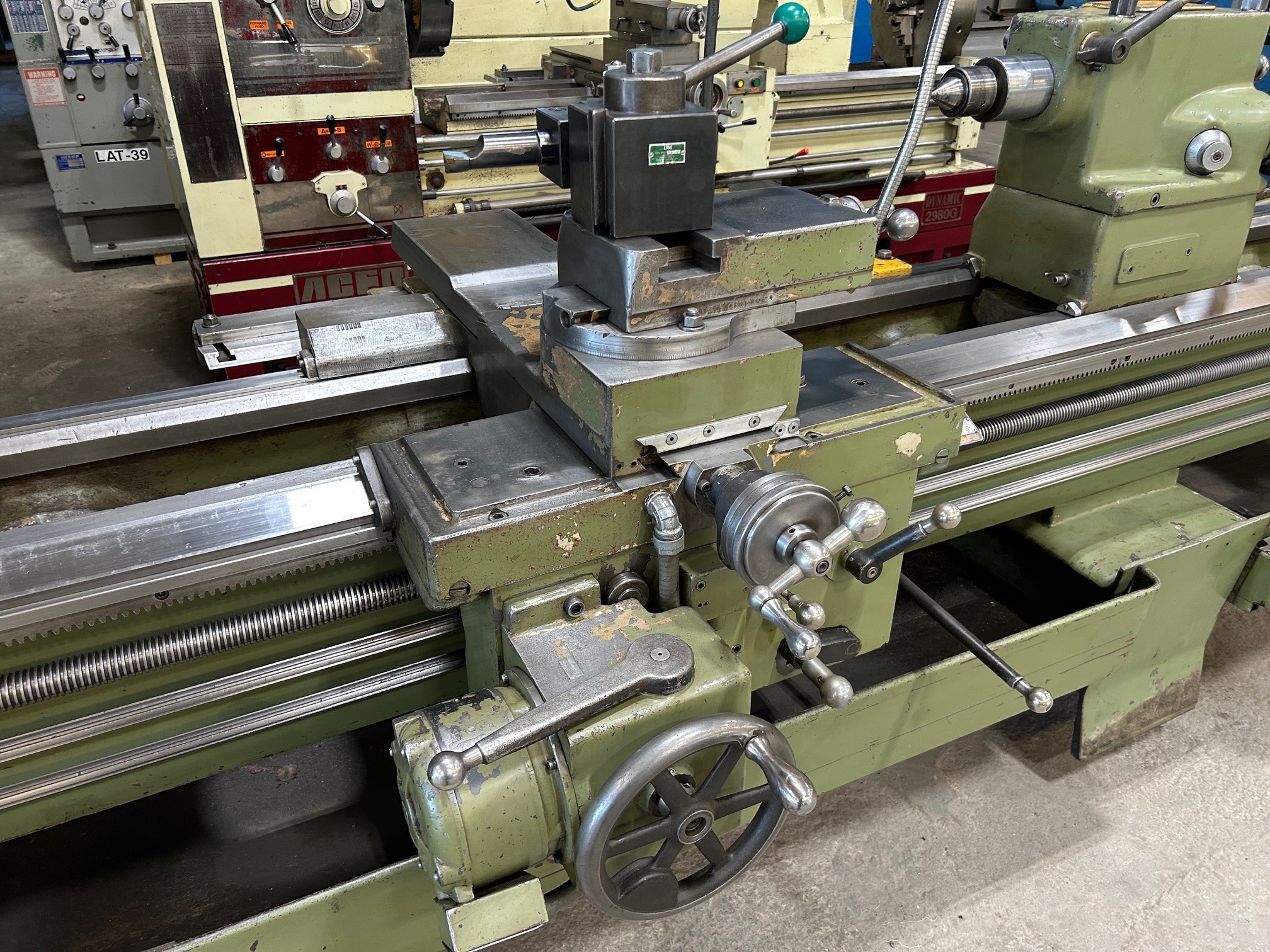

QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
POWER RAPID TRAVERSE
15 HORSE POWER MAIN MOTOR
