LeBlond-Makino 3220-25 ENGINE LATHES

Price on Request

Make:: LeBlond-Makino

Model:: 3220-25

Year:: 1984

Ref #:: 178740

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

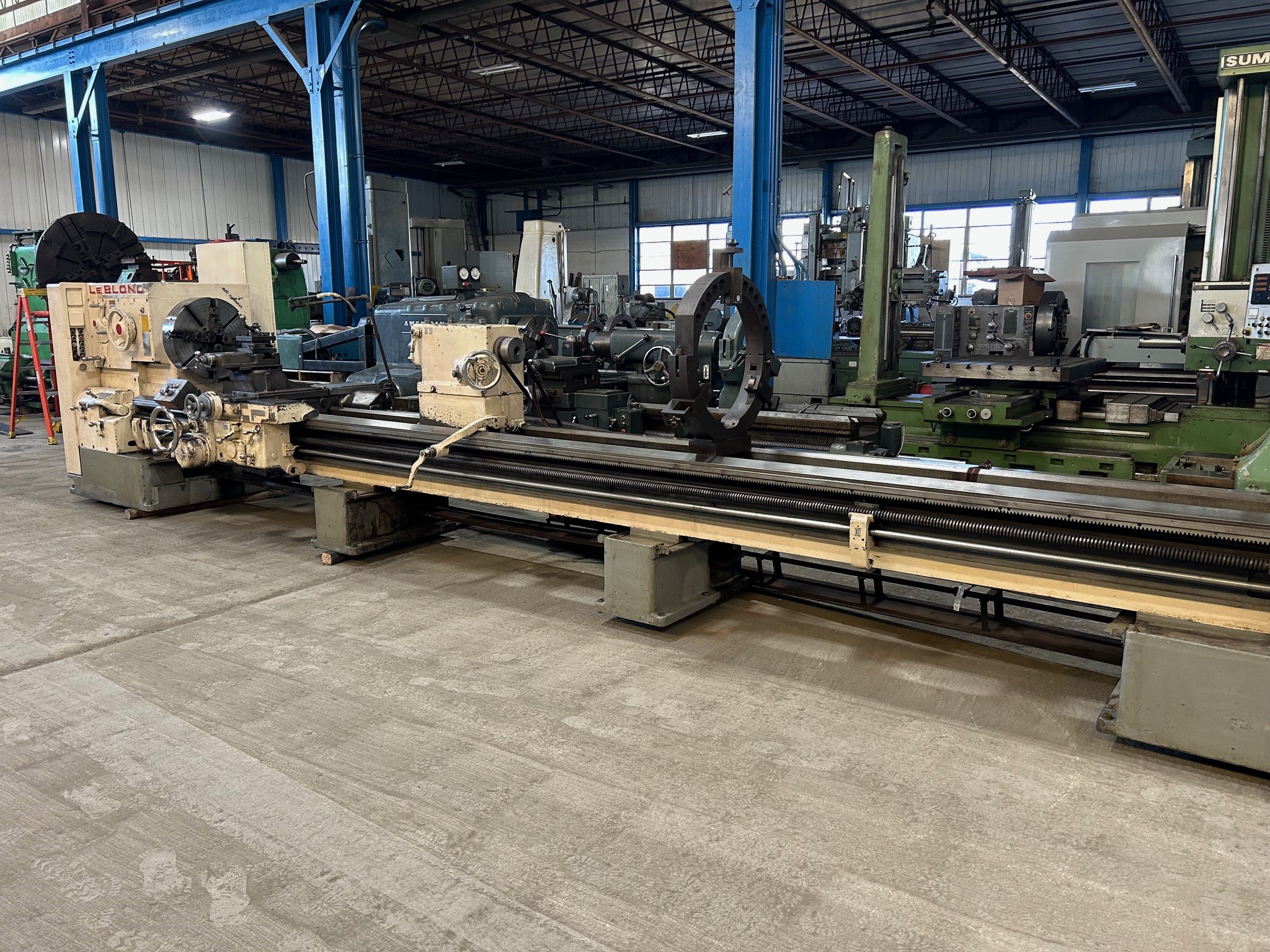

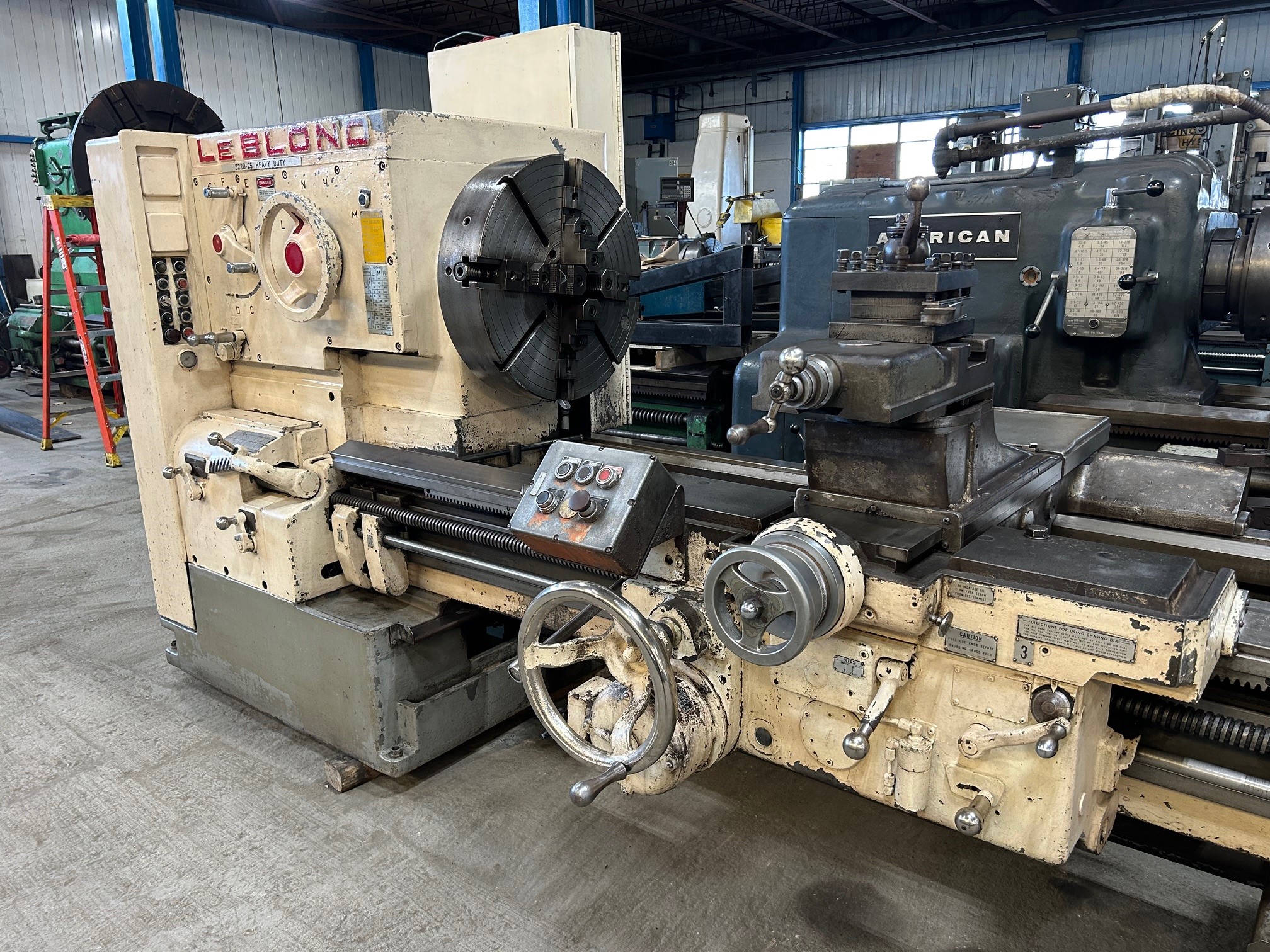

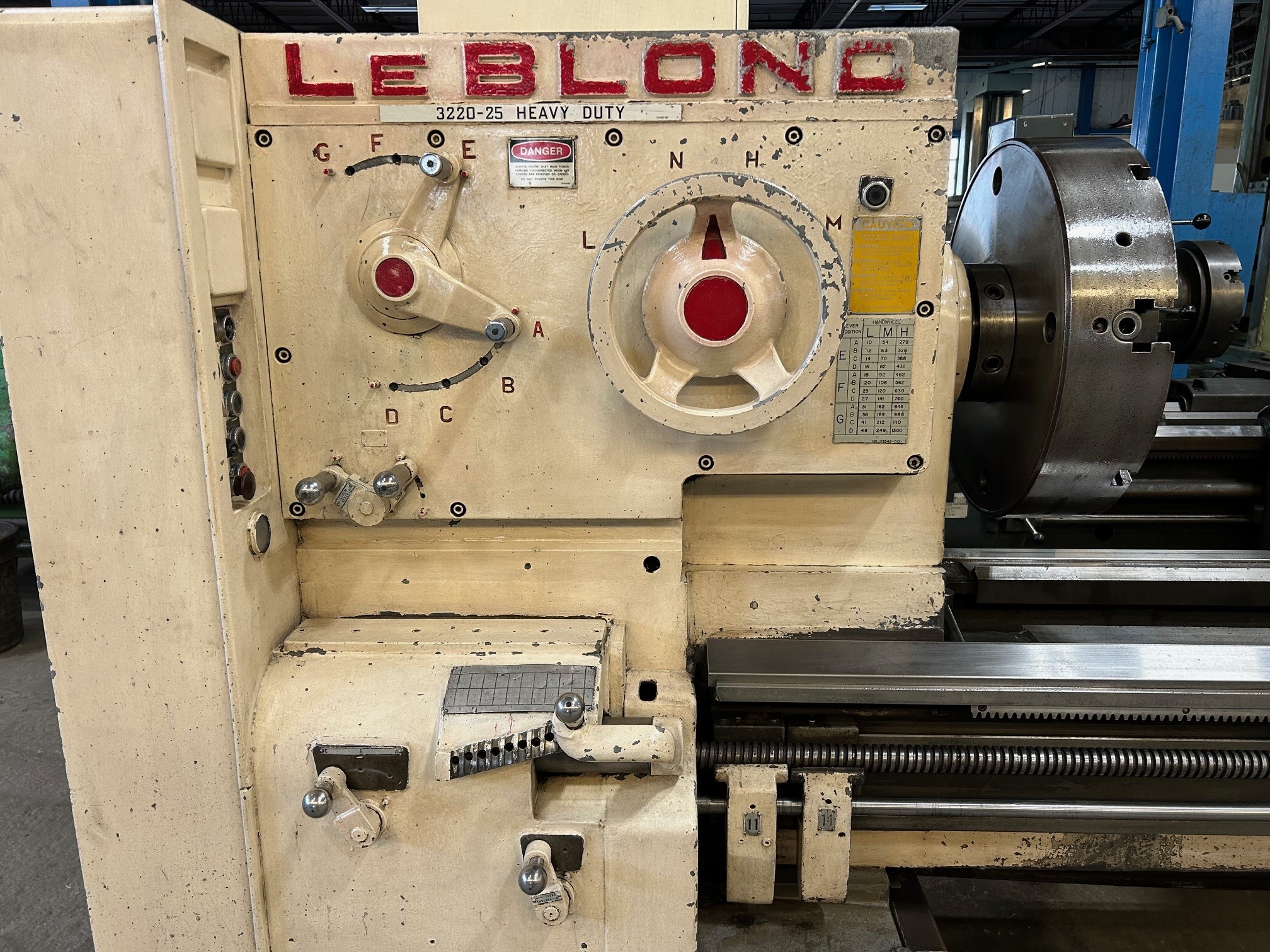

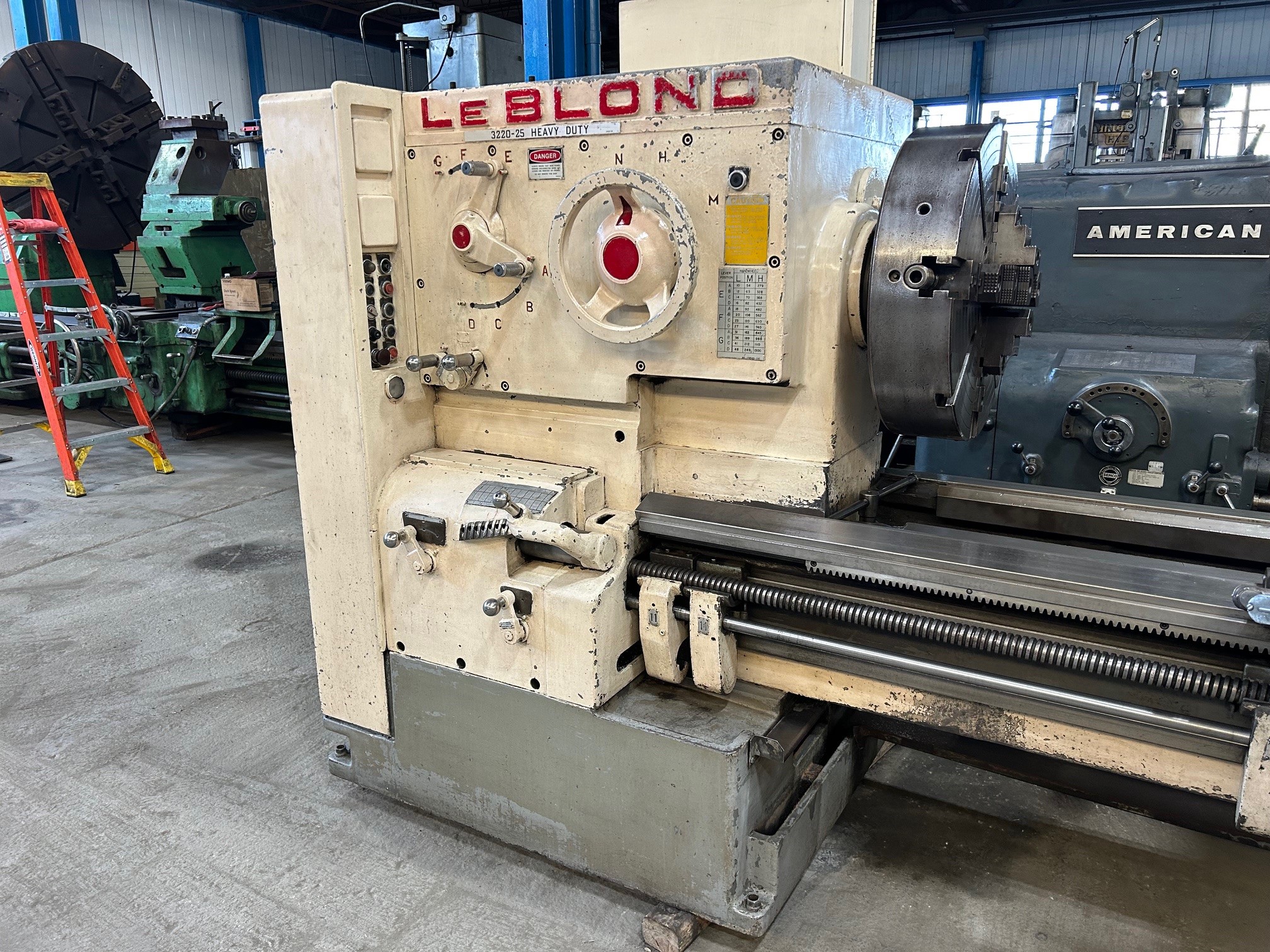

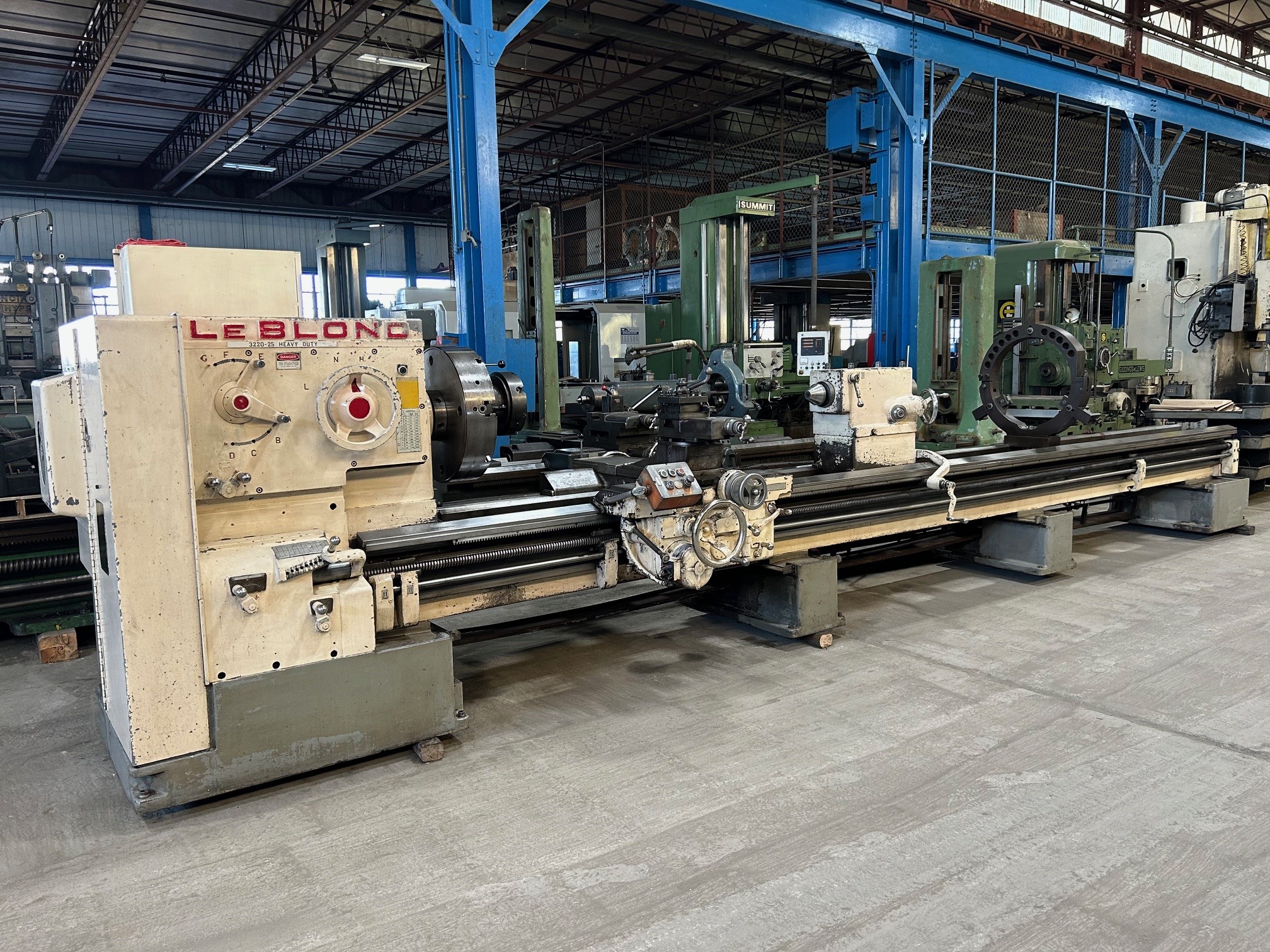

32" x 240" LEBLOND HEAVY DUTY ENGINE LATHE

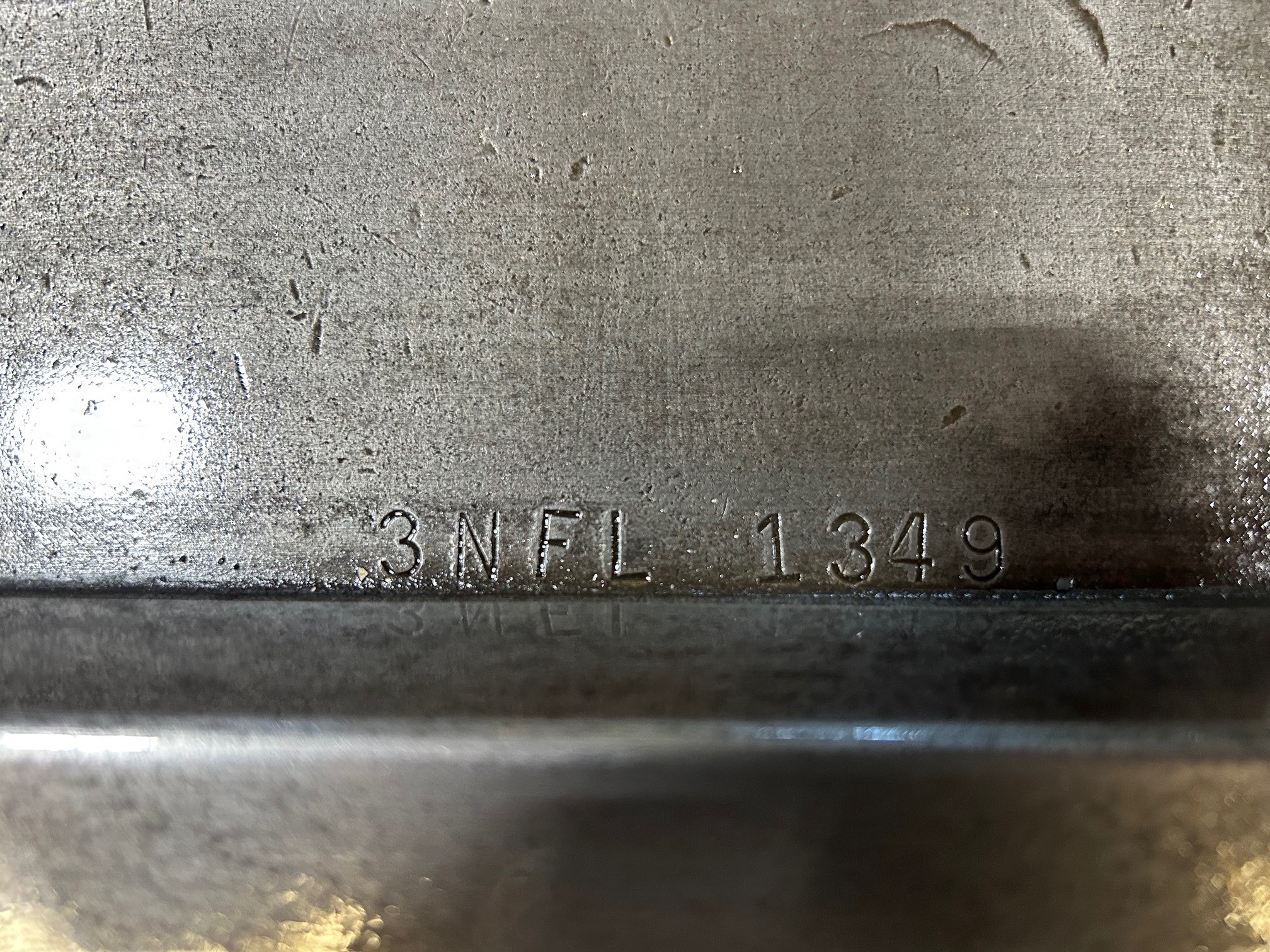

MODEL: 3220-25 NF, S/N: 3NFL-1349,  NEW: 1984

SPECIFICATIONS:
SWING OVER BED WAYS ................. 36"
SWING OVER CROSS SLIDE .............. 20"
SPINDLE NOSE CAMLOCK ................ D1-8"
SPINDLE HOLE ........................ 2-3/16"
DISTANCE BETWEEN CENTERS ............ 240"
WIDTH OF BED ........................ 24-1/2"
SPINDLE SPEED RANGE (36) ............ 10 - 1,300 RPM
FEED RANGE (60) ..................... .0045" - .269"
INCH THREADING RANGE (60) ........... 1 - 60 TPI

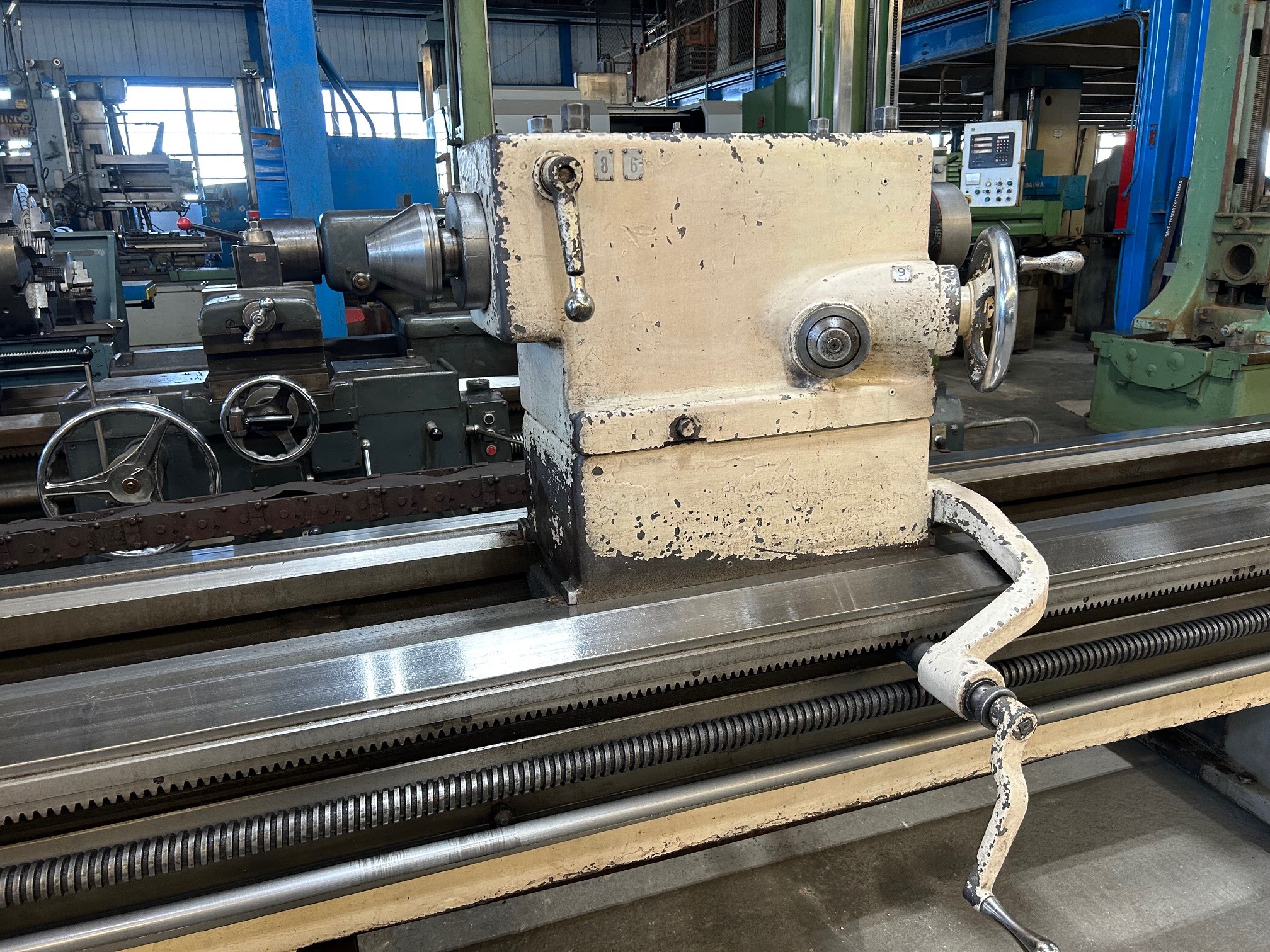

TAILSTOCK SPINDLE DIAMETER .......... 6"
TAILSTOCK SPINDLE TRAVEL ............ 15"
APPROXIMATE MACHINE WEIGHT .......... 26,500 LBS.

EQUIPPED WITH:

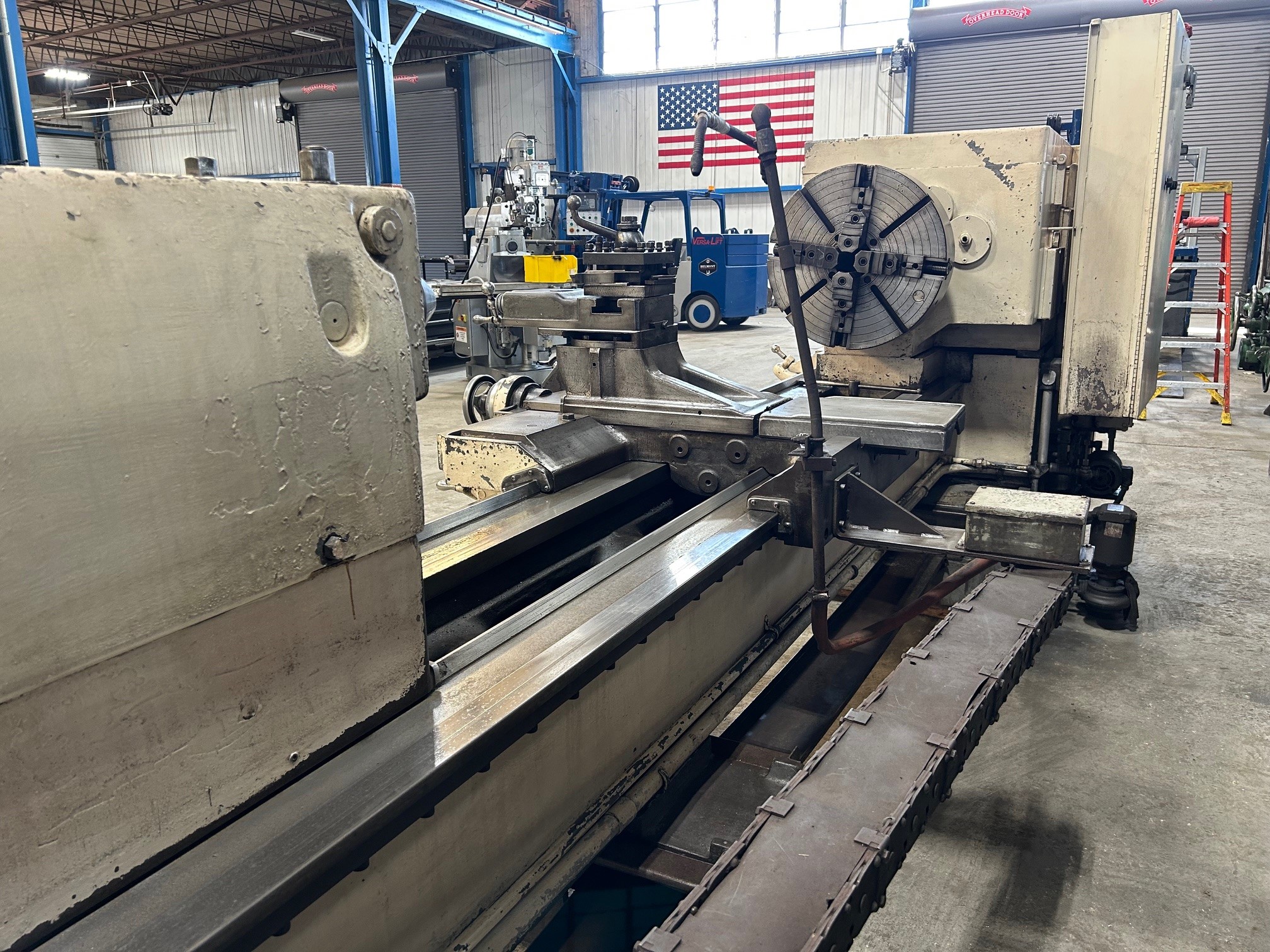

4-JAW CHUCK

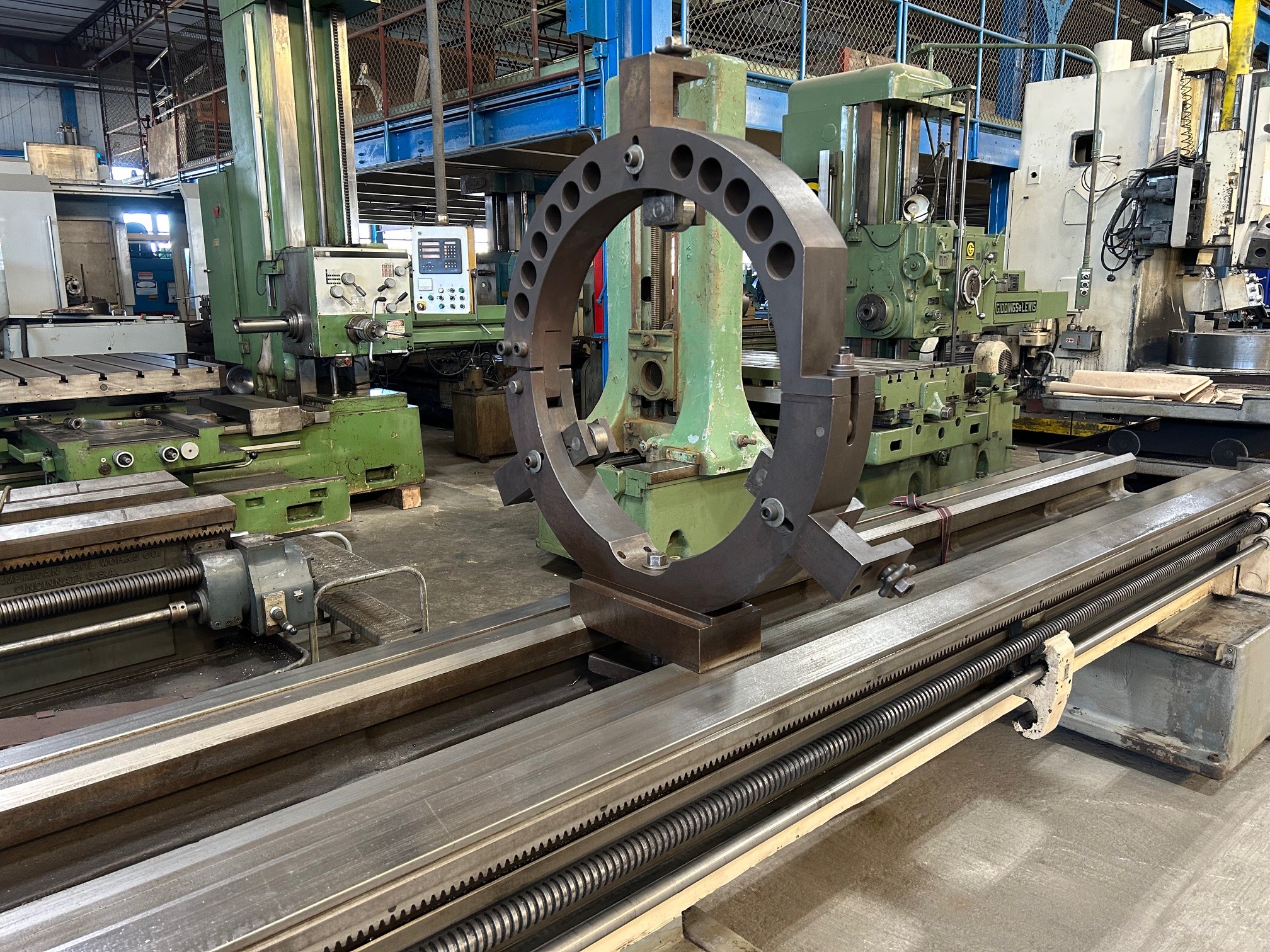

STEADY REST
FOURWAY TOOLPOST
THREAD DIAL INDICATOR
FOUR WAY RAPID TRAVERSE
WIDE BED

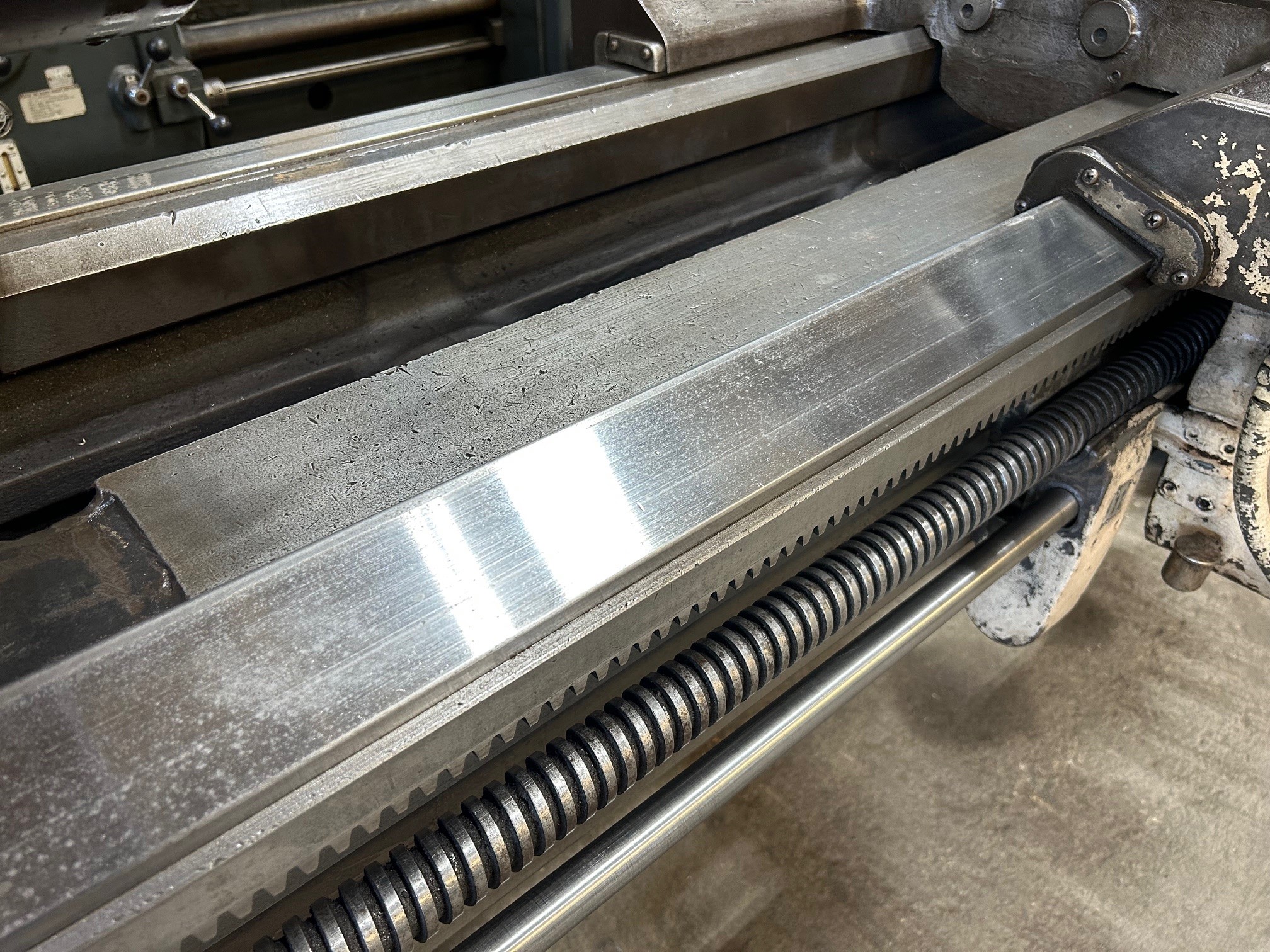

HARDENED & GROUND BED WAYS
40 HORSE POWER MAIN MOTOR
