LeBlond Regal SERVO-SHIFT ENGINE LATHES

Price on Request

Make:: LeBlond

Model:: Regal SERVO-SHIFT

Year:: 1966

Ref #:: 179082

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

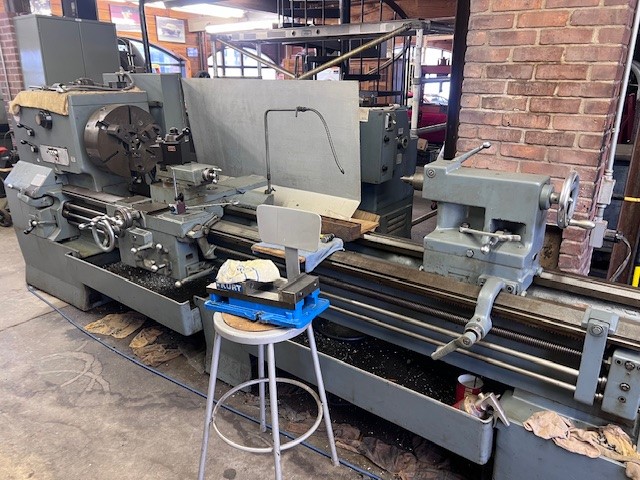

24" x 80" LEBLOND SERVO-SHIFT ENGINE LATHE

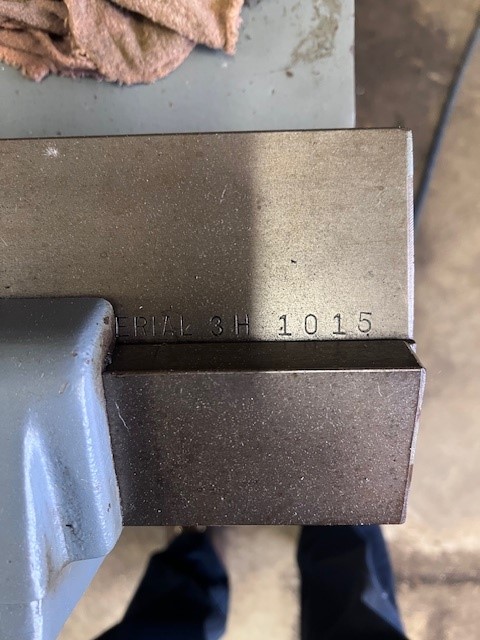

MODEL: 24" REGAL,  S/N: 3H1015,  NEW: 1966

SPECIFICATIONS:
SWING OVER BED AND CARRIAGE WINGS ......... 26"
SWING OVER CROSS SLIDE .................... 18-1/4"
DIST. BETWEEN CENTERS, BASE LENGTH ........ 80"
HEADSTOCK, SERVO-SHIFT -
SPINDLE SPEEDS (12) ....................... 27 - 1080 RPM
SPINDLE, SIZE OF HOLE, STRAIGHT ........... 2-3/16"
SPINDLE, SIZE OF CENTER, MORSE TAPER ...... #5
SPINDLE NOSE, TAPER KEY DRIVE, SIZE ....... L-2
BED WIDTH ................................. 17"
FEEDS - THREADS -
FEED CHANGES, GEAR OR BELT DRIVE ......... 48
FEED RANGE, IN. PER REV .................. .0036 TO .205
THREADING RANGE (48) ..................... 2 - 112 TPI
TAILSTOCK -
SPINDLE DIAMETER ......................... 3-1/8"
CENTER, MORSE ............................ #5
SPINDLE TRAVEL AND SET OVER RIGHT OR LEFT  7-1/2", 1"
LENGTH ON BED ............................ 14-3/4"
MOTOR, HP ................................ 10 HP
NET WEIGHT ............................... 8,500 LBS

EQUIPPED WITH:

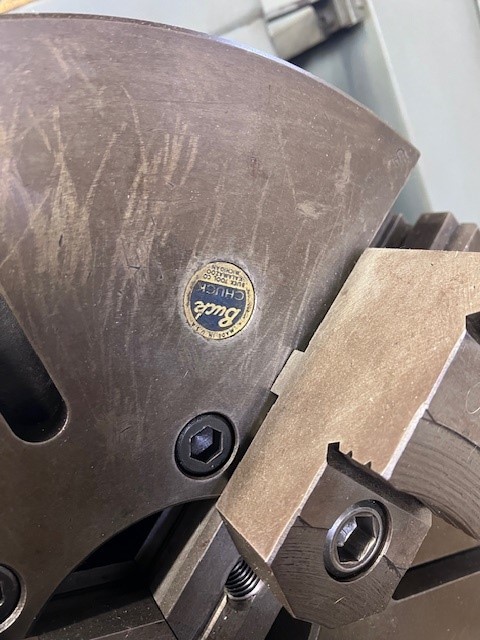

3-JAW BUCK CHUCK

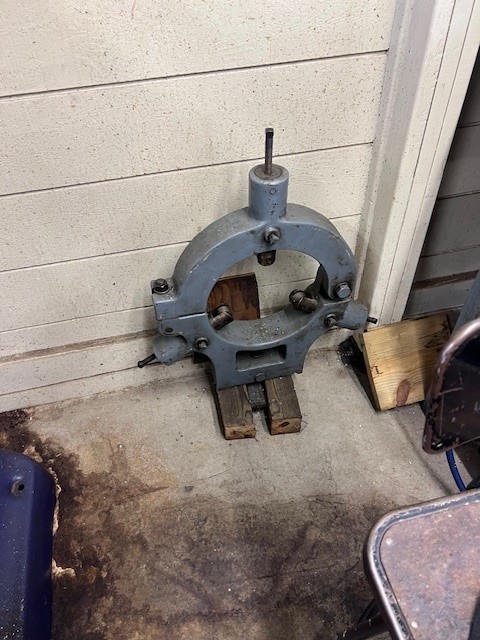

ROLLER TYPE STEADY REST
ALORIS QUICK CHANGE TOOLPOST
CENTER FOR TAILSTOCK
THREAD DIAL INDICATOR
HARDENED & GROUND BEDWAYS
COOLANT SYSTEM WITH REMOVABLE CHIP PANS
10 HORSE POWER MAIN DRIVE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
