Watch Video:

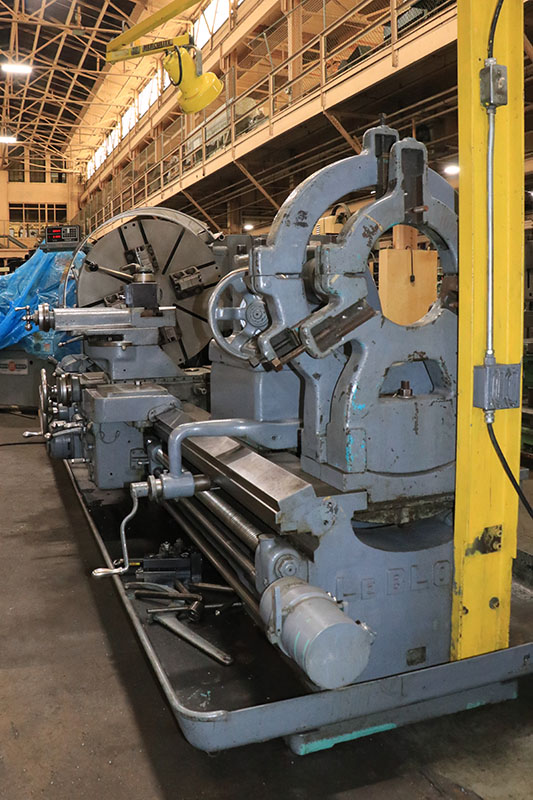

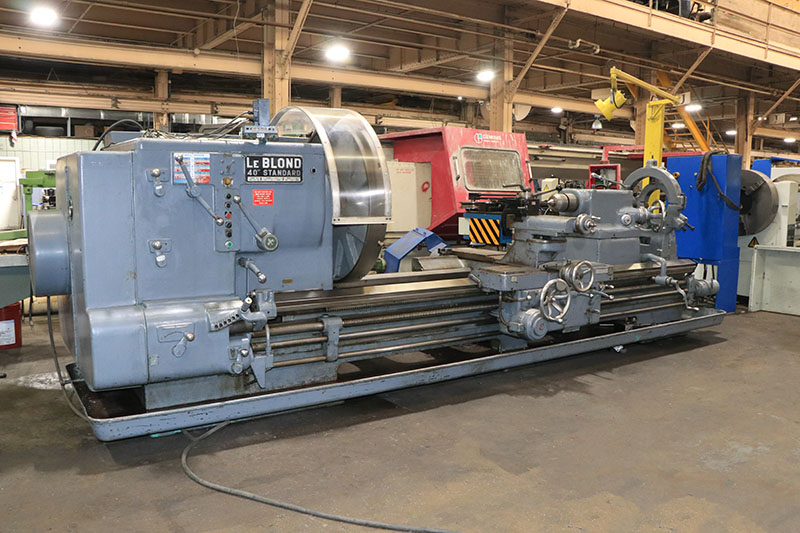

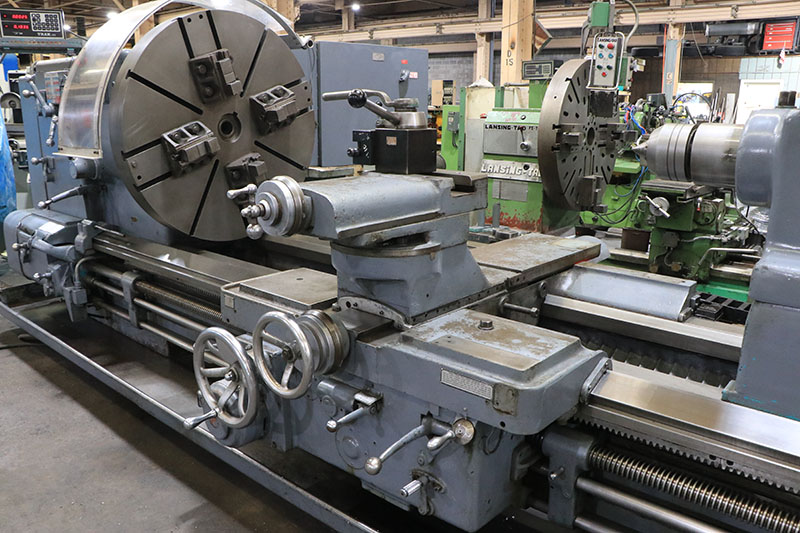

LeBlond Standard 40" ENGINE LATHES

$54,500

Make:
LeBlond
Model:
Standard 40"
Year:
1960
Ref #:
162215

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

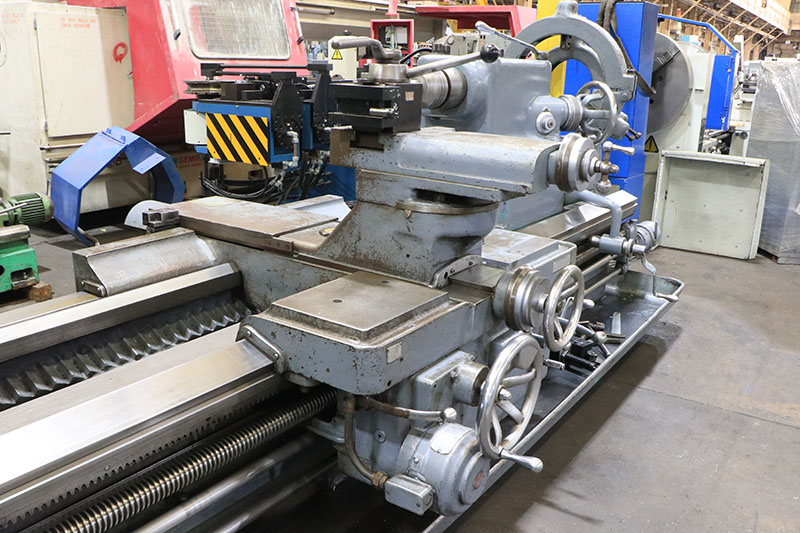

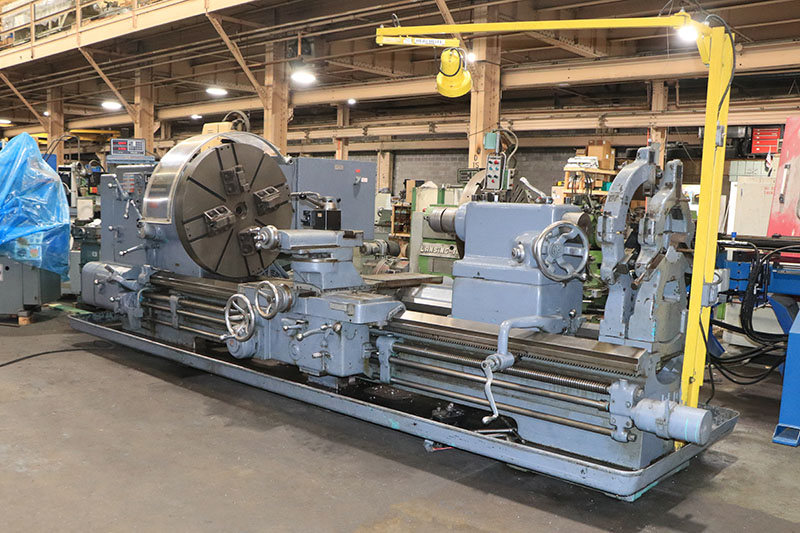

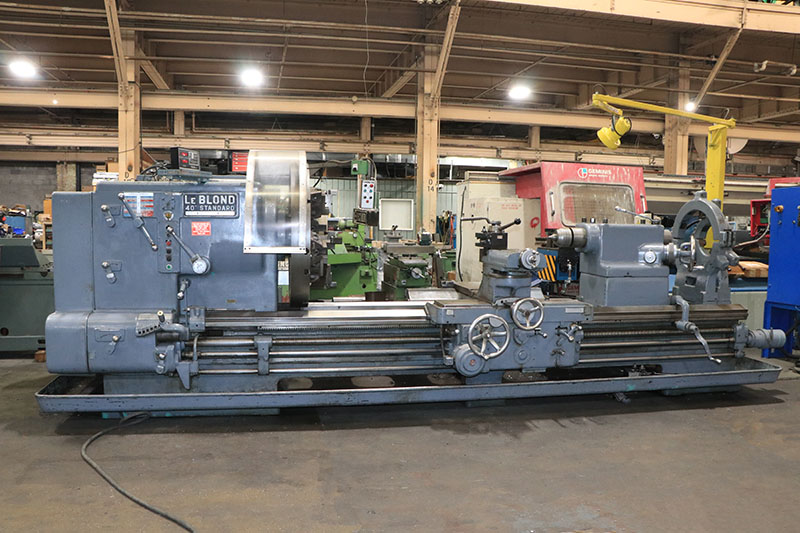

45" x 108" LEBLOND ENGINE LATHE

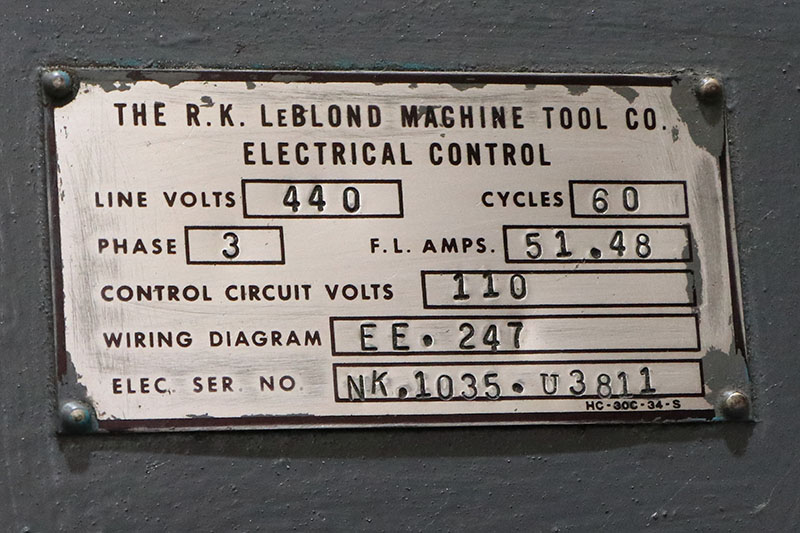

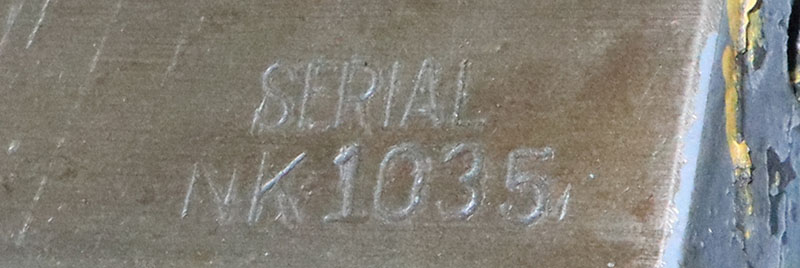

MODEL: 40" STANDARD, S/N: NK-1035, NEW: 1960

SPECIFICATIONS:
SWING OVER BED WAYS ................. 45"
SWING OVER CROSS SLIDE .............. 33"
SPINDLE NOSE ........................ L-3
SPINDLE HOLE ........................ 3"
DISTANCE BETWEEN CENTERS ............ 108"
WIDTH OF BED ........................ 31"

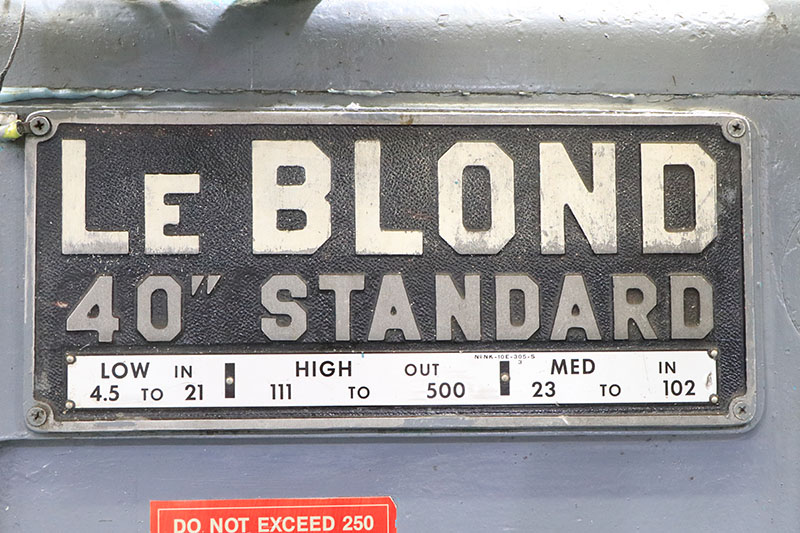

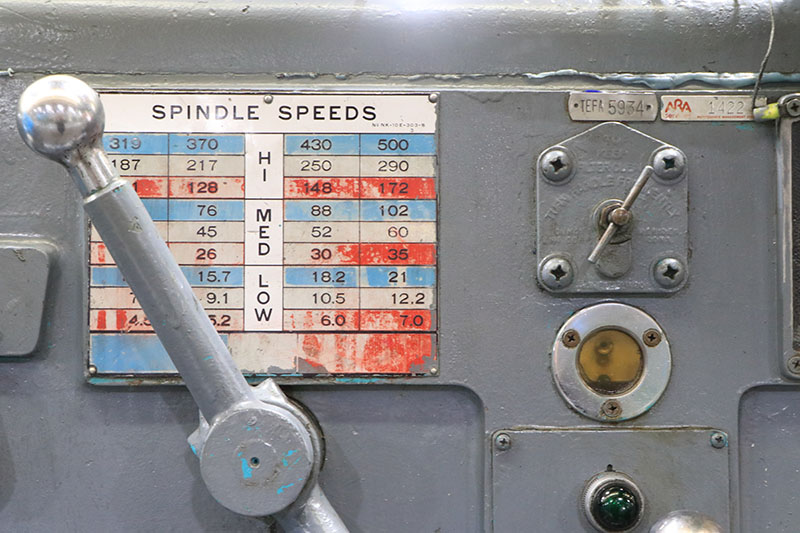

SPINDLE SPEED RANGE (36) ............ 4.5 - 500 RPM
FEED RANGE (48) ..................... .004" - .250"

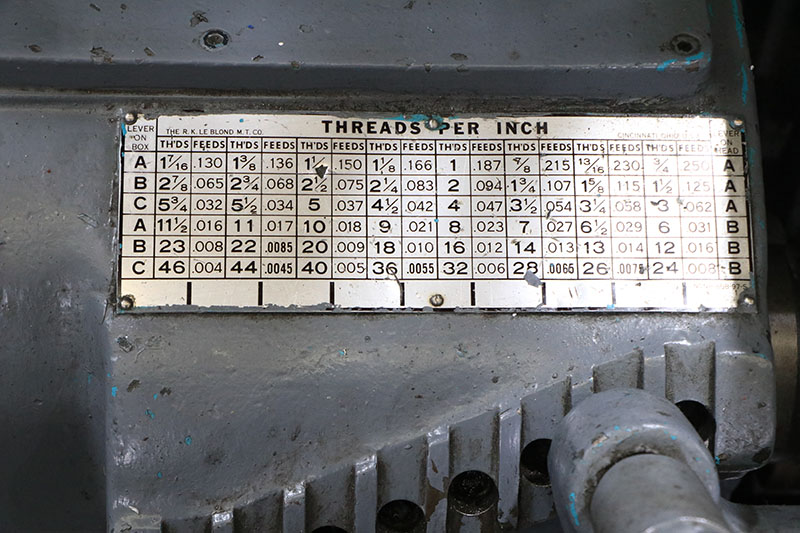

INCH THREADING RANGE (48) ........... 3/4 - 46 TPI

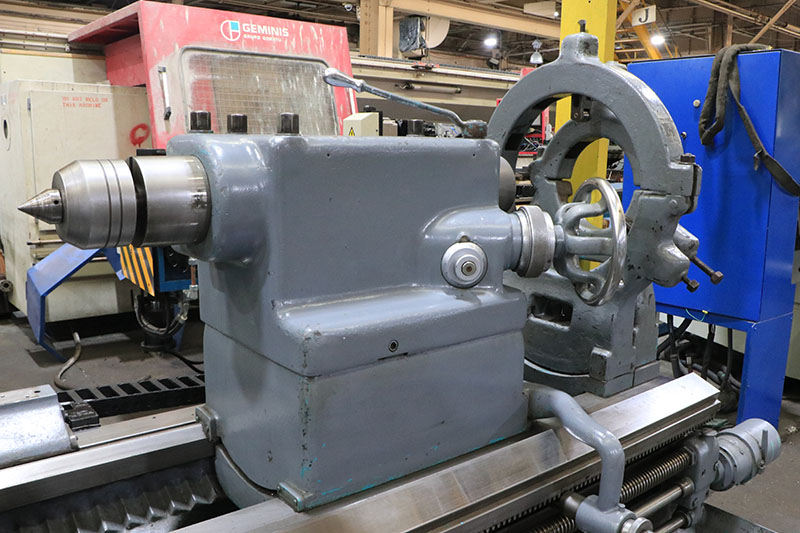

TAILSTOCK SPINDLE TAPER ............. #6MT
TAILSTOCK SPINDLE DIAMETER .......... 7"
TAILSTOCK SPINDLE TRAVEL ............ 17"
APPROXIMATE MACHINE WEIGHT .......... 30,500 LBS.

EQUIPPED WITH:

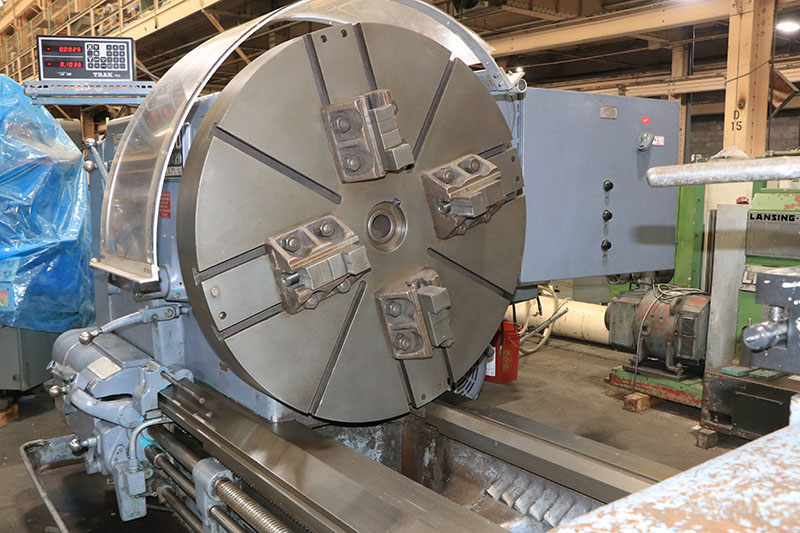

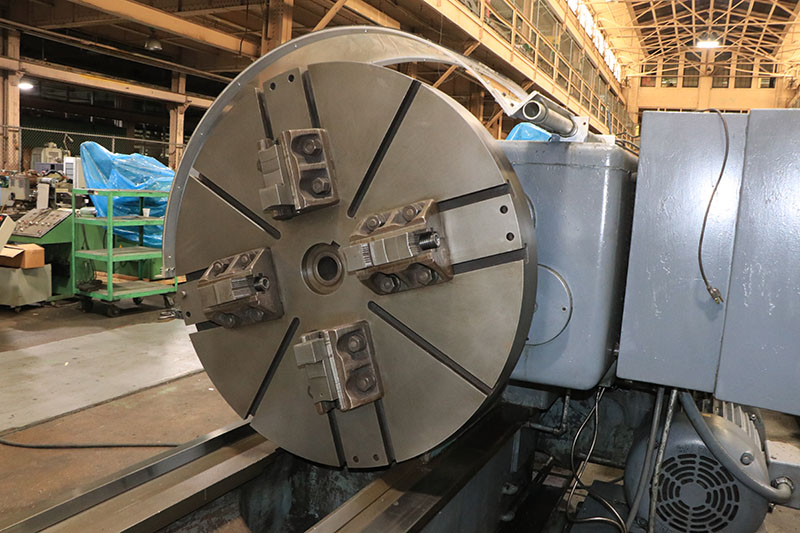

42" DIAMETER FACEPLATE WITH 8" FOUR JAWS
TRAK TWO AXIS DIGITAL READOUT
10" CAPACITY STEADY REST
18" CAPACITY STEADY REST
ALORIS MODEL: EA QUICK CHANGE TOOLPOST
LIVE CENTER
THREAD DIAL INDICATOR

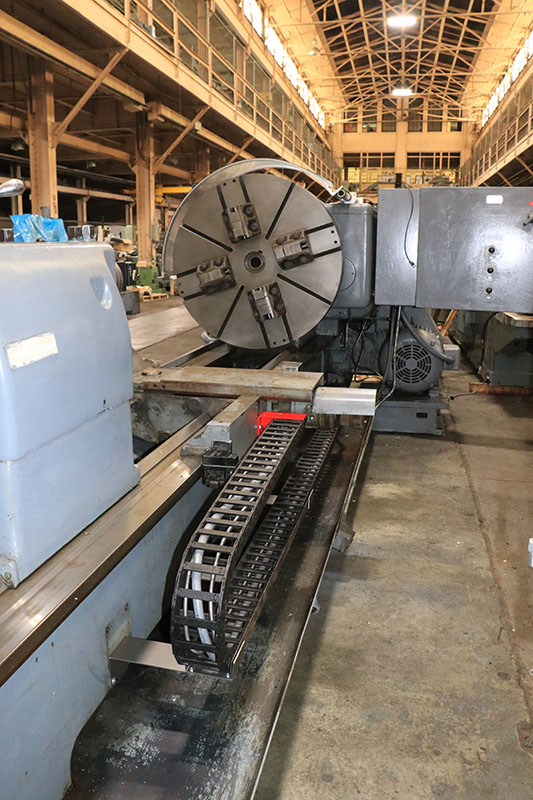

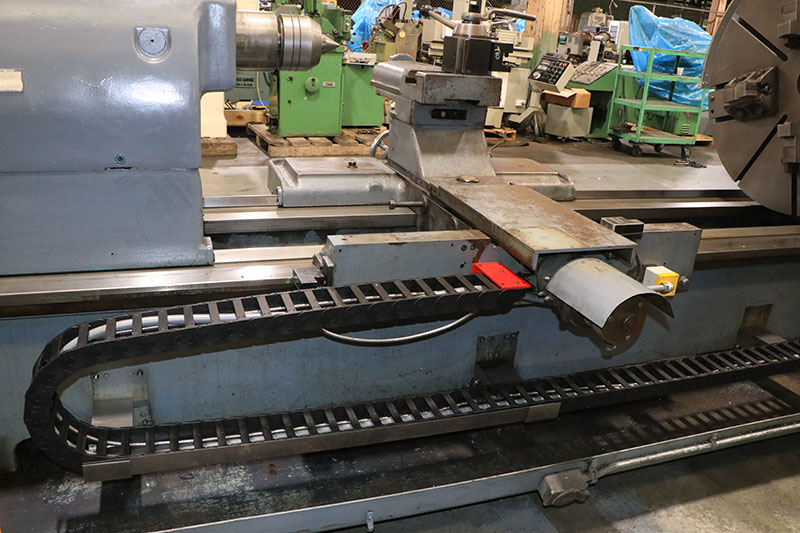

NEW CABLE TRACK FOR DIGITAL READOUT & RAPID TRAVERSE WIRING
FOUR WAY RAPID TRAVERSE
WIDE BED

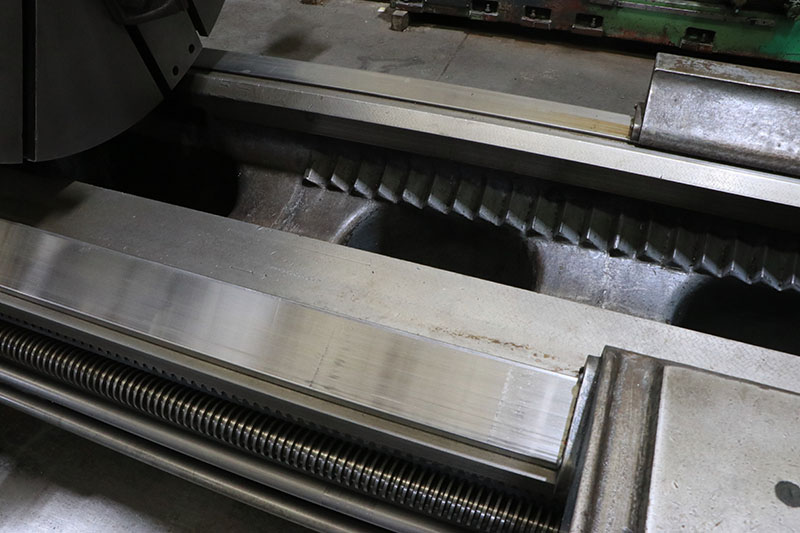

HARDENED & GROUND INSERTED BED WAYS
40 HORSE POWER MAIN MOTOR

INSPECT IN OUR NEW JERSEY WAREHOUSE



DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
