Littell 308 STRAIGHTENERS

$3,950

Make:: Littell

Model:: 308

Year:: 1963

Ref #:: 168923

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

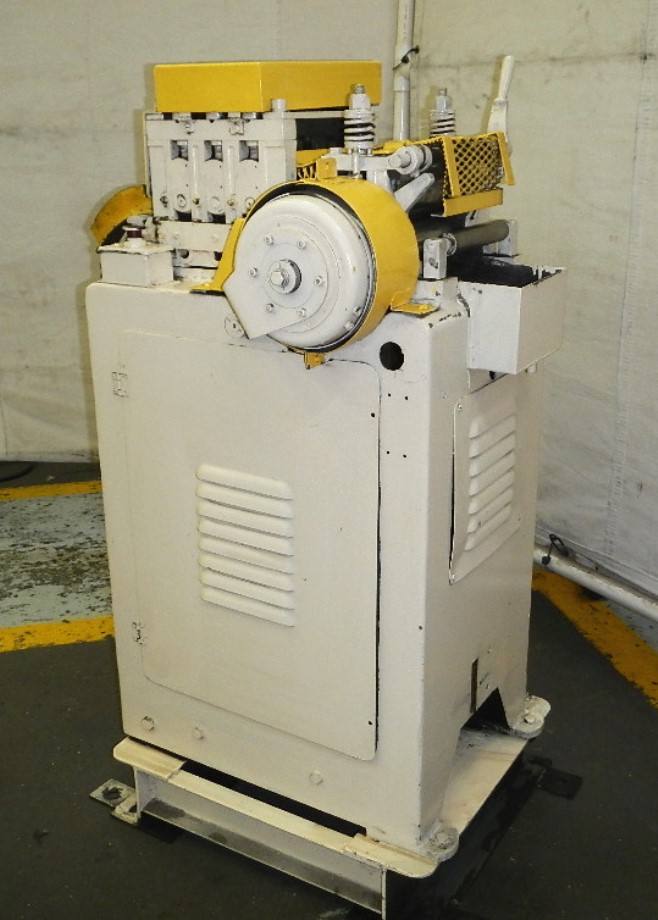

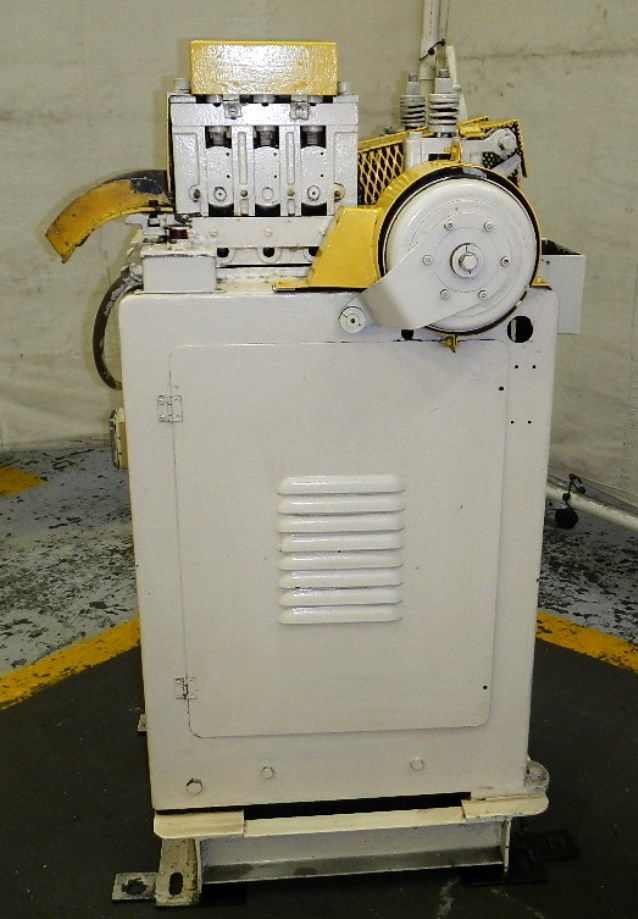

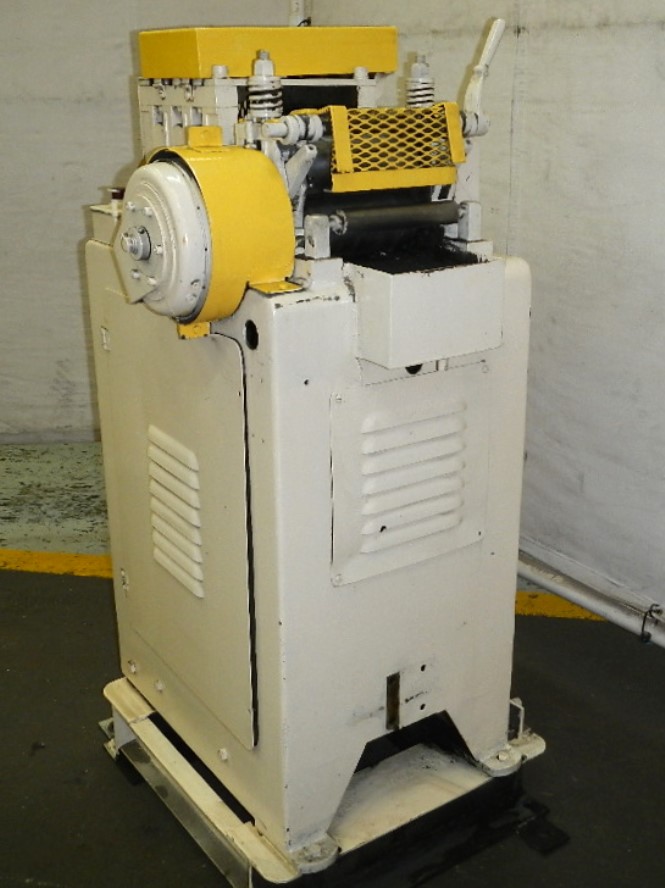

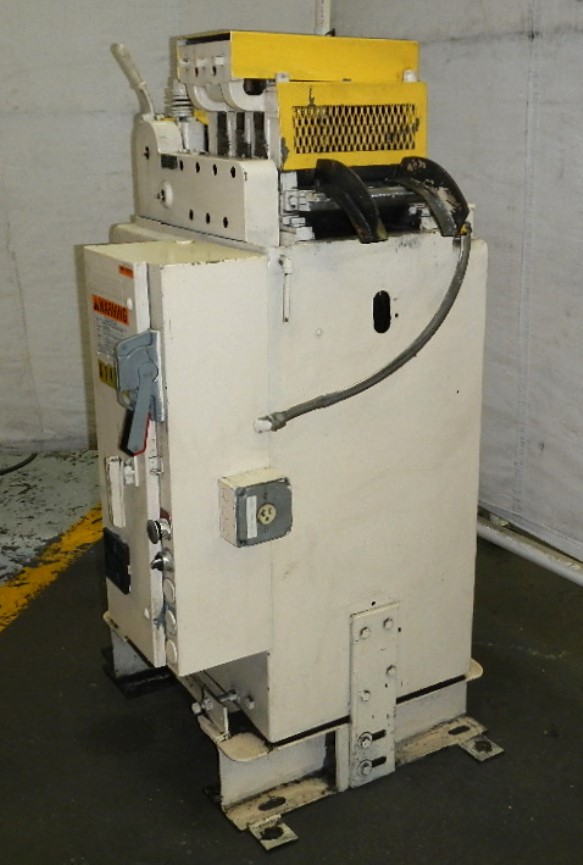

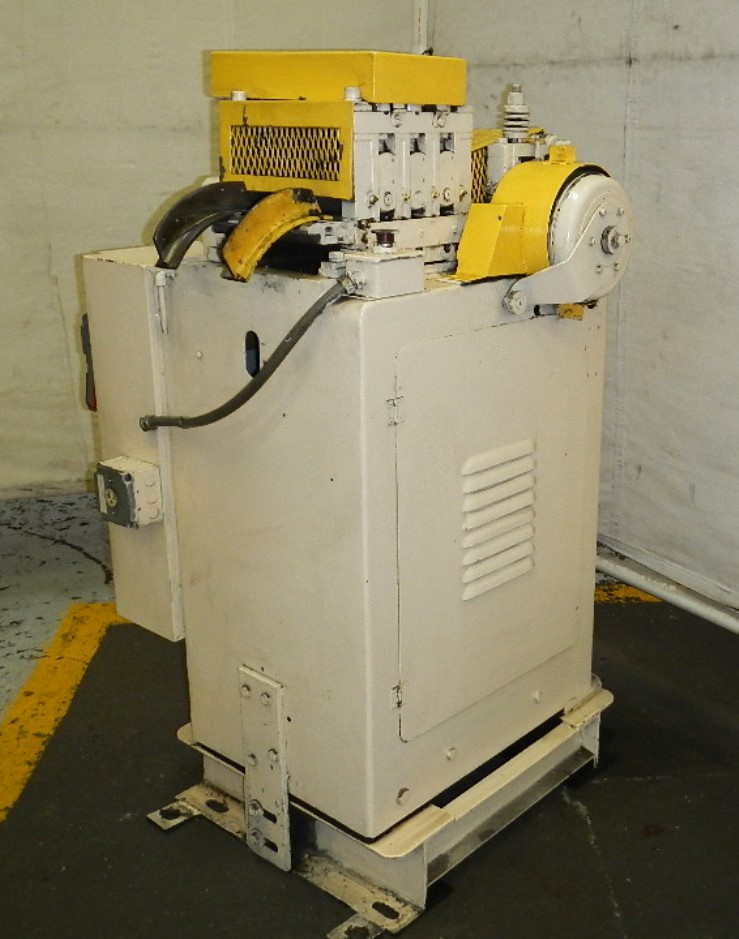

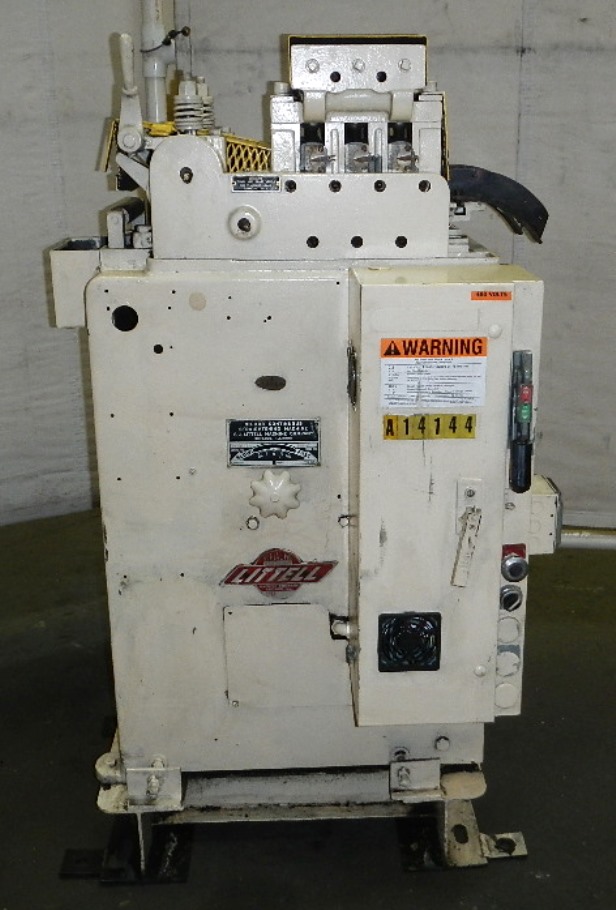

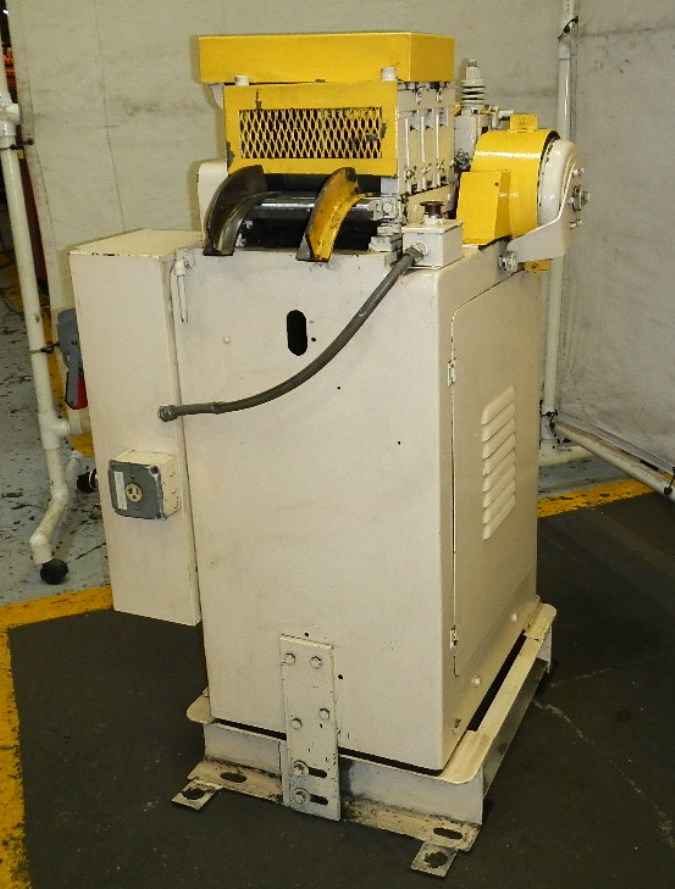

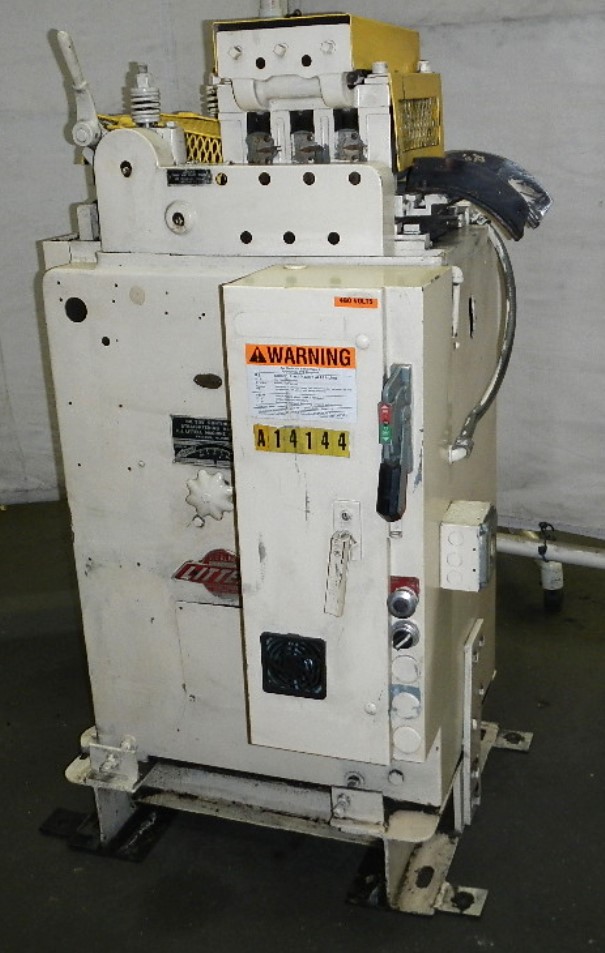

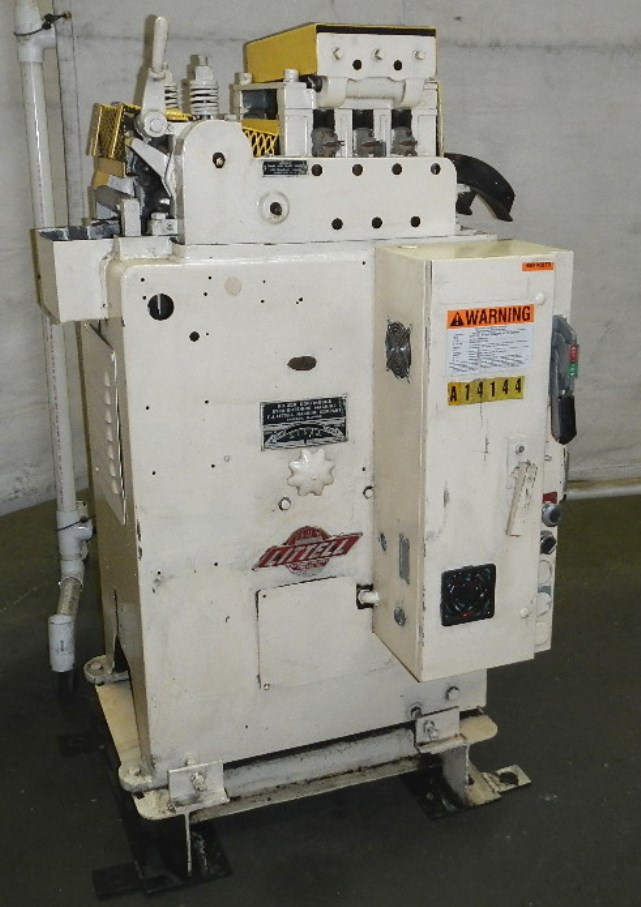

LITTELL MODEL 308 7-ROLL STRAIGHTENER*

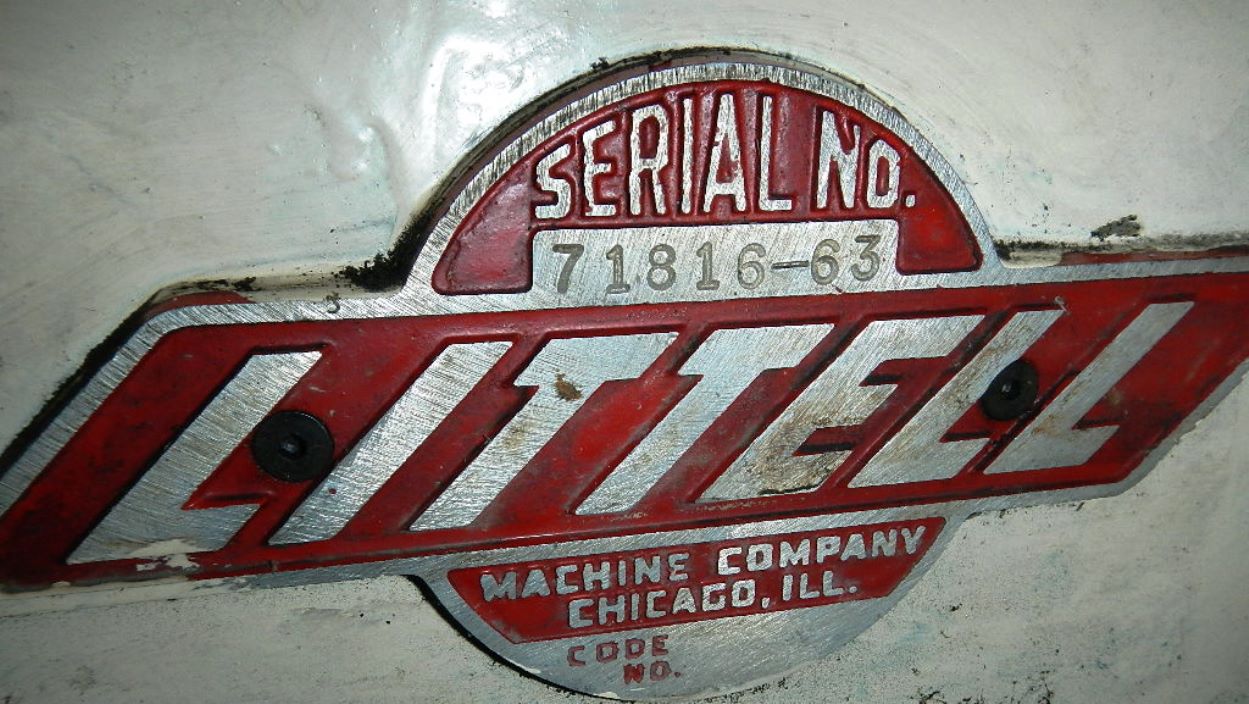

MODEL 308         S/N 71816-63         NEW 1963

Maximum width ................. 8"
Straightening capacity ........ 8" x .041" mild steel
                                1" x .093" mild steel

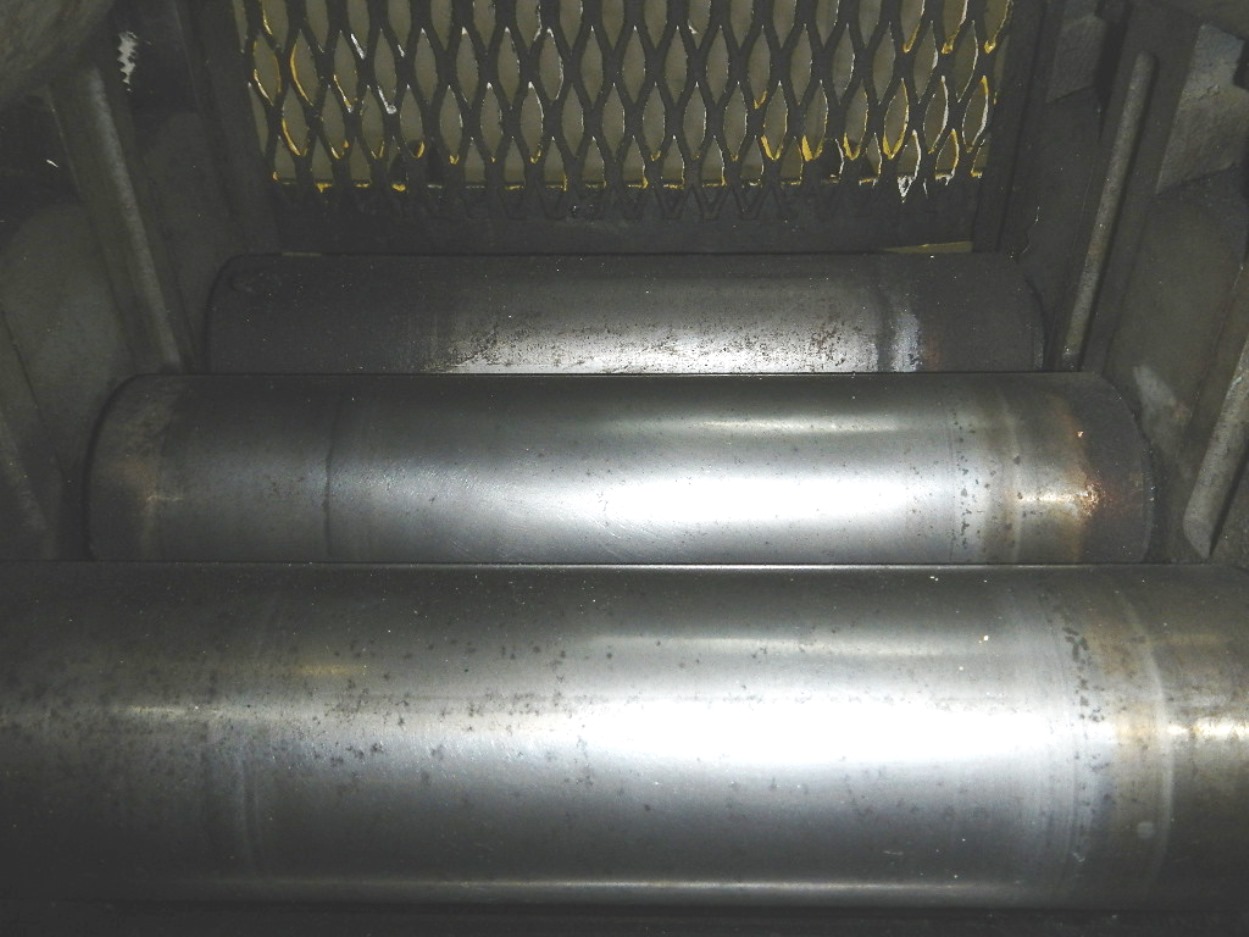

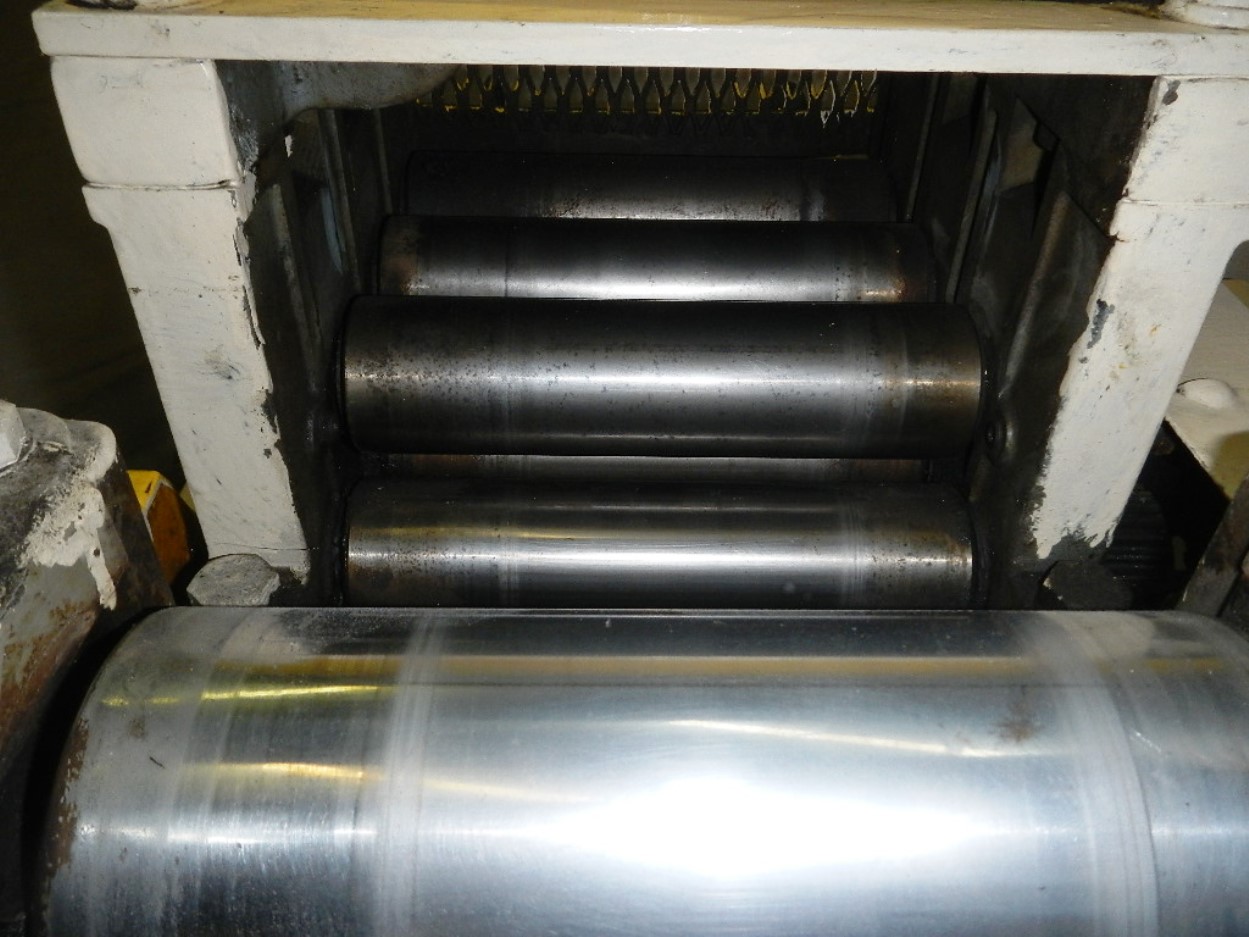

Straightening rolls ........... 7 (3 over 4)
Dia. Of straightening rolls ... 2.25" (on 2.75" centers)
Dia. of entry pinch rolls ..... 3 1/2" (powered)
Speed (frequency drive) ....... 0 - 200 fpm
Pass line ..................... 46 1/2" (on 6" risers)
Motor ......................... 2 HP 1725 rpm 220/440/3/60

Approximate overall dimensions 31" w x 34" d x 56" high
Approximate weight 1,500 lbs.

Machine is equipped with:
- Warner electric clutch-brake

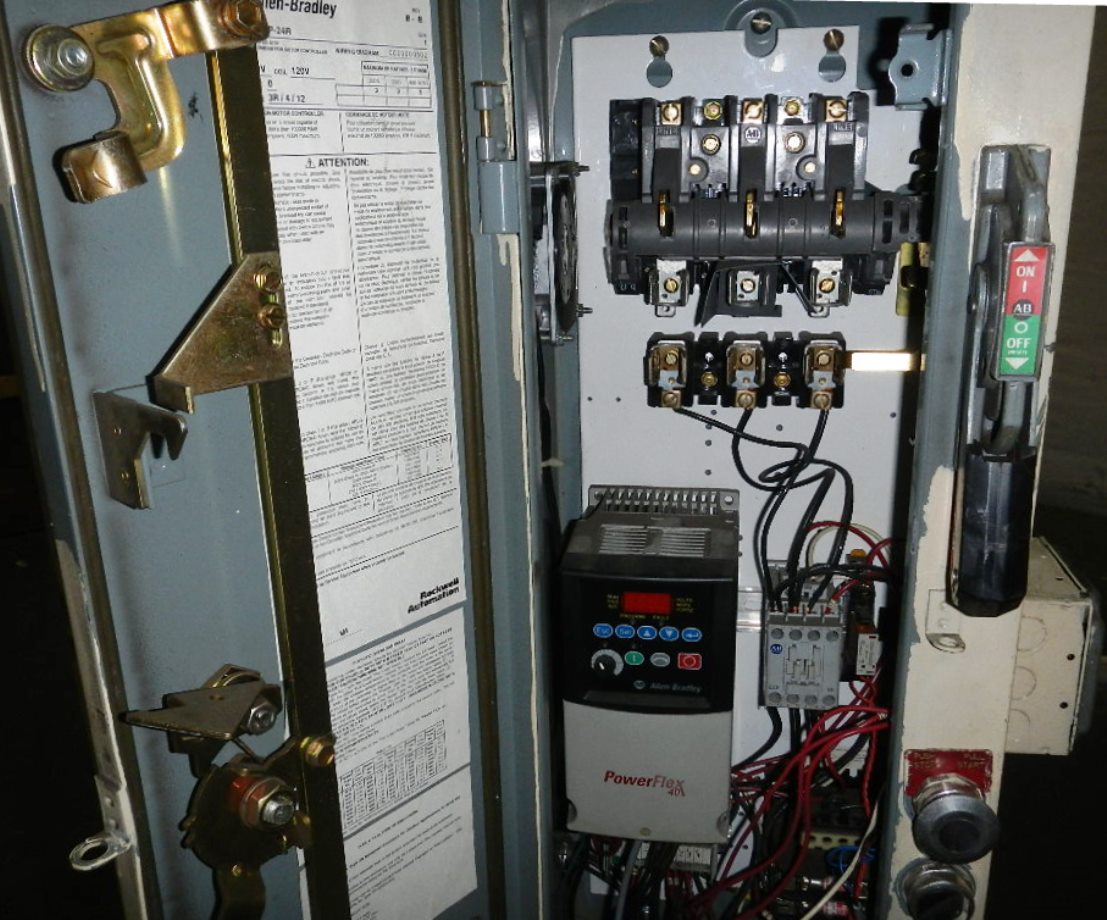

- Allen Bradley Powerflex variable speed frequency drive
- Upper roll position indicators

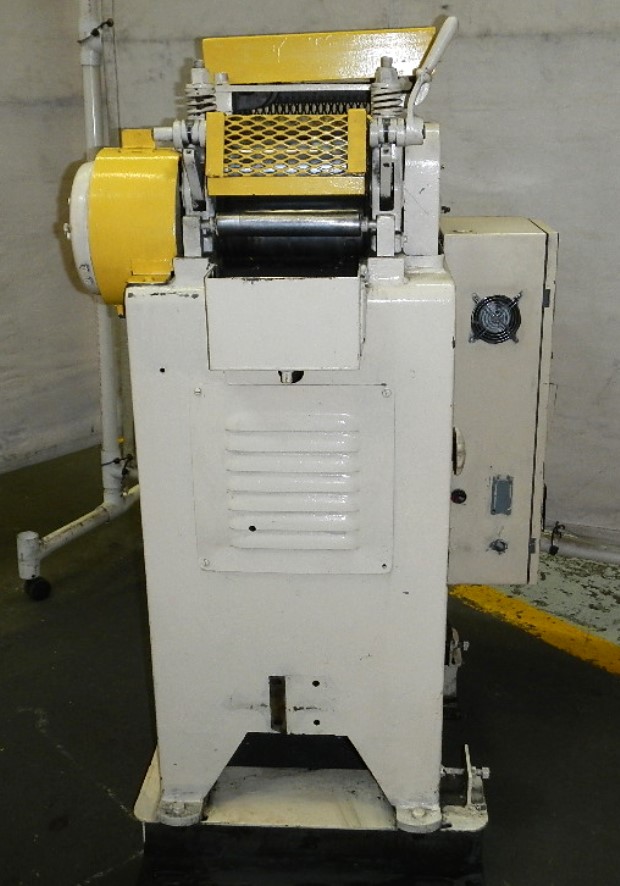

- Entry pinch rolls
- Power driven straightening rolls
- Forward / reverse controls

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: GRAND RAPIDS, MI
