Press Room Eqpt PE-MB-10-1-2 STRAIGHTENERS

$10,950

Make:: Press Room Eqpt

Model:: PE-MB-10-1-2

Year:: 1999

Ref #:: 163500

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

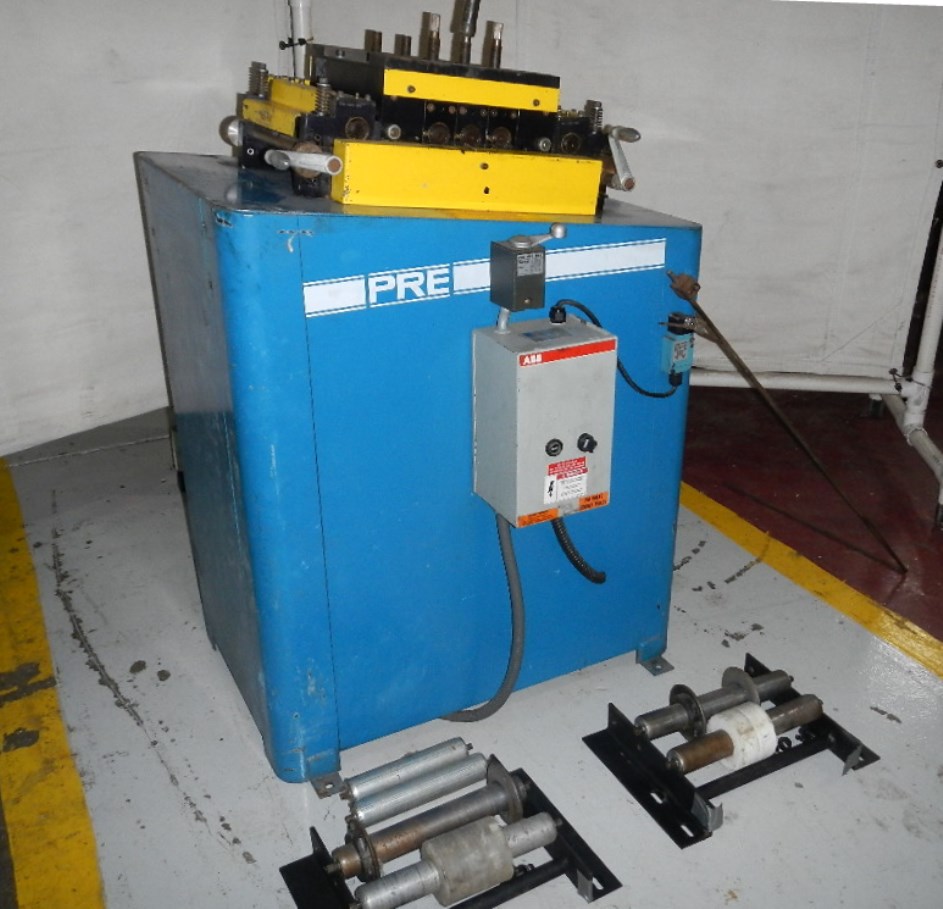

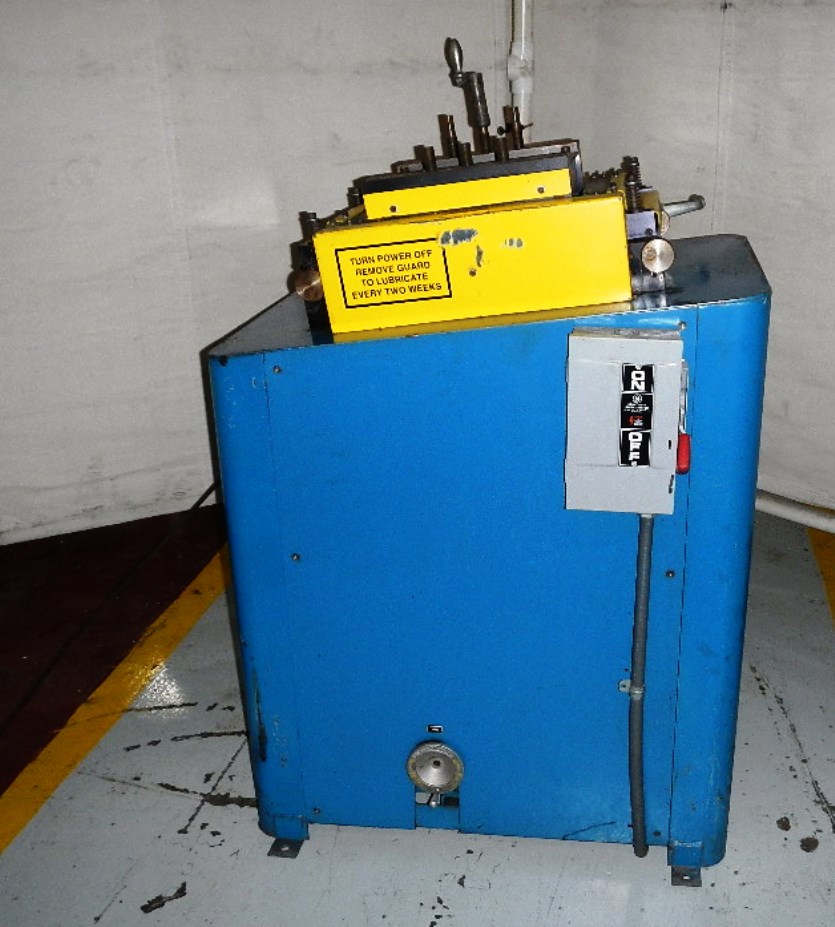

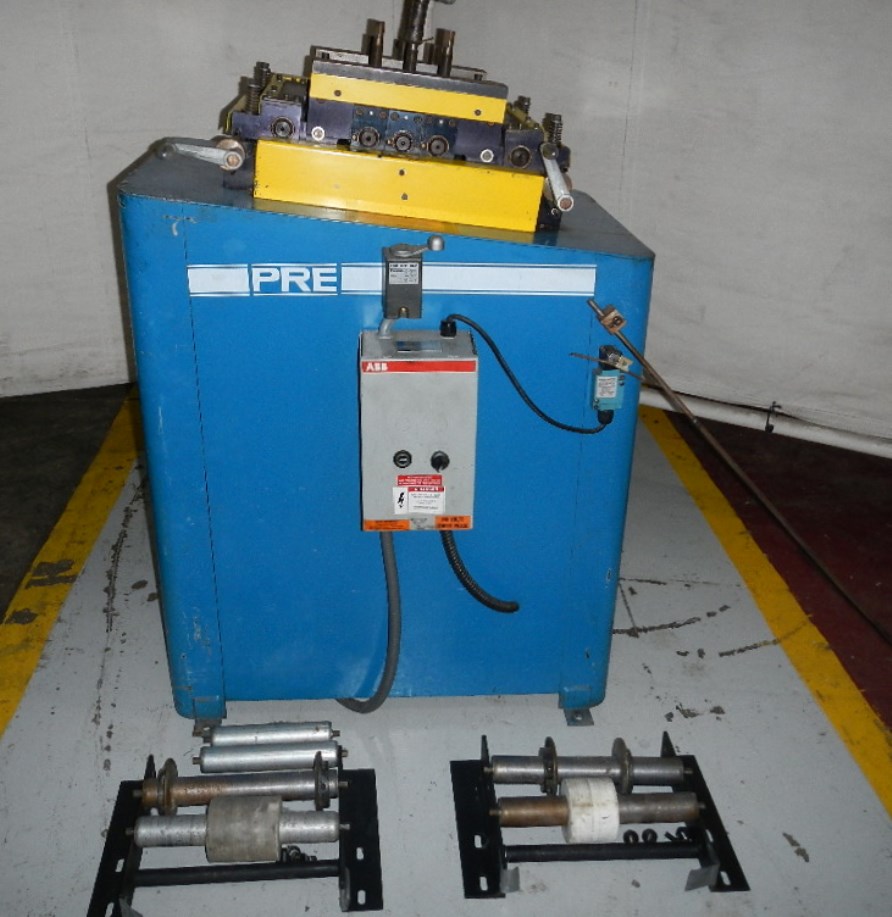

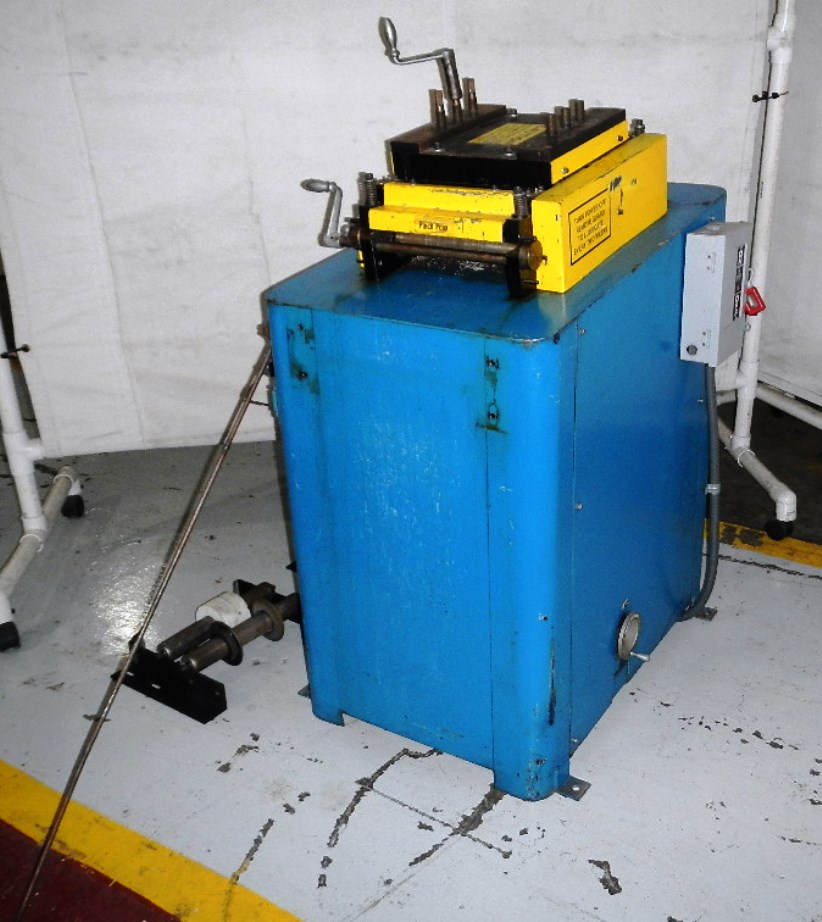

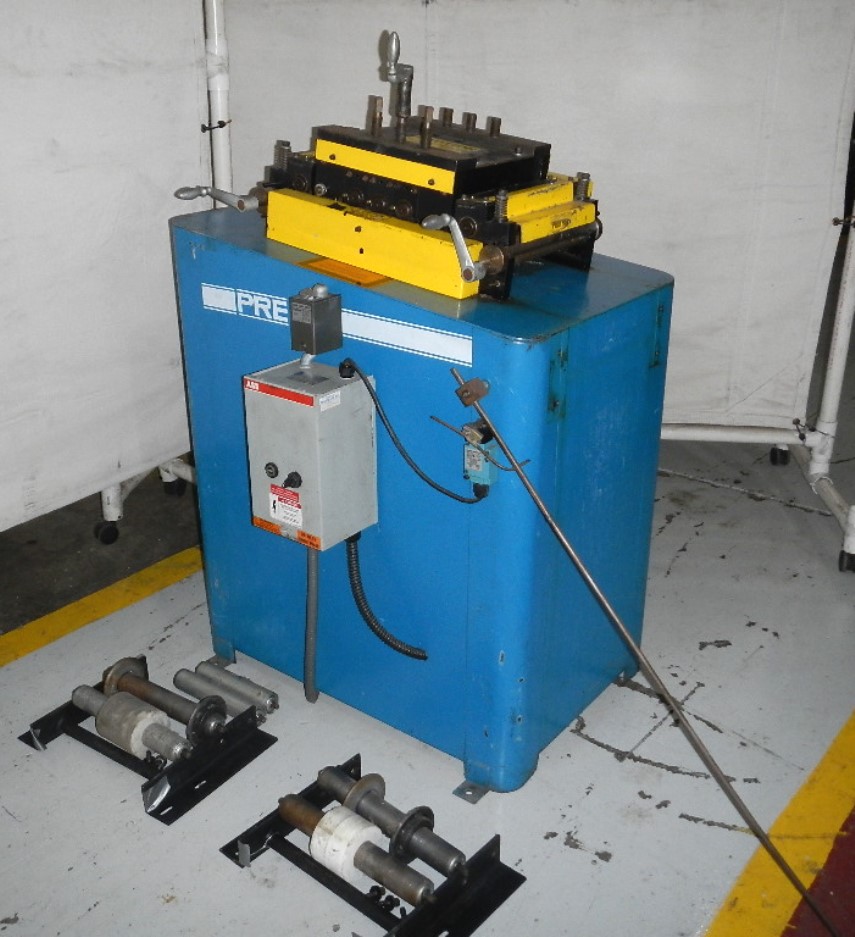

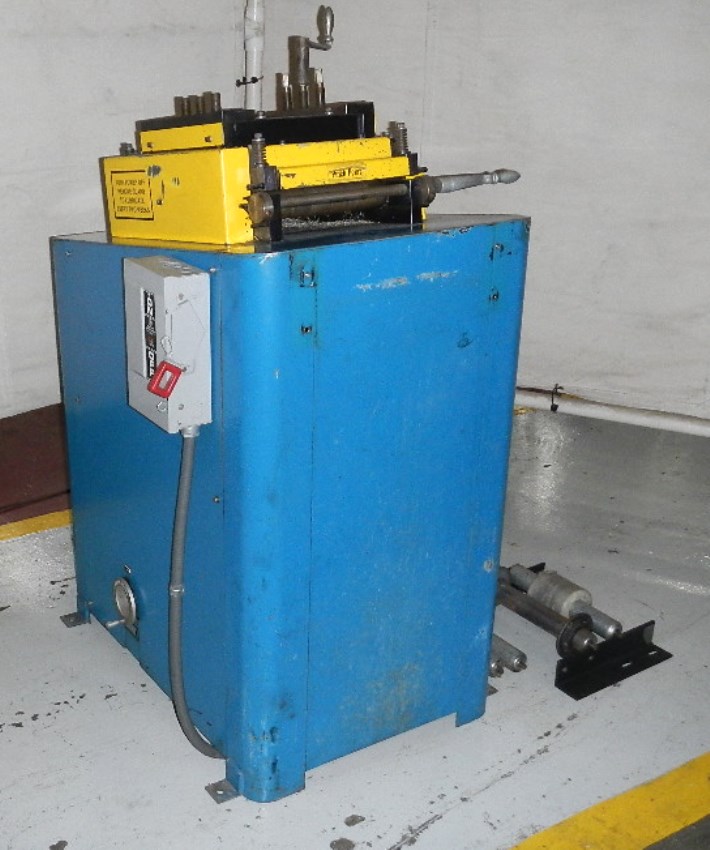

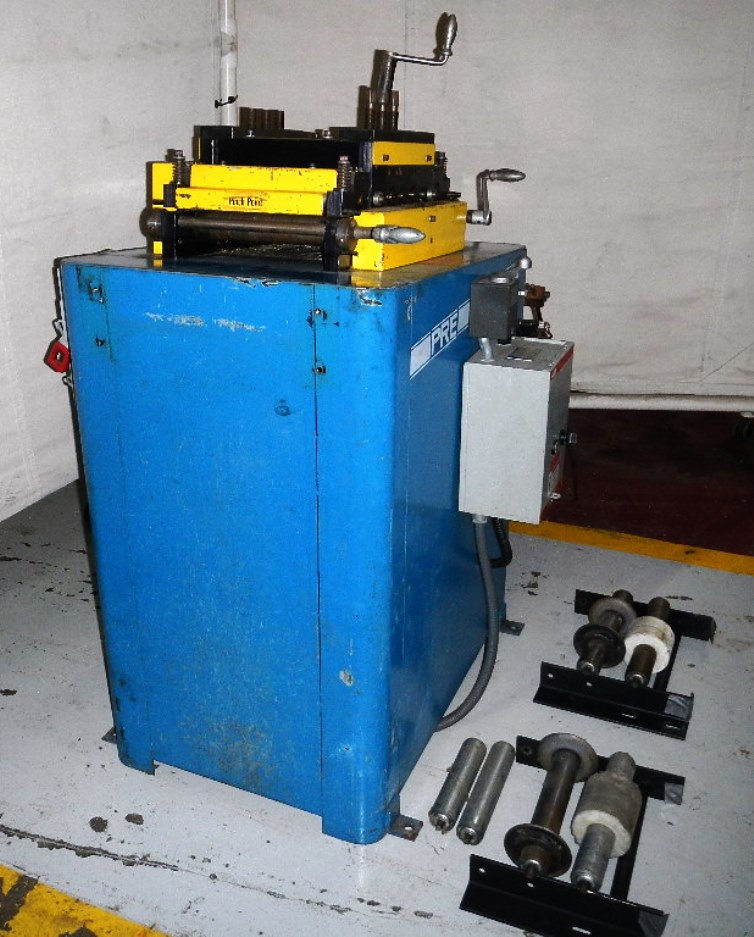

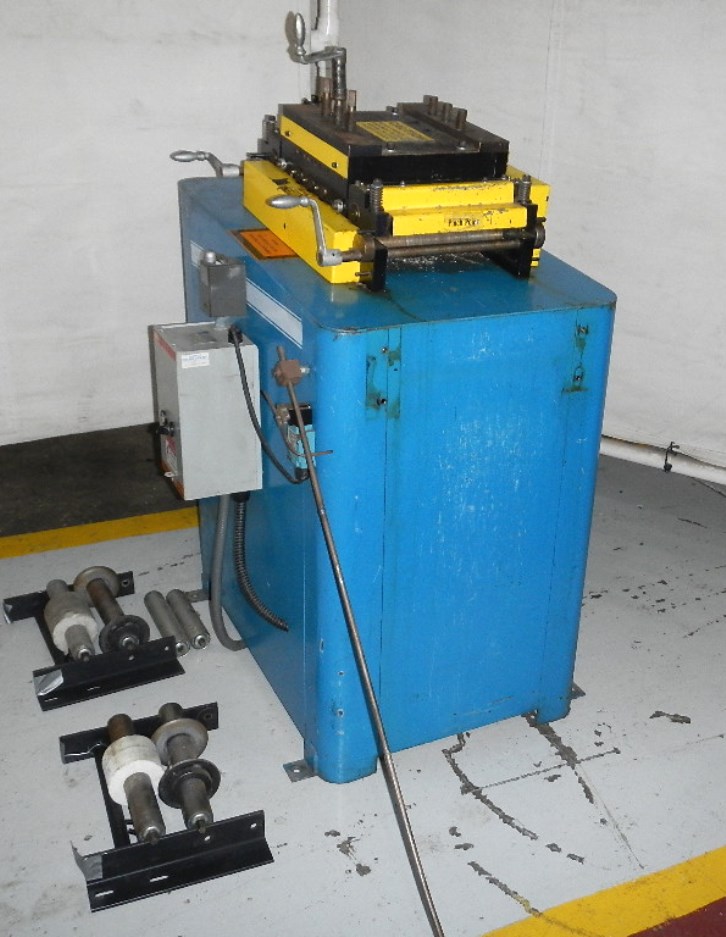

10" x .139" PRESS ROOM EQUIPMENT STRAIGHTENER

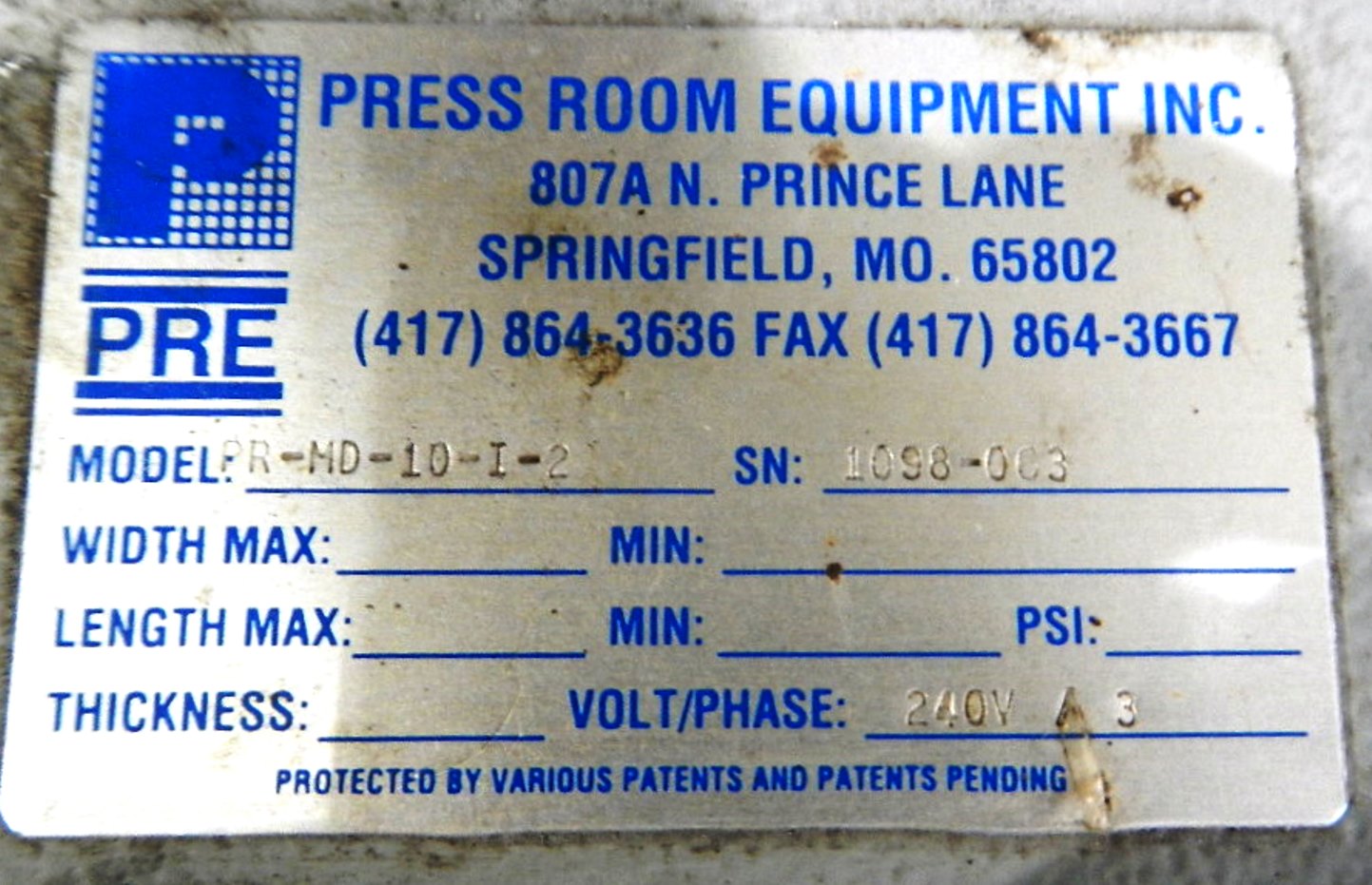

MODEL PR-MD-10-I-2       S/N 1098-063       Year 1999

Capacity .......................... 10" x .139"
Minimum thickness ................. .020"
Number of straightening rolls ..... 7 (3 over 4)
Diameter of straightening rolls ... 2"
Speed (variable) .................. 22 - 66 FPM
Roll Spacing ...................... 2-1/4"
Pass line height .................. 43" Entry
Motor ............................. 2 HP

Dimensions 33" x 38" x 48" high
Weight 1,800 lbs.

Machine is equipped with:
- Variable line speed
- Loop control
- Canted head design

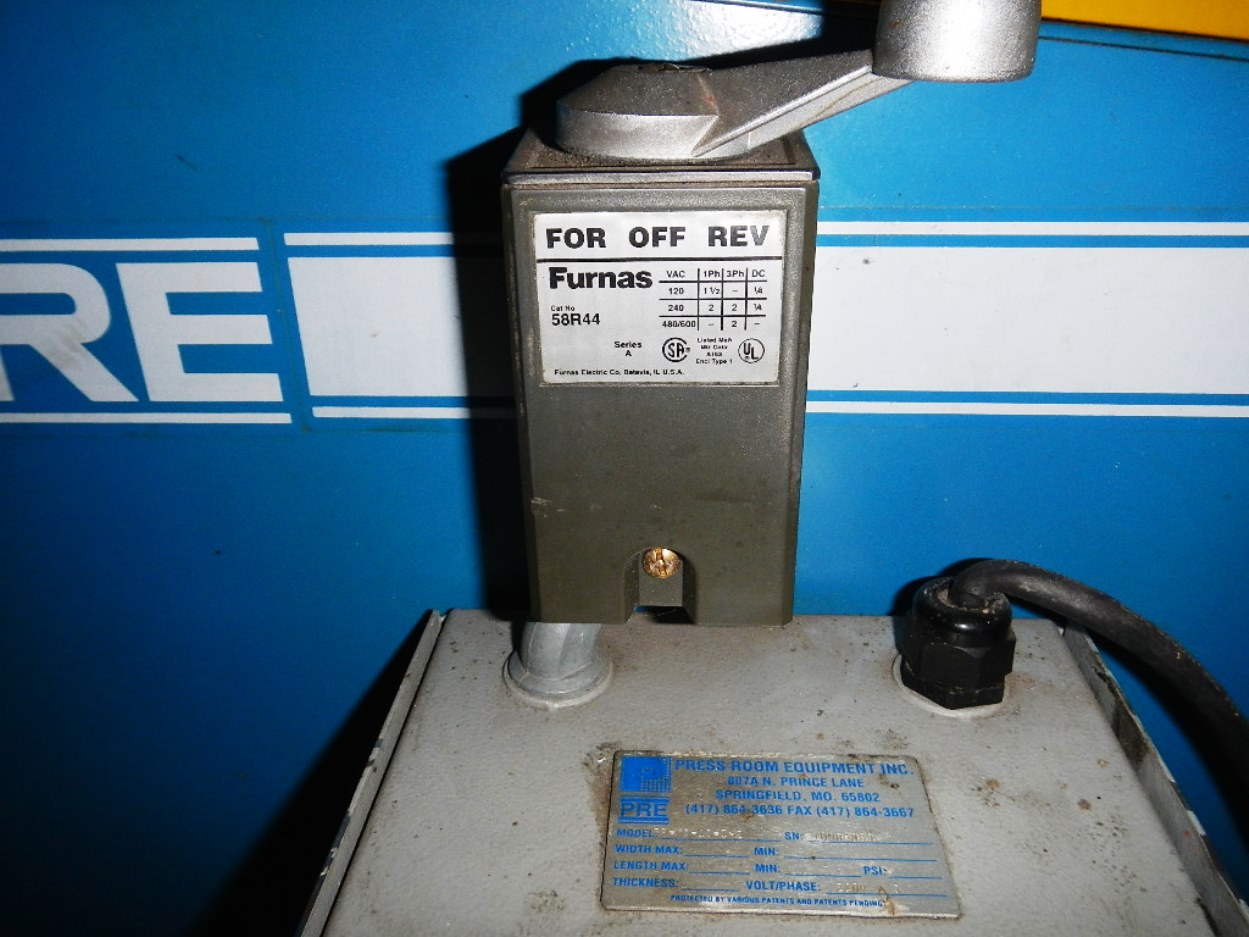

- Manual / auto - forward / reverse - stop / start modes
- Independently adjustable upper straightening rolls
- Hardened & ground rolls

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: GRAND RAPIDS, MI
