LVD 150JS10 PRESS BRAKES w/CNC BACK GAUGES

$29,500

Make:: LVD

Model:: 150JS10

Year:: 1987

Ref #:: 158351

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

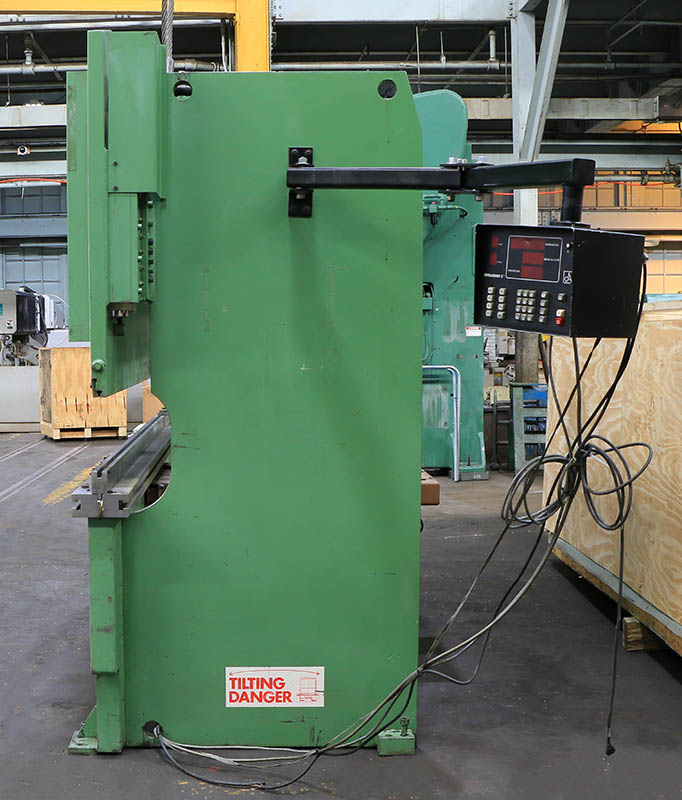

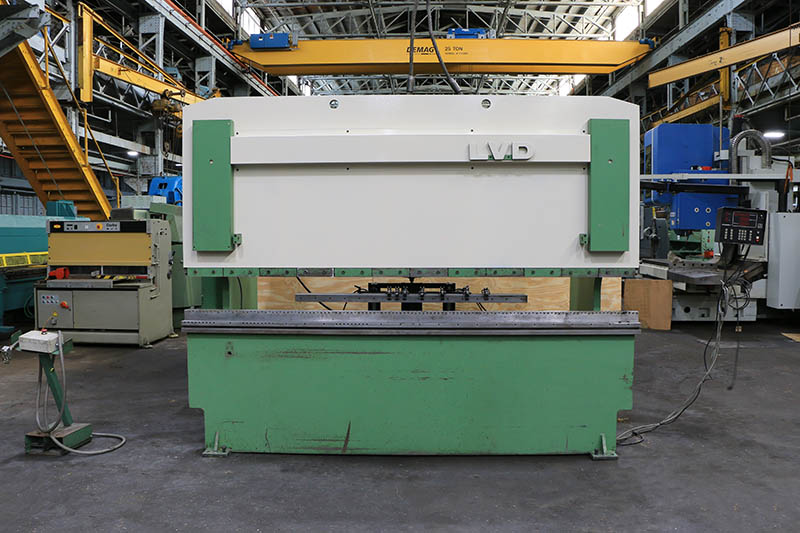

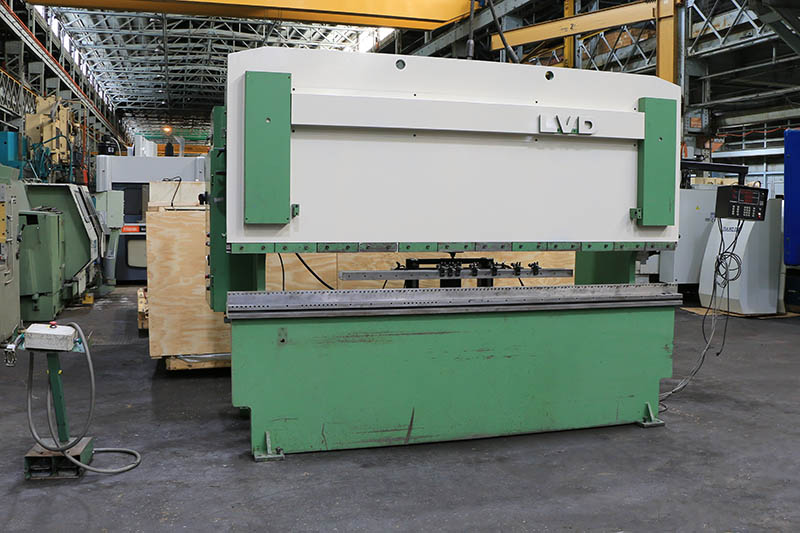

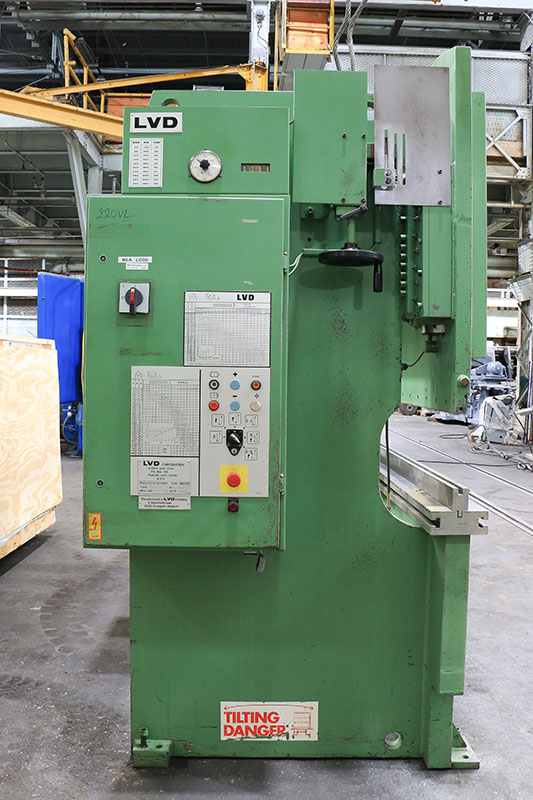

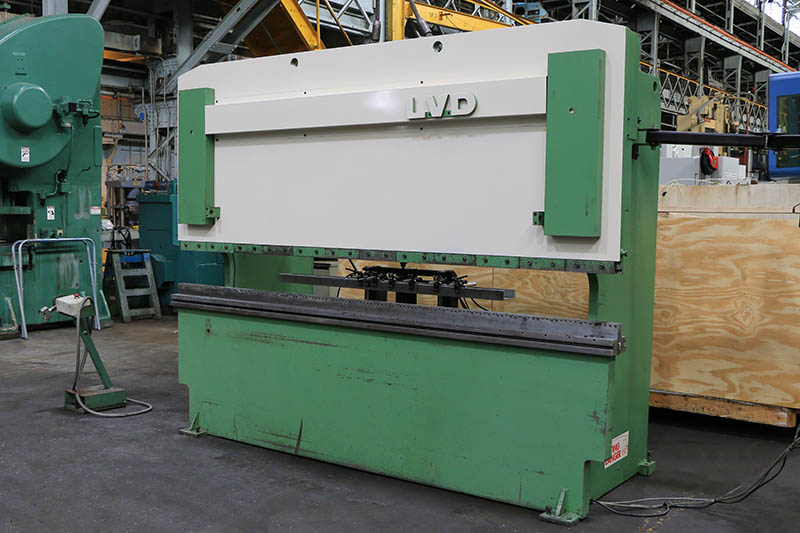

150 Ton X 10' LVD Hydraulic Press Brake

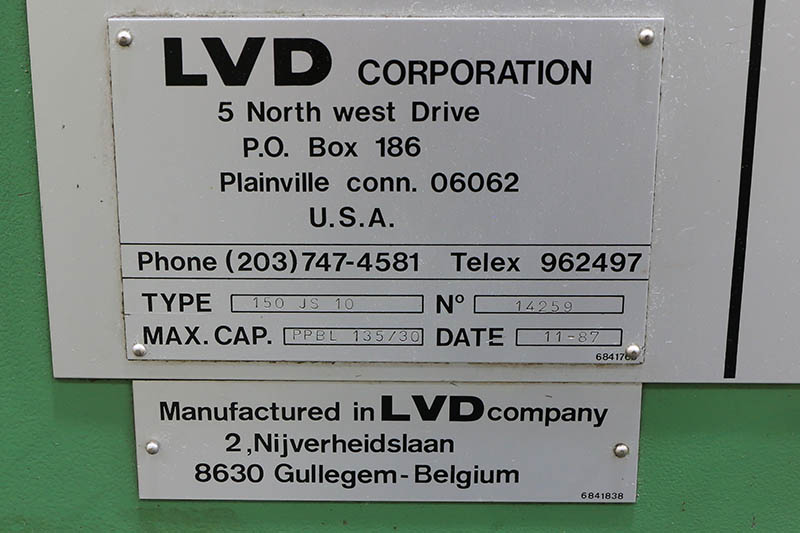

Model 150JS10          S/N 14259          New 1987

Max Capacity ........................... 150 Tons (US)
Overal Length of Bed & Ram ............. 10'
Distance Between Housings .............. 8'2"
Stroke ................................. 5.12"
Adjustable Positioning ................. 4.33"
Main Motor ............................. 24 HP
Speed: Free Fall ....................... 3.94" Per Second
       Work ............................ 0.3152" Per Second
       Open Speed ...................... 2.561" Per Second
Die Center to Side Frame Cut Out ....... 8"
Die Table to Full Open Ram Height ...... 12.214"

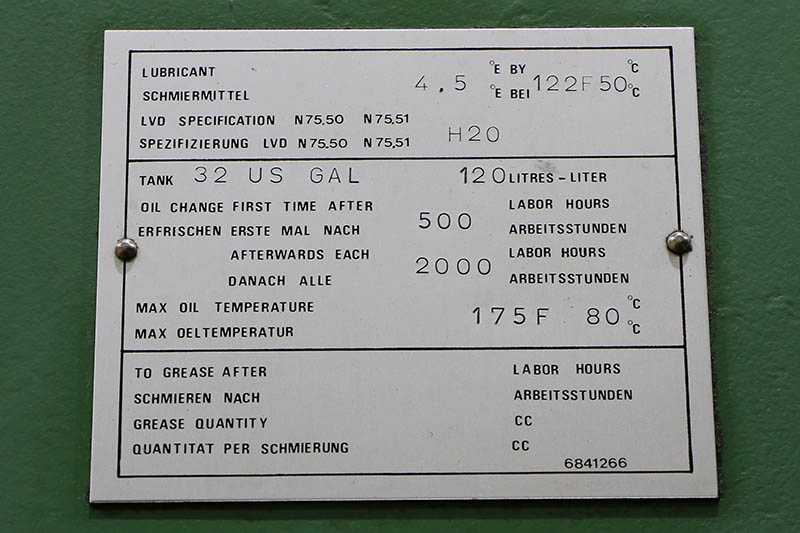

Tank Capacity .......................... 31.7 Gallons

Equipped With:

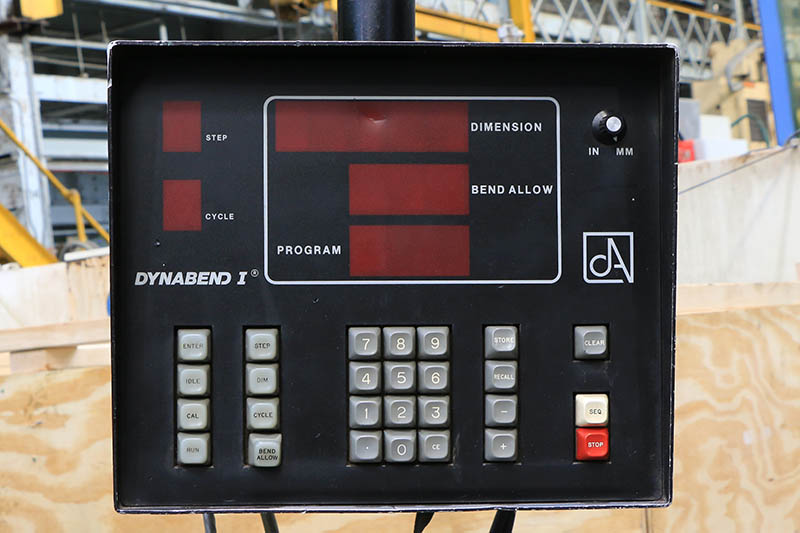

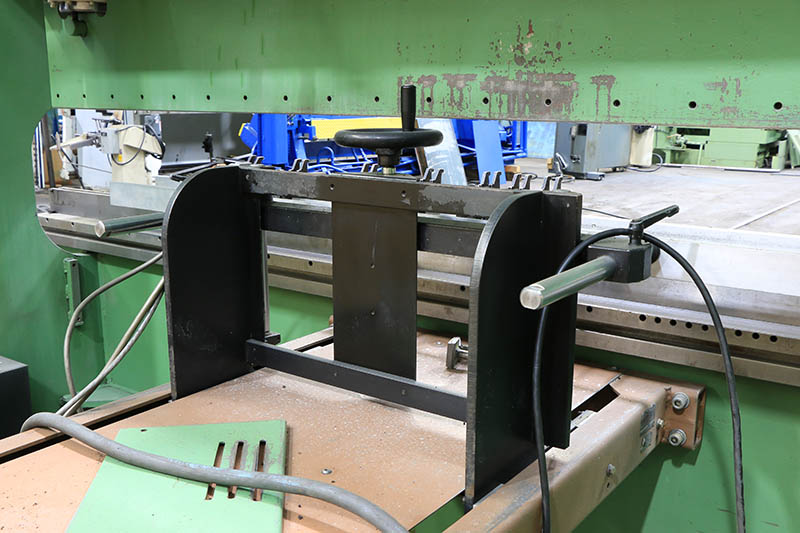

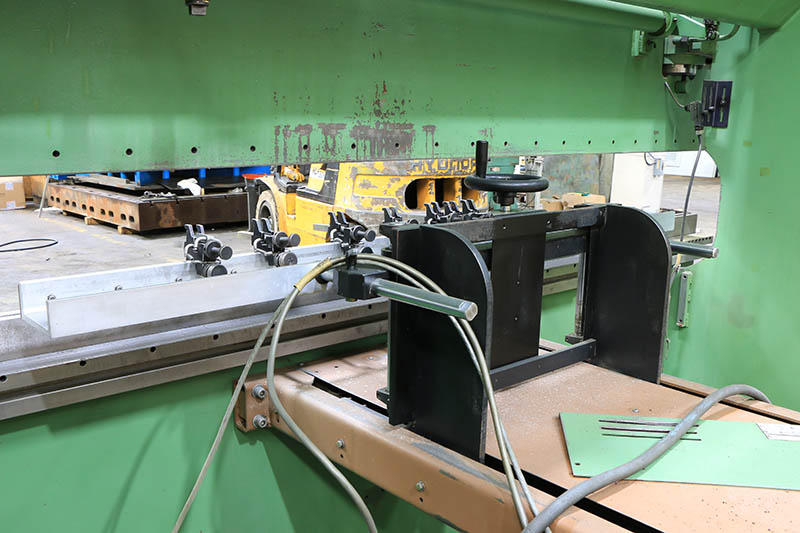

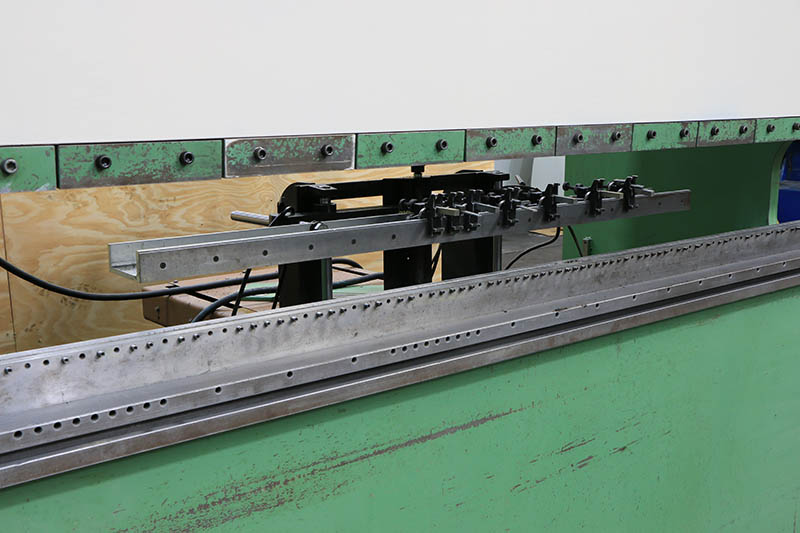

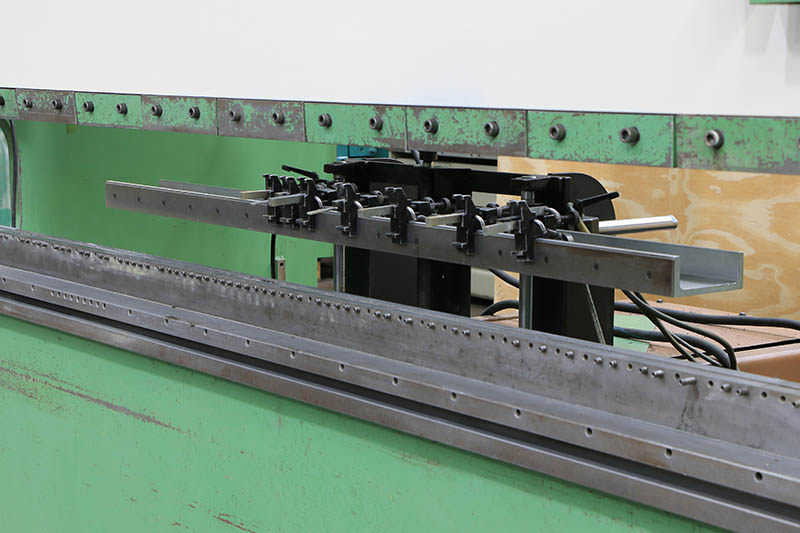

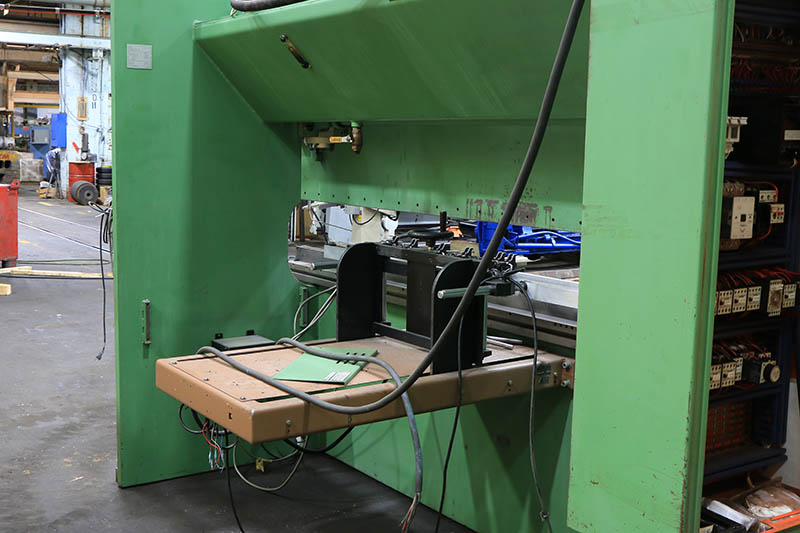

- DynaBend 1 Single Axis CNC Back Gauge

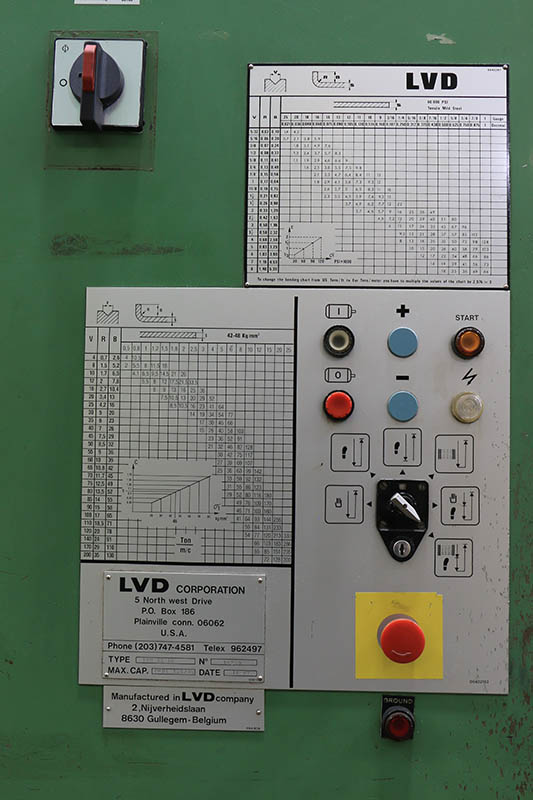

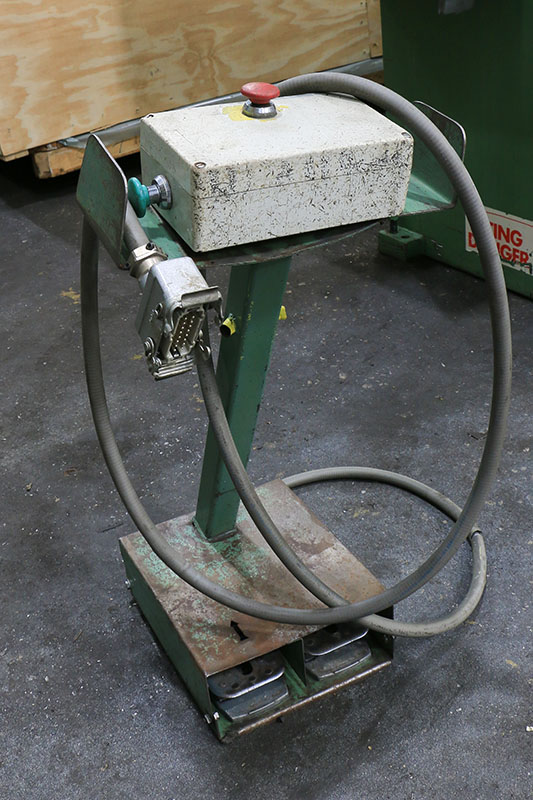

- Dual Foot Pedal with 2 Palm Buttons

Approx. Dims: ............ 11' Length x 8' Width x 9' Height
Weight: .................. 15,450 Lbs
