Niagara HBM-135-8-10 PRESS BRAKES w/CNC BACK GAUGES

$39,500

Make:: Niagara

Model:: HBM-135-8-10

Year:: 1992

Ref #:: 164104

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

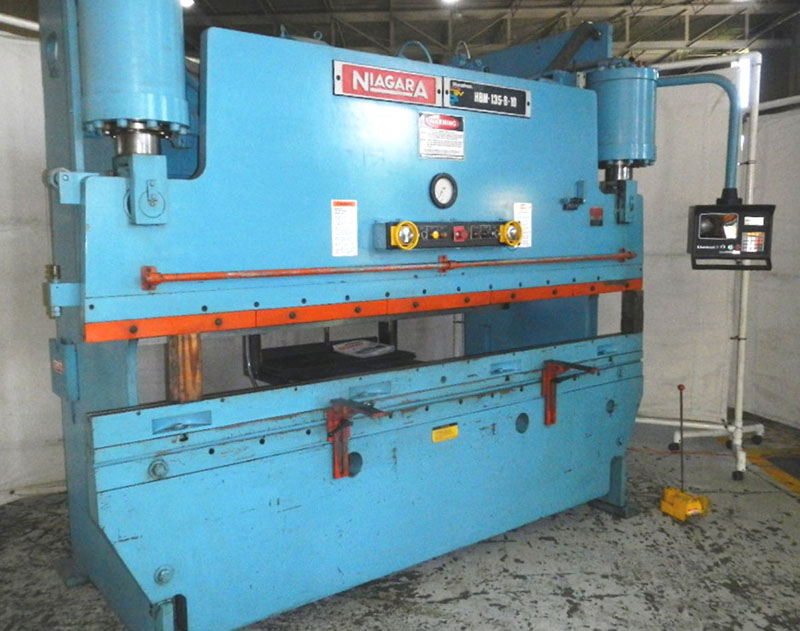

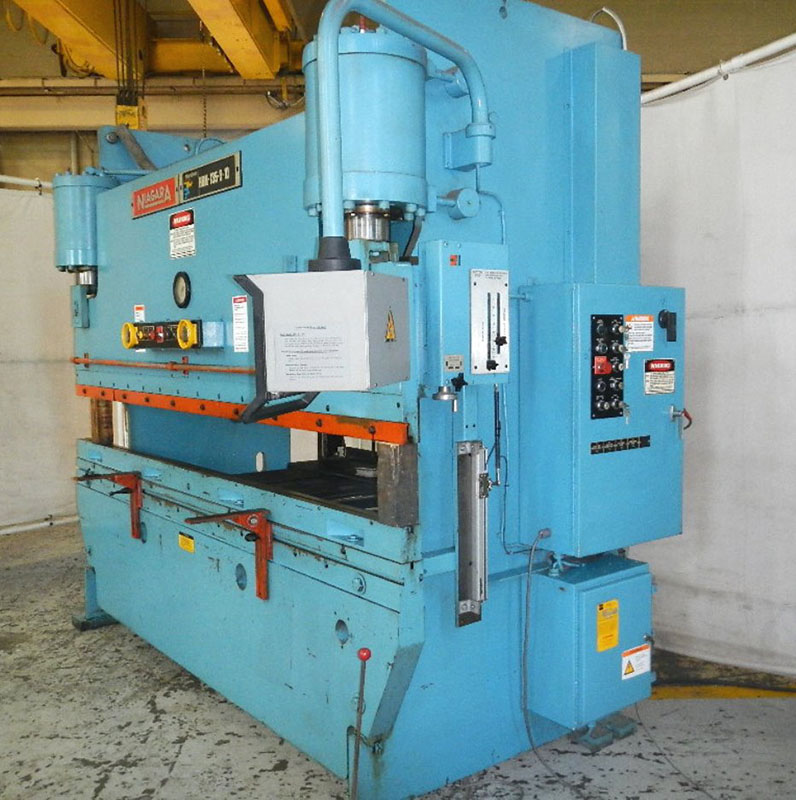

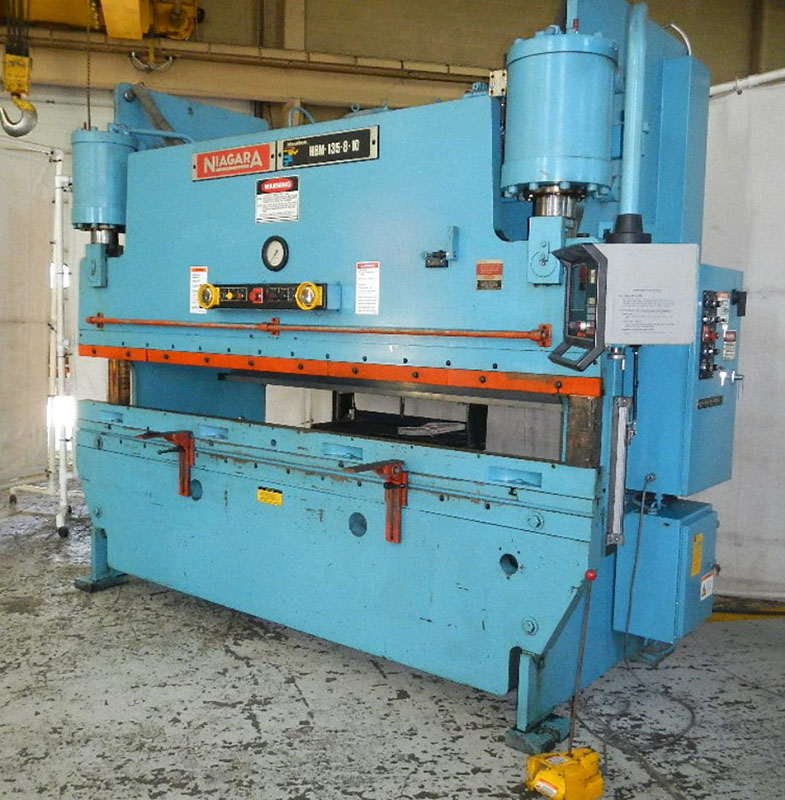

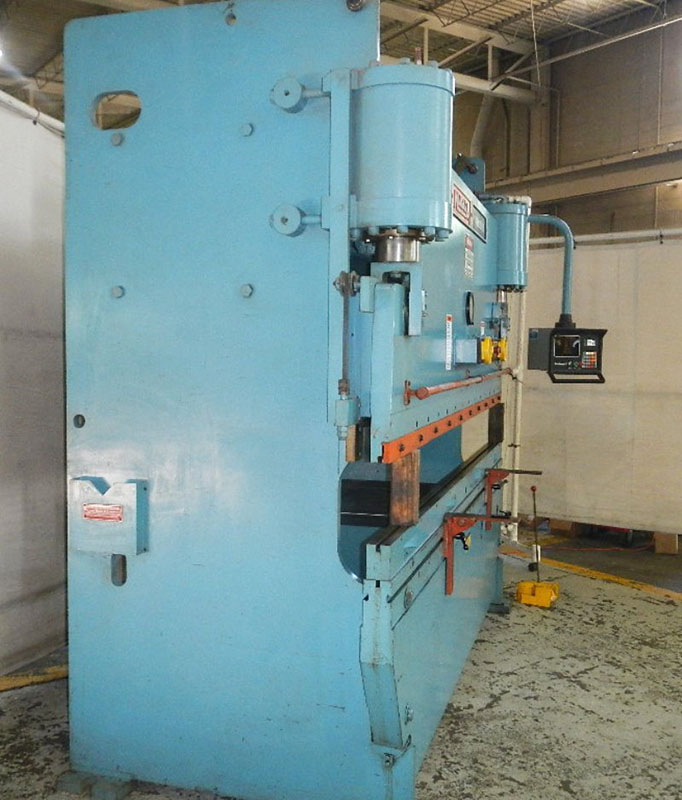

10' X 135 TON NIAGARA HYDRAULIC PRESS BRAKE
MODEL HBM-135-8-10         S/N P-53579          Year 1992

Capacity ........................ 135 ton
Rated to bend ................... 6' x 5/16"
                                  7'6" x 1/4"
Overall length of bed and ram ... 10'
Distance between housings ....... 8'6"

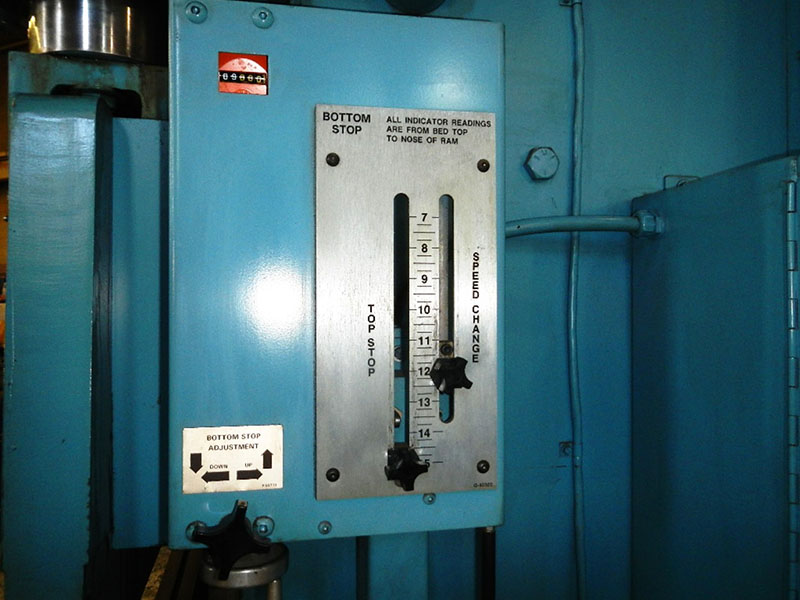

Stroke (adjustable) ............. 8" (maximum)
Open height ..................... 15"
Closed height ................... 7"
Throat depth .................... 8"
Ram Speeds: Rapid Advance ....... 153 IPM
            Anti-Back Bend ...... 17 IPM
            Rapid Return ........ 153 IPM

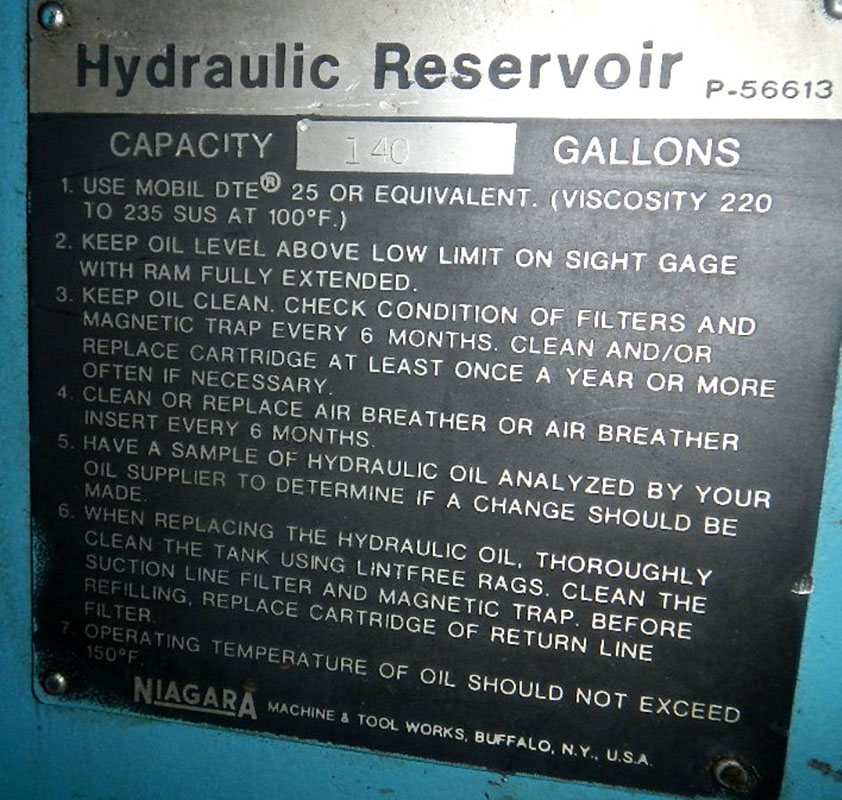

Oil capacity .................... 140 gallons
Main drive motor ................ 25 HP

Approximate overall dimensions: 130"W x 54"D x 108"H
Approximate weight: 17,000 lbs.

Machine is equipped with:

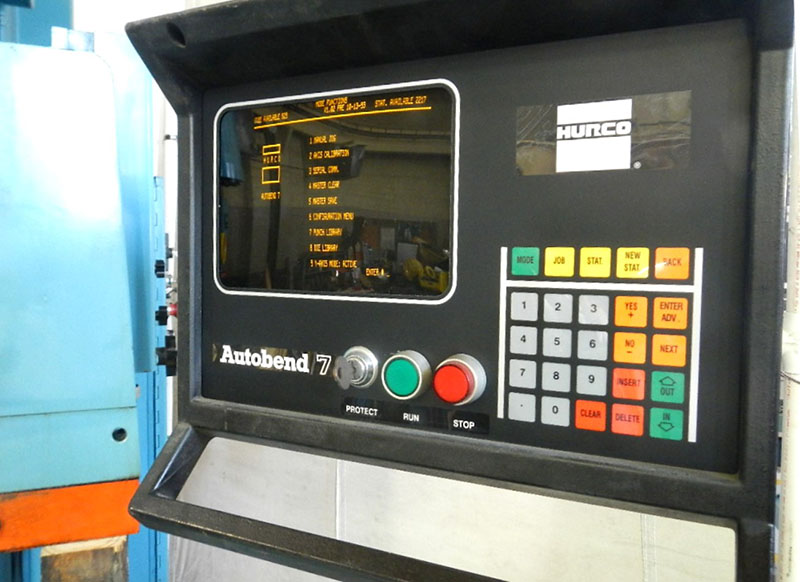

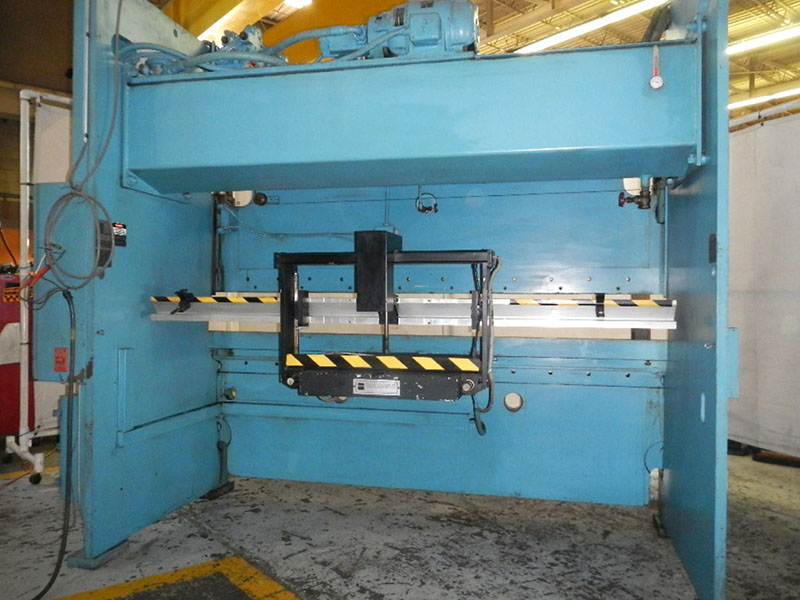

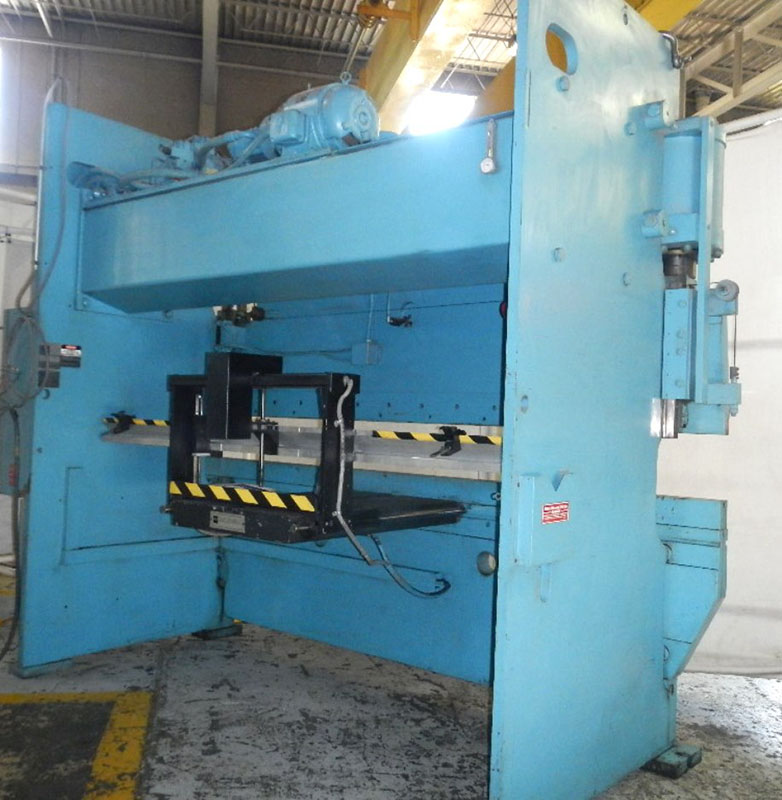

- Hurco 7 3-axis (X, Y & R) CNC back gauge
- Inch / single stroke modes
- Hand / foot actuation
- Rapid / slow speeds
- Adjustable pressure with tonnage gauge

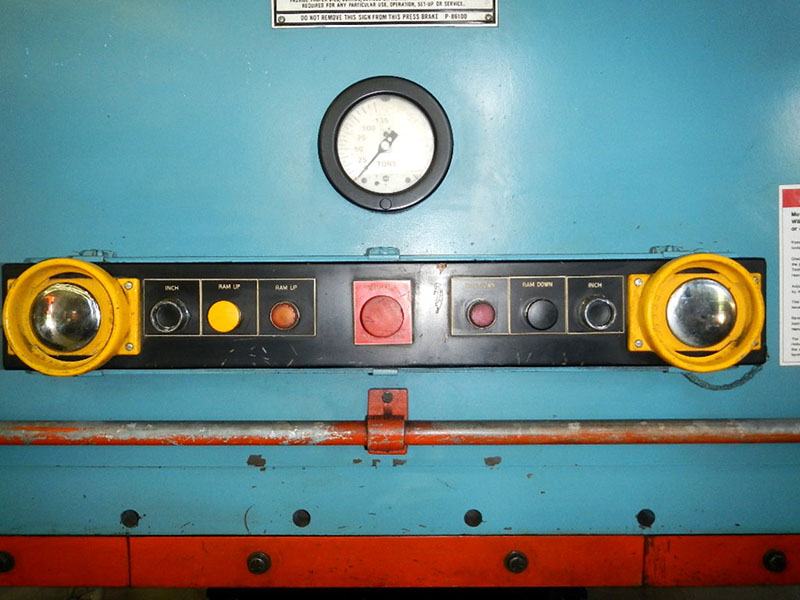

- Press mounted palm buttons with mode controls & E-stop
- Remote foot pedal
- (2) adjustable front support arms
- Lower die rail
- Full set of manuals & schematics

*PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION
FOB: GRAND RAPIDS, MI
