Makino A51 HORIZONTAL MACHINING CENTERS (HMC's)

Price on Request

Make:
Makino
Model:
A51
Year:
2004
Ref #:
163959

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com


MAKINO HORIZONTAL MACHINING CENTER
MODEL#: A51,  MFG: 2004

SPECIFICATIONS:
PALLET SIZE .......................... 15.7" X 15.7" (500MM)
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 22.05"
  Y-AXIS TRAVEL ...................... 22.05"
  Z-AXIS TRAVEL ...................... 23.6"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING FULL 4TH AXIS ........ (.001)
MAX PALLET LOAD ...................... 880 LBS.
PALLET CHANGE TIME ................... 8 SECONDS
RAPID TRAVERSE RATE (X/Y/Z) .......... 1,960 IPM
MAX CUTTING FEED RATE ................ 1,575 IPM
SPINDLE TAPER ........................ #40 CAT
SPINDLE SPEEDS ....................... 0 - 12,000 RPM
TOOLCHANGER CAPACITY ................. 60 STATIONS
MAX TOOL WEIGHT ...................... 17.6 LBS
LENGTH/DIAMETER ...................... 14.17" X 5.51"
TOOL TO TOOL TIME .................... 0.9 SECONDS
SPINDLE DRIVE ........................ 25 HP
APPROXIMATE MACHINE DIMENSIONS ....... 75"L X 183"L X 111"H
APPROXIMATE WEIGHT ................... 17,500 LBS.

EQUIPPED WITH:
-PROFESSIONAL 3 CNC CONTROL

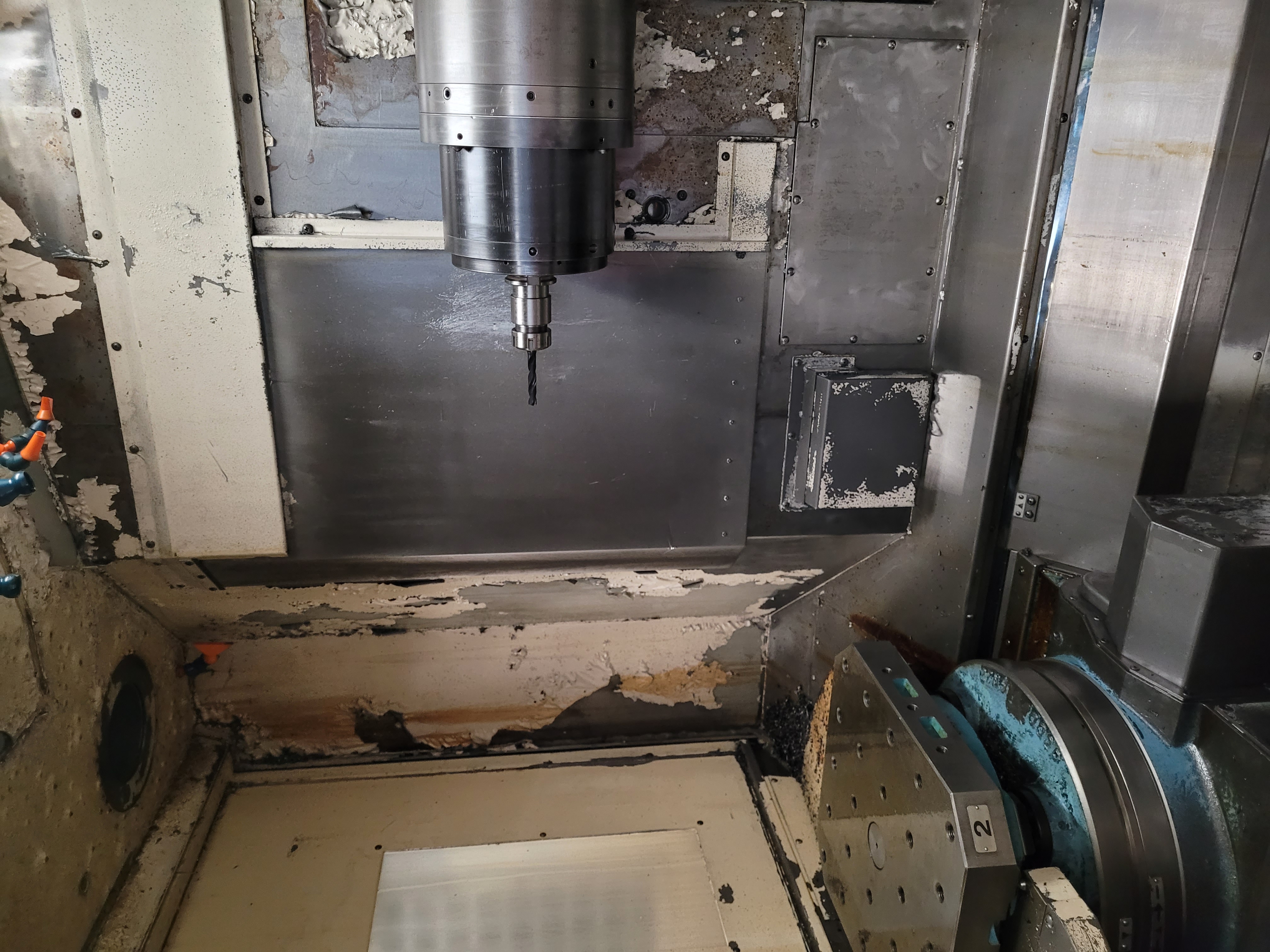

-25 HP HIGHPOWER SPINDLE DRIVE, 12,000 RPM SPINDLE
-THRU-SPINDLE COOLANT
-2 PALLETS,
-FULL 4TH AXIS (.001 DEGREE) PROGRAMMABLE PALLET
-60 STATION AUTOMATIC TOOL CHANGER
-CHILLER
-CHIP CONVEYOR

INSPECT UNDER POWER IN A NORTHEAST PLANT
