Matsuura ES800V 4-Axis VERTICAL MACHINING CENTERS. VMC's

$27,500

Make:
Matsuura
Model:
ES800V 4-Axis
Year:
2004
Ref #:
161611

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

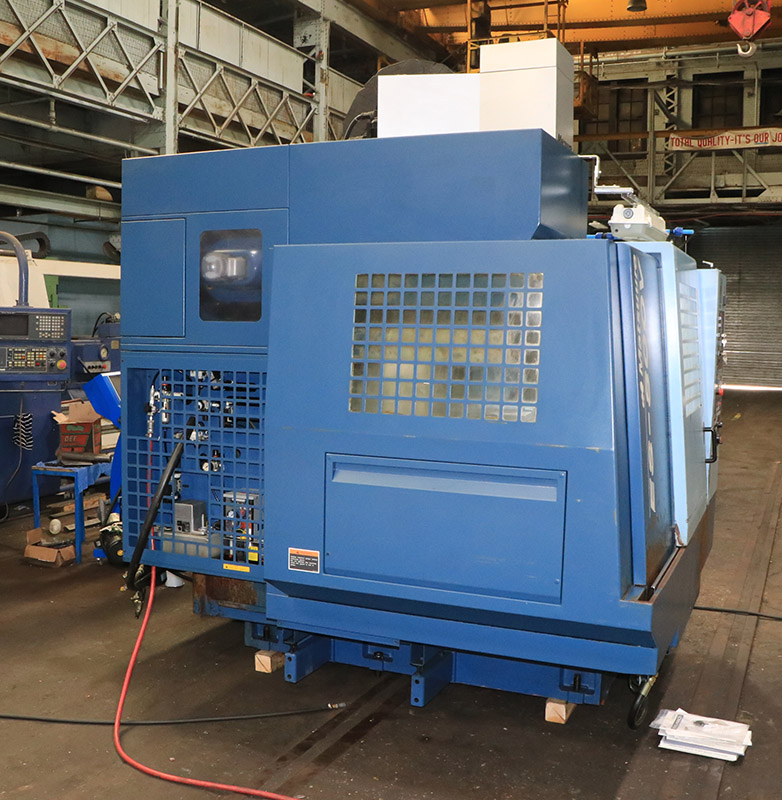

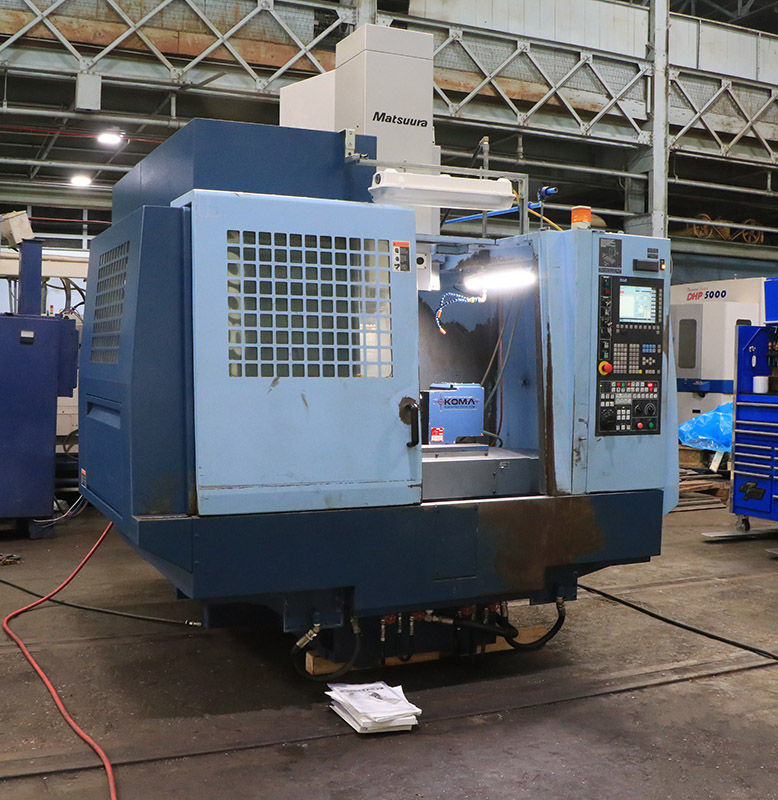

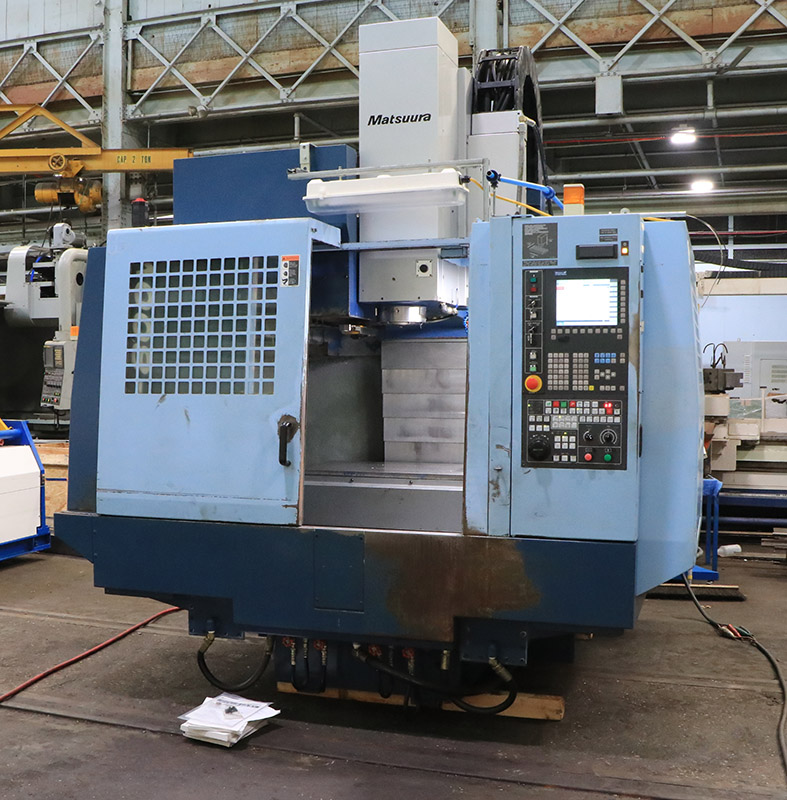

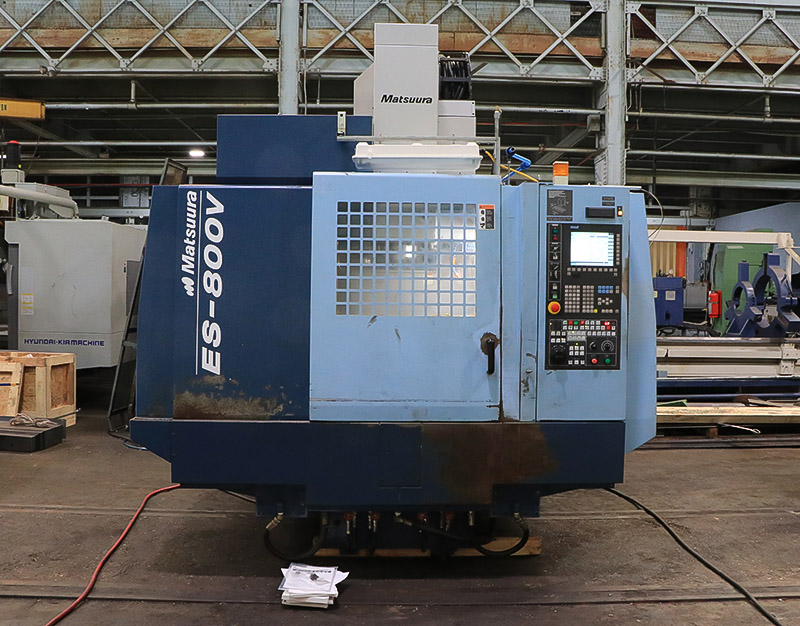

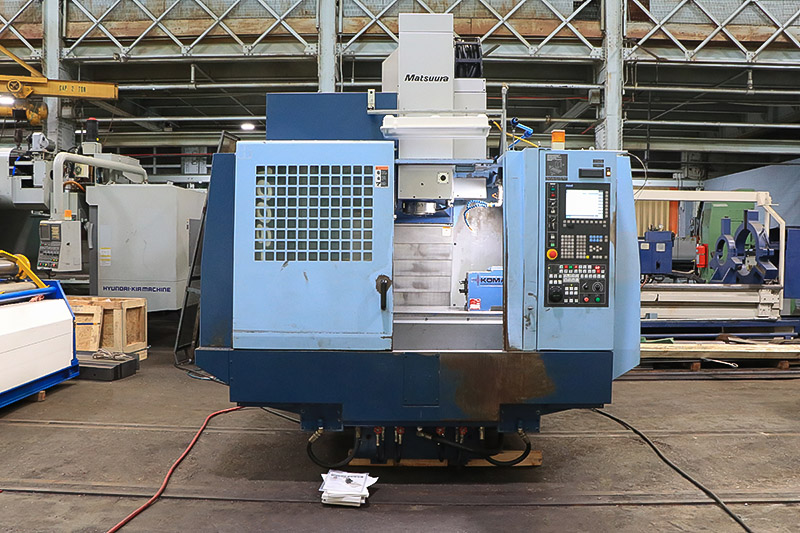

MATSUURA FOUR AXIS VERTICAL MACHINING CENTER
MODEL: ES-800V, MFG: 2004

SPECFICATIONS:
TRAVELS:
  X AXIS TRAVEL .................... 31.49"  800mm
  Y AXIS TRAVEL .................... 21.65"  550mm
  Z AXIS TRAVEL .................... 19.68"  500mm

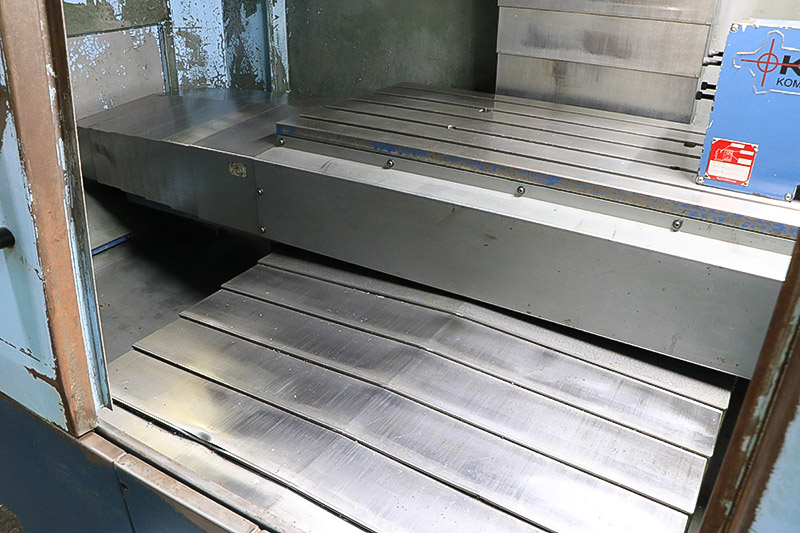

TABLE WORKING SURFACE .............. 45.27" x 21.65" 1150mm x 550mm
TABLE SURFACE TO SPINDLE ........... 5.9" - 25.59"  150mm - 650mm
DISTANCE SPINDLE CENTER TO COLUMN .. 23.23"  590mm
SPINDLE SPEED RANGE ................ 40 - 20,000 RPM

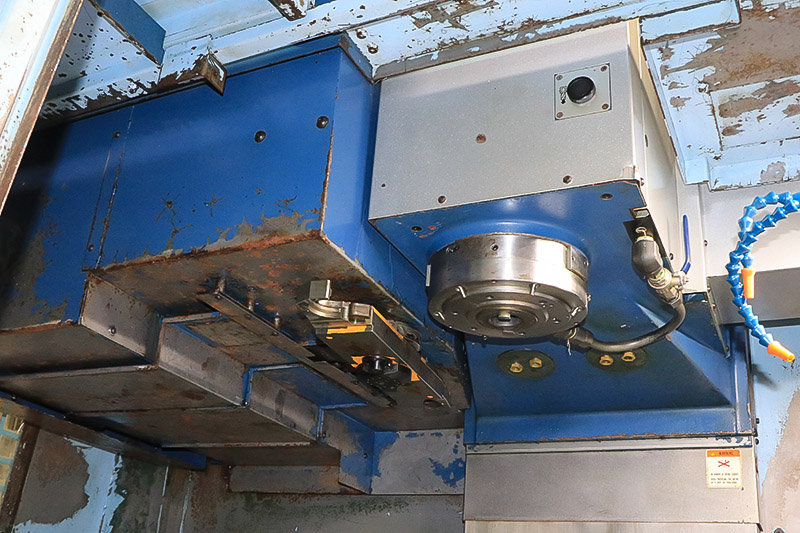

SPINDLE TAPER ...................... BT 40
MAX. SPINDLE TORQUE  ............... 187 Nm/1,120 min
RAPID TRAVERSE RATES:
  X & Y AXIS ....................... 1969 IPM  50000mm
  Z AXIS ........................... 1181 IPM  30000mm
TOOL CHANGER ....................... 30 ATC
MAX. TOOL DIAMETER ................. 3.77/6.88"  96/175mm
MAX. TOOL LENGTH  .................. 13.7"  350mm
MAX. TOOL WEIGHT ................... 22LBS. 10kg
TOOL CHANGE TIME ................... .9 SEC
MACHINE WEIGHT ..................... 16,000 LBS.

EQUIPPED WITH:

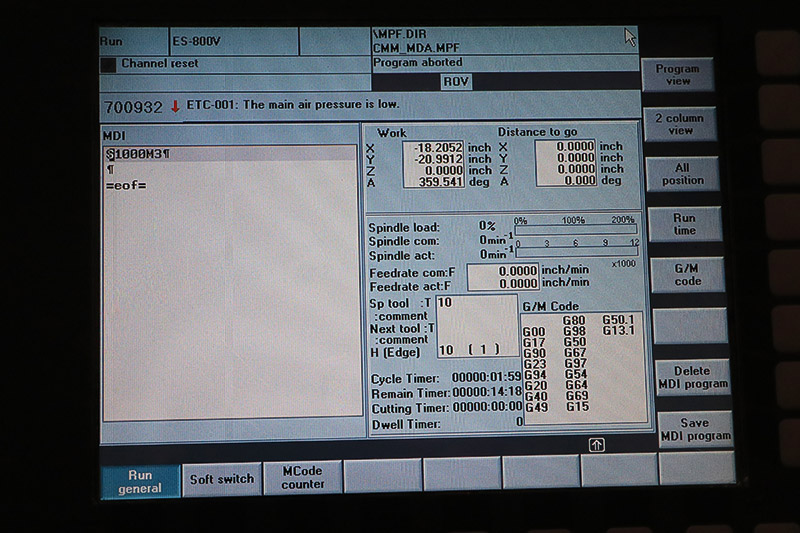

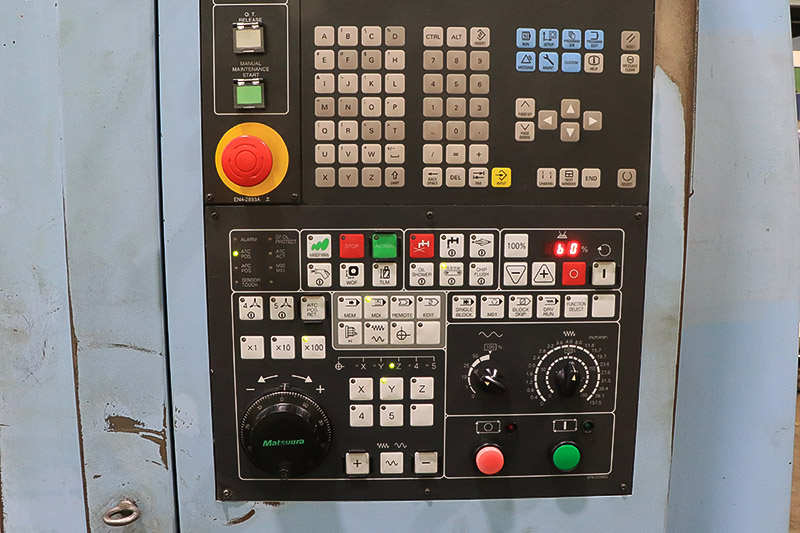

MATSUURA G-TECH 840DIs FOUR AXIS CONTROL
SYNCH. TAPPING

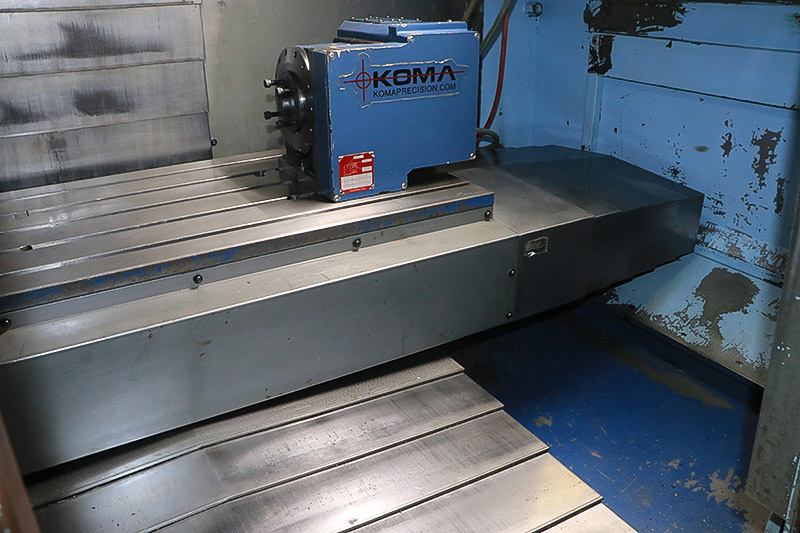

KOMA RNA-200R FOURTH AXIS ROTARY TABLE

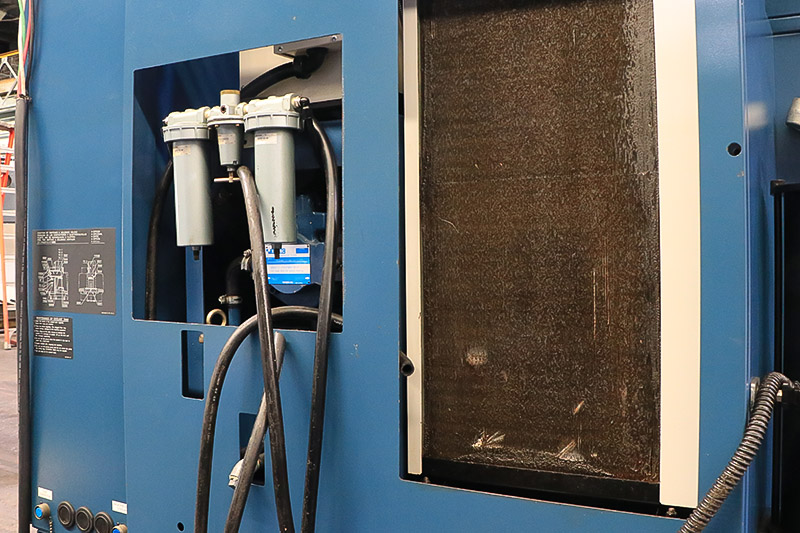

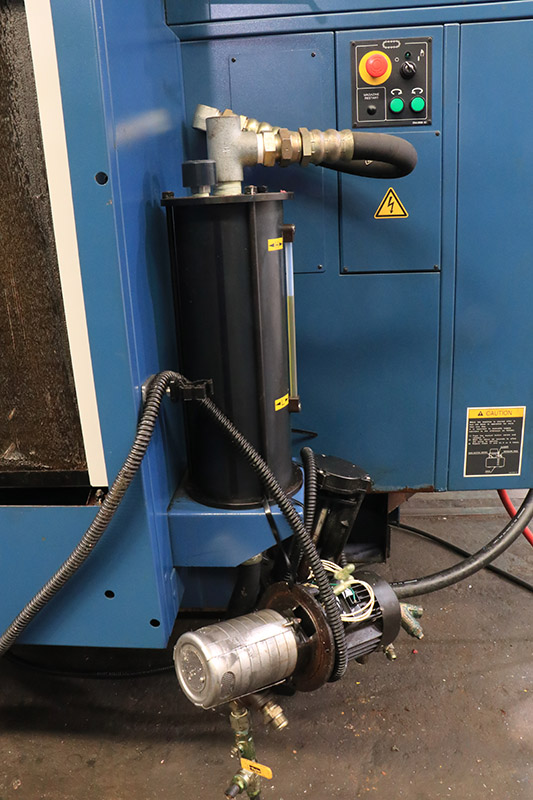

HIGH PRESSURE COOLANT THRU SPINDLE 1000 PSI

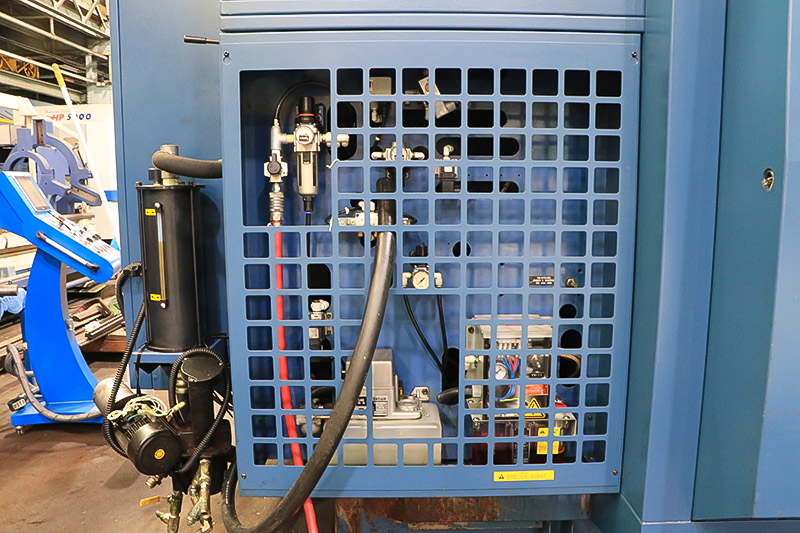

COOLANT SYSTEM
CHIP CONVEYOR
15/22 KW SPINDLE MOTOR
ALL AVAILABLE MANUALS

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
