Mazak ENGINE LATHES

$14,500

Make:: Mazak

Model:

Year:

Ref #:: 178156

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

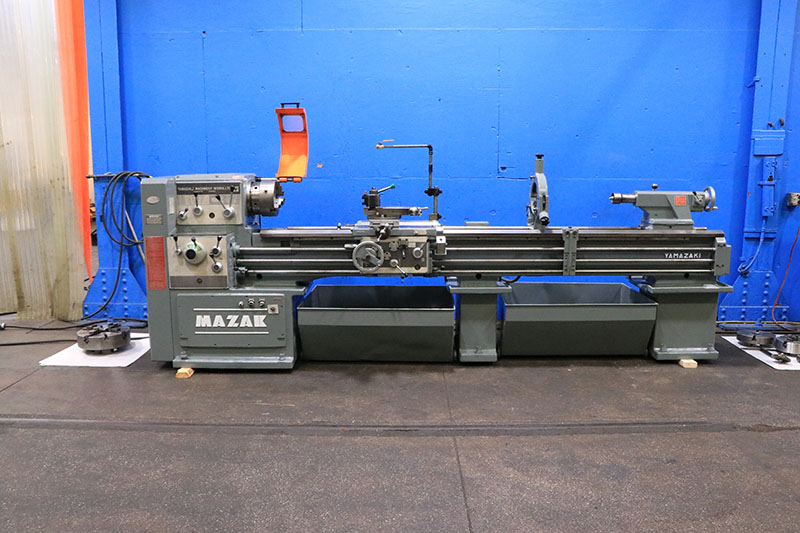

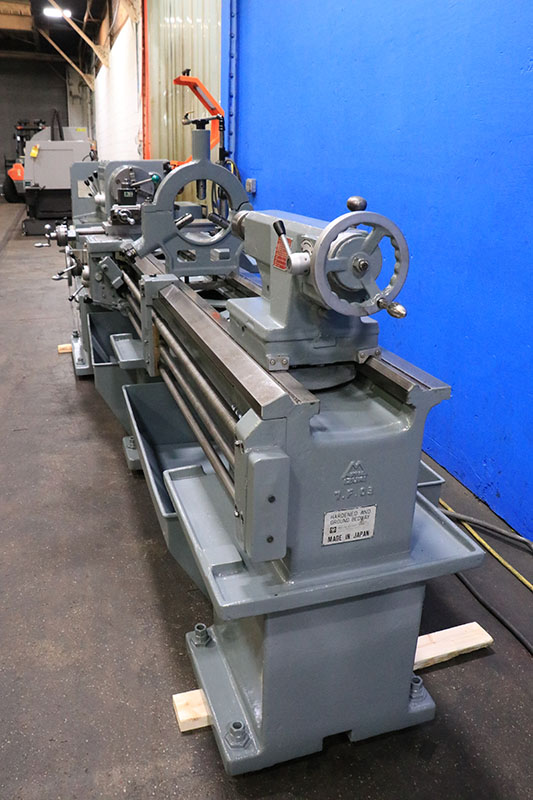

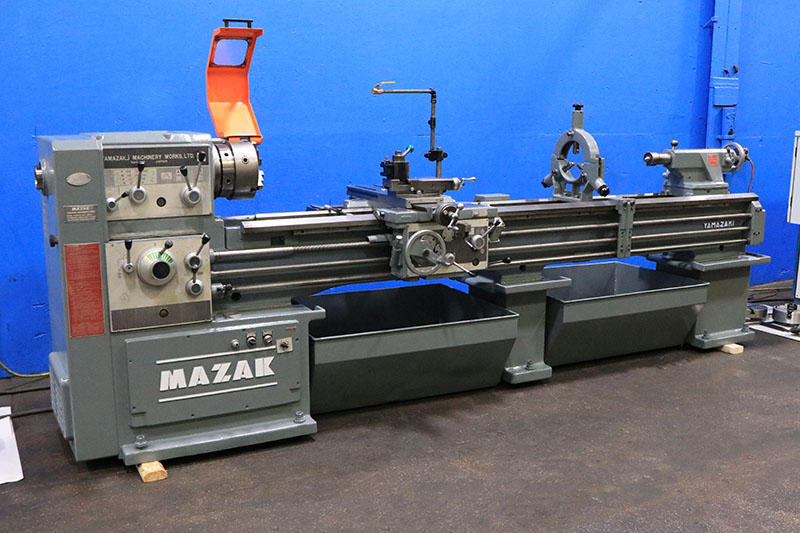

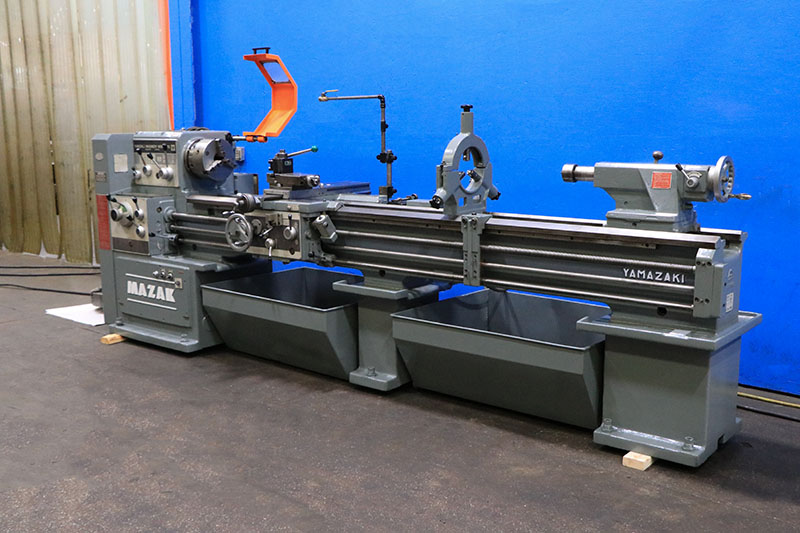

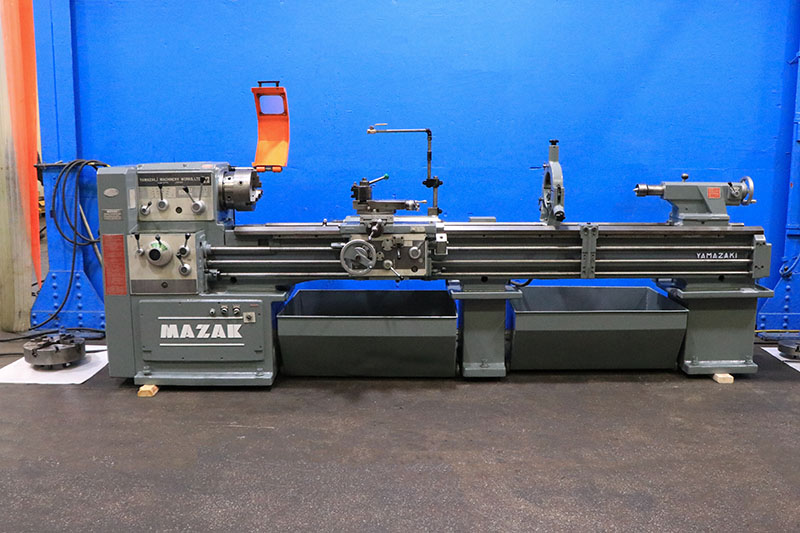

18"/25" x 100" MAZAK GAP BED LATHE

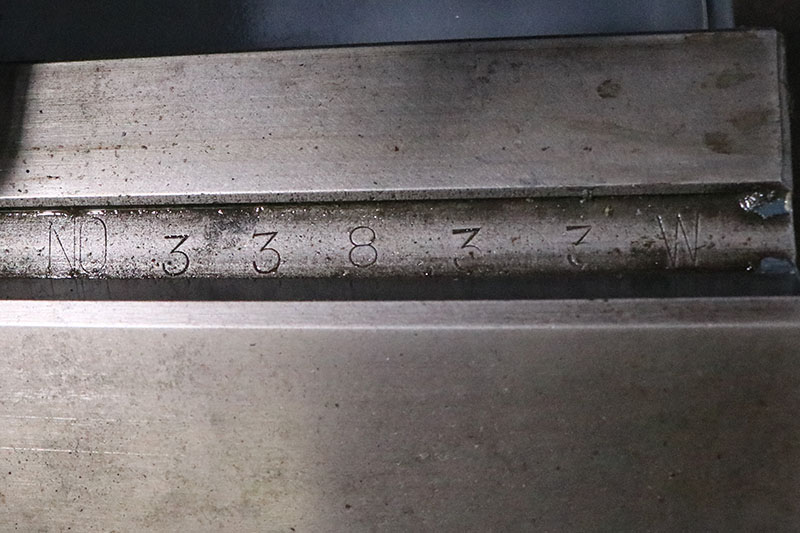

S/N: 33833W, NEW: 1980'S

SPECIFICATIONS:
SWING OVER BED WAYS ................. 18"
SWING IN REMOVABLE GAP .............. 25-1/8"
SWING OVER CROSS SLIDE .............. 10-1/8"
DISTANCE BETWEEN CENTERS ............ 100"
HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK
WIDTH OF BED ........................ 14-1/2"

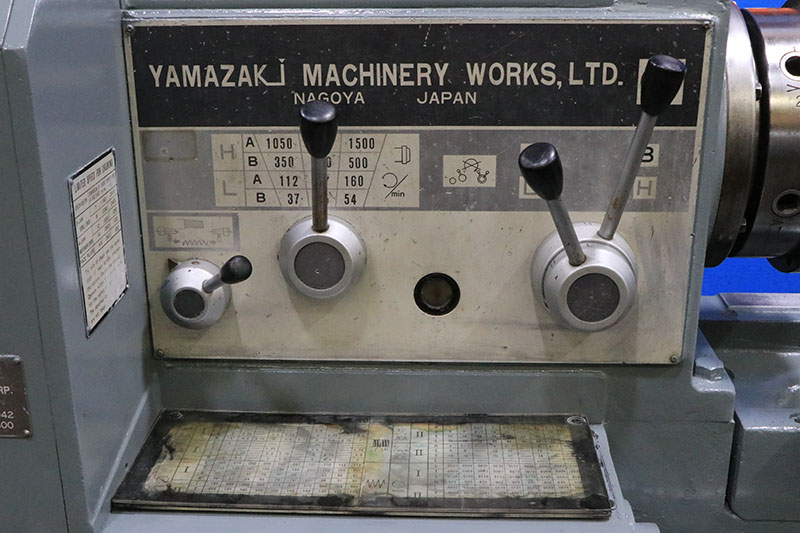

SPINDLE SPEED RANGE (12) ............ 25 - 1500 RPM
LONGITUDINAL FEED RANGE (80) ........ .0024" - .035" IPR
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (40) ........... 4 - 56 TPI
METRIC THREADING RANGE (23) ......... .5 - 7 mm
TAILSTOCK SPINDLE TRAVEL ............ 6-5/16"
TAILSTOCK SPINDLE TAPER ............. #4MT
APPROXIMATE FLOOR SPACE ............. 160"L x 45"W x 50"H
APPROX WEIGHT ....................... 7,500 LBS


EQUIPPED WITH:
INCH & METRIC THREADING

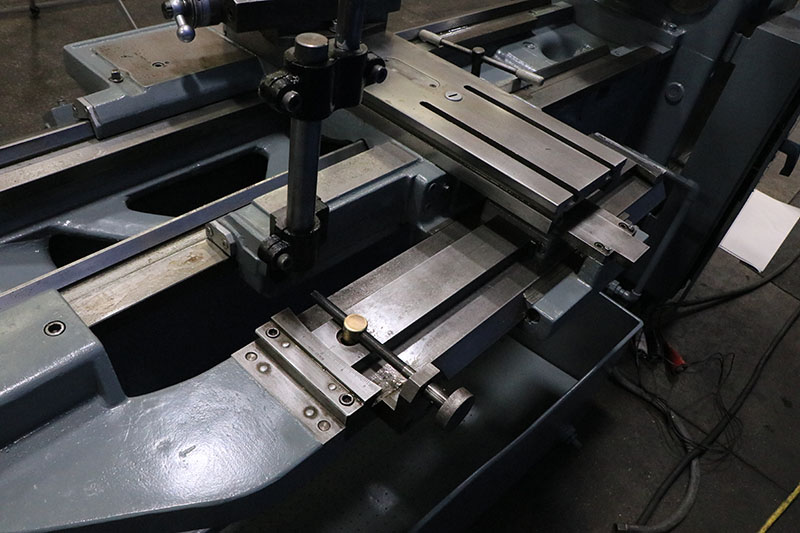

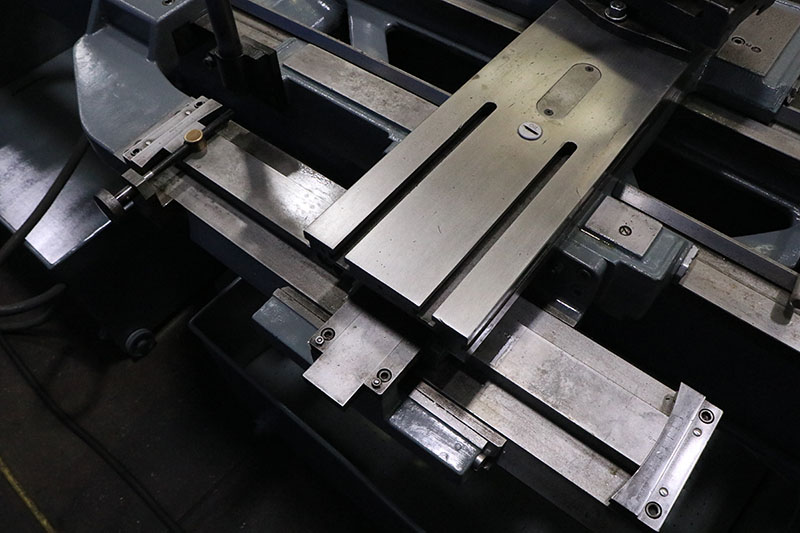

TAPER TURNING ATTACHMENT
REMOVABLE GAP BLOCK

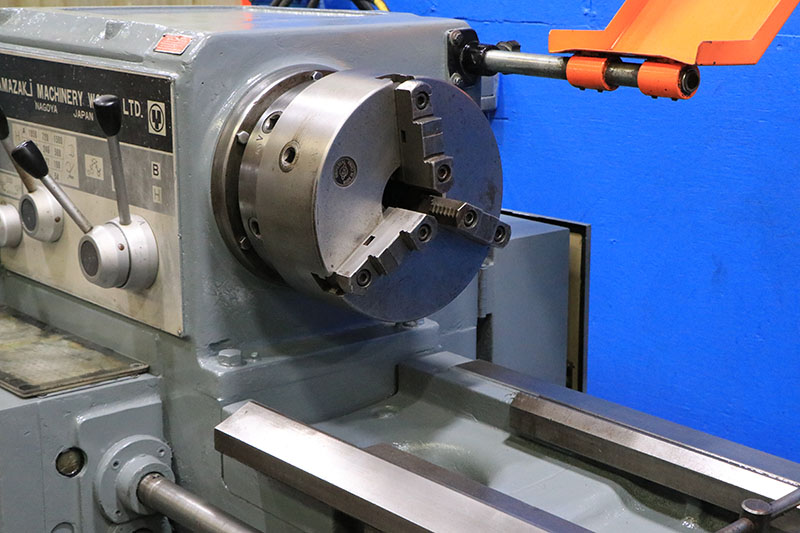

12" 3-JAW CHUCK

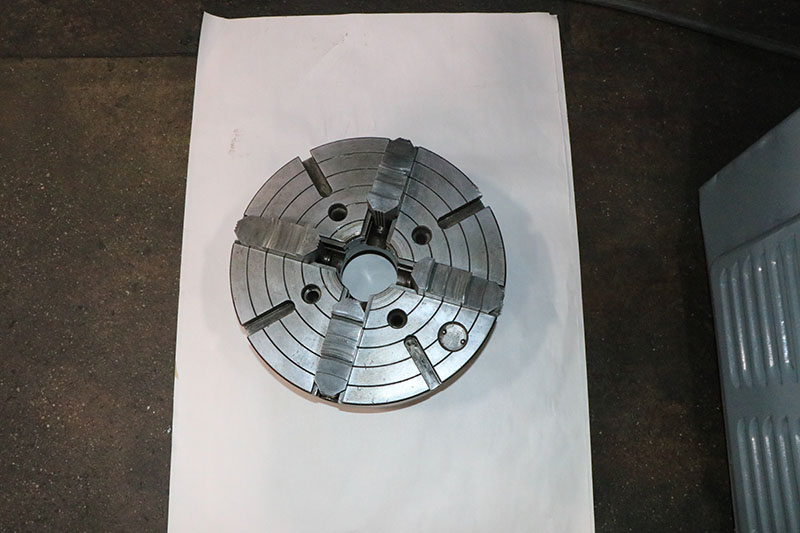

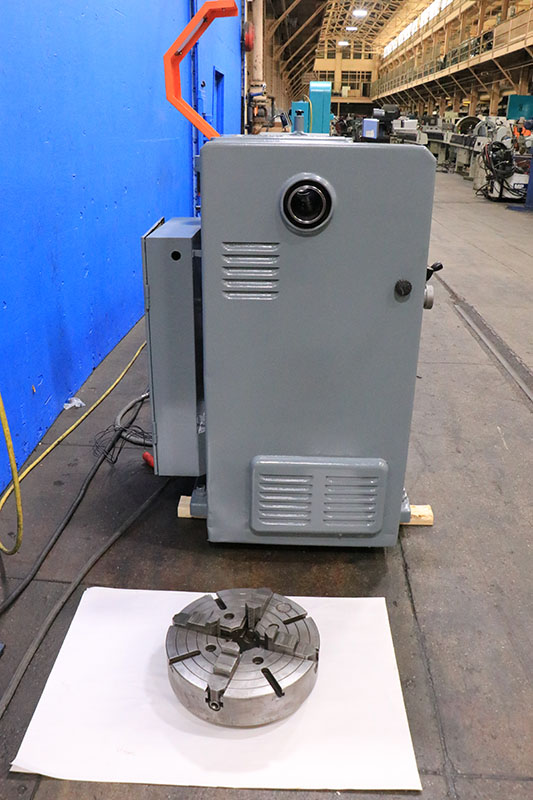

15" 4-JAW CHUCK

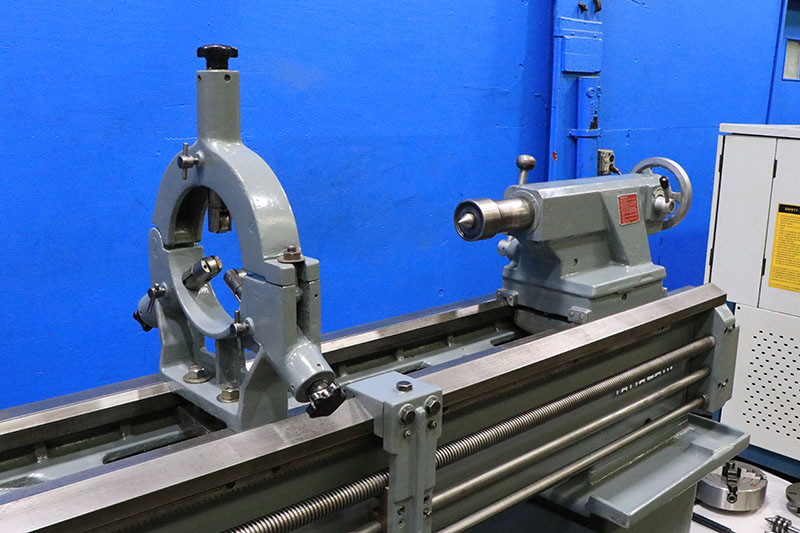

ROLLER TYPE STEADY REST

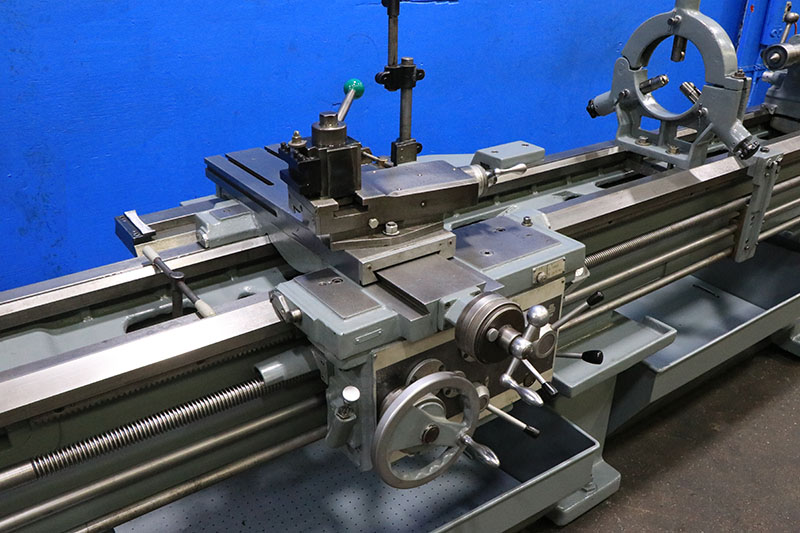

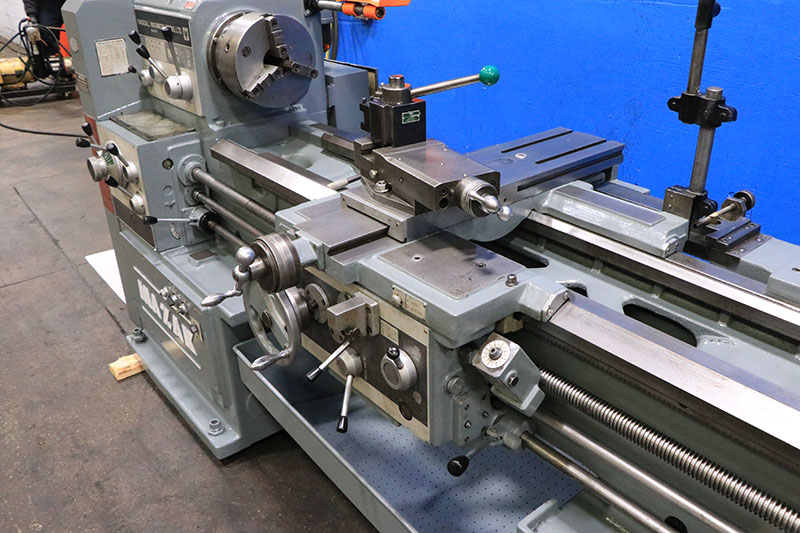

QUICK CHANGE TOOLPOST
LIVE CENTER FOR TAILSTOCK
TWO SPEED TAILSTOCK

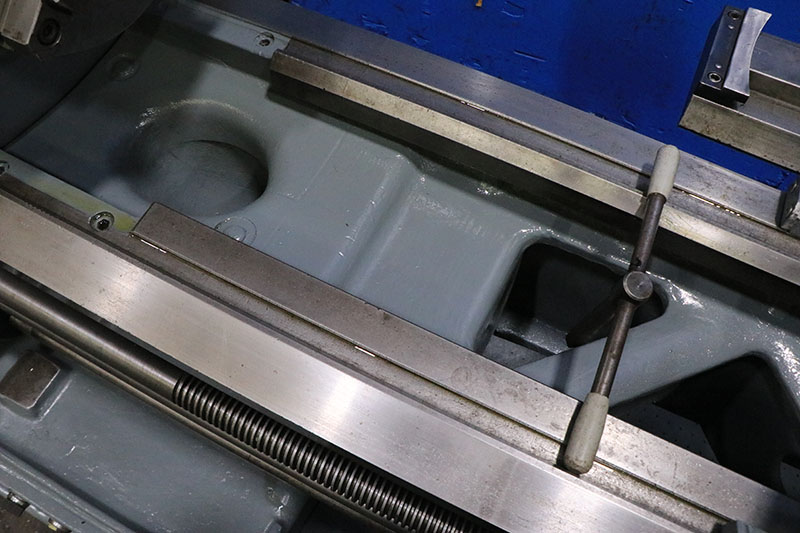

HARDENED & GROUND BED WAYS
10 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
