Mazak MARK II ENGINE LATHES

$12,950

Make:: Mazak

Model:: MARK II

Year:: 1978

Ref #:: 178086

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

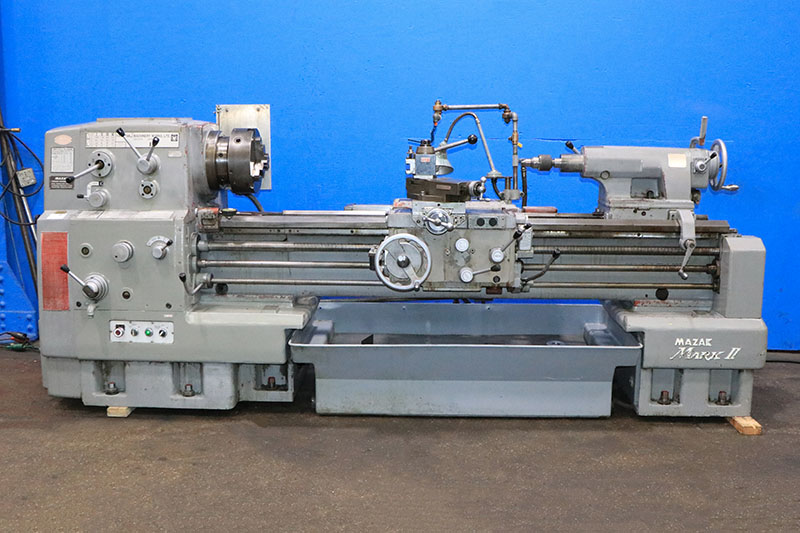

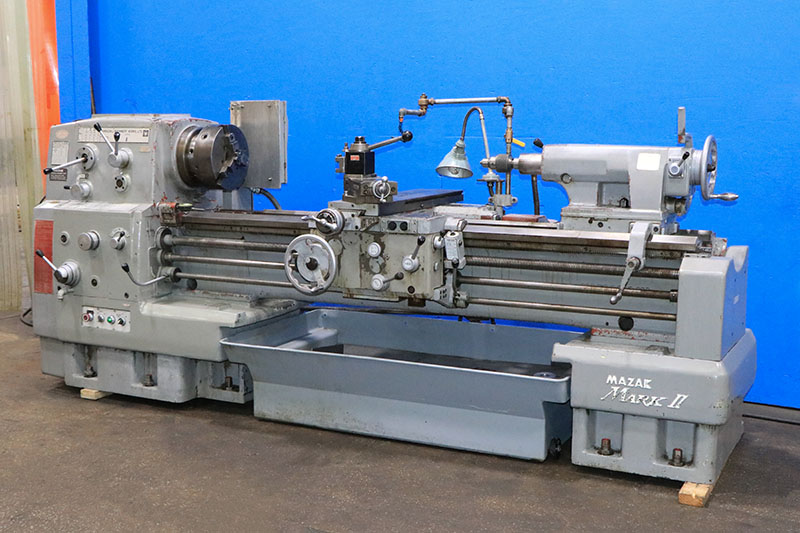

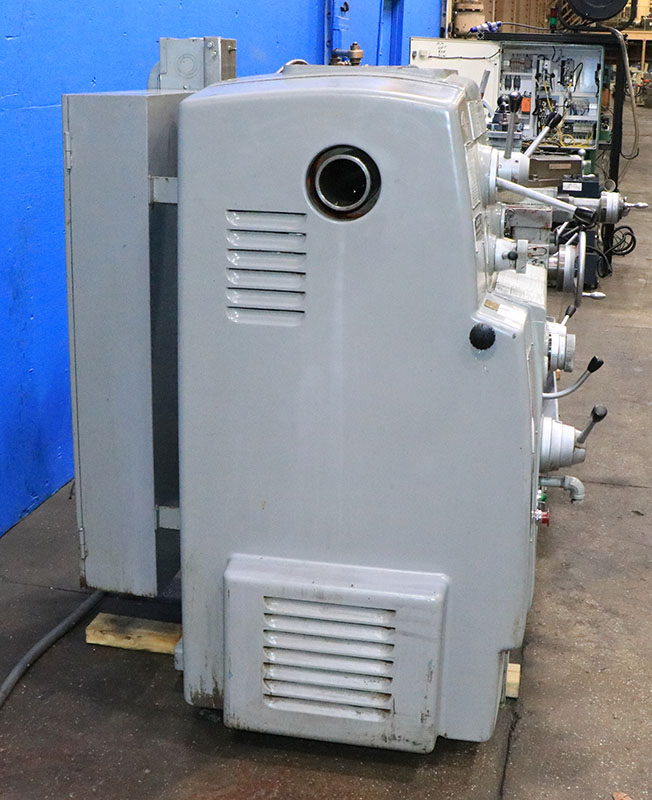

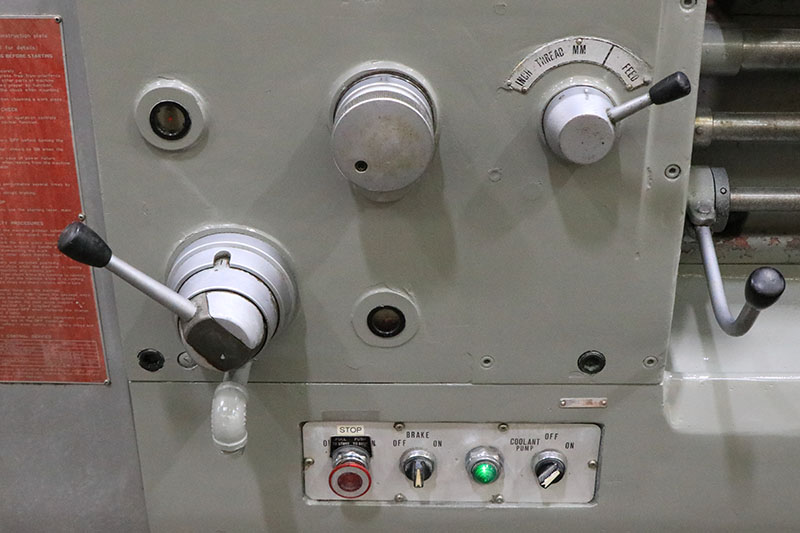

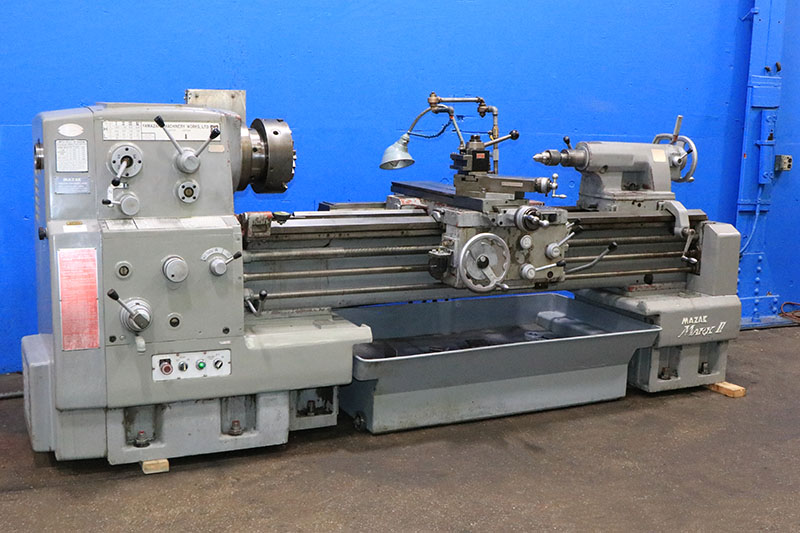

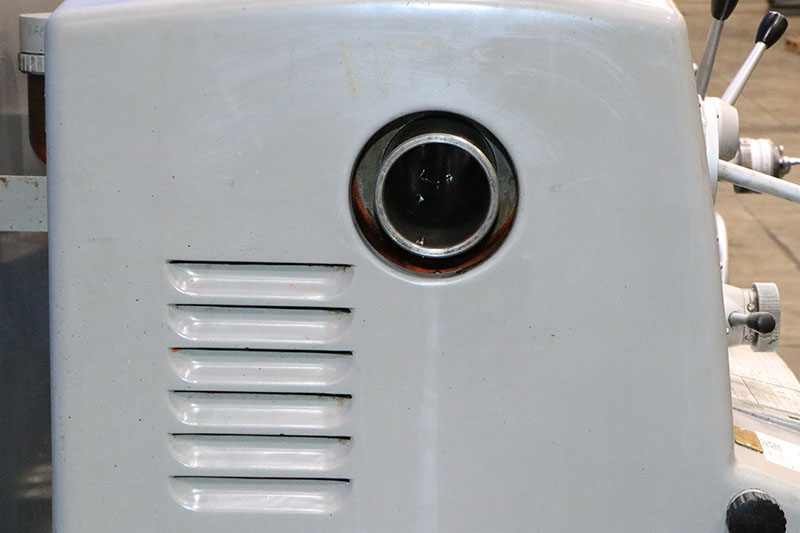

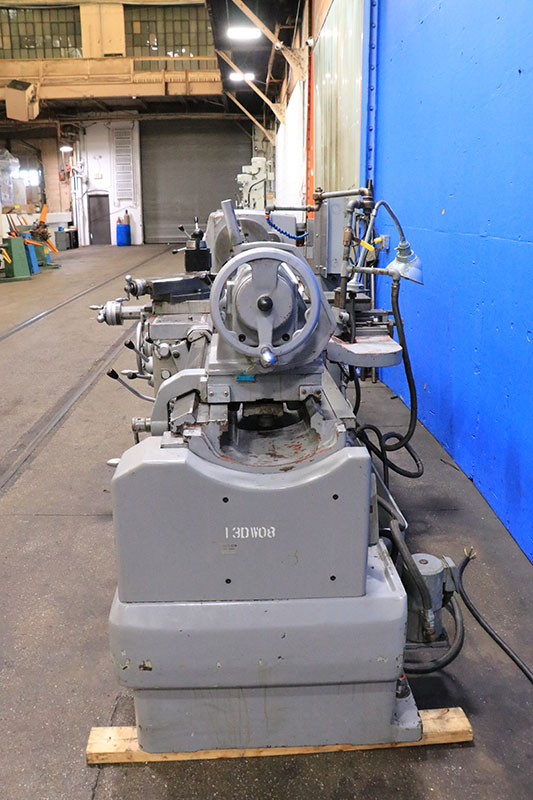

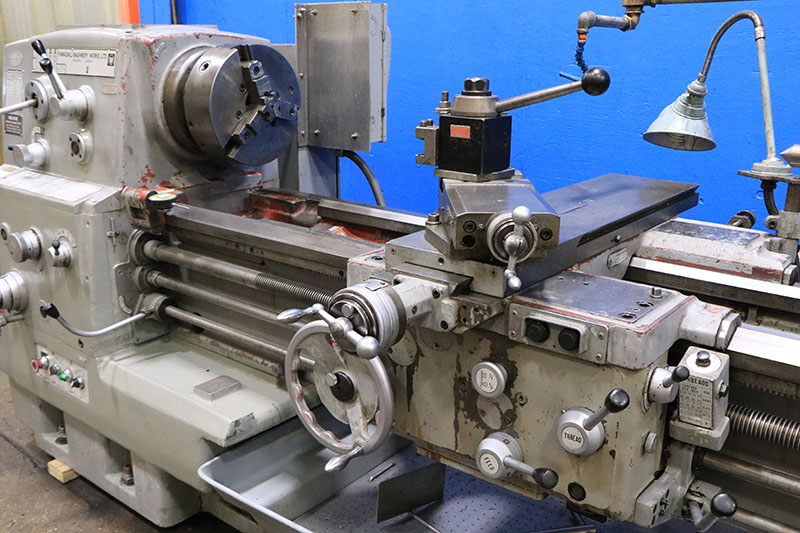

21"/28" x 60" MAZAK GAP BED LATHE

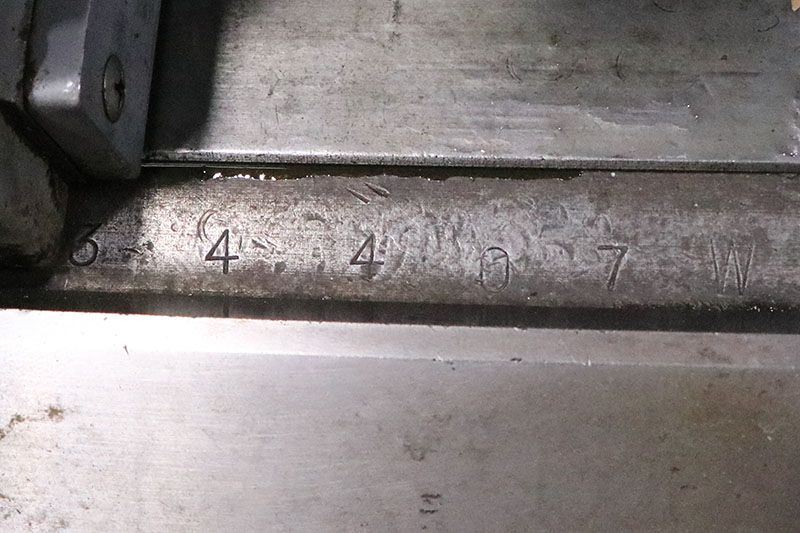

MODEL: MARK II,  S/N: 34407W,  NEW: 1978

SPECIFICATIONS:
SWING OVER BED WAYS ................. 21"
SWING IN REMOVABLE GAP .............. 27-31/32"
SWING OVER CROSS SLIDE .............. 11-51/64"
DISTANCE BETWEEN CENTERS ............ 60"
HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK
WIDTH OF BED ........................ 16-17/32"

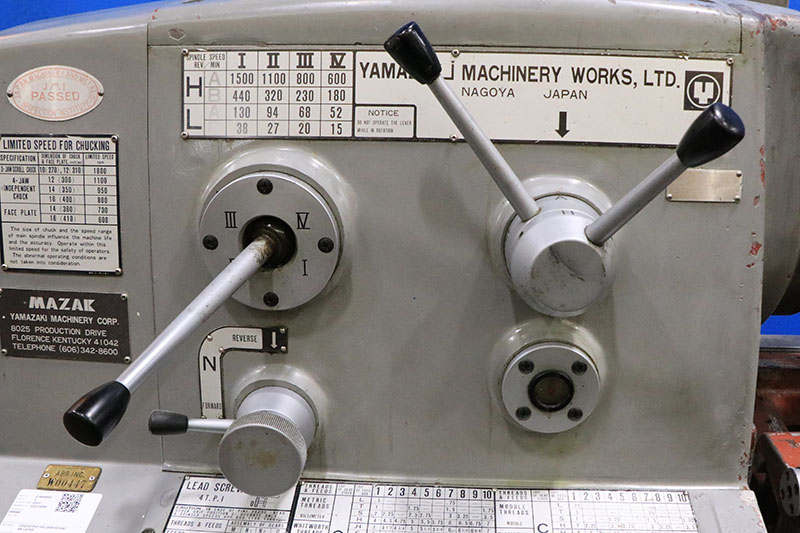

SPINDLE SPEED RANGE (16) ............ 15 - 1500 RPM
LONGITUDINAL FEED RANGE (80) ........ .0022" - .040" IPR
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (40) ........... 4 - 56 TPI
METRIC THREADING RANGE (23) ......... .5 - 7 mm
TAILSTOCK SPINDLE TRAVEL ............ 7-7/8"
TAILSTOCK SPINDLE TAPER ............. #5MT
APPROXIMATE FLOOR SPACE ............. 133"L x 49"W
APPROXIMATE WEIGHT .................. 6,000 LBS

EQUIPPED WITH:

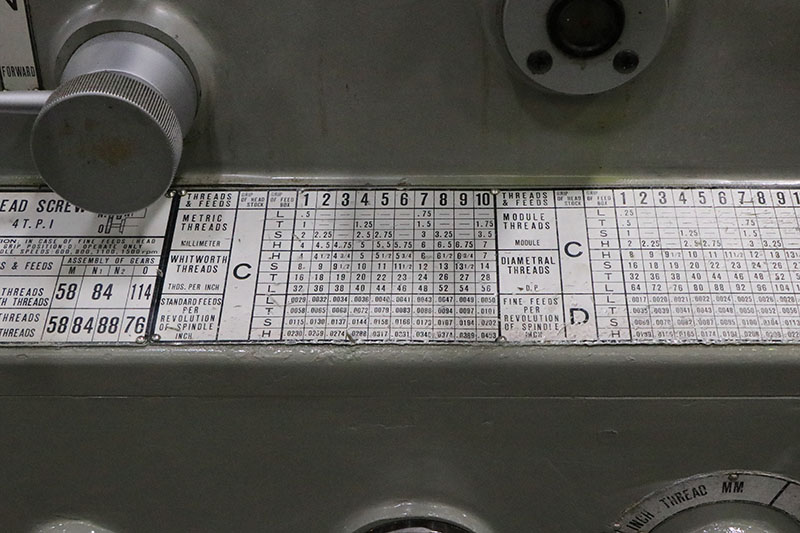

INCH, METRIC, DIAMETRIC & MODULE THREADING
FINE & COARSE FEED SETTINGS

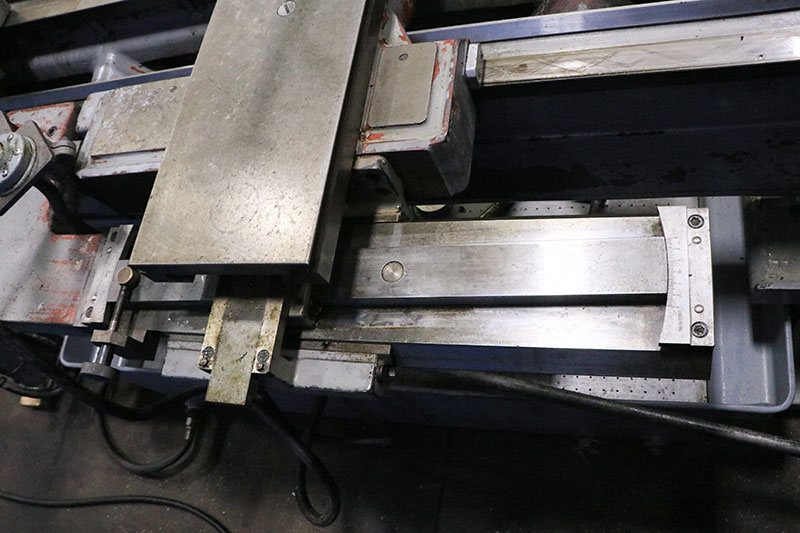

TAPER TURNING ATTACHMENT

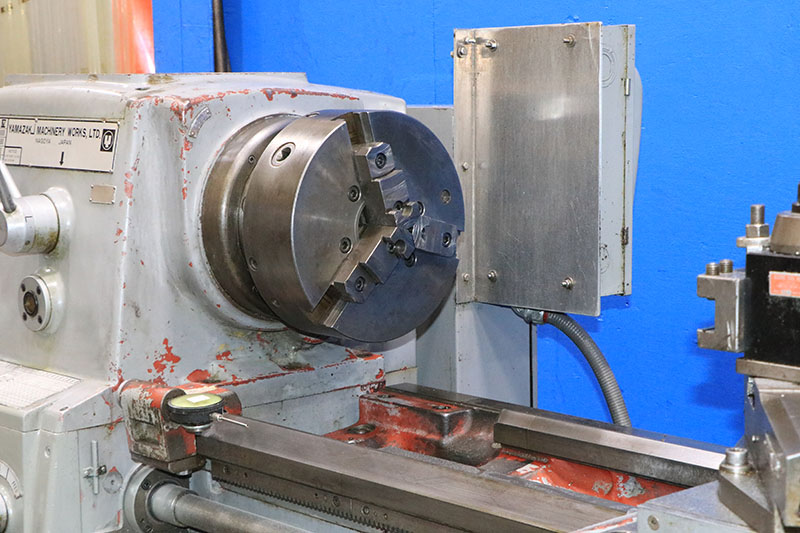

12" 3-JAW CHUCK

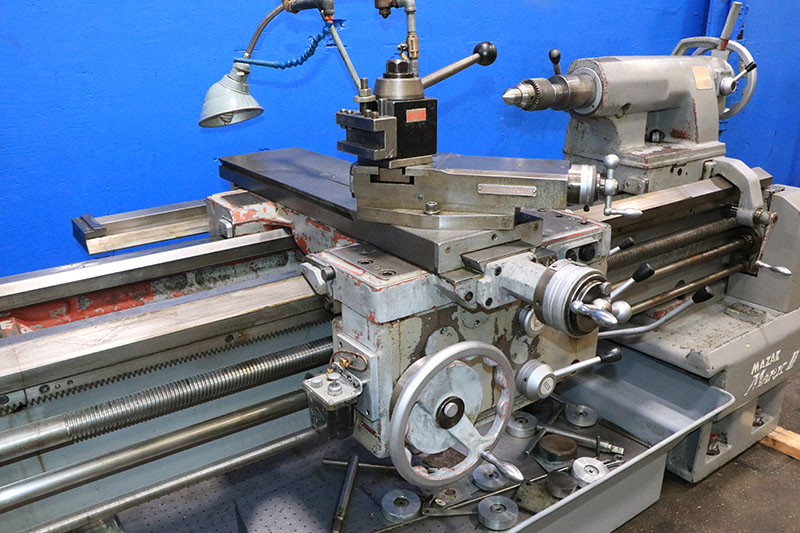

ALORIS MODEL: CA QUICK CHANGE TOOLPOST
POWER RAPID TRAVERSE

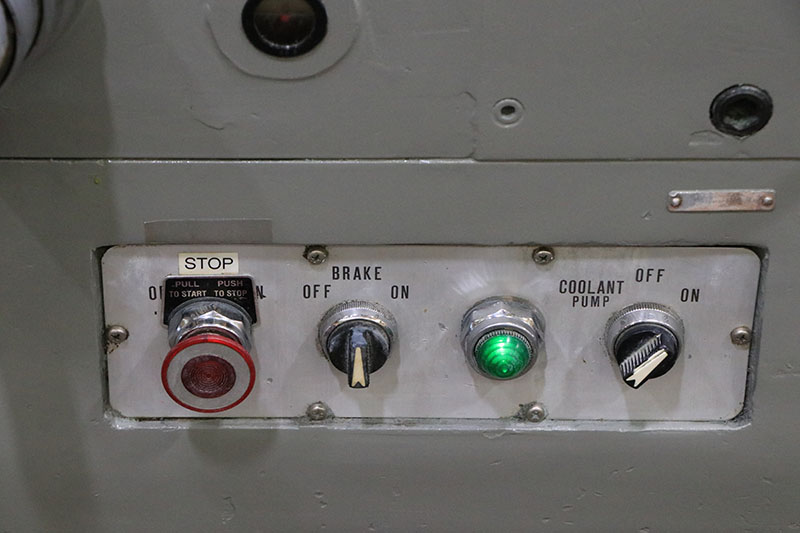

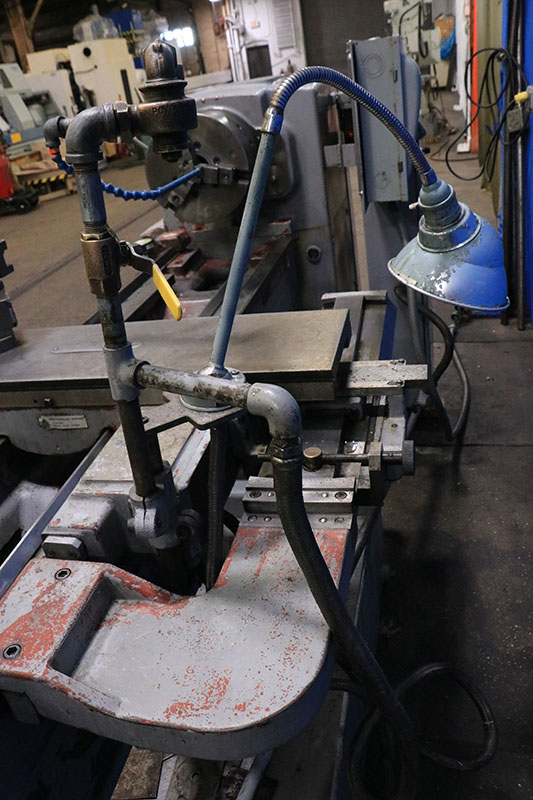

COOLANT SYSTEM

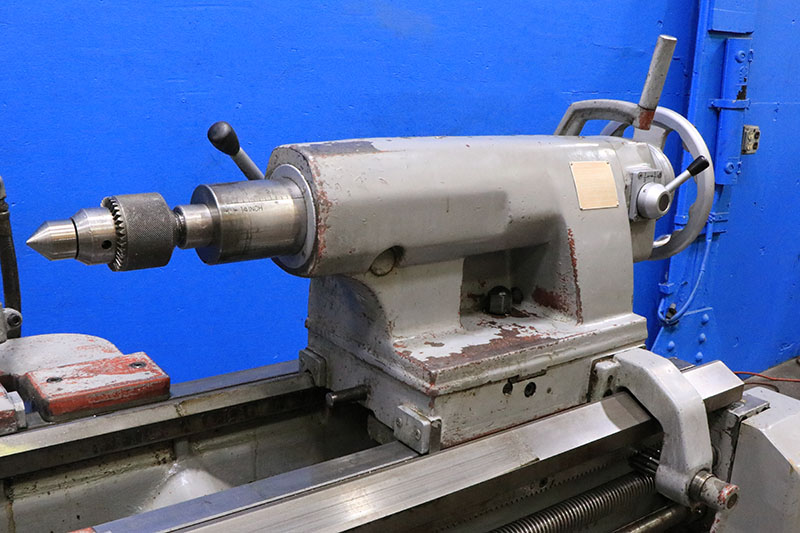

TWO SPEED TAILSTOCK

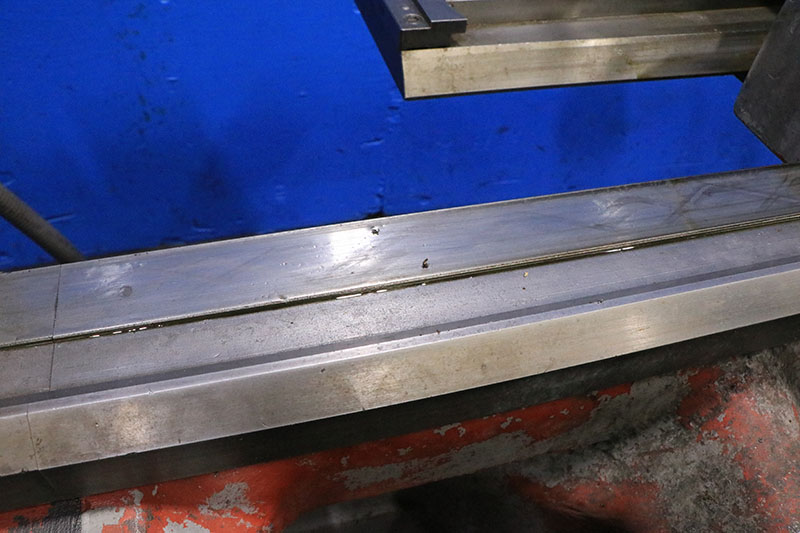

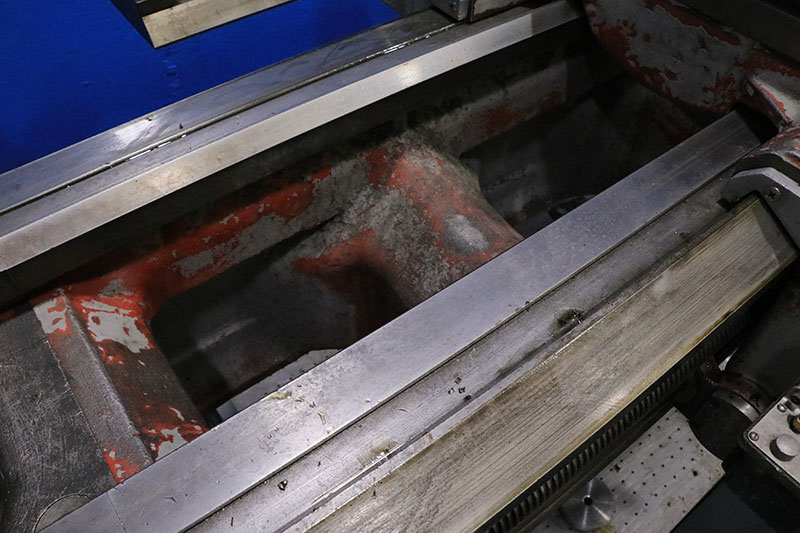

HARDENED & GROUND BED WAYS
15 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
