Micro-Vu H14 COMPARATORS

Price on Request

Make:: Micro-Vu

Model:: H14

Year:

Ref #:: 178512

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

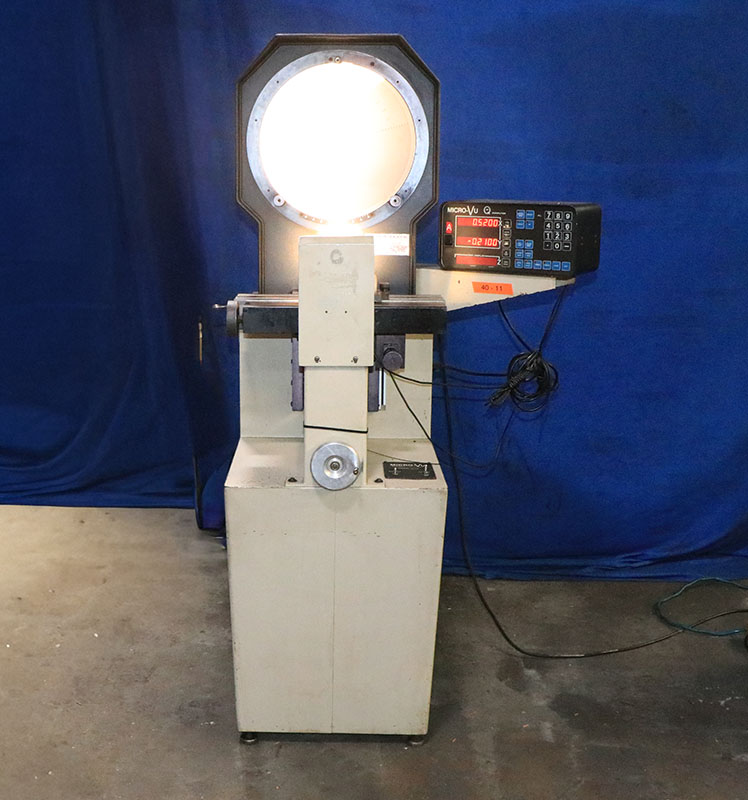

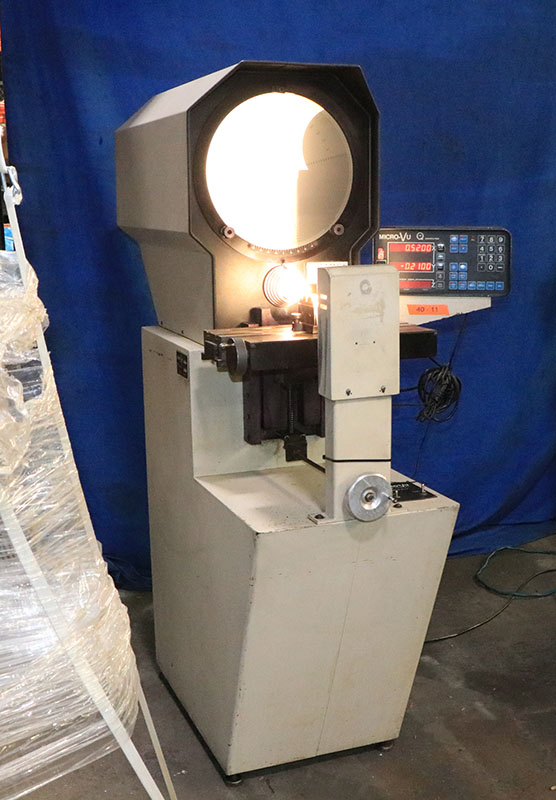

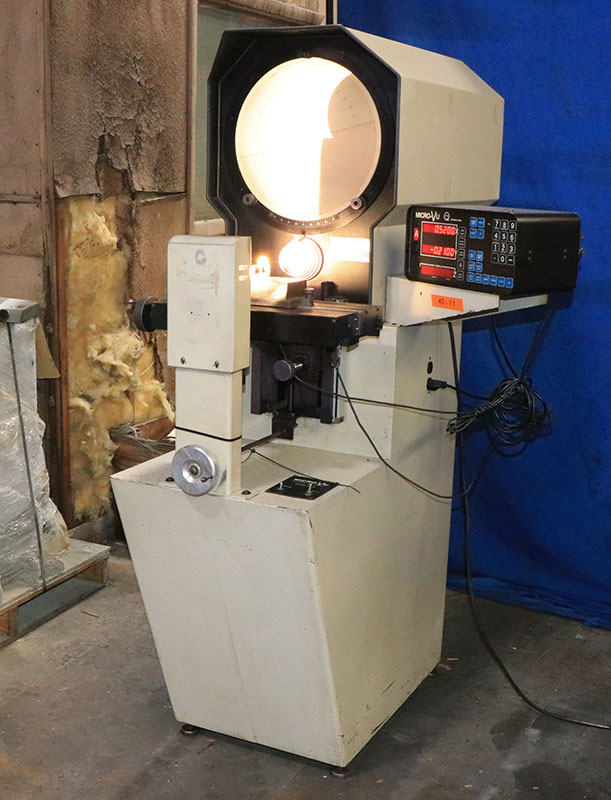

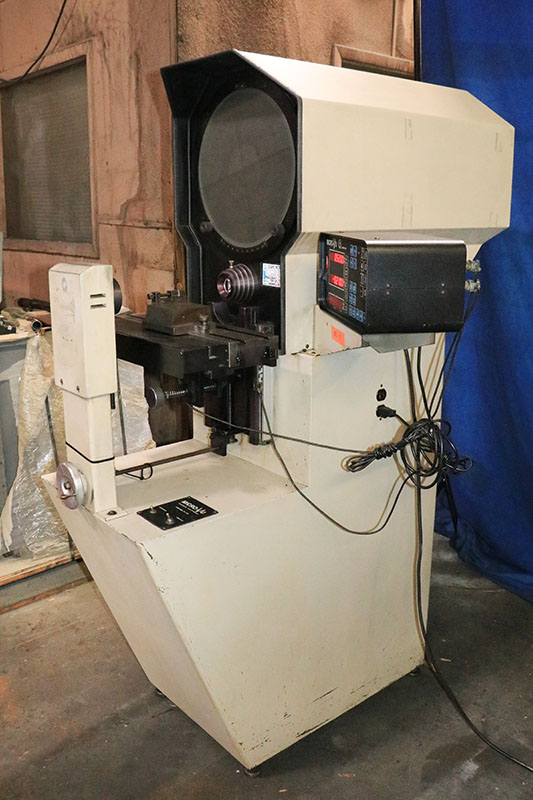

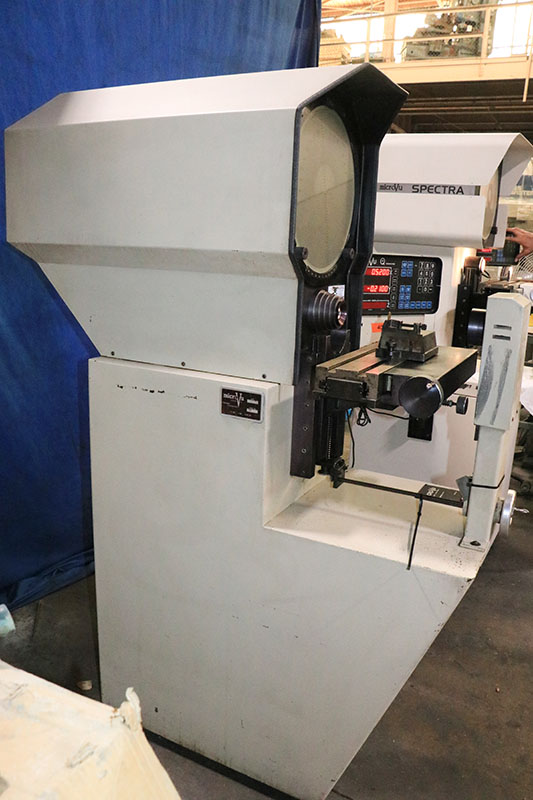

  14" MICRO-VU "SPECTRA" SERIES (MADE IN USA)
 HORIZONTAL PROJECTION OPTICAL COMPARATOR

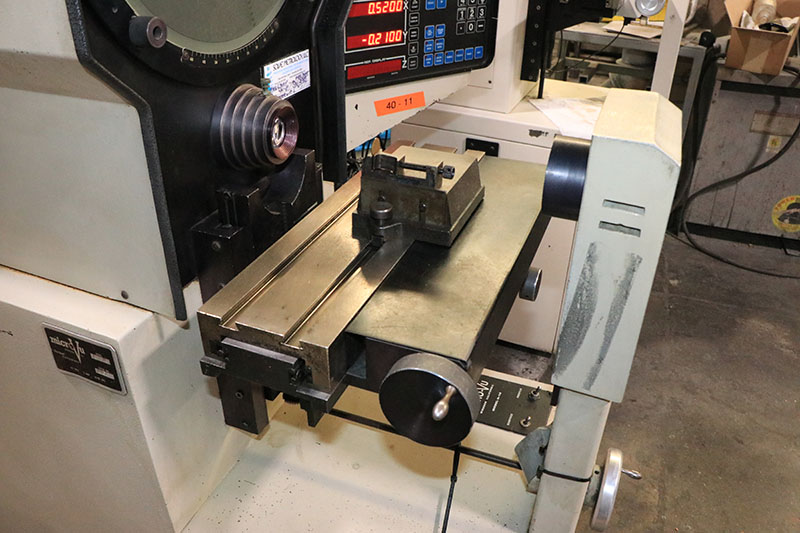

   MICRO-VU Q-16 DIGITAL READOUT DISPLAY
 *** PROGRAMMABLE GEOMETRIC FUNCTIONS ***




  MODEL: H-14       S/N: 2915       NEW: 1996

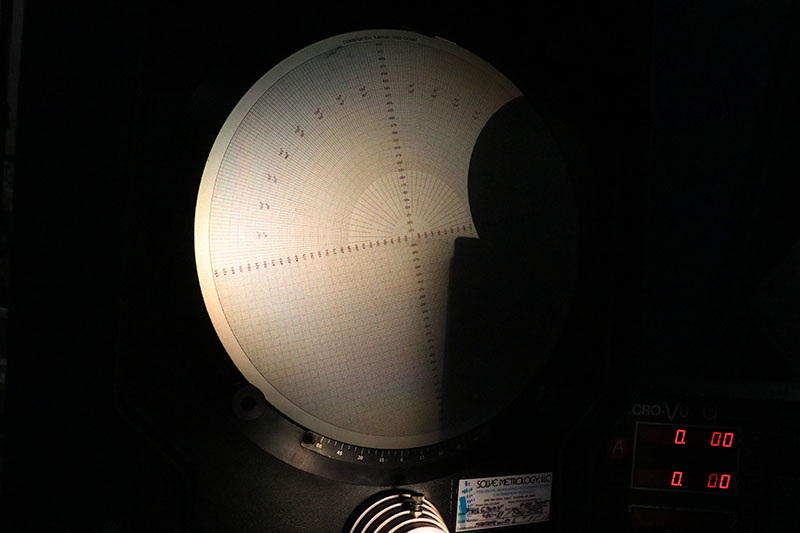

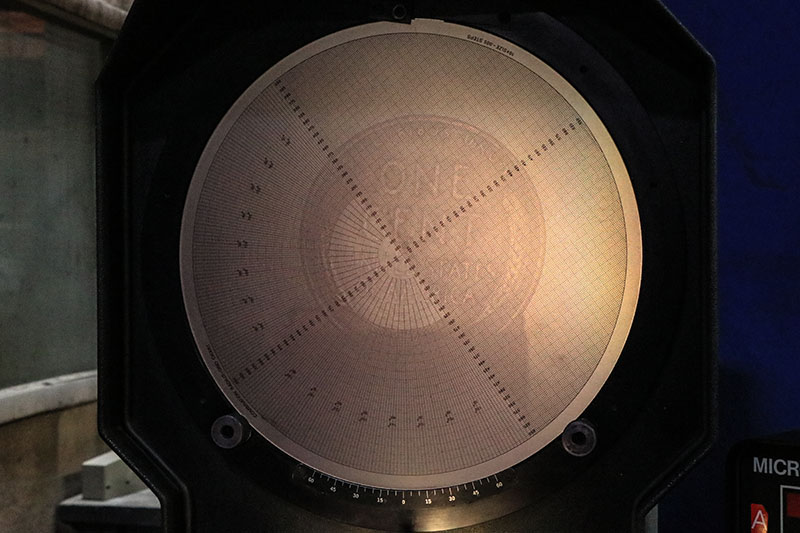

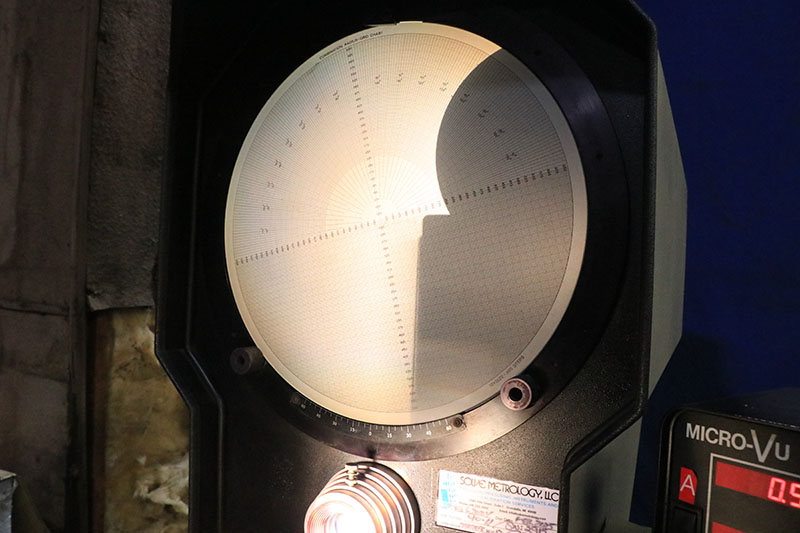

SCREEN DIAMETER ....................... 14"

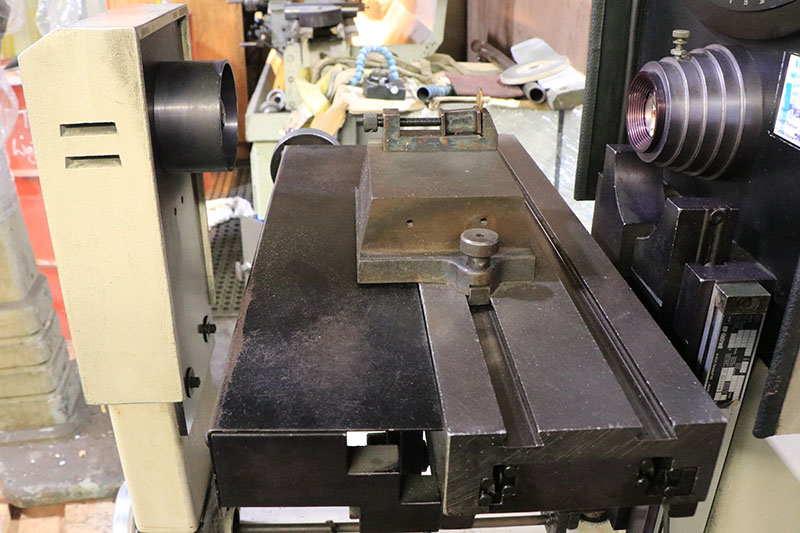

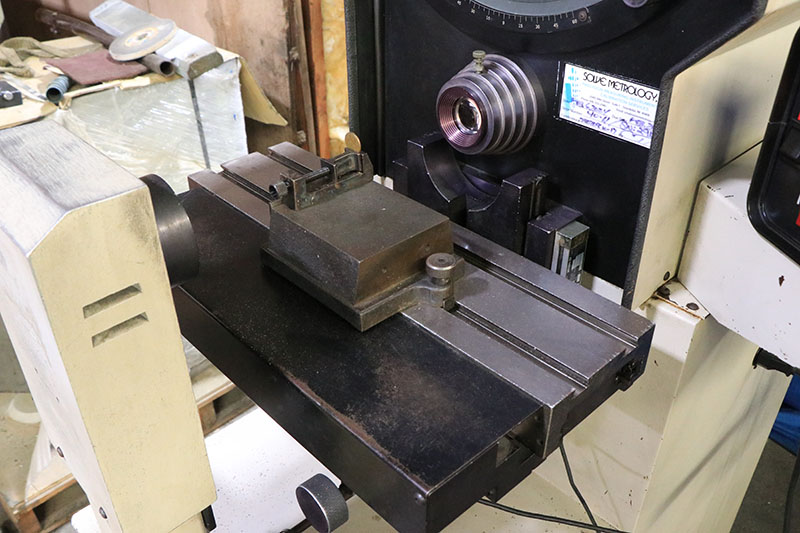

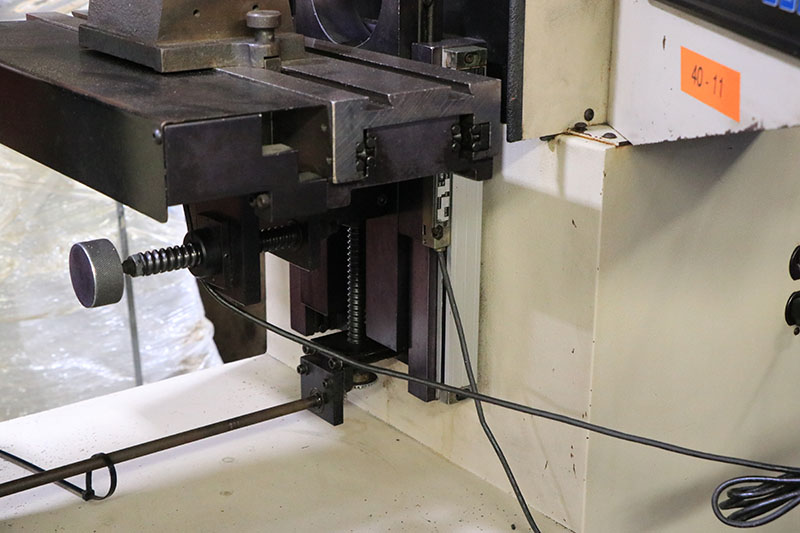

TABLE SIZE ............................ 18" X 5"
WEIGHT CAPACITY ON TABLE .............. 110 LBS.
HORIZONTAL TRAVEL ..................... 12"
VERTICAL TRAVEL ....................... 6"
FOCUS ................................. 2"

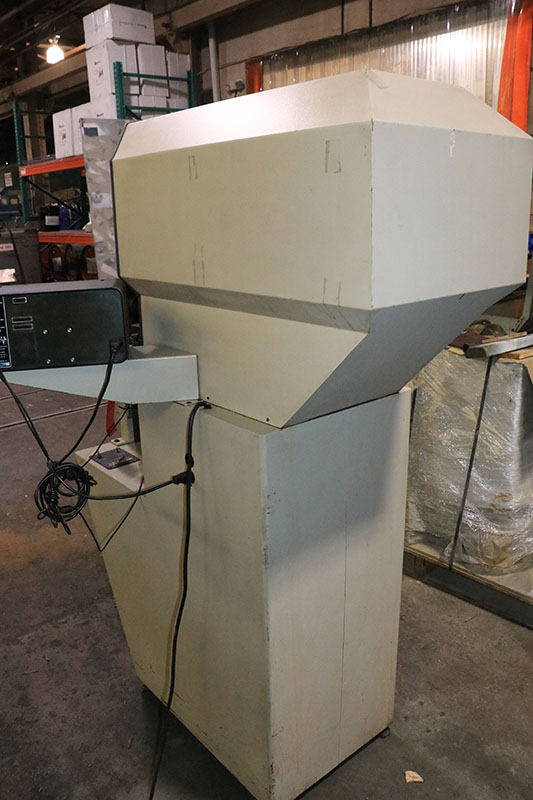

APPROX. DIMS. WITH CABINET BASE ...... 38"L-R x 43"F-B
                                          x 71"H
CABINET BASE HEIGHT ................... 30" HIGH
APPROXIMATE WEIGHT .................... 325 LBS.


EQUIPPED WITH:

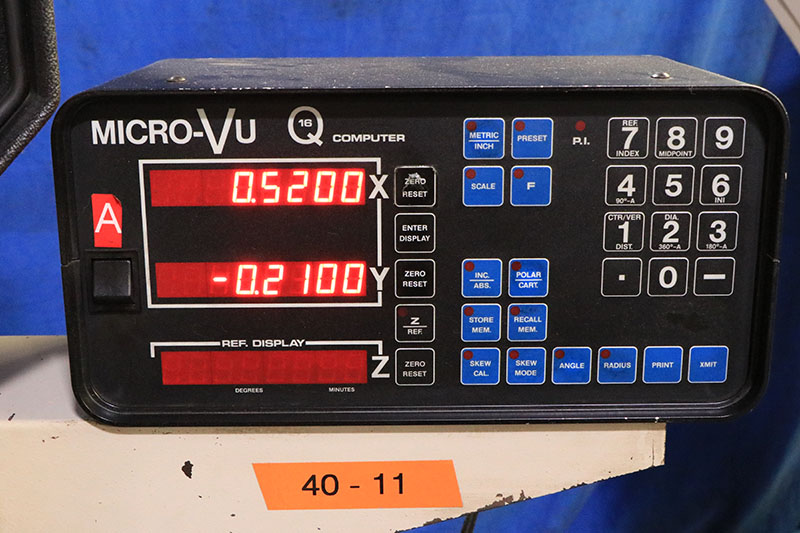

MICRO-VU Q-16 DIGITAL READOUT DISPLAY,
  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS, DIGITAL
  DISPLAY OF THE SCREEN PROTRACTOR, & EDGE DETECTION

"Download to your computer.The Q16 can usually be
 connected with a standard, straight-through serial
 cable. Most Statistical Process Control (SPC) programs
 accept information from the Q16. Use a program like
  TalTech's "Software Wedge for Windows" to get the
  data into most popular spreadsheets and programs.
  You can also use a terminal program like
  "HyperTerminal" or a DNC package to read
  information".

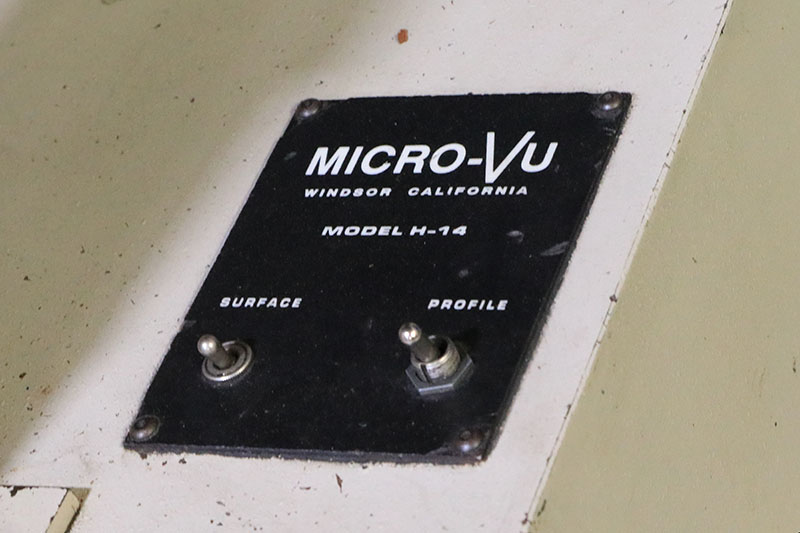

  THROUGH THE LENS SURFACE ILLUMINATION

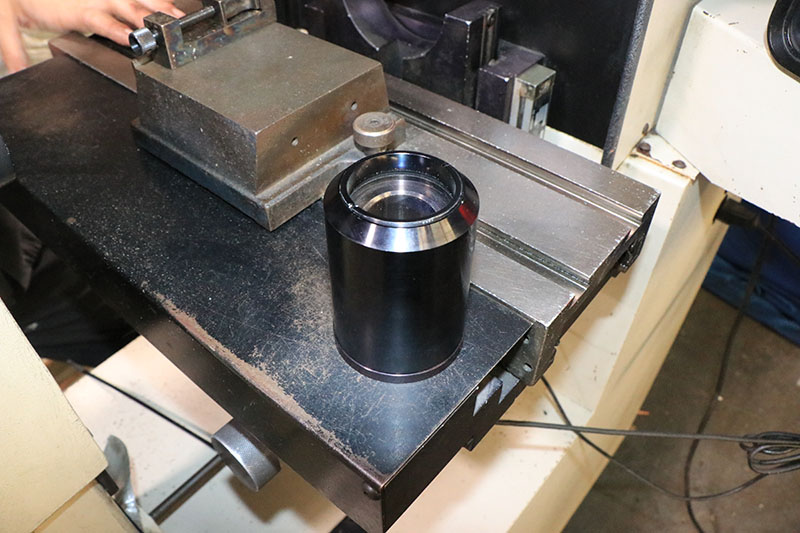

  10X LENS

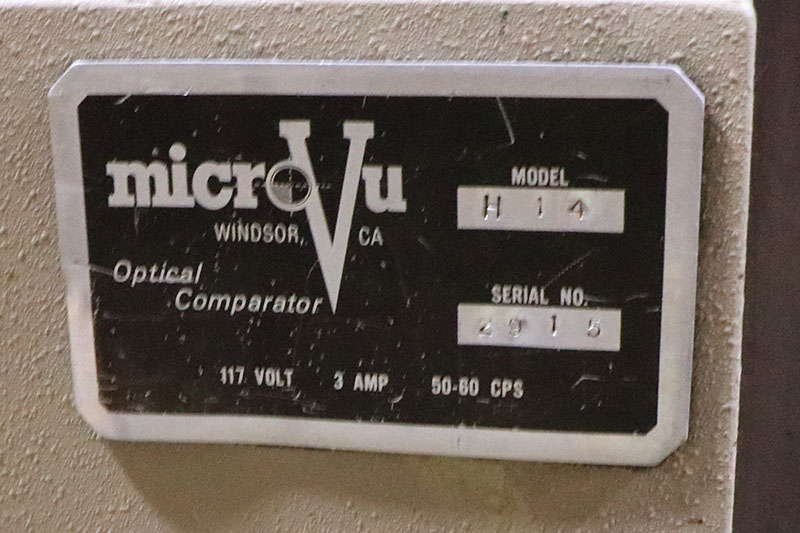

  ELECTRICAL - 1/60/117 VOLT AC, 3 AMPS

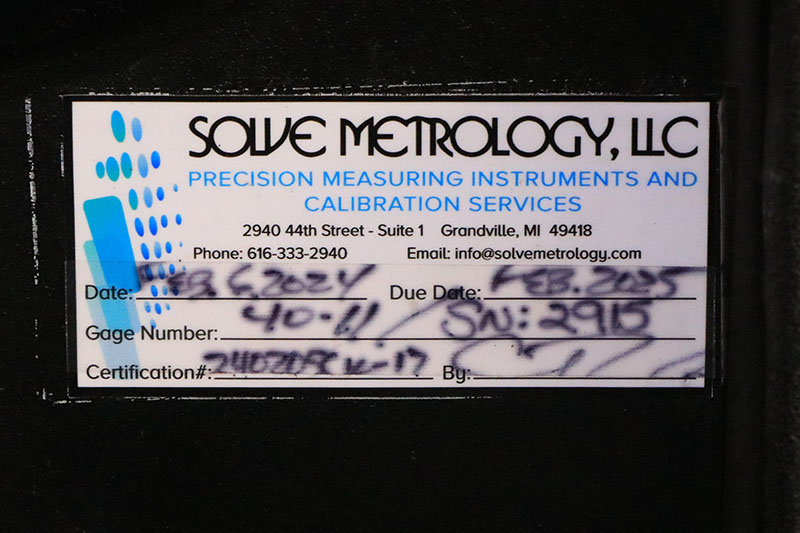

CALIBRATED LAST ON FEB.  6TH, 2024 BY:
SOLVE METROLOGY
GRANDVILLE, MI
(616) 33-2940


  *** "EXCELLENT" CONDITION& APPEARANCE **
  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
