Micro-Vu SPECTRA M1031, 1998, Q16 DRO, COMPARATORS

Price on Request

Make:: Micro-Vu

Model:: SPECTRA M1031, 1998, Q16 DRO,

Year:: 1998

Ref #:: 178511

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

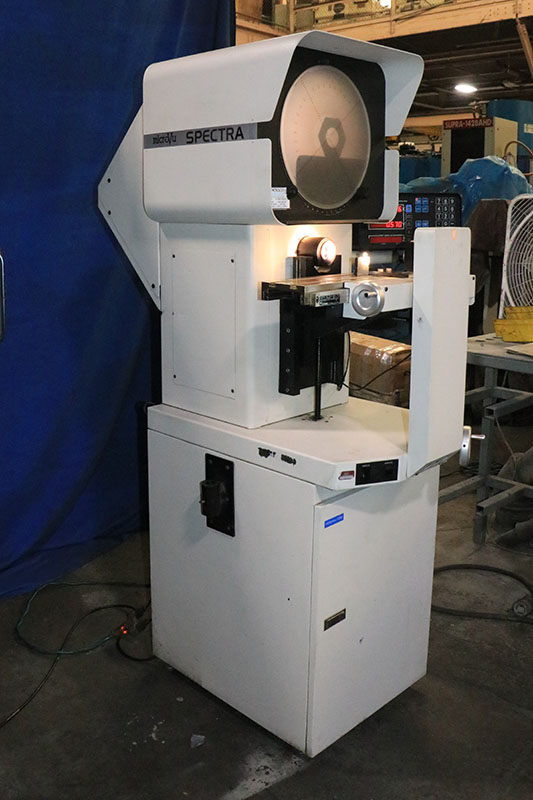

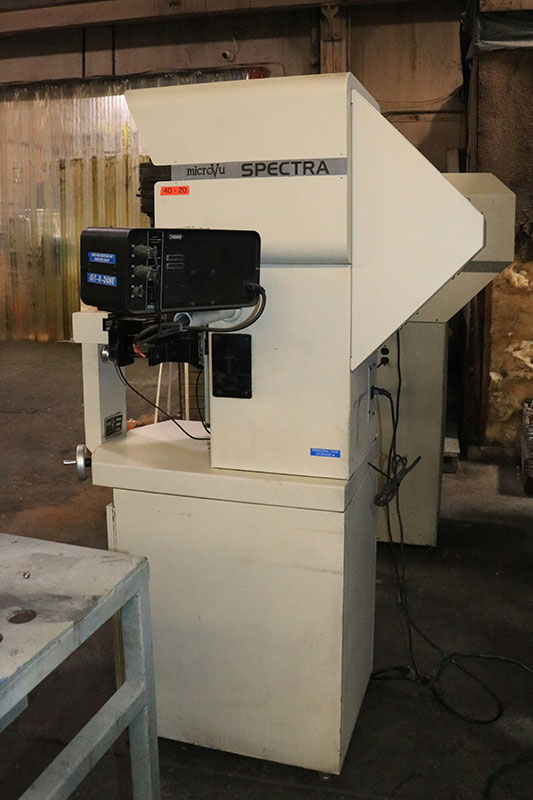

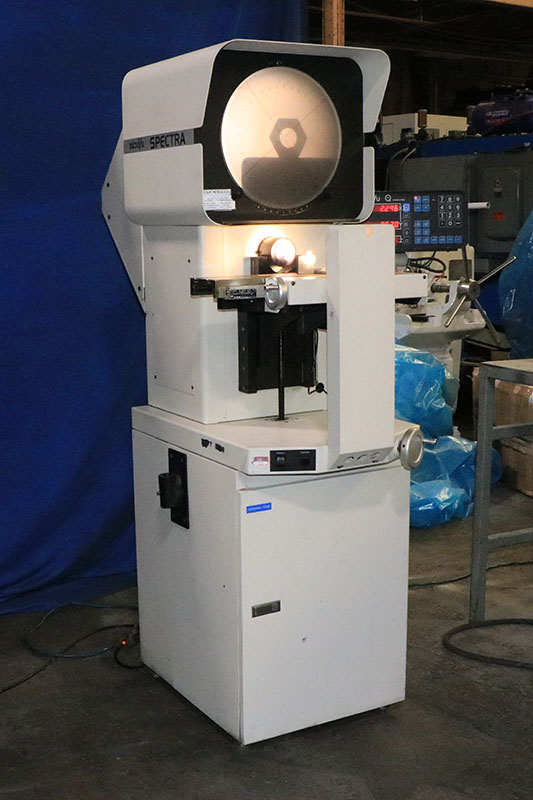

  14" MICRO-VU "SPECTRA" SERIES (MADE IN USA)
 HORIZONTAL BENCH MODEL OPTICAL COMPARATOR

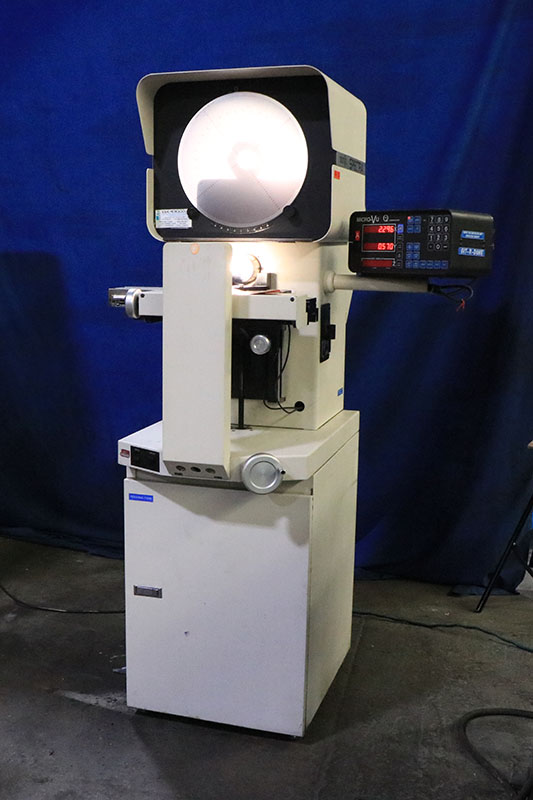

    MICRO-VU Q-16 DIGITAL READOUT DISPLAY
   *** PROGRAMMABLE GEOMETRIC FUNCTIONS ***

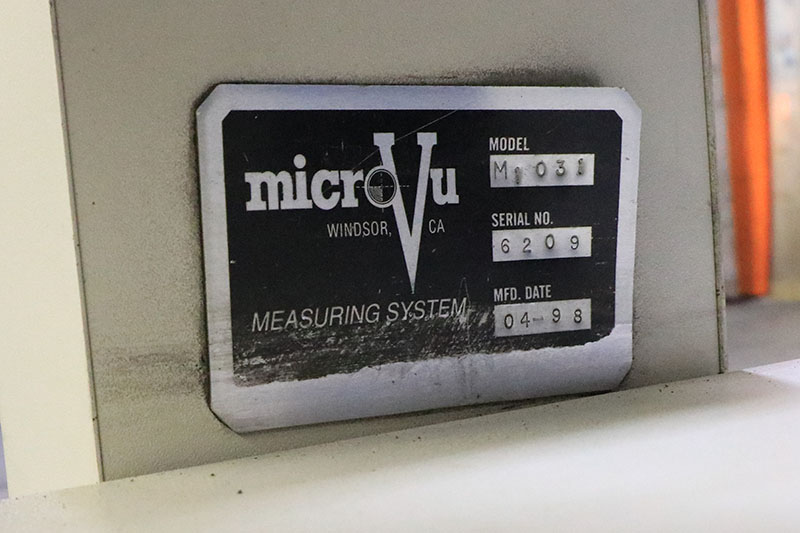

MODEL: SPECTRA M1031      S/N: 6209      NEW: 04/1998

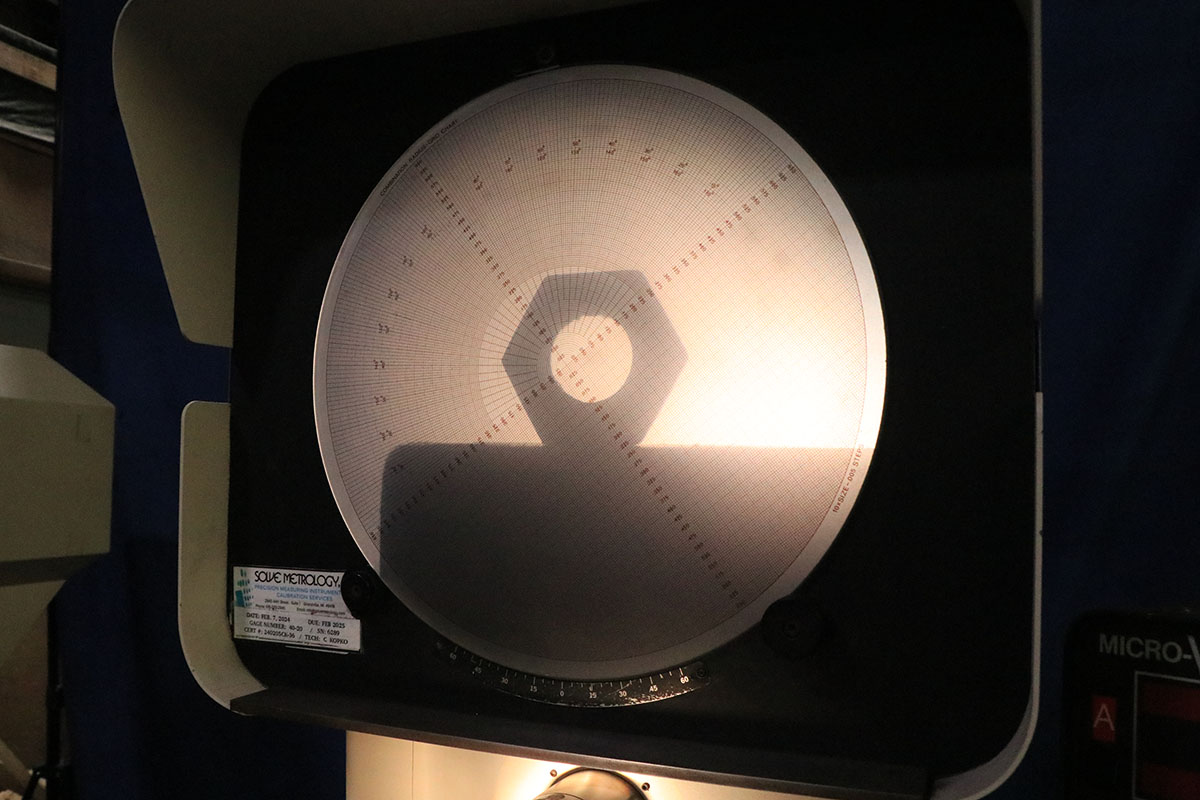

SCREEN DIAMETER ...................... 14"
TABLE SIZE ........................... 18" X 5"
WEIGHT CAPACITY ON TABLE ............. 110 LBS.
HORIZONTAL TRAVEL .................... 12"
VERTICAL TRAVEL ...................... 6"
FOCUS ................................ 2"

APPROX. DIMS. WITH CABINET BASE ..... 38"L-R x 43"D x 71"H
CABINET BASE HEIGHT ................. 30" HIGH
APPROXIMATE WEIGHT .................. 325 LBS.


EQUIPPED WITH:

MICRO-VU Q-16 DIGITAL READOUT DISPLAY WITH
  PROGRAMMABLE GEOMETRIC FUNCTIONS, DIGITAL
  READOUT DISPLAY FOR THE SCREEN PROTRATCTOR,
  AND M-V "ED-50" EDGE DETECTION

"Download to your computer .
 The Q16 can usually be connected
 with a standard, straight-through serial cable.
 Most Statistical Process Control (SPC) programs
 accept information from the Q16. Use a program
 like TalTech's "Software Wedge for Windows" to
 get the data into most popular spreadsheets
 and programs. You can also use a terminal program
 like "HyperTerminal" or a DNC package
 to read information".

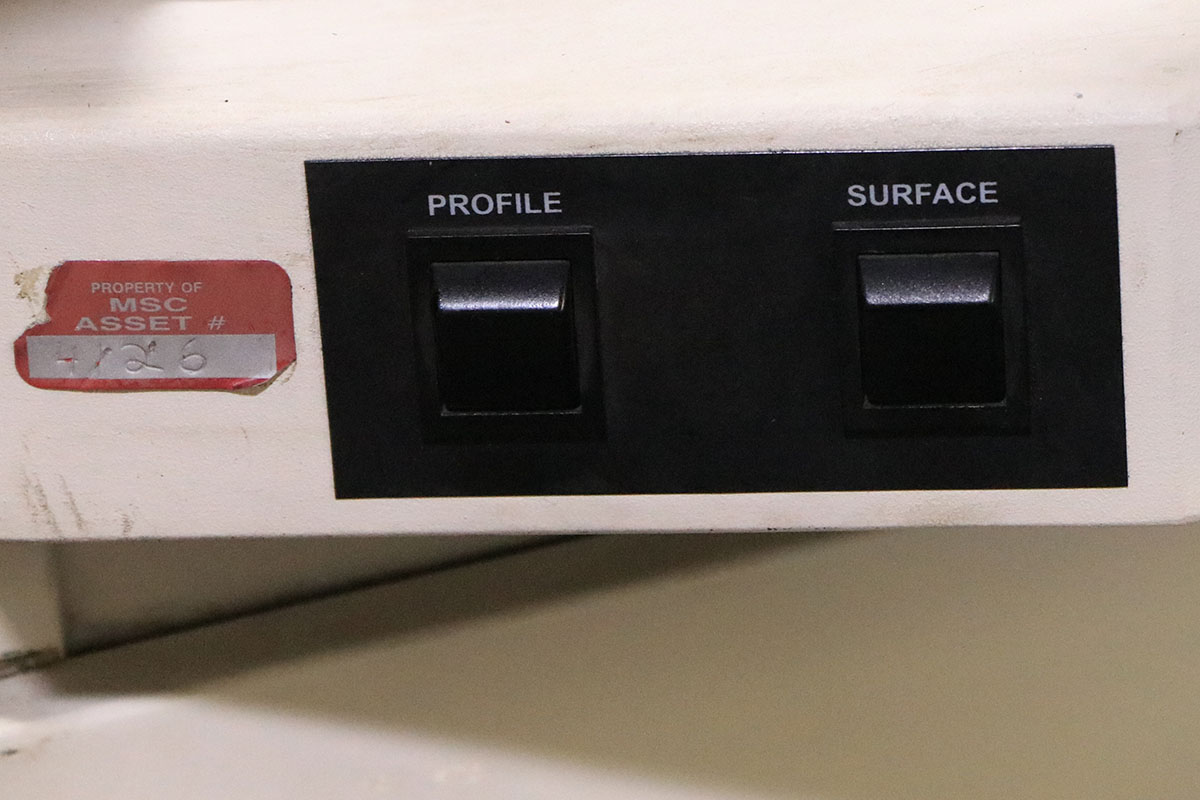

  THROUGH THE LENS SURFACE ILLUMINATION
  LENS

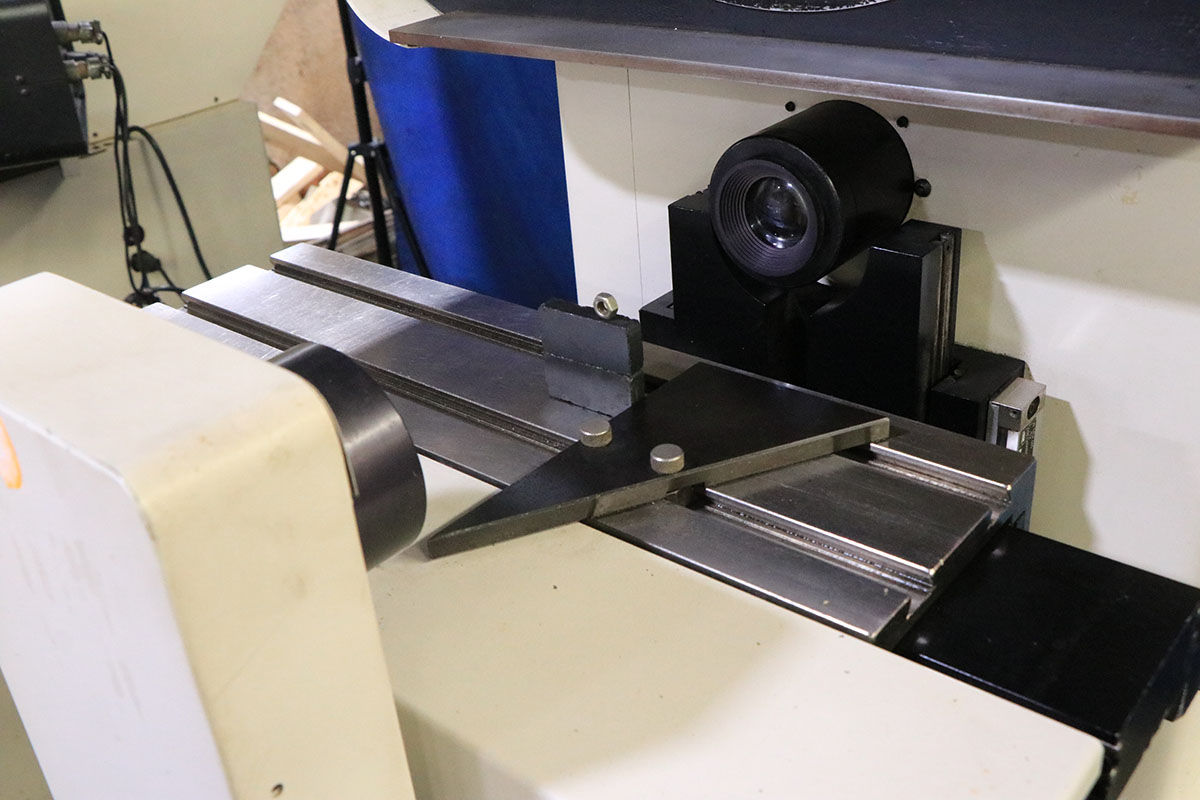

  SWIVEL VISE ATTACHMENT

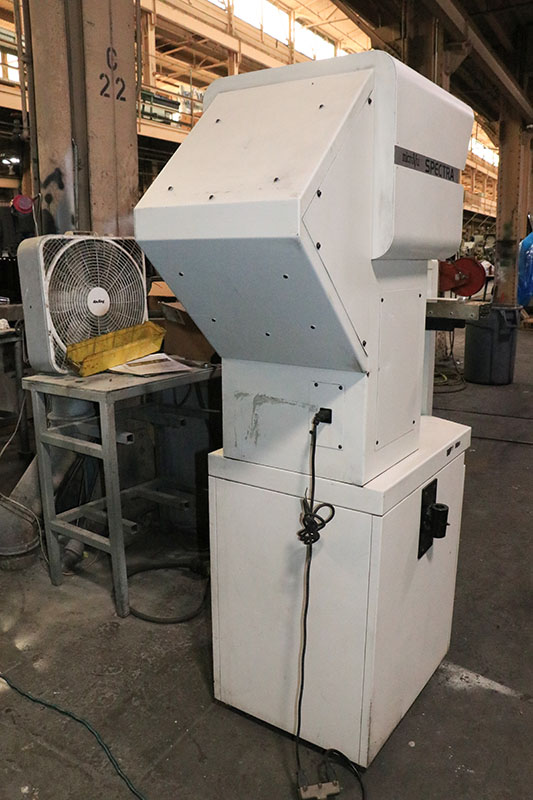

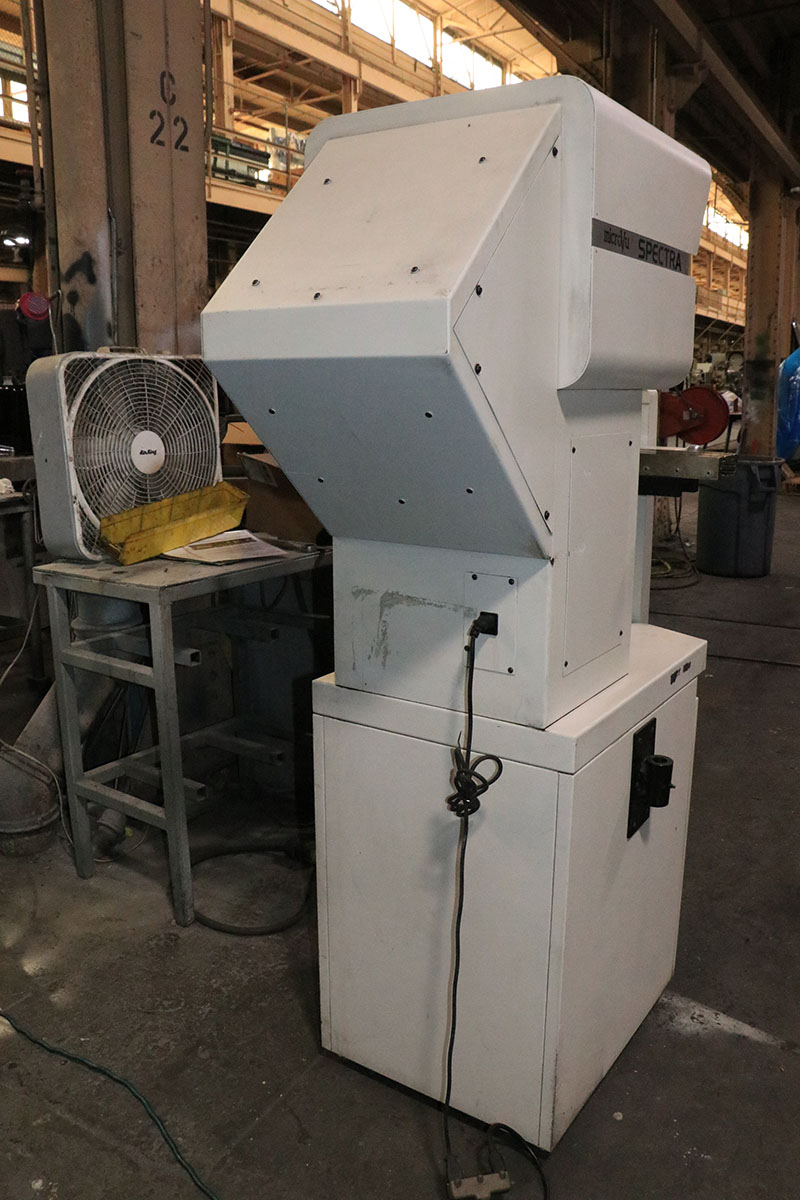

  CABINET BASE
  ELECTRICAL - 1/60/110-120 VOLT AC

CALIBRATED LAST ON 02-07-2024 BY:
C. KOPKO
CERT. No. 240205CK-36
SOLVE METROLOGY
GRANDVILLE, MI
(616) 333-2940



  *** "EXCELLENT" CONDITION & APPEARANCE **
  ** INSPECT UNDER POWER IN OUR HARRISON, N.J. **
