Mighty PRO-4216AG VERTICAL MACHINING CENTERS. VMC's

Price on Request

Make:: Mighty

Model:: PRO-4216AG

Year:: 2017

Ref #:: 179119

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

MIGHTY DOUBLE-COLUMN MACHINING CENTER
MODEL: PRO 4216AG, NEW: 2017

TRAVELS
LONGITUDINAL TRAVEL (X) AXIS ............ 165" / 4200mm
CROSS TRAVEL (Y) AXIS ................... 63" / 1600mm
VERTICAL TRAVEL  (Z) AXIS ............... 31.5"  / 800mm
TABLE TO SPINDLE MIN TO MAX ............. 5.9" / 37.4"
DISTANCE BETWEEN COLUMNS ................ 66.92" / 1700mm
TABLE WORKING SURFACE ................... 86.6" X 43.3"
MAXIMUM WORKLOAD ON TABLE ............... 26,450 LBS.
TABLE SURFACE ........................... GROUND / T-SLOTTED
SPINDLE TAPER ........................... CT 50
SPINDLE SPEED TWO SPEED GERED HEAD ...... 0 - 6,000 RPM
NUMBER OF TOOLS ......................... 40 TOOLS
FEEDS
MACHINE WEIGHT (BASE MACHINE ONLY) ...... 62,500 LBS

EQUIPPED WITH:
FANUC MODEL: 0I-MF FANUC CONTROL

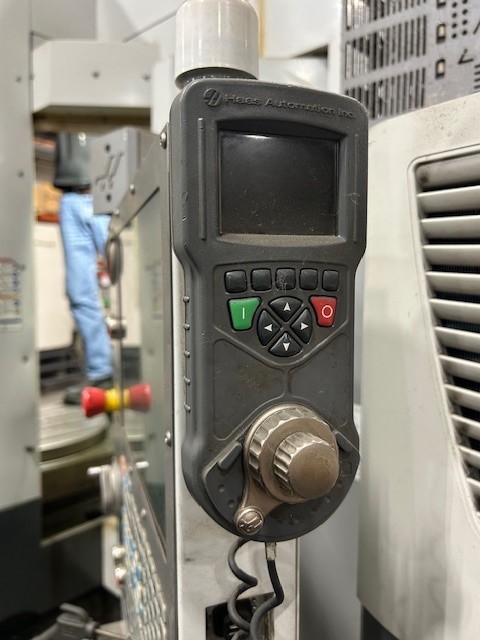

WIRELESS MANUAL PULSE GENERATOR (MPG)
HYDRAULIC COUNTERBALANCE FOR HEADSTOCK
40 TOOL AUTOMATIC TOOL CHANGER
SPINDLE CHILLER
COOLANT SYSTEM
DUAL CHIP AUGERS TO SINGLE CHIP CONVEYOR
HARDENED & GROUND BOX WAYS
30 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
