Milltronics VM2515, 9000 Cntrl, 10,000 RPM, 24 ATC, Auger, VERTICAL MACHINING CENTERS. VMC's

$29,500

Make:: Milltronics

Model:: VM2515, 9000 Cntrl, 10,000 RPM, 24 ATC, Auger,

Year:: 2018

Ref #:: 179669

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

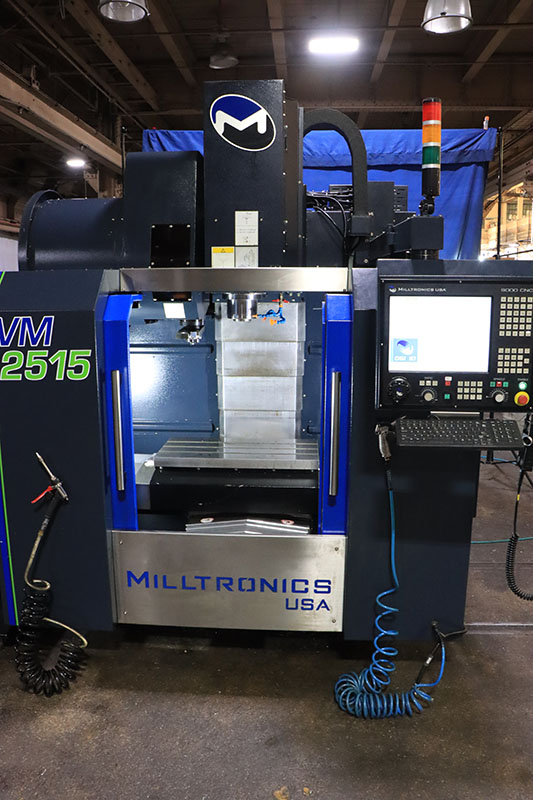

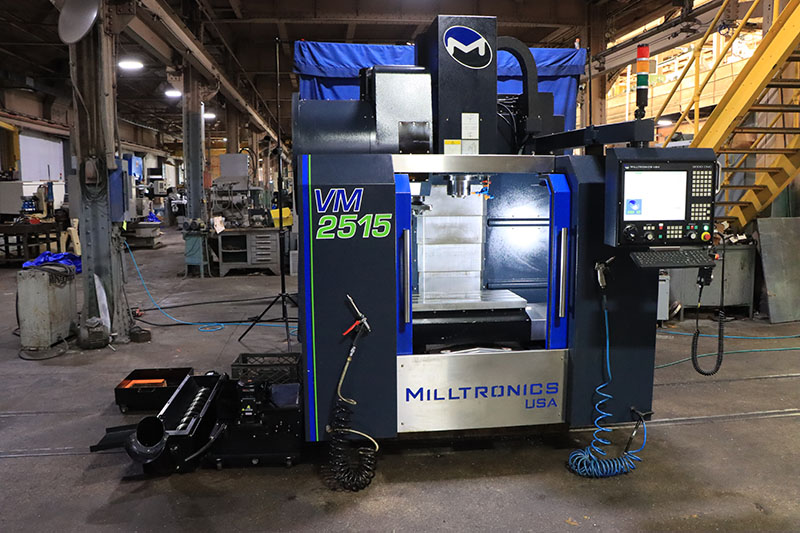

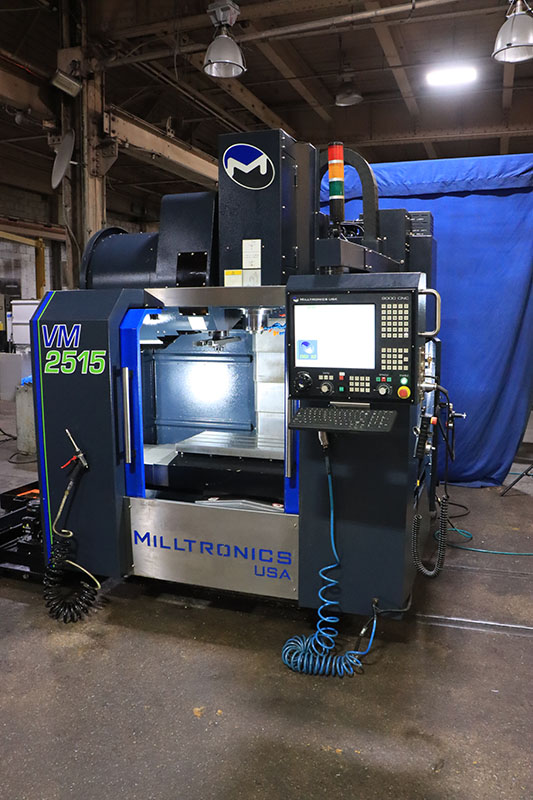

MILLTRONICS VERTICAL MACHINING CENTER
MODEL: VM2515, S/N: 13633,  MFG: 2018

SPECIFICATIONS:
X-AXIS TRAVEL .................... 25"  635mm
Y-AXIS TRAVEL .................... 15"  381mm
Z-AXIS TRAVEL .................... 20"  508mm

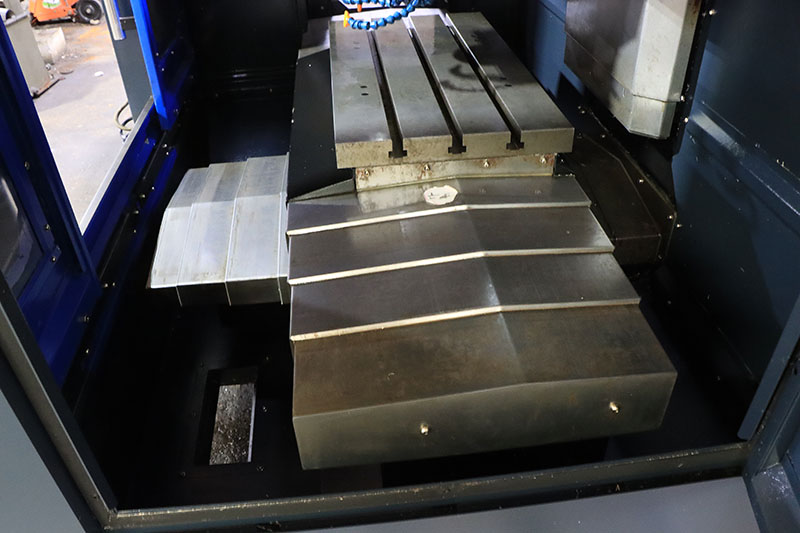

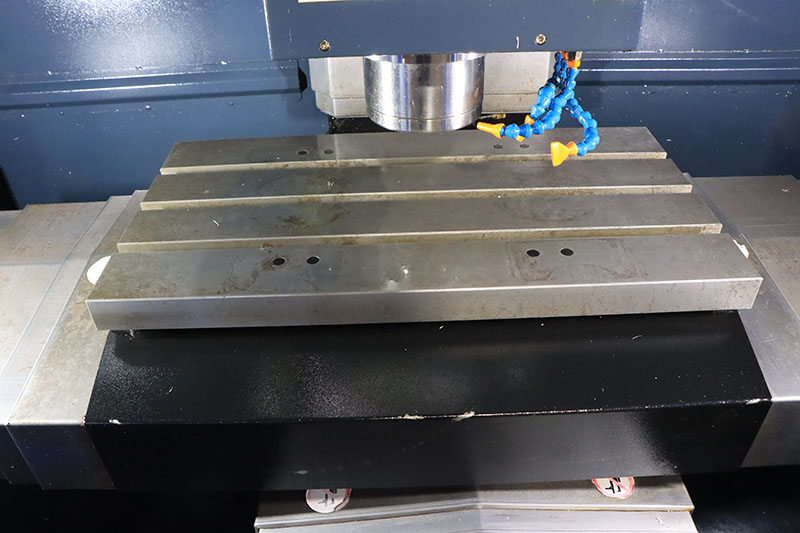

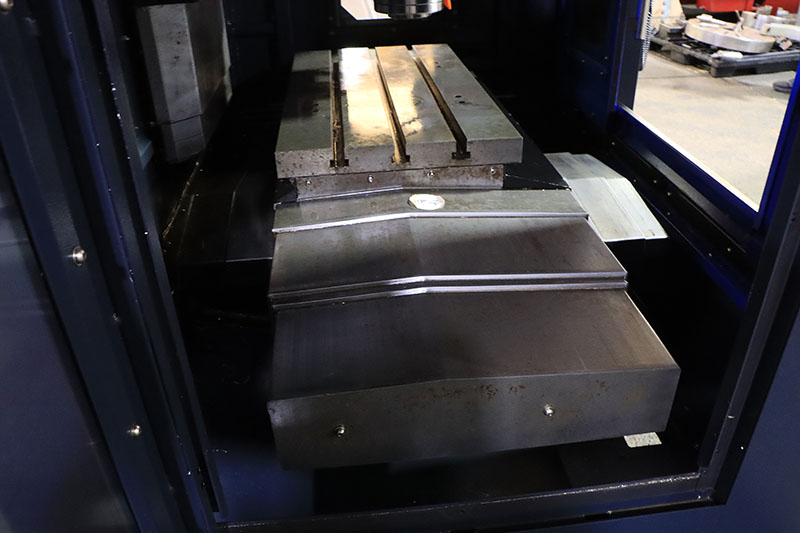

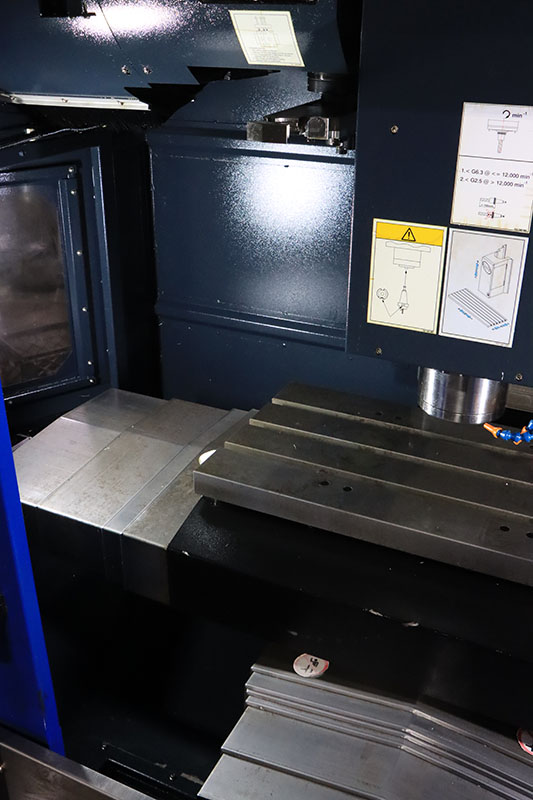

TABLE SIZE ....................... 36" X 16"
SPINDLE NOSE TO TABLE ............ 4" - 24"
TABLE LOAD CAPACITY .............. 3,140 LBS
SPINDLE SPEED .................... 10,000 RPM
SPINDLE MOTOR .................... 17 HP

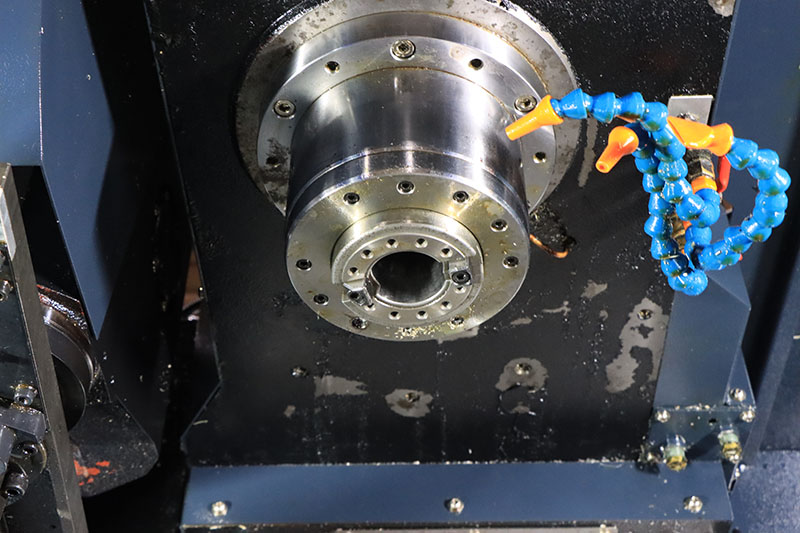

SPINDLE TAPER .................... CAT 40 BIG-PLUS
TOOL MAGAZINE CAPACITY ........... 20 ATC
MAXIMUM TOOL DIAMETER/WEIGHT ..... 3.5" / 15.4 LBS
RAPID TRAVERSE RATES ............. 945 IPM
MACHINE DIMENSIONS: .............. 80" x 101" x 101.5"H
MACHINE WEIGHT: .................. 6,250 LBS

EQUIPED WITH:

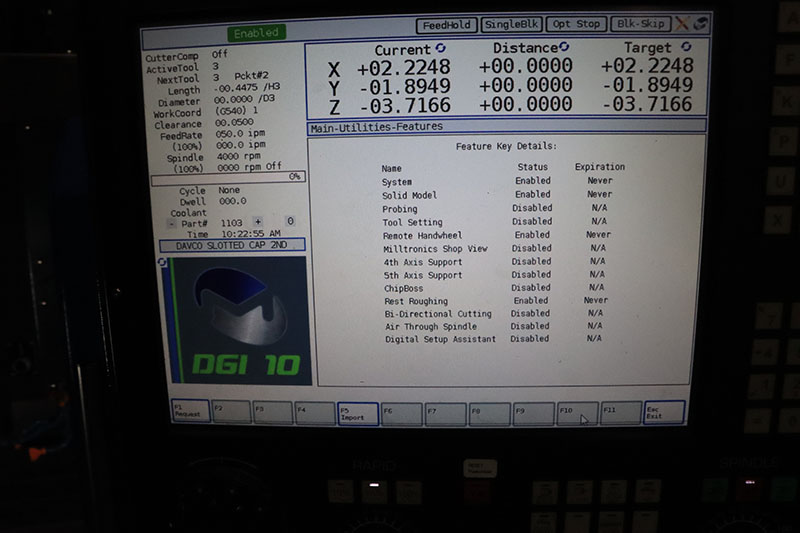

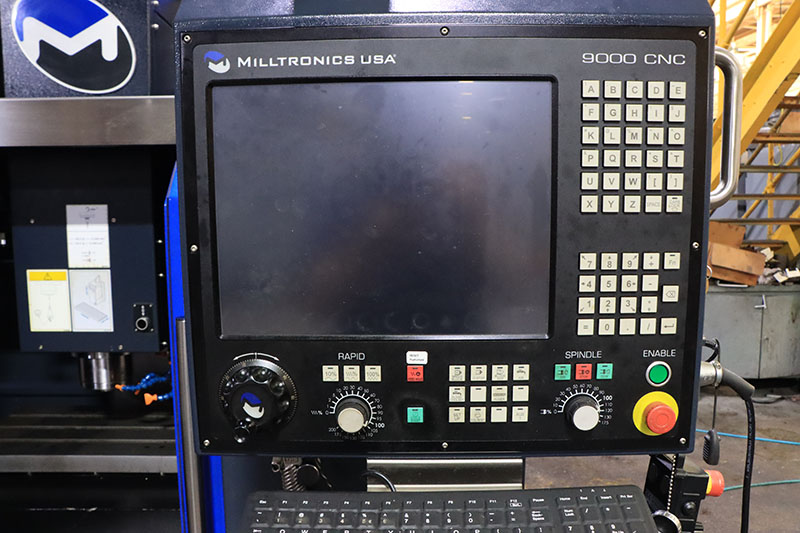

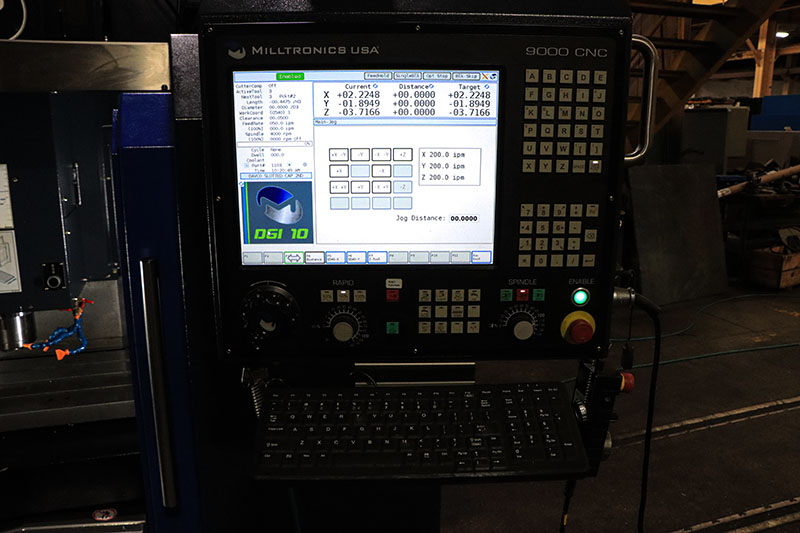

- MILLTRONICS 9000 CONTROL with TOUCHSCREEN
- RIGID TAPPING, SPARE "M" FUNCTION w/CNC "WAIT" CHANNEL
- USB PORT & ETHERNET
- REMOTE JOG HANDLE & AUXILARY INDUSTRIAL GRADE KEYBOARD

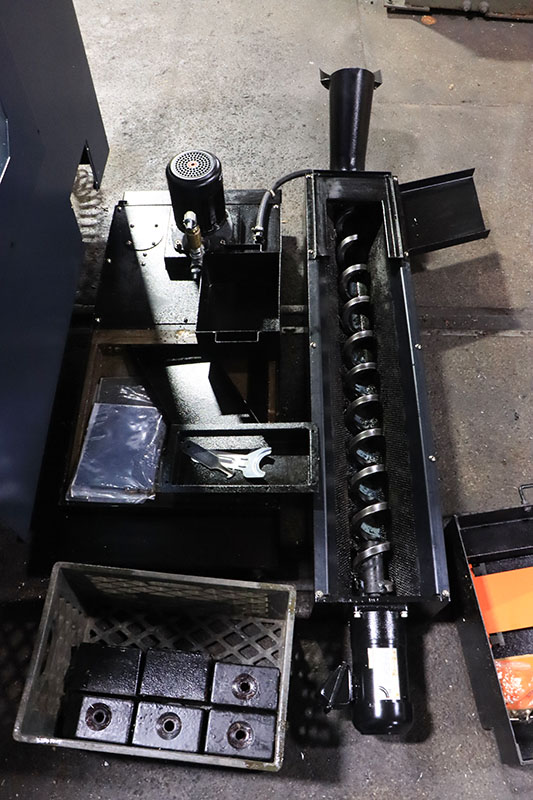

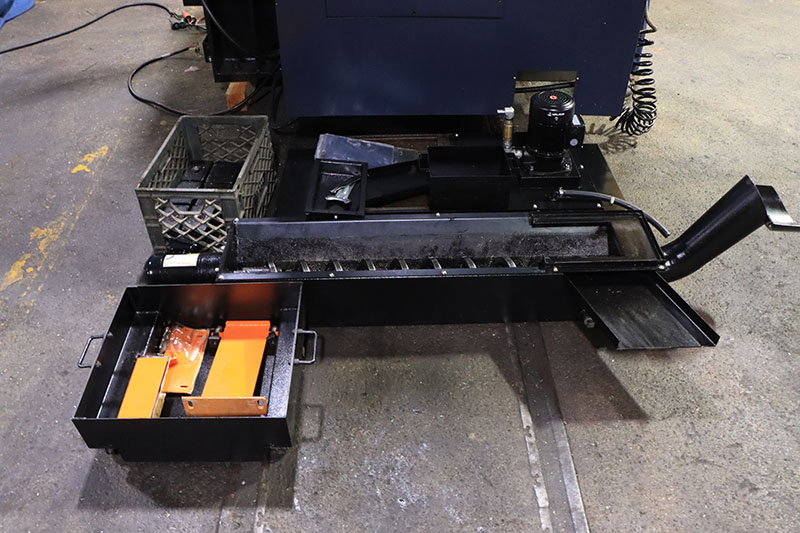

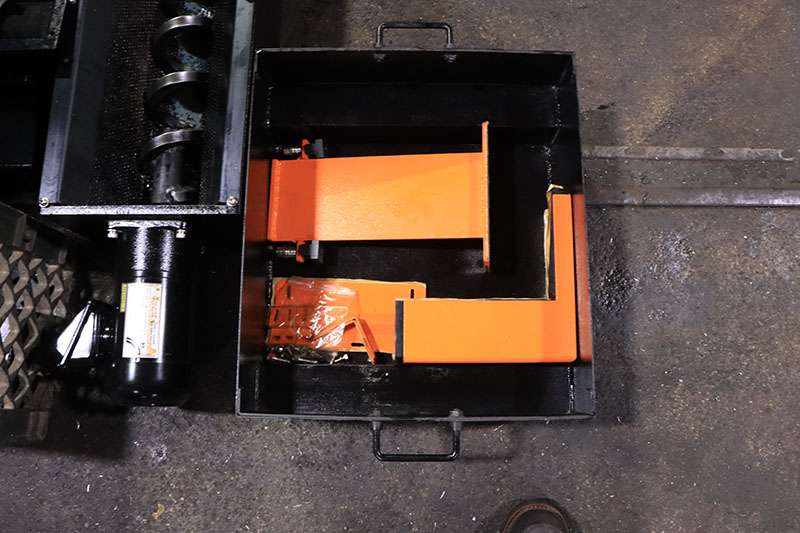

- CHIP AUGER
- COOLANT SYSTEM

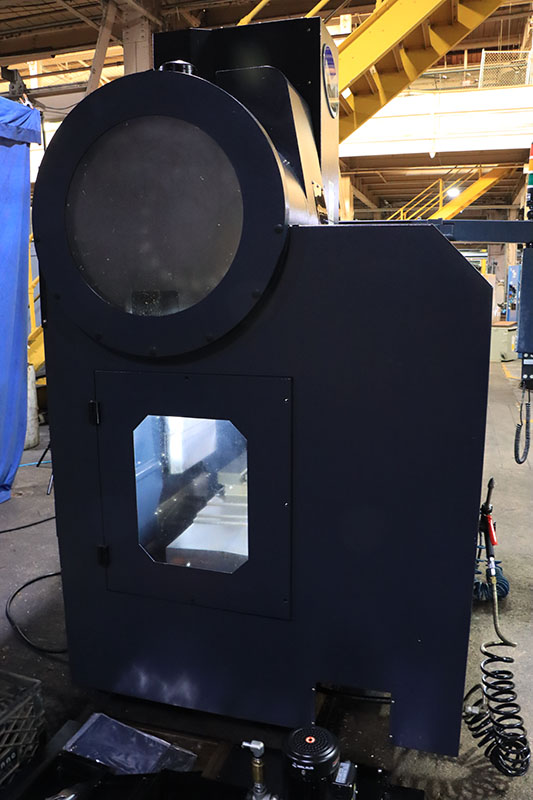

- 20 TOOL CAPACITY SIDE-MOUNTED TOOL CHANGER

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
