MITSUI MSG-200MH, 2015, FINE FEED KNOBS FOR CROSS & VERT. SURFACE GRINDERS, HAND FEED

Price on Request

Make:: MITSUI

Model:: MSG-200MH, 2015, FINE FEED KNOBS FOR CROSS & VERT.

Year:: 2015

Ref #:: 178763

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

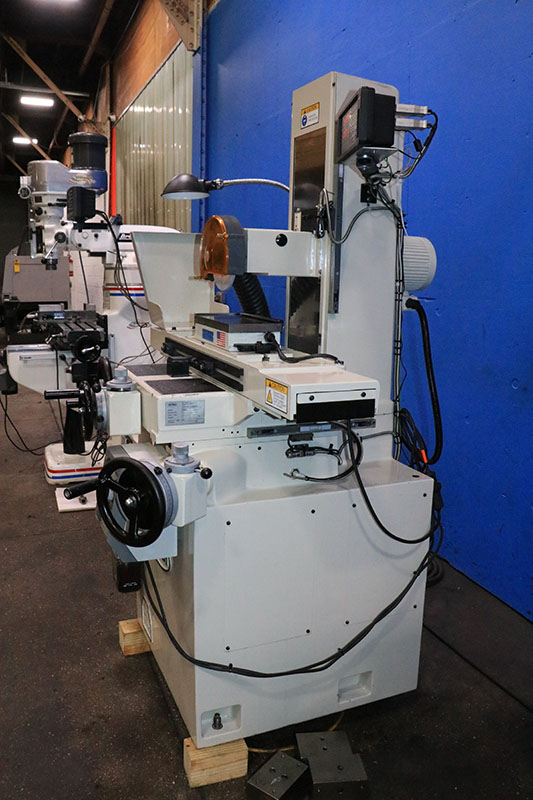

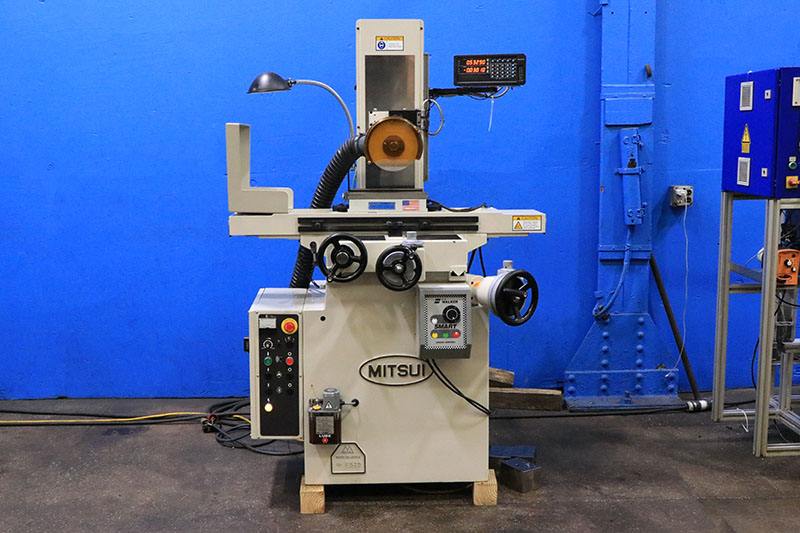

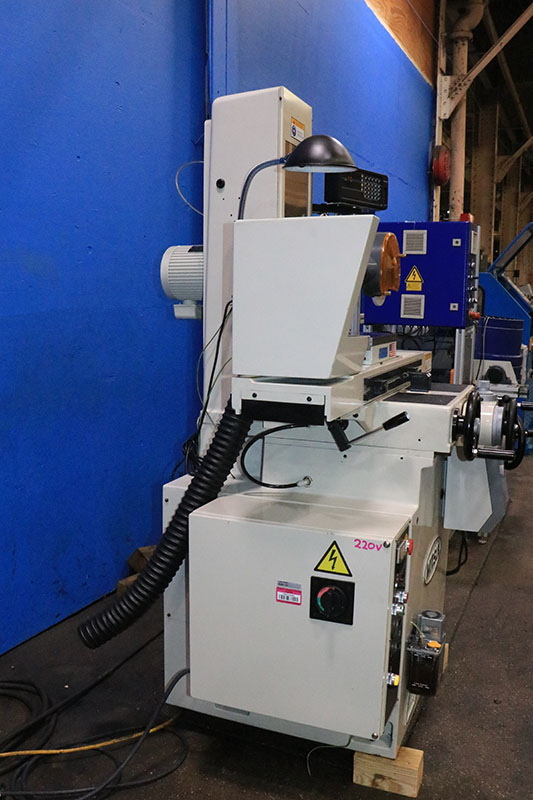

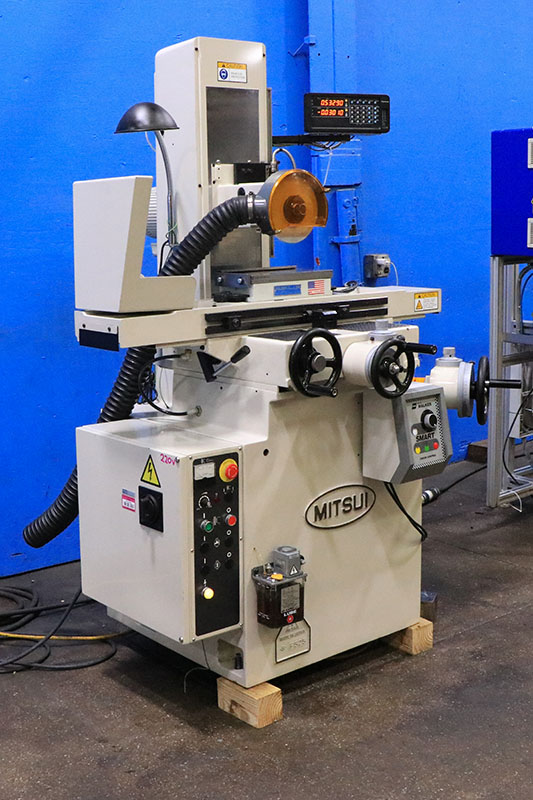

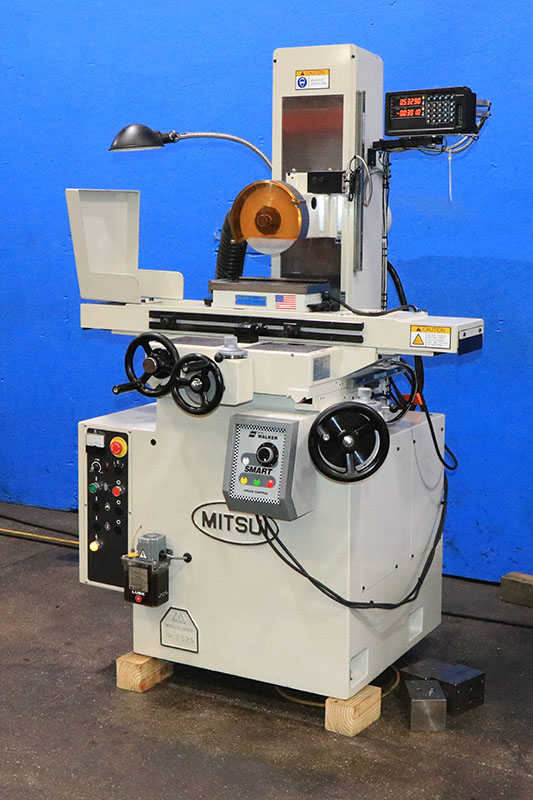

     6" X 12" MITSUI (NEW 2015)
   "HIGH-PRECISION" (MADE IN JAPAN)
      HAND FEED SURFACE GRINDER
      w/ROLLER BEARING TABLE

             NEW: 2015

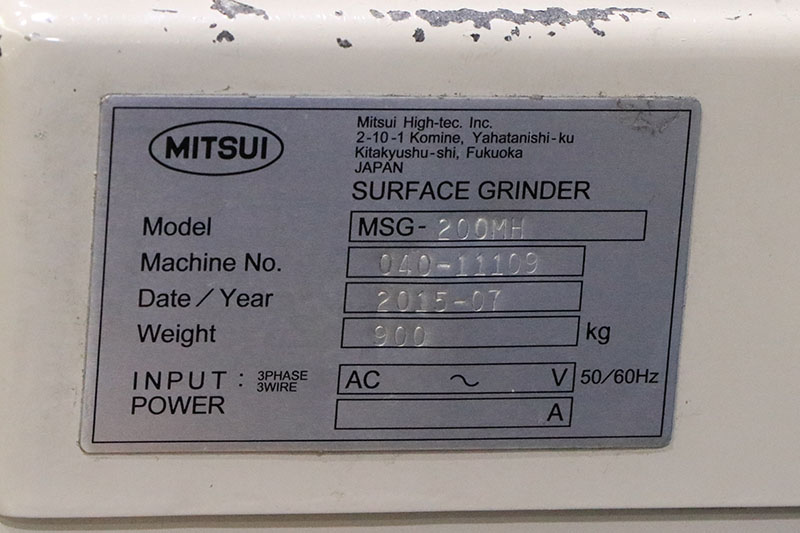

MODEL: MSG-200MH      S/N: 040-11109

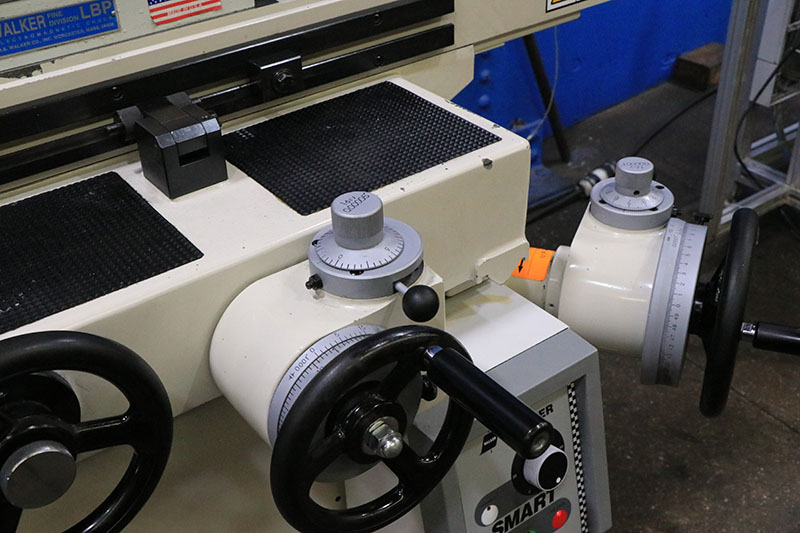

  ** FINE FEEDS FOR CROSS & VERTICAL AXES
     (.000050" GRAD. FOR THE CROSS AXIS)
     (.000010" GRAD. FOR THE VERTICAL AXIS)

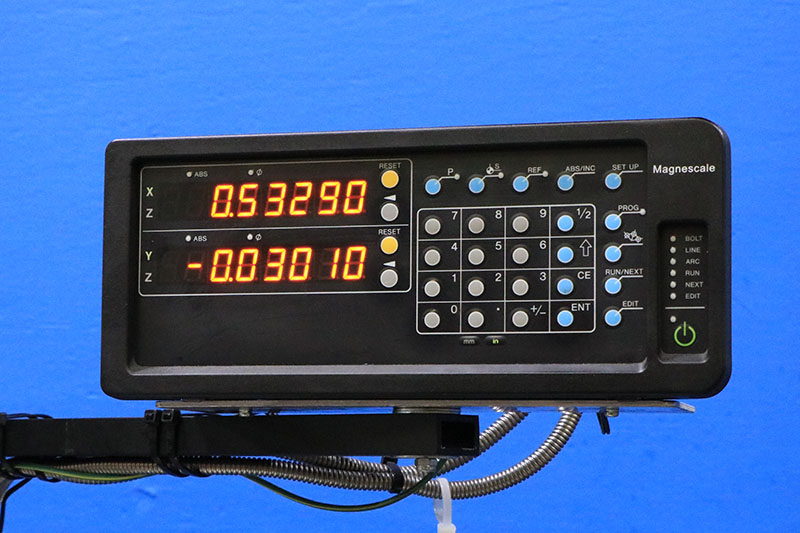

  ** "MAGNESCALE"2-AXIS DIGITAL READOUT DISPLAY,
         WITH 0.00005" DISPLAY RESOLUTION  **


TABL WORK SURFACE ............. 6" X 13.5"
CROSS TRAVEL .................. 8"
LONGITUDINAL TABLE TRAVEL ..... 15"
TABLE TO SPINDLE CENTER ....... 18"
HEIGHT UNDER 8" WHEEL TO
 CHUCK SURFACE ................ 11"

TABLE MOVEMENT, LONGITUDINAL,
  PER REV. OF HANDWHEEL ....... 4"/REV.

TABLE, CROSS FEED PER REV. OF
  HANDWHEEL(.001" GRAD.) ...... 0.100"
TABLE, CROSS FEED, HANDWHEEL
  GRADUATION OF DIAL .......... 0.001"

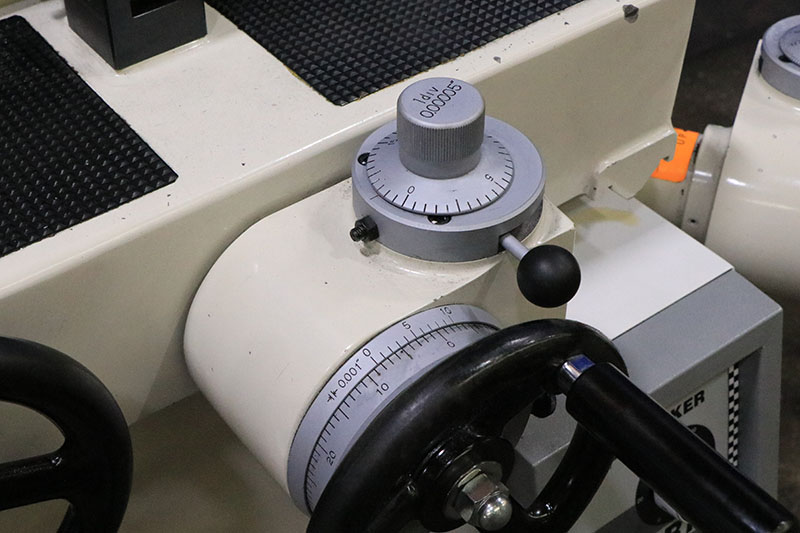

FINE FEED SYSTEM FOR CROSS
 FEED, GRAD. TO ............... 0.000050"

VERTICAL MOVEMENT OF HEAD, PER
  REV. OF HANDWHEEL ........... 0.05"
VERTICAL HANDWHEEL, GRADUATION
  OF DIAL ..................... 0.0001"

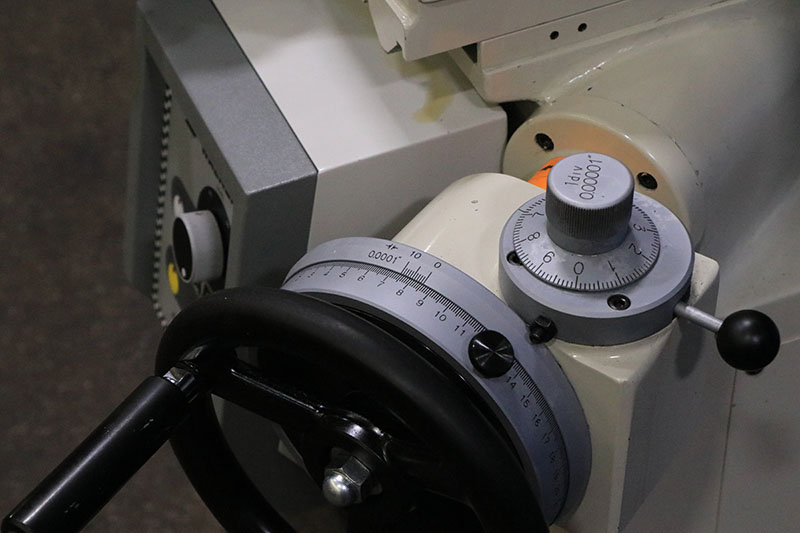

FINE FEED SYSTEM FOR VERTICAL,
  GRADUATED TO READ TO ........ 0.000010"
POWER ELEVATION SPEED ......... 17.33" IPM





GRINDING WHEEL CAPACITY ... 8" x 3/4" x 1-1/4"
SPINDLE SPEEDS, INFINITELY
  VARIABLE, VFD ............... 0 TO 5,000 RPM
SPINDLE MOTOR ................. 1.33 H.P.

APPROX. WEIGHT ................ 1,980 LBS.
APPROX. DIMS. FOR THE
 MACHINE ONLY ................. 58" x 46" x 71"H


MACHINE FEATURES:
TABLE MOVES ON LINEAR BALL BEARINGS (REMOVABLE)
MOUNTED BETWEEN (3) VEE WAYS & (1) FLAT WAY ...
   DRIVEN BY CABLE SYSTEM
HARDENED& REPLACEABLE STEEL WAYS ON TABLE,
  CARRIAGE/SADDLE& COLUMN
  CROSS FEED HANDWHEEL (.0001" VERNIER)
PRECISION CARTRIDGE SPINDLE DESIGN
  1-1/3 HP SPINDLE MOTOR

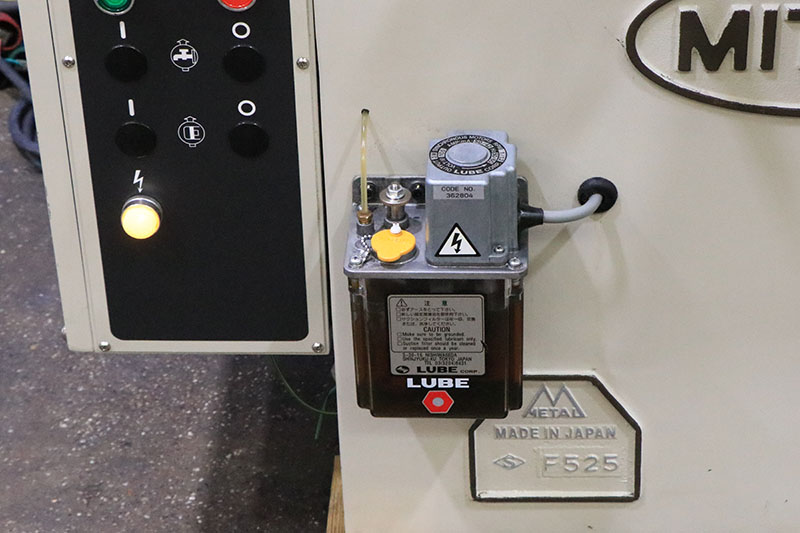

AUTOMATIC LUBRICATION SYSTEM
"VAC-U-GUARD" WHEEL COVER, FOR DRY GRINDING

EQUIPPED WITH:

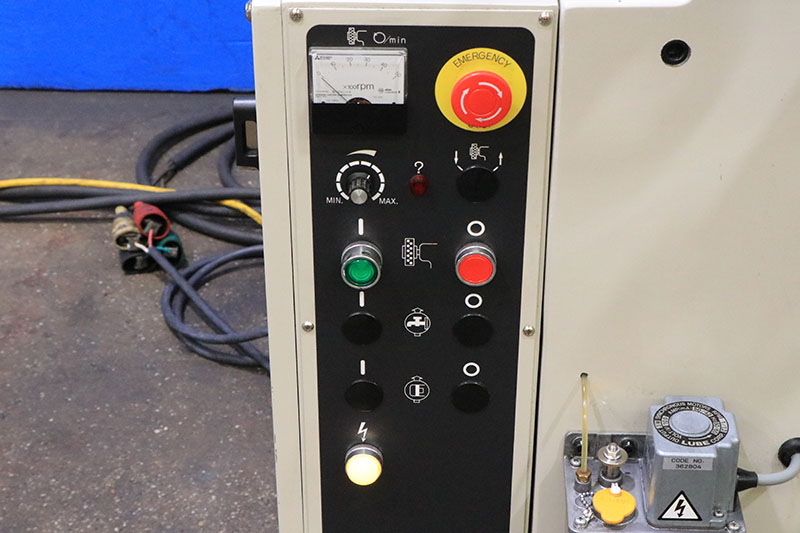

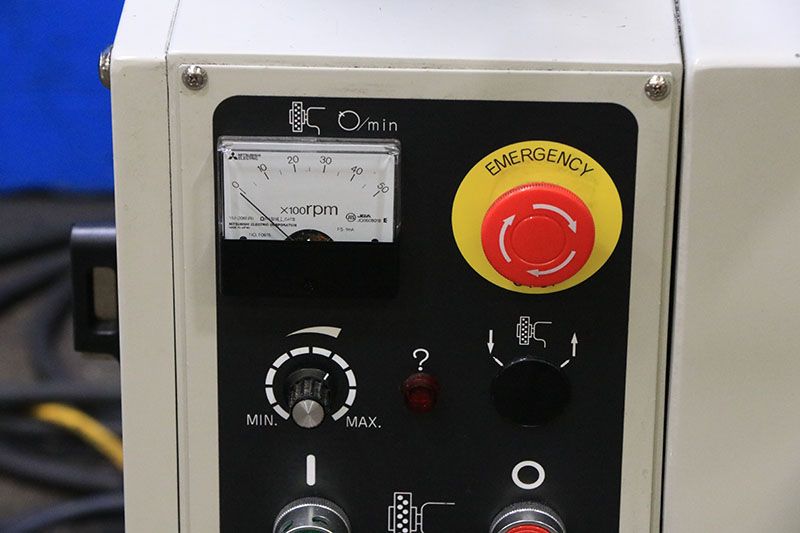

ELECTRONIC VARIABLE SPEED DRIVE, WITH
  RHEOSTAT CONTROL, WITH ANALOG DISPLAY
  OF THE GRINDING WHEEL SPEED.
  RHEOSTAT CONTROL KNOB & ANALOG DISPLAY
  ARE LOCATED ON THE TOP OF THE CONTROL
  AREA FOR EASY USE.
FINE FEED OPTION FOR CROSS AXIS, 0.000050" GRAD.
FINE FEED OPTION FOR VERTICAL AXIS, 0.000010 GRAD.

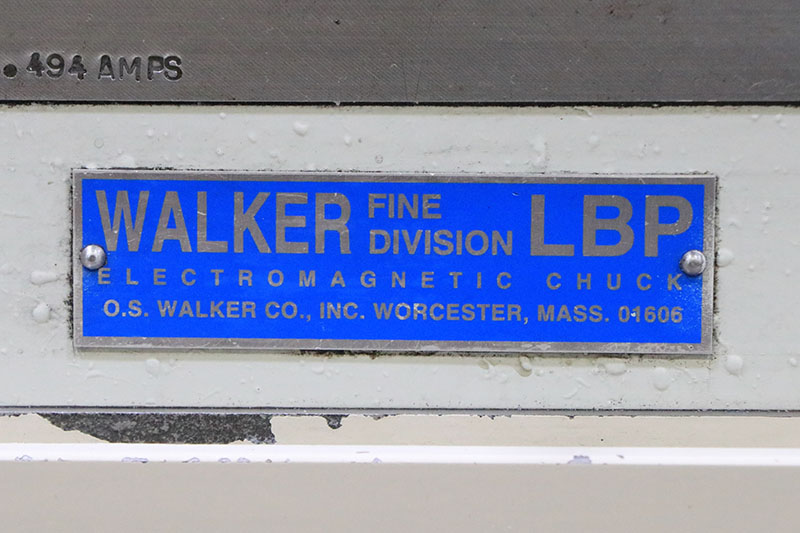

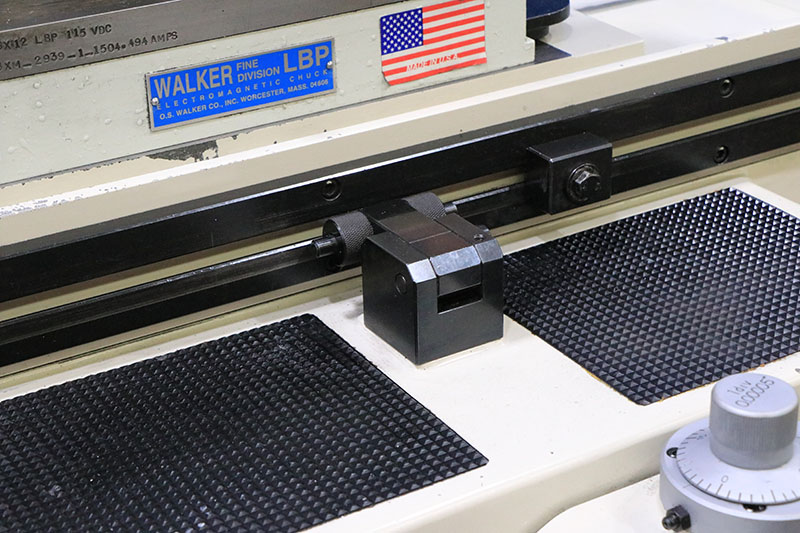

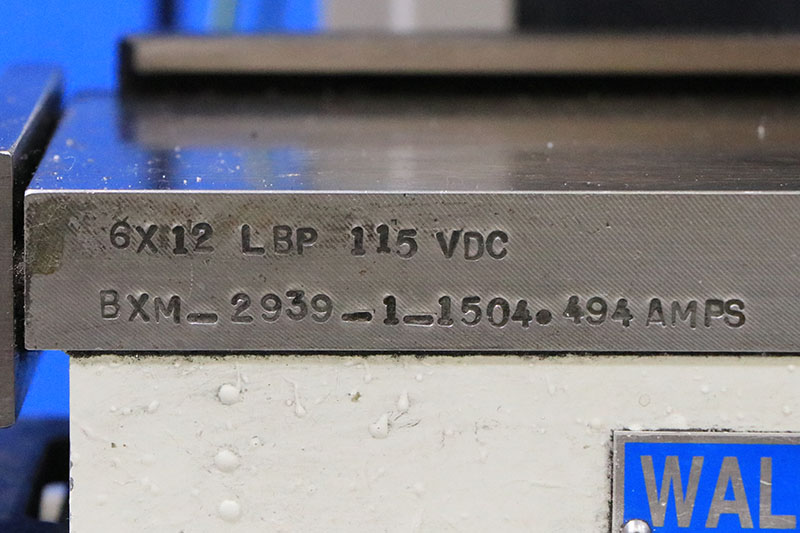

6" X 12" "O.S. WALKER" FINE-DIVISION "LBP"
  ELECTRO-MAGNETIC CHUCK

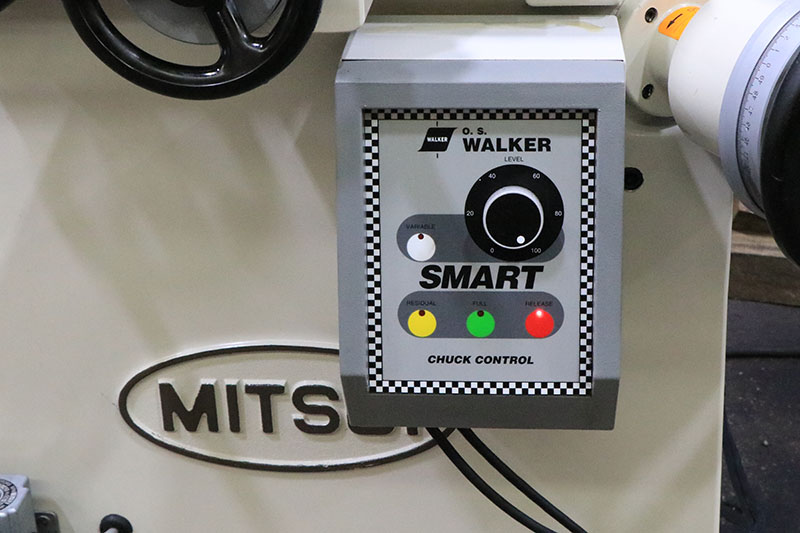

O.S. WALKER "SMART SERIES" VARI-HOLD NEUTROFIER
"MAGNESCALE" HIGH-ACCUACY 2-AXIS DIGITAL
  READOUT, WITH 0.00005" DISPLAY RESOLUTION
WORK LIGHT
SET UP FOR DRY GRINDING

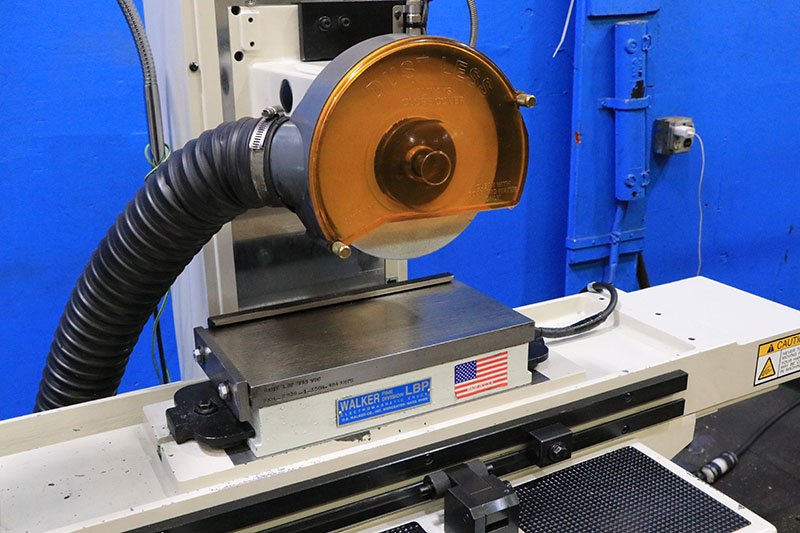

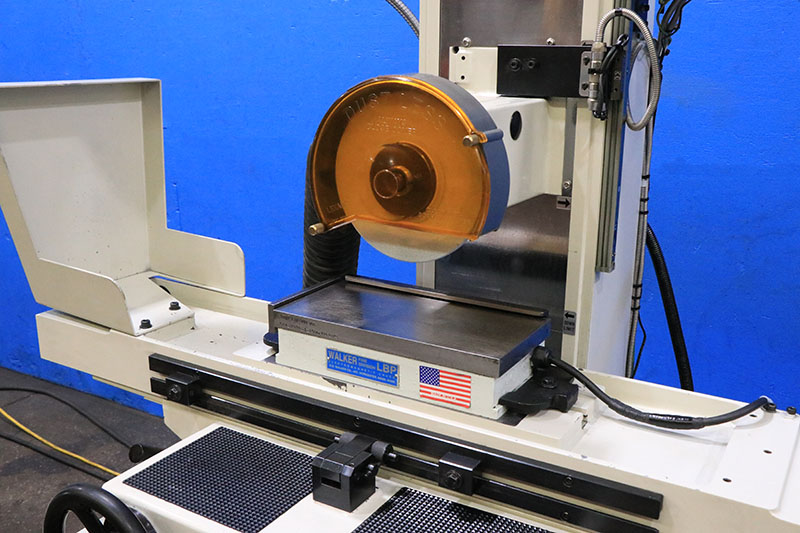

"DUST LESS" GRINDING WHEEL WHEELGUARD,
  WITH "BULLET PROOF" INJECTION MOLDED
  "LEXAN" FRONT COVER.  ALLOWS VIEWING
   OF GRINDING WHEEL.
  "MADE IN USA" PRODUCT.
MACHINE IS WIRED FOR 3/60/220 VOLT ELECTRICS

SPECIAL NOTE:
"OPTI-DRESS" FACSTOR E "OVER-THE-WHEEL" DRESSER
  CAN BE PURCHASED FROM US, IN STOCK.
  THE UNIT HAS BEEN REFURBISHED
  BY THE USA REPRESENTATIVE FOR "OPTI-DRESS"
  (PRECISION INT'L).  PRICE AVAILABLE UPON
  REQUEST.

OEM LITERATURE:
https://www.mht-us.com/documents/200MH.pdf

  LINK TO VIDEO: https://youtu.be/3B84OvMu4wA?si=Af1c2cfp2mb0xJFV


  ** INSPECT UNDER POWER OUR HARRISON, NJ WAREHOUSE **
  ** JUST BEAUTIFUL - ORIGINAL PAINT **
  ** "LIKE NEW" CONDITION & APPEARANCE **
