Mitutoyo PV-600, FLOOR MODEL - VERTICAL PROJ., 1995, 10X COMPARATORS

Price on Request

Make:: Mitutoyo

Model:: PV-600, FLOOR MODEL - VERTICAL PROJ., 1995, 10X

Year:: 1995

Ref #:: 179004

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

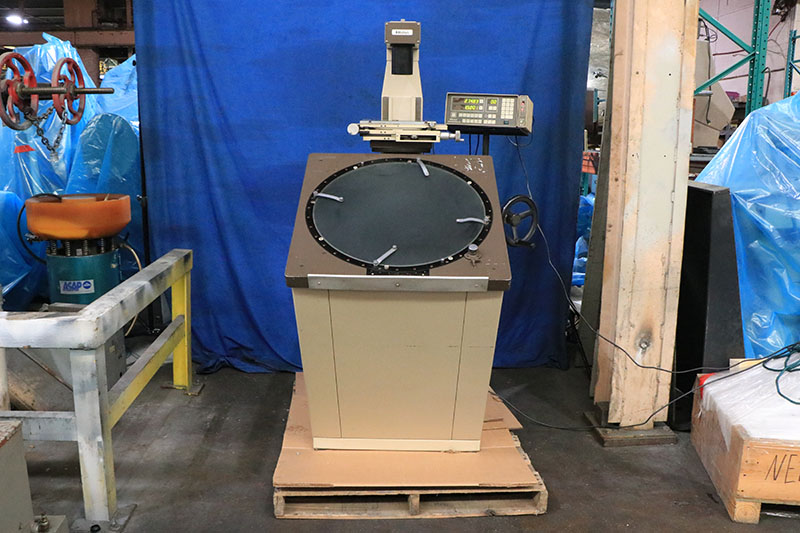

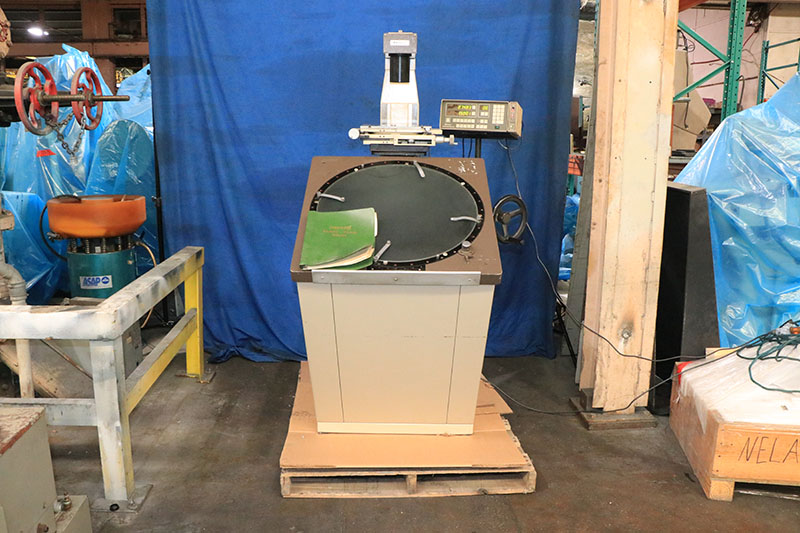

    24" MITUTOYO (MADE IN JAPAN)
  VERTICAL PROJECTION FLOOR TYPE
        OPTICAL COMPARATOR

 MITUTOYO "MICROPAK 2" TWO-AXIS DRO,
 WITH PROGRAMMABLE GEOMETRIC FUNCTIONS,
    AND "OPTOEYE E" EDGE DETECTION

"PERFECT MACHINE FOR COMPARATIVE
  MEASUREMENTS WITH ENLARGED
    DRAWINGS AND TRACING OF
      PROJECTED IMAGES"

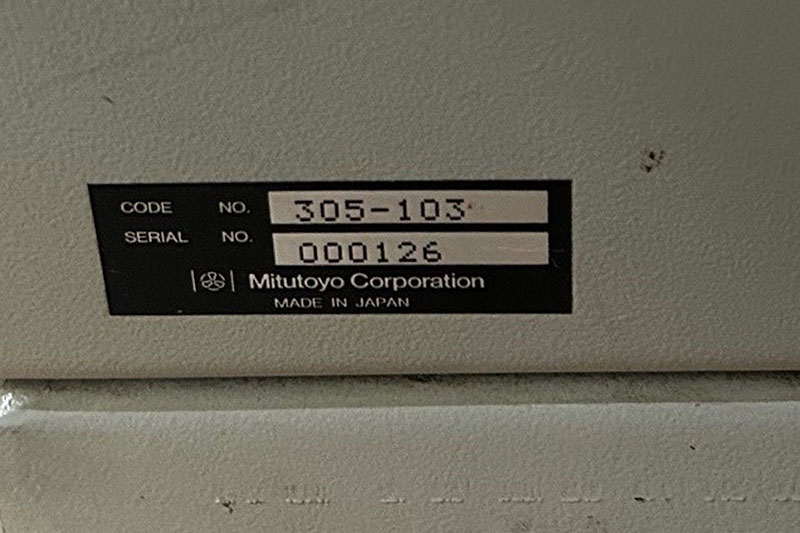

MODEL: PV-600     S/N:     NEW: 1995

SPECIFICATIONS:
Screen Diameter ................... 24"
Angle Measure ..................... 360°

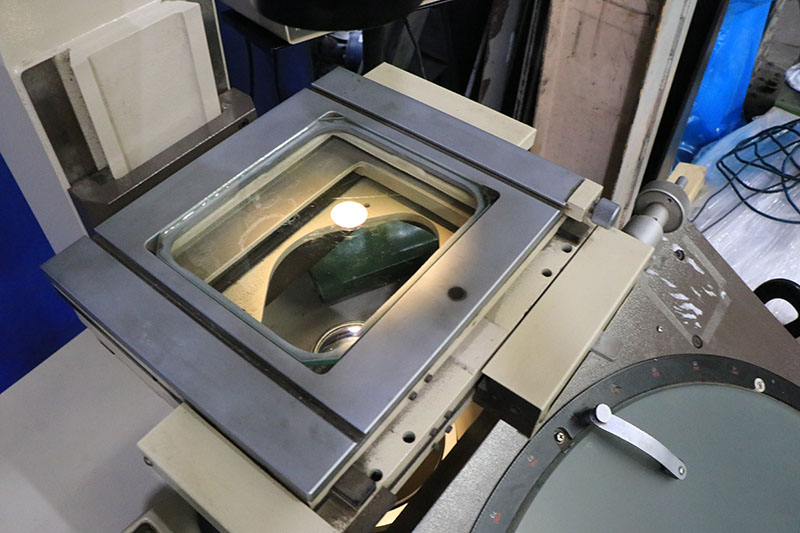

Stage Size ........................ 12" x 9.45"
Stage Glass Size .................. 7.5" x 6.3"
Load Capacity ..................... 22 Lbs.

Measuring Capacity
 - Longitudinal Stage Travel ...... 4"
   Cross Stage travel ............. 2"

APPROX. WEIGHT .................... 550 LBS.
approx. Dimensions ................ 40" x 43.4" x 68.5"H

...
MACHINE DESIGN/FEATURES:

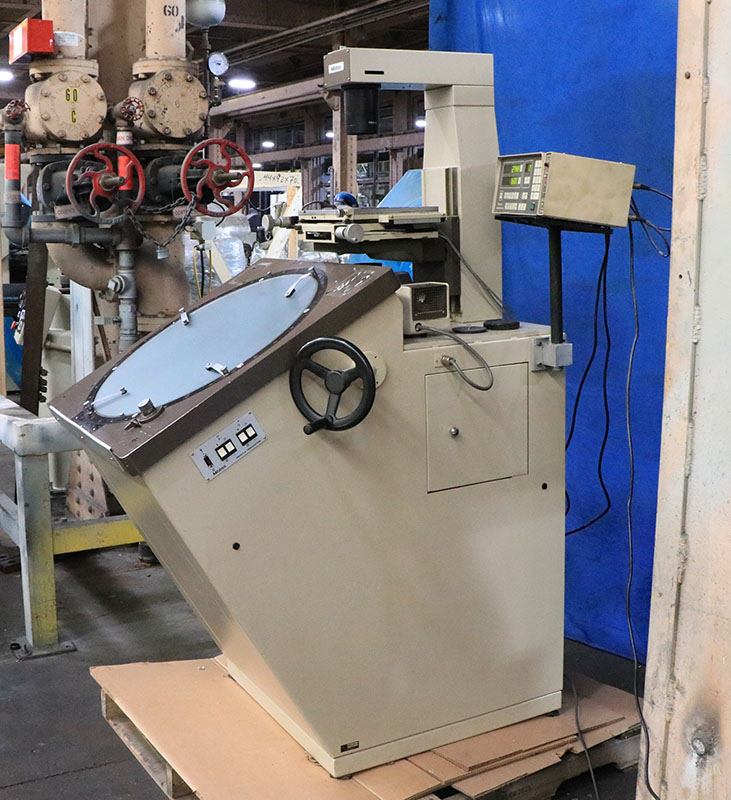

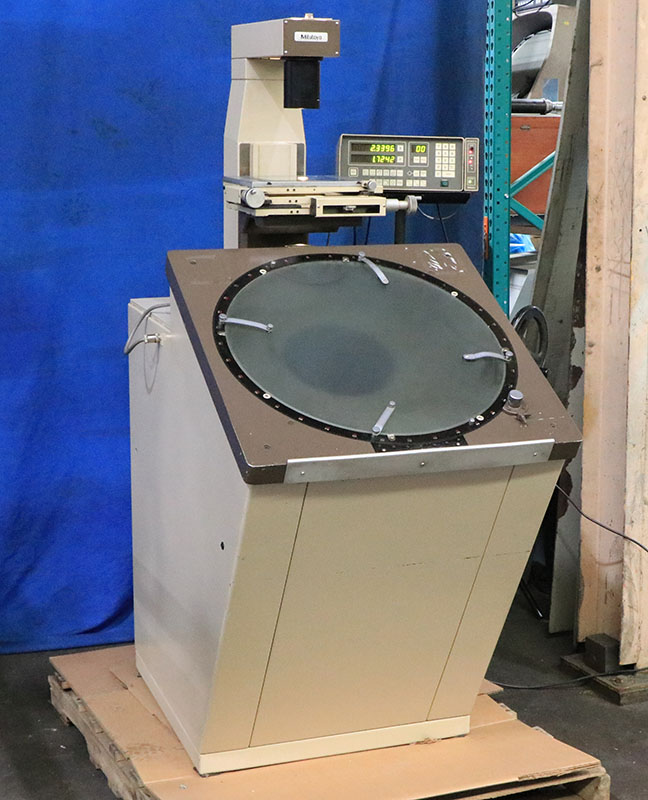

FORWARD-TILTED SCREEN

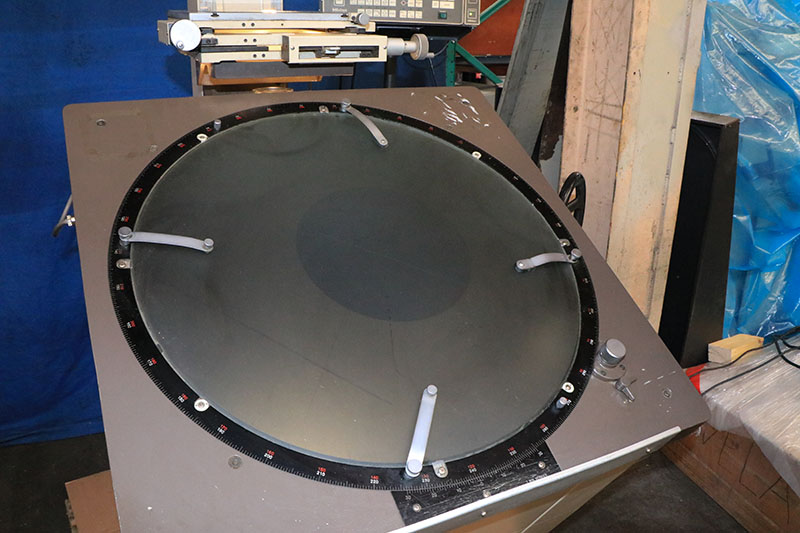

24" SCREEN, WITH COMPACT FLOOR SPACE
FLOOR MODEL THAT USES A DOWNWARD ILLUMINATION SYSTEM

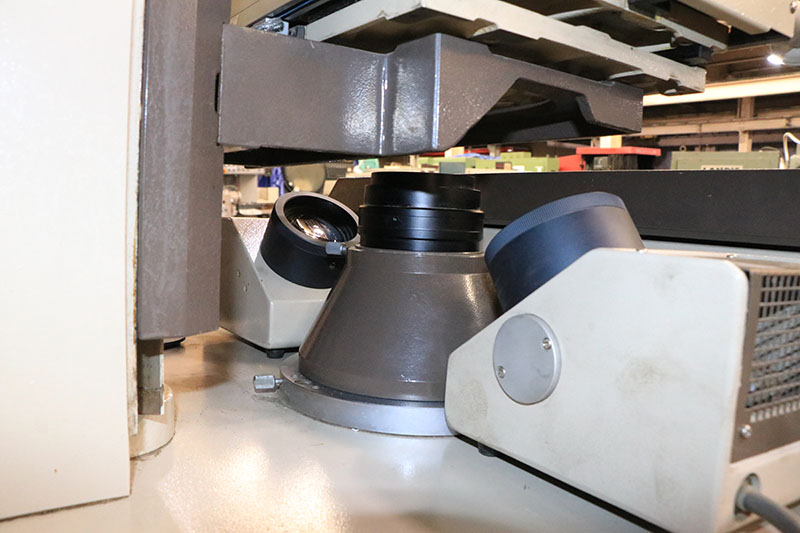

OBLIQUE SURFACE ILLUMINATION SYSTEM PROVIDES
 CLEAR & BRIGHT IMAGES
TELECENTRIC SYSTEM WITH CONDENSOR LENS

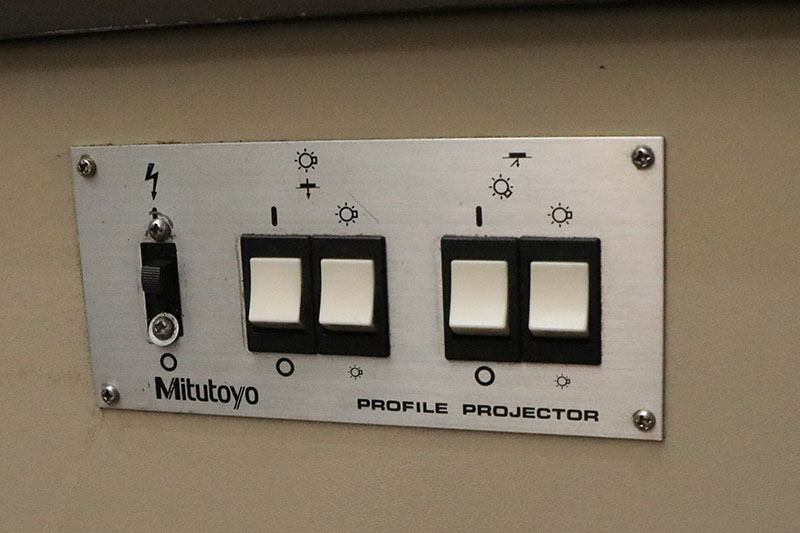

HALOGEN LAMP, 150W, TWO STAGE BRIGHTNESS SELECTOR
  FOR CONTOUR ILLUMINATION
HALOGEN LAMP, 150W, TWO STAGE BRIGHTNESS SELECTOR
  FOR SURFACE ILLUMINATION



Equipped With:

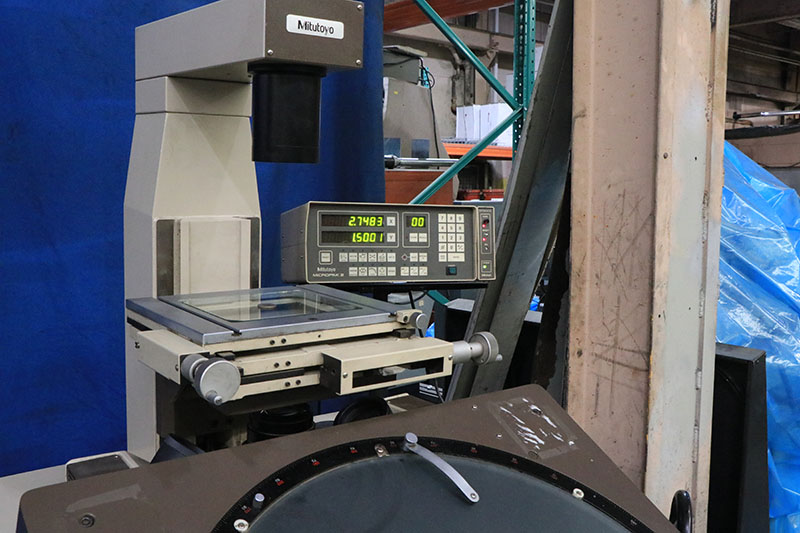

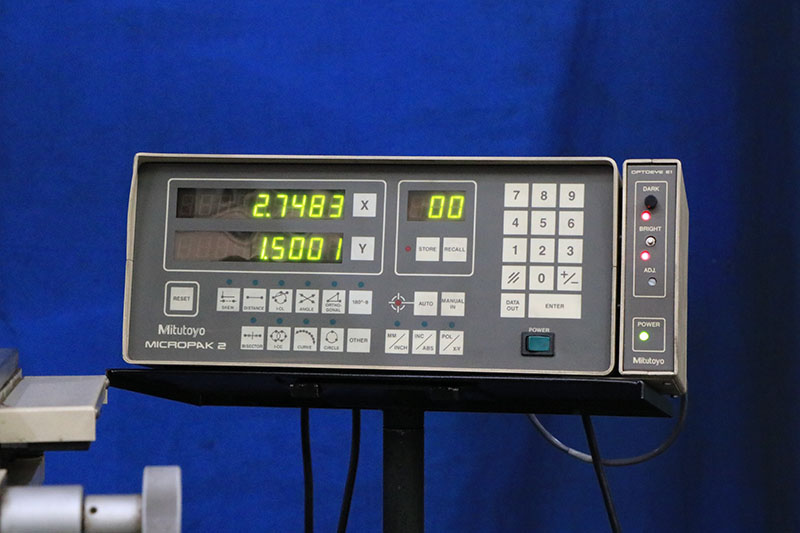

MITUTOYO "MICROPAK 2" 2-AXIS DRO, WITH PROGRAMMABLE
 GEOMETRIC FUNCTIONS
MITUTOYO "OPTOEYE E" EDGE DETECTION

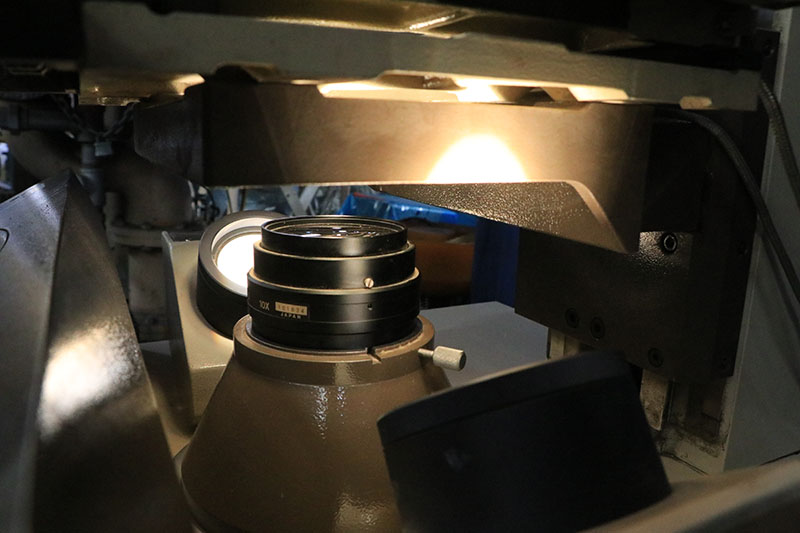

10X Lens
Electrical- 1/60/110-120 Volts

Link to video: https://youtu.be/aBs6IZ6DmH4?si=OeKllNwlcGO36nME

** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
