Watch Video:

Mori Seiki NH5000DCG/40 HORIZONTAL MACHINING CENTERS (HMC's)

$79,500

Make:
Mori Seiki
Model:
NH5000DCG/40
Year:
2008
Ref #:
163762

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

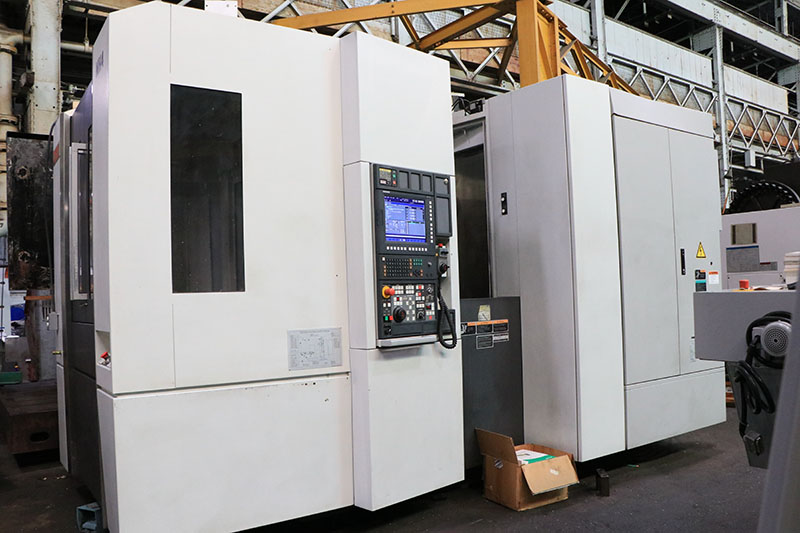

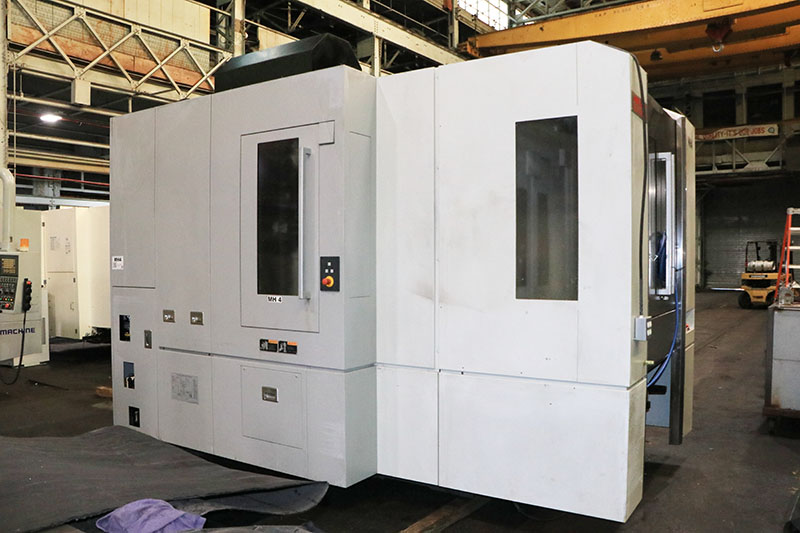

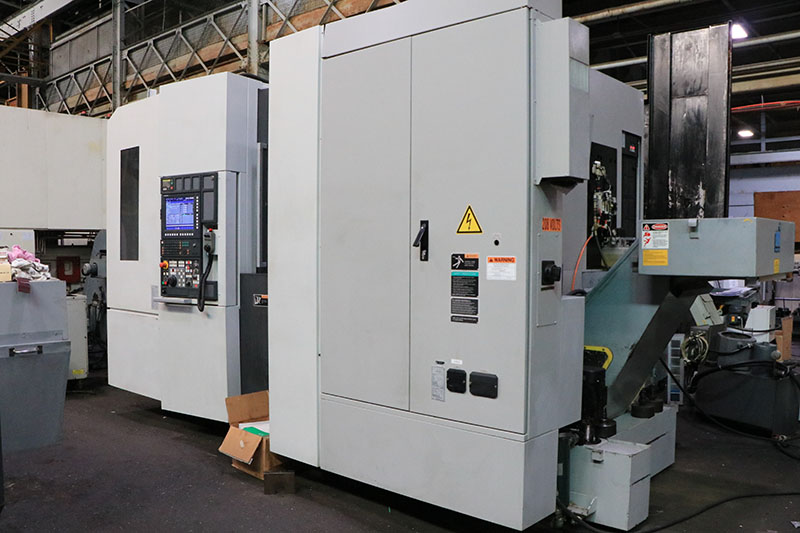

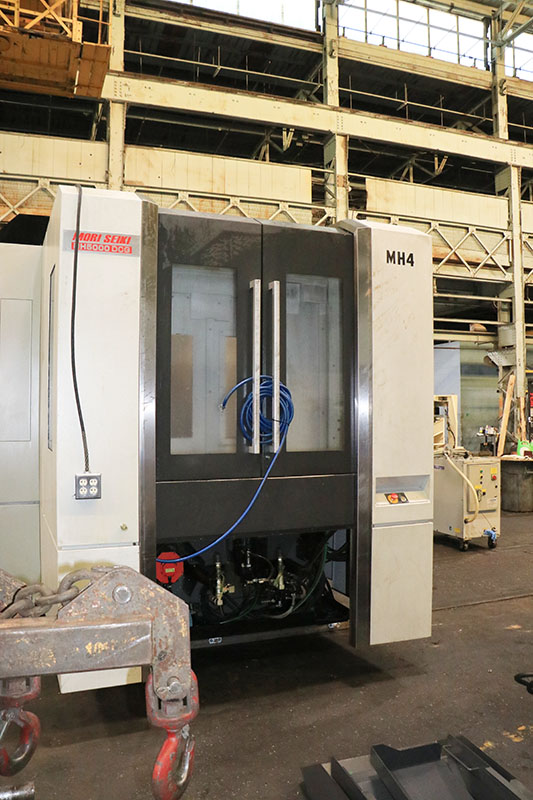

MORI-SEIKI 4-AXIS HORIZONTAL MACHINING CENTER

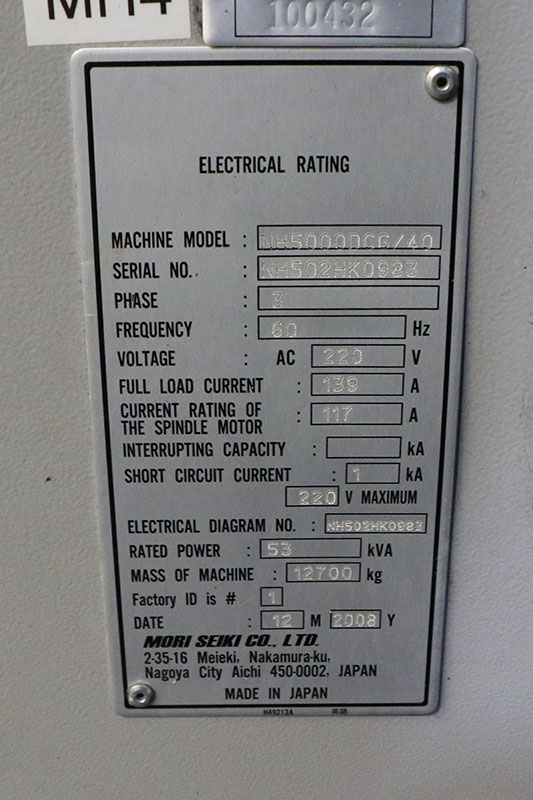

MODEL: NH 5000 DCG, S/N: NH502HK0983, NEW: 2008

SPECIFICATIONS:

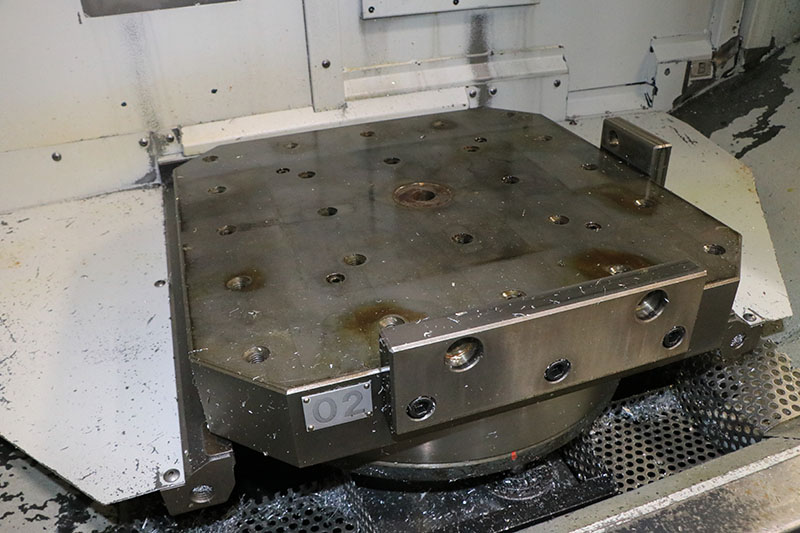

PALLET SIZE .......................... 19.7" X 19.7" (500MM)
PALLET LOAD CAPACITY ................. 1,100 LBS
MACHINE TRAVELS:
  X-AXIS TRAVEL ...................... 28.7"
  Y-AXIS TRAVEL ...................... 28.7"
  Z-AXIS TRAVEL ...................... 33.5"
PALLET SURFACE TO SPINDLE CENTER ..... 3.9" - 32.7"
PALLET CENTER TO SPINDLE GAUGE PLANE . 3.9" - 37.4"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING (FULL FOURTH) ........ .001 DEGREE
SPINDLE TAPER ........................ CAT #40
SPINDLE SPEEDS ....................... 0 - 14,000 RPM
CUTTING FEEDRATE ..................... 0 - 1968.5 IPM
POWER RAPID TRAVERSE ................. 1968.5 IPM
TOOLCHANGER CAPACITY ................. 60 STATIONS
SPINDLE DRIVE ........................ 50/30 HP
APPROXIMATE WEIGHT ................... 28,380 LBS
APPROXIMATE FLOOR SPACE .............. 107.3" W x 181.5"L
                                            123.5"H

EQUIPPED WITH:

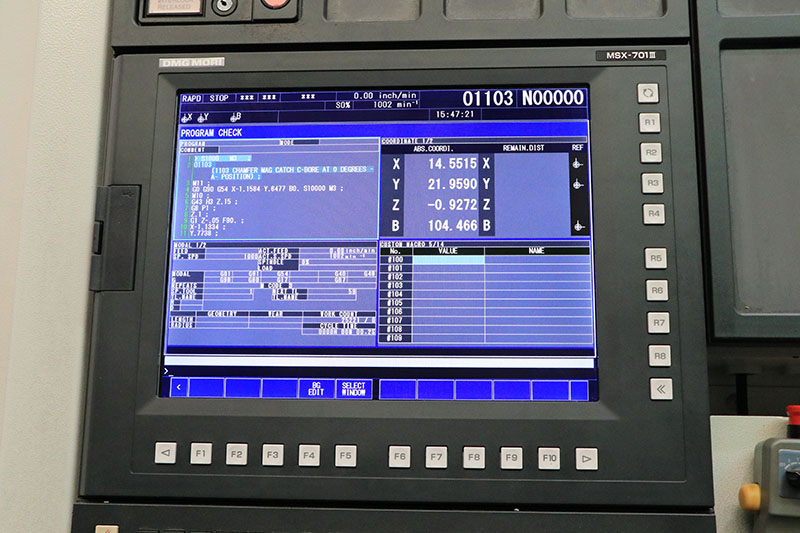

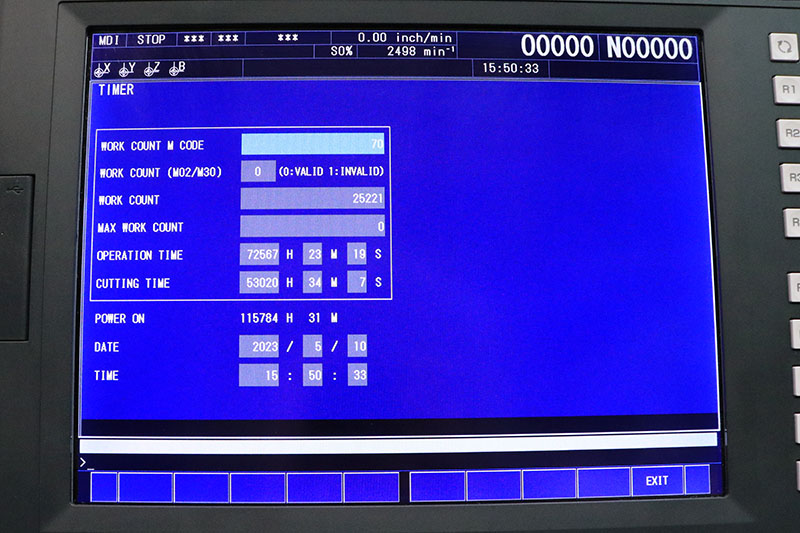

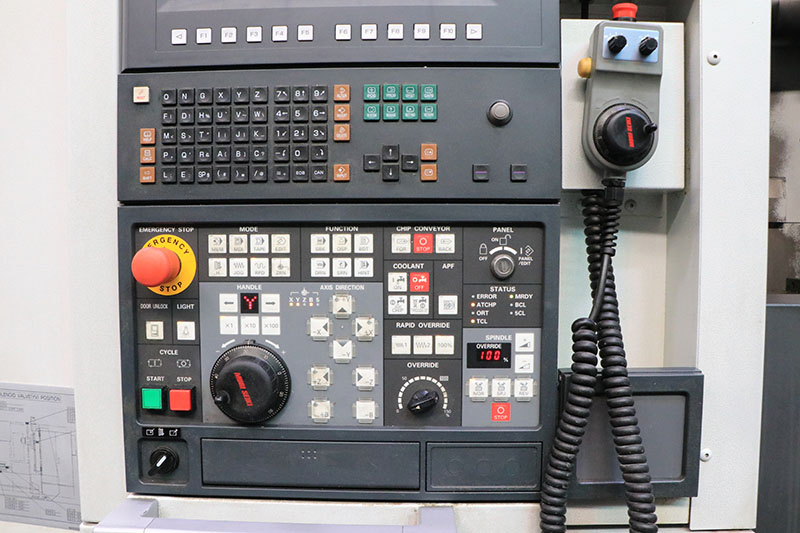

- MORI-SEIKI MODEL: MSX 701 III CONTROL (FULL FOURTH)
- 50/30 HP HIGHPOWER SPINDLE DRIVE, 14,000 RPM SPINDLE
- THRU-SPINDLE COOLANT, 1000 PSI
- CHIP BLASTER 1000 PSI UNIT
- 2 PALLETS
- PROGRAMMABLE PALLET
- 60 STATION AUTOMATIC TOOL CHANGER
- CHILLER

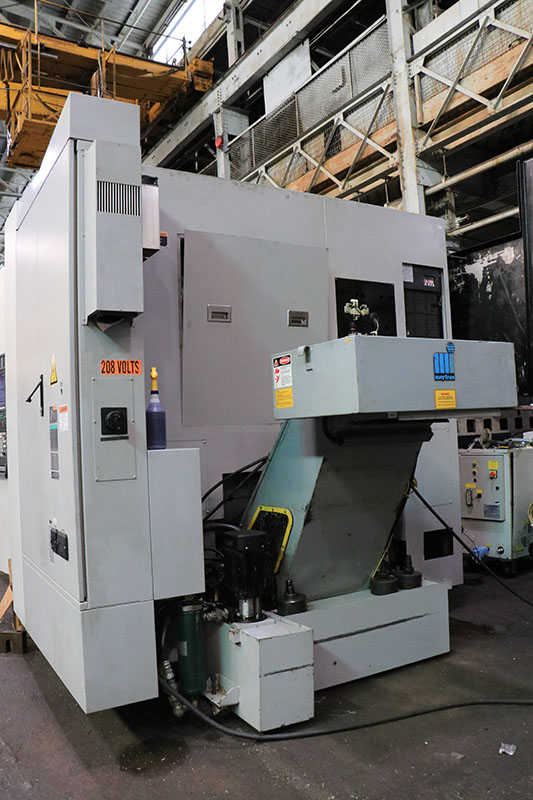

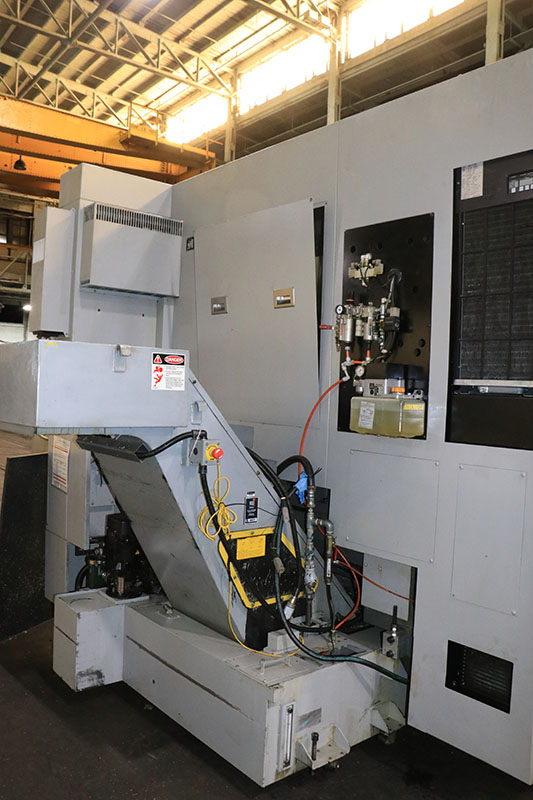

- CHIP CONVEYOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
