MSC VALUEMASTER 16-40G ENGINE LATHES

$5,500

Make:
MSC
Model:
VALUEMASTER 16-40G
Year:
1990'S
Ref #:
164097

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

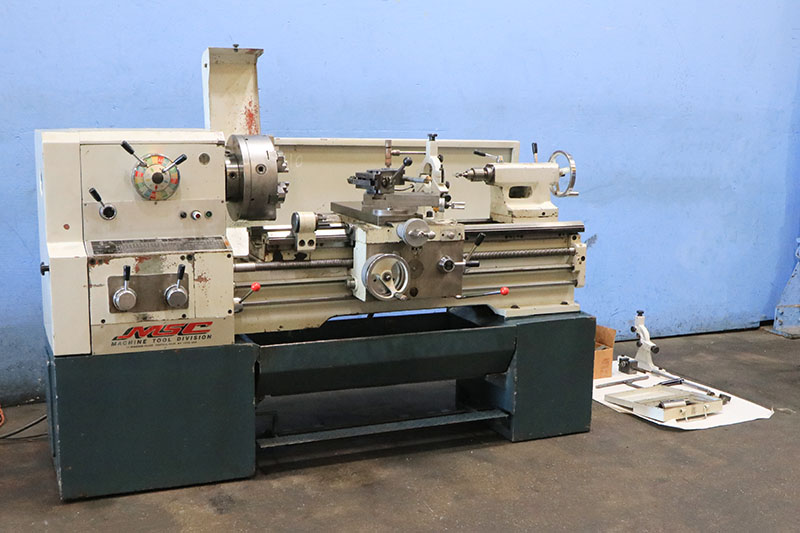

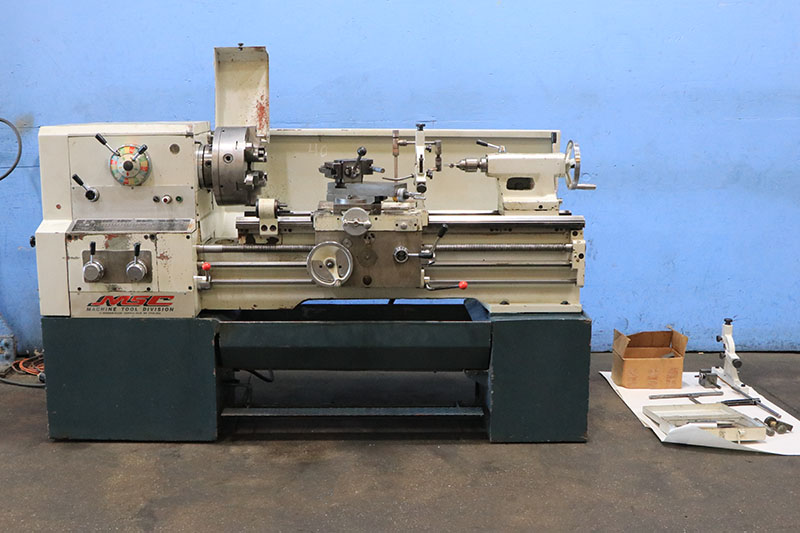

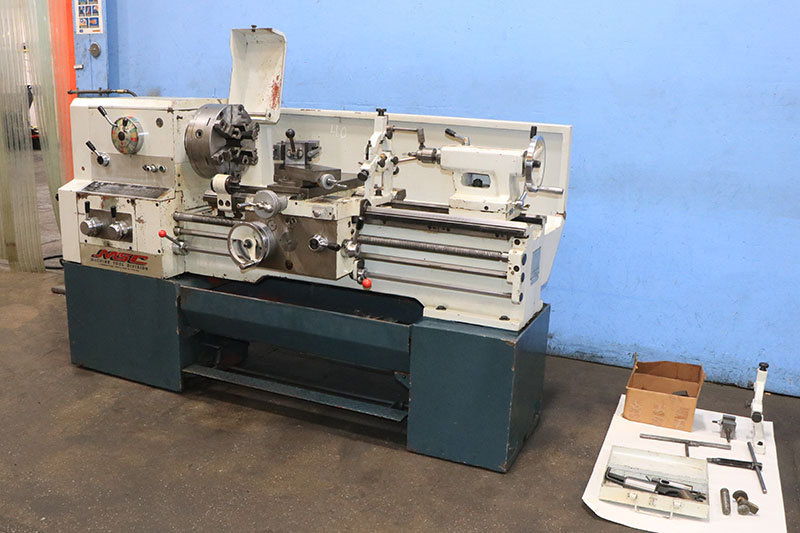

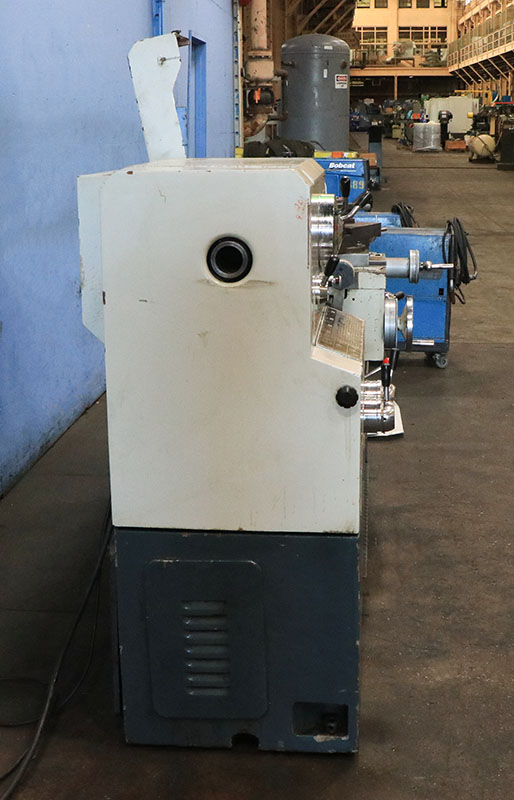

16"/22" x 40" MSC VALUEMASTER ENGINE LATHE

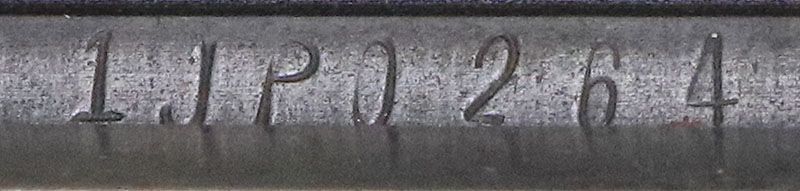

MODEL: 16-40G, S/N 1JP0264  NEW:1990's

SPECIFICATIONS:
SWING OVER BEDWAYS ................... 16-1/2"
SWING IN REMOVEABLE GAP .............. 22-3/4"
SWING OVER CROSS SLIDE ............... 9-1/2"
HOLE THRU SPINDLE .................... 2-1/16"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-6" CAMLOCK

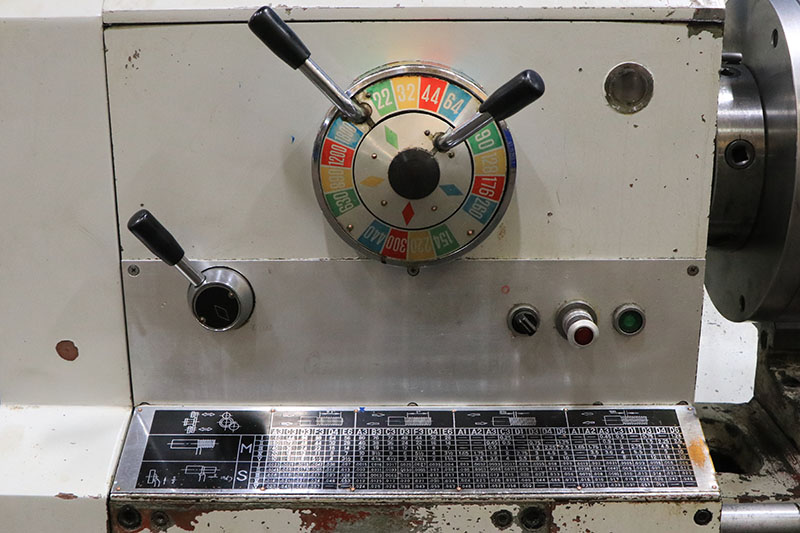

SPINDLE SPEED RANGE (16) ............. 22 - 1200 RPM

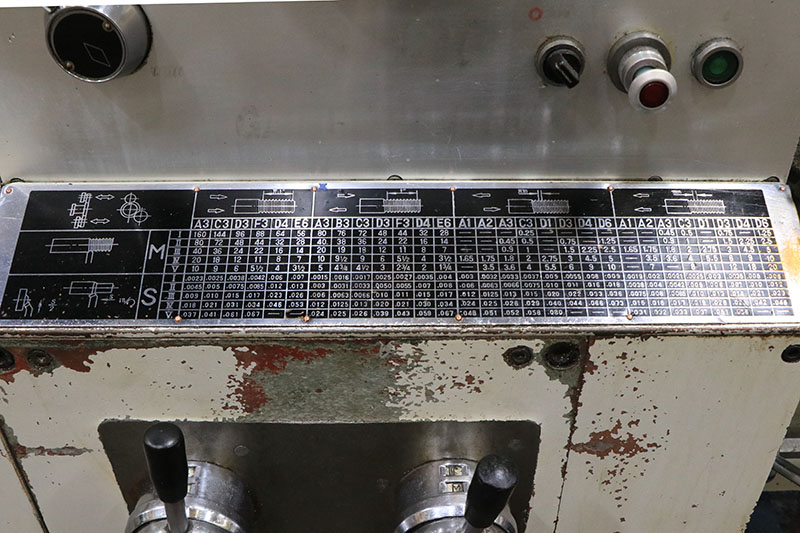

ENGLISH THREADING RANGE (35) ......... 1-3/4 - 80 TPI
METRIC THREADING RANGE (30) .......... .45 - 20 mm
LONGITUDINAL FEED RANGE .............. .00157" - .080" IPR
CROSS FEED RANGE ..................... .00075" - .040" IPR

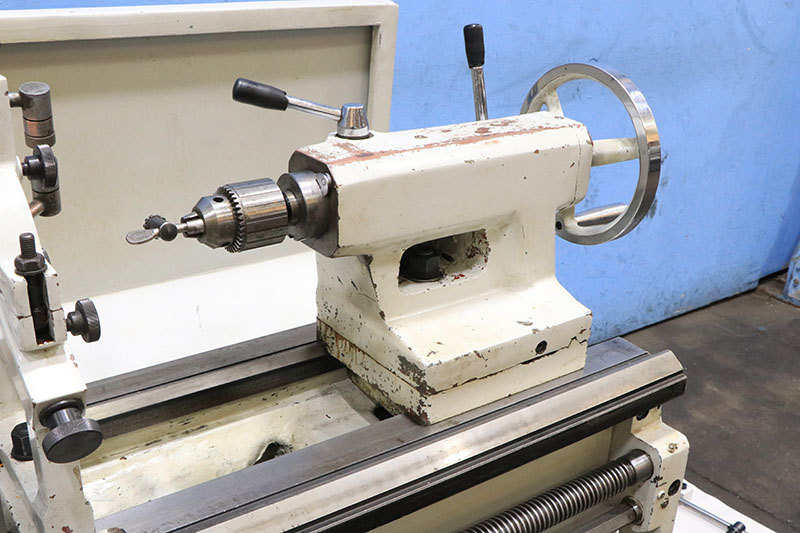

TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 5-1/2"
APPROX FLOOR SPACE ................... 90"L x 36"W x 48"H
APPROX WEIGHT ........................ 3,500 LBS

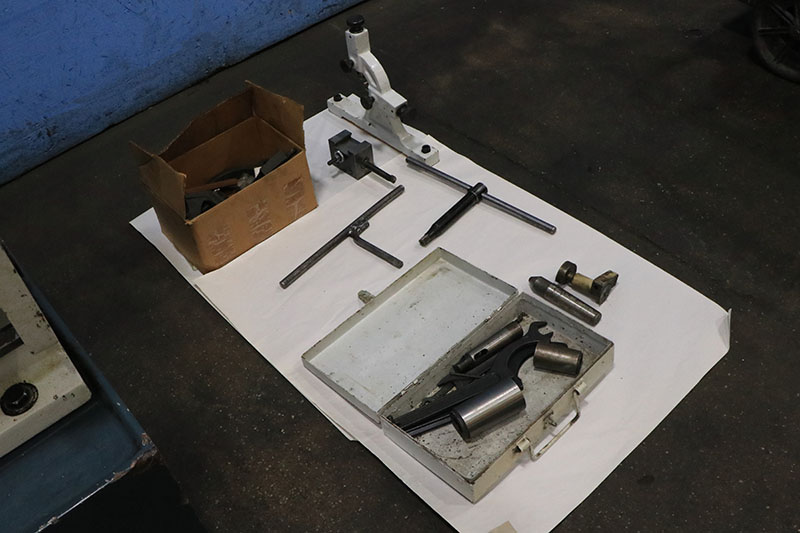

EQUIPPED WITH:
INCH & METRIC THREADING CAPABILITY

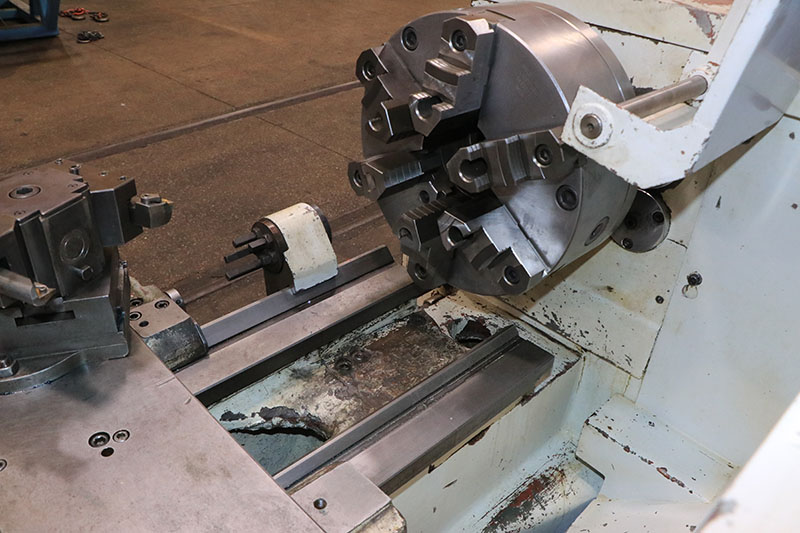

6-JAW CHUCK

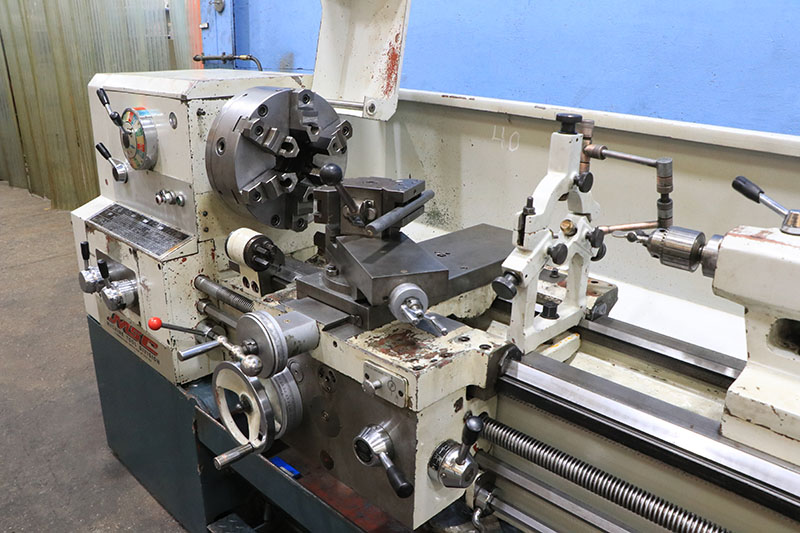

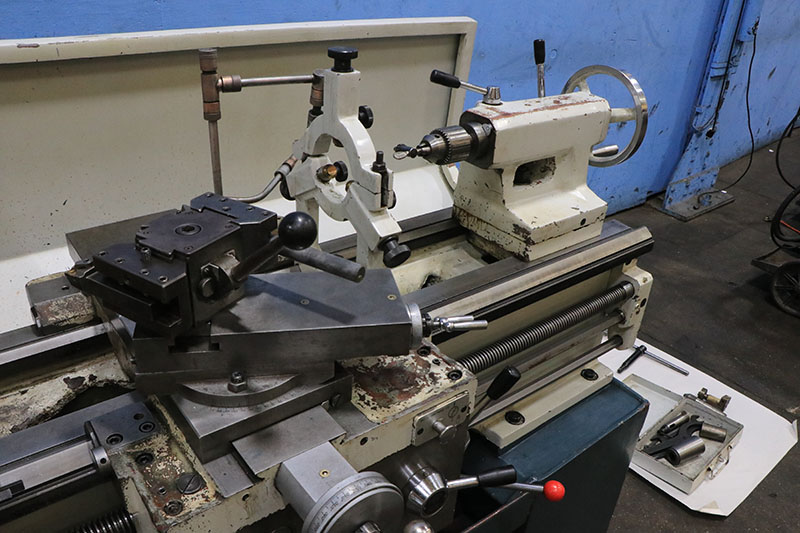

QUICK CHANGE TOOLPOST WITH HOLDERS
STEADY REST
FOLLOW REST
FACEPLATE
THREAD DIAL INDICATOR
MULTIPLE POSITION CARRIAGE STOP
FOOT BRAKE
WORK LIGHT
COOLANT SYSTEM

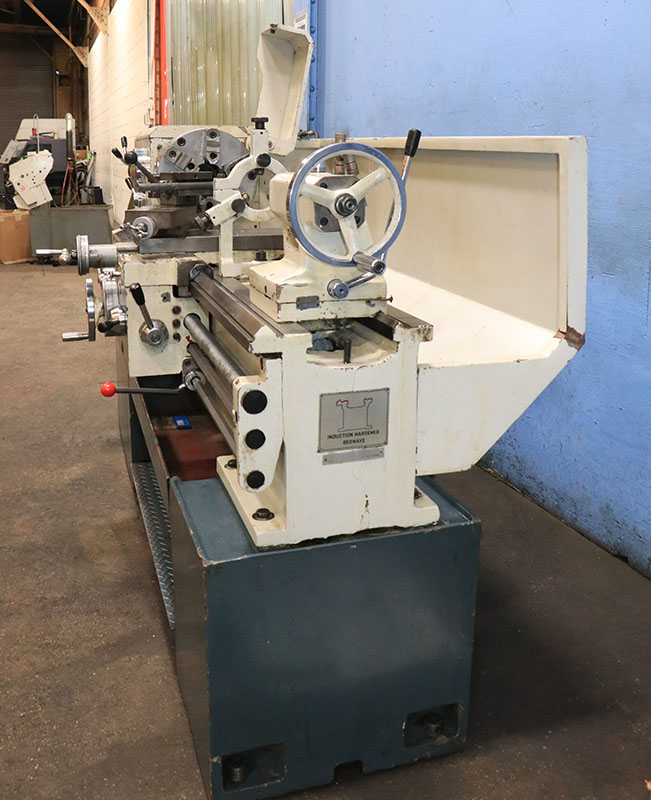

HARDENED BED WAYS
7.5 HORSE POWER MAIN MOTOR
MACHINE IS WIRED FOR 220 VOLT 3 PHASE OPERATION

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
