Nardini MASCOTE 1640E ENGINE LATHES

$8,950

Make:: Nardini

Model:: MASCOTE 1640E

Year:: 1988

Ref #:: 164012

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

16"/22" x 40" NARDINI ENGINE LATHE
MODEL: MASCOTE 1640E,  YEAR: 1988

SPECIFICATIONS:
SWING OVER BED ....................... 16-1/8"
SWING IN REMOVEBLE GAP ............... 22"
SWING OVER CROSS SLIDE ............... 10-1/4"
HOLE THRU SPINDLE .................... 1-5/8"
DISTANCE BETWEEN CENTERS ............. 40"
SPINDLE NOSE ......................... D1-5"CAMLOCK

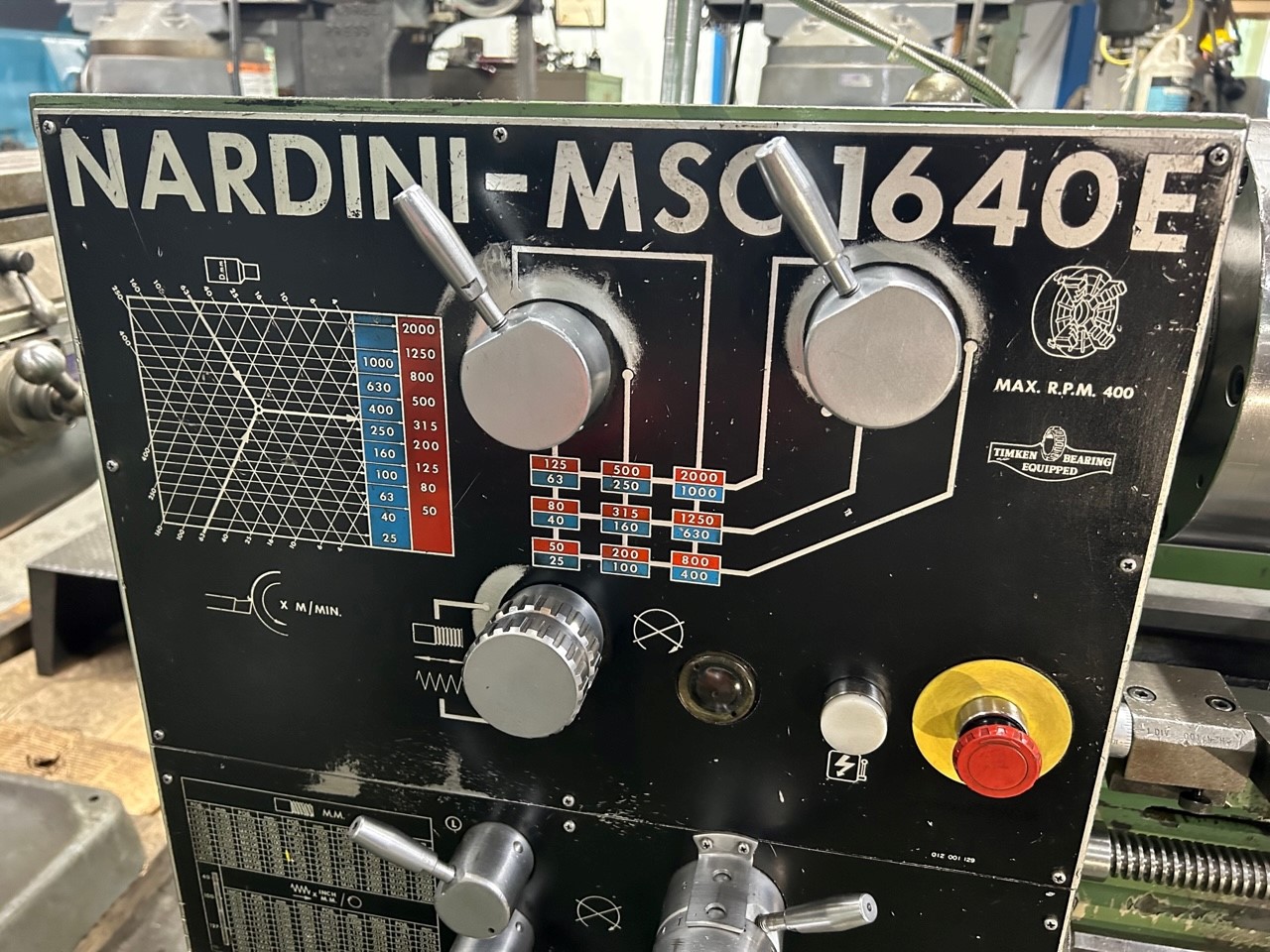

SPINDLE SPEED RANGE (18) ............. 25 - 2000 RPM
LONGITUDINAL FEED RANGE .............. .0015 - .0427 IPR
CROSS FEED RANGE ..................... .0007 - .0213 IPR

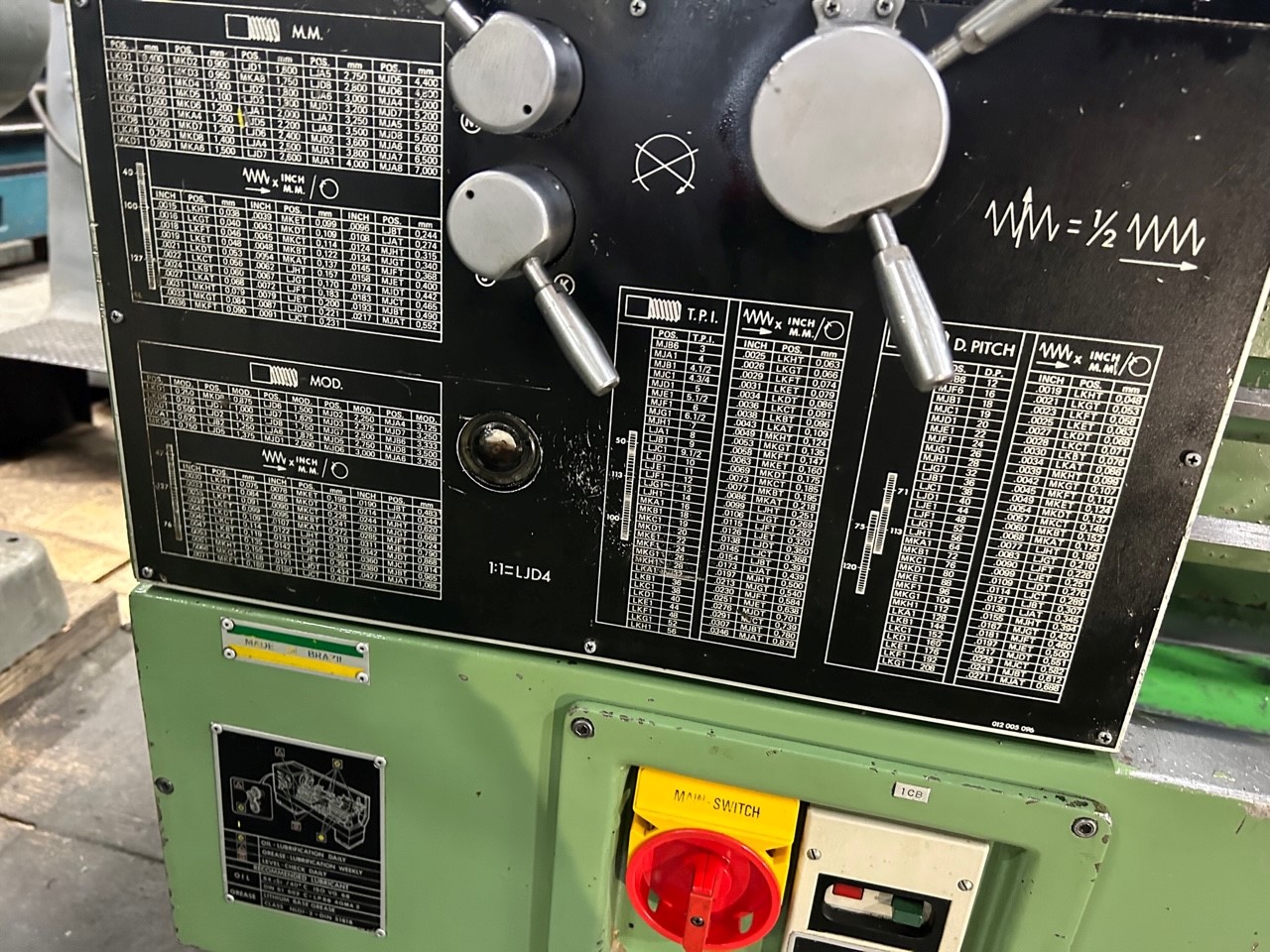

ENGLISH THREADING RANGE  ............. 3 - 52 TPI
METRIC THREADING RANGE ............... .2 - 3.5mm
TAILSTOCK SPINDLE TRAVEL ............. 5-1/8"
TAILSTOCK SPINDLE TAPER .............. #3MT
APPROXIMATE DIMENSIONS ............... 90"L X 40"W
APPROX WEIGHT ........................ 2,500 LBS

EQUIPPED WITH:
INCH/METRIC THREADING

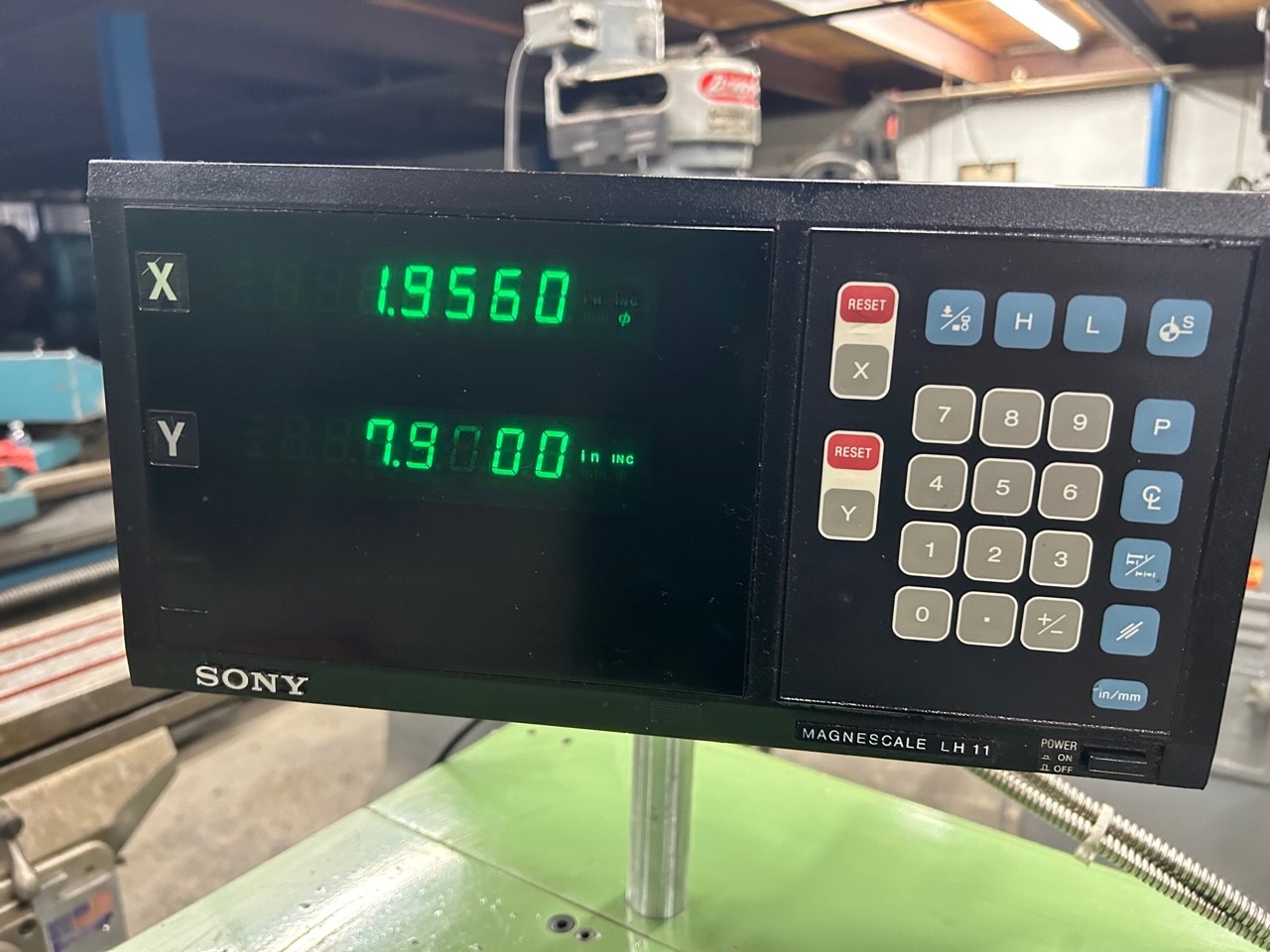

SONY DIGITAL READOUT

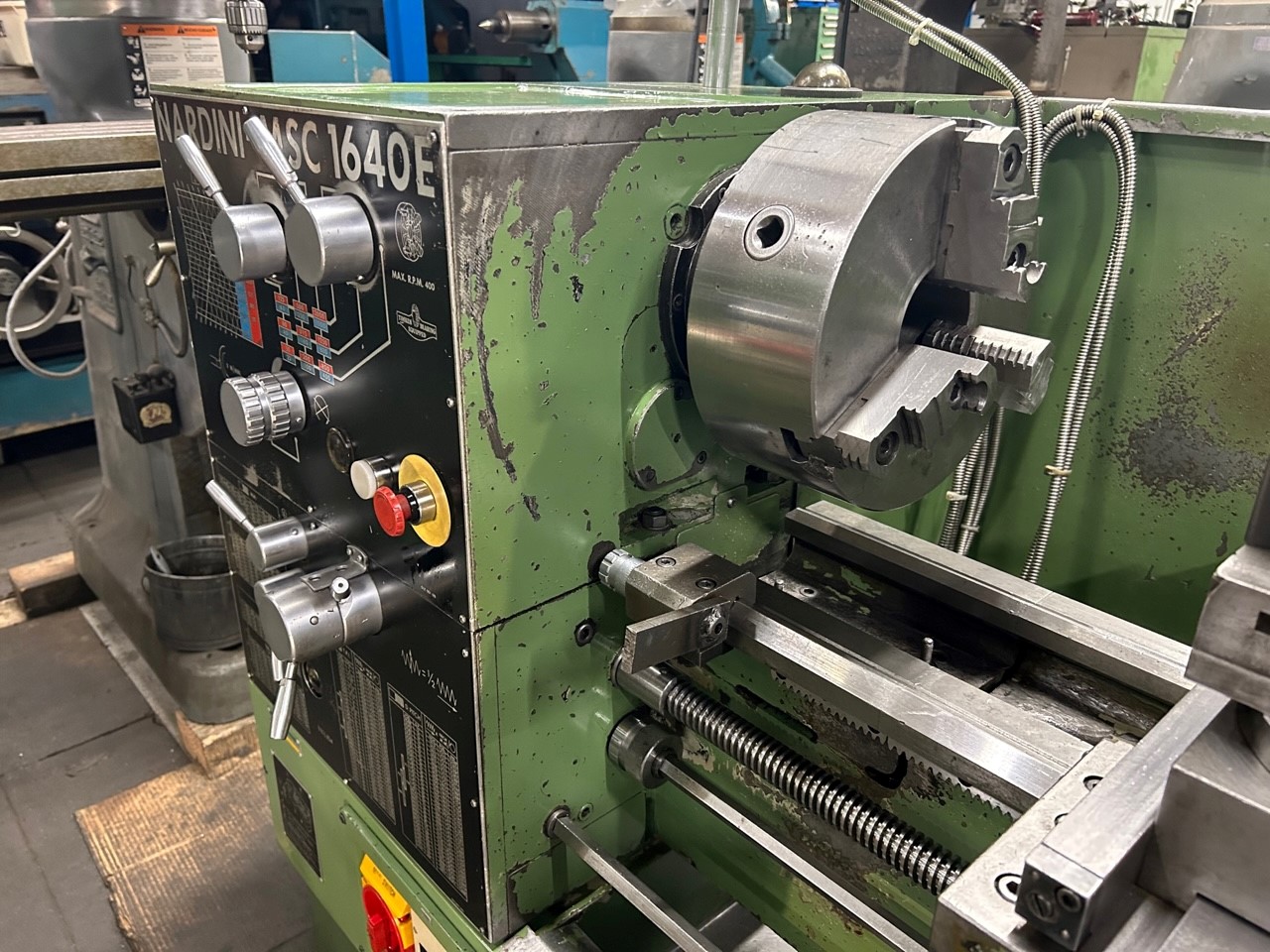

10" 3-JAW CHUCK
DOG PLATE

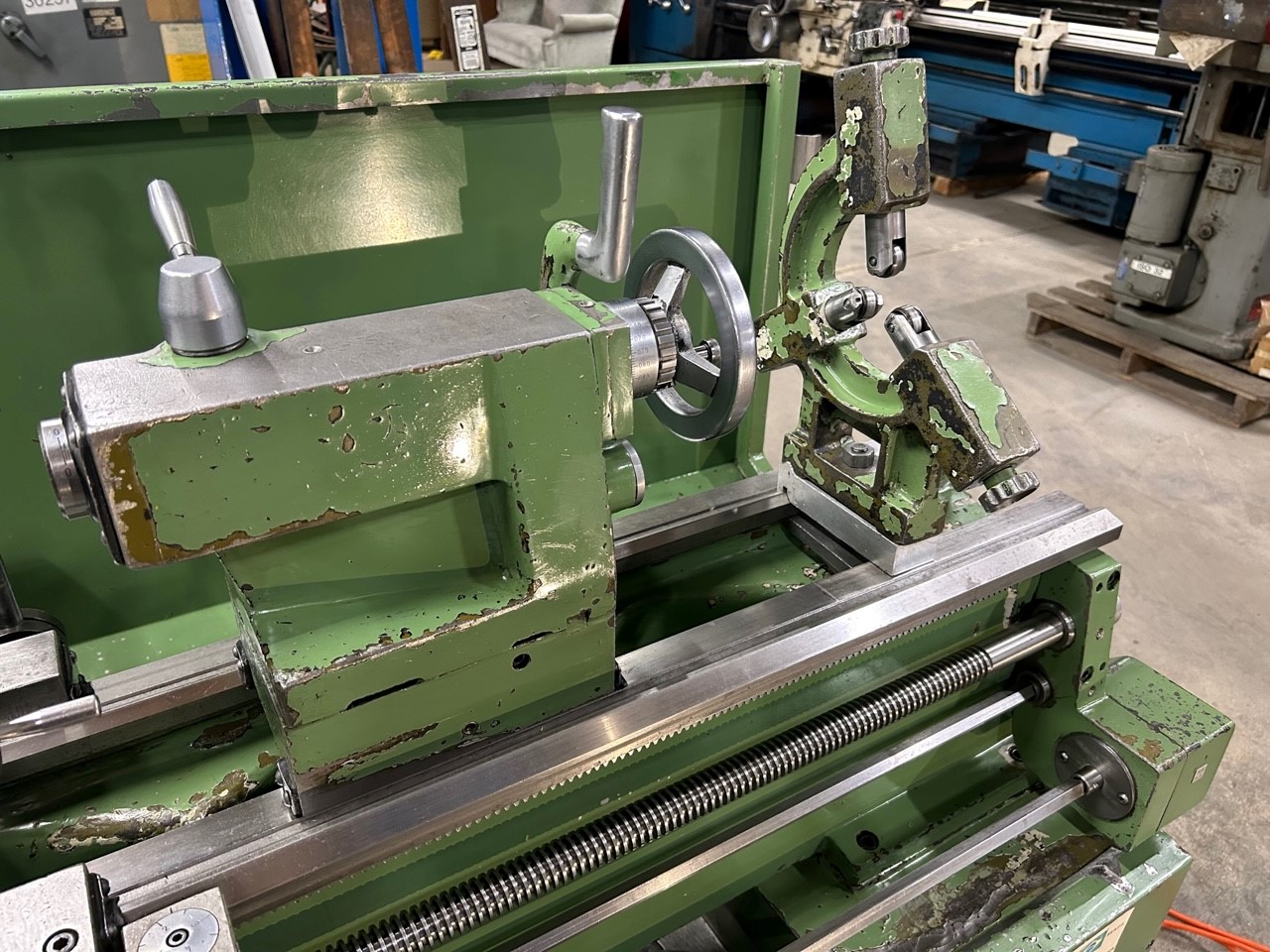

STEADY REST
QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
COOLANT SYSTEM

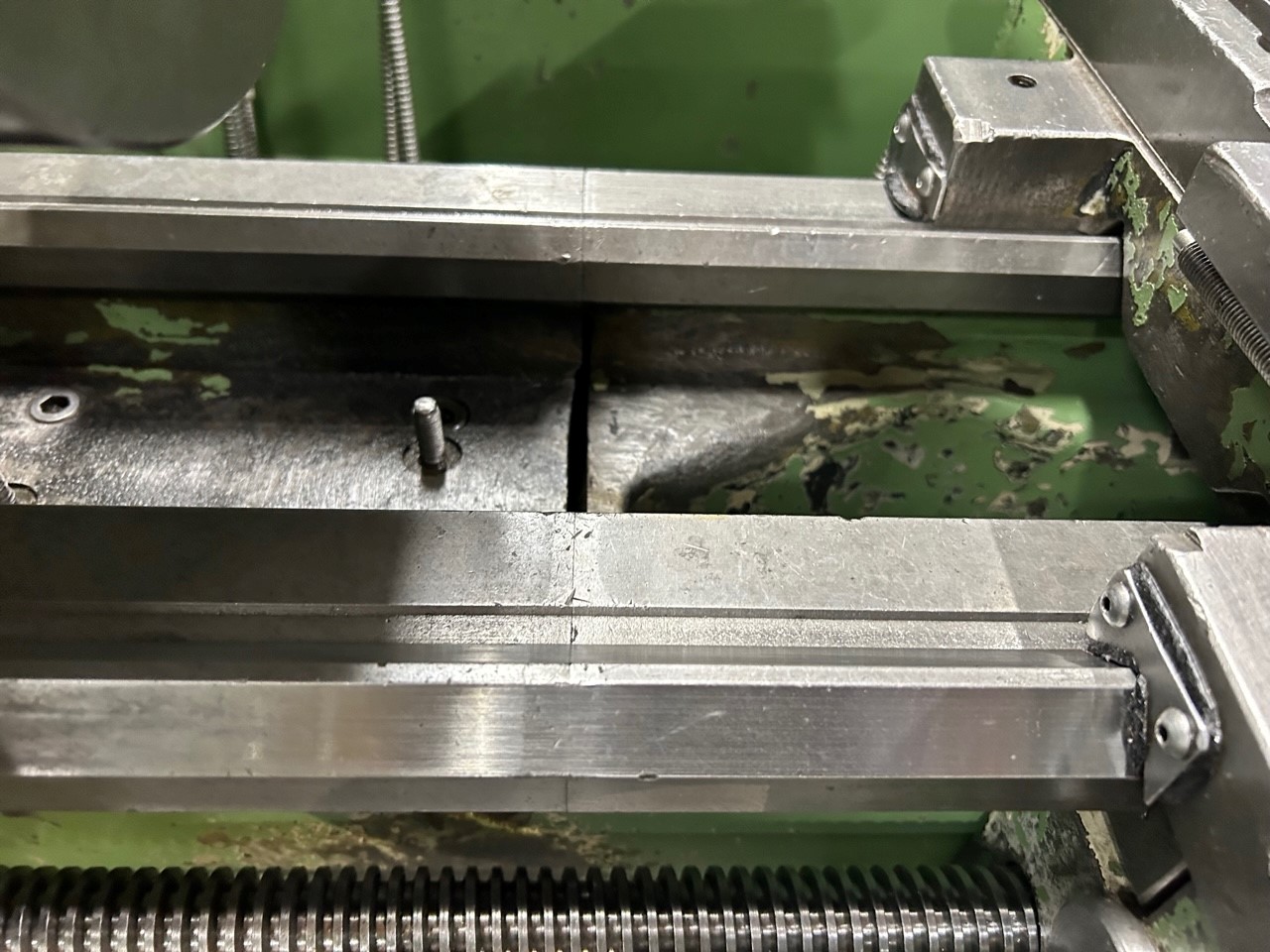

HARDENED & GROUND BEDWAYS
6.3 / 4 HP TWO SPEED MAIN MOTOR

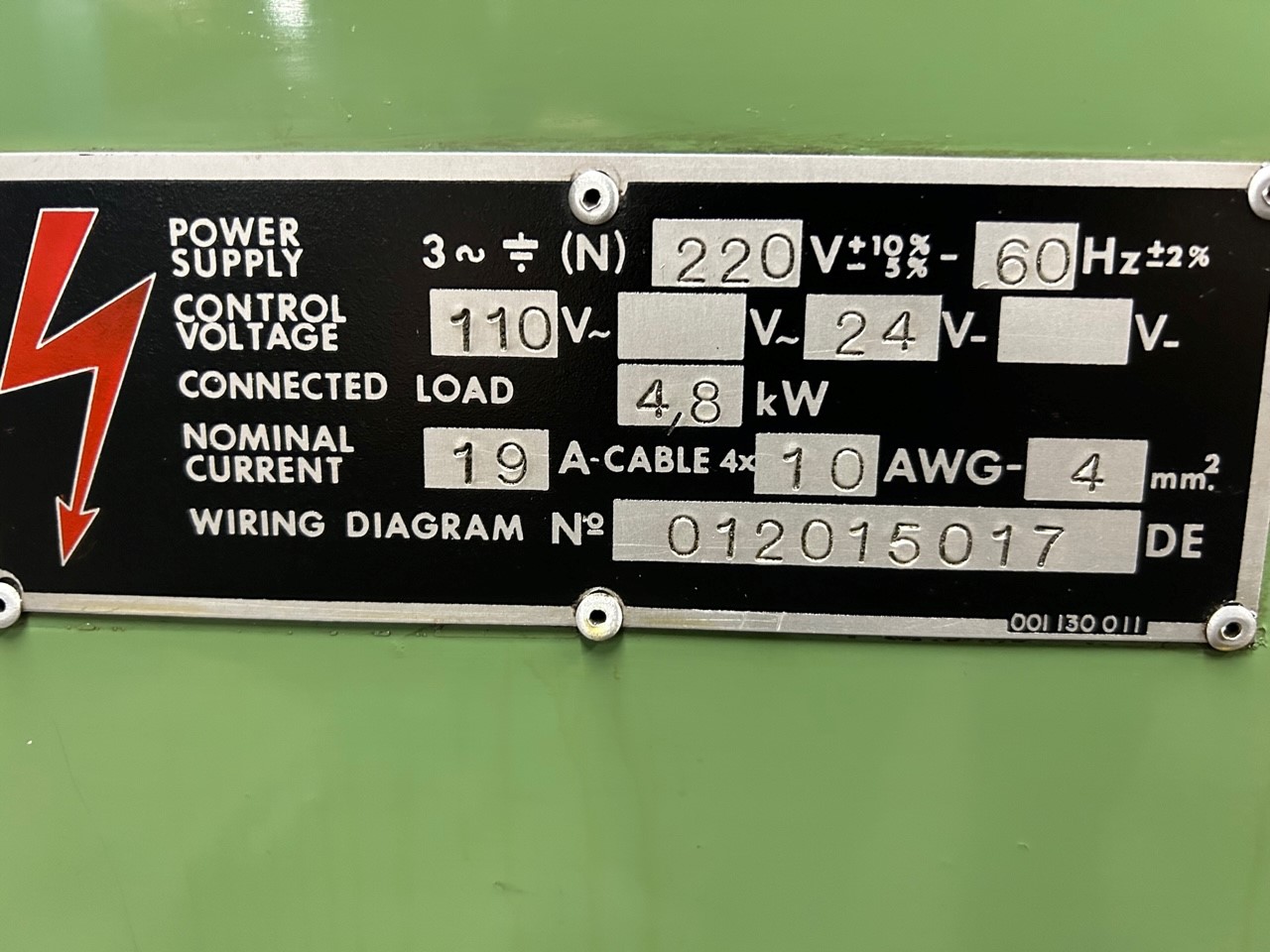

MACHINE IS WIRED FOR 220 VOLT 3 PHASE OPERATION

INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
