OGP OQ30S, New 1988/last calibrated 2020, COMPARATORS

Price on Request

Make:: OGP

Model:: OQ30S, New 1988/last calibrated 2020,

Year:: 1988

Ref #:: 161958

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

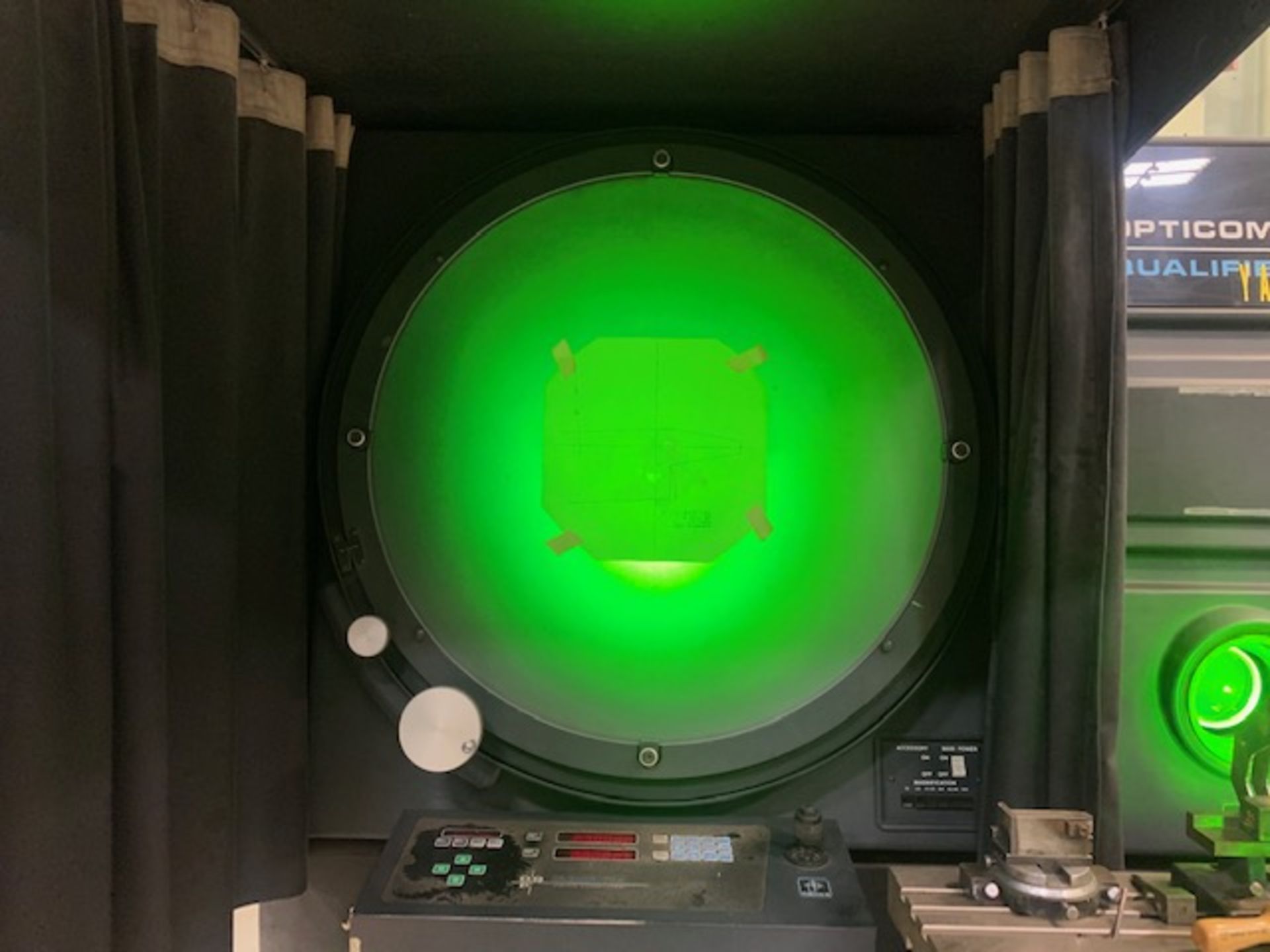

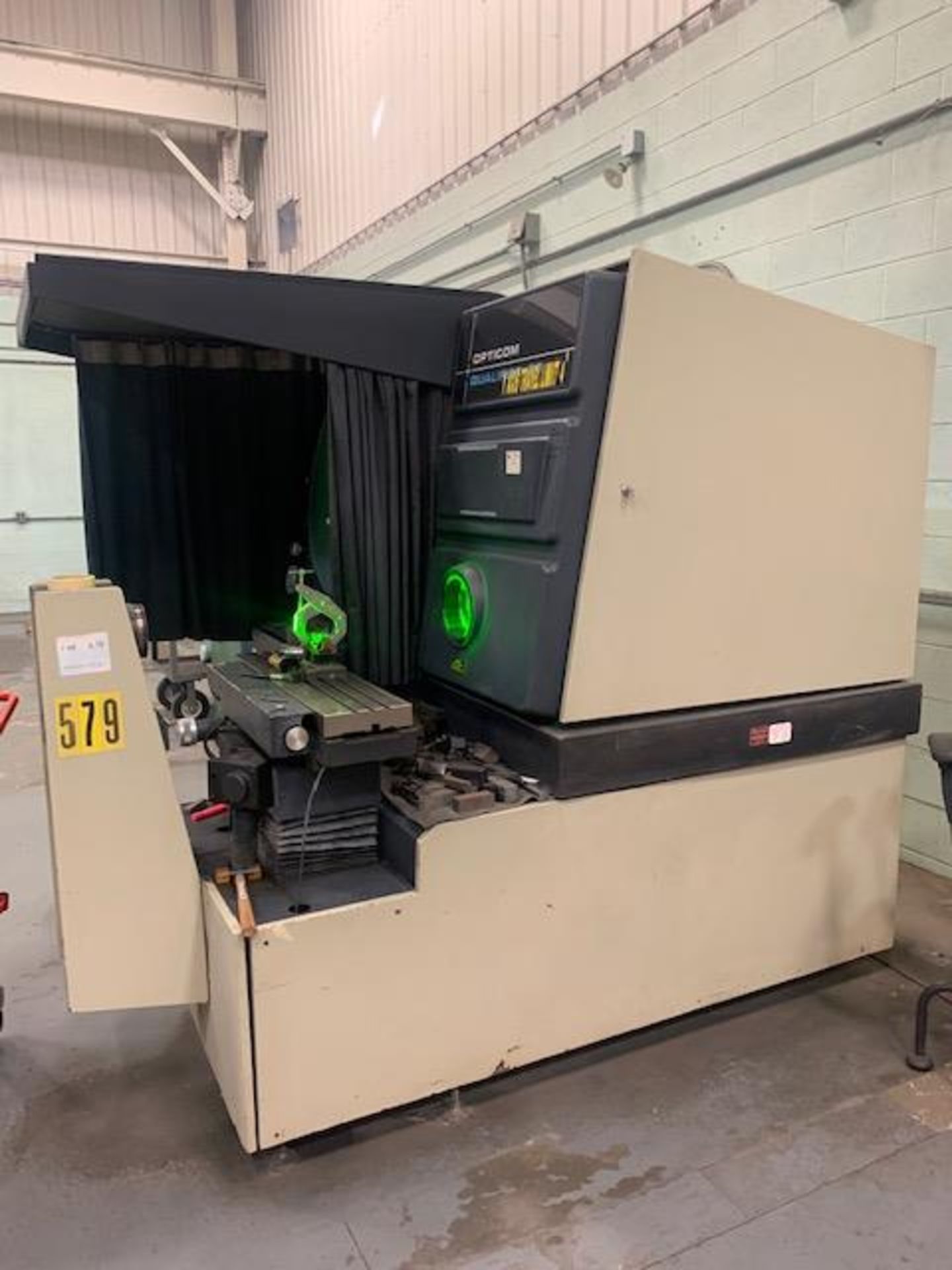

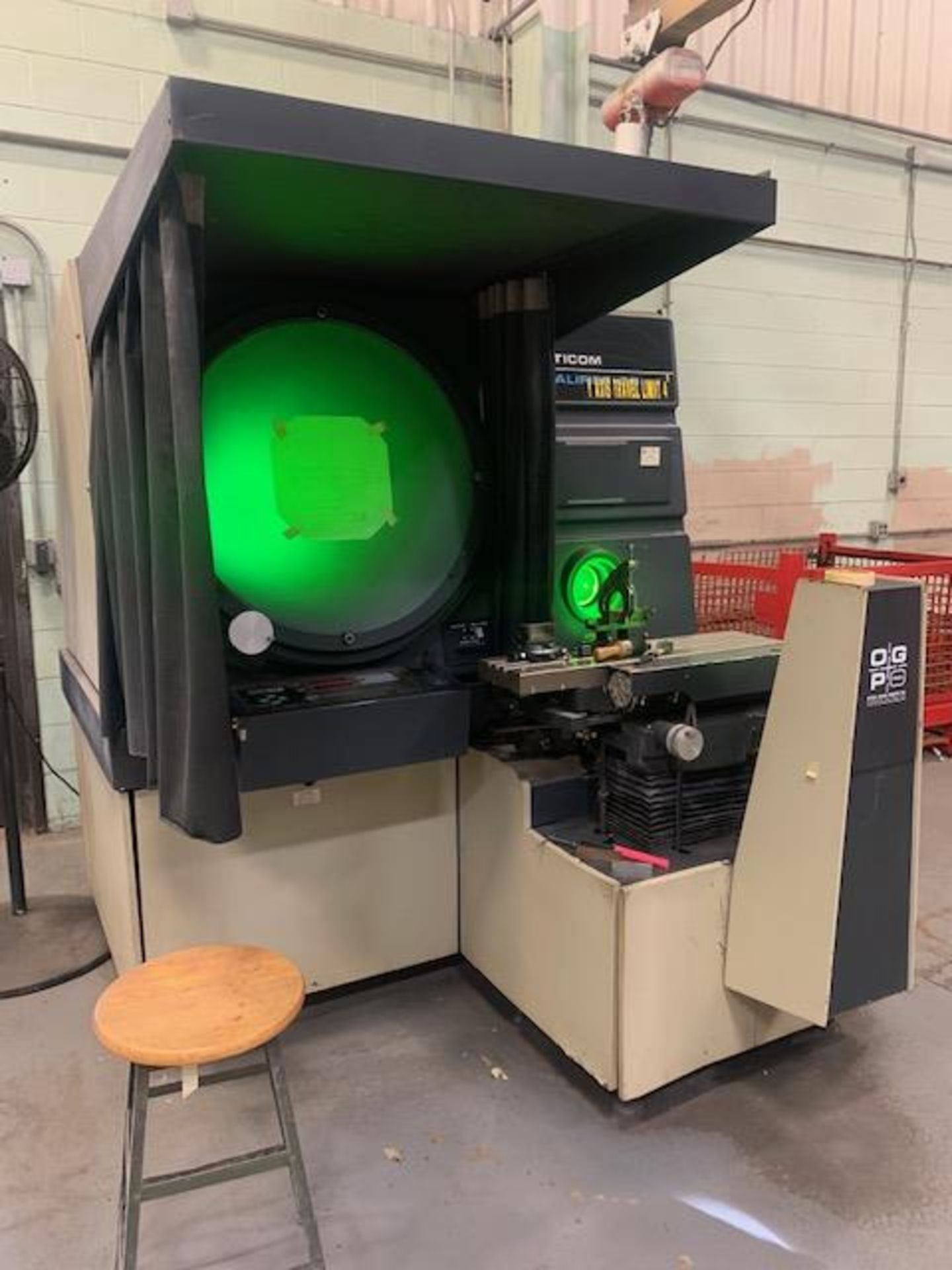

  30" OPTICAL GAGING PRODUCTS, INC. (O.G.P.)
HORIZONTAL PROJECTION FLOOR TYPE OPTICAL COMPARATOR

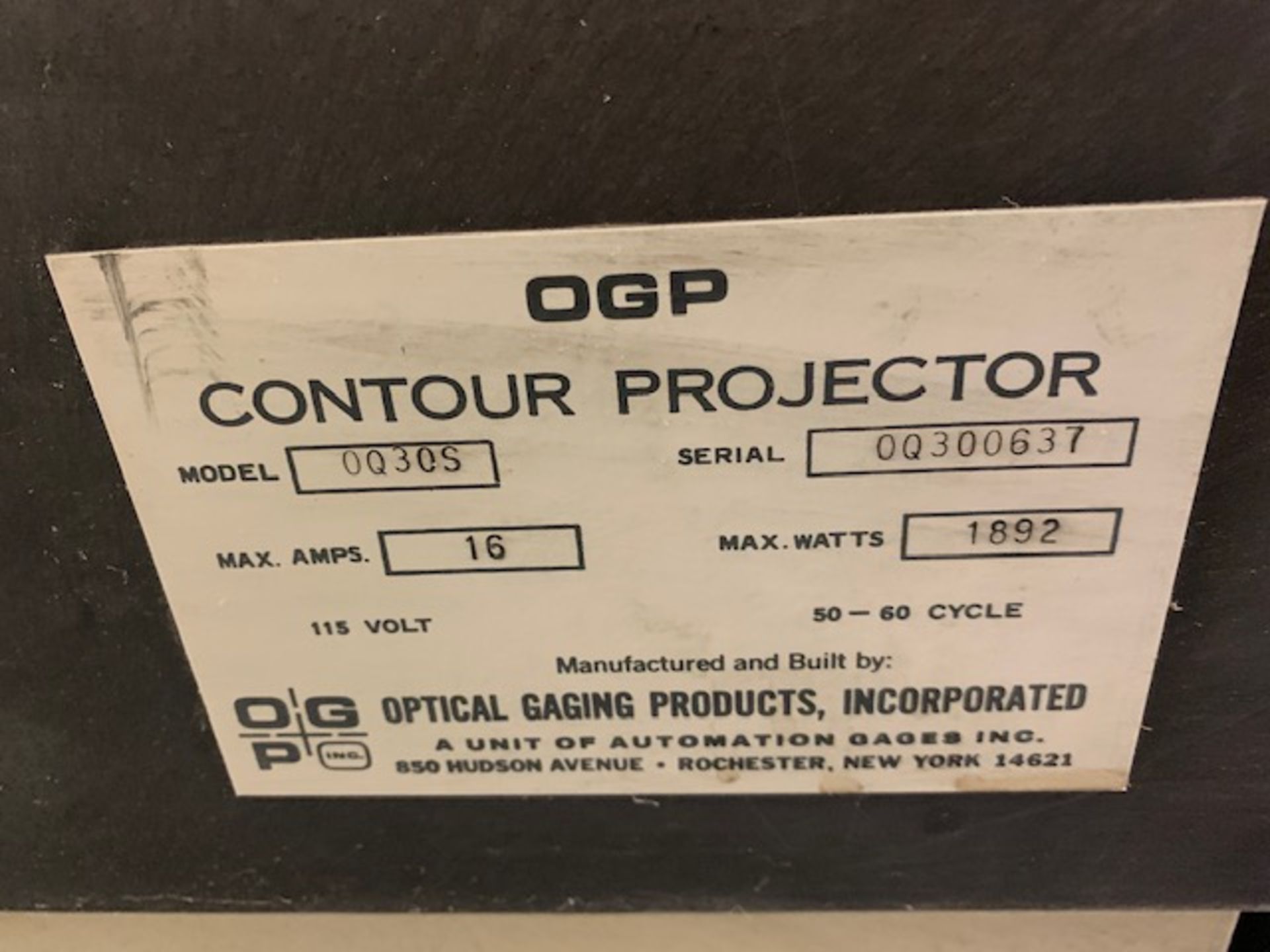

MODEL: OQ-30S   S/N: OQ300607   NEW: 1988

SCREEN DIAMETER ............................ 30"
ANGULAR (GRADUATED PROTRACTOR W/VERNIER
  TO 1' OF ARC) ............................ 360 DEG.
TABLE SIZE ................................. 8" X 32"
TABLE LOAD CAPACITY ........................ 500 LBS.
TABLE TRAVEL, HORIZONTAL ................... 12"
TABLE TRAVEL, VERTICAL ..................... 10"
FOCUS TRAVEL ............................... 3"
HELIX ROTATION (TO 5 DEG. ARC) ............. +/- 15 DEG.
STAGING CENTERS(5" DIA. CAPACITY)-
 MAXIMUM LENGTH OF PART:.................... 25"
STAGING CENTERS (8" DIA. CAPACITY)-
 MAXIMUM LENGTH OF PART:.................... 21"
THROAT CLEARANCE ........................... 30"
DISTANCE COLLIMATOR TO FOCUL PLANE:......... 13"
WORKING DISTANCE, FOCAL PLANE TO FRONT
  RELAY LENS HOUSING ....................... 17"
OPTICAL AXIS TO WORKTABLE,
  WITH HELIX (MAX./MIN.) ................... 10- 3/4"/3/4"
  WITHOUT HELIX (MAX./MIN.) ................ 12"/2"
WORKTABLE TO FLOOR,
  WITH HELIX (MAX./MIN.) ................... 44- 1/4"/34- 1/4"
  WITHOUT HELIX ............................ 43"/33"

APPROX. DIMENSIONS ......................... 90"F-B x 72"W x 78"H
SQ. FEET REQUIRED .......................... 44 SQ. FT.
APPROX. MACHINE WEIGHT ..................... 6,000 LBS.

EQUIPPED WITH:
GRANITE BASE FOR INCREASED STABILITY

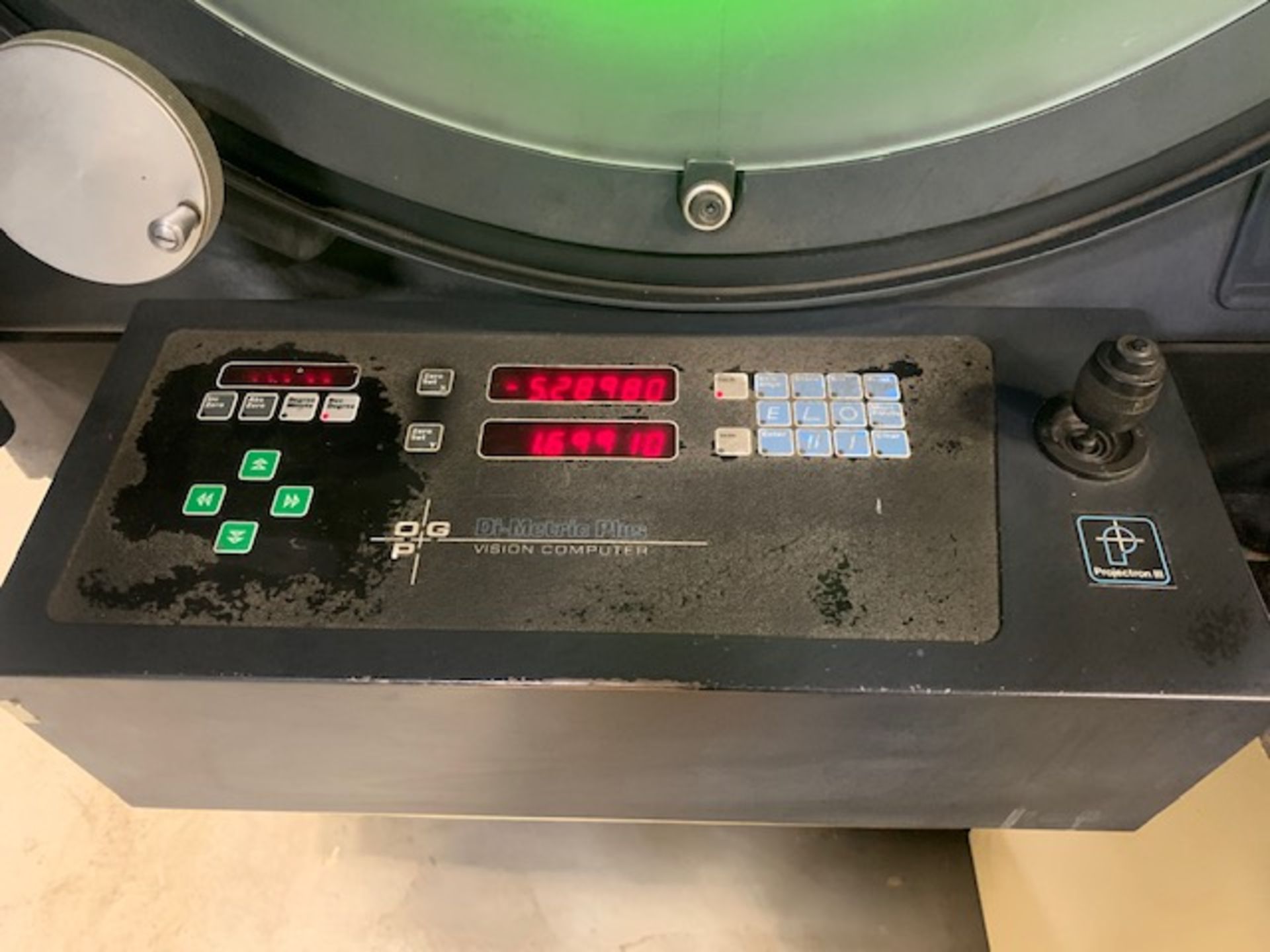

OGP "DIMETRIC-PLUS" 2-AXIS DIGITAL READOUT DISPLAY
  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS
OGP "PROJECTRON III" EDGE DETECTION
SIDE SCREEN STYLE DESIGN
ELECTRONIC DIGITAL PROTRACTOR FOR THE CHART ROTATION
MERCURY ARC LIGHTING FOR BOTH PROFILE
SURFACE ILLUMINATION
TELECENTRIC RELAY LENS SYSTEM & MIRRORS FOR ERECT,
  UNNREVERSED IMAGE
POWER TABLE (LEFT TO RIGHT) (UP AND DOWN) W/INFINITELY
  VARIABLE SPEED CONTROL

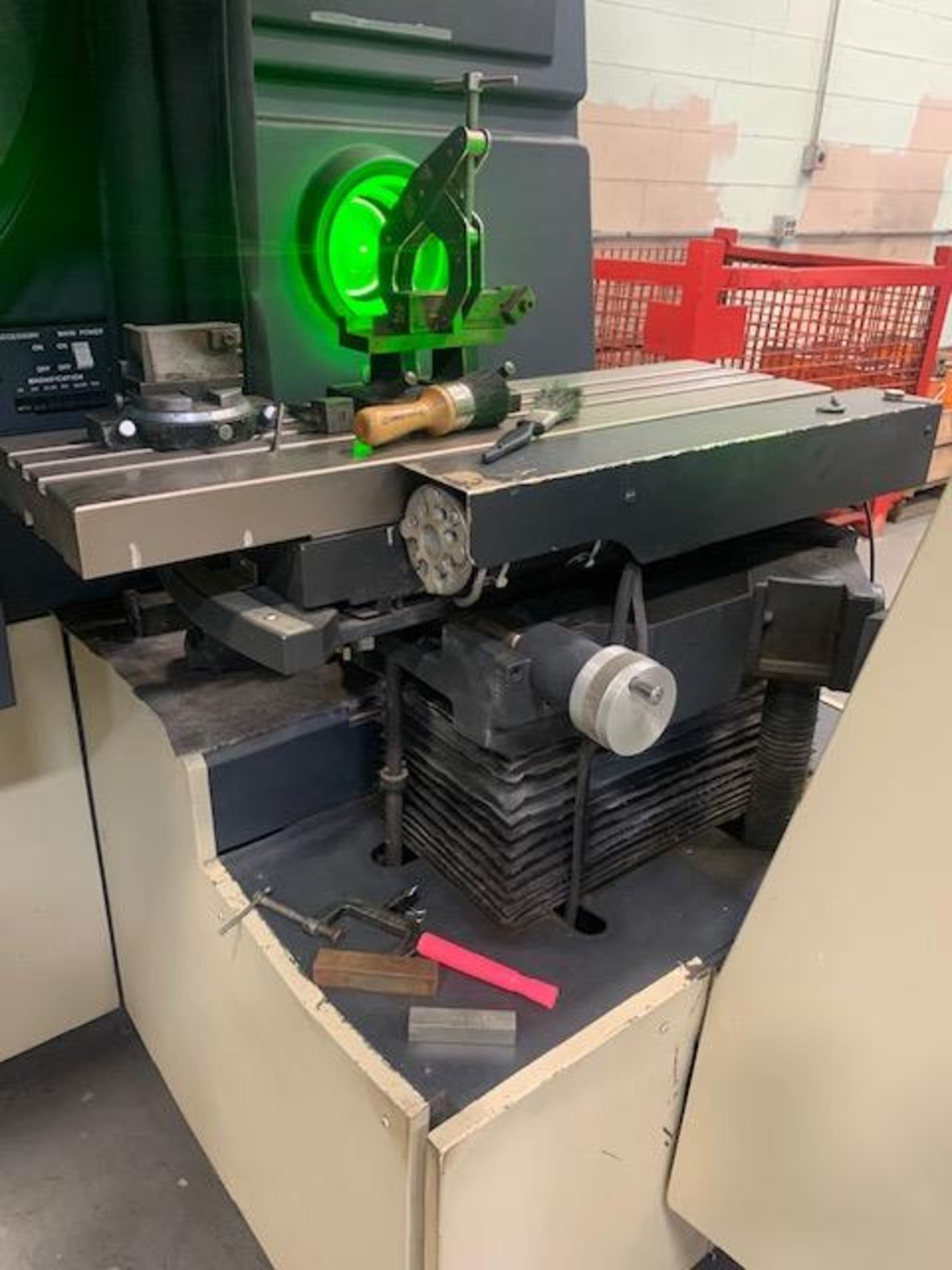

HEAVY DUTY TABLE w/500 LBS. LOAD CAPACITY

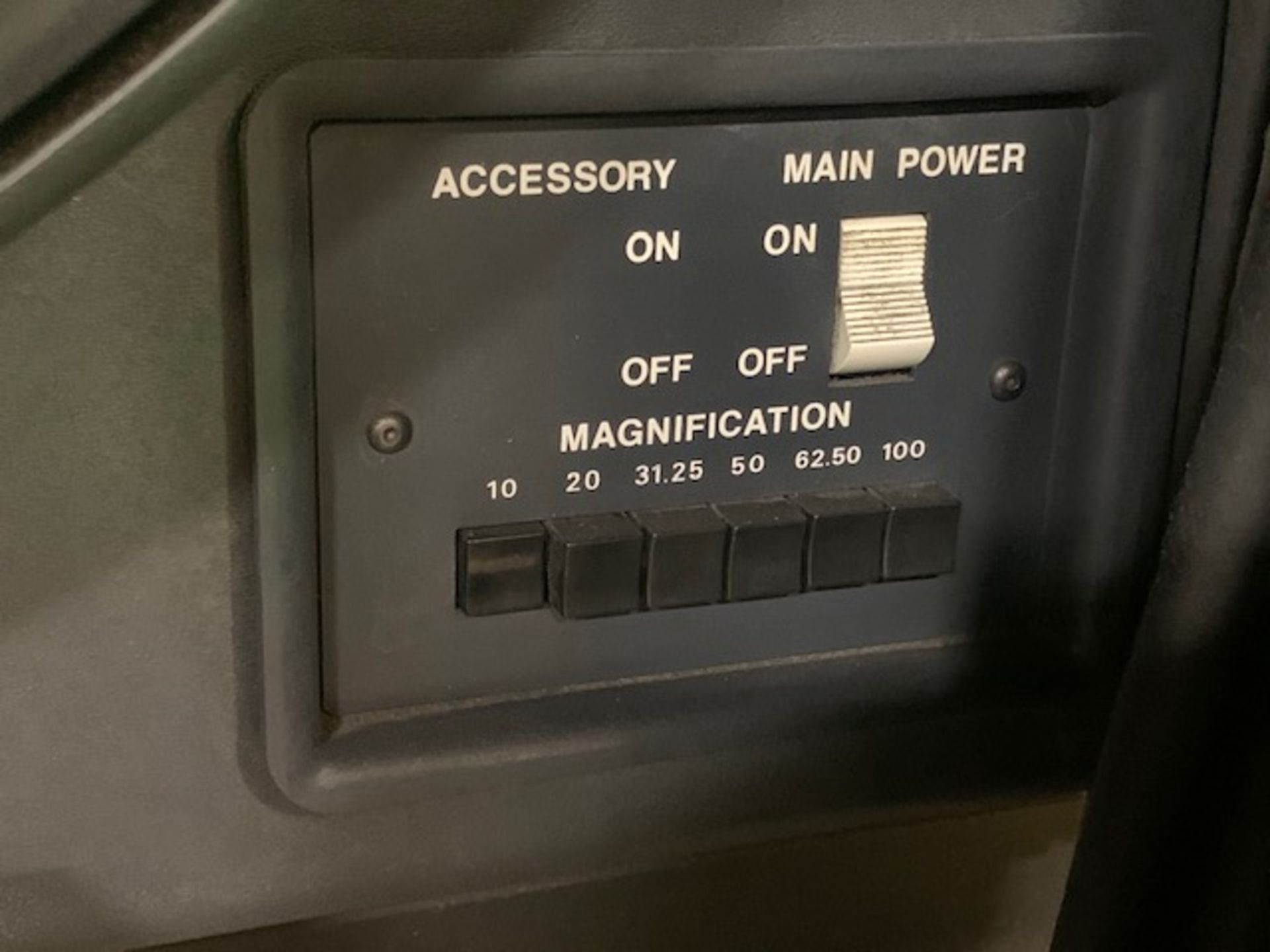

6- POSITION POWER LENS TURRET
10X, 20X, 31.25, 50X & 100X LENSES ARE WITH THE MACHINE
OGP ROTARY ACCESSORY ON TABLE

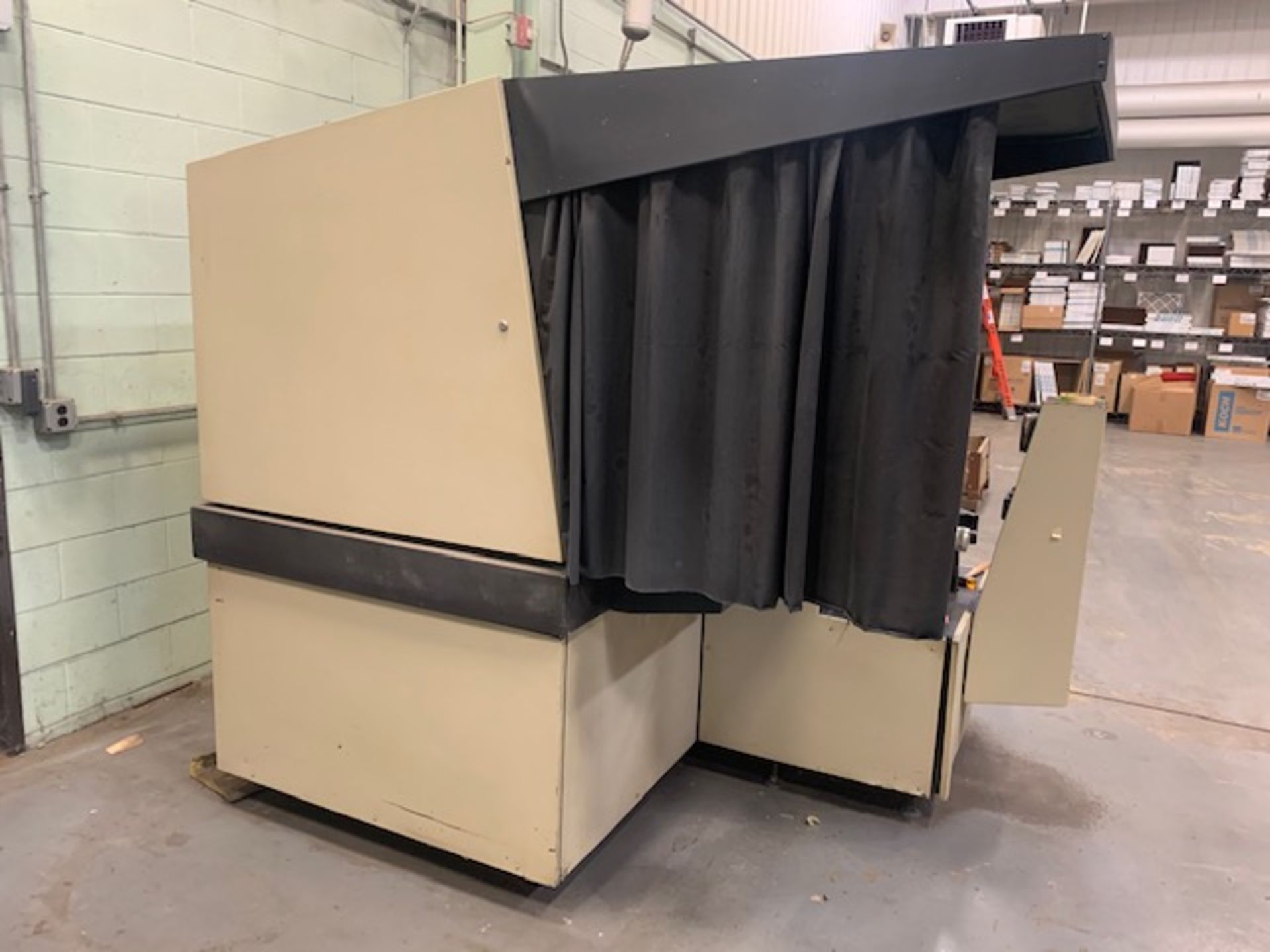

OVERHEAD HOOD & CURTAIN ASSEMBLY
FRESNEL LENS SCREEN
SINGLE PHASE/115 VOLT ELECTRICS, 16 MAX. AMPS, MAX. WATTS 1,892

CALIBRATED LAST BY:
MR. PAUL MEYERS
DATE:  12/01/2020
I.D.#: IR-2232


SPECIAL NOTE:
OUTSTANDING IMAGE - THIS IS THE TOP OF THE LINE!

** OUTSTANDING CONDITION & APPEARANCE **
** PREPARED PROFESSIONALLY FOR SHIPMENT - PROPER HANDLING **
** IN STOCK, READY TO DELIVER - WOW! **
** F.O.B. OUR HARRISON, NJ WAREHOUSE **
