Okamoto ACC-16-32-EXB, 2002, FANUC MDI CONTROL, 3X AUTO CNC SURFACE GRINDERS

Price on Request

Make:: Okamoto

Model:: ACC-16-32-EXB, 2002, FANUC MDI CONTROL, 3X AUTO

Year:: 2002

Ref #:: 178633

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

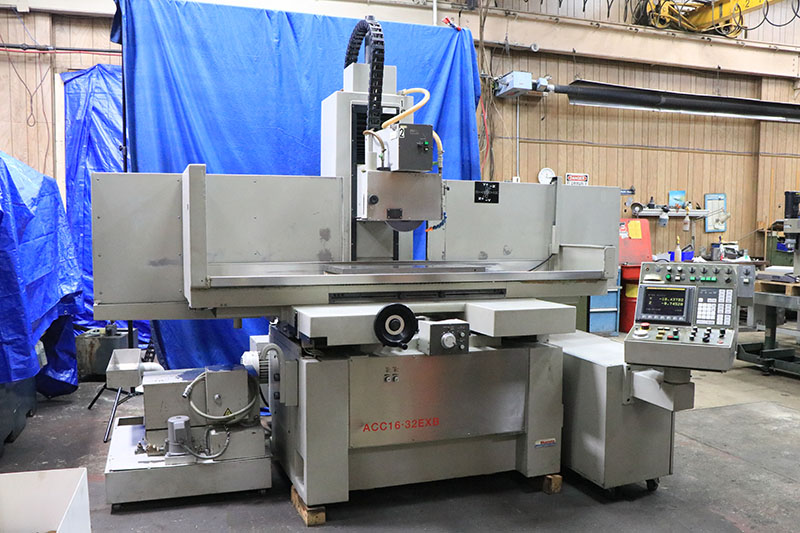

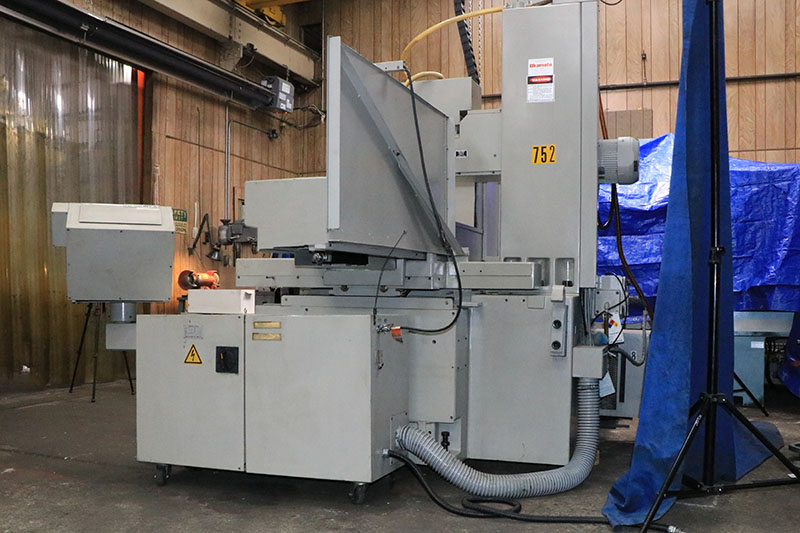

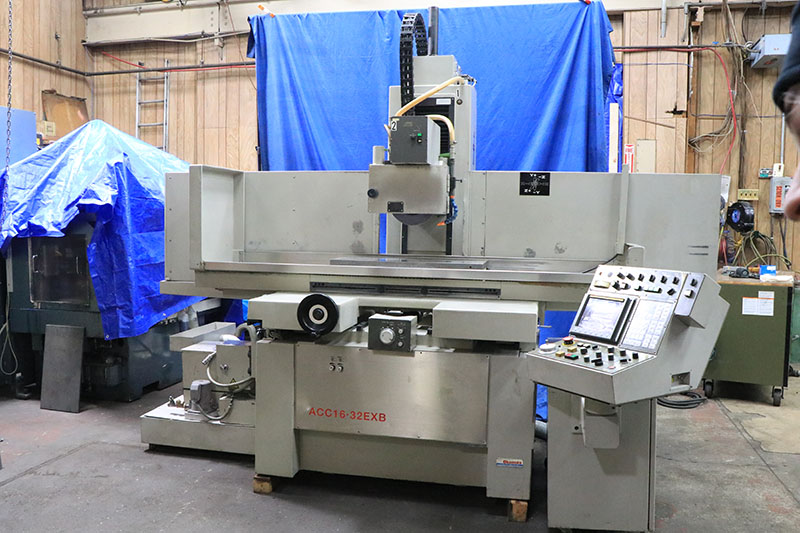

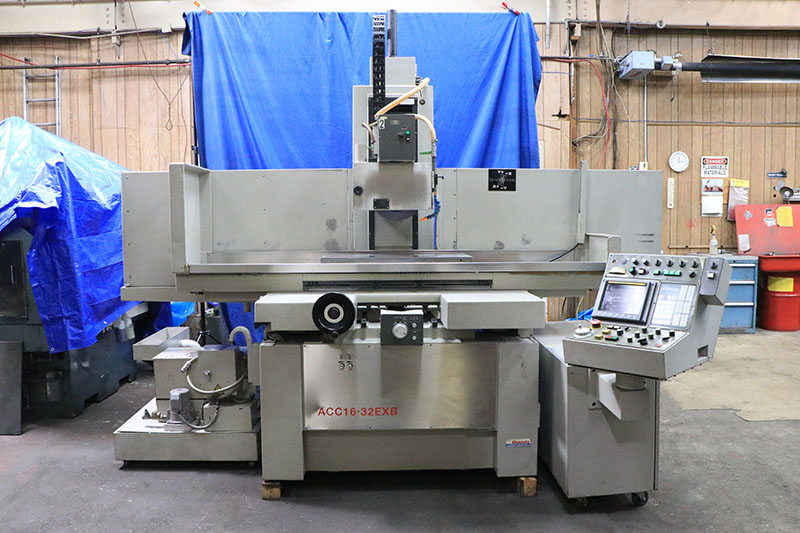

            16" X 32" OKAMOTO "EXB" SERIES
          "HIGH-PRECISION" SURFACE GRINDER


           *** FANUC MDI/CNC CONTROL ***

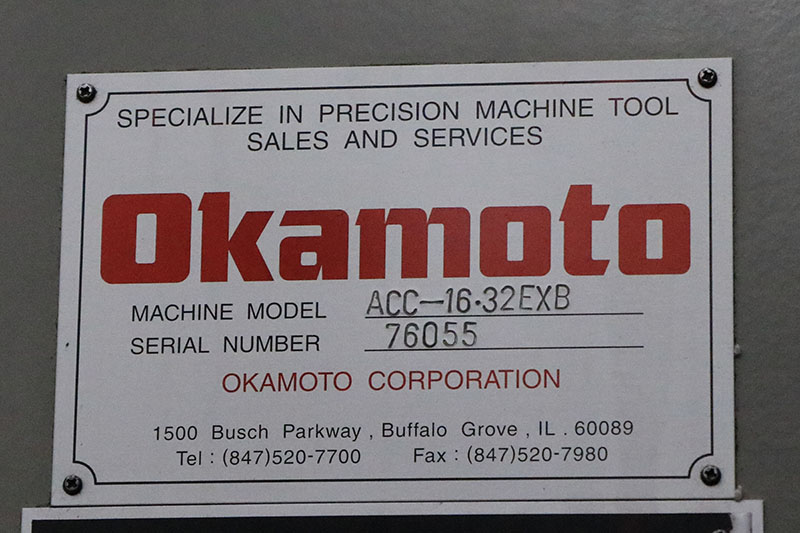

MODEL: ACC-1632EXB      S/N: 76055     NEW: 2002

NOMINAL GRINDING CAPACITY .................. 16" x 32"
MAXIMUM HEIGHT UNDER 12" WHEEL ............. 21.5"
TABLE SPEED, INFINITELY VARIABLE ........... 3' TO 82' FPM
LONGITUDINAL TABLE, HANDFEED PER REV. ...... 1.85"
MAX. LONGITUDINAL TABLE MOVEMENT, MANUAL ... 37.4"
AUTO CROSS FEED INCREMENT .................. 0.02" TO .80"
AUTO CONINOUS CROSSFEED .................... 0.010 TO 40' FPM

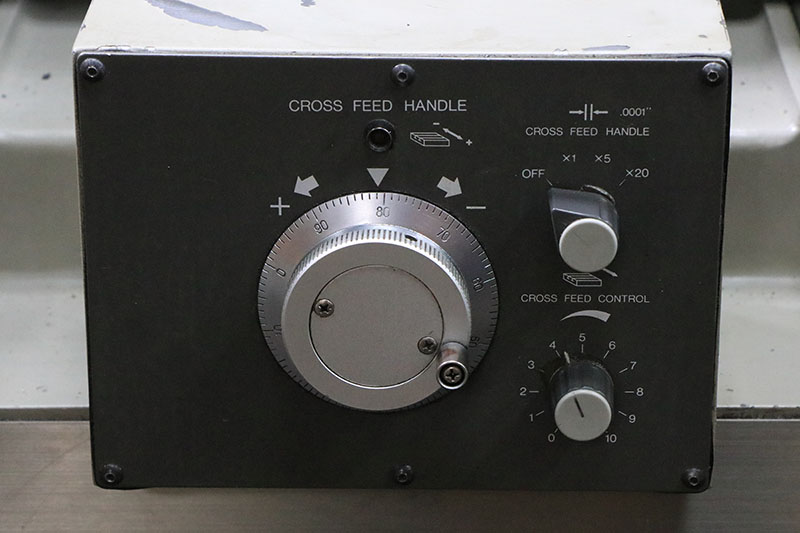

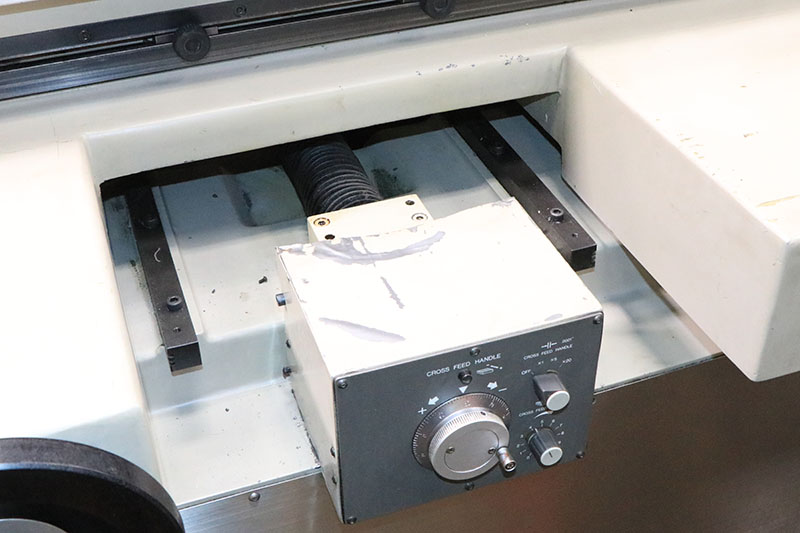

CROSSFEED, PER REV. (X1, X5, X20) .......... 0.01", .05" & .2"
  GRAD. OF HANDWHEEL (x1, x5, x20) ......... 0.0001", .0005"& .002"
MAX. CROSSFEED, MANUAL ..................... 13.5"

AUTO INCREMENTAL DOWNFEED (10) ............. 0.00005" TO .0015"
SPARKOUT PASSES ............................ 0 TO 5
POWER RAPID WHEEL POSITIONING RATE ......... 40" IPM
MANUAL PULSE FEED (x.1, x1, x10) ........... 0.00001", .0001" & .001"
SPINDLE MOTOR .............................. 5 H.P.

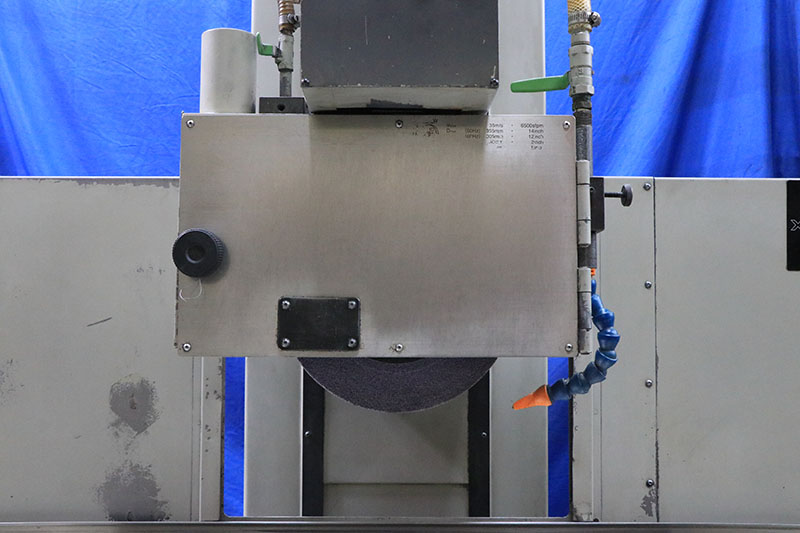

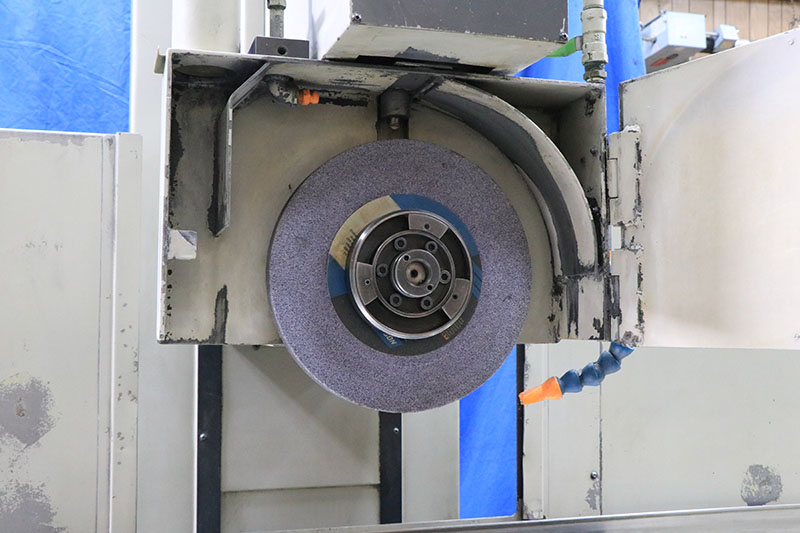

WHEEL SIZE ................................. 12" X 1.5" X 5"

APPROX. DIMS. FOR OPERATION ................ 108" x 82"D x 95"H
APPROX. MACHINE WEIGHT ............................ 6,160 LBS.

  EQUIPPED WITH:

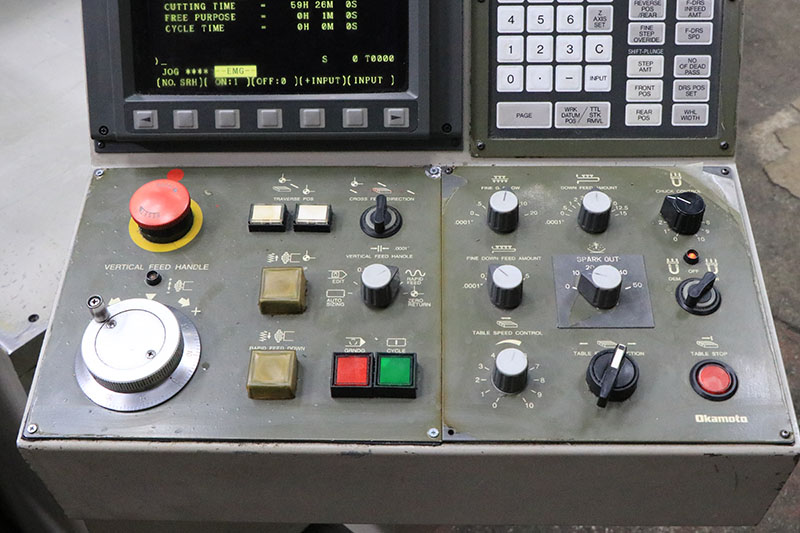

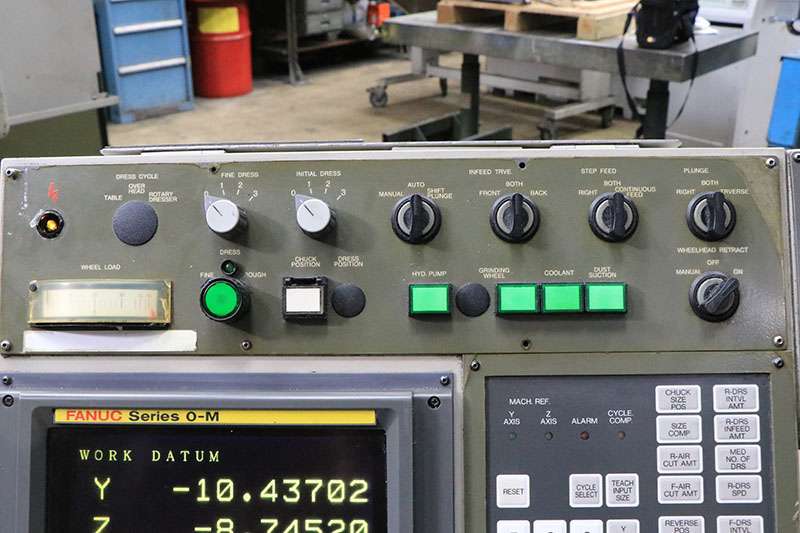

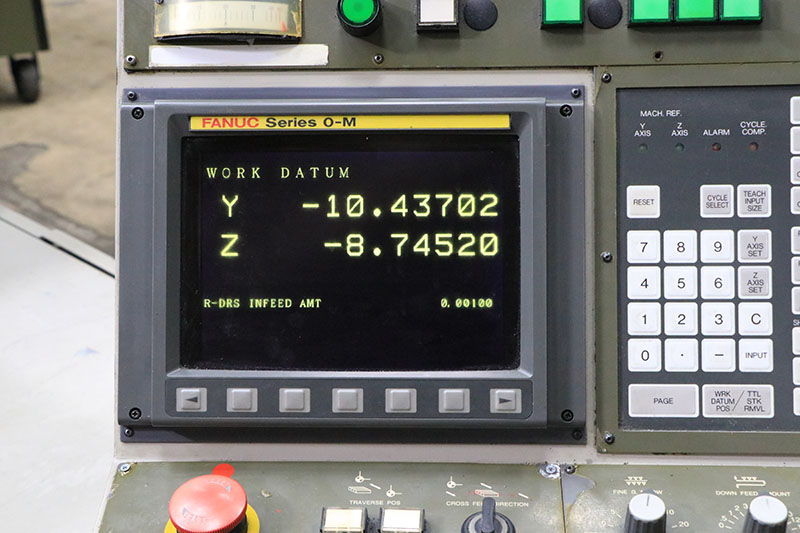

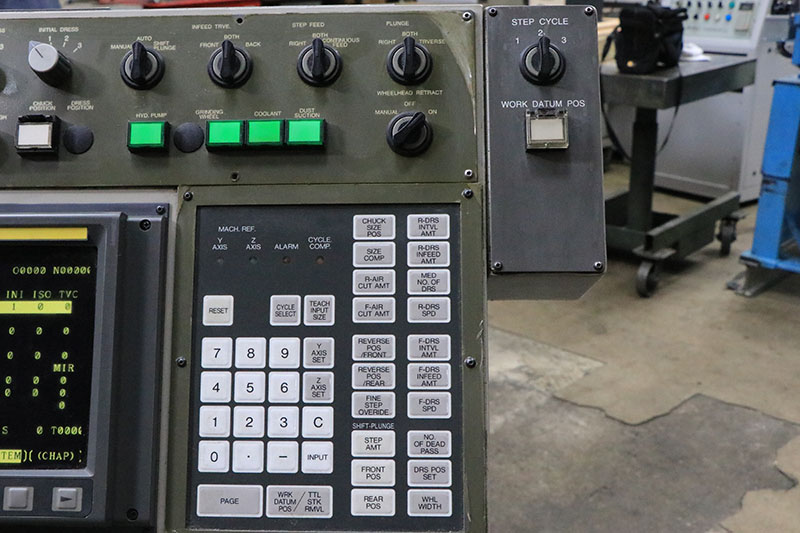

"FANUC" MDI/CNC CONTROL W/9" CRT DISPLAY

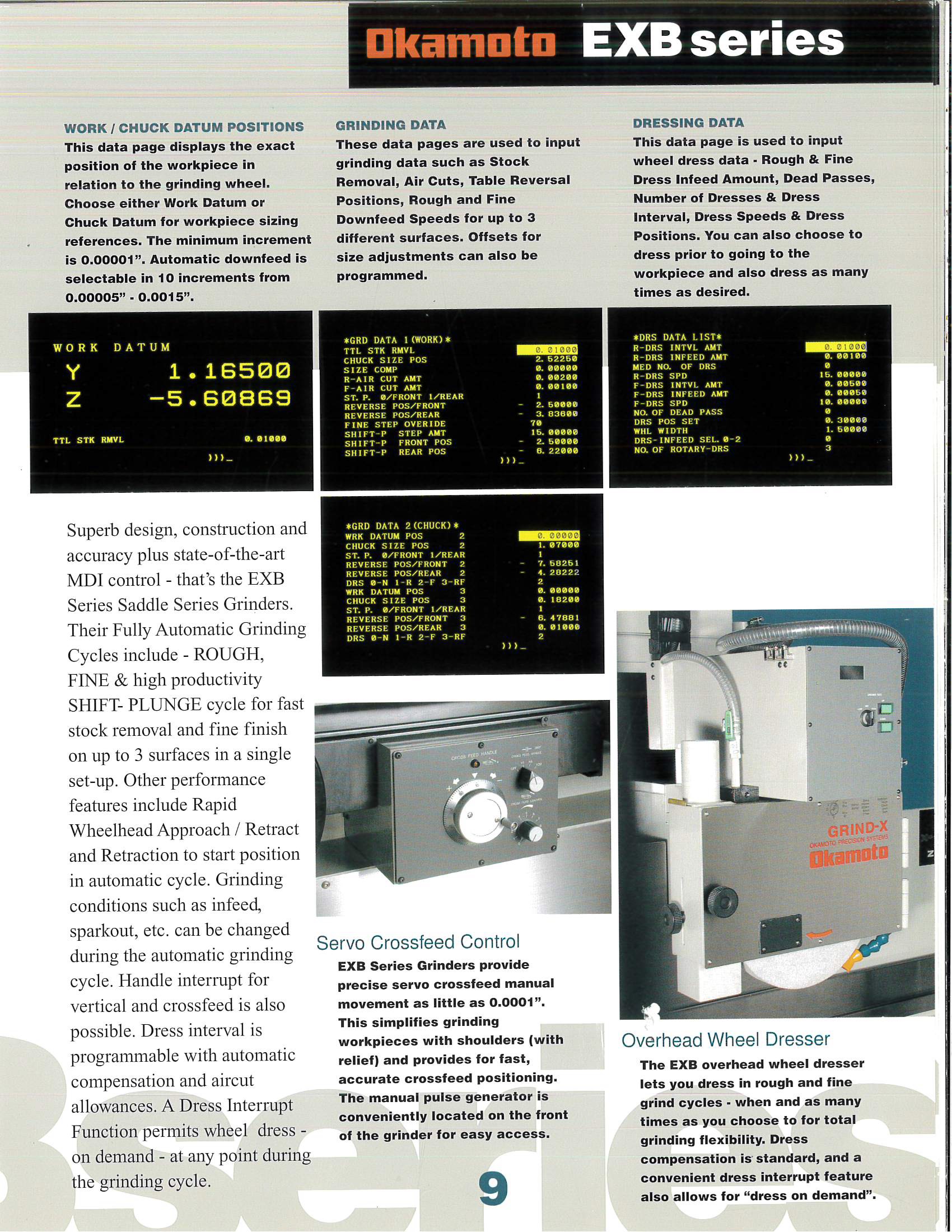

 (SEE LITERATURE FOR COMPLETE DESCRIPTION)
HYDRAULIC TABLE TRAVERSE

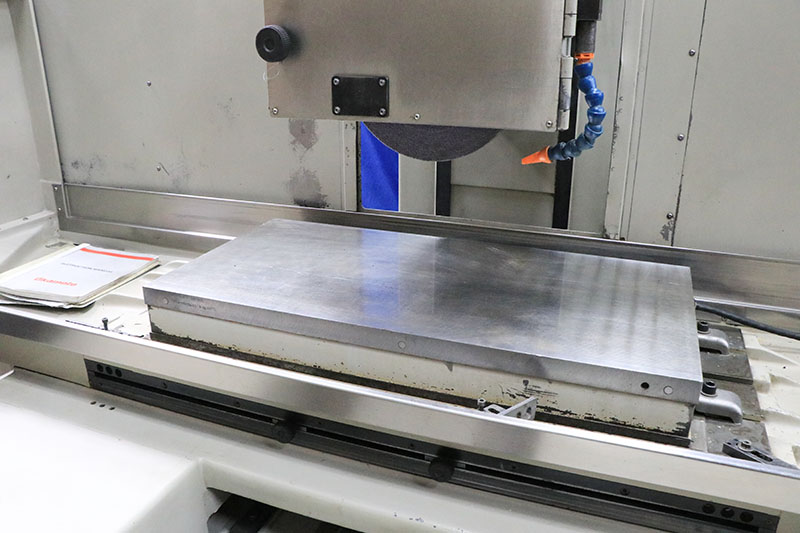

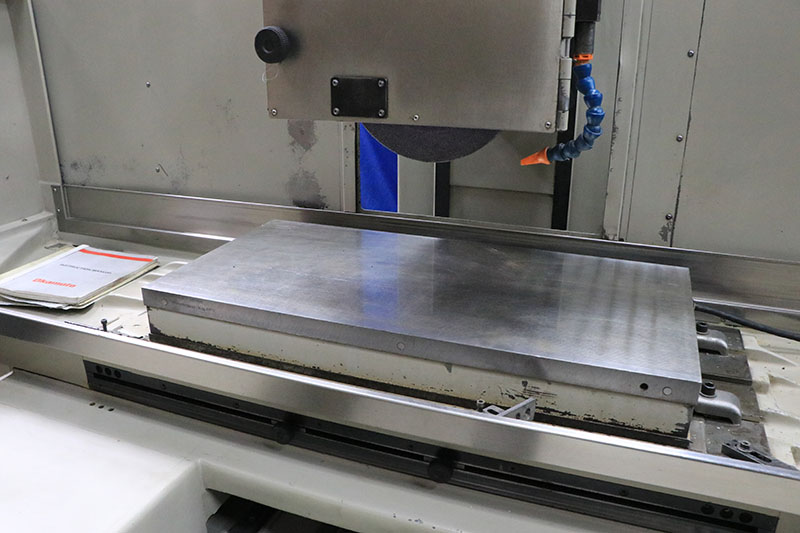

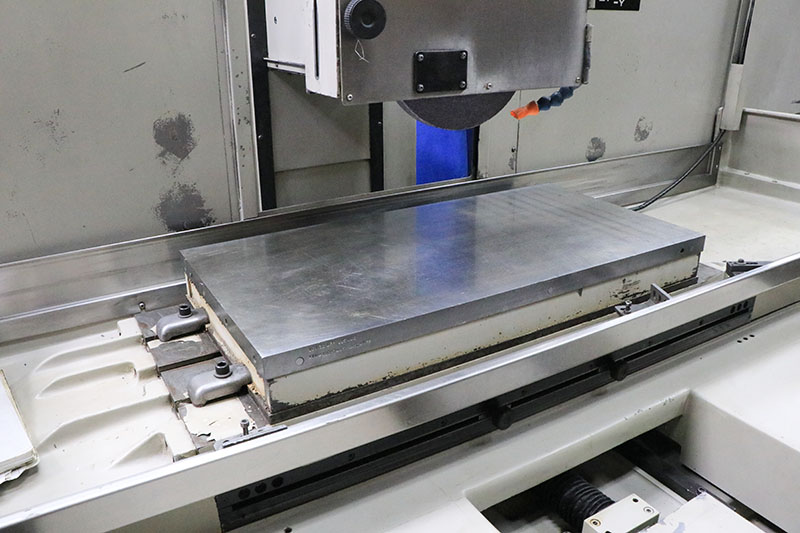

12" X 24" O.S. WALKER "LBP" FINE-DIVISION ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL & DEMAGNETIZER

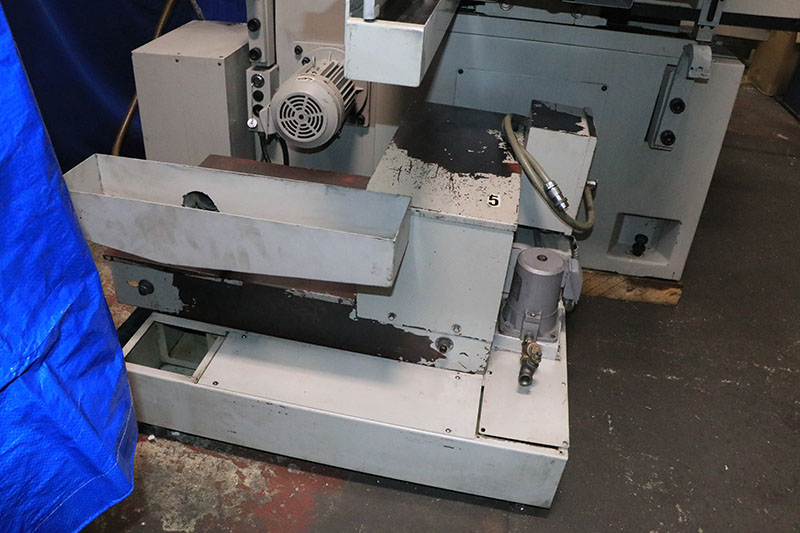

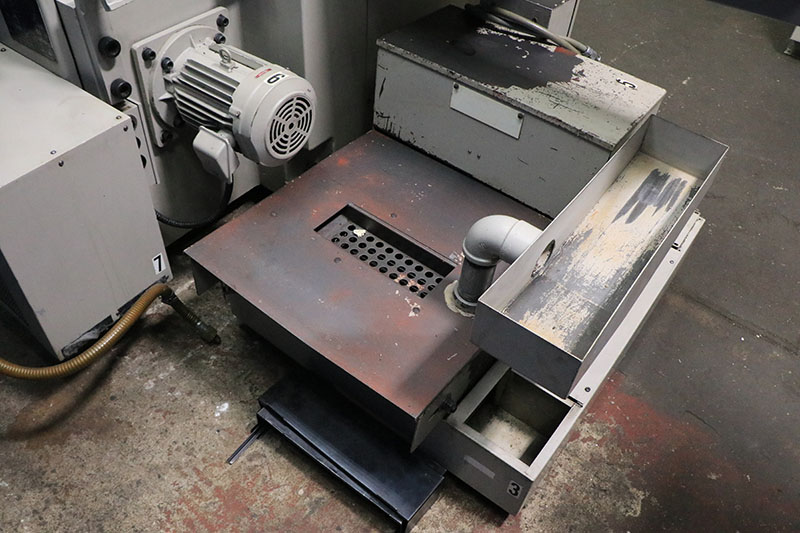

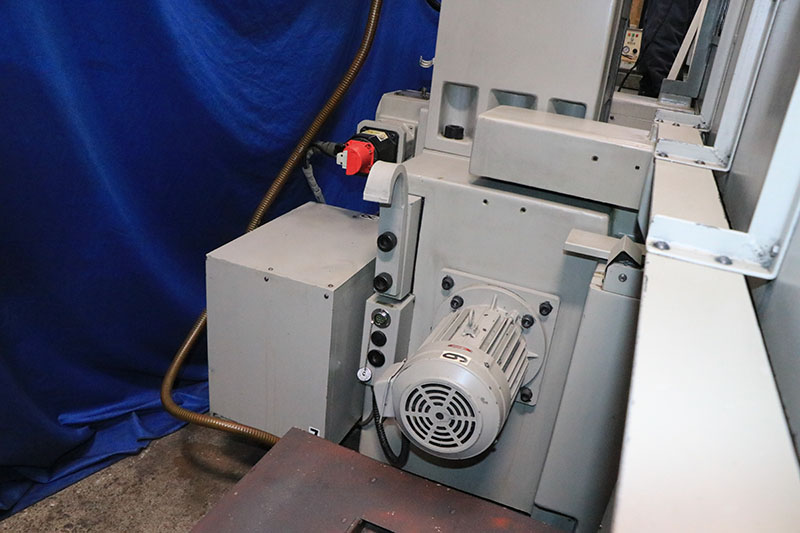

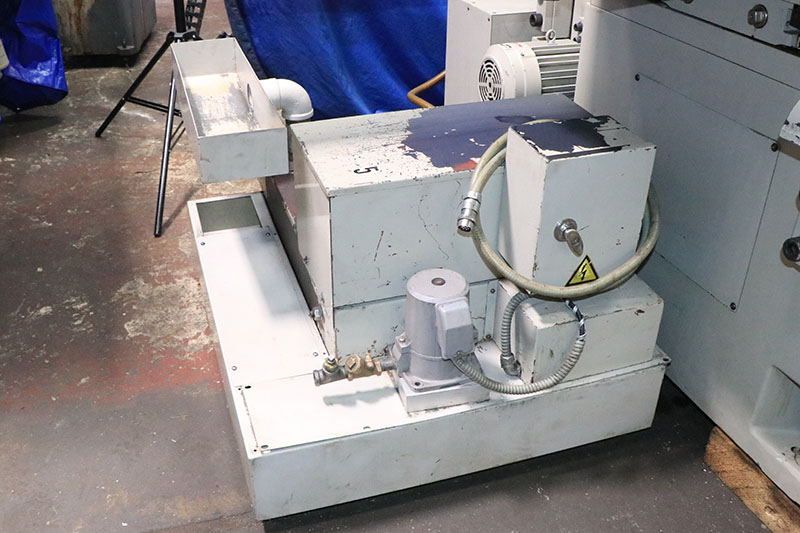

COOLANT SYSTEM W/PAPER SEPERATOR

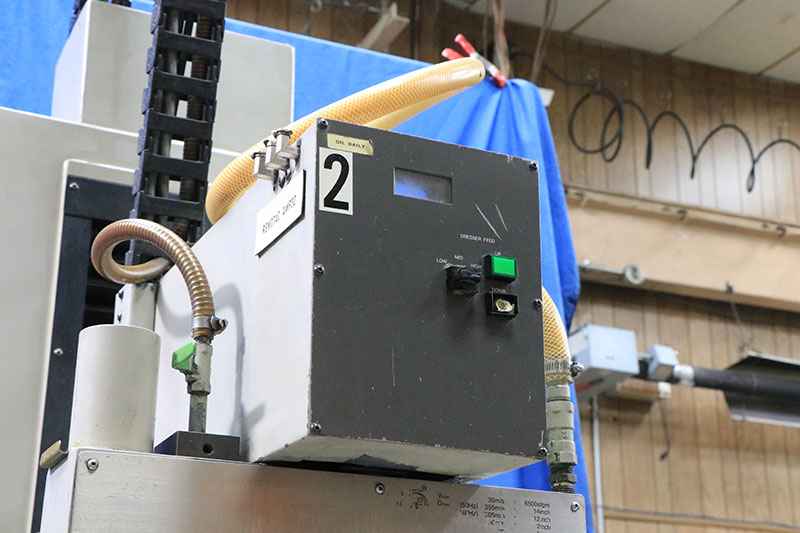

OIL TEMPERATURE REGULATOR SYSTEM

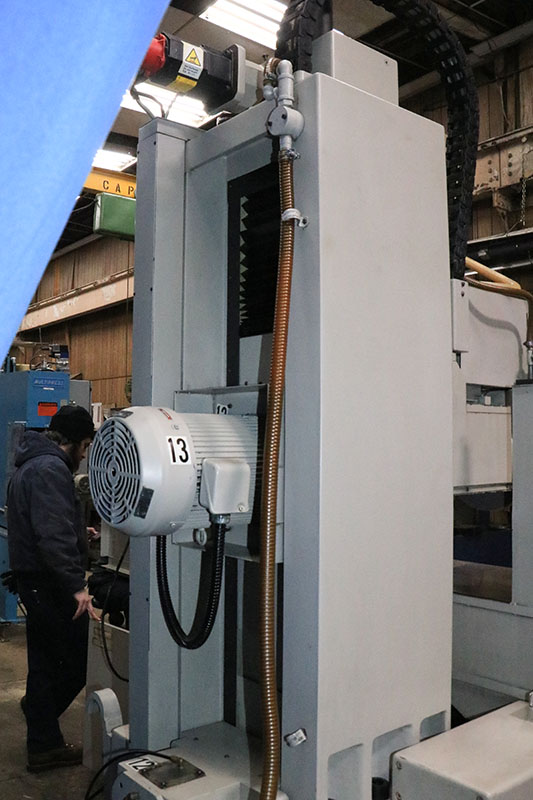

5 H.P. SPINDLE MOTOR
PRESENTLY WIRED FOR 3/60/460 VOLTS


** EXCELLENT CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
