Okamoto IGM-2MB, 2017, FANUC MDI CONTROL, ID / INTERNAL GRINDERS

Price on Request

Make:: Okamoto

Model:: IGM-2MB, 2017, FANUC MDI CONTROL,

Year:: 2017

Ref #:: 179052

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com


Okamoto IGM-2MB Precision
 I.D. Grinder, with Fanuc
 Programmable MDI Control

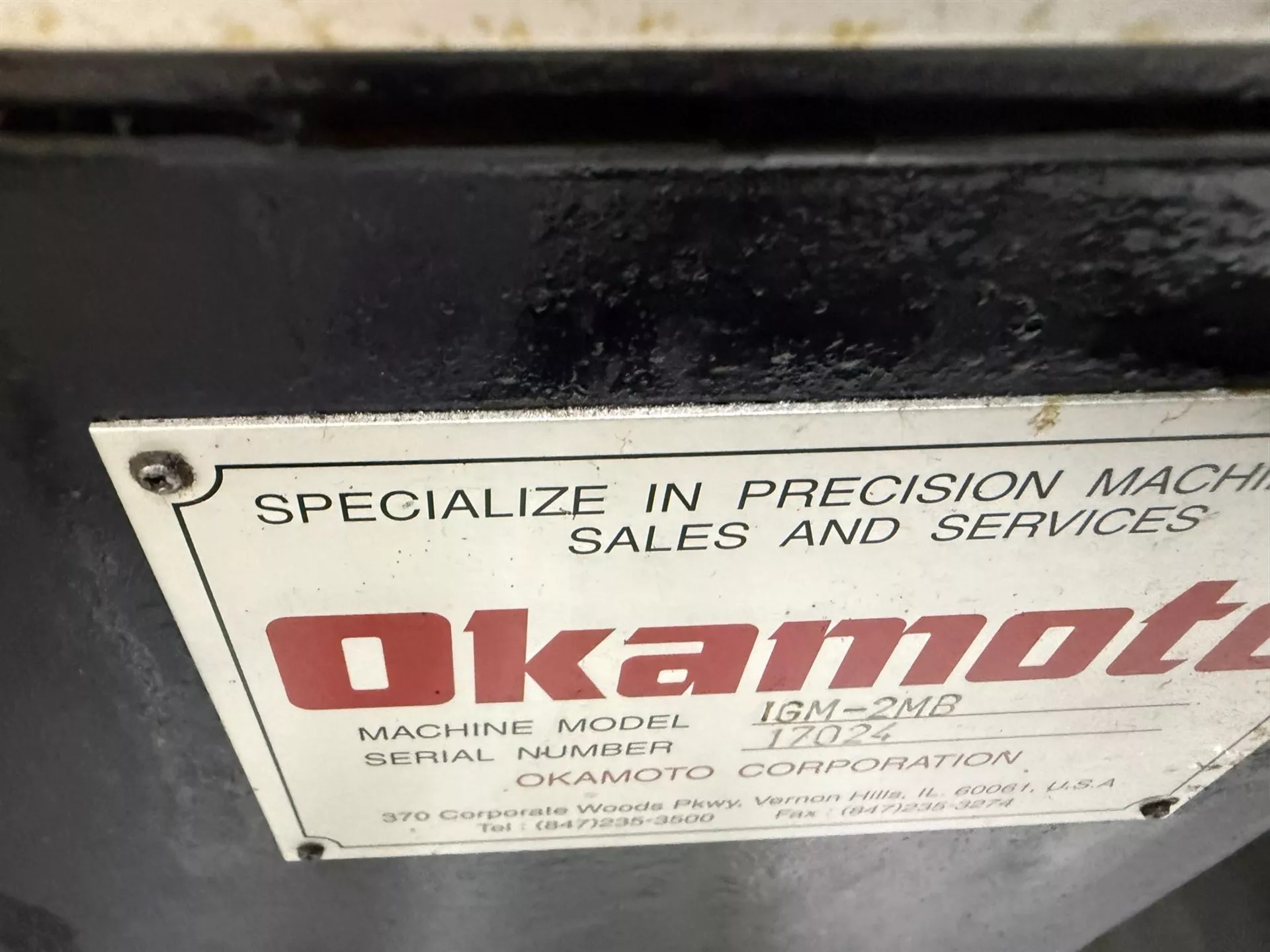

Serial Number 17024    New 2017

CATALOG SPECIFICATIONS:

Swing Over the Table 24"
Table Maximum Travel 20"
I.D. Grinding Range 0.24" - 8.0" Diameter
Grinding Stroke 0.00 - 8"
Swing Inside the Chuck Cover 14"

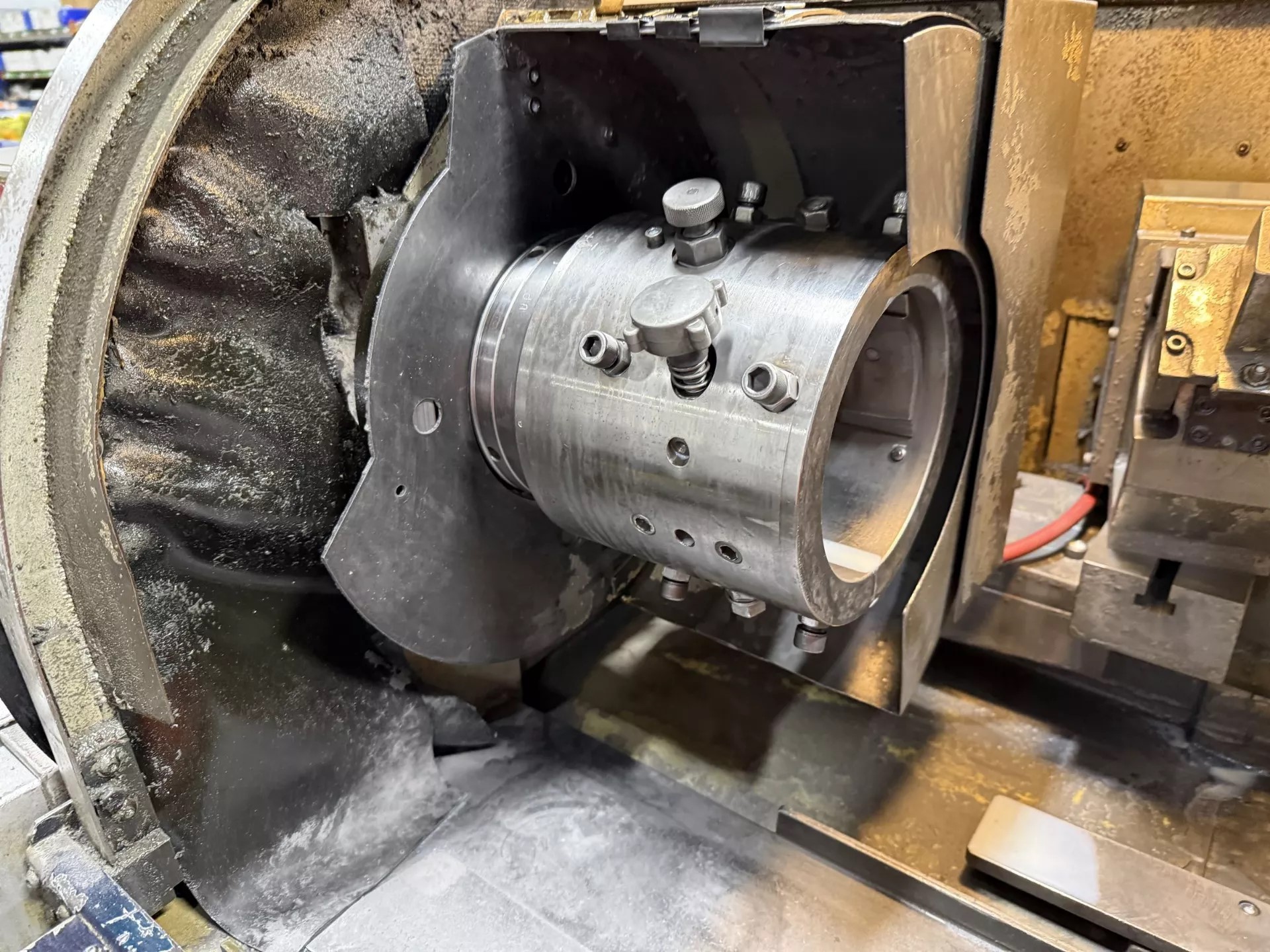

Workhead:
Spindle Speed 50 - 850 RPM
Swivel Angle -5 - +15 Degrees
Maximum Crossfeed Travel 9.4"

Motors:
Work head 2.0 H.P.
Grinding Wheel Spindle 5.0 H.P.

Floor Space: (L x W x H): 96 “x 54” x 69”
Net Weight: 6,160 lbs.

Machine Features:

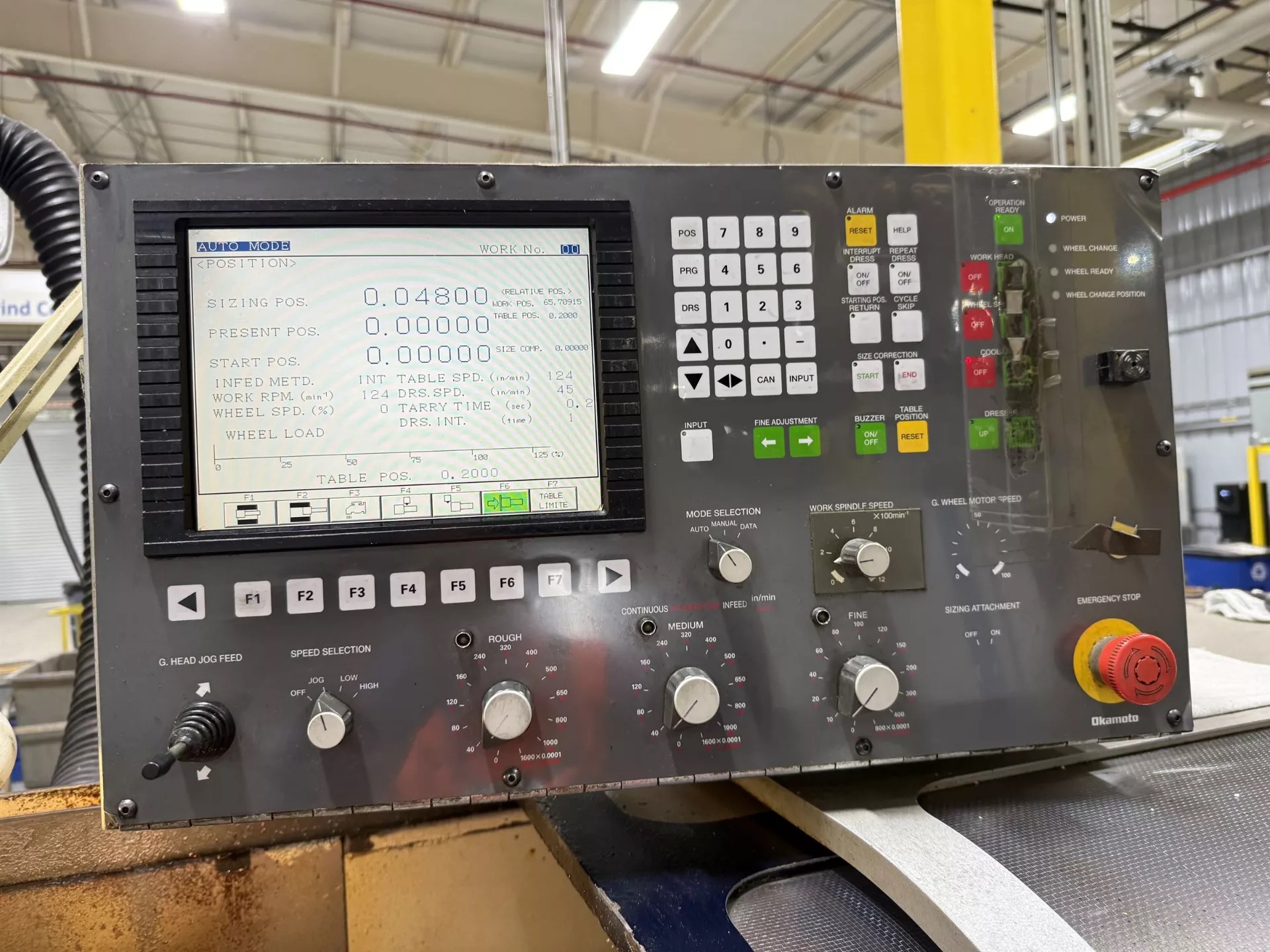

Fanuc MDI Control ... Facilitate Set-Up
 & Editing Functions, High Speed Table
 Shortens Positioning Cycle Time and
 High Speed Table Reciprocation Reduces
 Grinding Cycle Time.

User friendly control with conversational
 software. Teach function allows easy
 set-up of grinding processes. The MDI
 Controller is made by Okamoto and uses
 a unique Micro Processor control system
 that promotes Fast Easy Set-Up. Rough,
 Medium Grind, Dress and Fine Grind in
 one set-up.

Least Programmable Increment 0.00001"
36 program storage capacity.
Programmable Auto Grinding Cycle
Size Compensation

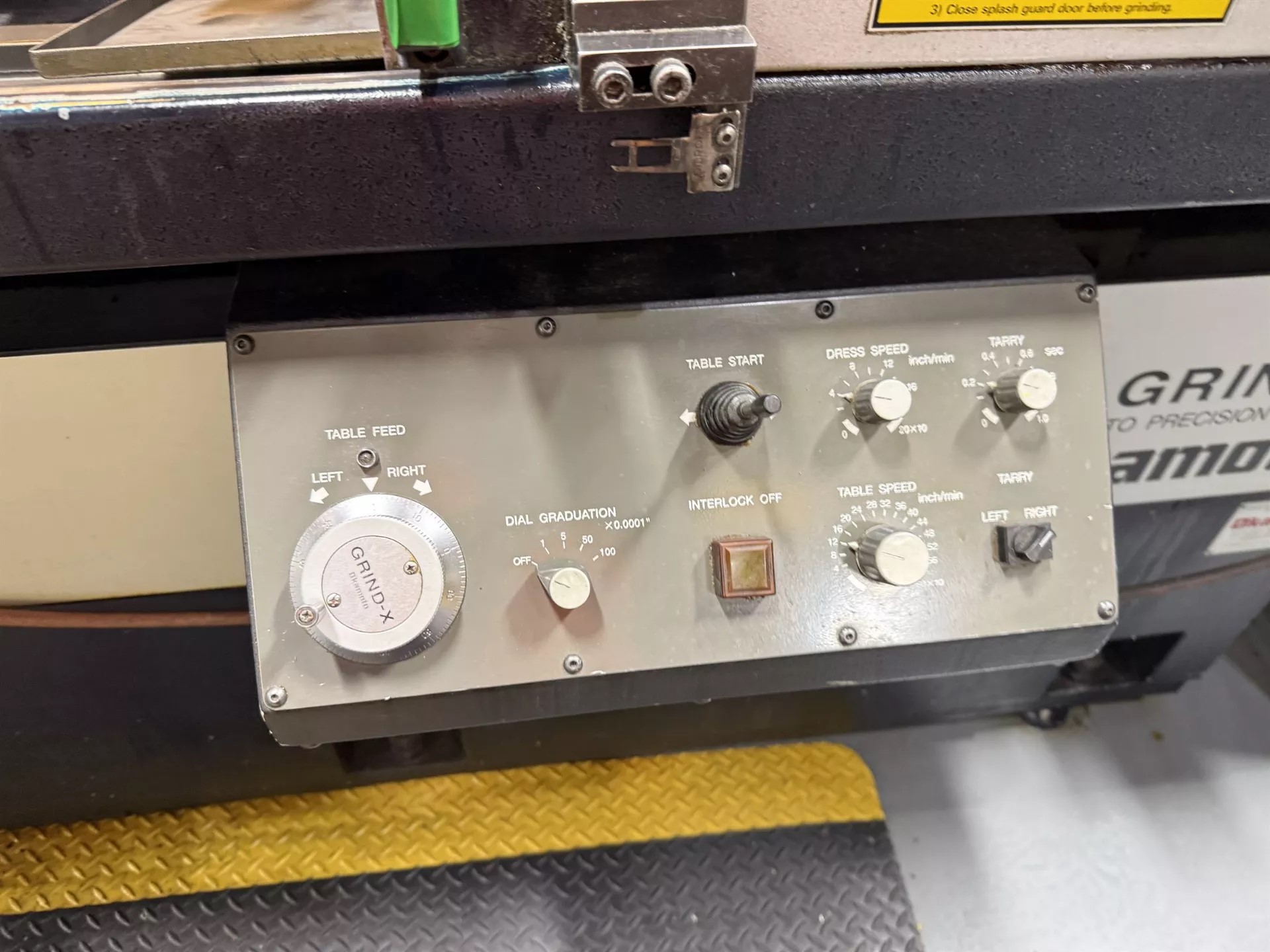

Wheelhead, Table and Speed Setting Dials
Continuous/Intermittent Feed
Repeat Dress, Interrupted Dressing
 and Dressing Selection

The linear slide and ball screw table
 motion delivers high-speed table
 movement speed up to 800 ipm.

Rigid construction. Superb Accuracy.

EQUIPPED WITH:

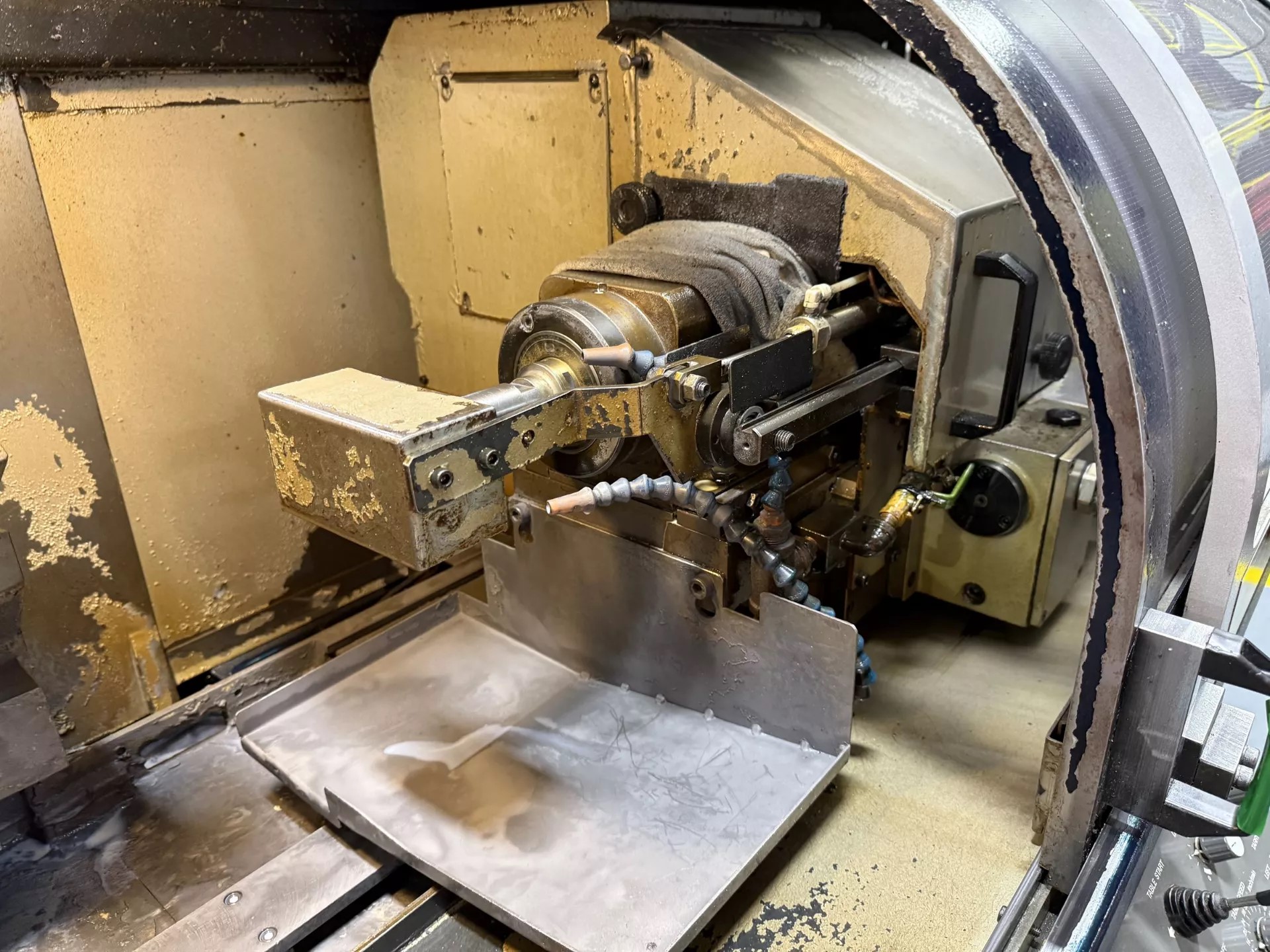

Okamoto I.D. Grinding Spindle

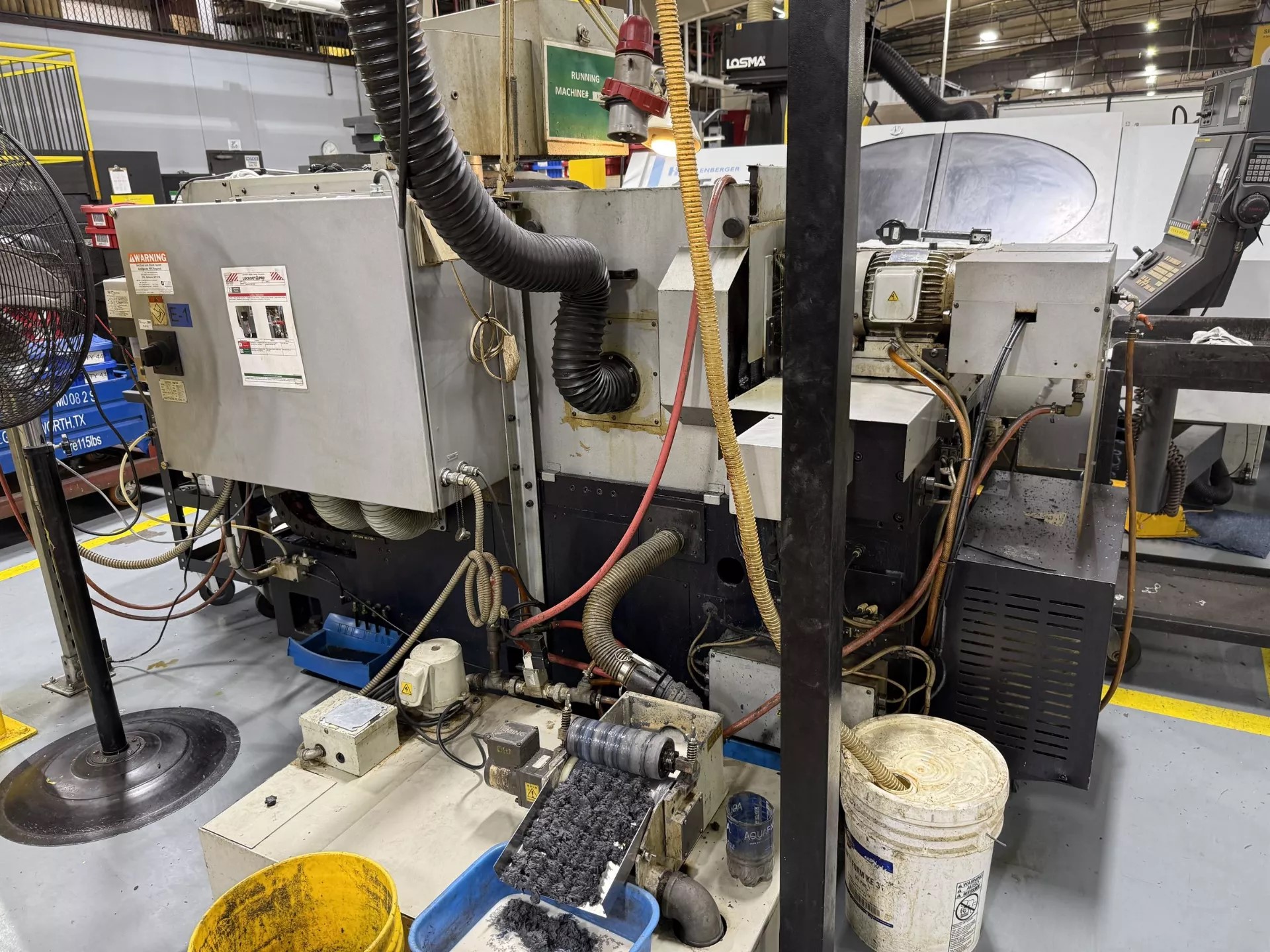

Mist Collector
Coolant System with Magnetic Separator
Wired for 3/60/220 Volts

** Purchased from a Dow 30 Company **
** Superior Condition, Original Paint **
** F.O.B. FORT WORTH, TEXAS **
