Voumard 5A, MADE IN SWITZERLAND, NEW 1982 ID / INTERNAL GRINDERS

Price on Request

Make:: Voumard

Model:: 5A, MADE IN SWITZERLAND, NEW 1982

Year:: 1982

Ref #:: 160468

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

VOUMARD (MADE IN SWITZERLAND) HIGH-PRECISION INTERNAL GRINDER

MODEL:  5A      S/N:  052241       NEW: 1982

GRINDING DIAMETER ......................... 0.20" TO 8"
MAXIMUM GRINDING DEPTH .................... 10"
STANDARD CENTER HEIGHT .................... 7.087"
STANDARD GUARD INNER SWING DIAMETER ....... 11- 3/4"
MAXIMUM WORKPIECE LENGTH .................. 19"
WORKSPINDLE BORE DIAMTER .................. 1.968"
WORKSPINDLE INTERNAL TAPER ................ METRIC 70
STD. WORKSPINDLE SPINDLE SPEEDS RPM ....... 140-435-560
                                            280-870-1120
MAXIMUM WORKHEAD SWIVEL ................... 90 DEGREES ON STD. MACHINE
MAXIMUM TABLE TRAVEL ...................... 23- 1/2"
MINIMUM TABLE RECIPROCATION ............... 1/8"
TABLE TRAVERSE SPEED ...................... 0 TO 400" IPM
STANDARD SPINDLE SPEED RPM ................ 3,600 TO 40,000
STD. SPINDLE DIAMETER ..................... 3.5433"
POWER RATING .............................. 9 - 15 KW
APPROXIMATE NET WEIGHT .................... 5,000 LBS.

STANDARD LENGTH MACHINE
3-POINT STEADY REST

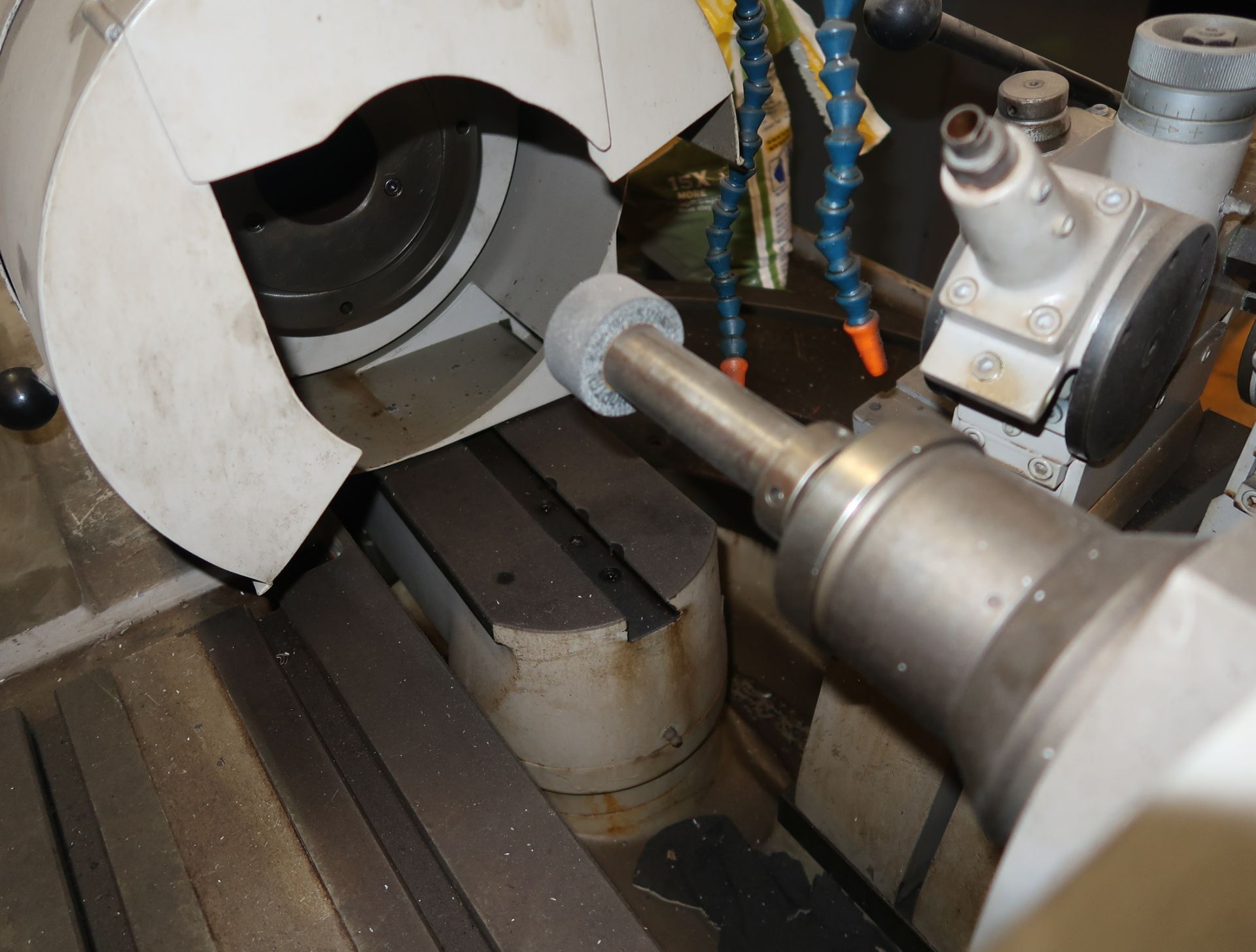

I.D. GRINDING SPINDLE

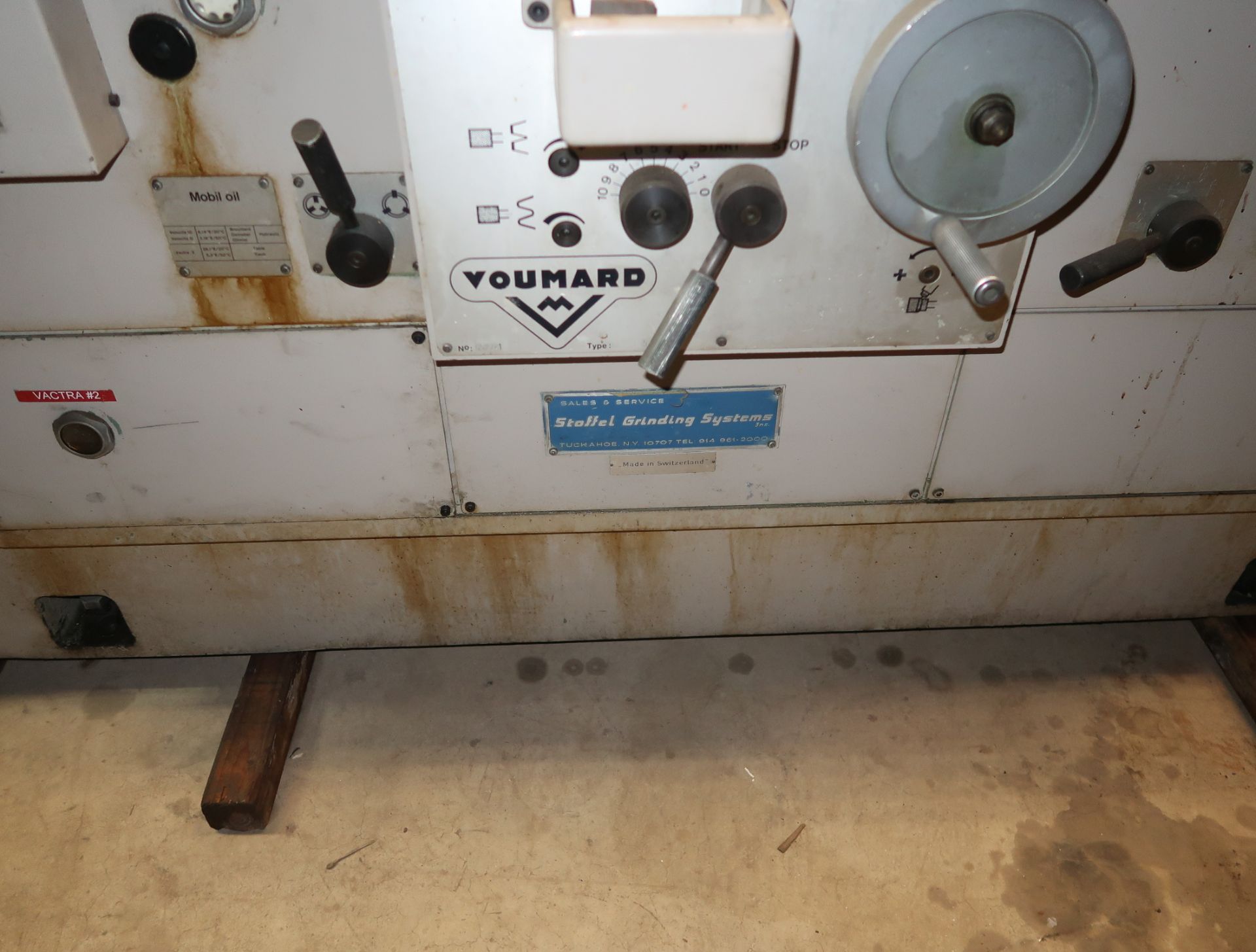

WHEELHEAD FEED HAS BOTH COARSE & FINE SELECTIONS
SPARKOUT TIMER

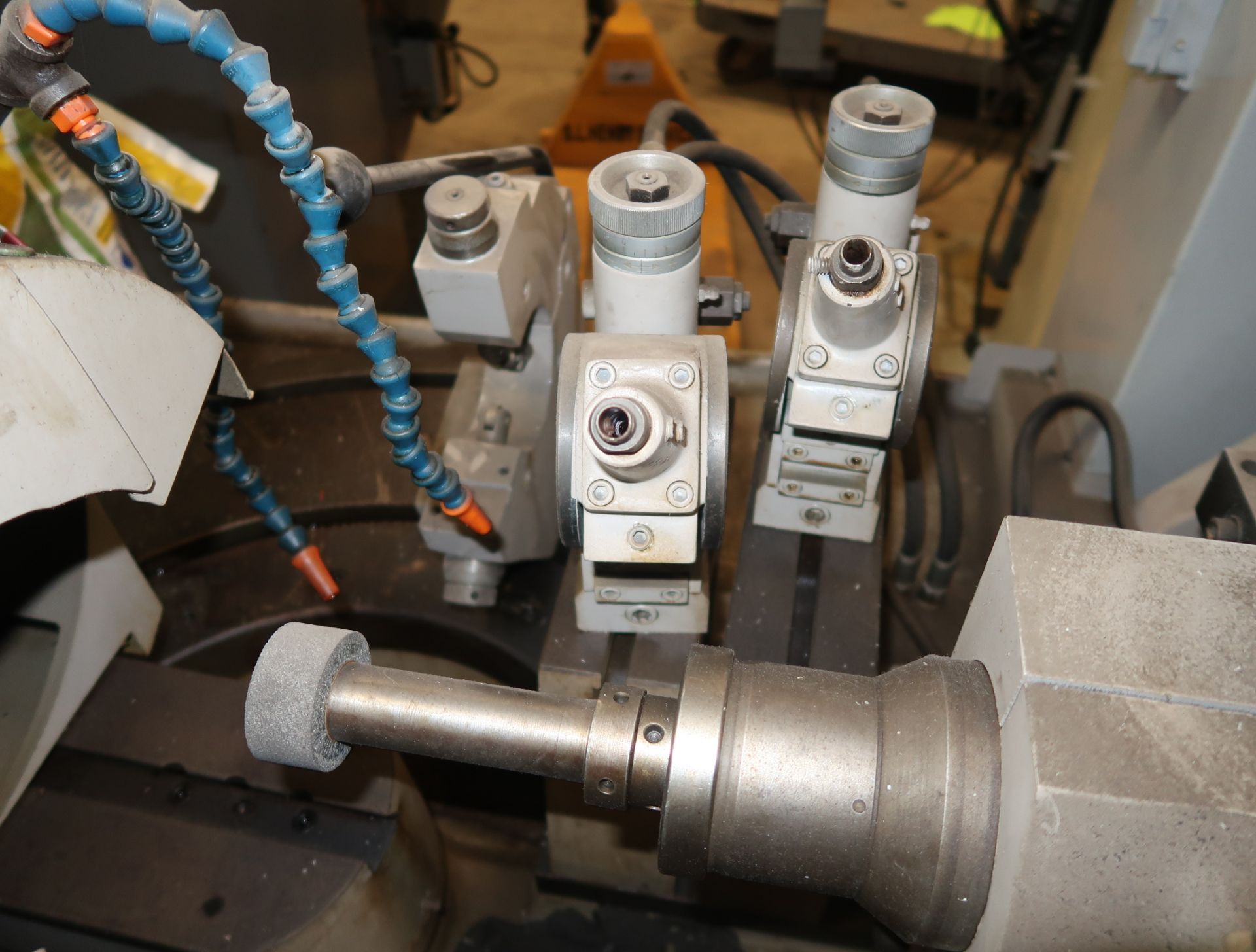

TWO WHEEL DRESSER, POWER ACTUATED, WITH FINE MICROMETER ADJUSTMENT
COOLANT THRU WORKHEAD SPINDLE
COOLANT SYSTEM
WIRED PRESENTLY FOR 3 PHASE/60 CYCLE/220 VOLT OPERATION, 63 AMPS SERVICE

** INSPECT IN OUR HARRISON, NJ WAREHOUSE **
MACHINE IS MISSING THE MOTOR GENERATOR
INCOMPLETE MAKE OFFER
