Okamoto OGM 1240UNC, FANUC 18-OC CNC, I.D. ATTCH., UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Okamoto

Model:: OGM 1240UNC, FANUC 18-OC CNC, I.D. ATTCH.,

Year:

Ref #:: 178538

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

  12" X 40" OKAMOTO CNC UNIVERSAL I.D./O.D.
         CYLINDRICAL GRINDER
WITH SWING DOWN I.D. GRINDING ATTACHMENT

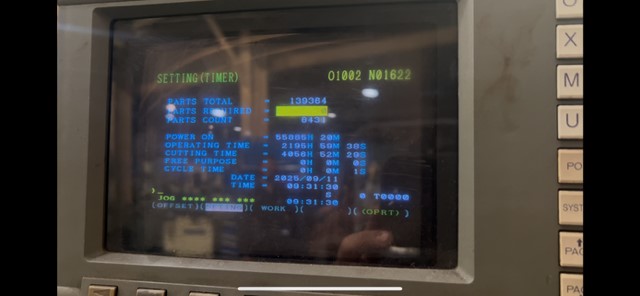

FANUC 18-GC CNC Control
Two Axis Simultaneous Controlled

Model: OGM-1240UNC



Swing Over Table ................... 12.6"
Distance Between Centers:........... 40"

Max. Table Travel .................. 50"
Power Table Traverse Speed ......... 0 to 400" IPM
Manual Pulse Generator ............. 0.00001", 0.0001", 0.001"
Table Feed Motor:................... 1.2 HP AC Servo
Table Swivel Angle:................. 0 to 8.5°

Wheelhead, Total Stroke (X-axis) ... 11.8"
Wheelhead Swivels .................. +/- 30°
Wheelhead Automatic Infeed ......... 0.00001" to 0.004"
Wheelhead Power rapid Stroke ....... 1.5"
Rapid Feedrate ..................... 400" IPM
Manual Pulse Generator ............. 0.00001", 0.0001", 0.001"
Wheelhead Feed Motor:............... 1.2 HP AC Servo

Grinding Wheel Size:................ 14 x 1.5 x 5
Grinding Wheel Speed:............... 1770/2,000 RPM
Grinding Wheel Spindle Motor:....... 7.5 HP


Work Head Center Taper:............. MT #4
Work Head Spindle Bore:............. 0.7"
Work Head Spindle Motor:............ 1 HP AC Servo
Work Head Spindle Speed:............ 10 - 500 RPM
Work Head Swivel Angle:............. +30°/- 90°

Tailstock Taper:.................... MT #4

Machine Weight:..................... 9,250 lbs.

Machine Features:
Fanuc 18-GC CNC Control
Two Axis Simultaneous CNC Control
CNC Programming, for Contouring, Multiple Diameters,
  & Dressing
Minimum Programmable Increment 0.00001"
Conversational or G and M Code Programming Std
Quick, Easy Set-up, Designed for Optimum Operator
  Convenience
RS232C Port
Fanuc Red Cap Servo Motors for the Axis Movements
Low Friction Material is Applied to the Sliding Surfaces
 of Slide Table & Wheel head.

Equipped with:
Coolant System
Machine is Wired for 3/60/220 Volts
Comes with a Separate Transformer
Swing Down I.D. Attachment & I.D. Spindle
Lateral Locator Device
Workhead Has a Center in it
Extra Wheel Hub & Wheel
Magnetic Chuck, with Draw Bar & Adaptor



** Inspect Under Power in our Harrison, NJ Warehouse **
