Tschudin HTG-310, 1998, AUTO CYCLE,MARPOSS GAGEI, UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Tschudin

Model:: HTG-310, 1998, AUTO CYCLE,MARPOSS GAGEI,

Year:: 1998

Ref #:: 178472

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

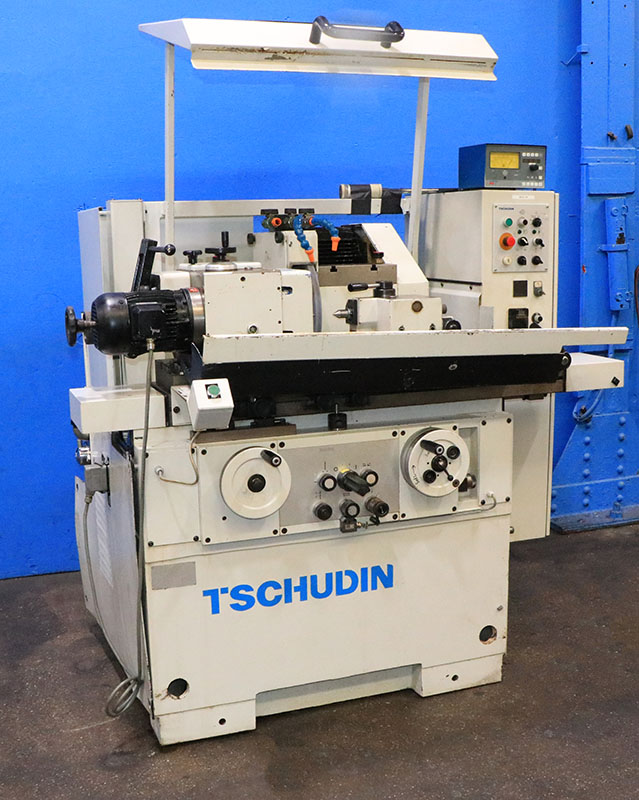

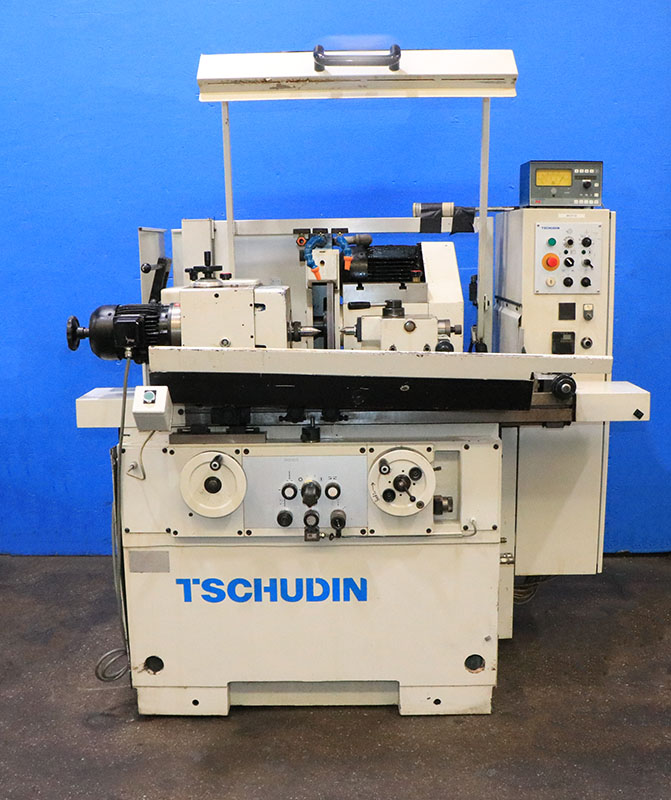

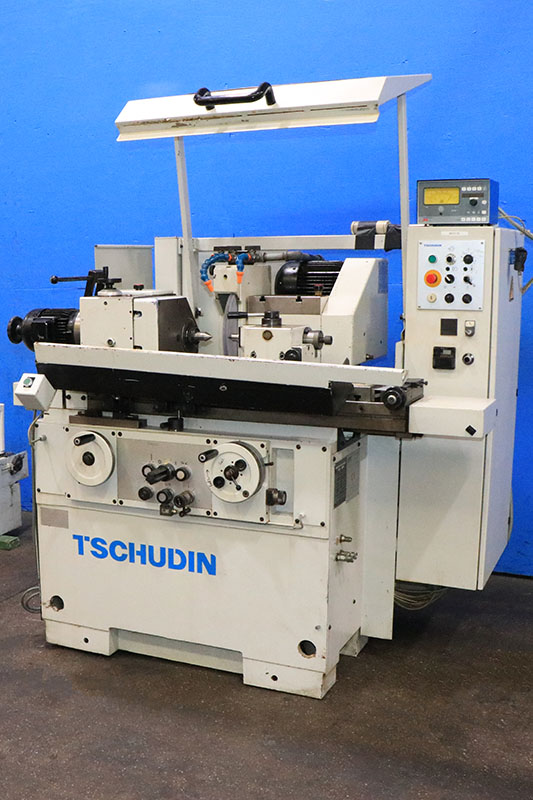

           8" X 13.4" TSCHUDIN (HTT)
           "SWISS" SUPER-PRECISION
         UNIVERSAL CYLINDRICAL GRINDER,
      WITH MARPOSS IN-PROCESS GAGING SYSTEM

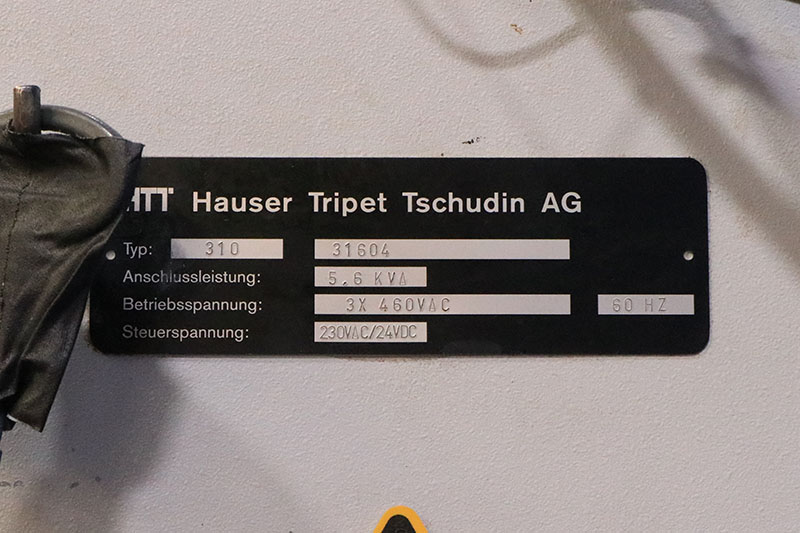

MODEL:  HTG-310     S/N:  31604      NEW:  05/05/1998

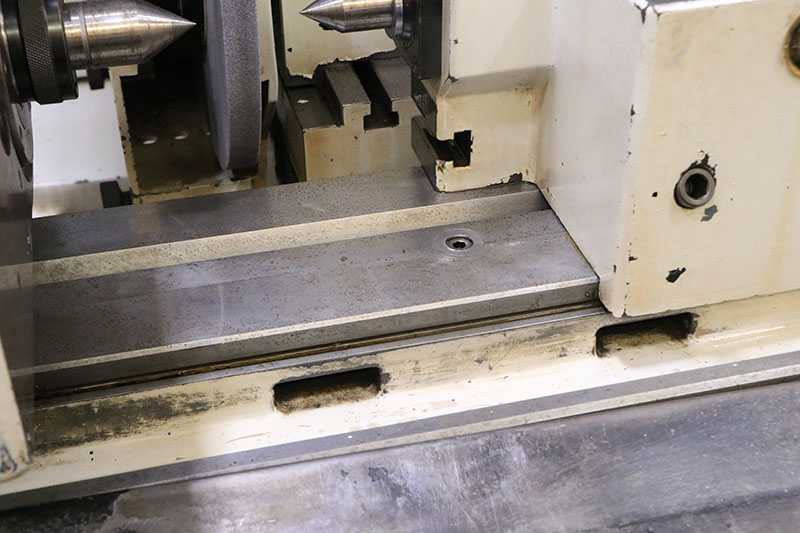

TABLE:
  SWING OVER TABLE .............. 8"
  DISTANCE BETWEEN CENTERS ...... 13.4"
  TABLE SPEED ................... 0 TO 195" IPM
  SWIVELLING RANGE .............. +/- 11 DEGREES

WHEELHEAD:
  WHEEL SIZE .................... 14"DIA. X 2"W X 5"BORE
  SWIVELLING RANGE .............. +/- 5 DEGREES
  MOTOR ......................... 4 HP
  RAPID APPROACH ................ 1-1/2"
  INFEED-AUTOMATIC .............. 0 TO .050" ON DIA.
  INFEED SPEED, MAXIMUM ......... 1.2"/MIN.
  SPARKOUT ...................... 2 TO 30 SECONDS

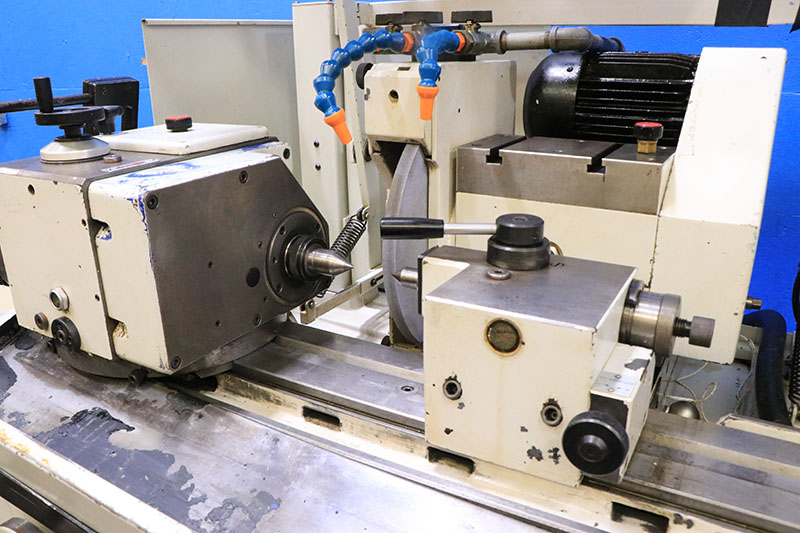

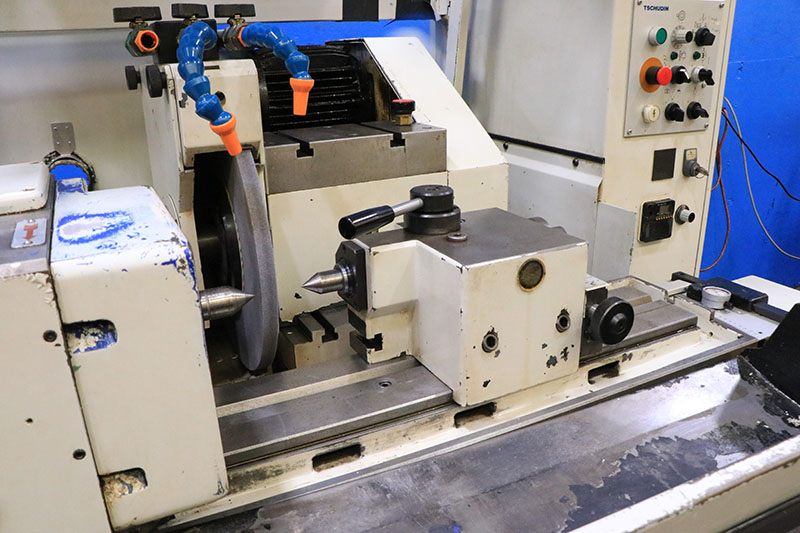

WORKHEAD:
  SPINDLE TAPER ................. #5MT
  SWIVELLING RANGE .............. 360 DEGREES
  INF. VAR. SPINDLE SPEEDS ...... 50 TO 500 RPM

TAILSTOCK:
  TAPER OF CENTER BORE .......... #3MT
  TRAVEL OF CENTER .............. 0.8"


APPROXIMATE WEIGHT .............. 4,000 LBS

STANDARD FEATURES/ATTRIBUTES:
  TSCHUDIN HYDRODYNAMIC TYPE CYLINDRICAL BRONZE TO
   STEEL BEARING WHEELHEAD DESIGN

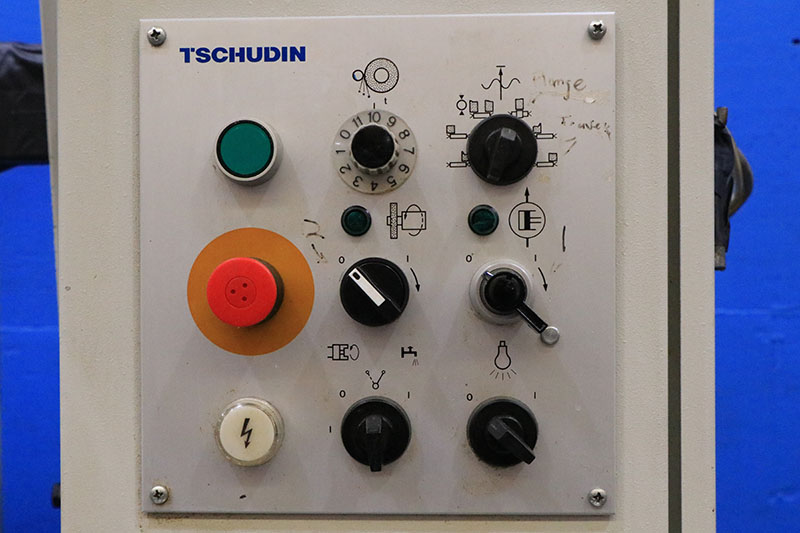

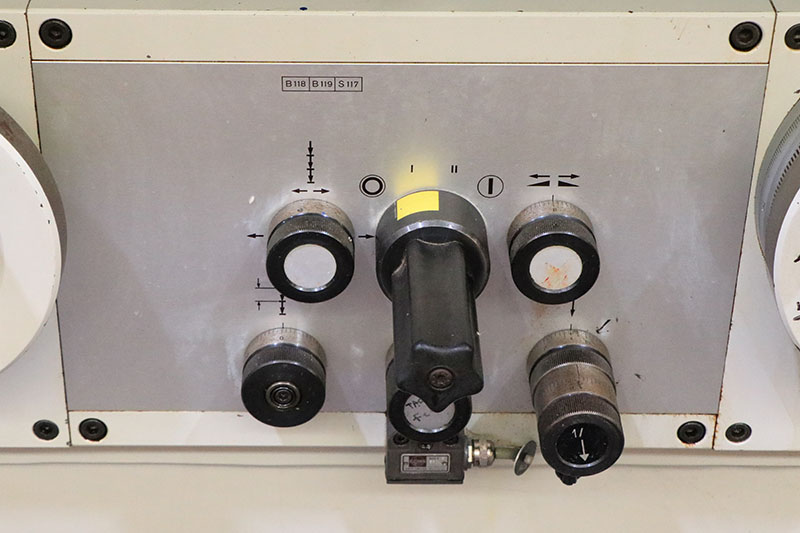

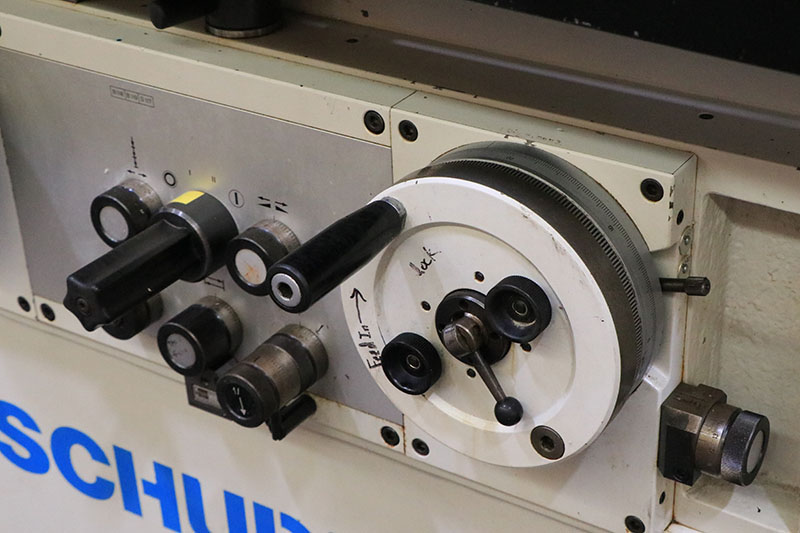

  SIMPLE ONE-KNOB CONTROL INITIATES ALL THE SETTINGS
   FOR TRAVERSE & PLUNGE GRINDING CYCLES
  HYDRAULIC OPERATION FEATURING:
   -POWER TABLE TRAVERSE
   -AUTOMATIC INFEED
   -PLUNGE INFEED
   -RAPID WHEELHEAD ADVANCE AND RETRACTION

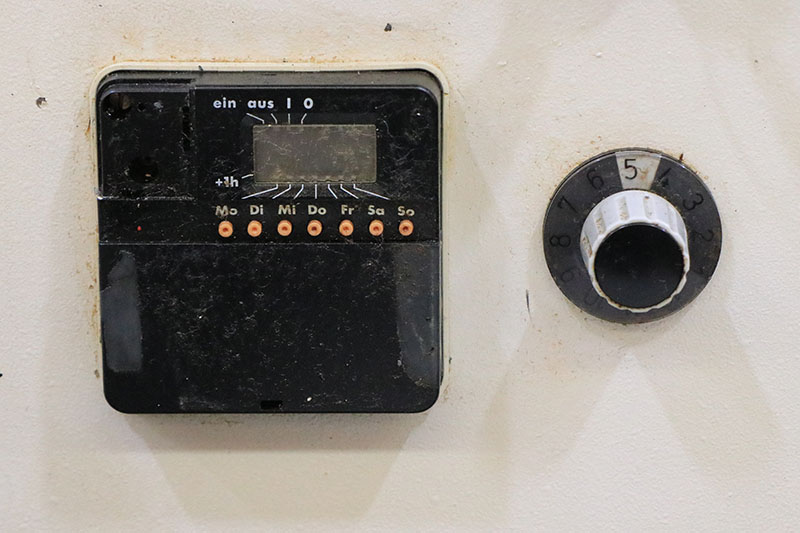

  SPARKOUT TIMER
  DUAL LIVE/DEAD WORKHEAD SPINDLE
  A .00002" GRADUATED DIAL SETS POSITIVE STOP DIAMETER
  3/60/230-460 VOLT ELECTRICS


EQUIPPED WITH:
DUAL RATE AUTOMATIC PLUNGE INFEED OPTION,
 "COARSE" & "FINE" CYCLE FEED OPTION

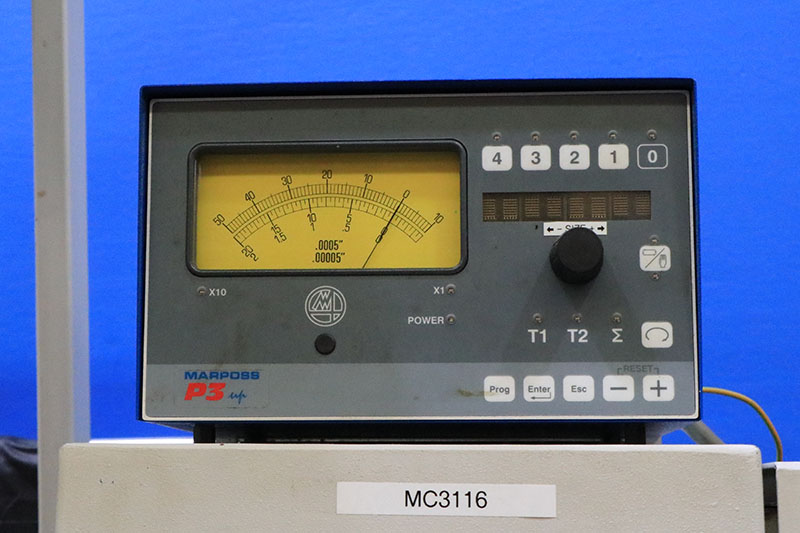

"MARPOSS" MODEL P3UP MEASUREMENT SYSTEM FOR
 GRINDING MACHINES, WITH "MARPOSS" MODEL
 UNIMAR S MEASURING HEAD, FOR ULTRA-PRECISION
 SUB-MICRON TOLERANCES.

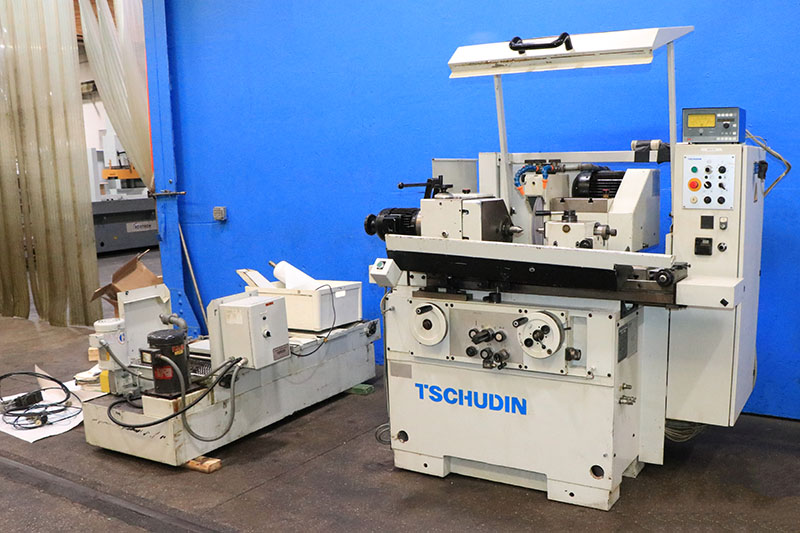

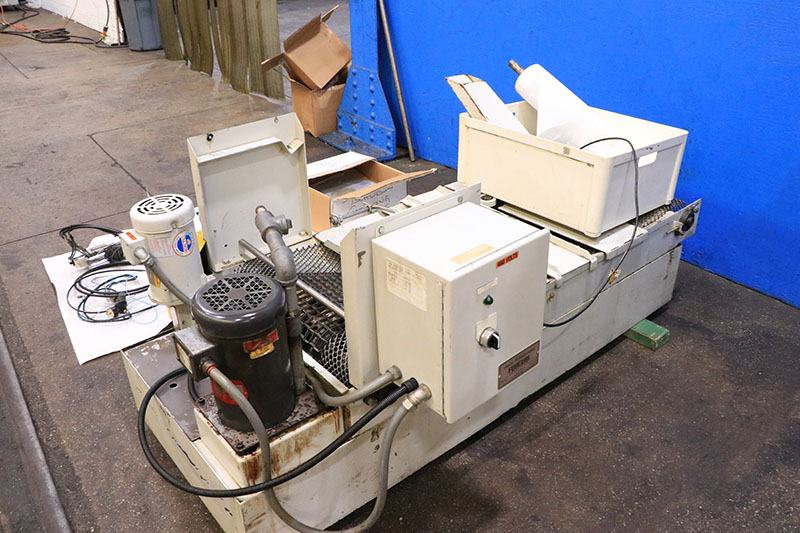

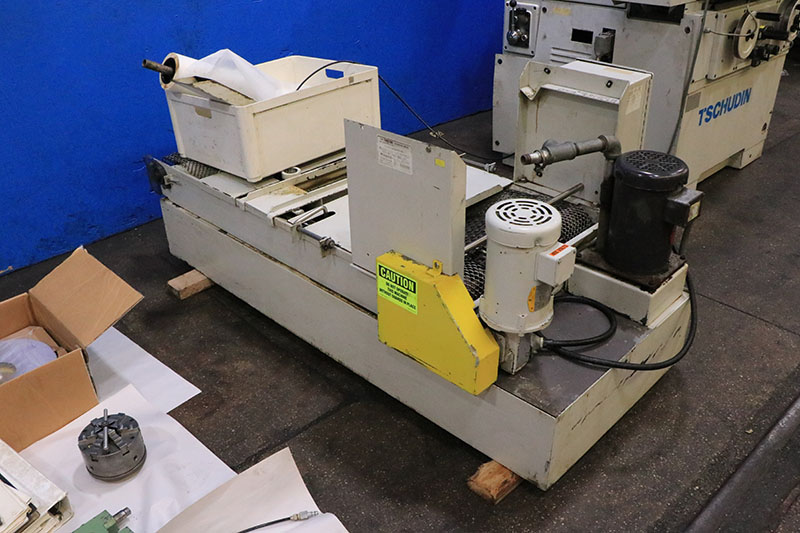

"FLOW-CON" "MADE IN USA" COOLANT SYSTEM,
  WITH MOTORIZED PAPER FILTRATION.
OUR MACHINE WAS USED WITH "NITRITE-FREE, LONG LIFE
 ANTI-CORROSION, NON-FOAMING COOLANT.
"BUCK" 6-JAW CHUCK, 7" DIAMETER

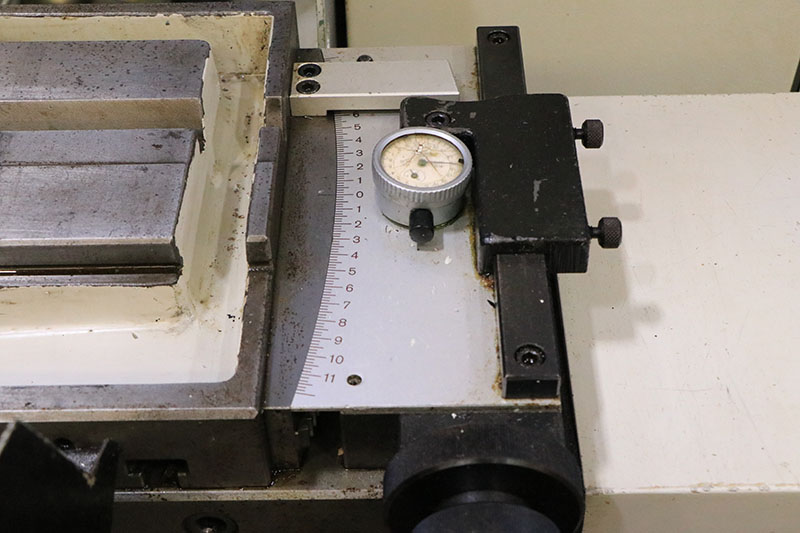

DIAL INDICATOR FOR TABLE TAPER ADJUSTMENT
TABLE MOUNTED DRESSER
TSCHUDIN "SUPER-PRECISION" WORKHEAD OPTION.
 THIS WAS A FACTORY OPTION THAT PROVIDED FOR
 EVEN HIGHER PRECISION WORK THAN A STANDARD
 TSCHUDIN WORKHEAD.  THIS MACHINE WHEN IT LEFT
 THE FACTORY IN SWITZERLAND HAD A CONCENTRICITY
 OF 0.00035mm, WHICH IS 0.00001378".
WORKHEAD HAS A QUICK ACTING COLLET CLOSER, "W20" COLLETS.
CENTER IN WORKHEAD
WORKHEAD SPINDLE IS A LARGE TAPER, No. 5 MT.
 THIS ALLOWS ONE TO USE A 5C COLLET WITH AN
 ATTACHMENT THRU THE SPINDLE, EITHER A
 DRAW BAR OR A QUICK ACTING LEVER TYPE UNIT.
 WE CAN PROVIDE THIS ATTACHMENT FROM A SUPPLIER.
 P.O.R.
DIAL INDICATOR FOR TABLE SWIVEL
FINE TAPER ADJUSTMENT OPTION ON THE TAILSTOCK

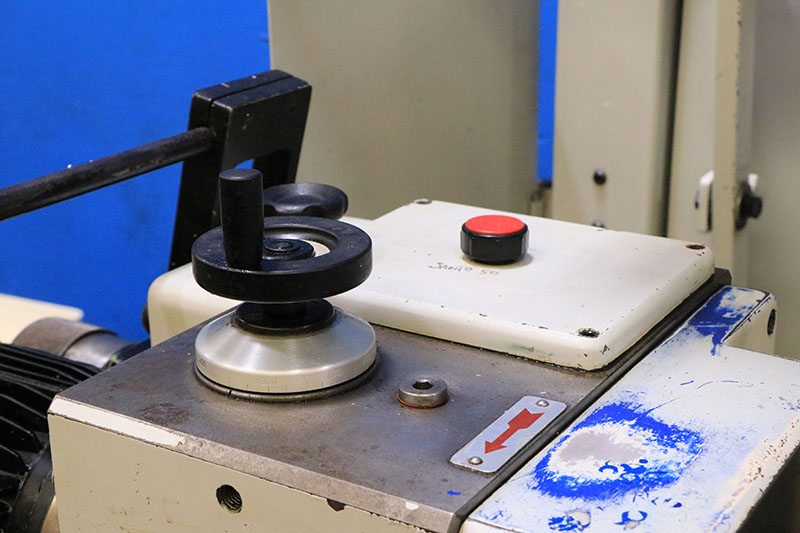

MANUAL COARSE ADJUSTMENT OPTION FOR THE WHEELHEAD,
 WITH RAPID MOVEMENT BY A LEVER

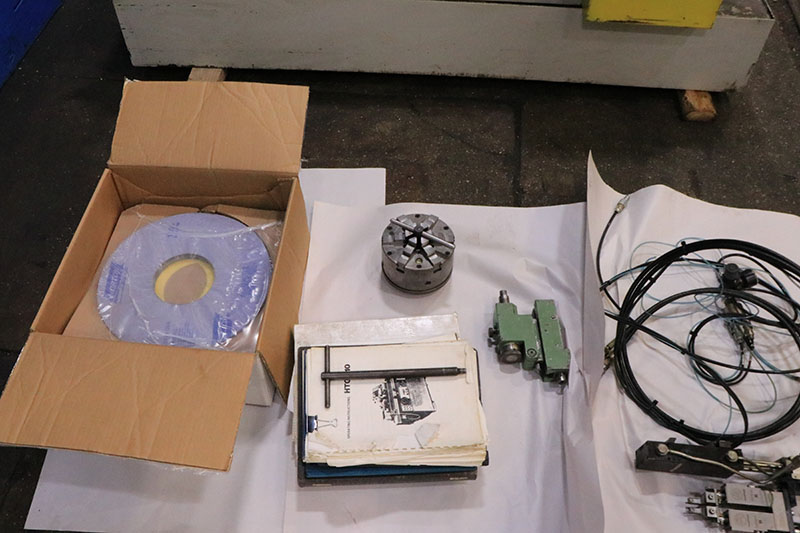

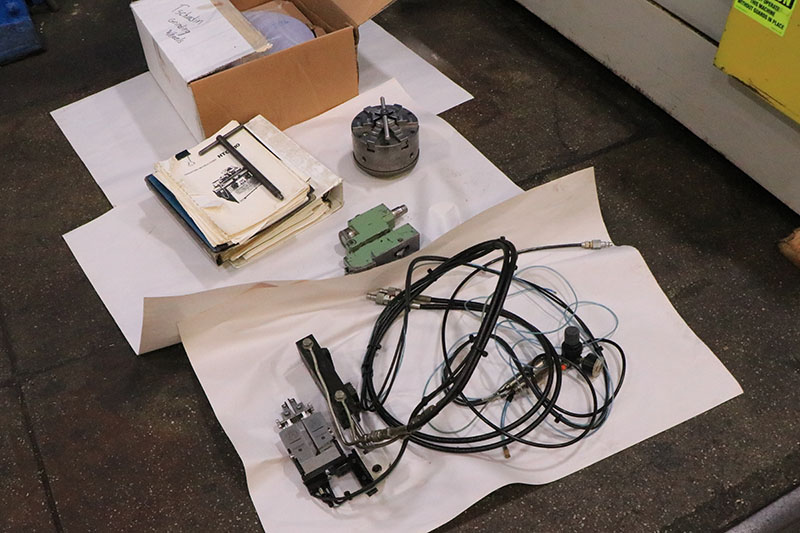

COMPLETE MACHINE MANUALS, AND ELECTRICAL DIAGRAMS

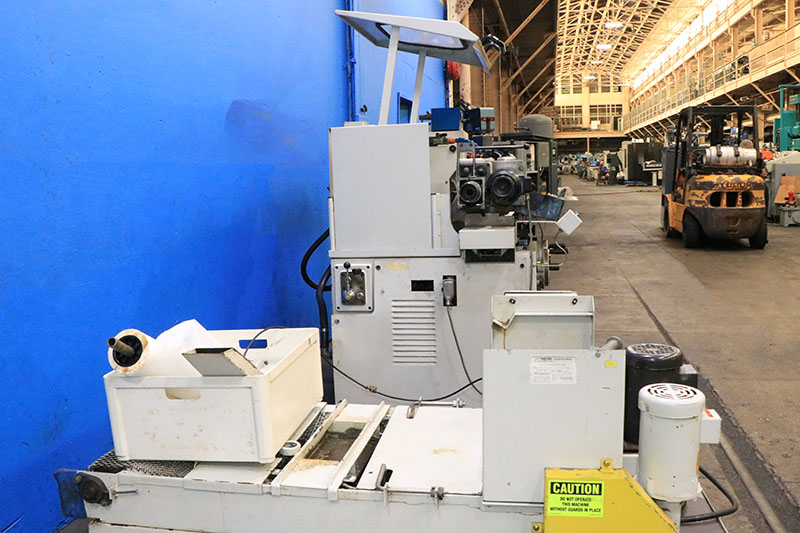

ELECTRICAL CABINET ON MACHINE (NOT SEPARATE)
ELECTRICAL CONTENTS IN CABINET, ALL ORIGINAL

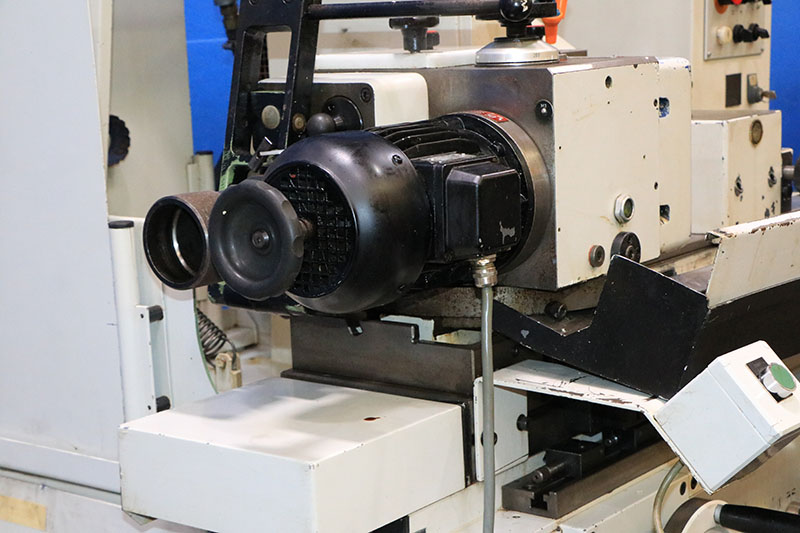

WHEELHEAD MOTOR, 3 KW (4 H.P.), 3/60/230-460 VOLTS
MACHINE IS PRESENTLY WIRED FOR 3/60/460 VOLTS,
 5.6 KVA SERVICE REQUIRED



** MADE IN GRENCHEN, SWITZERLAND **
** ORIGINAL & BEAUTIFUL - EXCEPTIONAL CONDITION & APPEARANCE **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
