OKK VM5 VERTICAL MACHINING CENTERS. VMC's

$16,500

Make:: OKK

Model:: VM5

Year:: 1998

Ref #:: 165469

Or call us for a quote at (973) 497-7500 or send us an email at cncmachines@machineryvalues.com

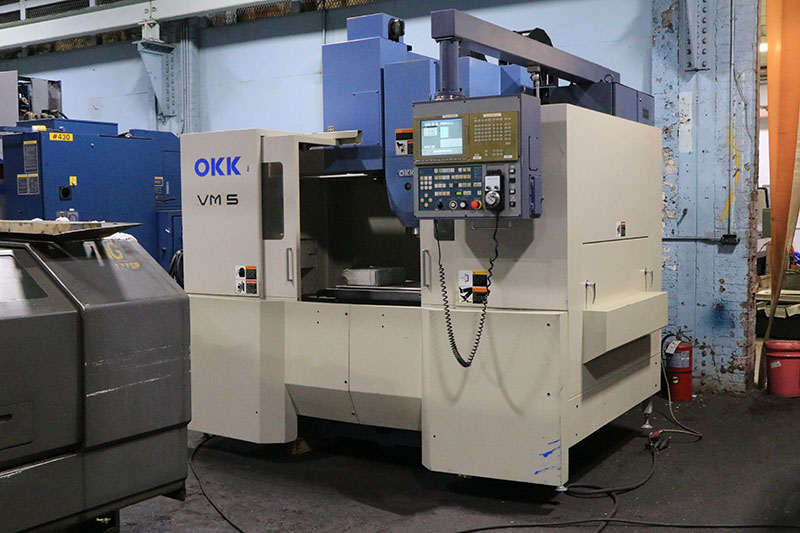

OKK VERTICAL MACHINING CENTER
MODEL: VM-5,  S/N: 205 / MA60078,  YEAR: 1998

SPECIFICATIONS:
X-AXIS TRAVEL...................... 32.28"
Y-AXIS TRAVEL...................... 20.07"
Z-AXIS TRAVEL...................... 20.07"
DISTANCE FROM TABLE TO SPINDLE .... 5.9"MIN - 25.98"MAX
DISTANCE FROM COLUMN TO SPINDLE ... 20.07"

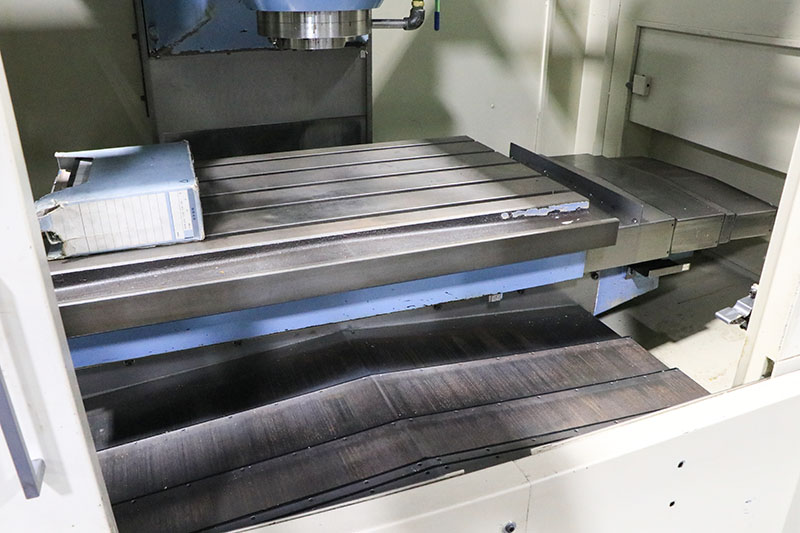

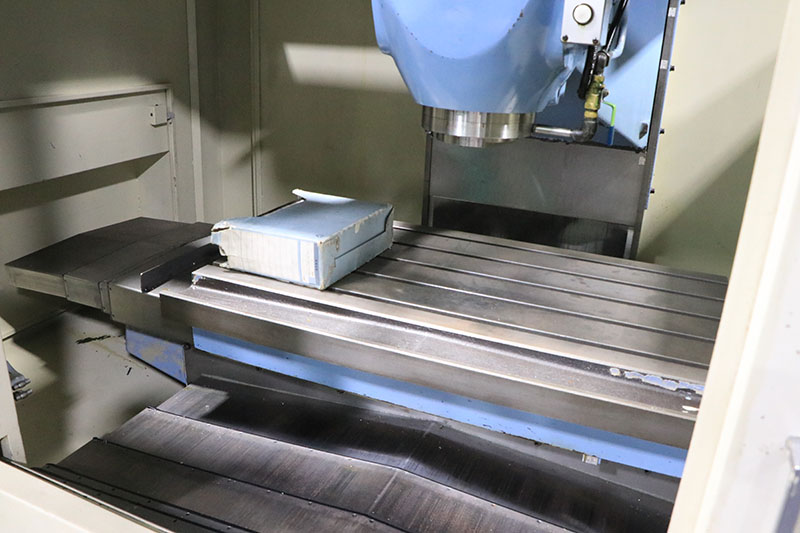

TABLE SIZE ........................ 41.33 x 22.04"
TABLE LOAD CAPACITY ............... 1,763 LBS
SPINDLE SPEED RANGE................ 25 - 8,000 RPM

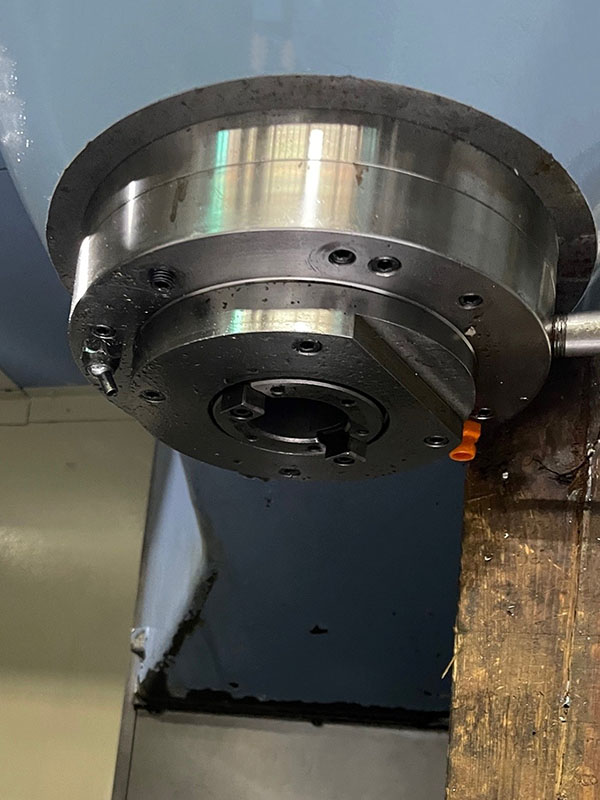

SPINDLE TAPER...................... CAT 40

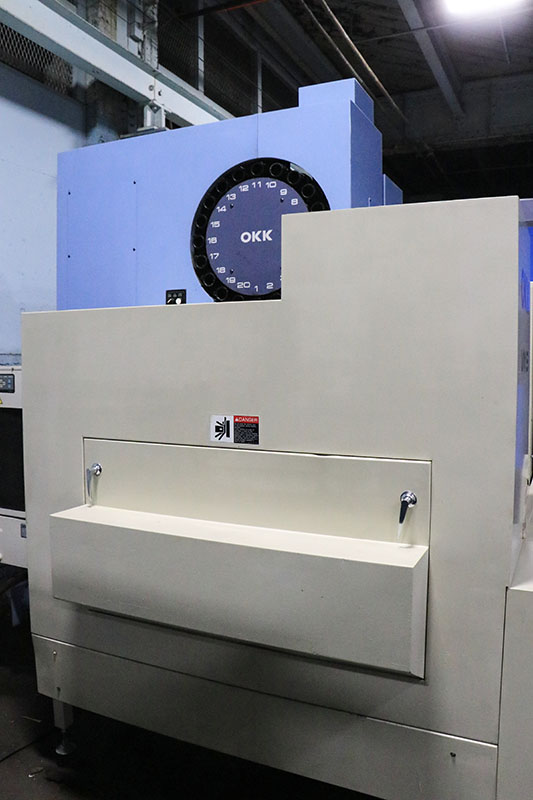

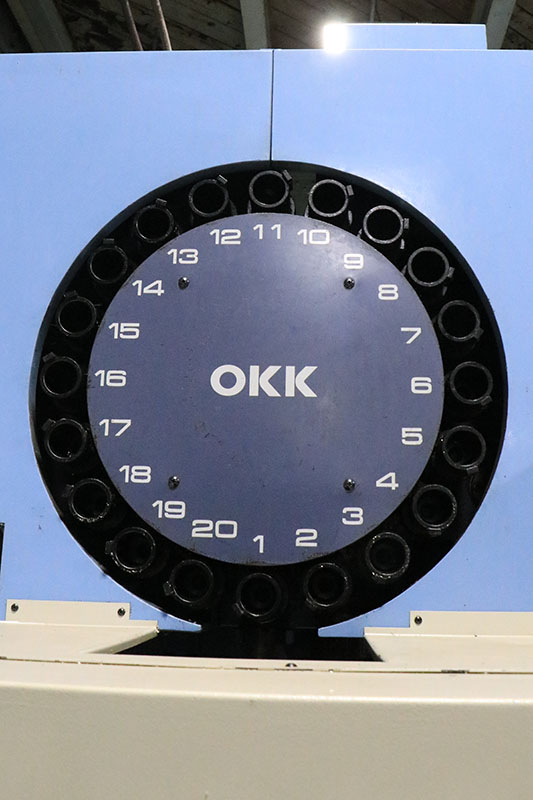

TOOL MAGAZINE CAPACITY............. 20 ATC
APPROXIMATE FLOOR SPACE ........... 104"L x 114"W x 109.25"H
APPROXIMATE WEIGHT ................ 15,500 LBS


EQUIPPED WITH:

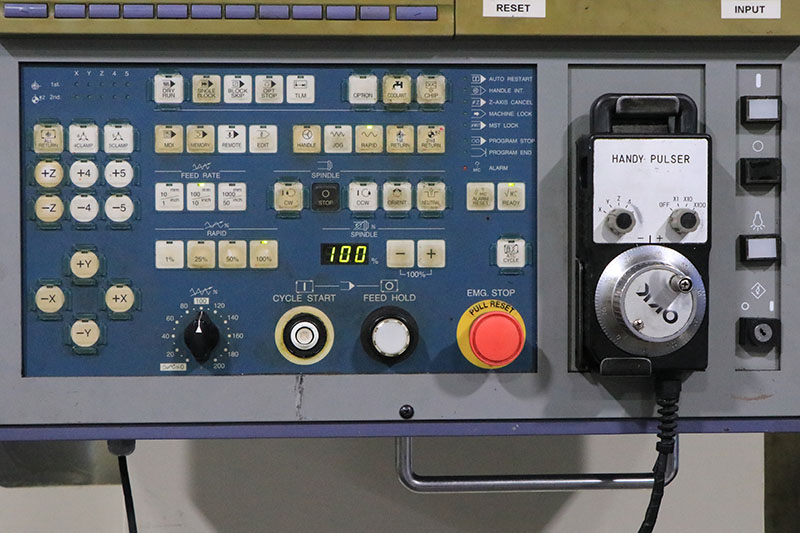

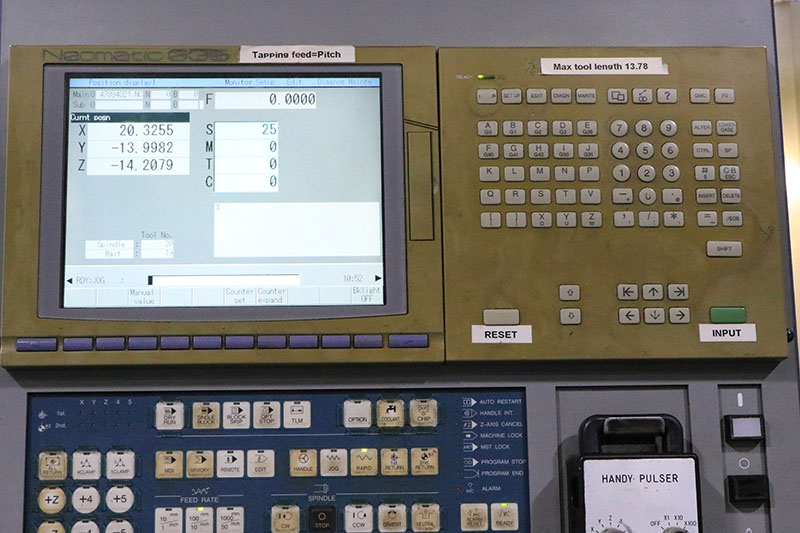

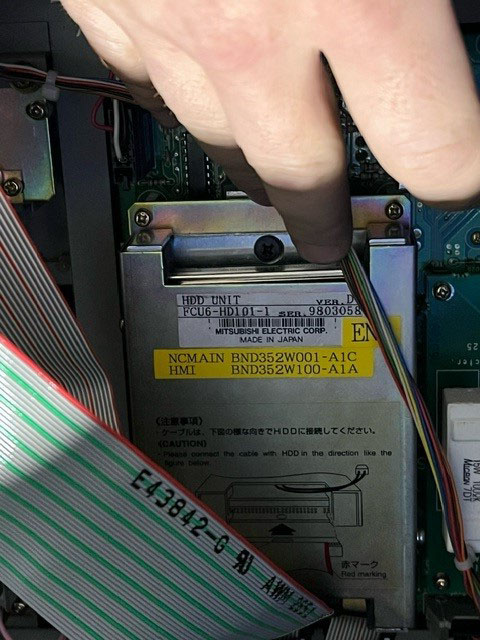

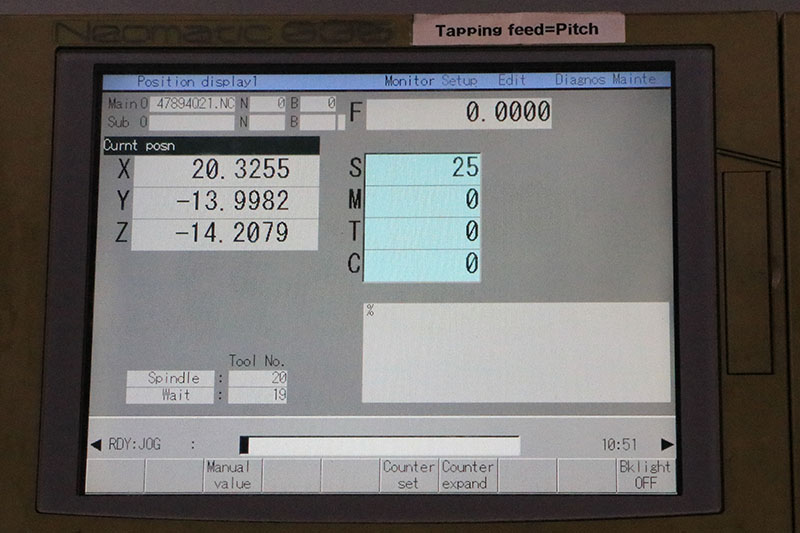

MITSUBISHI-MELDAS MODEL: NEUMATIC 635 CONTROL
AC SERVO DRIVES & MOTORS ALL AXES
HARDENED & GROUND BOXWAYS
RIGID TAPPING
TWIN CHIP AUGERS

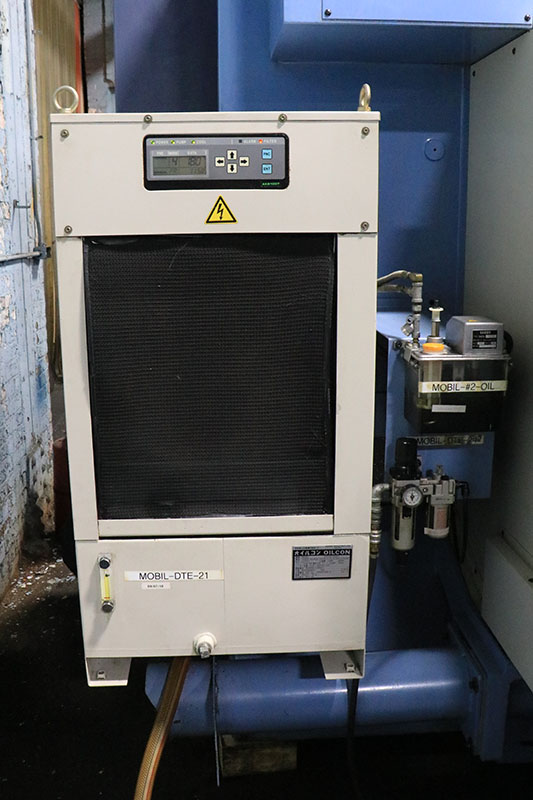

SPINDLE OIL CHILLER
COOLANT SYSTEM
10 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
