Ooya RE2-1300A RADIAL ARM DRILLS

$12,500

Make:: Ooya

Model:: RE2-1300A

Year:: 1984

Ref #:: 178242

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

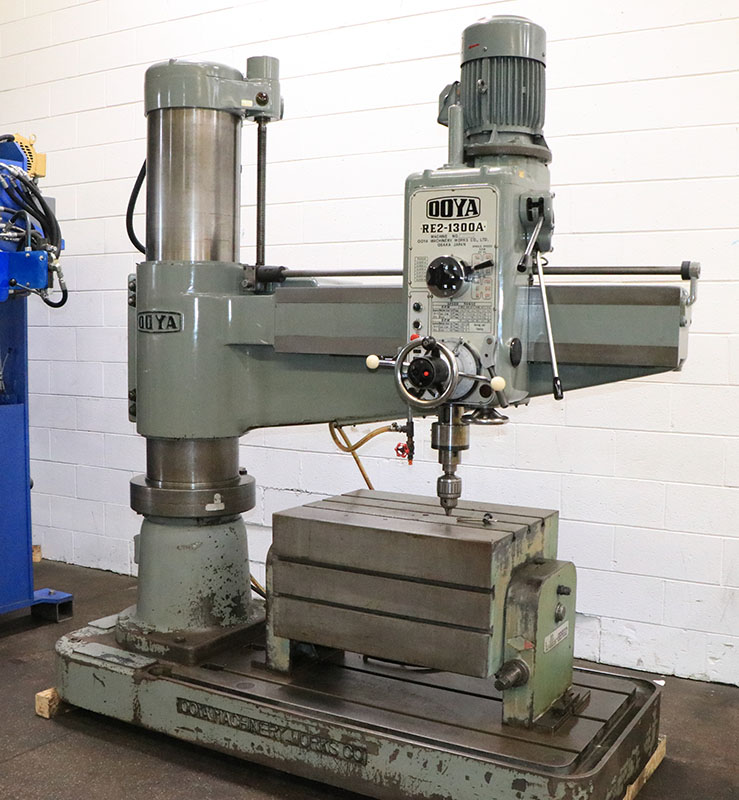

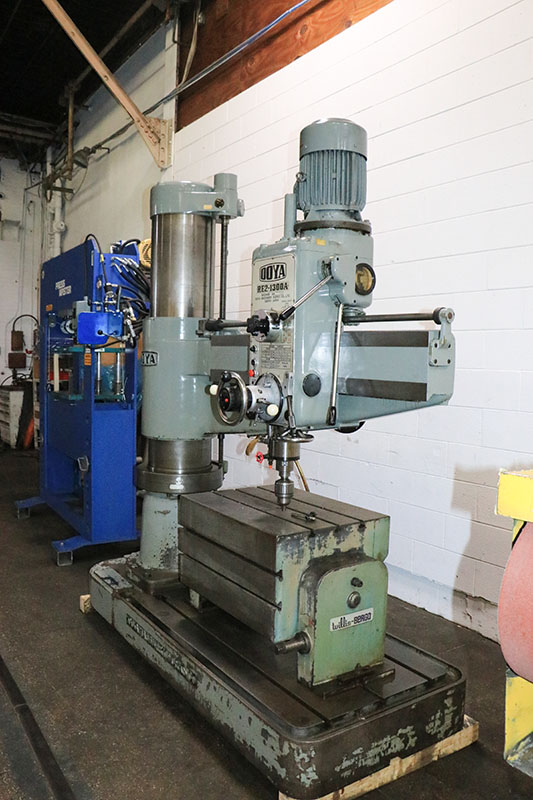

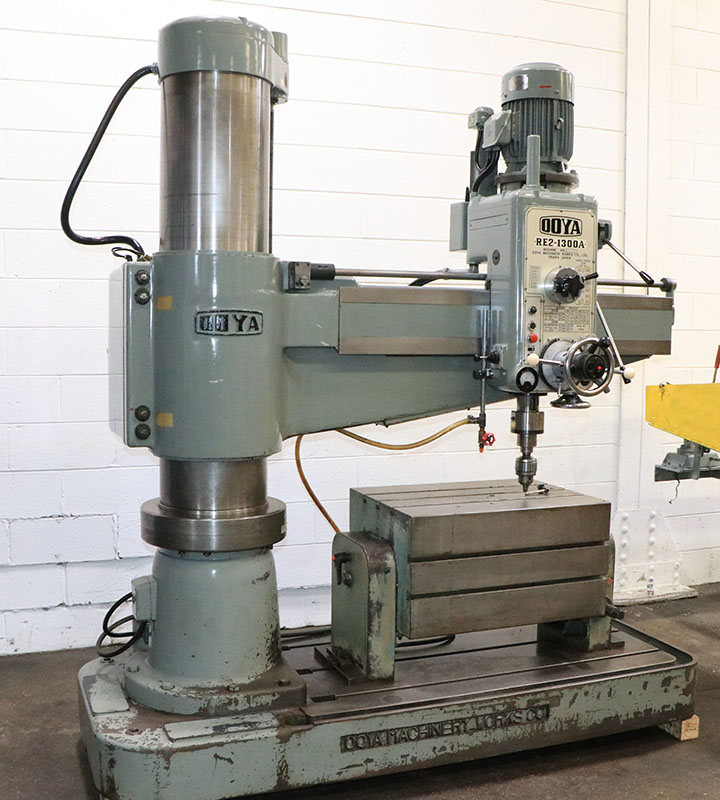

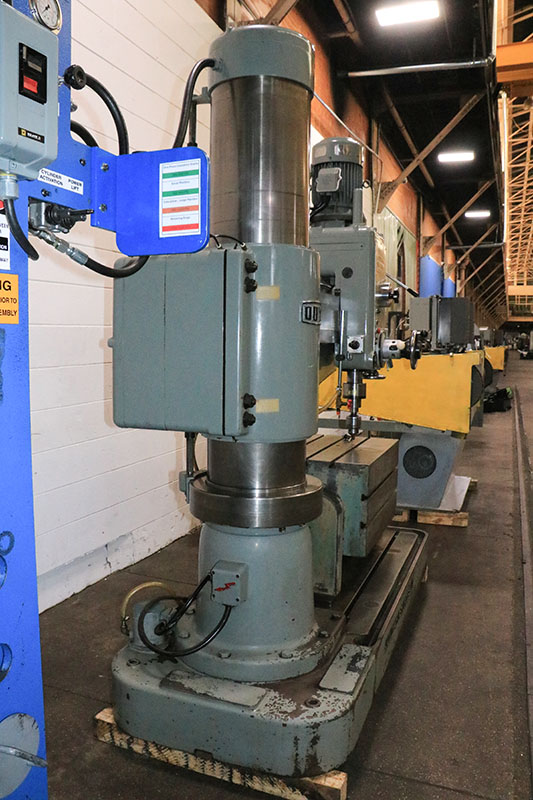

4-1/2' X 13" OOYA RADIAL DRILL

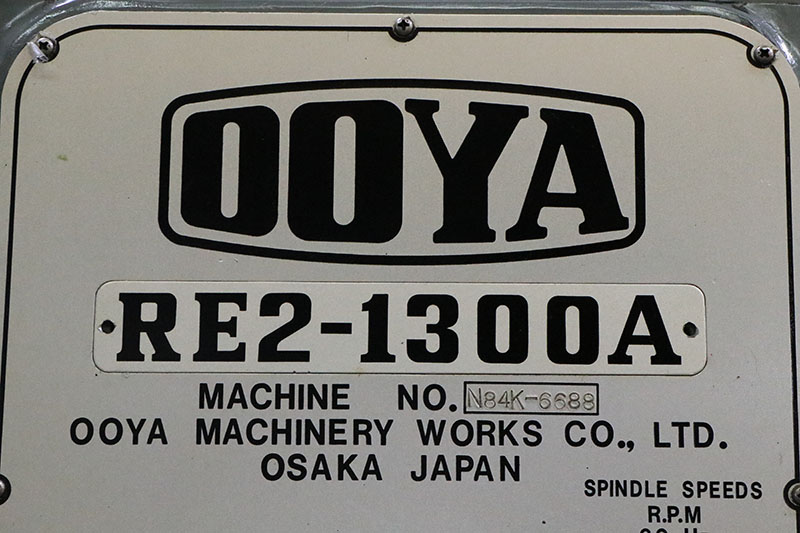

MODEL: RE2 1300A,  S/N: N84K-6688,  MFG: 1984

 SPECIFICATIONS:
MAXIMUM DISTANCE SPINDLE TO COLUMN............ 53-3/4"
MINIMUM DISTANCE SPINDLE TO COLUMN............ 13-3/8"
DIAMETER OF COLUMN............................ 13-3/8"
DRILL CAPACITY, MILD STEEL:
       DRILLING STEEL......................... 2"
       DRILLING CAST IRON..................... 2-3/8"
       BORING IN STEEL........................ 4"
       BORING IN CAST IRON.................... 7-18"

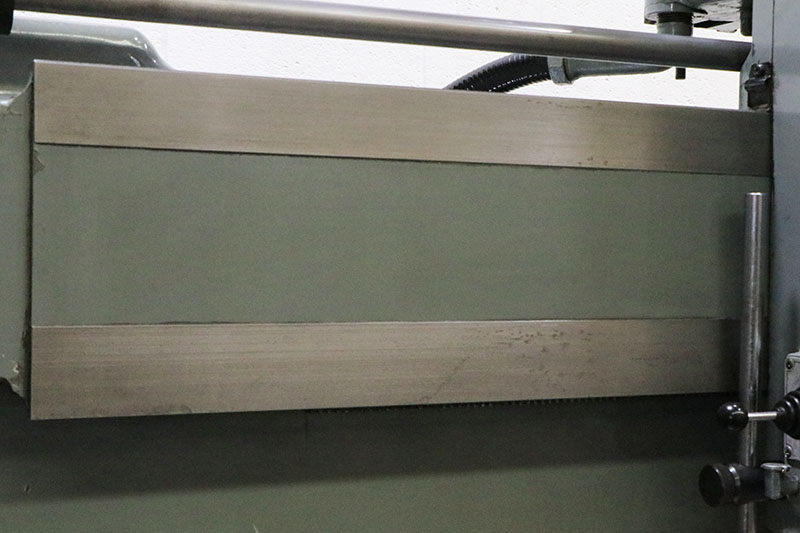

TRAVERSE OF SPINDLE HEAD ON ARM............... 36"
TRAVERSE OF ARM ON COLUMN:
  MAX. DISTANCE BETWEEN SPINDLE AND BASEPLATE.. 51-1/8"
  MIN. DISTANCE BETWEEN SPINDLE AND BASEPLATE.. 14-3/4"
SPINDLE:
  TRAVERSE OF SPINDLE........................... 11-13/16"
  TAPER IN SPINDLE.............................. #5 MT
  SPINDLE DIAMETER ............................. 3-1/16"

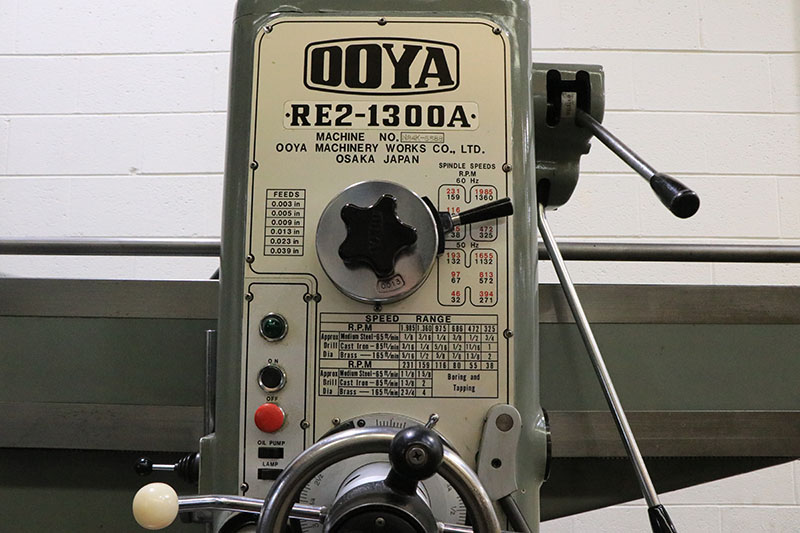

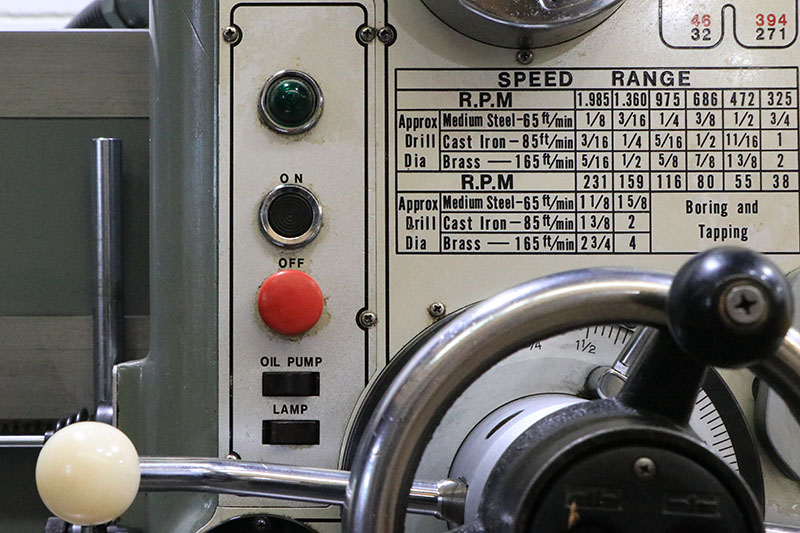

  RANGE OF SPINDLE SPEEDS(12)................... 38 - 1985 RPM
  RANGE OF FEEDS(6).................. .003" - .039" PER REV
APPROXIMATE MACHINE DIMENSIONS .......... 82"L x 33"W
                                         x 92"H HEAD DOWN
APPROXIMATE MACHINE WEIGHT .................... 6,750 LBS.

EQUIPPED WITH:
- POWER ELEVATION & CLAMPING OF ARM ON COLUMN
- POWER CLAMPING OF HEAD ON ARM

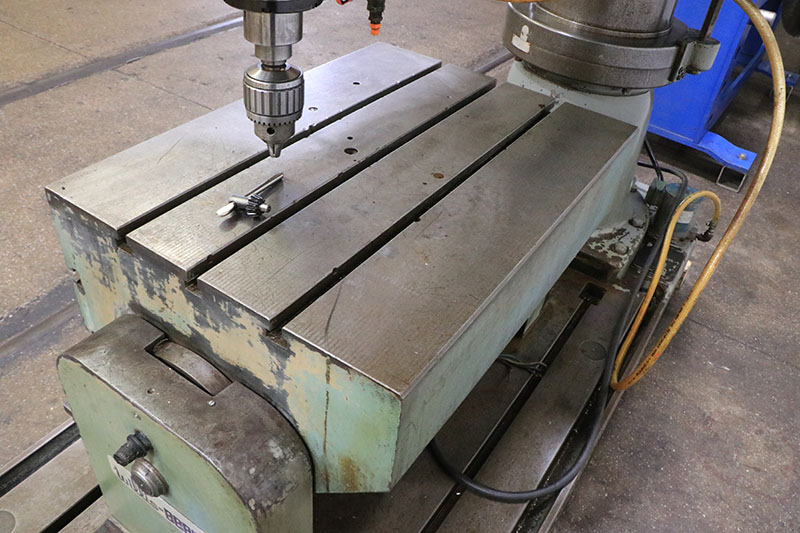

- WILLIS-BERGO MODEL: WB-750 UNIVERSAL BOX TABLE
     TABLE TILTS 0 - 90°, TABLE WEIGHT 750 LBS.
     TABLE DIMENSIONS 25-5/8" x 17-3/4" x 16-3/8"H
- T-SLOTTED BASE

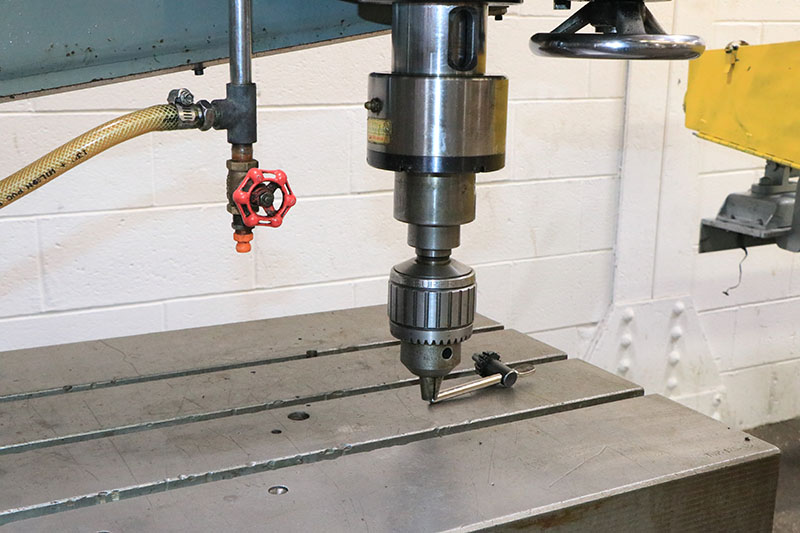

- 3/4" CAPACITY JACOBS CAPACITY DRILL CHUCK
- COOLANT SYSTEM
- 7.5 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
