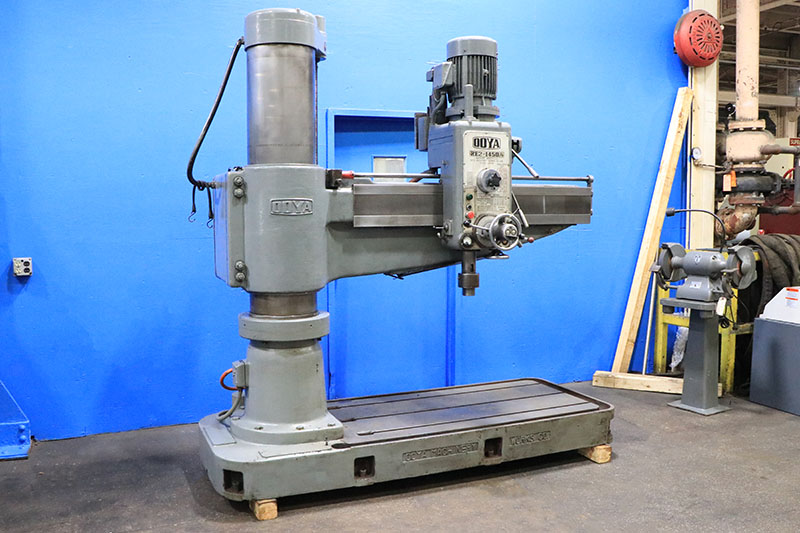

Ooya RE2-1450A RADIAL ARM DRILLS

$7,950

Make:
Ooya
Model:
RE2-1450A
Year:
1983
Ref #:
167741

Or call us for a quote at (973) 497-7500 or send us an email at boringmills@machineryvalues.com

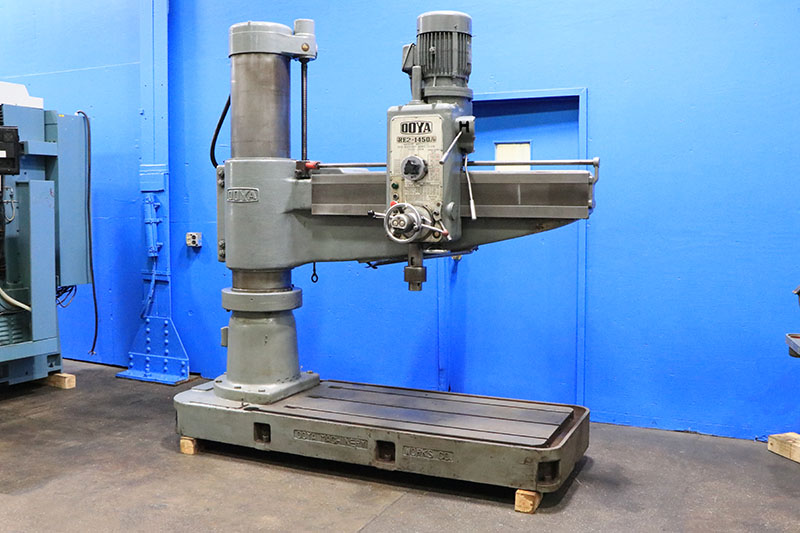

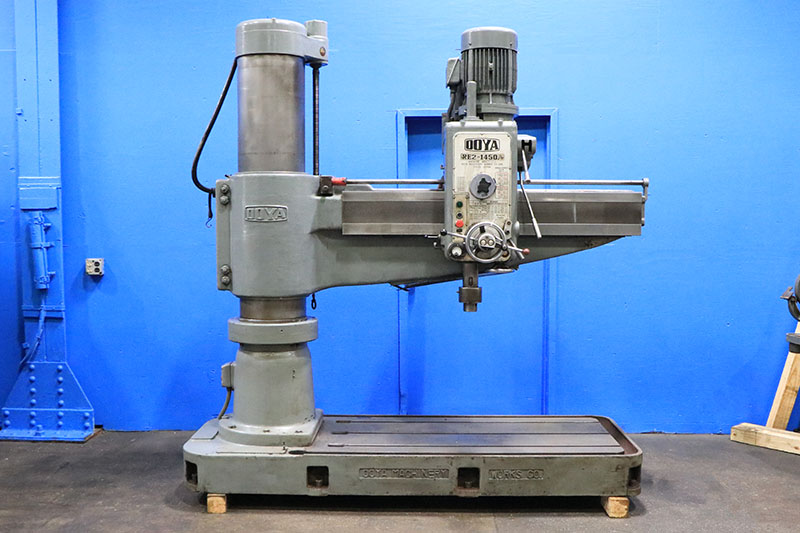

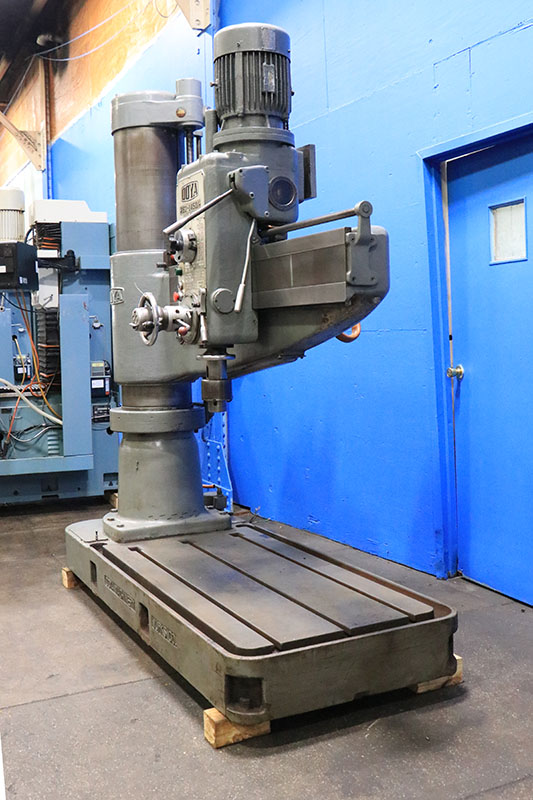

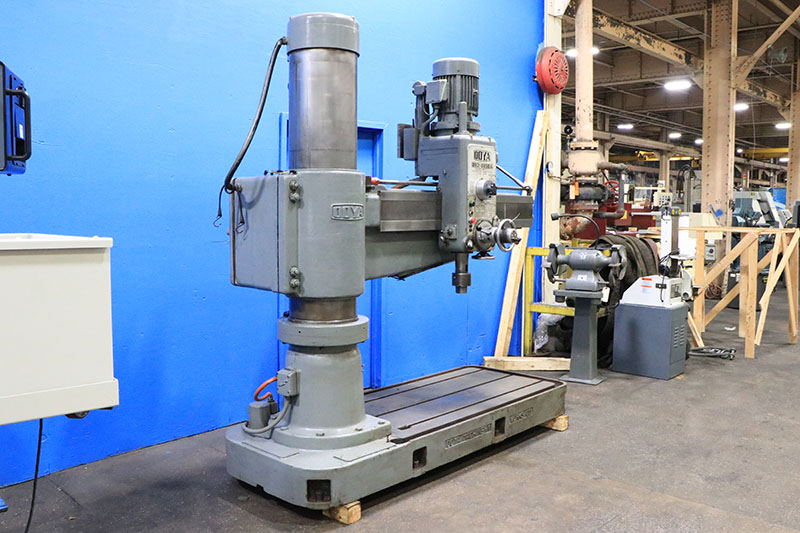

5' X 13" OOYA RADIAL DRILL

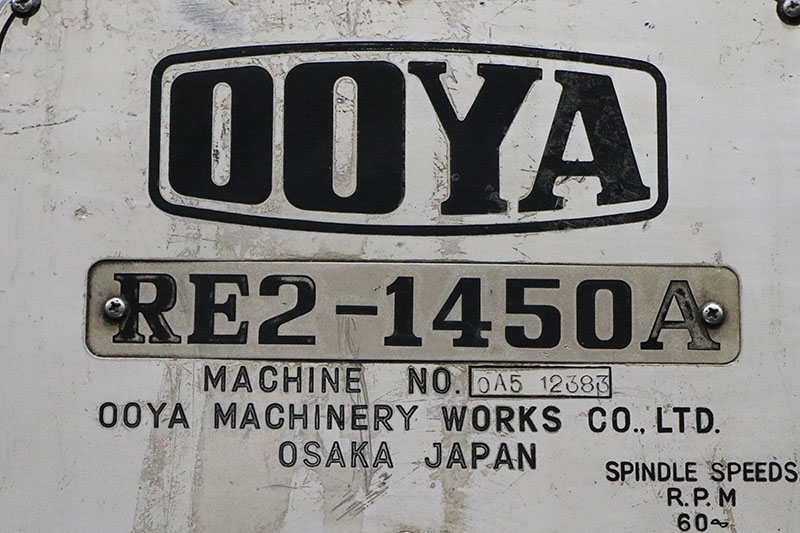

MODEL: RE2 1450A,  S/N: 0A5 1283,  NEW: 1983

SPECIFICATIONS:
MAXIMUM DISTANCE SPINDLE TO COLUMN............ 59-3/8"
MINIMUM DISTANCE SPINDLE TO COLUMN............ 13-3/4"
DIAMETER OF COLUMN............................ 13-3/8"
DRILL CAPACITY, MILD STEEL:
       DRILLING STEEL......................... 2"
       DRILLING CAST IRON..................... 2-3/8"
       BORING IN STEEL........................ 4"
       BORING IN CAST IRON.................... 7-1/8"
TRAVERSE OF SPINDLE HEAD ON ARM............... 45-5/8"
TRAVERSE OF ARM ON COLUMN:
  MAX. DISTANCE BETWEEN SPINDLE AND BASE...... 51-3/4"
  MIN. DISTANCE BETWEEN SPINDLE AND BASE...... 15"
SPINDLE:
  TRAVERSE OF SPINDLE......................... 12"
  TAPER IN SPINDLE............................ #5 MT

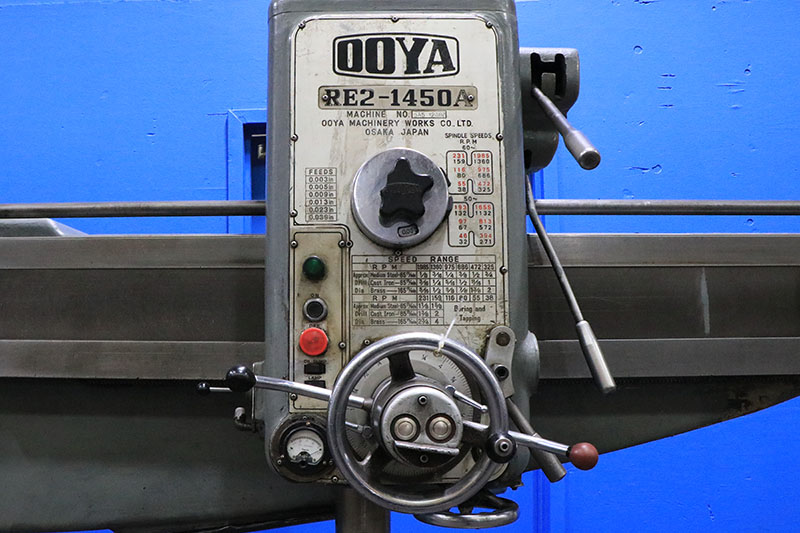

  RANGE OF SPINDLE SPEEDS(12)................. 39 - 1985 RPM
  RANGE OF FEEDS(6)............................. .003" - .04" PER REV
APPROXIMATE MACHINE DIMENSIONS .......... 88"L x 33"W
                                         x 115"H HEAD DOWN
APPROXIMATE MACHINE WEIGHT ................. 7,500 LBS.

EQUIPPED WITH:
 POWER ELEVATION & CLAMPING OF ARM ON COLUMN
 POWER CLAMPING OF HEAD ON ARM
 T-SLOTTED BOX TABLE

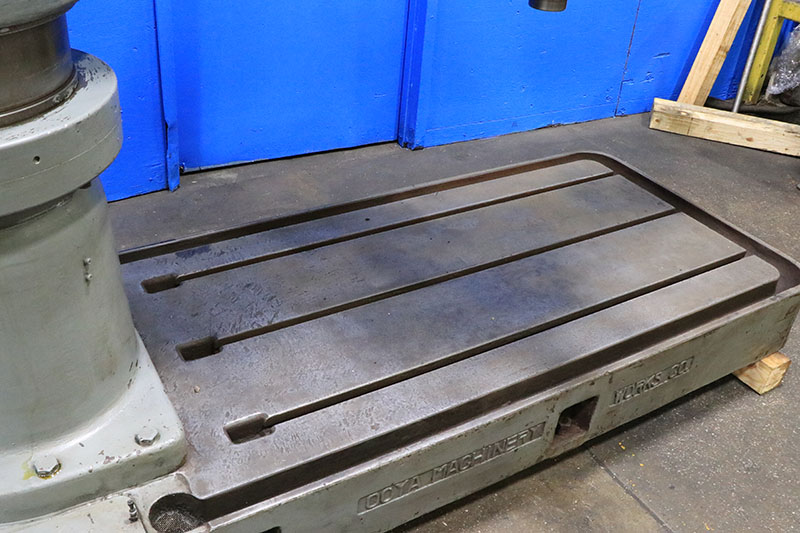

 T-SLOTTED BASE
 COOLANT SYSTEM
 7.3 HORSE POWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
