Orbitform P-845 RIVETERS

$17,500

Make:: Orbitform

Model:: P-845

Year:: 2018

Ref #:: 178836

Or call us for a quote at (973) 497-7500 or send us an email at rl@machineryvalues.com

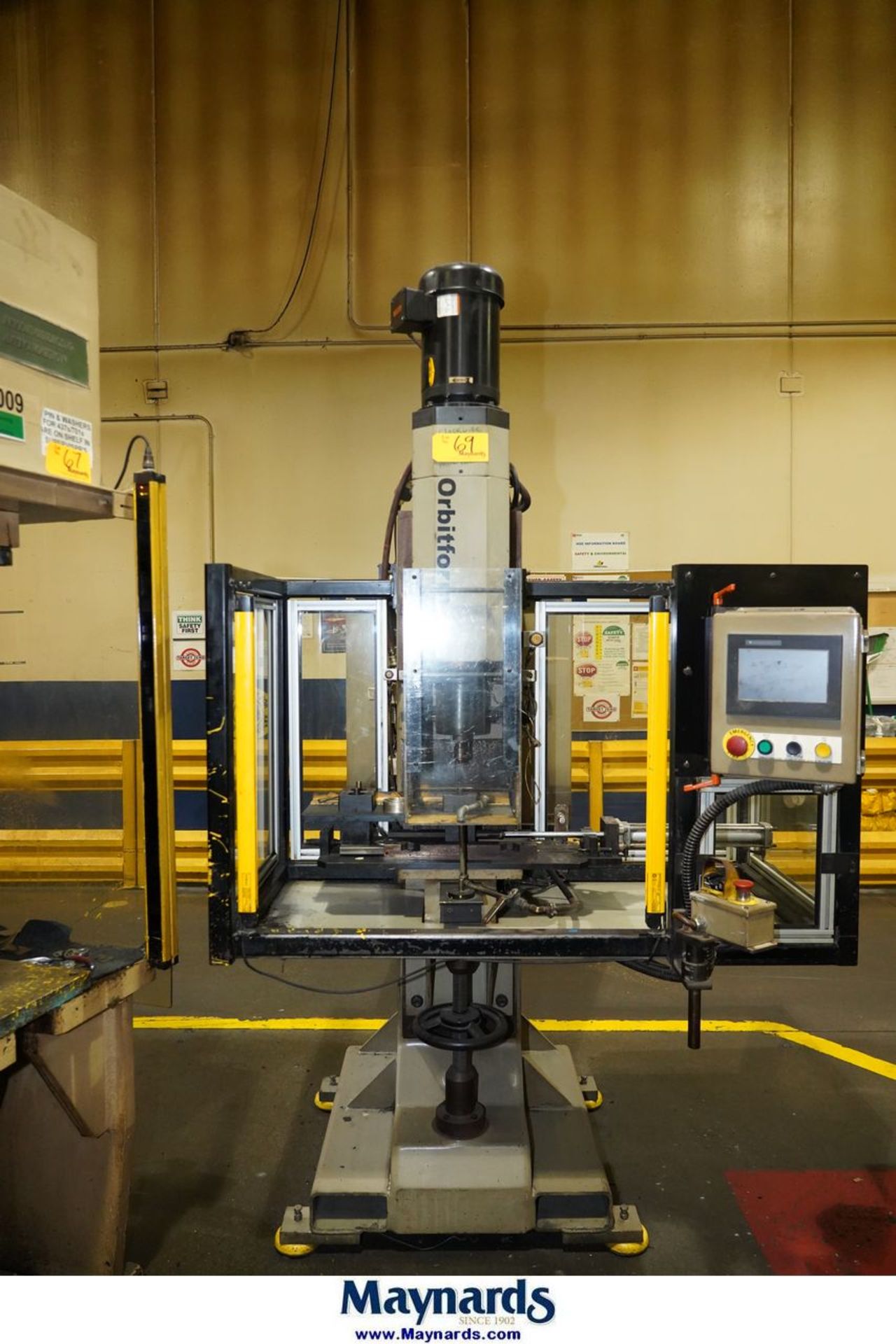

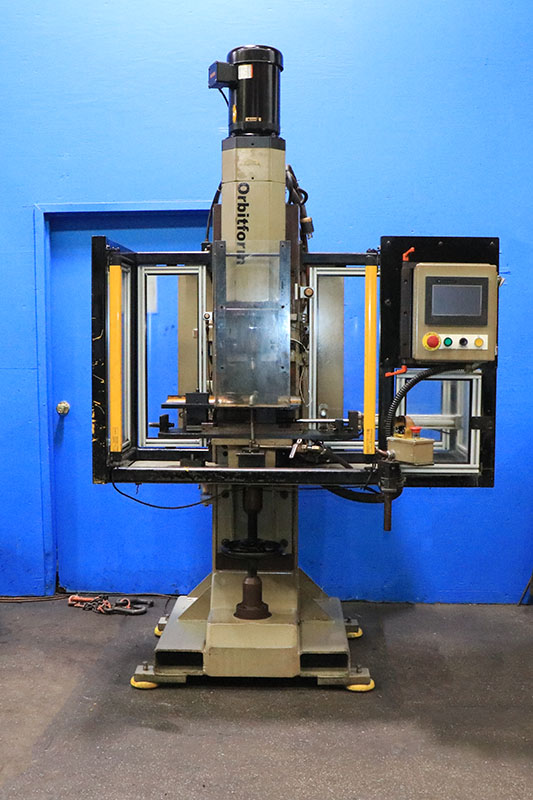

.840" CAPACITY ORBITFORM ORBITAL RIVETER
MODEL P-845        S/N 51988        NEW 2017

HEAD FORMING CAPACITY .(MILD STEEL).... .840" DIA.
STROKE ................................ .06" - 2-1/2"
MAXIMUM DOWNWARD FORCE @ 100 PSI ...... 12,700 LBS.
THROAT DEPTH .......................... 9"
WORK TABLE ............................ 16" X 26"
SADDLE RANGE .......................... 36"-48"

Overall Dimensions: 62" x 32" x 87" high
Approximate Weight: 1,400 lbs.
Work Table Dimensions: 61-1/2" x 32" x 34 3/4" high
Machine only weight: 1,200 lbs.

EQUIPPED WITH:
- LOADCELL FORCE MONITORING: FORCE READOUT & PROCESS OPTIMIZATION
- LINEAR VARIABLE DIFFERENTIAL TRANSFORMER: MONITOR STROKE DISTANCE & INCREASE PRECISION AND CONSISTENT HEAD FORMING
- 1-1/2 HP, 1140 RPM / 480 VOLT ELECTRIC MOTOR

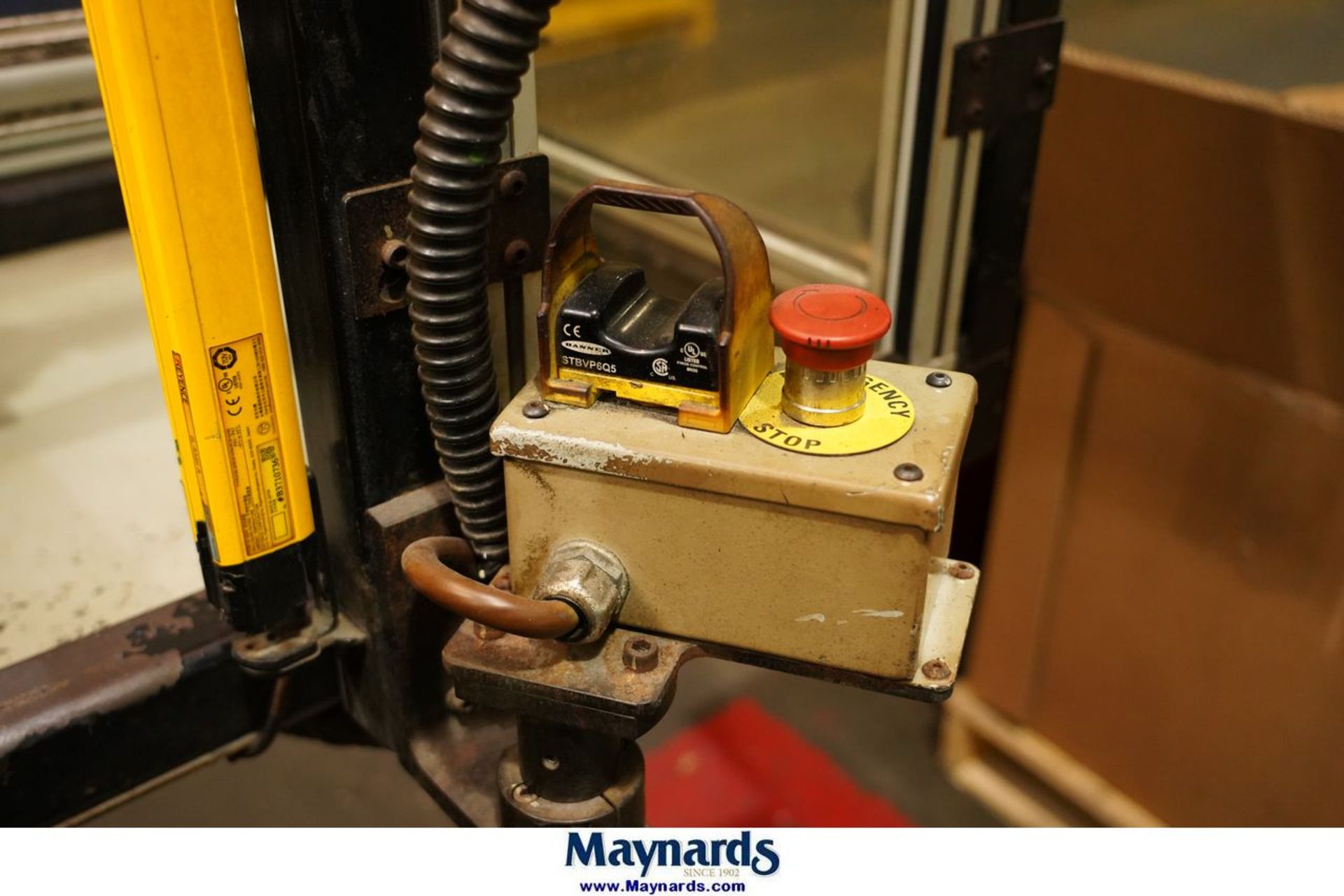

- DUAL FINGER TRIPS
- ADJUSTABLE DWELL TIMER
- CYCLE COUNTER
- MANUAL AND AUTOMATIC MODES
- MANUAL JOG, ADVANCE AND RETURN SELECTOR SWITCH
- HS1006 HEAD WITH ANTI ROTATION
- BANNER LIGHT CURTAINS
- WORK LIGHT
- LEVELING PADS
