Poreba TRP93 D200X6M ENGINE LATHES

Price on Request

Make:
Poreba
Model:
TRP93 D200X6M
Year:
1996
Ref #:
164316

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

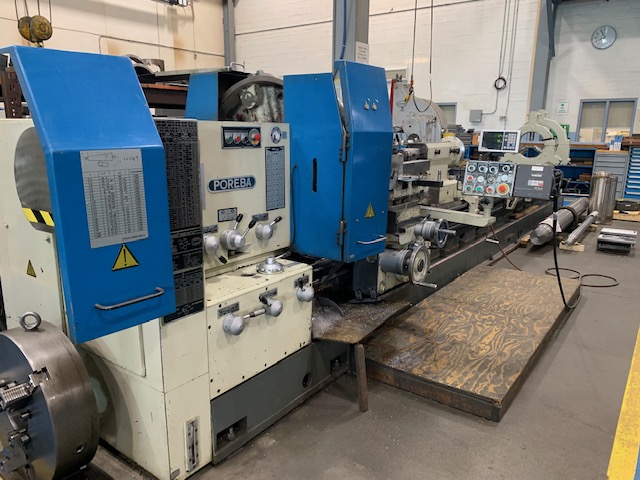

36" X 240" POREBA HOLLOW SPINDLE ENGINE LATHE
MODEL: TRP-93 D200M X 6M

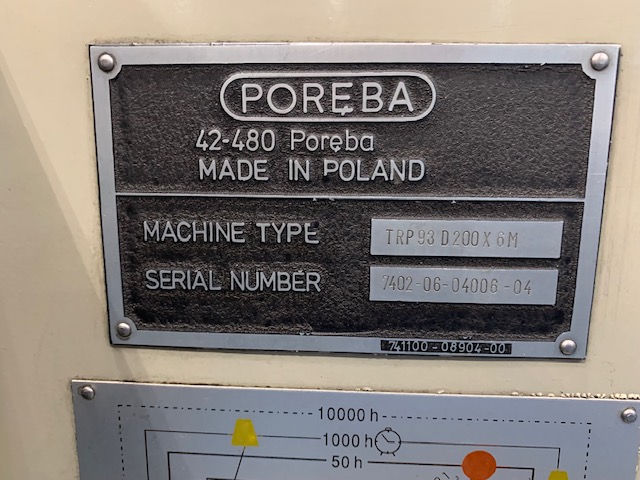

S/N: 7402-06-04006-04, NEW: 1996

SPECIFICATIONS:
SWING OVER BED ....................... 36-1/2"
SWING OVER CROSS SLIDE ............... 24-3/4"
SPINDLE NOSE CAMLOCK ................. A1-15
HOLE THROUGH SPINDLE ................. 7.8"
DISTANCE BETWEEN CENTERS ............. 240"
SPINDLE SPEED RANGE (21) ............. 5 - 500 RPM
LONGITUDINAL FEED RANGE (70) ......... .0043 - .249 IPR
CROSS FEED RANGE (70) ................ .0021 - .249 IPR
TOP SLIDE RANGE FEED (70) ............ .001 - .062 IPR
INCH THREADING RANGE (56) ............ .5 - 30 TPI
METRIC THREADING RANGE (62) .......... 1 - 60 MM
WIDTH OF BED ......................... 23"
TAILSTOCK SPINDLE DIAMETER ........... 5-1/8"
TAILSTOCK SPINDLE TAPER .............. #6MT
TAILSTOCK SPINDLE TRAVEL ............. 11-3/4"
APPROXIMATE FLOOR SPACE............... 74" X 320"
APPROXIMATE WEIGHT ................... 25,500 LBS.

EQUIPPED WITH:
- INCH & METRIC THREADING CAPABILITY
- POWER FEED TO THE TOP SLIDE FOR TAPER TURNING
- VARIABLE FEED CONTROL FOR CARRIAGE
- FAGOR TWO AXIS DIGITAL READOUT

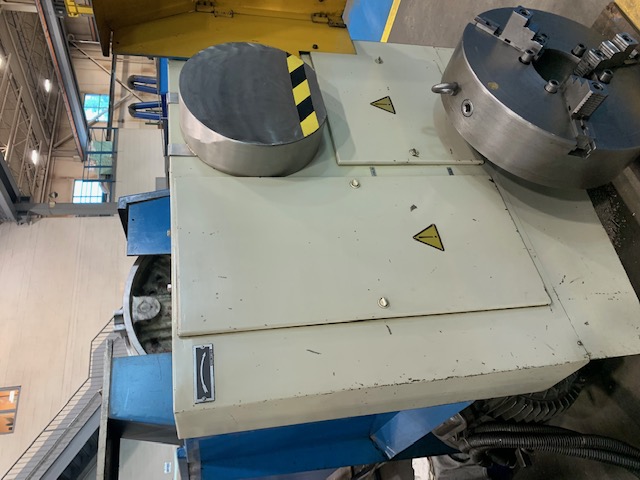

- 39.5" 4-JAW CHUCKS IN FRONT & REAR OF SPINDLE
- 15-3/4" CAPACITY ROLLER TYPE STEADY REST
- 23" CAPACITY ROLLER TYPE STEADY REST
- 10" CAPACITY FOLLOW REST
- COOLANT SYSTEM
- 6-WAY POWER & RAPID TRAVERSE
- TWO SPEED TAILSTOCK

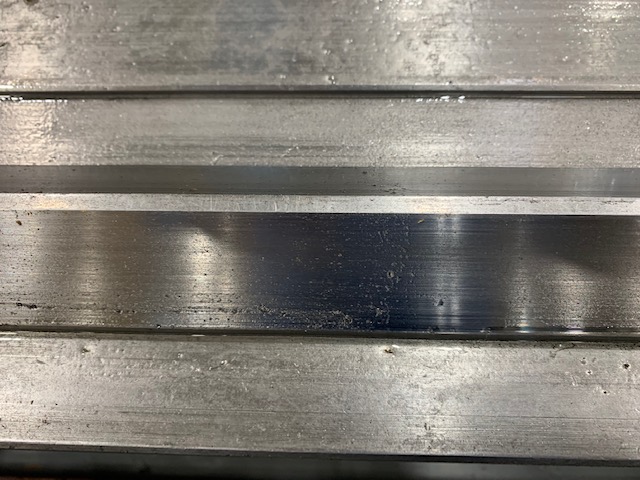

- INDUCTION HARDENED & GROUND BEDWAYS
- 23 / 36 HORSE POWER TWO SPEED DRIVE MOTOR

INSPECT UNDER POWER IN A NORTH AMERICAN PLANT
