Poreba TRP93X3M ENGINE LATHES

Price on Request

Make:

Poreba

Model:

TRP93X3M

Year:

1994

Ref #:

178439

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

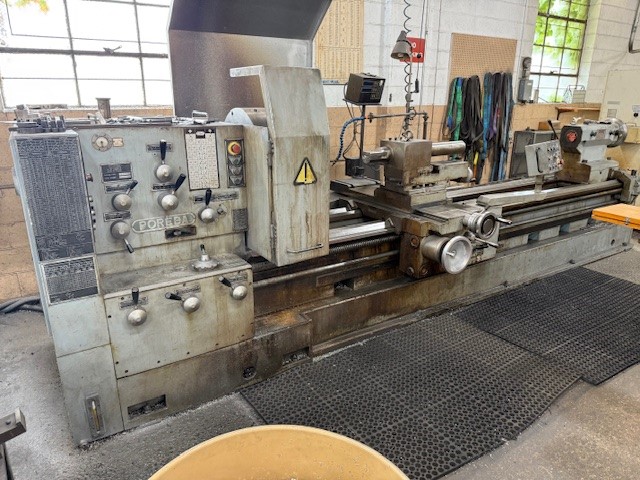

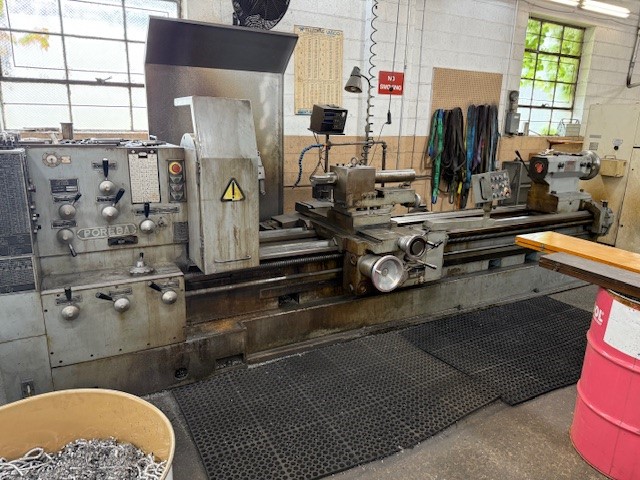

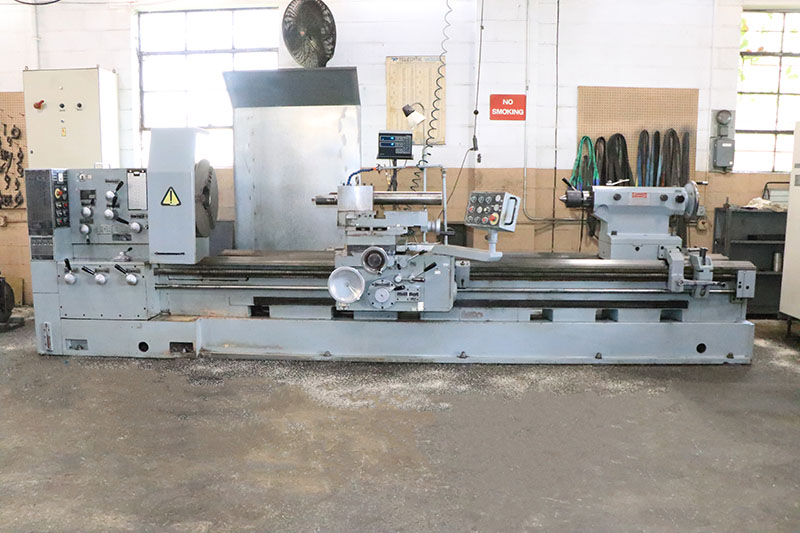

36" X 120" POREBA HOLLOW SPINDLE ENGINE LATHE

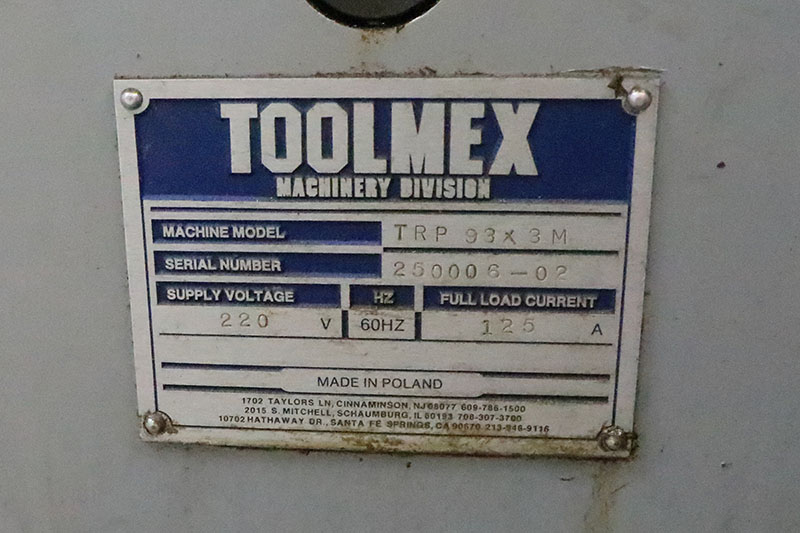

MODEL: TRP-93 X 3M

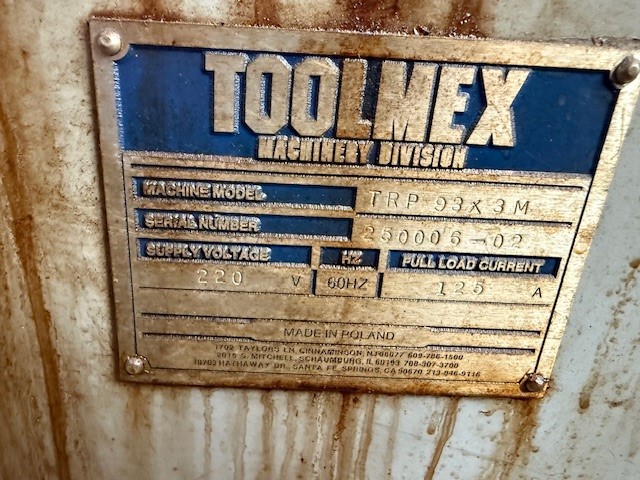

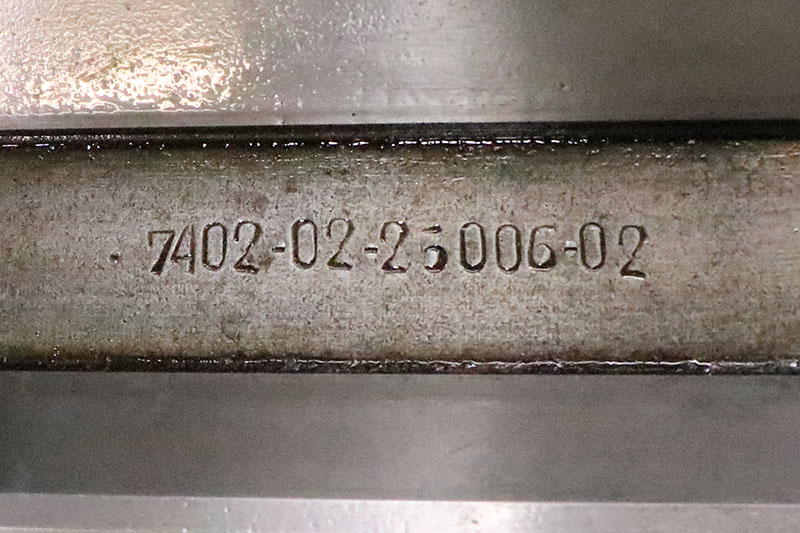

S/N: 250006-02, NEW: 1994



SPECIFICATIONS:

SWING OVER BED ....................... 36-1/2"

SWING OVER CROSS SLIDE ............... 24-3/4"

SPINDLE NOSE CAMLOCK ................. A1-15

HOLE THROUGH SPINDLE ................. 3.75"

DISTANCE BETWEEN CENTERS ............. 120"

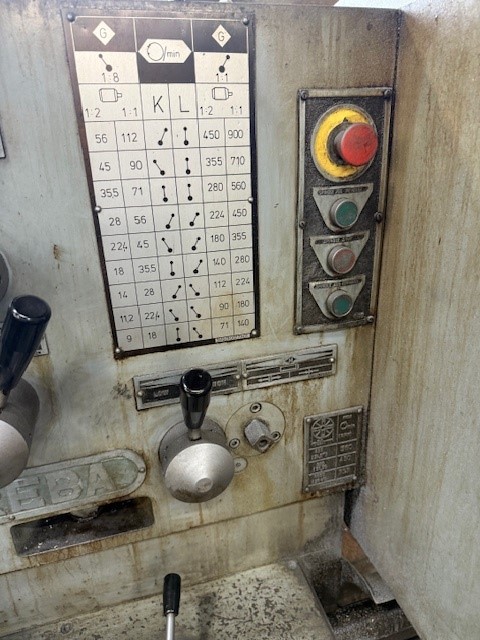

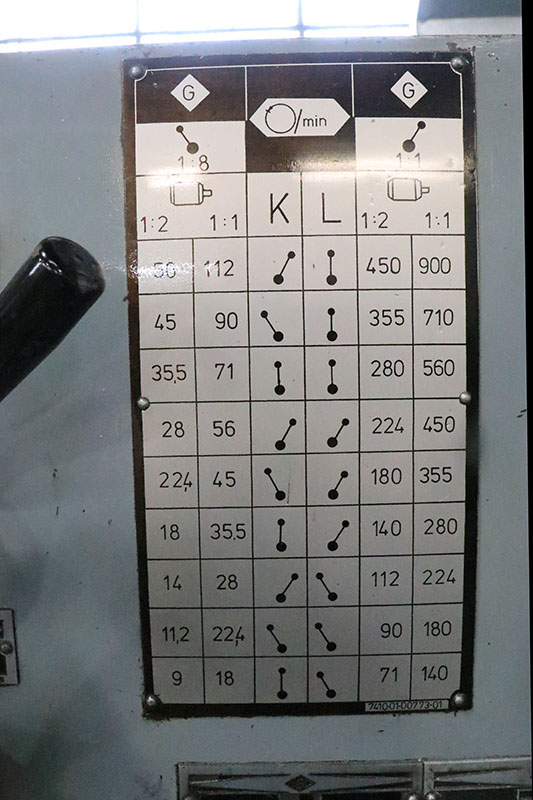

SPINDLE SPEED RANGE (21) ............. 9 - 900 RPM

LONGITUDINAL FEED RANGE (70) ......... .0043 - .249 IPR

CROSS FEED RANGE (70) ................ .0021 - .249 IPR

TOP SLIDE RANGE FEED (70) ............ .001 - .062 IPR

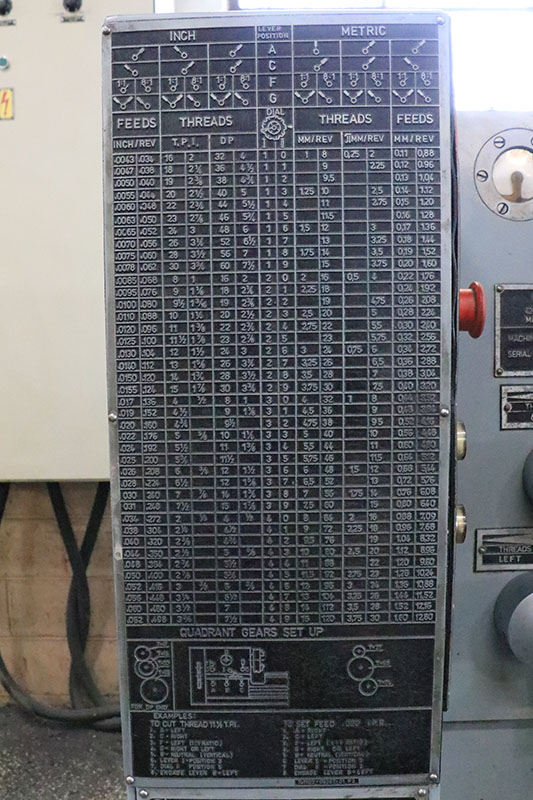

INCH THREADING RANGE (56) ............ .5 - 30 TPI

METRIC THREADING RANGE (62) .......... 1 - 60 MM

WIDTH OF BED ......................... 23"

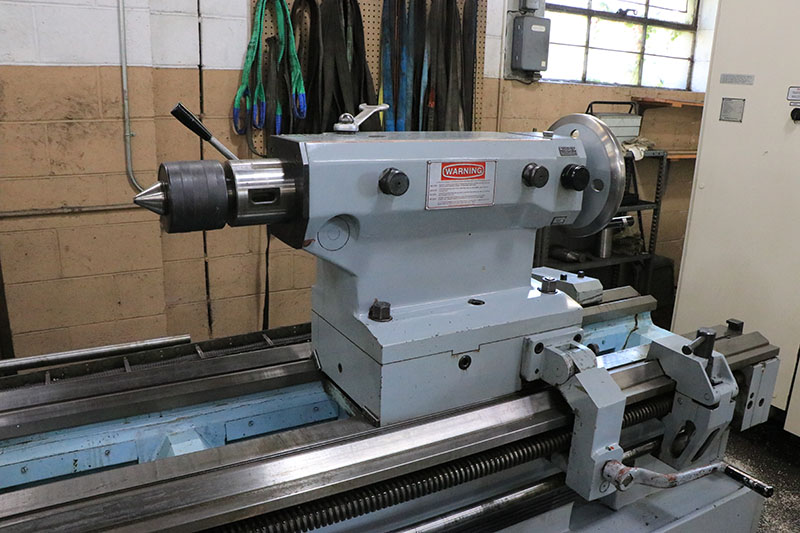

TAILSTOCK SPINDLE DIAMETER ........... 5-1/8"

TAILSTOCK SPINDLE TAPER .............. #6MT

TAILSTOCK SPINDLE TRAVEL ............. 11-3/4"

APPROXIMATE FLOOR SPACE............... 74" X 220"

APPROXIMATE WEIGHT ................... 17,500 LBS.



EQUIPPED WITH:

- INCH & METRIC THREADING CAPABILITY

- TAPER TURNING ATTACHMENT

- POWER FEED TO THE TOP SLIDE FOR TAPER TURNING

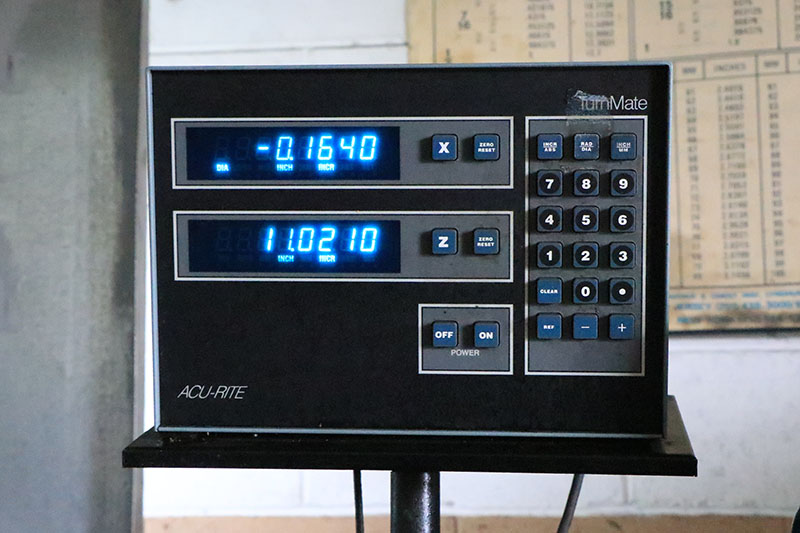

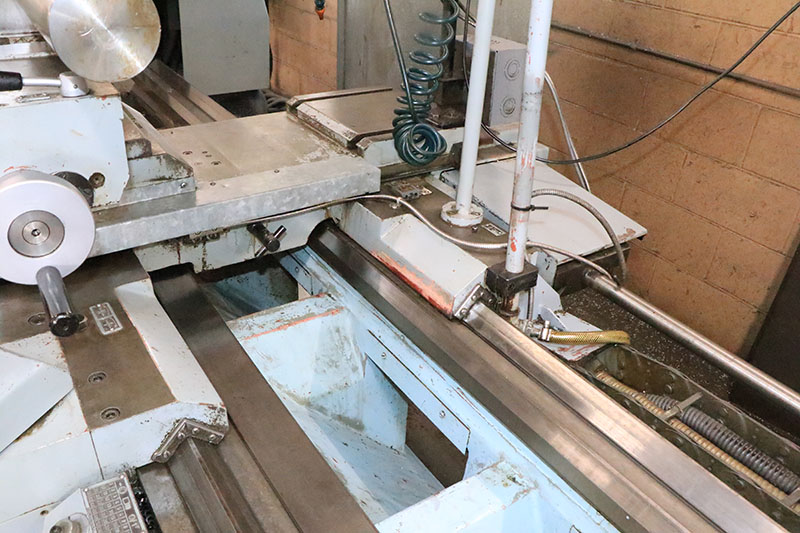

- ACU-RITE TWO AXIS DIGITAL READOUT

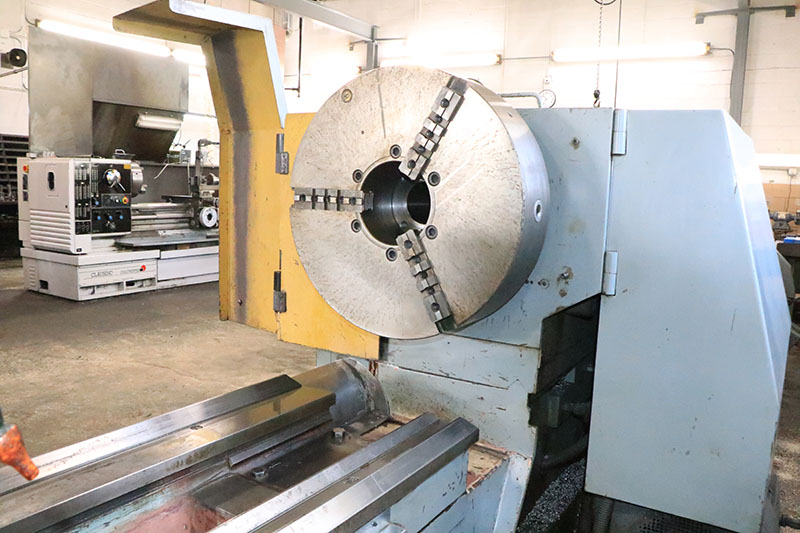

- 4-JAW CHUCK

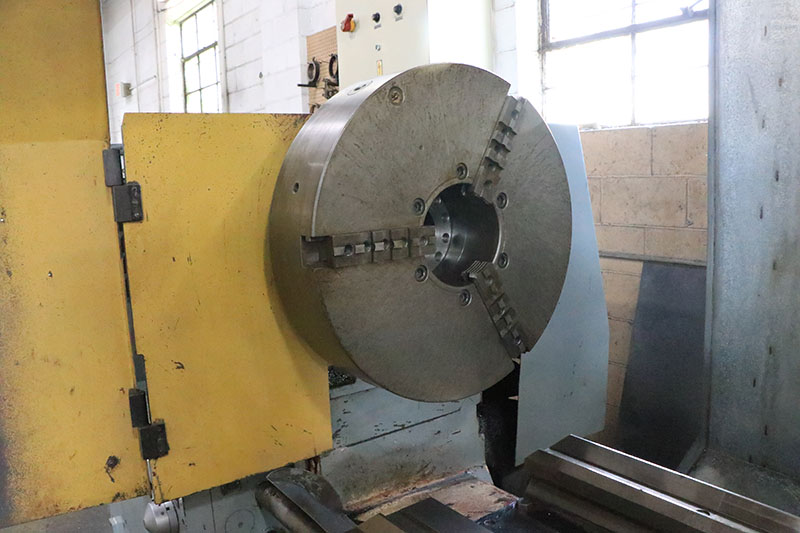

- 3-JAW CHUCK

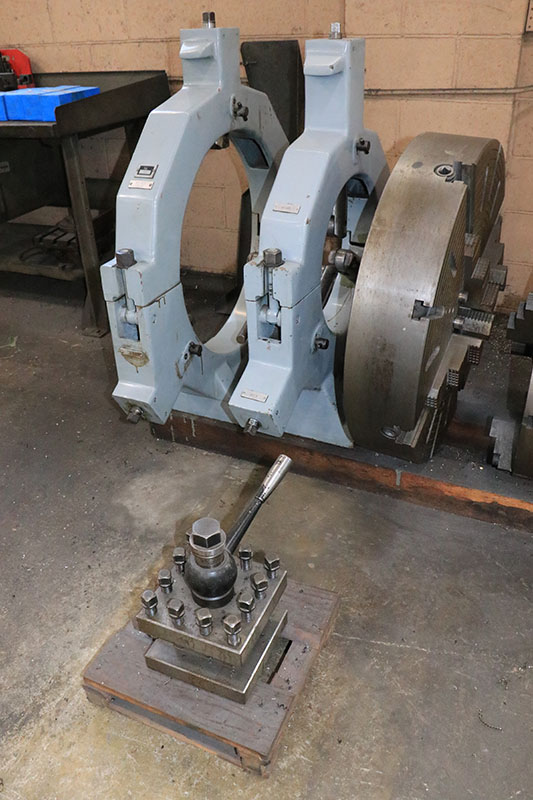

- QUICK CHANGE TOOLPOST

- BORING BAR

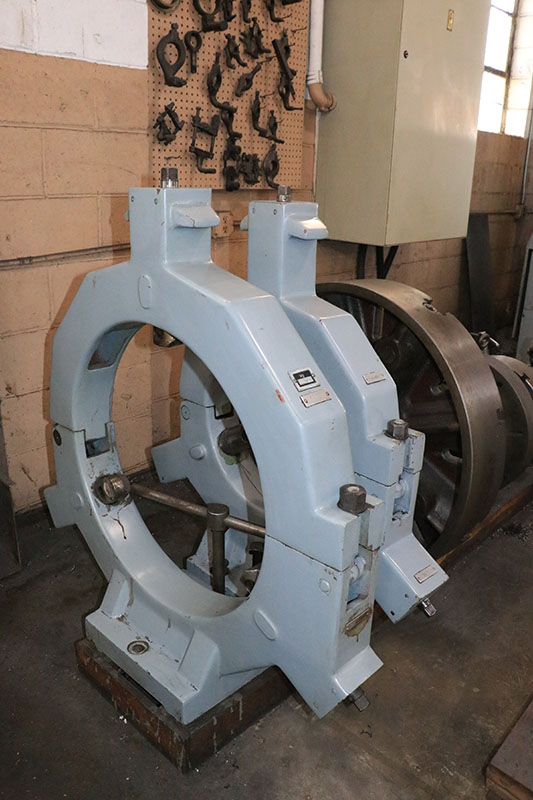

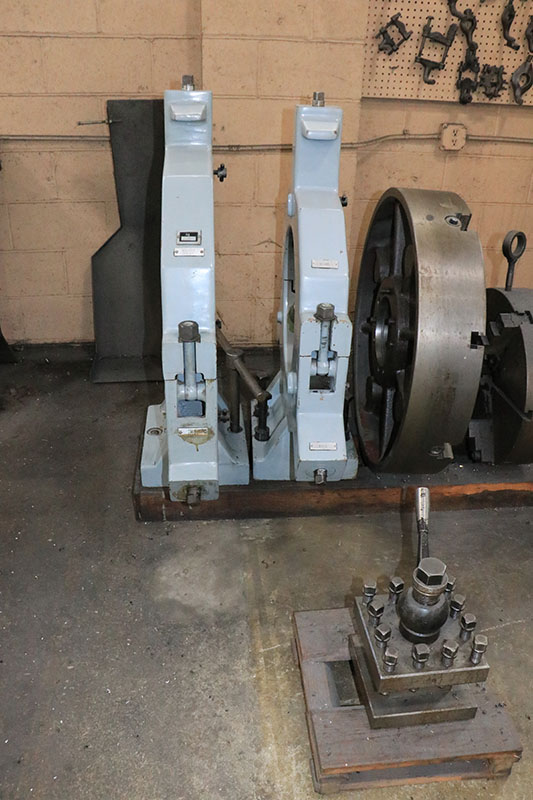

- 15-3/4" CAPACITY ROLLER TYPE STEADY REST

- 23" CAPACITY ROLLER TYPE STEADY REST

- COOLANT SYSTEM

- 6-WAY POWER & RAPID TRAVERSE

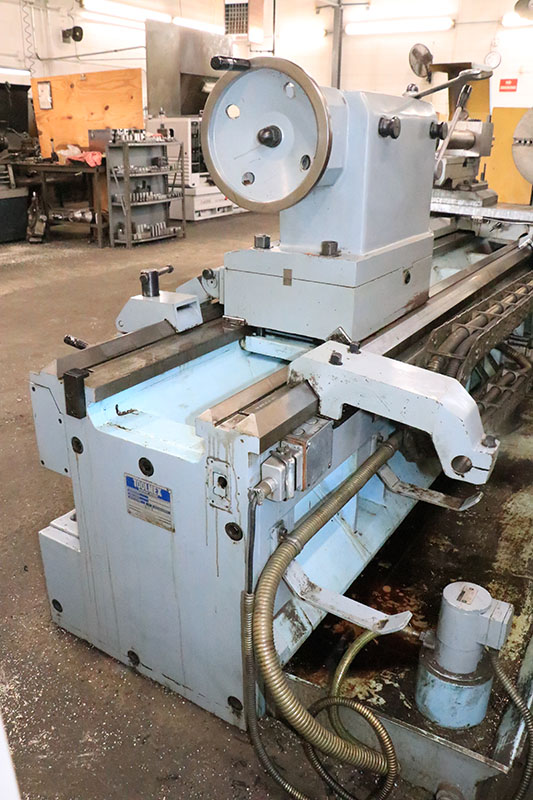

- TWO SPEED TAILSTOCK

- SOLID BASE CONSTRUCTION

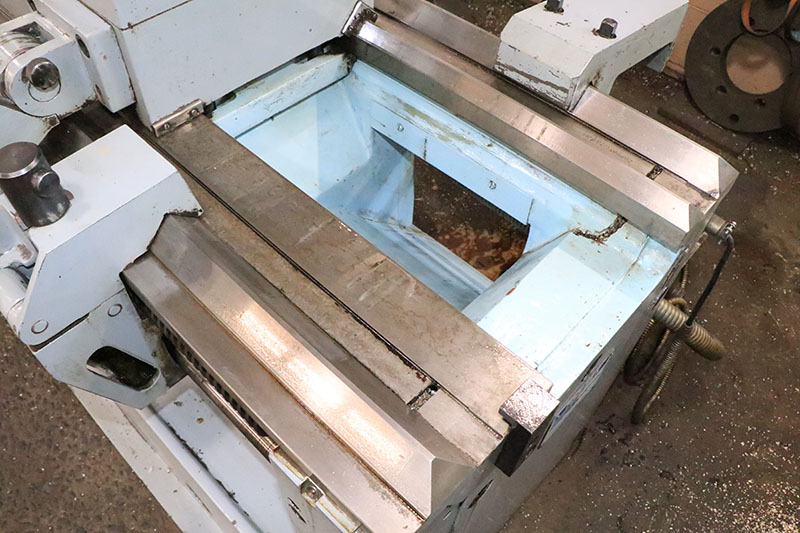

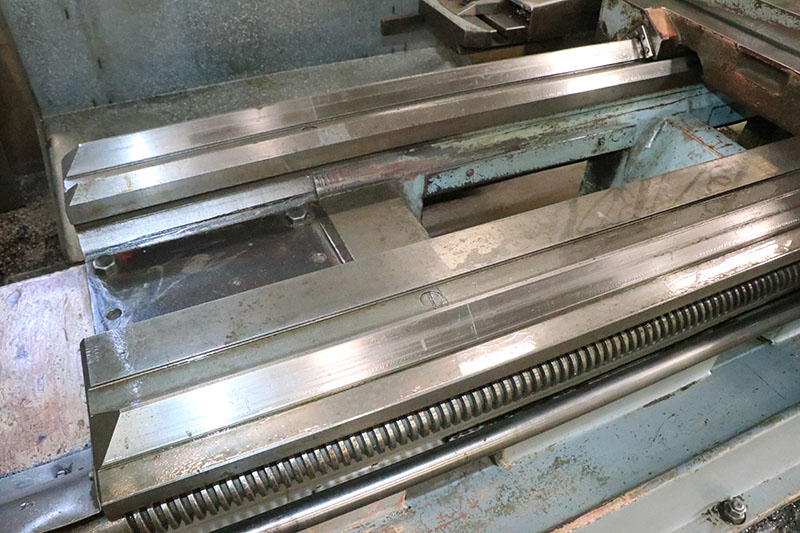

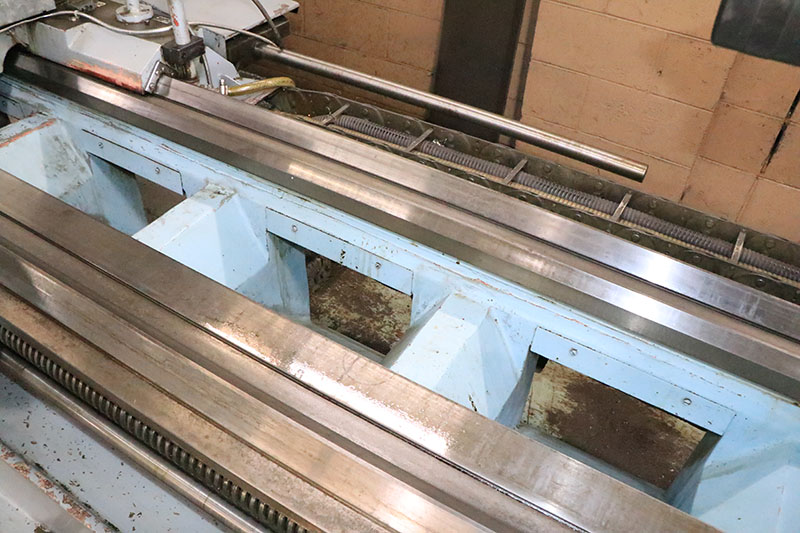

- INDUCTION HARDENED & GROUND BEDWAYS

- 23 / 36 HORSE POWER TWO SPEED DRIVE MOTOR



INSPECT UNDER POWER IN A NORTH AMERICAN PLANT
