Sharp 1660C ENGINE LATHES

$11,500

Make:

Sharp

Model:

1660C

Year:

1999

Ref #:

167782

Get a quote

Get financing

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

---

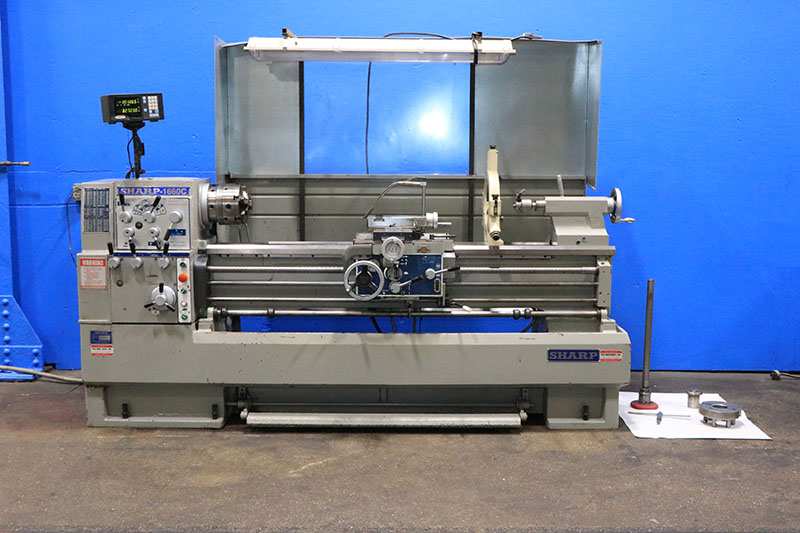

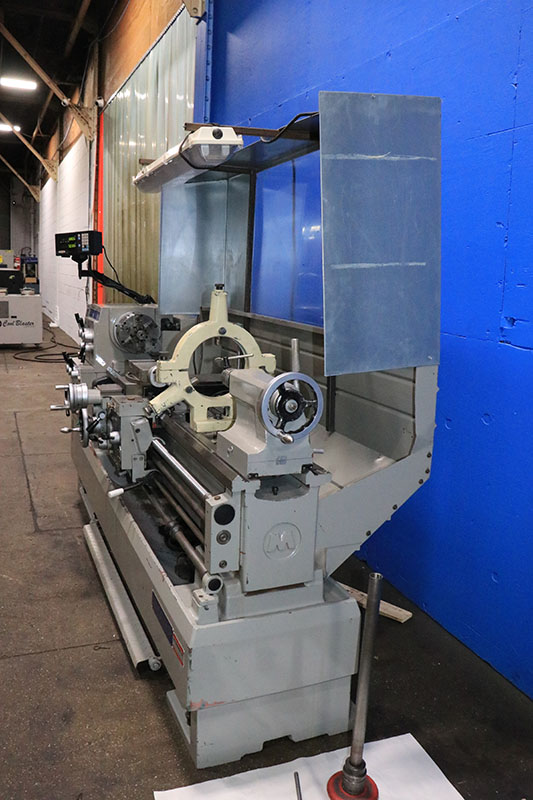

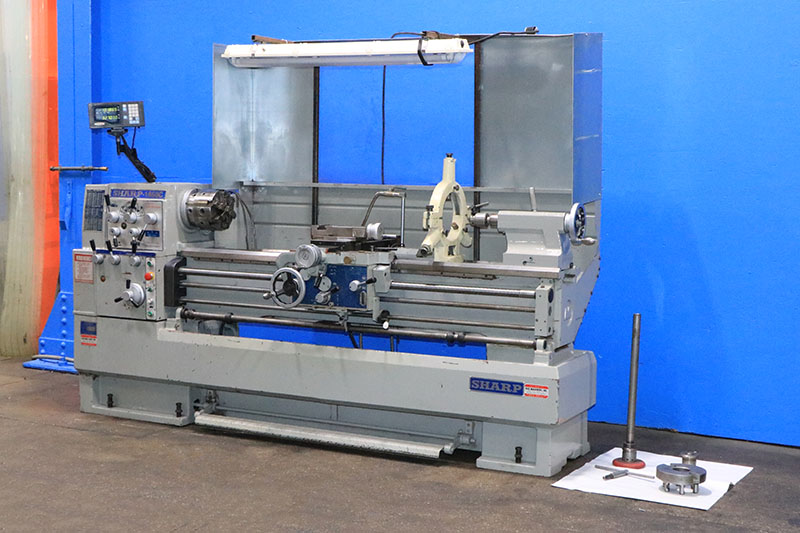

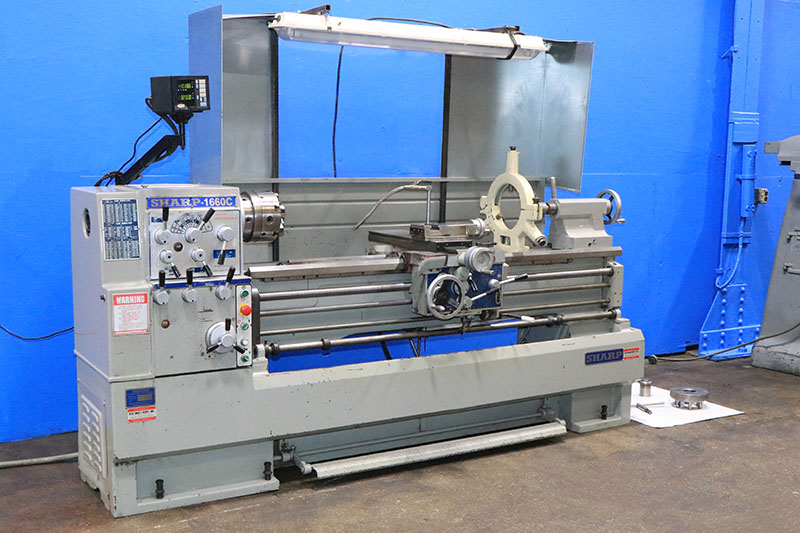

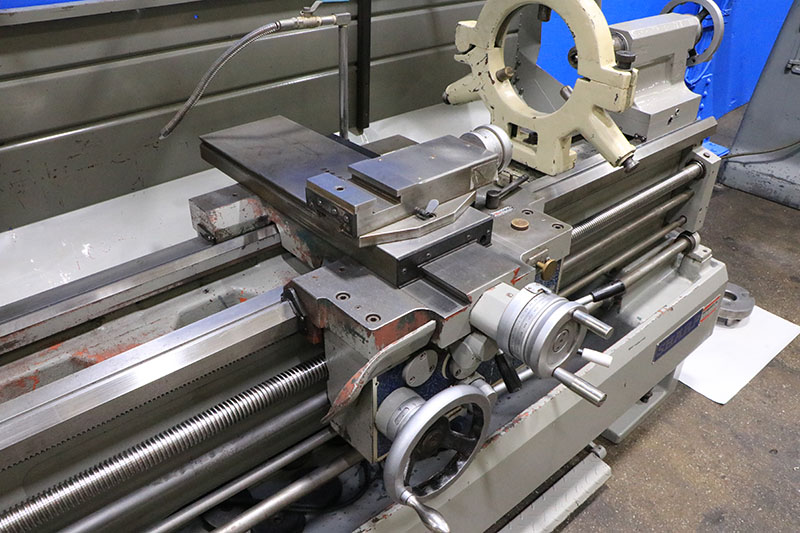

16"/24" x 60" SHARP GAP BED ENGINE LATHE

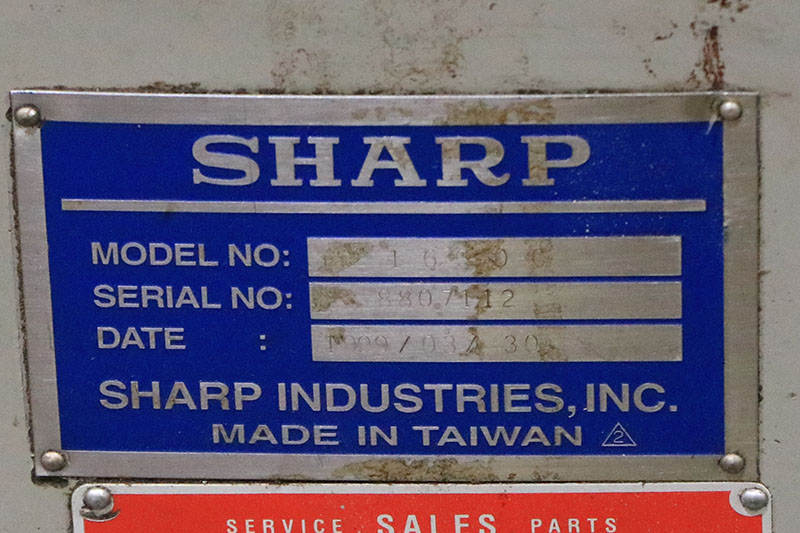

MODEL: 1660C, S/N: 3899011, NEW: 1999



SPECIFICATIONS:

SWING OVER BEDWAYS ................... 16"

SWING IN REMOVEABLE GAP .............. 24-3/8"

SWING OVER CROSS SLIDE ............... 8-3/4"

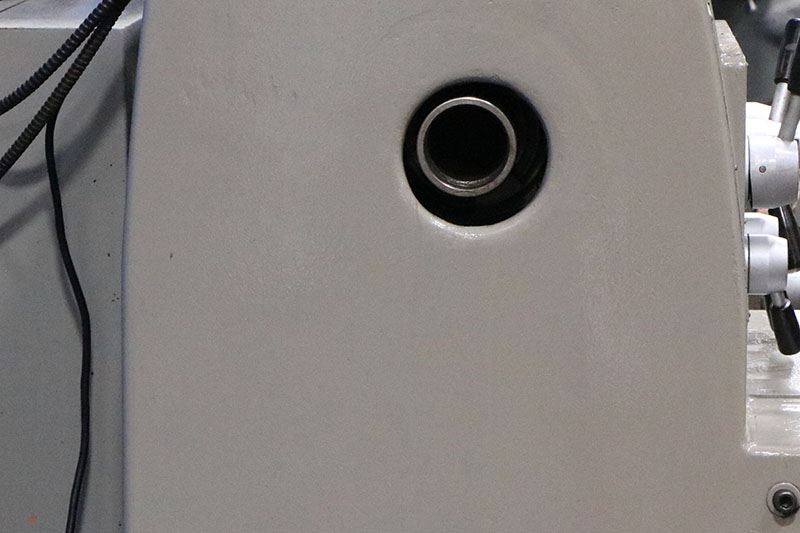

HOLE THRU SPINDLE .................... 2-1/16"

DISTANCE BETWEEN CENTERS ............. 60"

SPINDLE NOSE ......................... D1-6" CAMLOCK

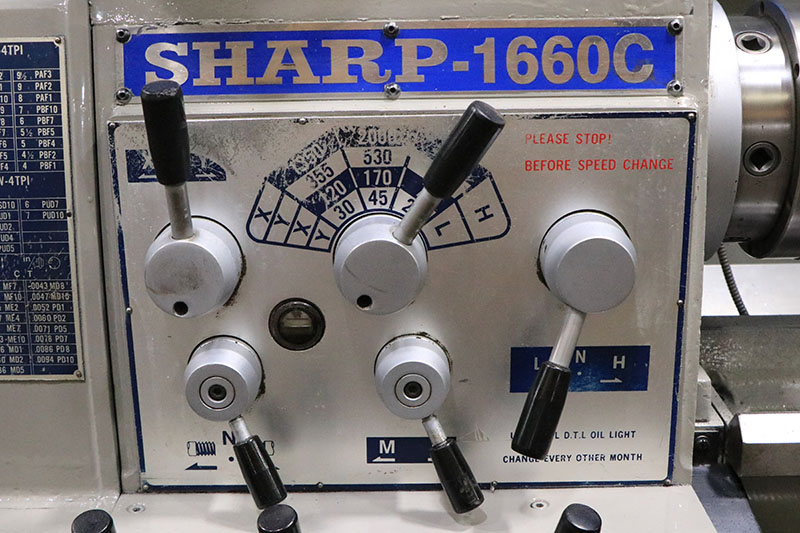

SPINDLE SPEED RANGE (12) ............. 20 - 2000 RPM

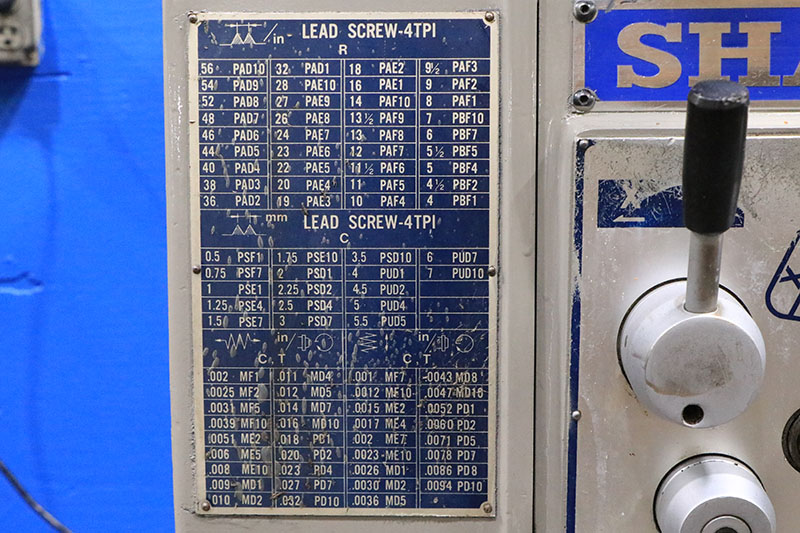

ENGLISH THREADING RANGE .............. 4 - 56 TPI

METRIC THREADING RANGE .............. .5 - 7 mm

LONGITUDINAL FEED RANGE ............. .002" - .032" IPR

CROSS FEED RANGE .................... .001" - .0094" IPR

TAILSTOCK SPINDLE TAPER .............. #4MT

TAILSTOCK SPINDLE TRAVEL ............. 5"

APPROX FLOOR SPACE ................... 105"L x 30"W x 48"H

APPROX WEIGHT ........................ 4,250 LBS



EQUIPPED WITH:

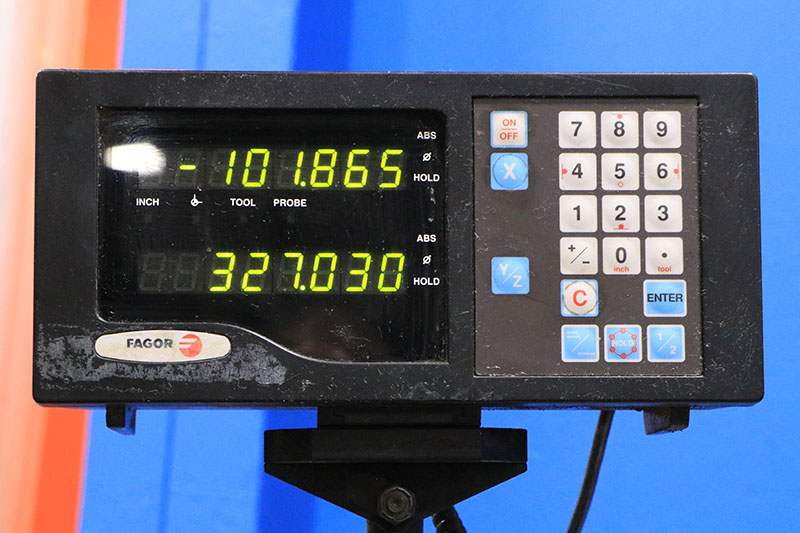

FAGOR TWO AXIS DIGITAL READOUT

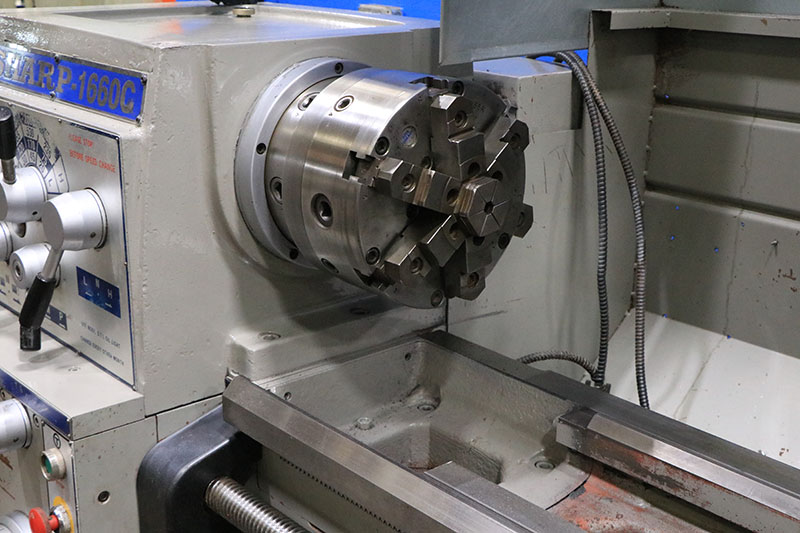

10" 6-JAW BUCK-FORKARDT CHUCK

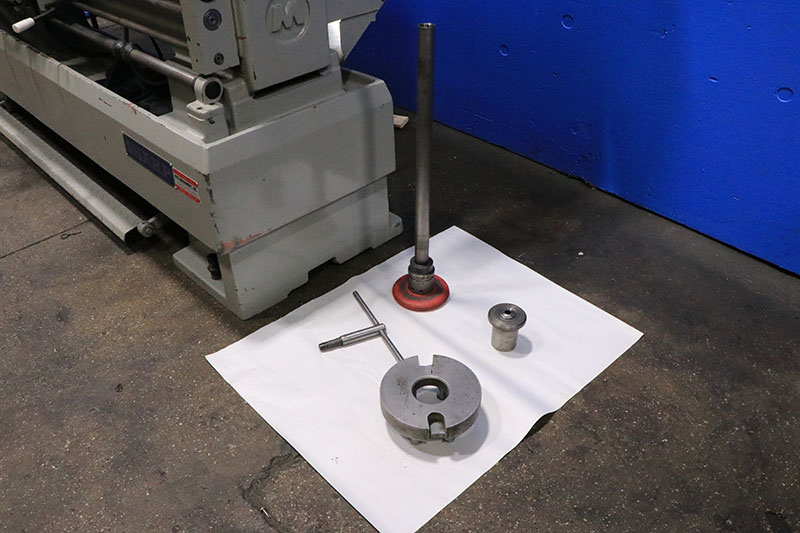

5C DRAW BAR & NOSE PIECE

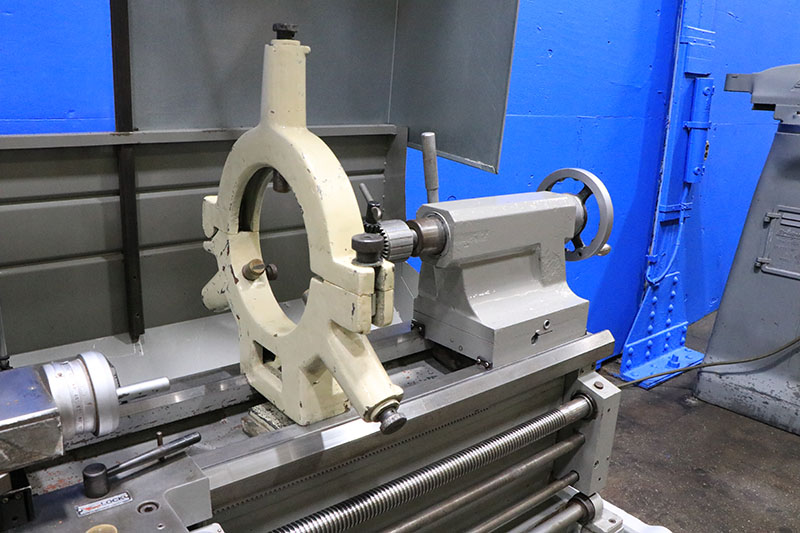

8" CAPACITY STEADY REST

3/4" CAPACITY JACOBS DRILL CHUCK FOR TAILSTOCK

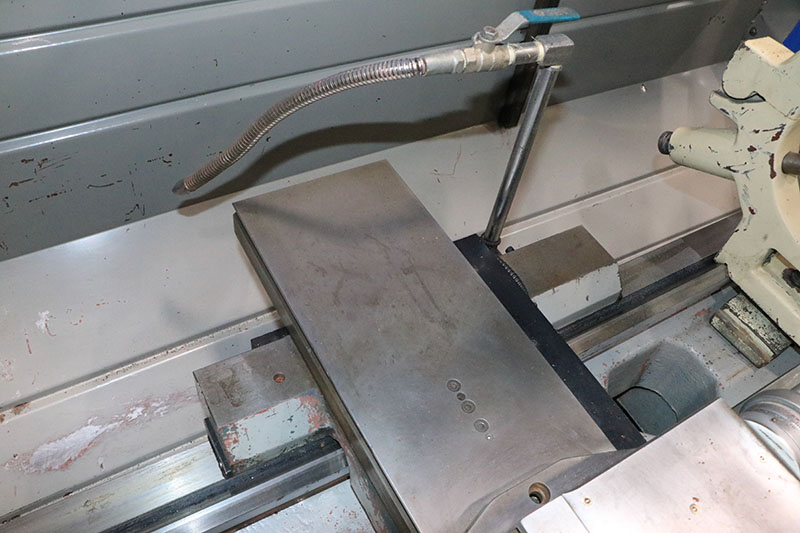

COOLANT SYSTEM WITH REMOVABLE CHIP PAN

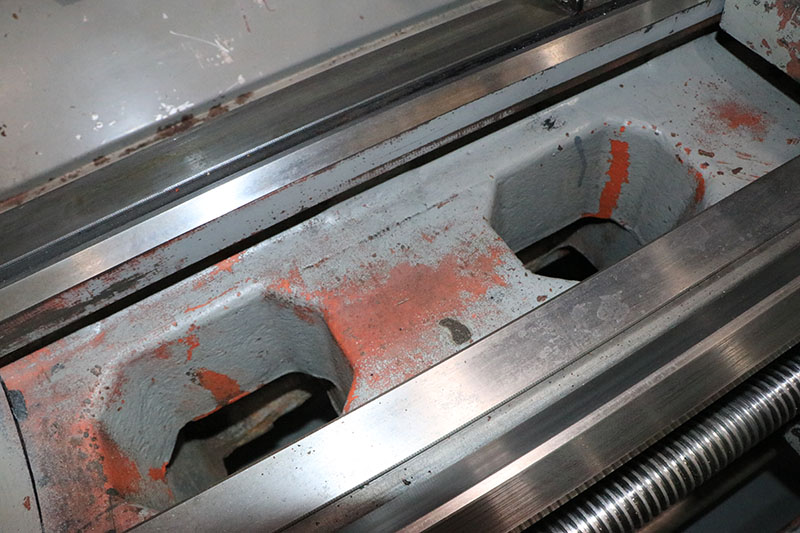

HARDENED BED WAYS

FOOT BRAKE

7.5 HORSE POWER MAIN MOTOR



INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
