Sharp 1860LV Vair-Speed, 3" Hole, Taper, Steady, ENGINE LATHES

Price on Request

Make:: Sharp

Model:: 1860LV Vair-Speed, 3" Hole, Taper, Steady,

Year:: 2021

Ref #:: 179106

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

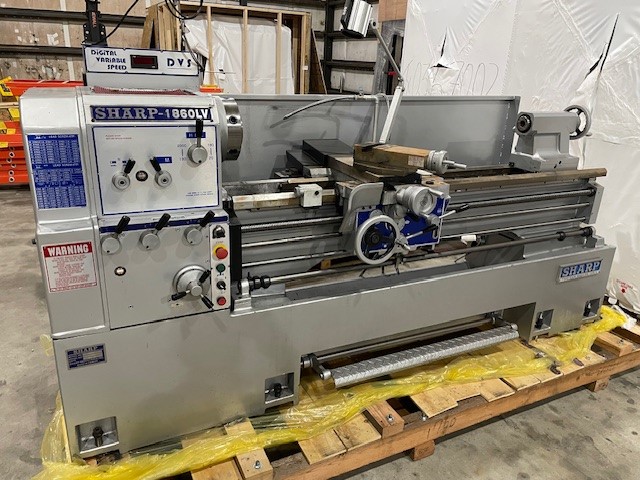

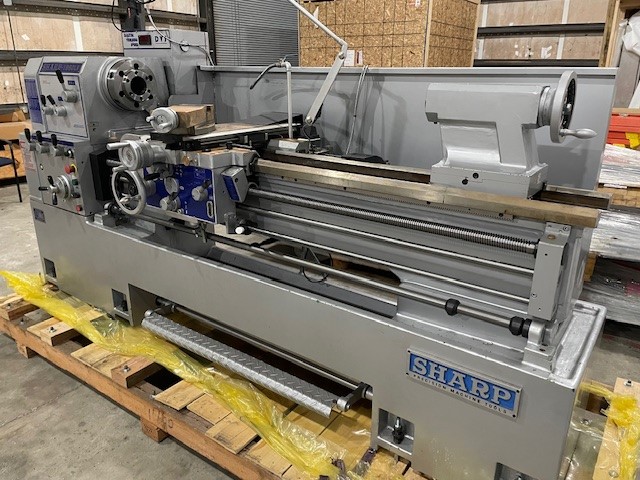

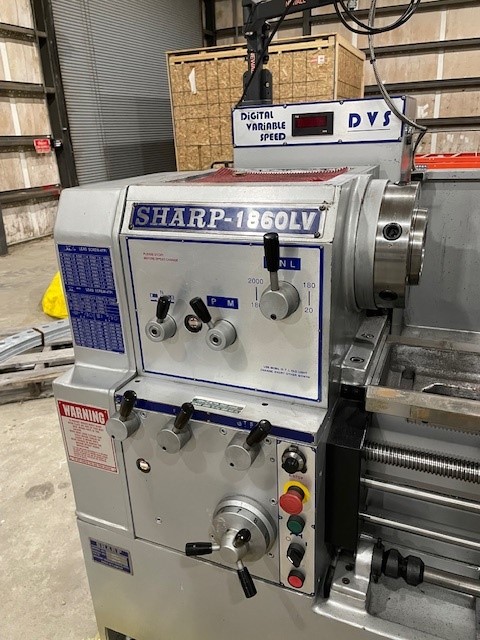

18"/27" x 60" SHARP GAP BED ENGINE LATHE

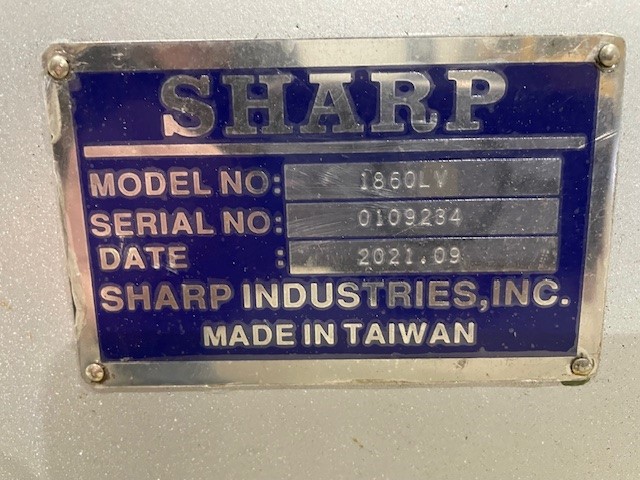

MODEL: 1860LV,  S/N: 0109234,  NEW: 2021

SPECIFICATIONS:
SWING OVER BEDWAYS ................... 18"
SWING IN REMOVEABLE GAP .............. 27.12"
SWING OVER CROSS SLIDE ............... 10.2"
HOLE THRU SPINDLE .................... 3.06"
DISTANCE BETWEEN CENTERS ............. 60"
SPINDLE NOSE ......................... D1-8" CAMLOCK
BED WIDTH ............................ 11.75"

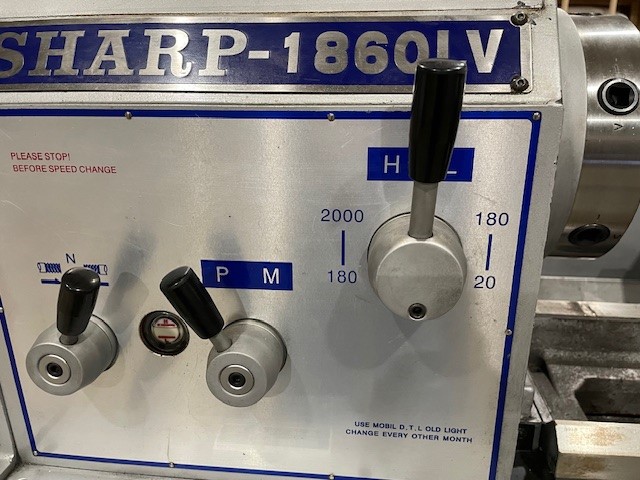

SPINDLE SPEEDS TWO RANGES
    LOW RANGE ........................ 20 - 170 RPM
    HIGH RANGE ....................... 235 - 2,000
ENGLISH THREADING RANGE .............. 4 - 56 TPI
METRIC THREADING RANGE .............. .5 - 7 mm
LONGITUDINAL FEED RANGE ............. .002" - .032" IPR
CROSS FEED RANGE .................... .001" - .0094" IPR
TAILSTOCK SPINDLE TAPER .............. #4MT
TAILSTOCK SPINDLE TRAVEL ............. 5"
APPROX FLOOR SPACE ................... 105"L x 30"W x 48"H
APPROX WEIGHT ........................ 4,500 LBS

EQUIPPED WITH:

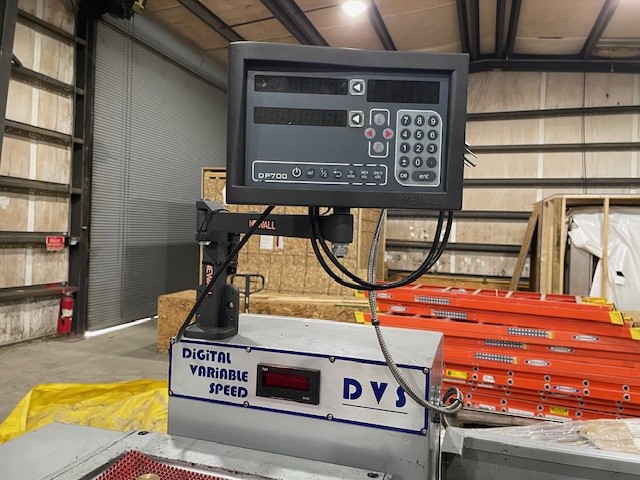

NEWALL TWO AXIS DIGITAL READOUY

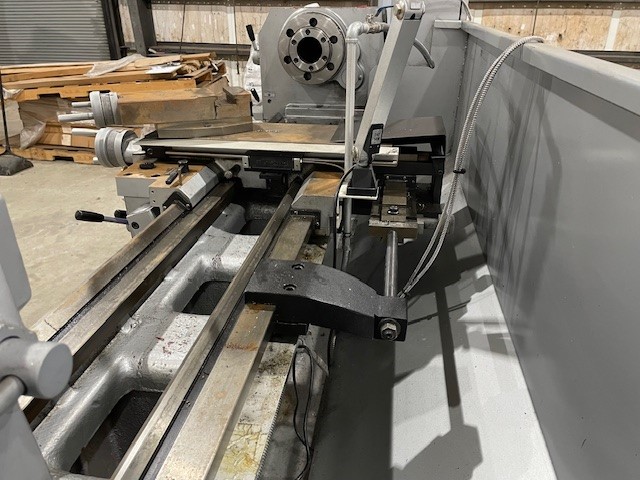

TAPER TURNING ATTACHMENT
STEADY REST
DRILL CHUCK
5 POSITION STOP FOR PRE-POSITIONING CARRIAGE FEED
FOOT BRAKE
COOLANT SYSTEM WITH REMOVABLE CHIP PAN
HARDENED & GROUND CHROME-MOLY HEADSTOCK GEARS
ONE PIECE MEEHANITE CAST BED
7.5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
