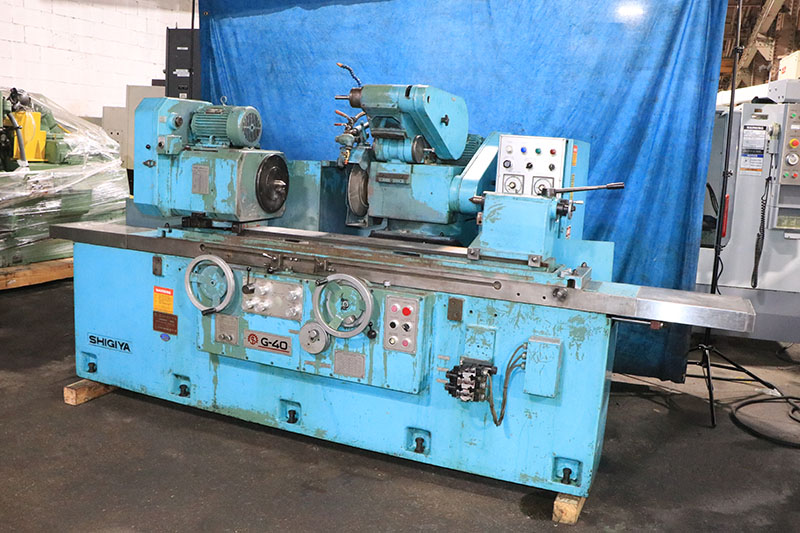

Shigiya GUA-40-100, 1984, I.D. ATTACH., FULL AUTO CYCLE UNIVERSAL CYLINDRICAL GRINDERS

Price on Request

Make:: Shigiya

Model:: GUA-40-100, 1984, I.D. ATTACH., FULL AUTO CYCLE

Year:: 1984

Ref #:: 169256

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

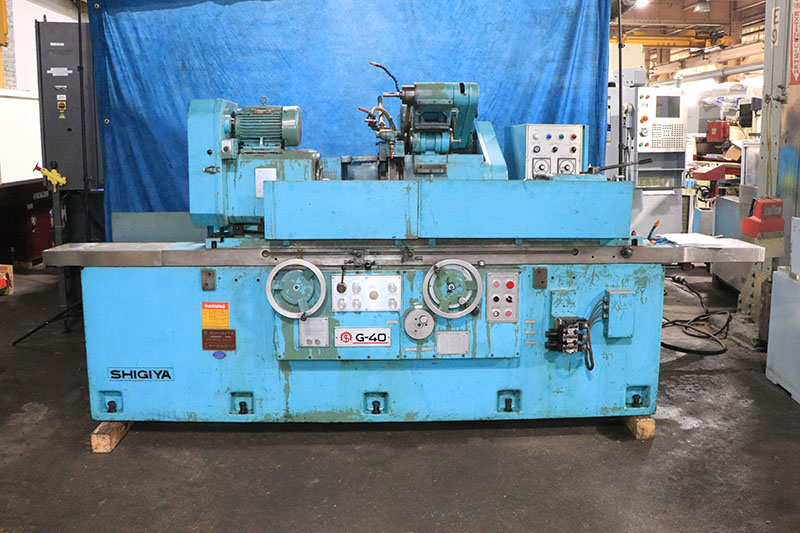

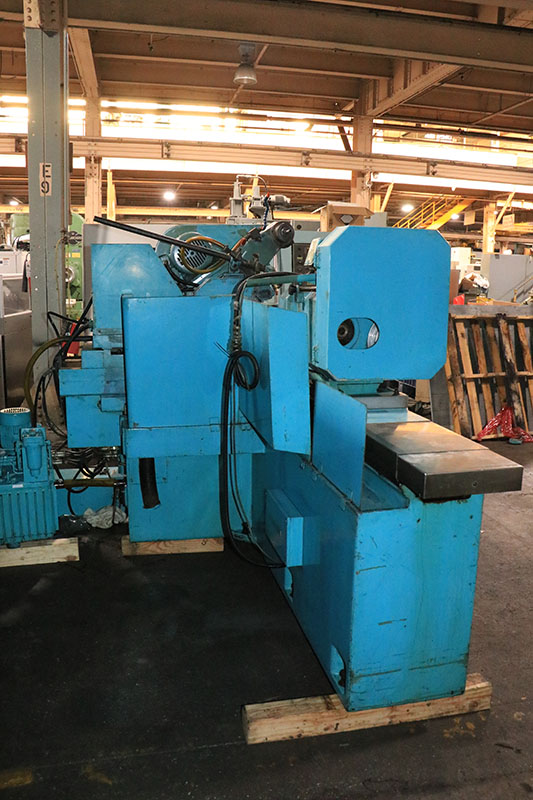

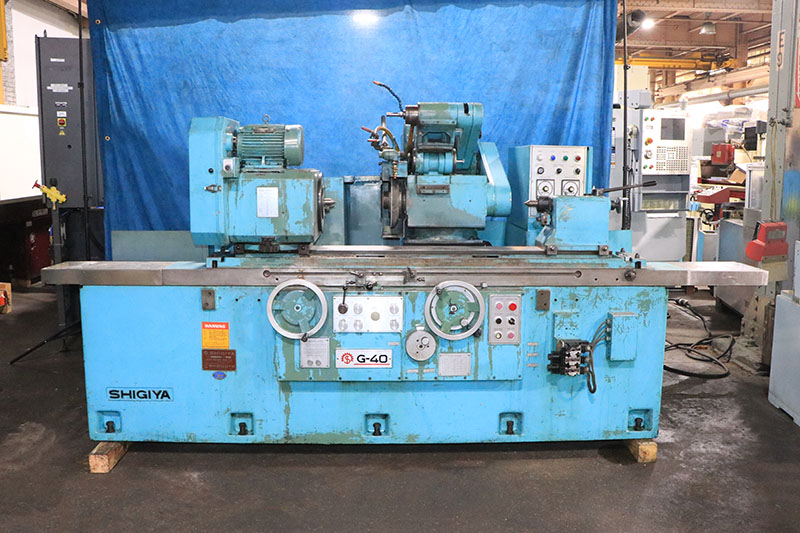

           16" X 36" SHIGIYA
      (MADE IN JAPAN) "PRECISION"
  UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER

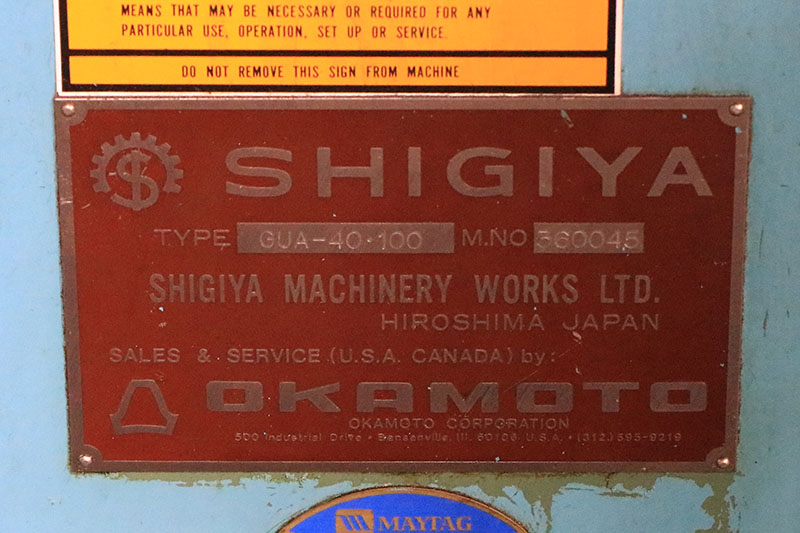

  MODEL: GUA-40X100    S/N: 360045     NEW: 1984

CAPACITY:
SWING ............................... 16"
MAX. GRINDING DIAMTER ............... FULL 16"
DISTANCE BETWEEN CENTERS ............ 36"
MAX WORKPIECE WEIGHT, CENTER WORK ... 330 LBS.

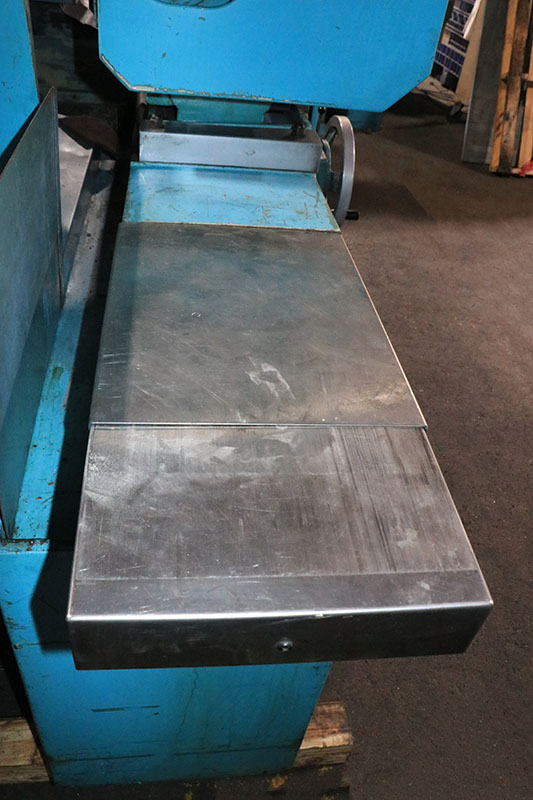

TABLE:
LONGITUDINAL TABLE SPEED ............ 2" TO 118" IPM
ONE REV. OF HANDWHEEL, TWO-SPEED .... 0.4" & 1"
TABLE SWIVELS (TOTAL) ............... 7°

WHEEL SLIDE:
WHEELHEAD ........................... +/- 30°
GRINDING WHEEL SIZE ......... 14" DIA. x 1"-2"W x 5" BORE
GRINDING WHEEL SPEEDS (2) ........... 1,660/1,880 RPM
TOP SLIDE ADJUSTMENT ................ 4"
MAX. STROKE OF WHEELHEAD (MANUAL) ... 6.9"
RAPID TRAVERSE (HYDRAULIC) .......... 1.5"
MAX. AUTO INFEED STROKE ............. 0.3"
AUTO INFEED RATE .................... 0.00004" TO .004"
PLUNGE INFEED ....................... 0.0008" TO .06"
ONE REV. OF HANDWHEEL ............... 0.04"
HANDWHEEL, FINE FEED BY MICRFEED .... 0.0001"

WORKHEAD SPINDLE TAPER .............. #4 MT

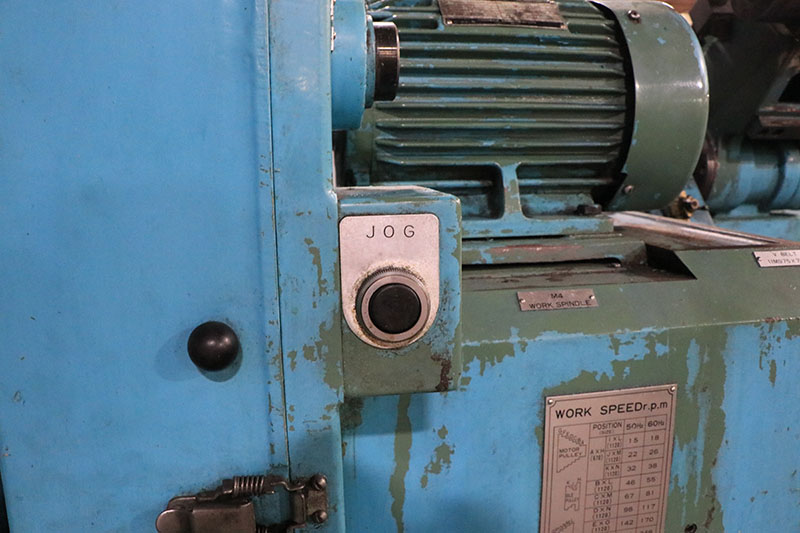

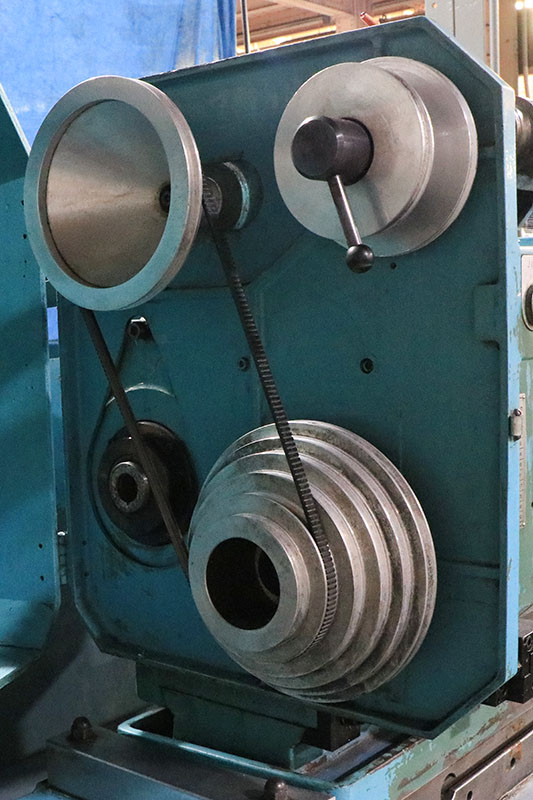

WORKHEAD SPINDLE SPEEDS (9) ......... 18 TO 360 RPM
WORKHEAD SWIVELLING RANGE (TOTAL) ... 120°
TAILSTOCK SPINDLE TAPER ............. #4 MT
TAILSTOCK SPINDLE TRAVEL ............ 1.2"

APPROX. MACHINE WEIGHT .............. 7,500 LBS.
APPROX. MACHINE DIMENSIONS .......... 106"L X 68"W X 65"H

MACHINE FEATURES:

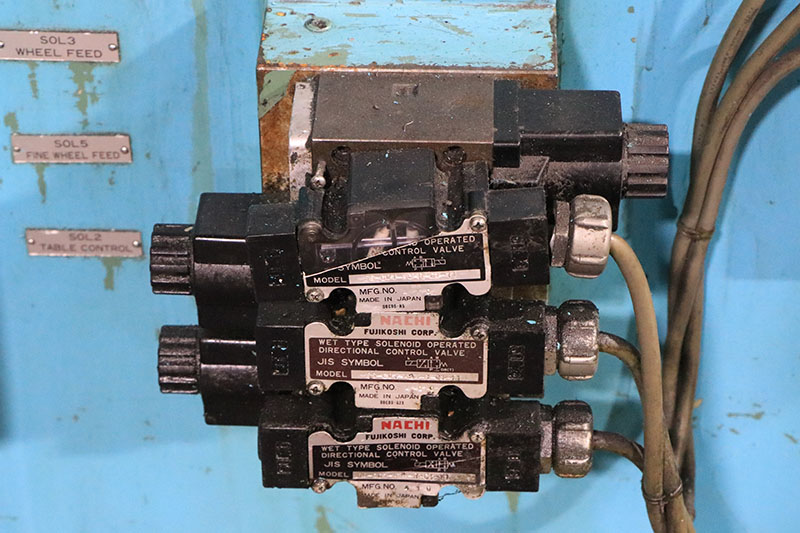

HYDRAULIC OPERATION FEATURING:
-POWER TABLE TRAVERSE
-ADJUSTABLE TABLE DWELL
-AUTO INFEED
-PLUNGE INFEED (DUAL RATE WITH COARSE & FINE SELECTIONS)
-RAPID WHEELHEAD ADVANCE & RETRACTION

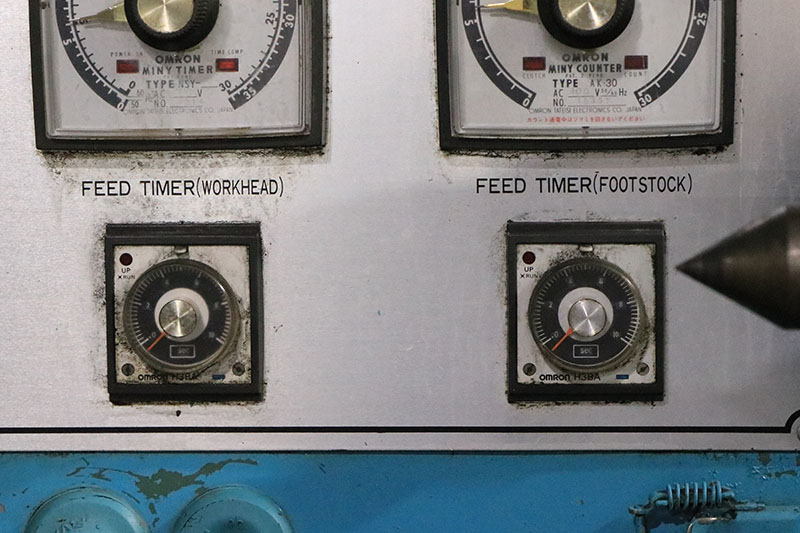

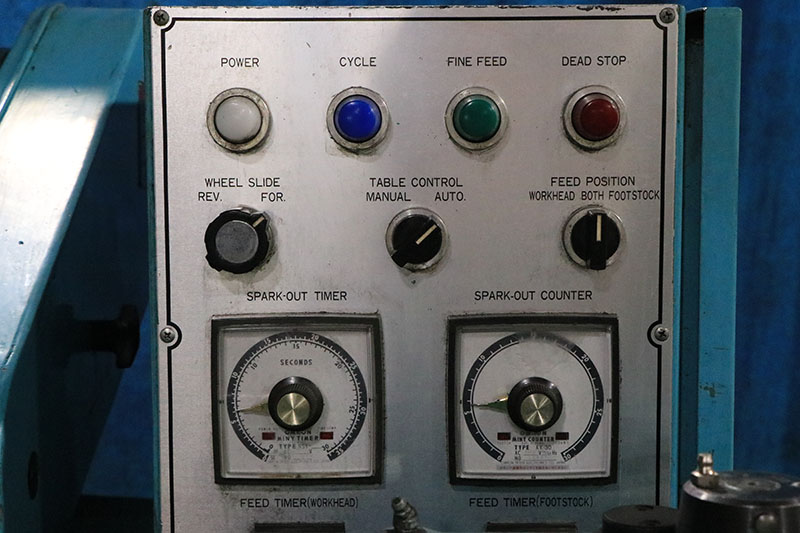

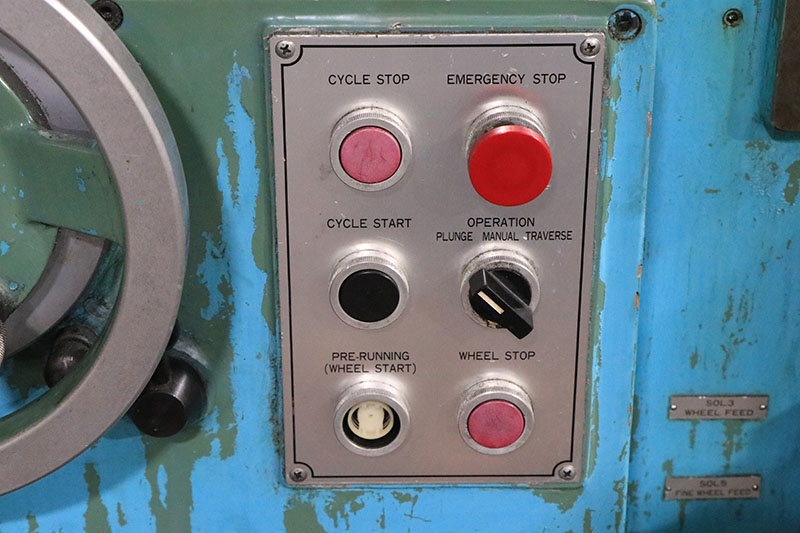

INDEPENDENT SPARKOUT TIMERS FOR AUTO INFEED & PLUNGE WITH
  AUTOMATIC RETRACTION OF GRINDING WHEELHEAD @ COMPLETION OF
  AUTOMATIC CYCLE.  0 TO 30 SECONDS TIME EACH.
GRINDING OPERATIONS

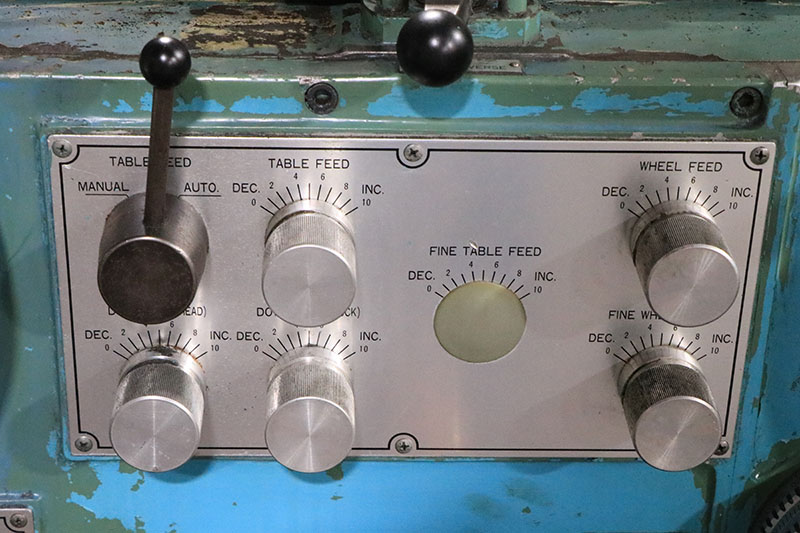

FINE FEED (MICROFEED) KNOB FOR TABLE TRAVERSE
WHEELHEAD FEATURES HYDROSTATIC BEARING DESIGN
(AUTO-PRESSURE LUBRICATED)

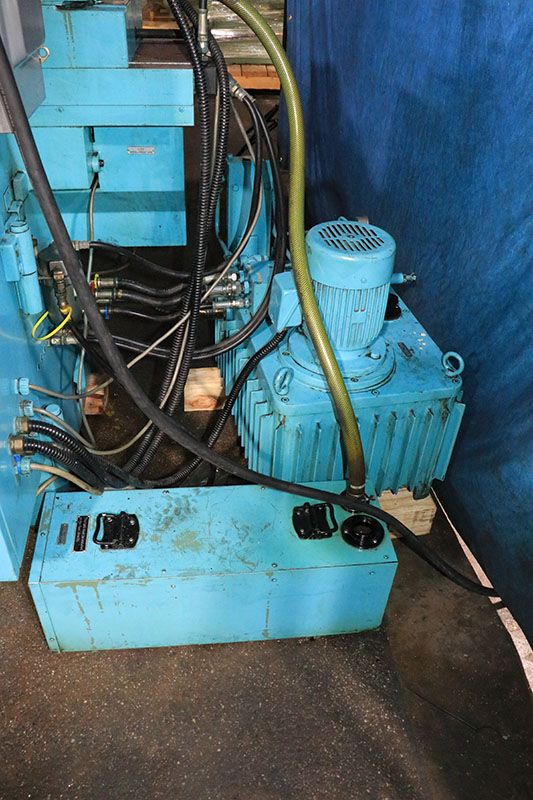

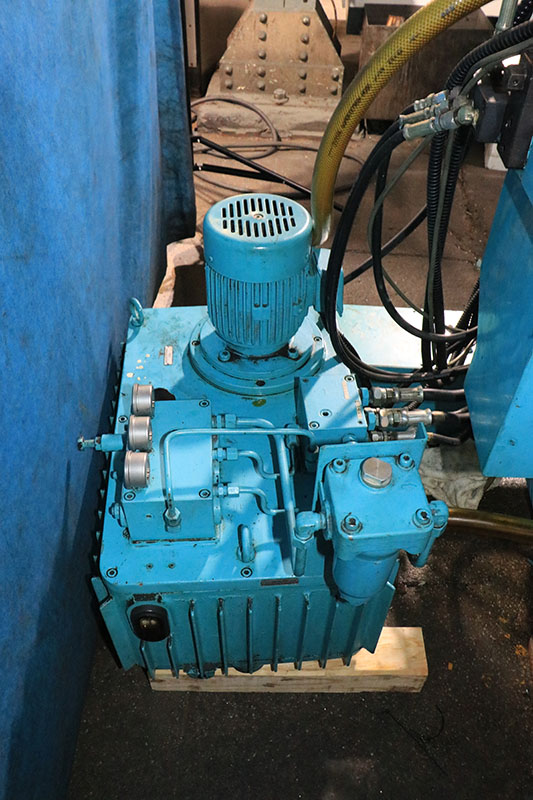

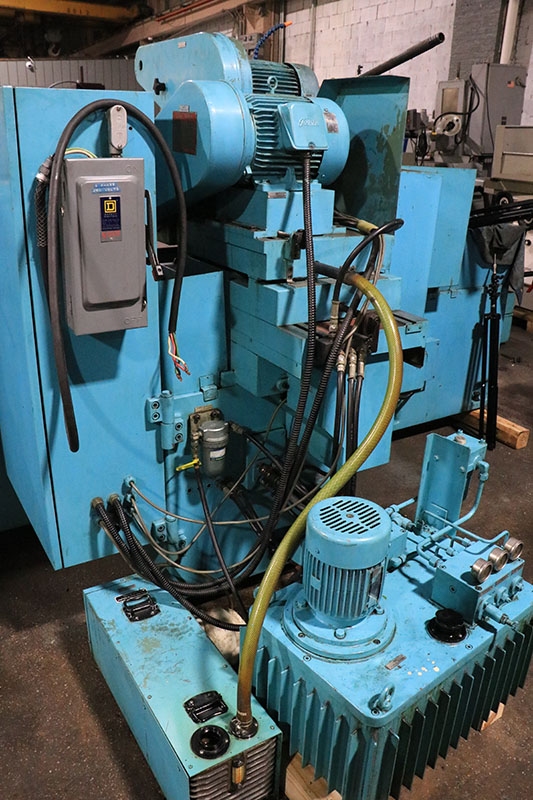

EXTERNAL HYDRAULIC SYSTEM

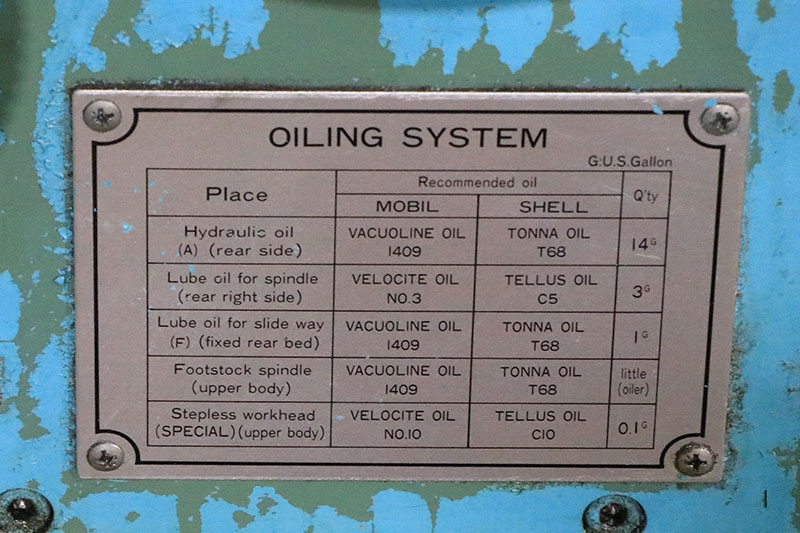

AUTOMATIC LUBRICATION SYSTEM
DUAL LIVE/DEAD WORKHEAD SPINDLE

EQUIPPED WITH:

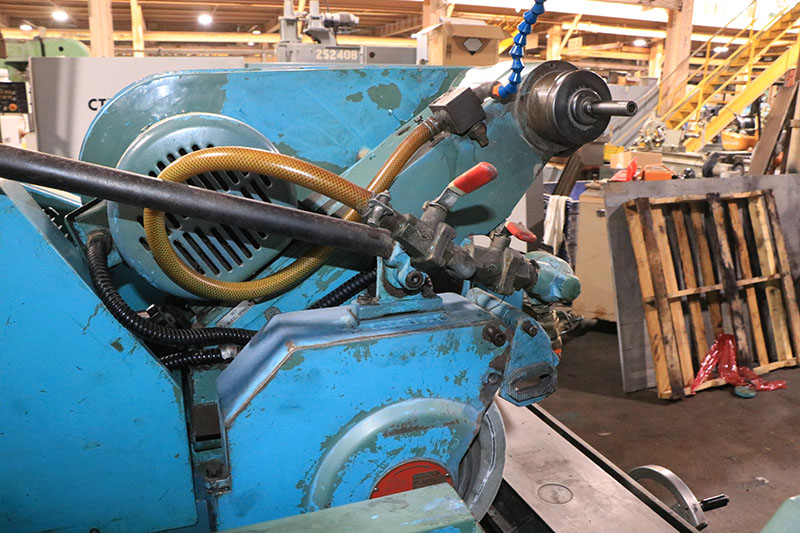

SWING DOWN I.D. GRINDING ATTACHMENT
I.D. GRINDING SPINDLE WITH ARBOR

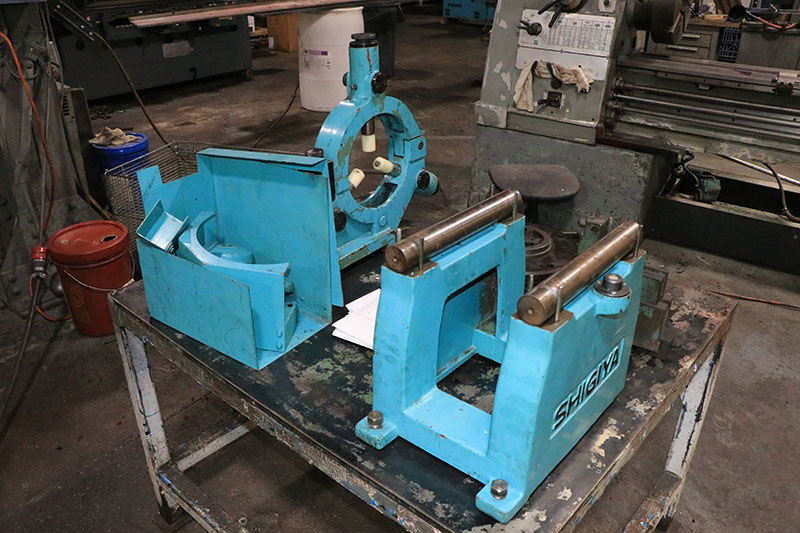

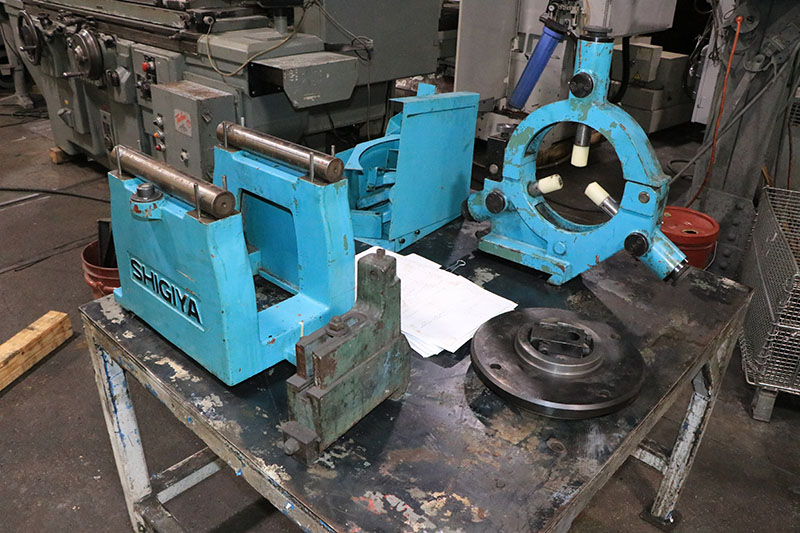

LARGE 3-POINT STEADY REST
CENTER IN WORKHEAD
SHIGIYA WHEEL BALANCING STAND, CAST IRON
5 H.P. WHEELHEAD MOTOR/3/60/220-440 VOLTS

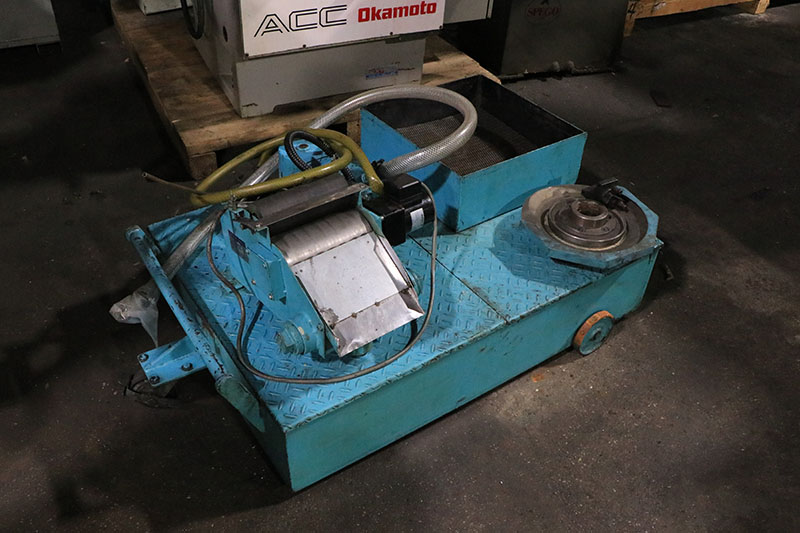

COOLANT SYSTEM WITH MAGNETIC SEPARATOR

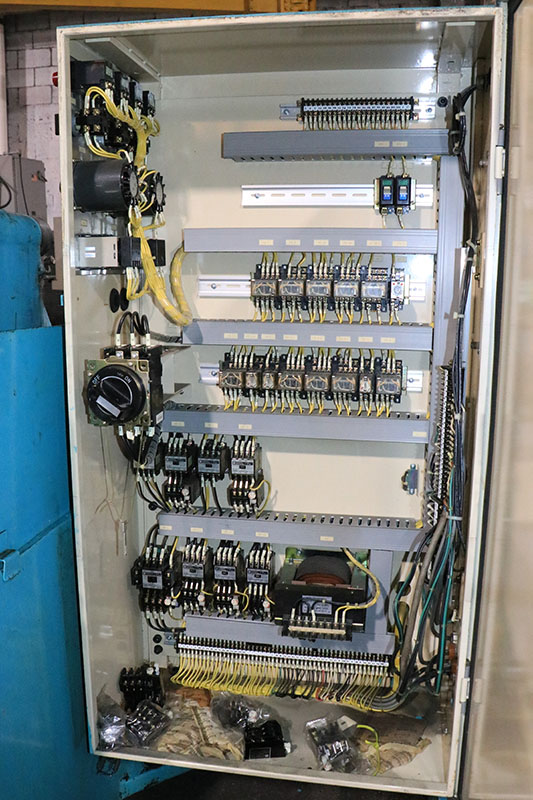

MACHINE IS WIRED FOR 220 VOLTS

** F.O.B. MISSOURI **
** EXCELLENT CONDITION & APPEARANCE **
