South Bend TURN-NADO EVS 1660 ENGINE LATHES

$9,500

Make:
South Bend
Model:
TURN-NADO EVS 1660
Year:
1997
Ref #:
163909

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

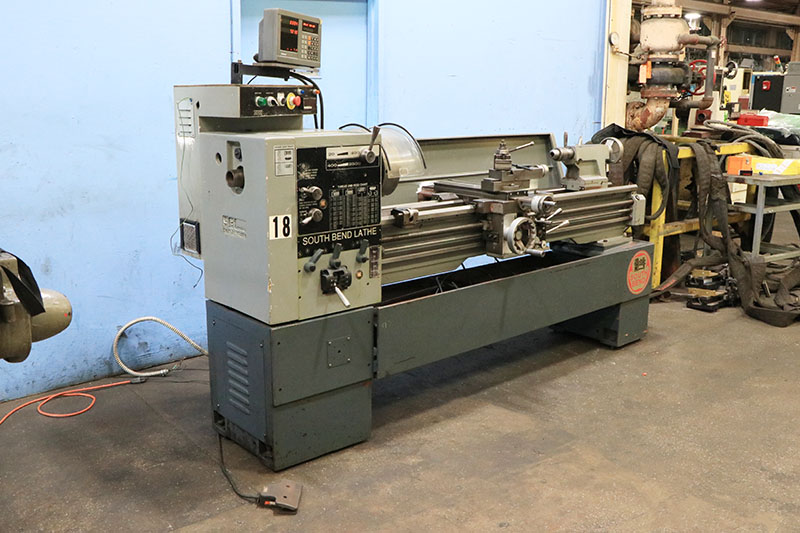

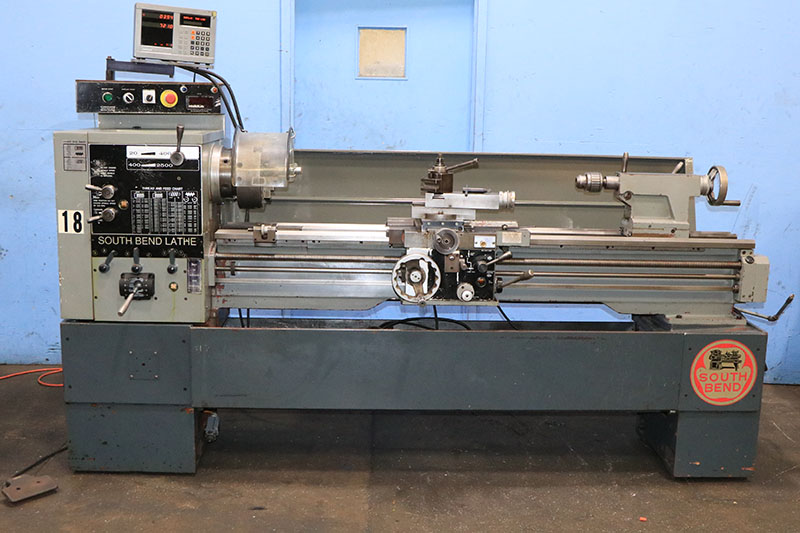

16"/23" x 60" SOUTH BEND GAP BED ENGINE LATHE
MODEL: TURN-NADO EVS, S/N: 179CH, YEAR: 1997

SPECIFICATIONS:
SWING OVER BED ....................... 16-3/16"
SWING IN GAP ......................... 23"
SWING OVER CROSS SLIDE ............... 10-3/8"
HOLE THRU SPINDLE .................... 2-1/16"
DISTANCE BETWEEN CENTERS ............. 60"
BED WIDTH ............................ 10-1/2"
SPINDLE NOSE ......................... D1-6"CAMLOCK
SPINDLE SPEED RANGES:
   LOW RANGE ......................... 20 - 400 RPM
   HIGH RANGE ........................ 400 - 2500 RPM
LONGITUDINAL FEED RANGE (45) ......... .002 - .067 IPR
CROSS FEED RANGE (40) ................ .001 - .034 IPR
ENGLISH THREADING RANGE  ............. 2 - 72 TPI
METRIC THREADING RANGE ............... .4 - 14 mm
TAILSTOCK SPINDLE TRAVEL ............. 6-1/2"
TAILSTOCK SPINDLE DIAMETER ........... 2-1/8"
TAILSTOCK SPINDLE TAPER .............. #4MT
APPROXIMATE DIMENSIONS ............... 100"L X 35"W
APPROX WEIGHT ........................ 5,000 LBS

EQUIPPED WITH:
E.V.S. ELECTRONIC INFINITELY VARIABLE SPEED WITH AC INVERTER
HEIDENHAIN TWO AXIS DIGITAL READOUT
LED DISPLAY FOR THE RPM OF THE SPINDLE
TPER TURNING ATTACHMENT

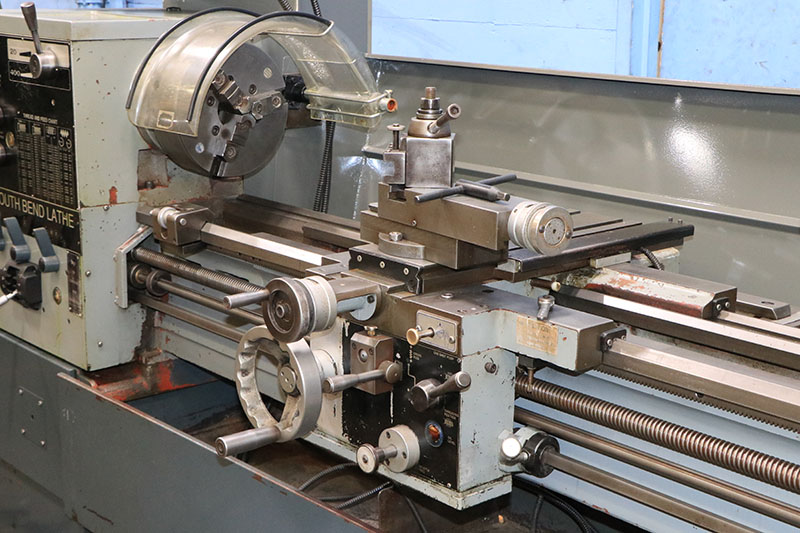

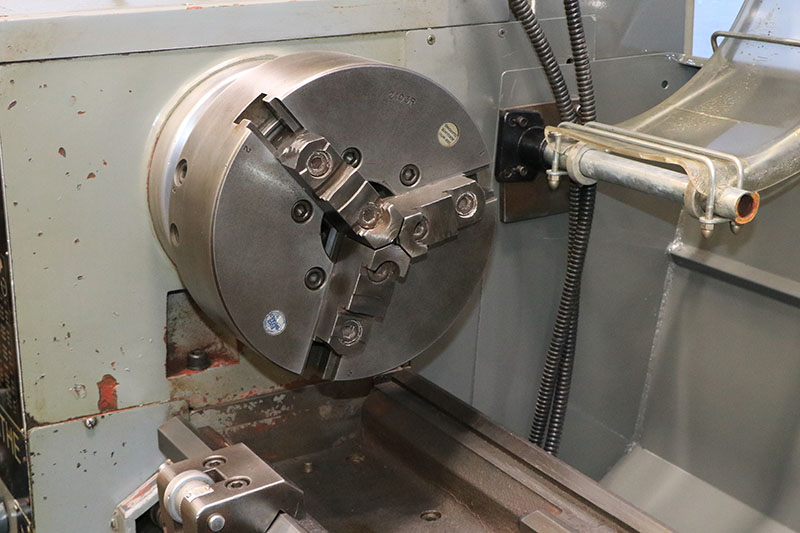

3-JAW CHUCK

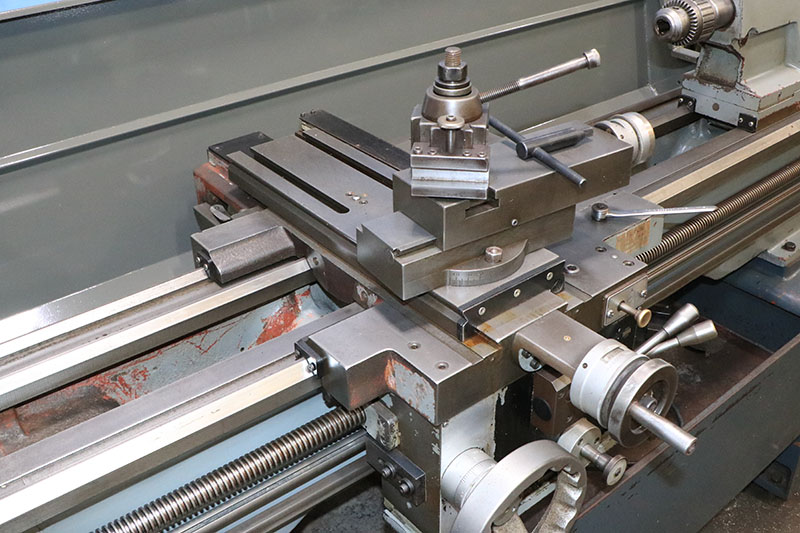

QUICK CHANGE TOOLPOST

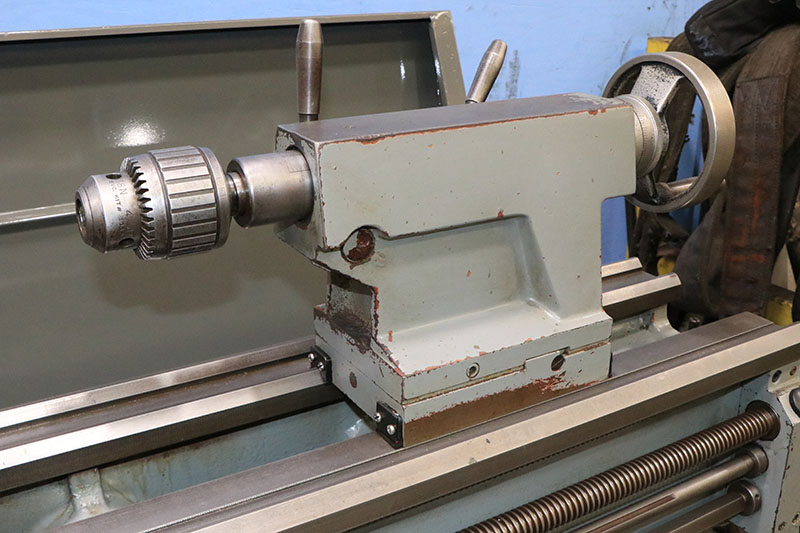

DRILL CHUCK FOR TAILSTOCK
INCH/METRIC DIALS
THREAD DIAL INDICATOR
COOLANT SYSTEM
REMOVEABLE CHIP PAN

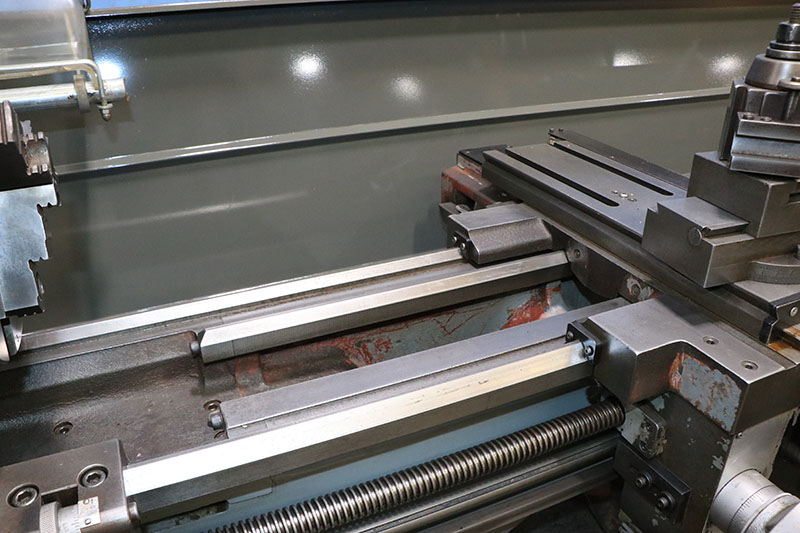

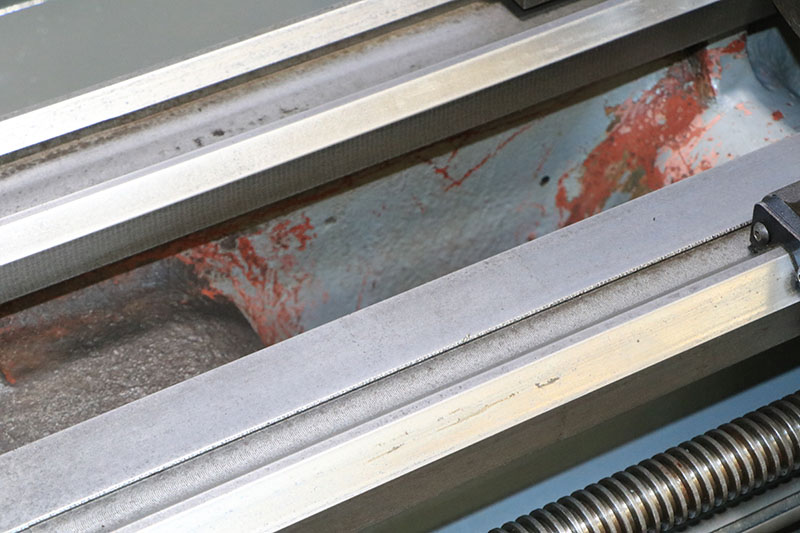

HARDENED & GROUND BEDWAYS
7.5 HORSE POWER TWO SPEED MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
