Starrett HD400 COMPARATORS

Price on Request

Make:: Starrett

Model:: HD400

Year:

Ref #:: 178884

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

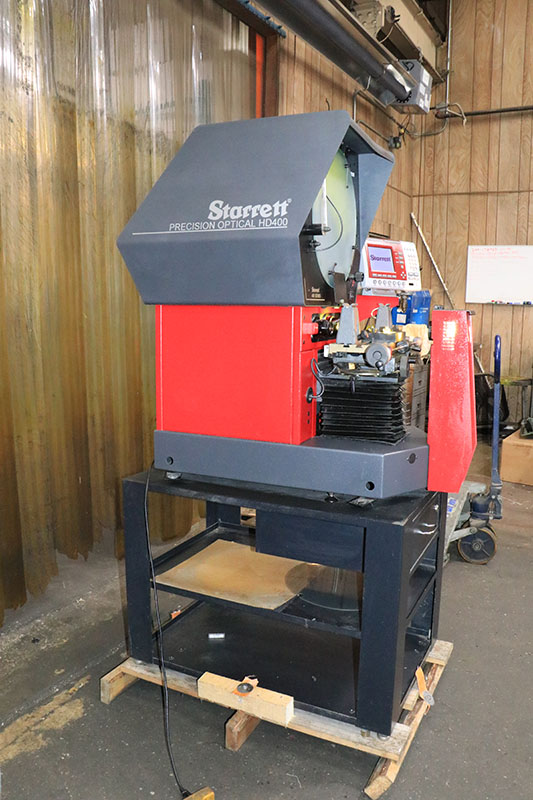

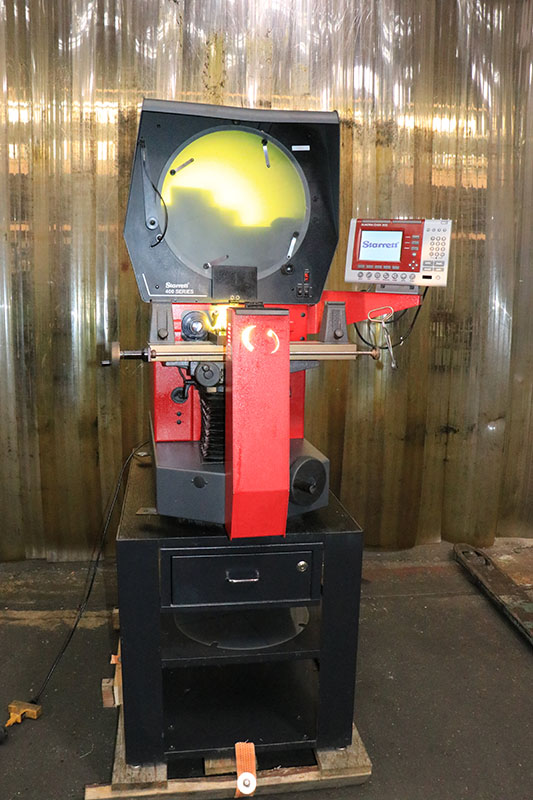

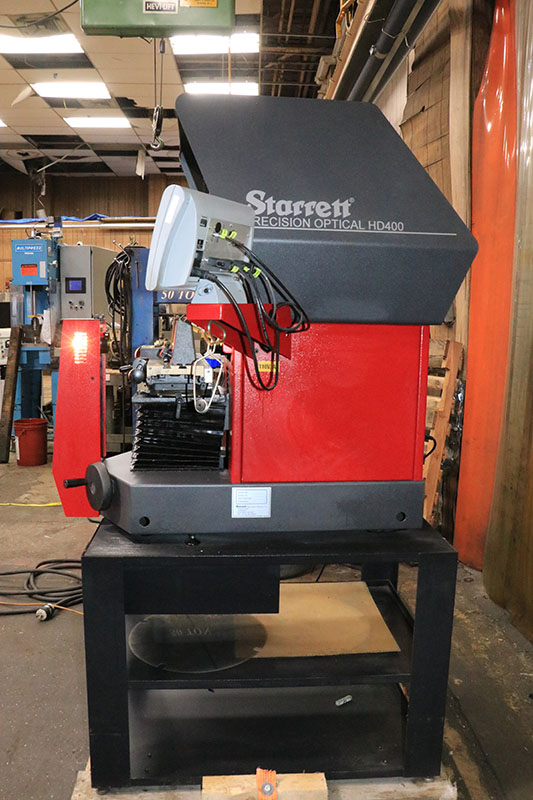

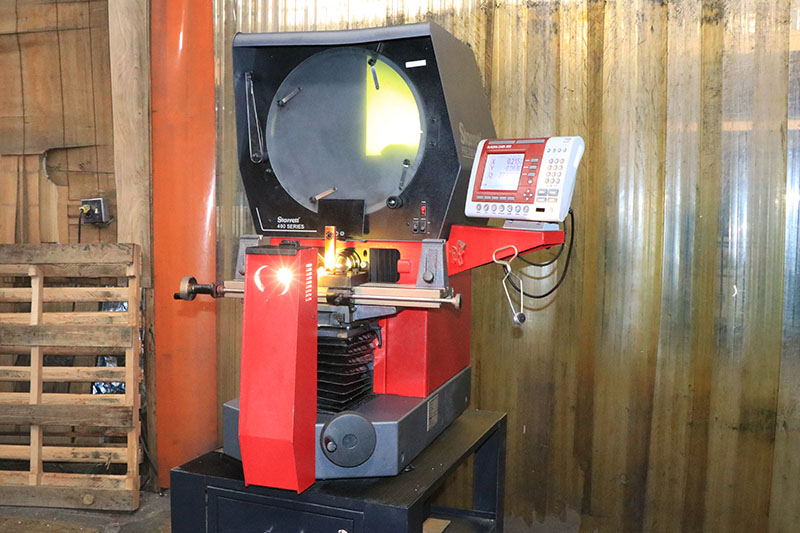

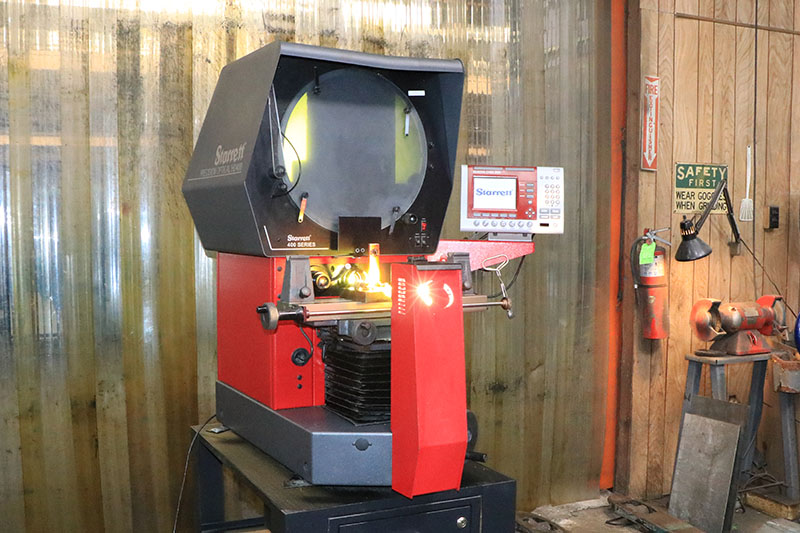

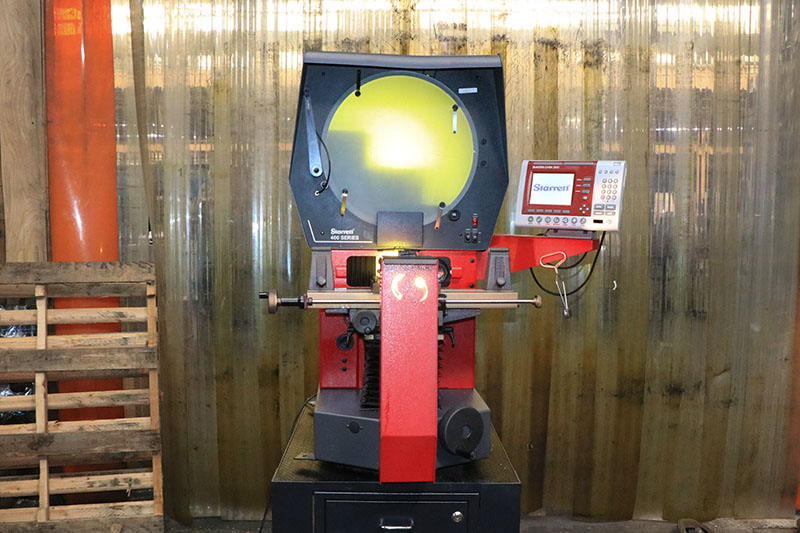

  16" STARRETT HORIZONTAL BENCH MODEL OPTICAL COMPARATOR
   WITH SLIDING DUAL LENS MOUNT & TWO LENSES (10X & 20X)

              QUADRA-CHEK 200 DRO

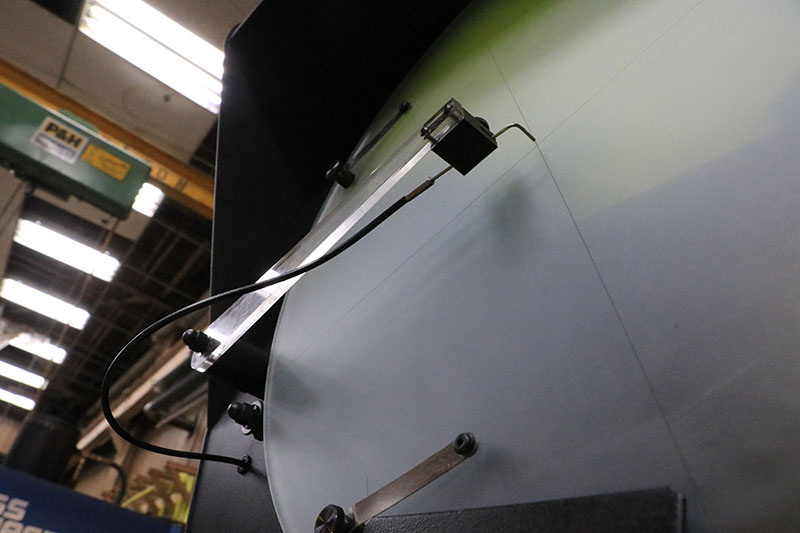

W/PROGRAMMABLE GEOMETRIC FUNCTIONS & EDGE DETECTION

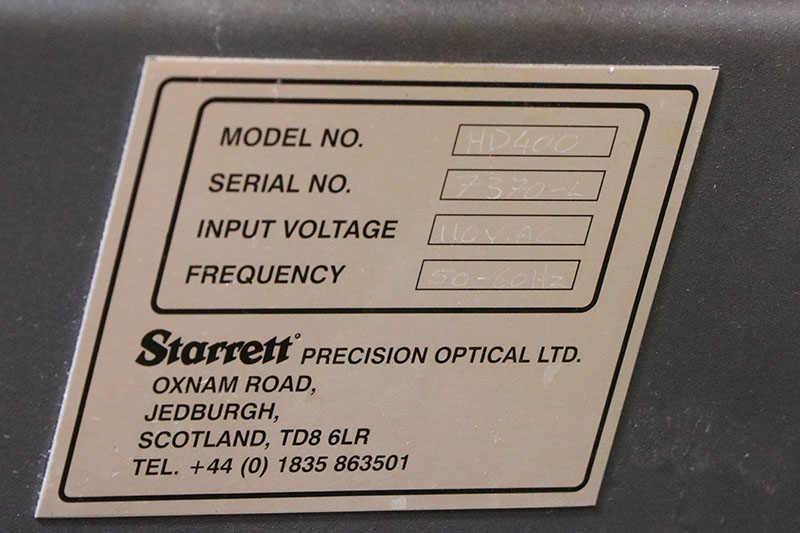

MODEL: HD400       S/N: 7370L         NEW: 2006

SCREEN DIAMETER ................ 16"
TABLE SIZE ..................... 18" x 5"
WEIGHT CAPACITY ON TABLE ....... 110 LBS.
HORIZONTAL TRAVEL .............. 12"
VERTICAL TRAVEL ................ 6"
FOCUS .......................... 2"

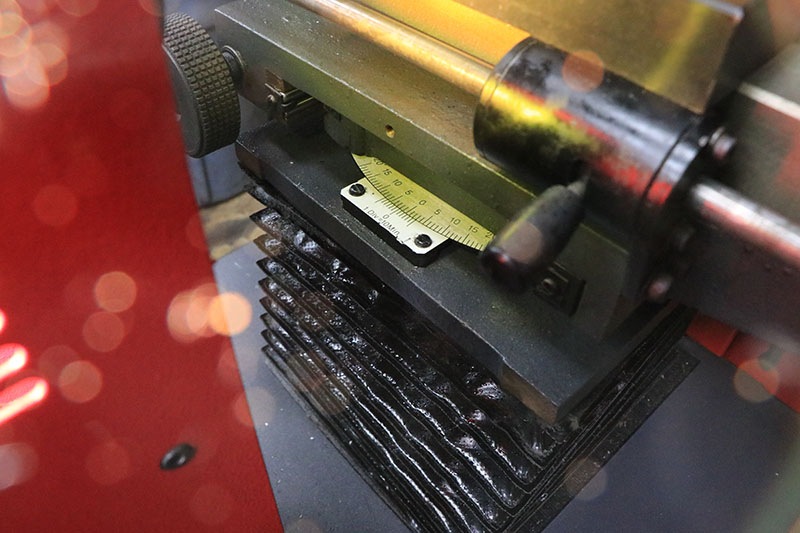

HELIX ANGLE .................... +/- 20°
APPROX. MACHINE WEIGHT ......... 400 LBS.
MACHINE DIMENSIONS ....... 32"L-R x 41"D x 43"H


STANDARD MACHINE FEATURES:
HIGH POWER TUNGSTEN ARC PROFILE ILLUMINATION
FIBER OPTIC SURFACE ILLUMINATION (FULLY RETRACTABLE)
VERTICALLY CORRECT IMAGE

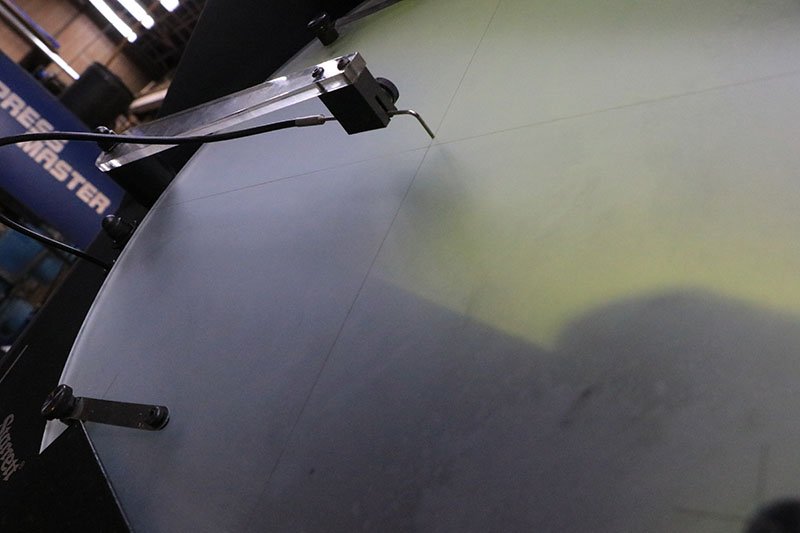

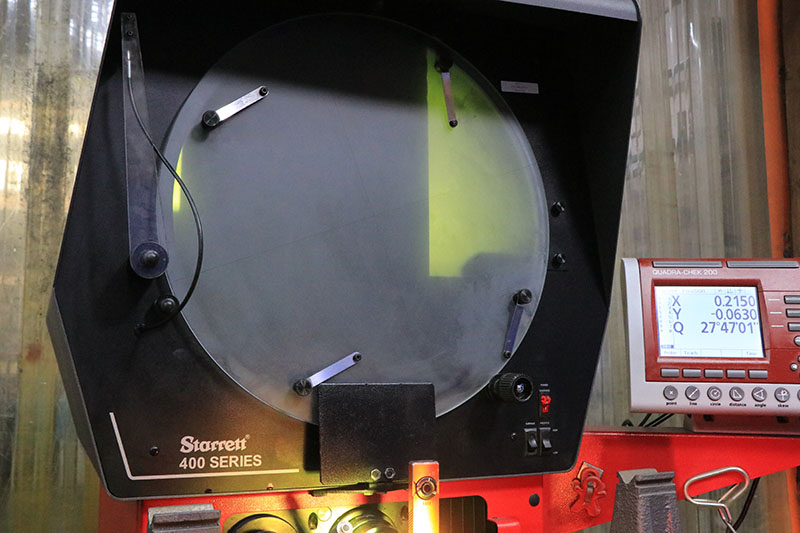

FULLY USEABLE 16" DIA. SCREEN
HELIX ADJUSTMENT, TABLE SWIVELS
SLIDING DUAL LENS MOUNT
FINE ADJUSTMENT ON ALL AXES
X-AXIS QUICK RELEASE

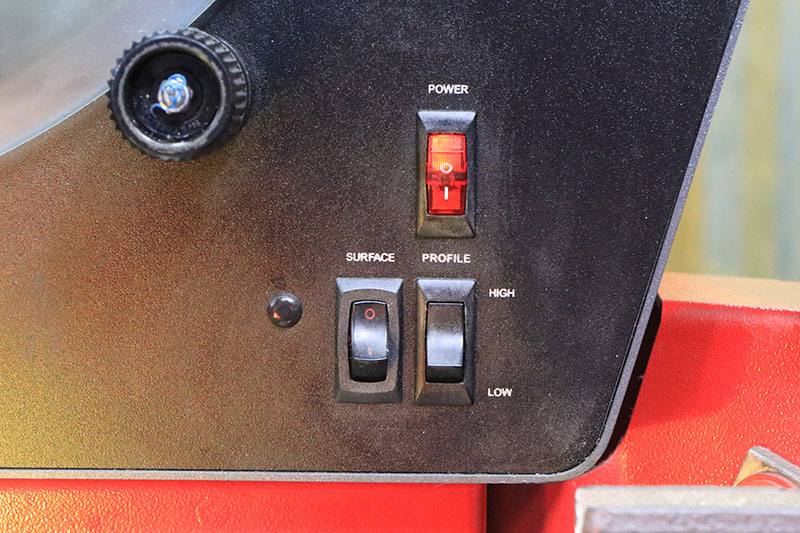

DUAL INTENSITY (HI/LOW) HALOGEN PROFILE ILLUMINATION
HEAVY DUTY METAL CONSTRUCTION
115 VOLT/1 PHASE ELECTRICS

EQUIPPED WITH:

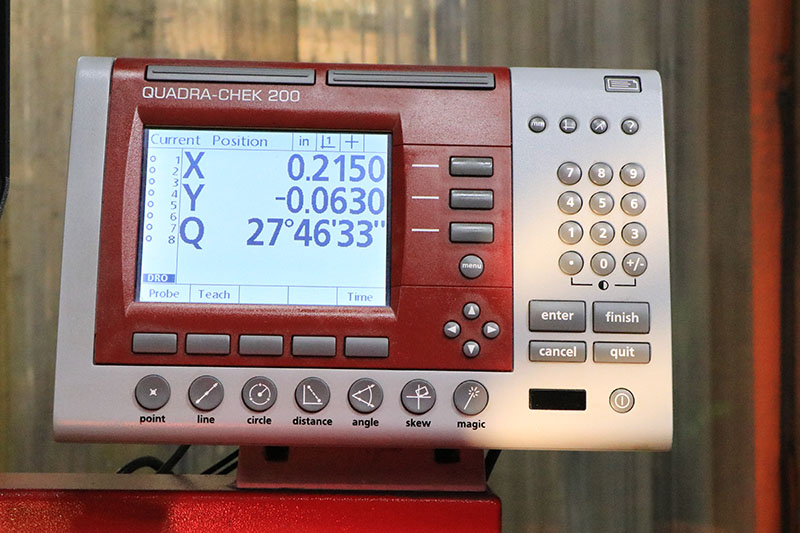

QUADRA-CHEK 200 2-AXIS DIGITAL READOUT DISPLAY
  W/PROGRAMMABLE GEOMETRIC FUNCTIONS & EDGE DETECTION
DIGITAL DISPLAY FOR ANGLE ADJUSTMENT OF SCREEN,
 "Q" AXIS ON THE DRO
HIGH ACCURACY GLASS SCALES, 0.000050" RESOLUTION
SET OF CENTERS/LARGE VEES

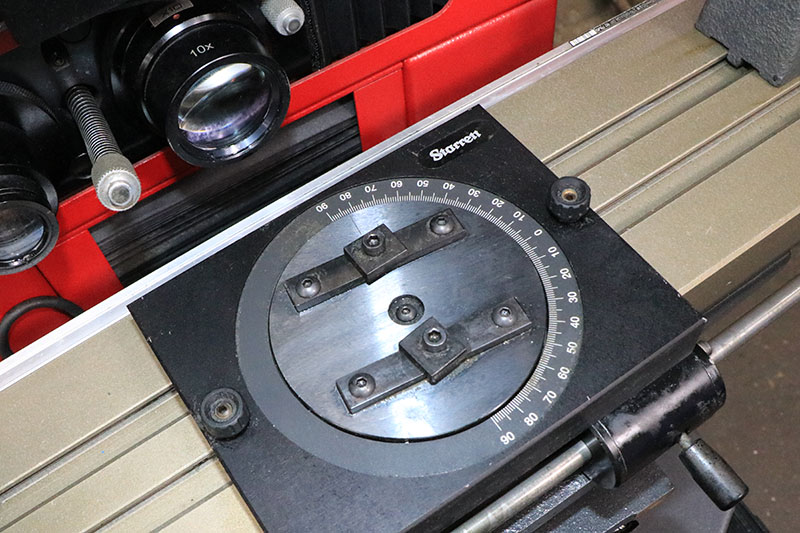

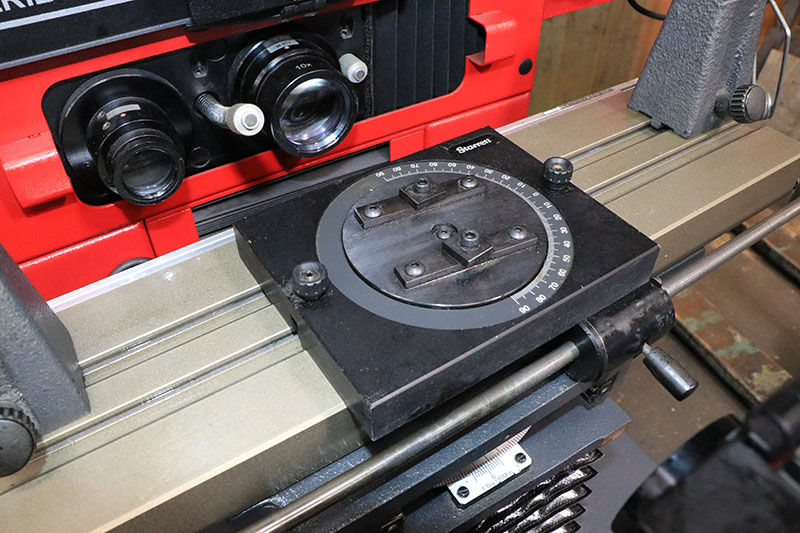

ROTARY VISE

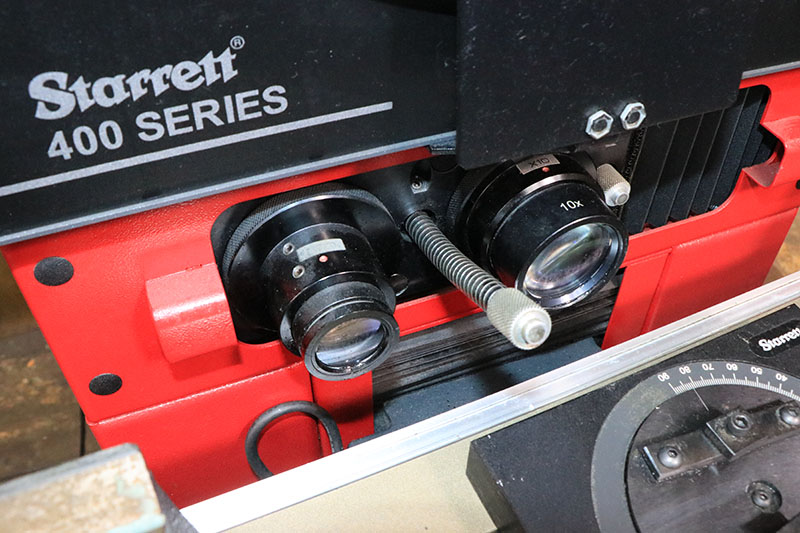

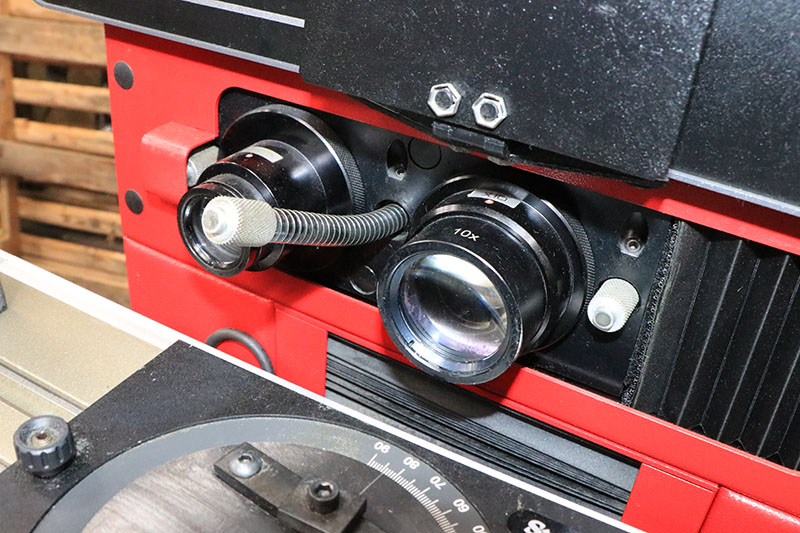

TWO LENSES, 10X & 20X MAGNIFICATIONS
ADDITIONAL SCREEN

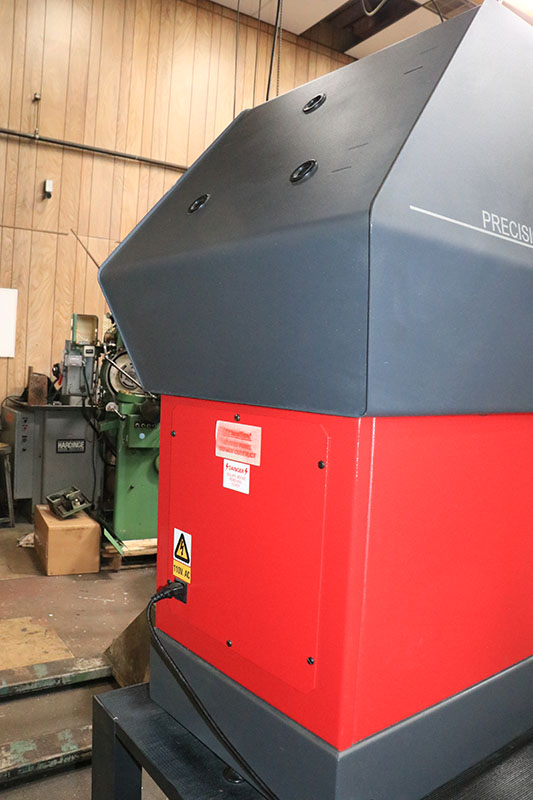

FACTORY CABINET



** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** EXCEPTIONAL CONDITION & APPEARANCE - WOW! **
