Starrett HF-600, 2006, QC2000 DRO & EDGE DET., LENS TURRET COMPARATORS

Price on Request

Make:: Starrett

Model:: HF-600, 2006, QC2000 DRO & EDGE DET., LENS TURRET

Year:: 2006

Ref #:: 178376

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

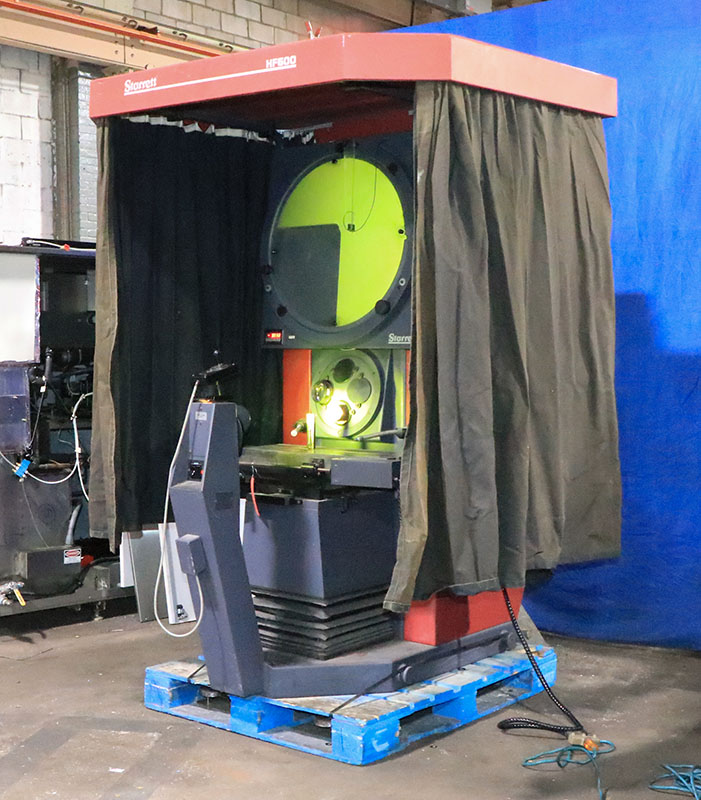

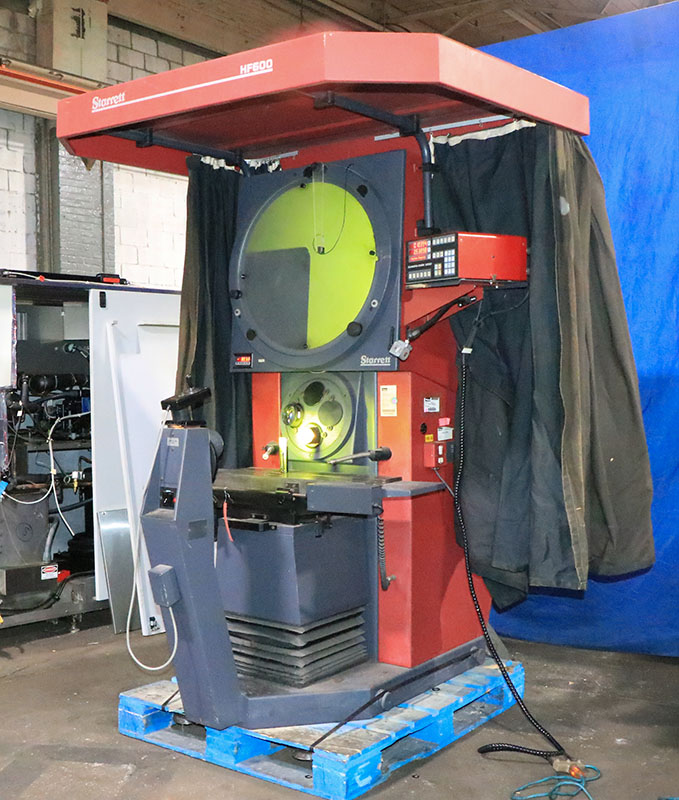

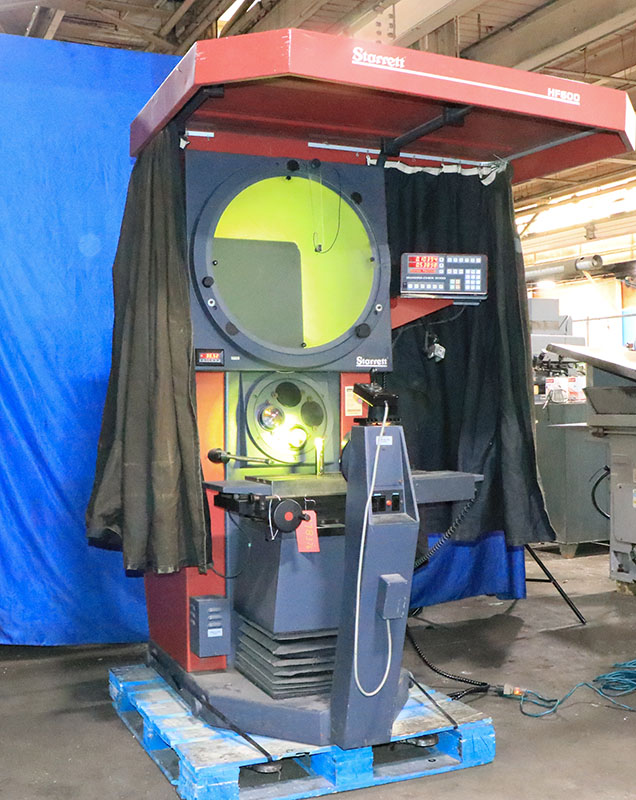

       24" STARRETT "SIGMA SERIES"
      FLOOR TYPE  OPTICAL COMPARATOR

     ** QUADRA-CHEK 2000 DRO **
  WITH PROGRAMMABLE GEOMETERIC FUNCTIONS

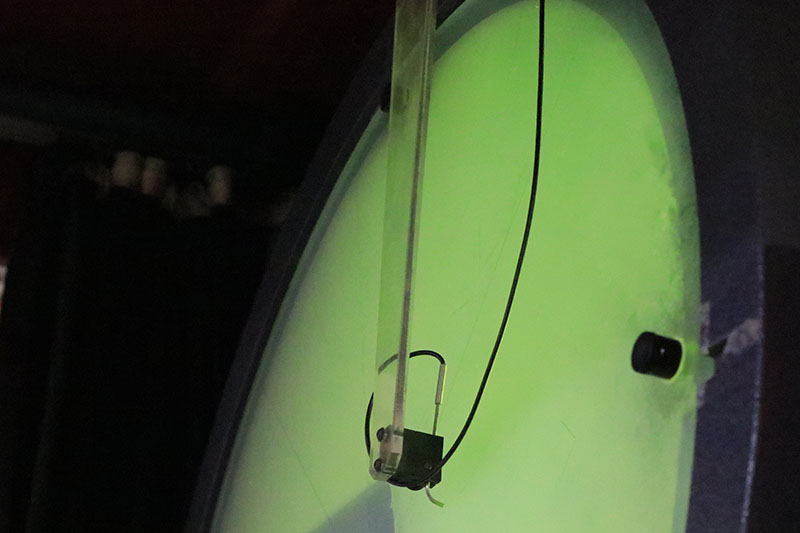

         AND EDGE DETECTION **

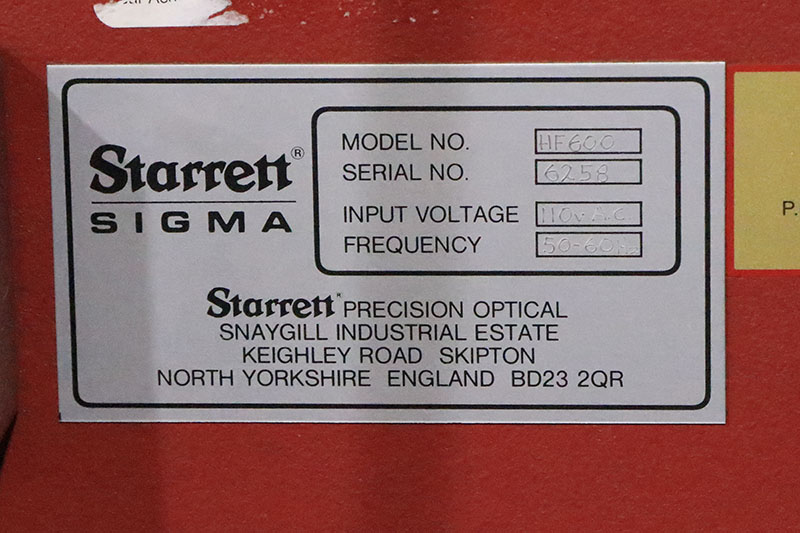

MODEL: HF600     S/N: 6258     NEW: 2006

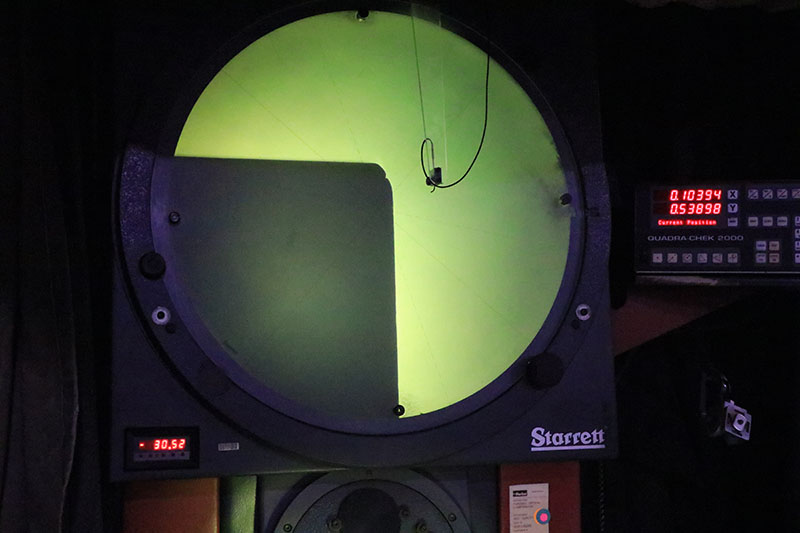

24" SCREEN DIAMETER

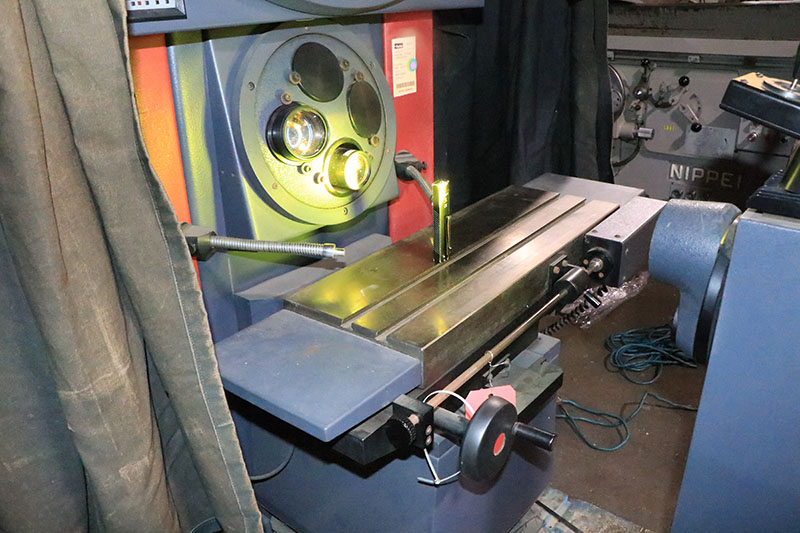

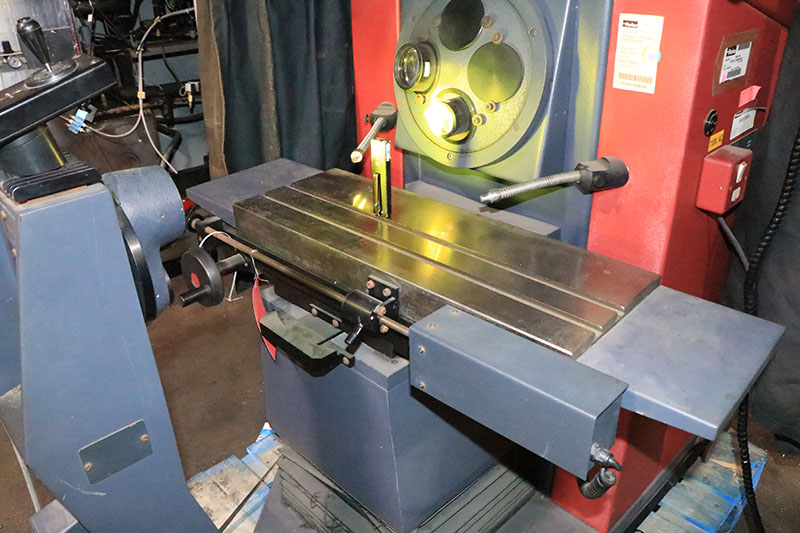

25" x 9" TABLE SIZE
330 LBS. WEIGHT CAPACITY ON TABLE
12" HORIZONTAL TRAVEL
8" VERTICAL TRAVEL
3" FOCUS
+/- 15° HELIX ANGLE

3,000 LBS. APPROX. MACHINE WEIGHT
38"W x 69"D x 75"H FLOOR SPACE

EQUIPPED WITH:

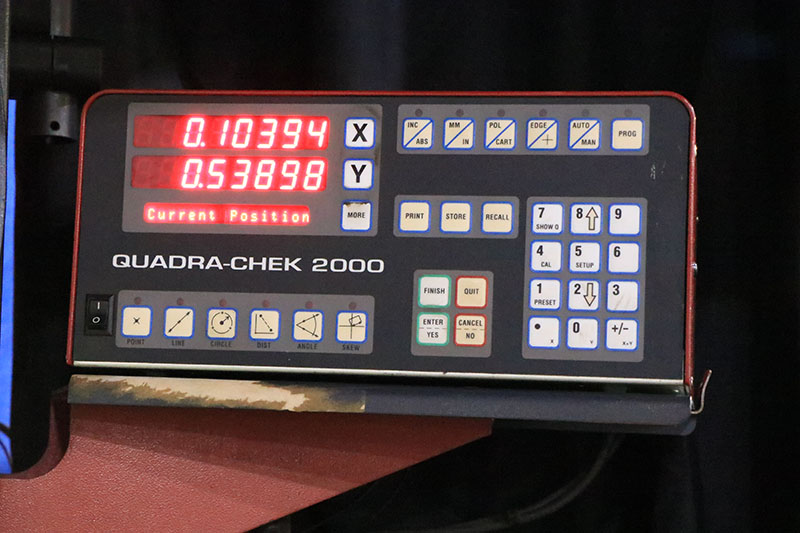

QUADRA-CHEK 2000 DRO WITH PROGRAMMABLE GEOMETERIC
 FUNCTIONS AND EDGE DETECTION
VERTICALLY CORRECT IMAGE

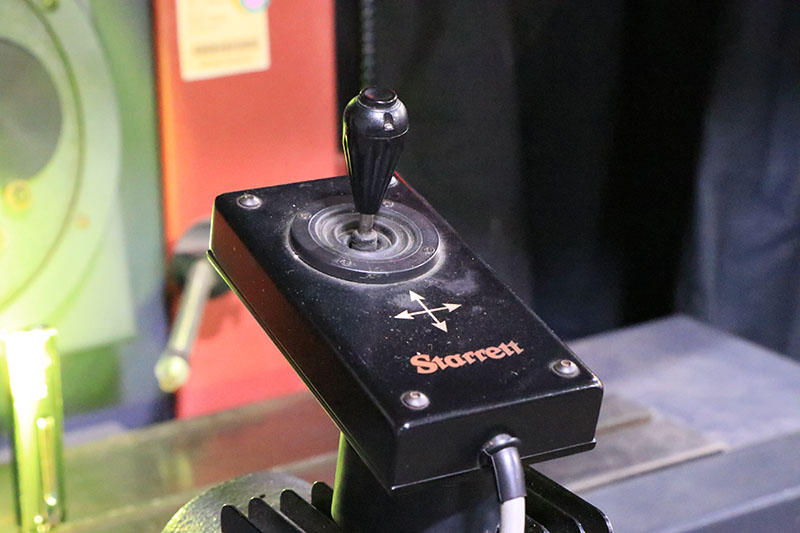

POWER HORIZONTAL & VERTICAL TABLE MOVEMENT
 WITH VARIABLE SPEED DRIVE, JOYSTIC CONTROLLED

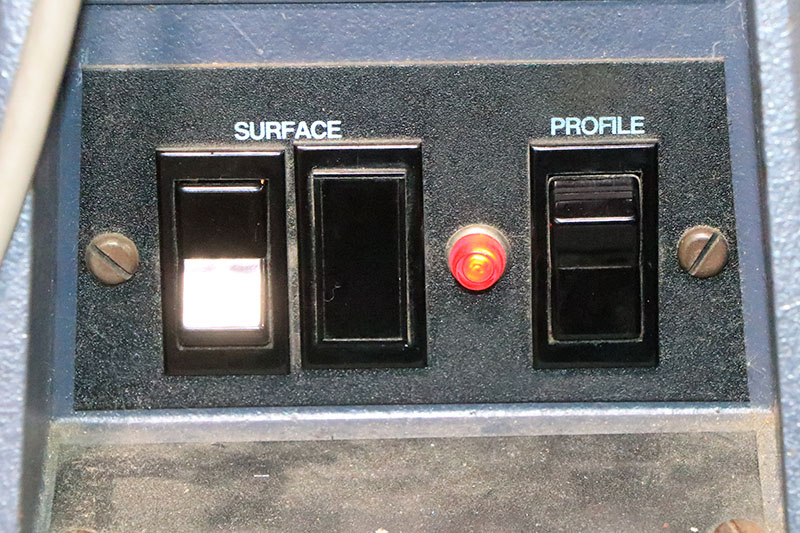

HIGH POWER TUNGSTEN ARC PROFILE ILLUMINATION
FIBER OPTIC SURFACE ILLUMINATION

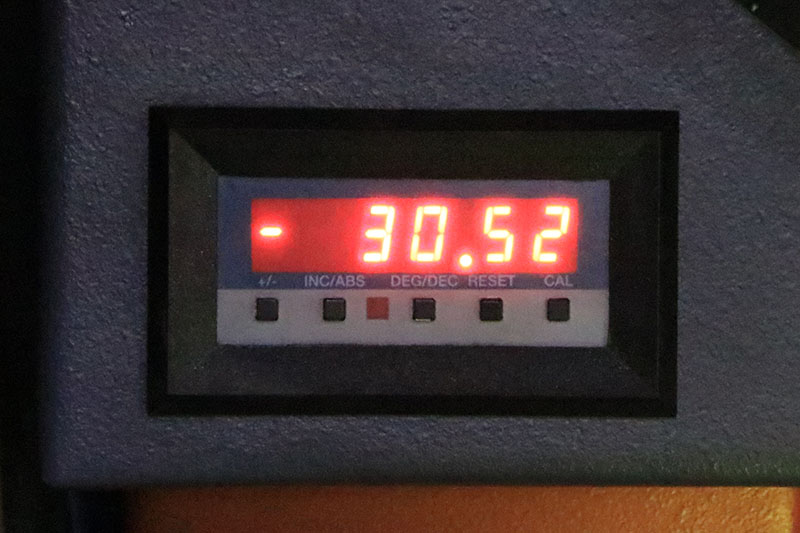

DIGITAL DISPLAY FOR ANGLE ADJUSTMENT OF SCREEN
HELIX ADJUSTMENT OF +/- 15° THROUGH LAMPHOUSE

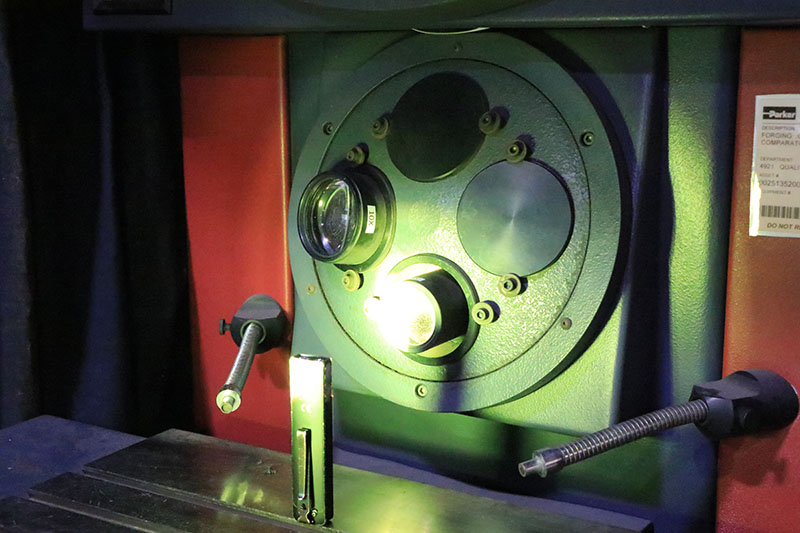

FOUR-POSITION LENS TURRET
10X, 20X LENSES ARE WITH OUR MACHINE

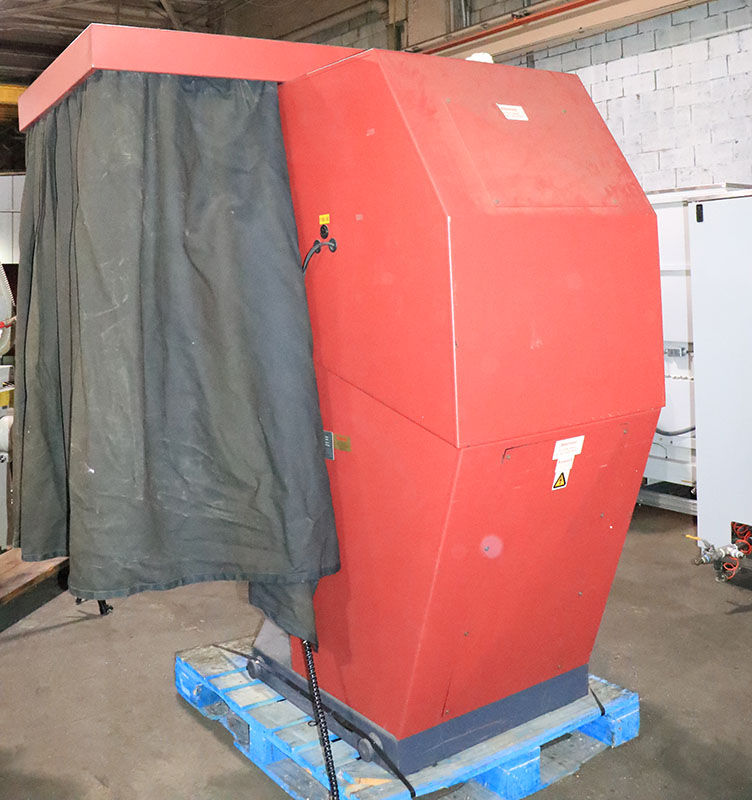

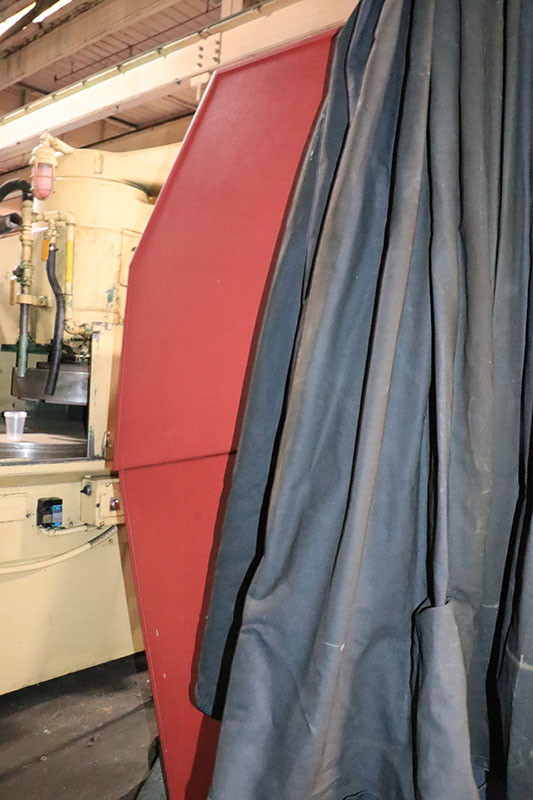

CANOPY & CURTAINS
115 VOLT/1 PHASE ELECTRICS


"Well known throughout the world for
 superior value and exceptional
 measuring performance across the full
 measuring range and at all
 magnifications, the HF600 sets the
 standard in all applications from the
 QC lab to the production floor.
 The HF600 comparator has a
 four-position lens turret for instant
 selection of optional magnification
 lenses.
 Ideal for use over a broad spectrum of
 industries and applications, the HF600
 is designed and built to satisfy the
 requirements of measuring small to
 large work pieces with total precision,
 ruggedness, and efficiency. The HF600
 utilizes 2D measurement software for
 geometries like diameters, radius,
 angles,  lines, points, and for
 skew correction."

 LINK TO VIDEO: https://youtu.be/4-vkDVAvqaY?si=rmsXMQIi-0JS2pTH

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** SUPERIOR CONDITION & APPEARANCE - ALL ORIGINAL**
