Toolmex TUG-40 ENGINE LATHES

$10,950

Make:
Toolmex
Model:
TUG-40
Year:
1984
Ref #:
166503

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

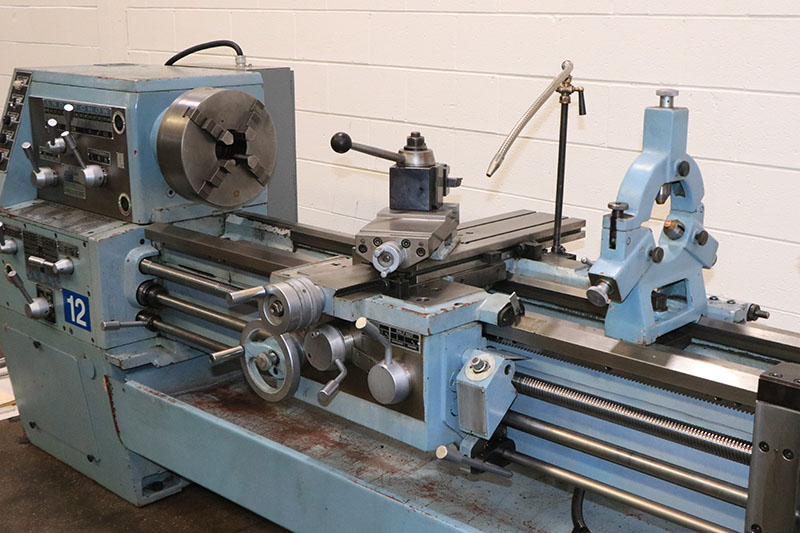

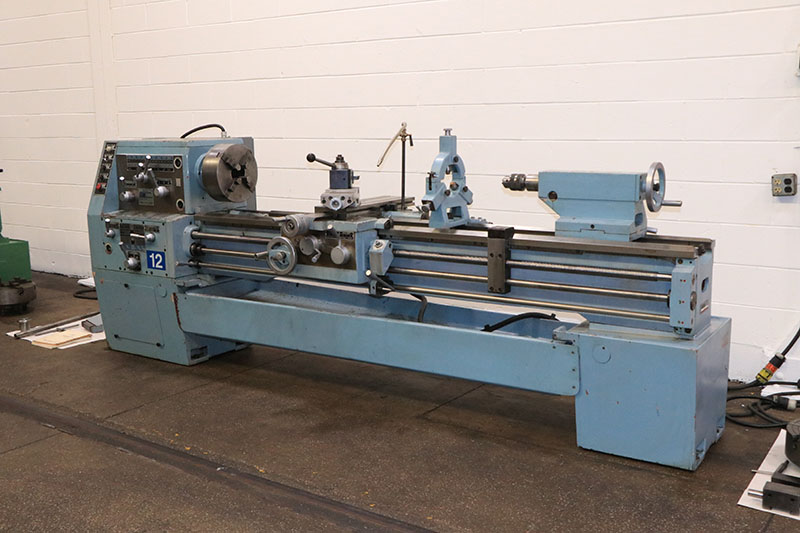

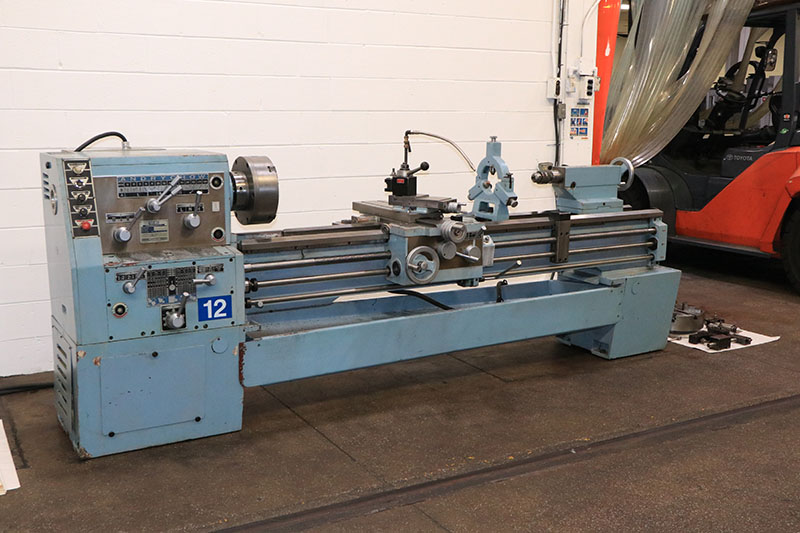

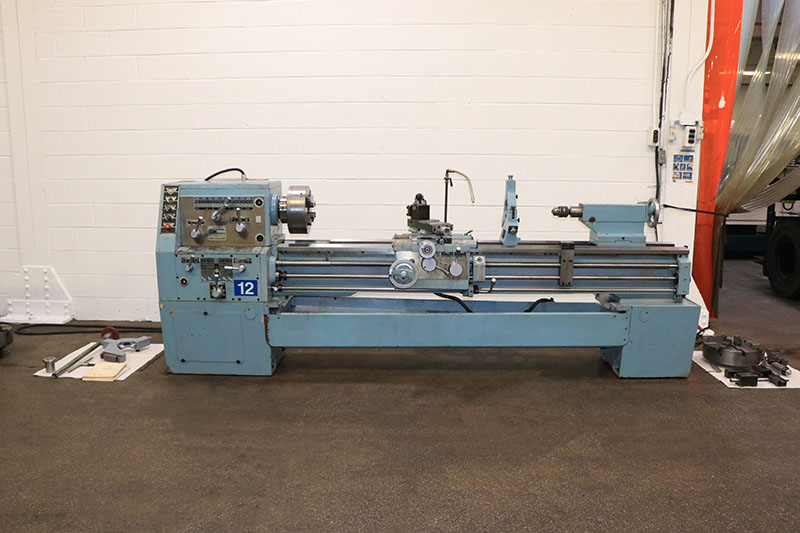

17"/26" X 80" TOOLMEX-ANDRYCHOW GAP BED LATHE

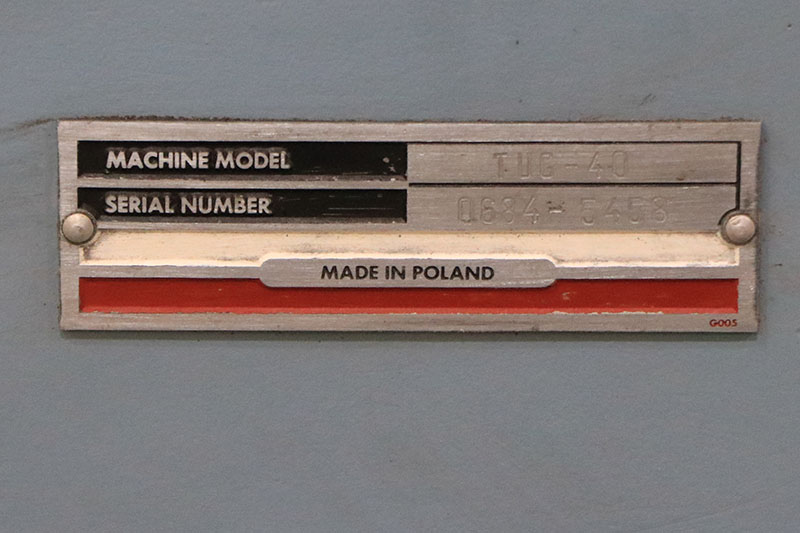

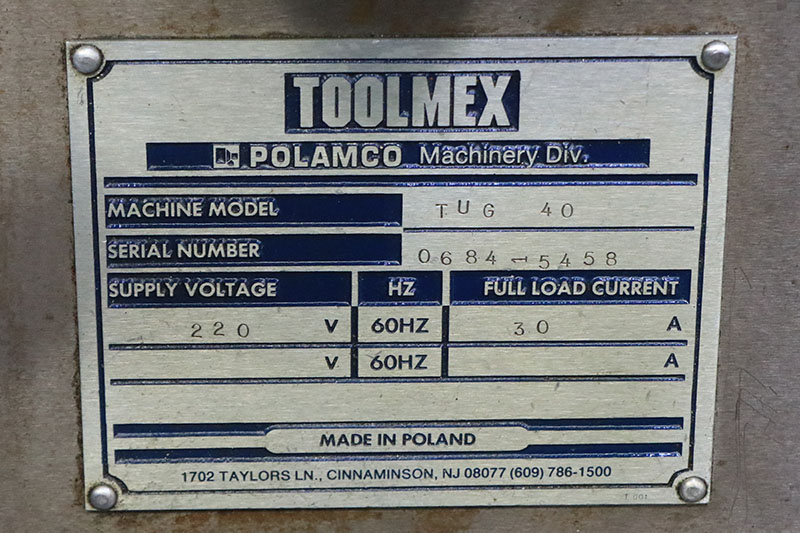

MODEL: TUG-40, S/N: 0684-5458, NEW: 1984

SPECIFICATIONS:
SWING OVER BED ......................... 17-3/4"
SWING IN REMOVABLE GAP ................. 26"
SWING OVER CROSS SLIDE ................. 10"
SPINDLE BORE ........................... 2-1/16"
DISTANCE BETWEN CENTERS ................ 80"
BED WIDTH .............................. 13-3/8"
LONGITUDINAL FEED RANGE ................ 0.0017 TO 0.126 IPR
CROSS FEED RANGE ....................... 0.0008 TO 0.063 IPR

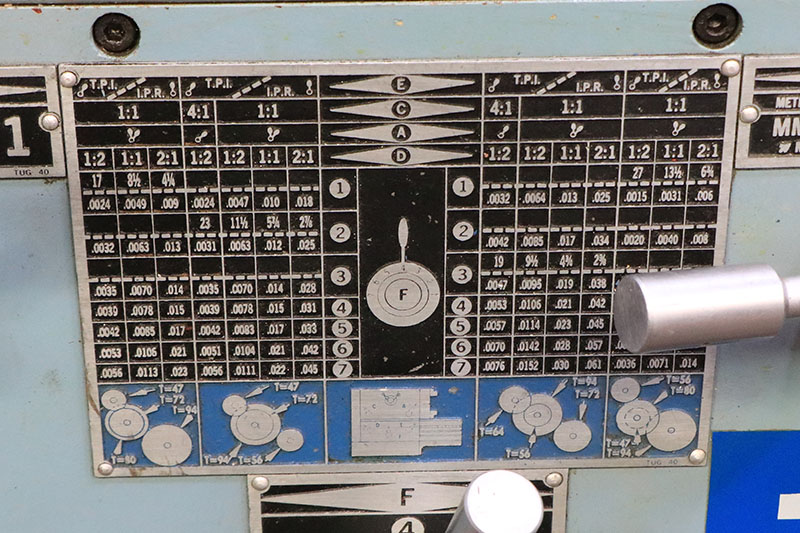

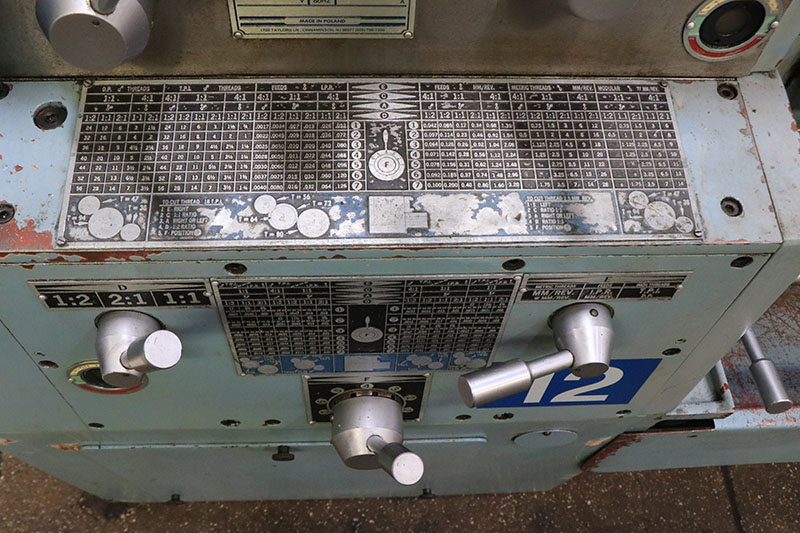

INCH THREADS ........................... 3/4 TO 56 TPI
METRIC THREADS ......................... .5 TO 28 mm
SPINDLE SPEED RANGE (14 SPEEDS) ........ 18 TO 1,600 RPM
SPINDLE NOSE............................ D1-6 CAMLOCK
TAILSTOCK SPINDLE DIAMETER.............. 3"
TAILSTOCK CENTER........................ #5 MT
QUILL TRAVEL............................ 7"
APPROXIMATE WEIGHT...................... 5,500 LBS
SHIPPING DIMENSIONS .................... 136" X 38" X 52"

EQUIPPED WITH:
- INCH & METRIC THREADING CAPABILTY

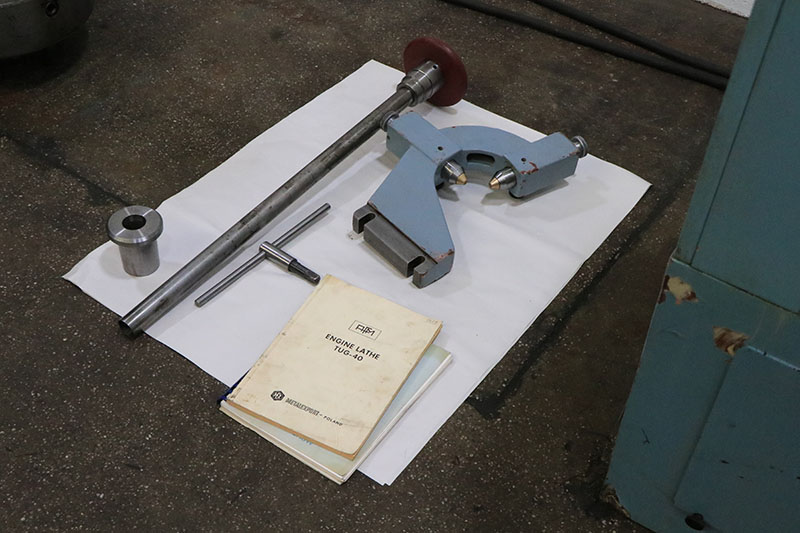

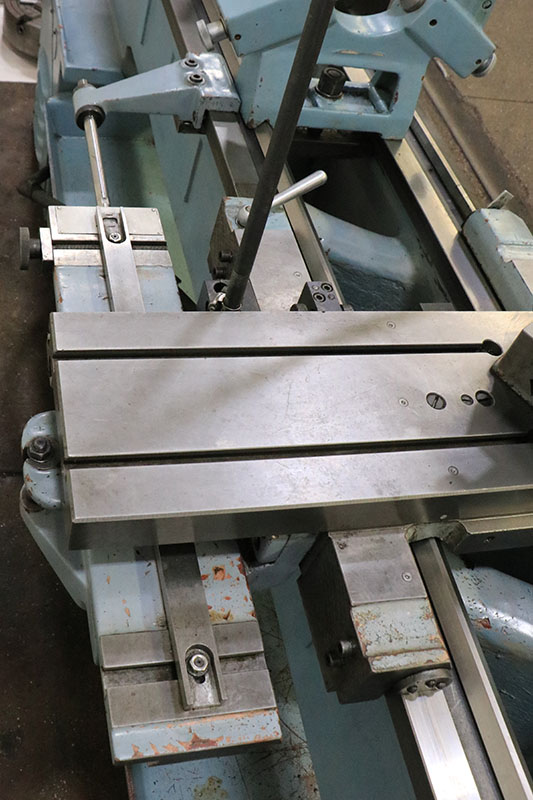

- TAPER TURNING ATTACHMENT

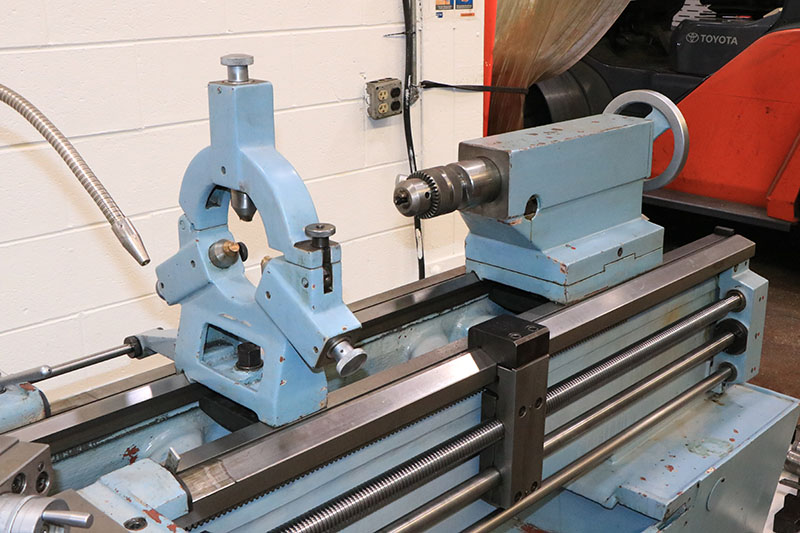

- STEADY REST
- FOLLOW REST

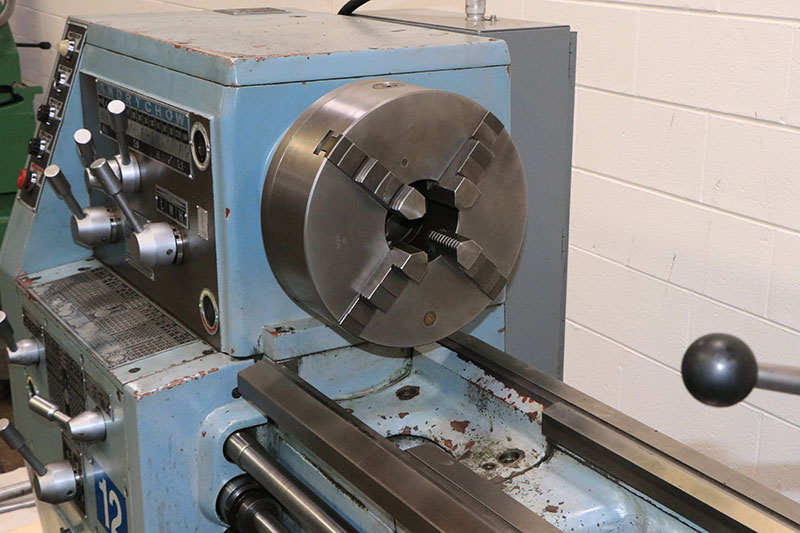

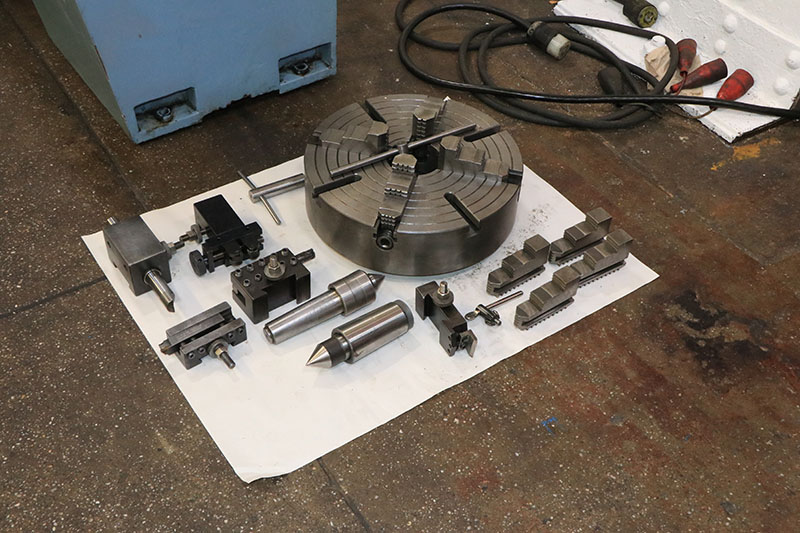

- 4-JAW CHUCK
- 5C COLLET CLOSER

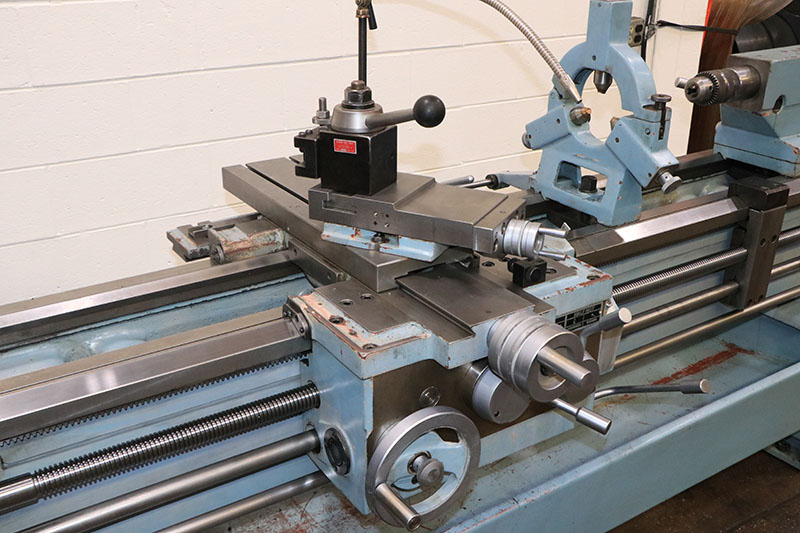

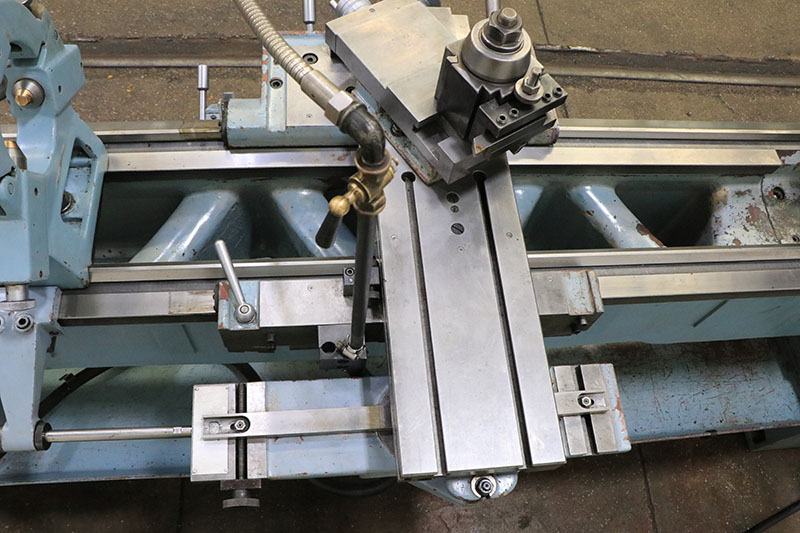

- ALORIS MODEL: CA QUICK CHANGE TOOL POST
- THREAD DIAL INDICATOR
- DRILL CHUCK FOR TAILSTOCK
- LIVE CENTER FOR TAILSTOCK

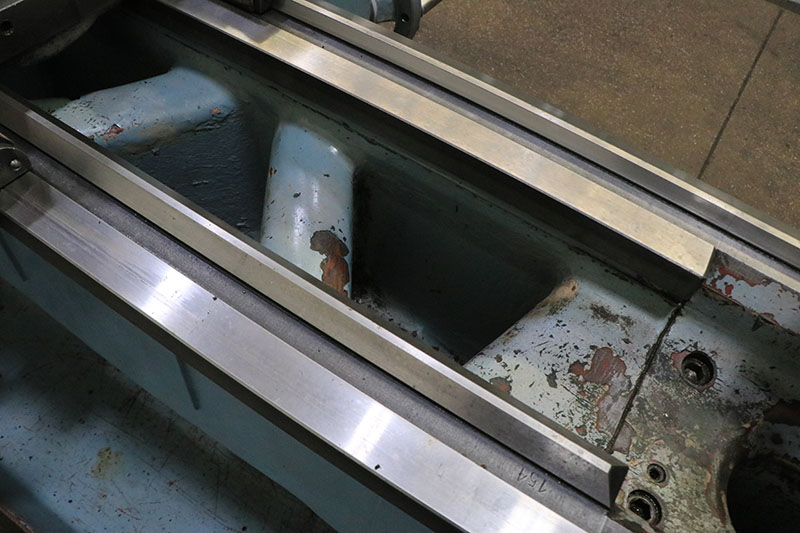

- HARDENED & GROUND BEDWAYS
- 7.5 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
