Tos SUS-63, Inch/Metric,Taper,Sony,(2) Steadies, 4-Jaw ENGINE LATHES

Price on Request

Make:: Tos

Model:: SUS-63, Inch/Metric,Taper,Sony,(2) Steadies, 4-Jaw

Year:: 1991

Ref #:: 179341

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

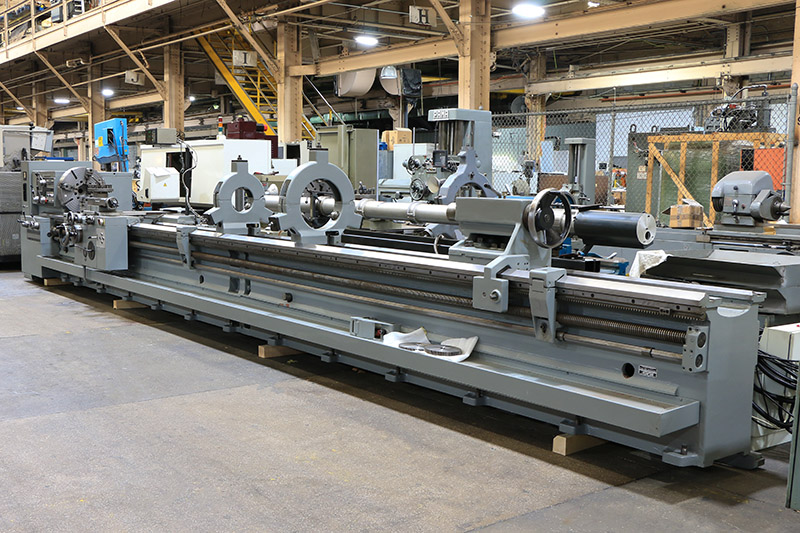

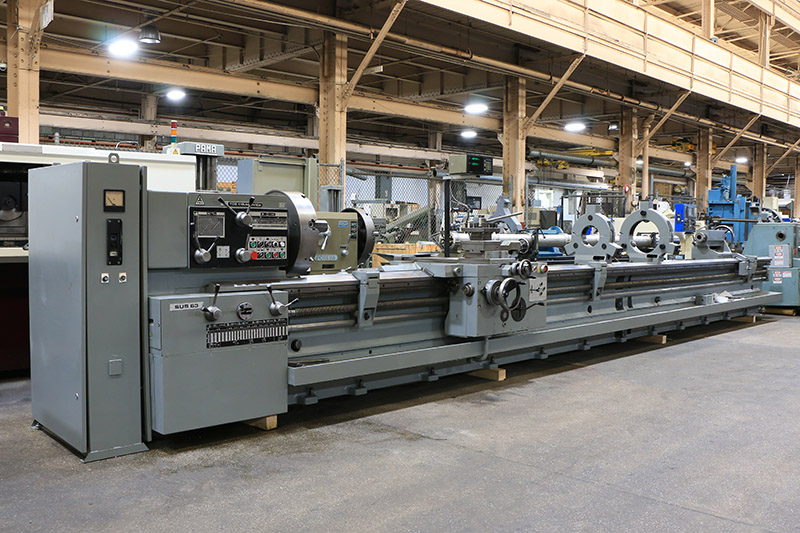

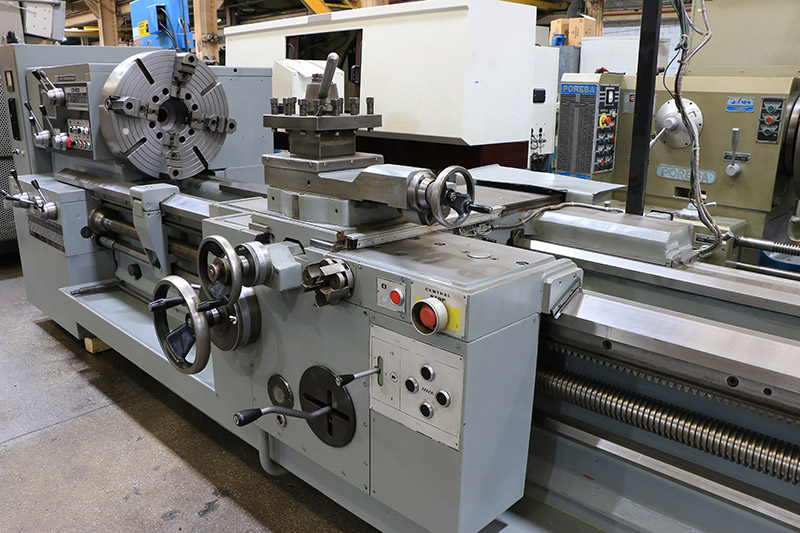

25" x 320" TOS ENGINE LATHE

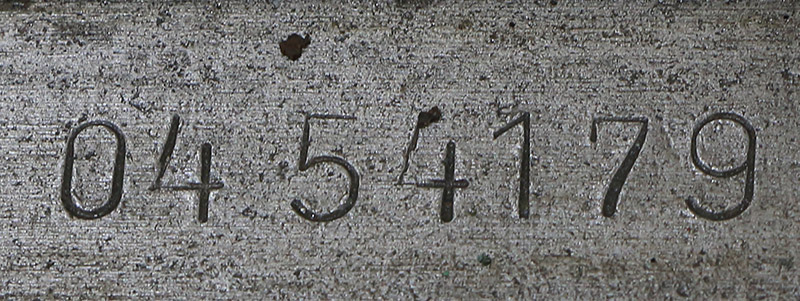

MODEL: SUS-63, S/N: 0454179, NEW: 1991

SPECIFICATIONS:
SWING OVER BED WAYS ......................... 25.8"
SWING OVER CROSS SLIDE ...................... 15.4"
DISTANCE BETWEEN CENTERS .................... 320"
HOLE THRU SPINDLE ........................... 3.3"
WIDTH OF BED ................................ 23"
SPINDLE SPEED RANGE (22) .................... 9 - 1120 RPM
LONGITUDINAL FEED RANGE .................... .002" - .12 IPR
LONGITUDINAL FEED W/SPINDLE COUNTER SHAFT .. .004" - .94 IPR
CROSS FEEDS ARE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (48) .................. 1/4 - 56 TPI
METRIC THREADING RANGE (40) ................ .5 - 224 mm

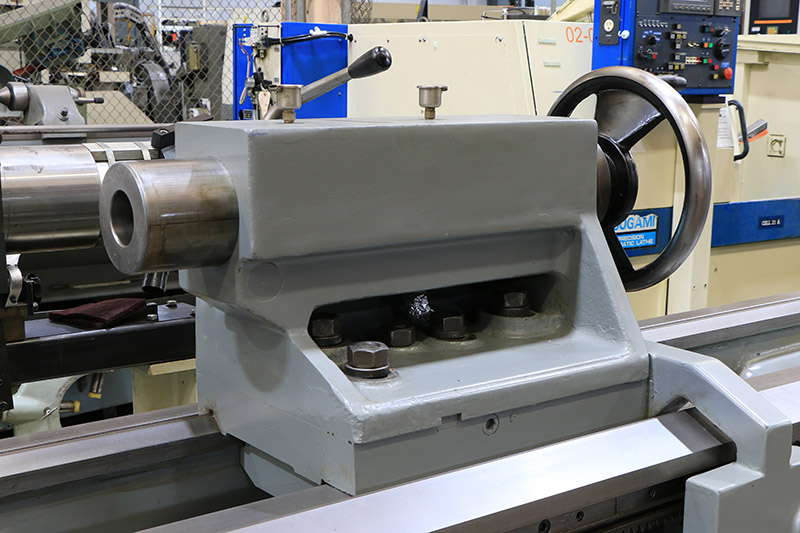

TAILSTOCK SPINDLE TRAVEL ................... 11"
TAILSTOCK SPINDLE TAPER .................... 6 MT
APPROXIMATE WEIGHT ......................... 26,000 LBS
DIMENSIONS ................................. 390" x 74" x 60"

EQUIPPED WITH:

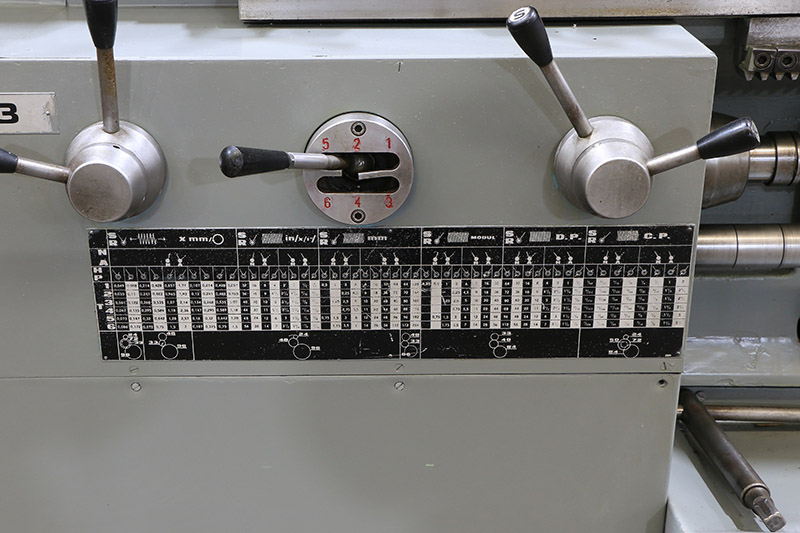

INCH & METRIC THREADING

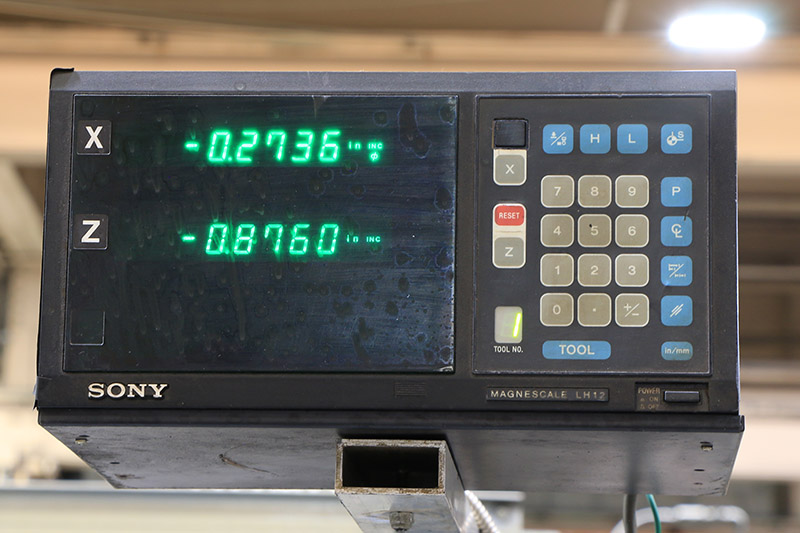

SONY TWO AXIS DIGITAL READOUT

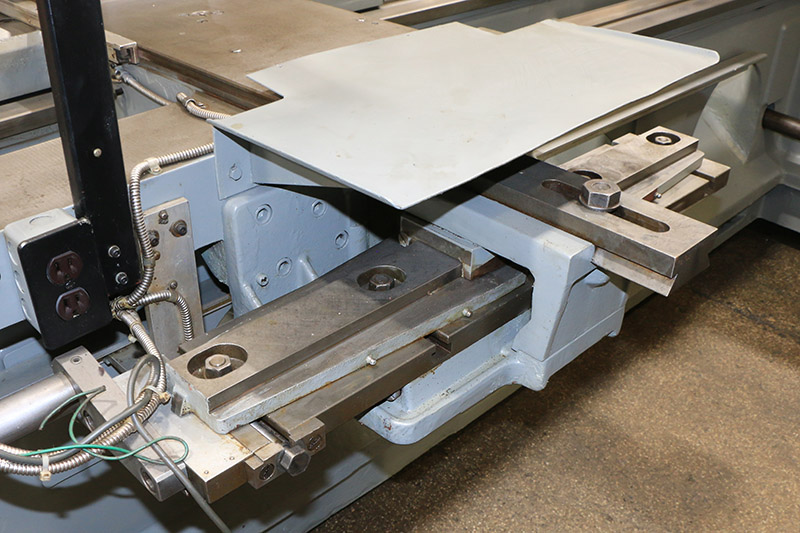

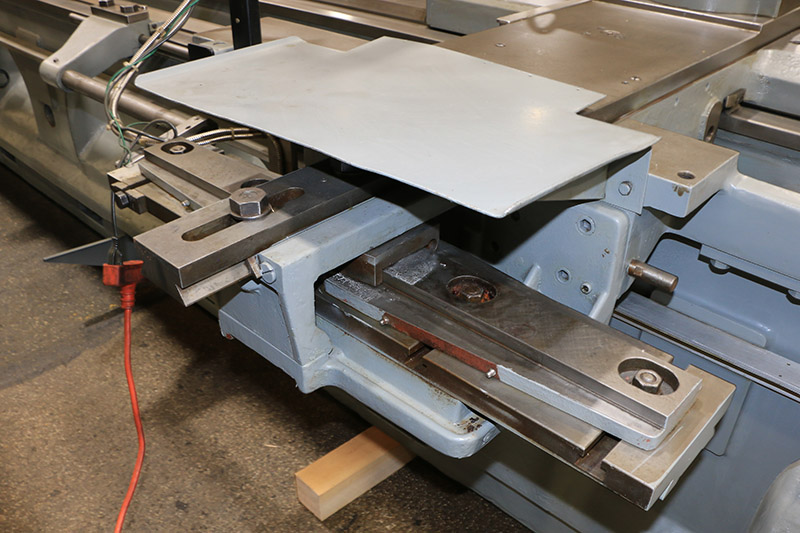

TAPER TURNING ATTACHMENT
RAPID TRAVERSE

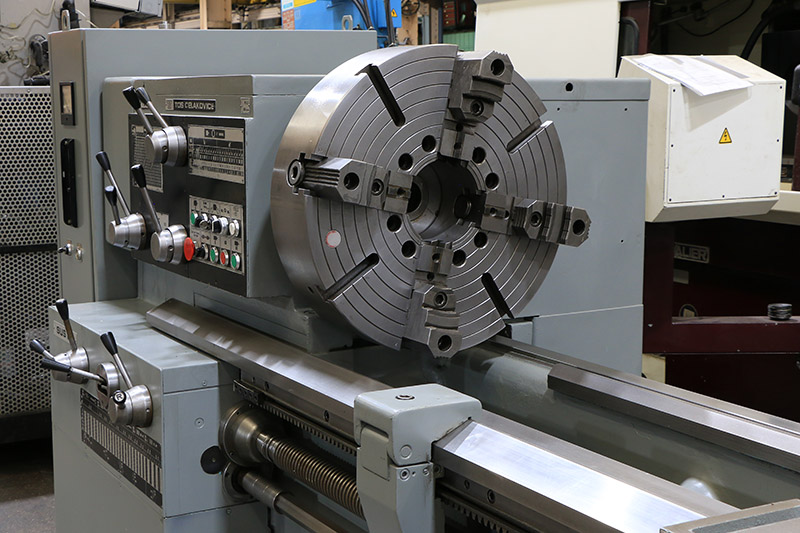

23-1/2" 4-JAW CHUCK

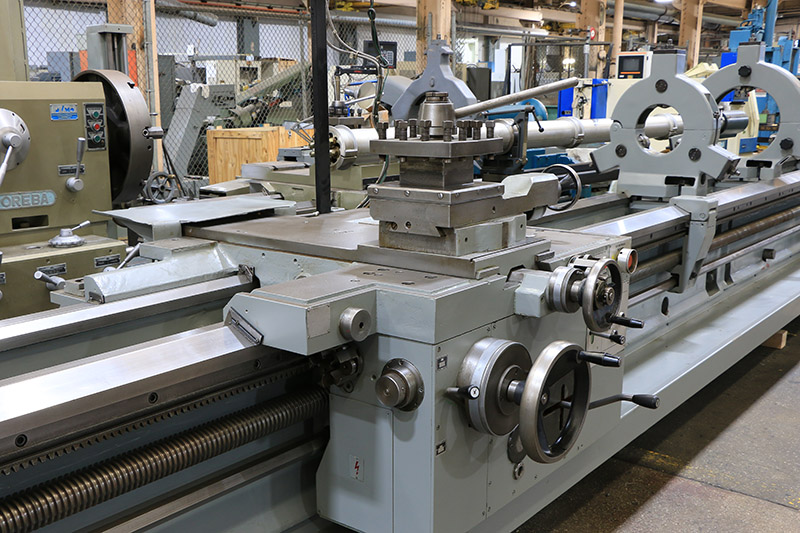

4-WAY TURRET TOOLPOST

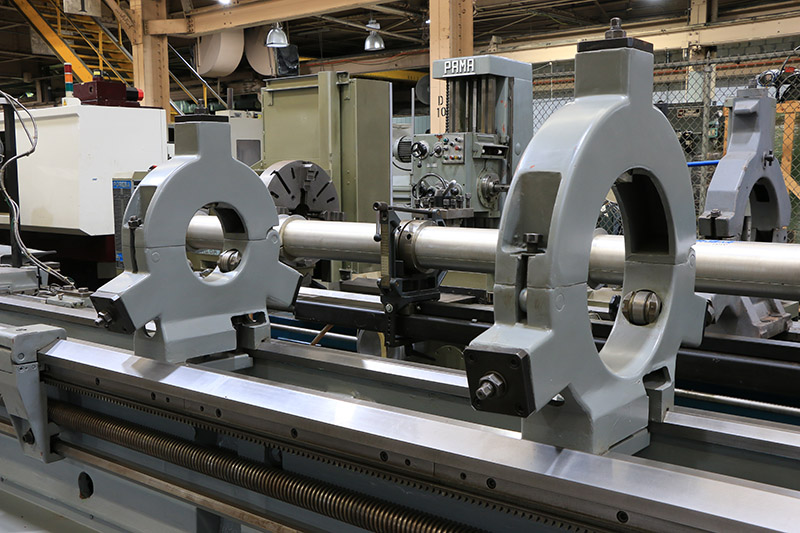

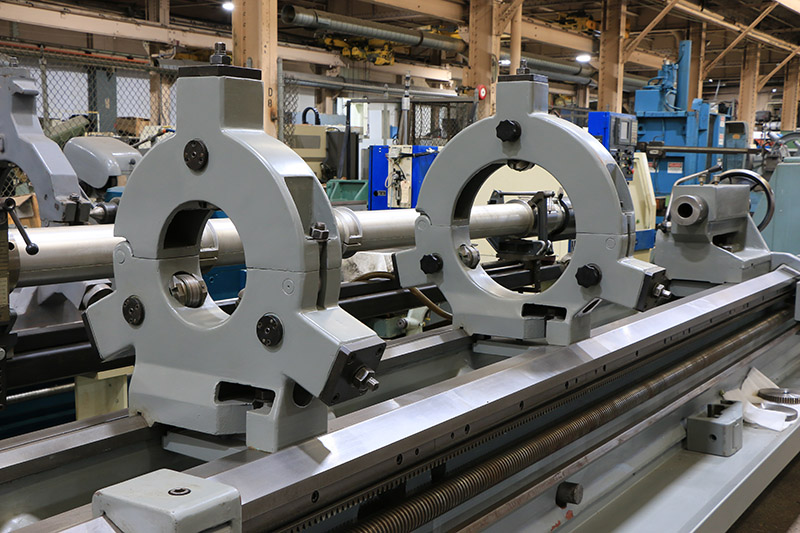

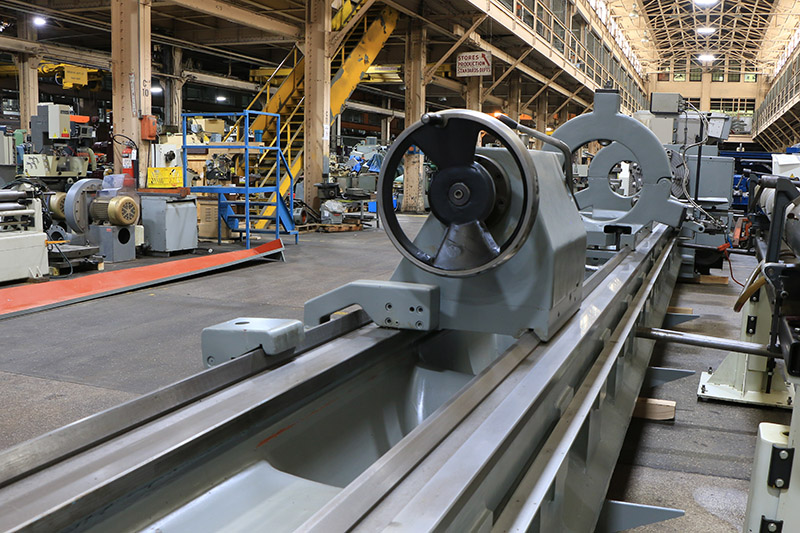

15" ROLLER TYPE STEADY REST
8-1/2" ROLLER TYPE STEADY REST
COOLANT SYSTEM

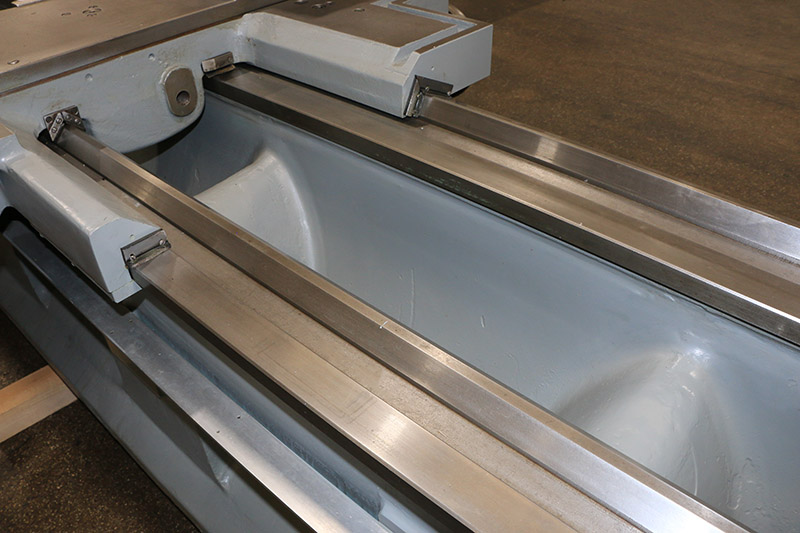

HARDENED & GROUND BED WAYS
25 HORSE POWER MAIN MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
