Trumpf TRUBEND 3066 PRESS BRAKES w/CNC BACK GAUGES

$49,500

Make:
Trumpf
Model:
TRUBEND 3066
Year:
2008
Ref #:
177707

Or call us for a quote at (973) 497-7500 or send us an email at presses@machineryvalues.com

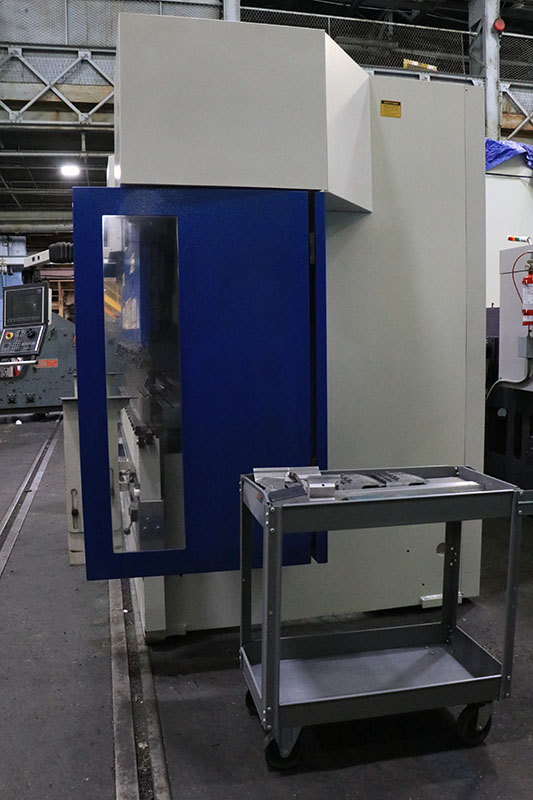

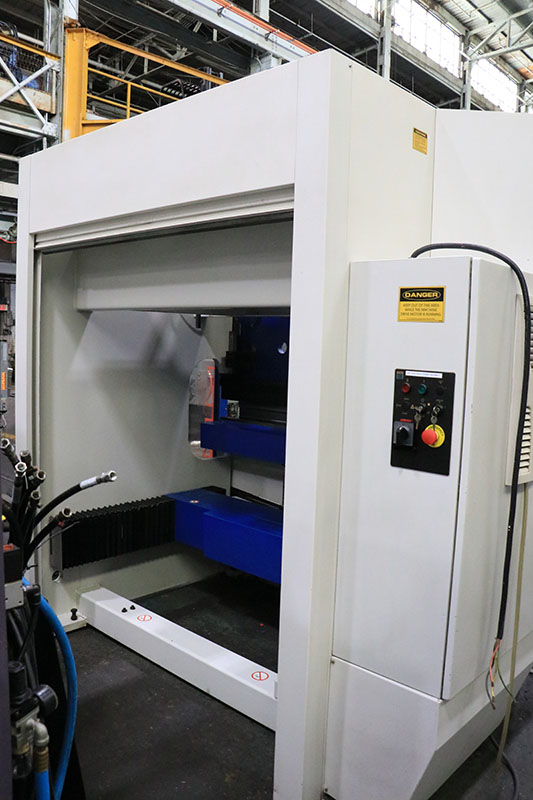

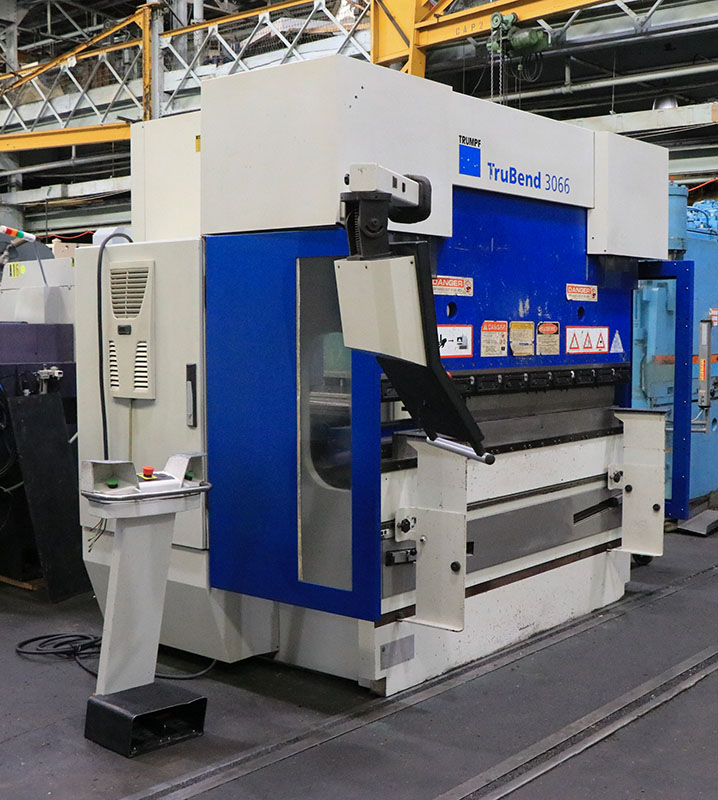

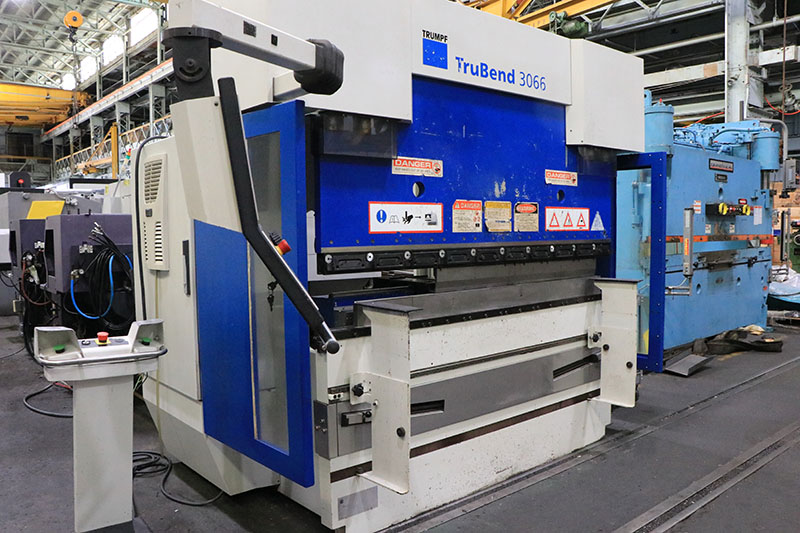

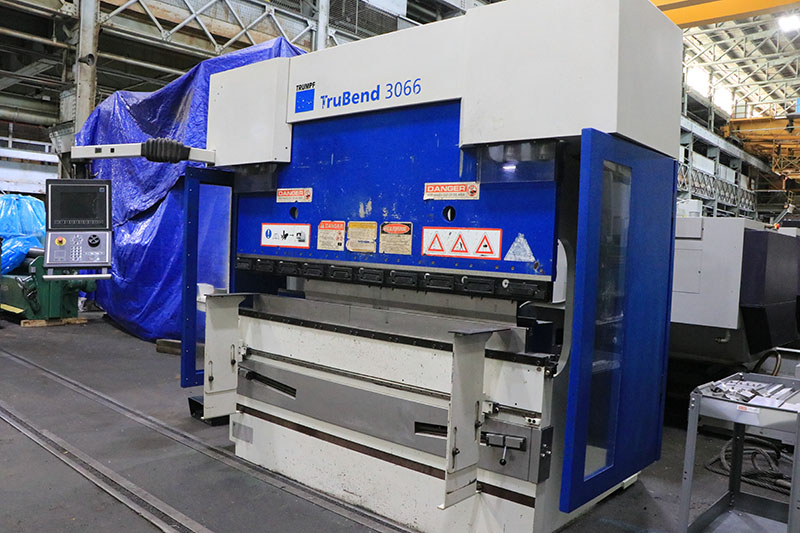

73 TON X 80" TRUMPF HYDRAULIC PRESS BRAKE
MODEL TRUBEND 3066        S/N B0203A0096        NEW 2006


TONNAGE ......................... 73
BED LENGTH .. ................... 80"
DISTANCE BETWEEN HOUSINGS ....... 69"
LENGTH BETWEEN THE HOUSINGS ..... 93"
STROKE .......................... 7.87"
OPEN HEIGHT ..................... 14"
CLOSED HEIGHT ................... 5.9"
Y-AXIS RAPID DOWNWARD MOVEMENT .. 200 MM / SEC.
Y-AXIS OPERATIONAL SPEED MAX .... 15 MM /SEC.
PRESS SPEEDS: RAPID ADVANCE ..... 472 IPM
              BENDING ........... 35 IPM
              RETURN ............ 472 IPM
MAIN MOTOR HP ................... 10
MAX OPERATING PRESSURE  ......... 4,466 PSI
MOTOR SPECS ..................... 3 PH / 460 V

APPROX. WEIGHT: 12,500 LBS.
APRROX DIMENSIONS: 102" X 69" X 92" H

EQUIPPED WITH:

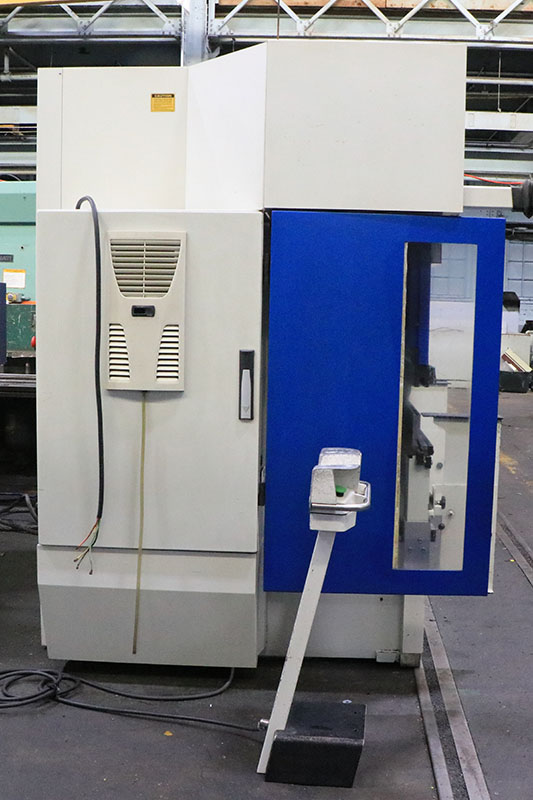

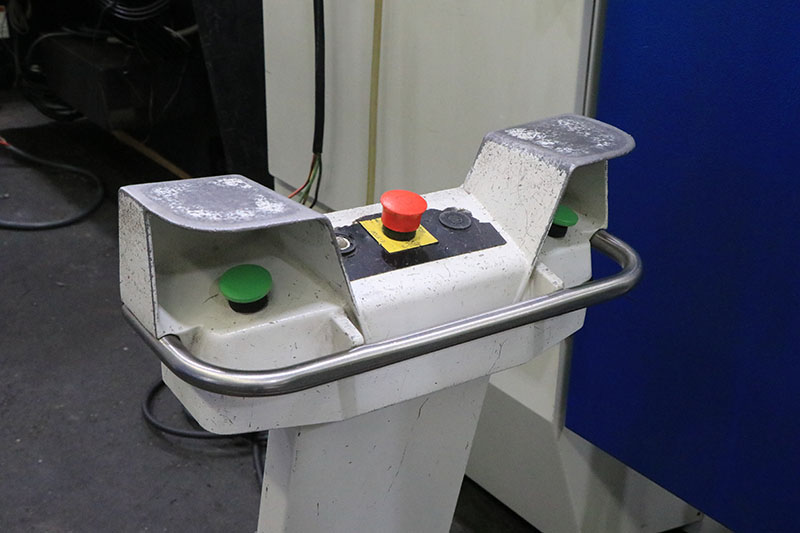

- PALM BUTTONS MOUNTED ON PEDISTAL STATION WITH FOOT PEDAL

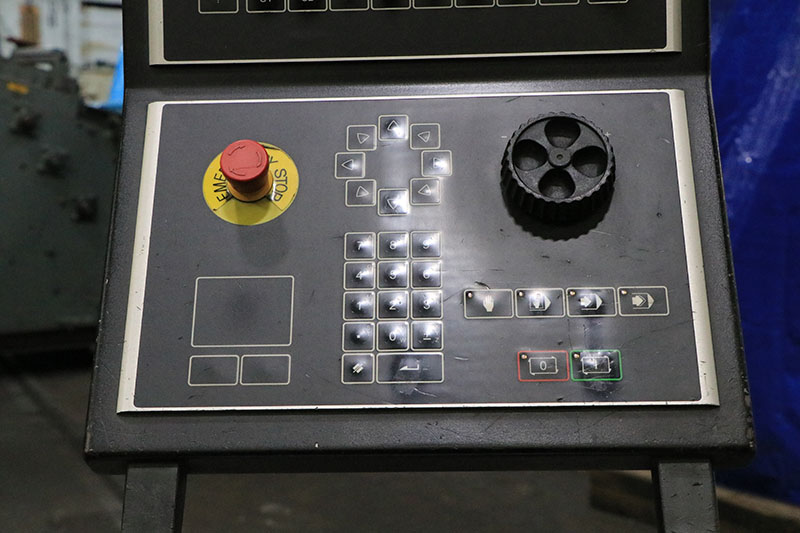

- DELEM DA-65TW GRAPHIC CONTROL

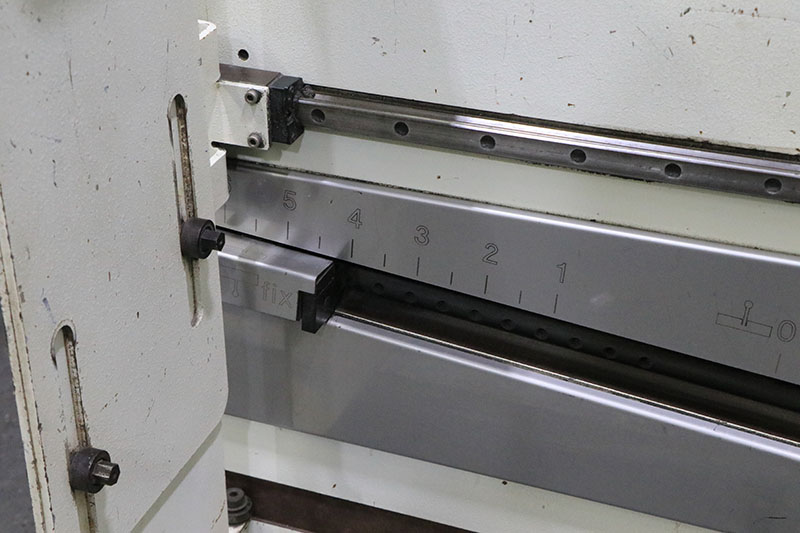

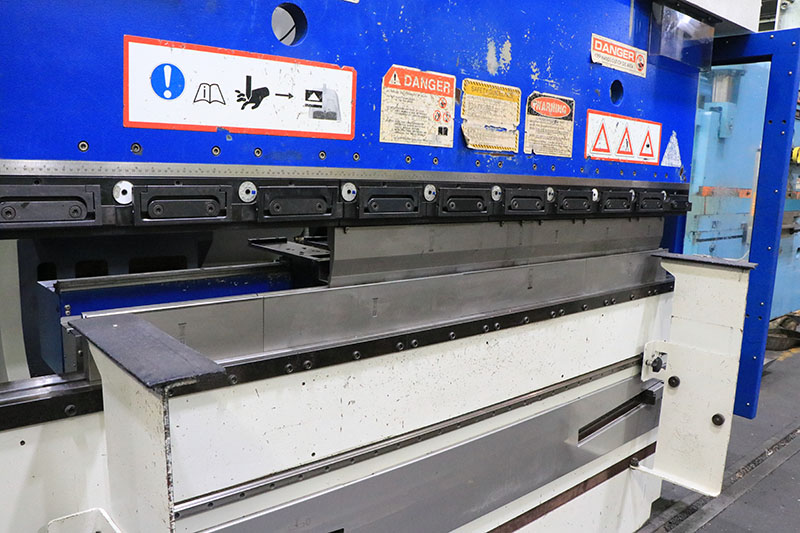

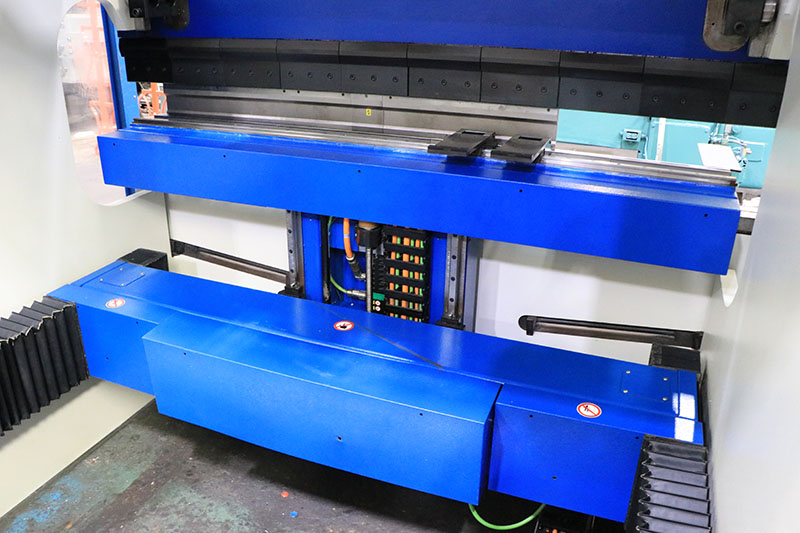

- TRUMPF CNC MULTI-AXIS BACK GAUGE (X, Y, R, Z1, Z2)

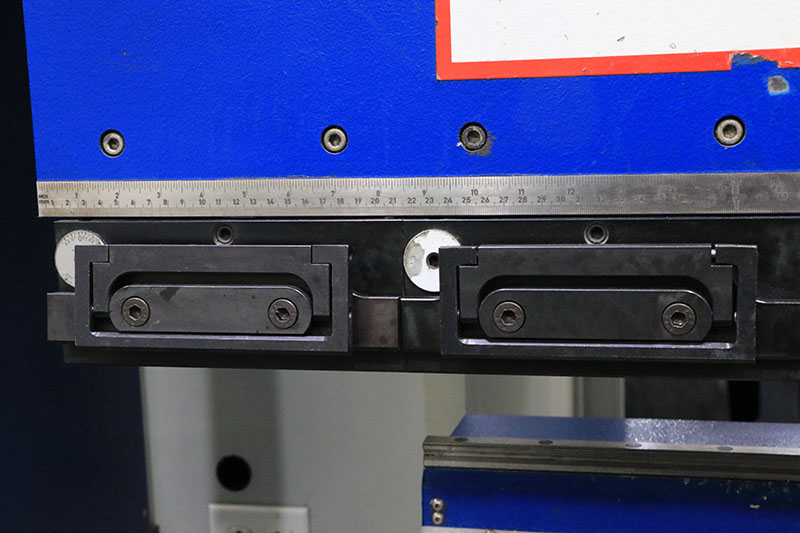

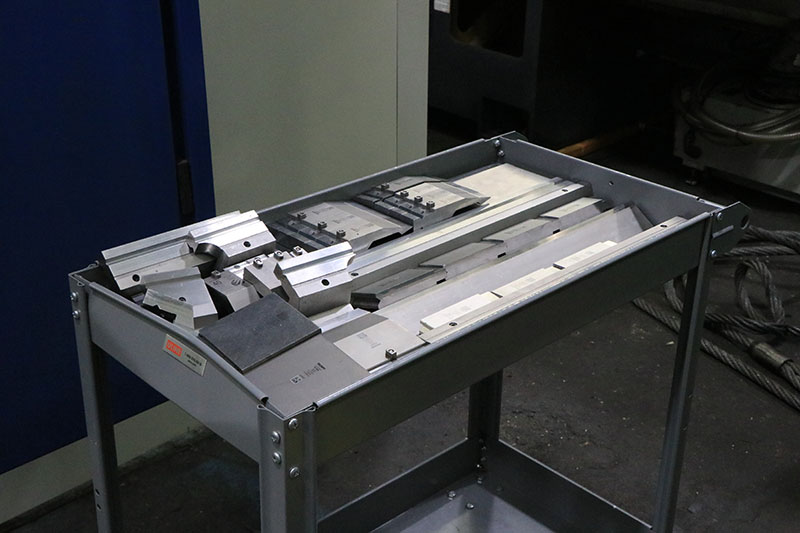

- MISC. TOOLING



DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Machinery Values claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
