Voumard 5A/1500, NEW 1986, MADE IN SWITZERLAND ID / INTERNAL GRINDERS

Price on Request

Make:: Voumard

Model:: 5A/1500, NEW 1986, MADE IN SWITZERLAND

Year:: 1986

Ref #:: 160171

Or call us for a quote at (973) 497-7500 or send us an email at grinders@machineryvalues.com

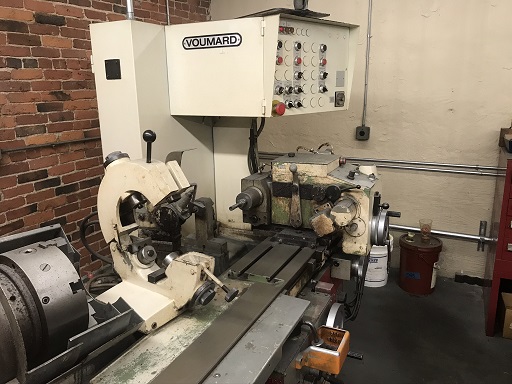

      VOUMARD "MADE IN SWITZERLAND" HIGH-PRECISION"
      UNIVERSAL INTERNAL GRINDING MACHINE
      WITH EXTENDED LENGTH OF 1500mm


MODEL: #5A/1500      S/N:052395      NEW: 1986


GRINDING DIAMETER ......................... 0.20" TO 8"
MAXIMUM GRINDING DEPTH .................... 10"
STANDARD CENTER HEIGHT .................... 7.087"
STANDARD GUARD INNER SWING DIAMETER ....... 11- 3/4"
MAXIMUM WORKPIECE LENGTH, 1500mm MACHINE .. 59"
WORKSPINDLE BORE DIAMTER .................. 1.968"
WORKSPINDLE INTERNAL TAPER ................ METRIC 70

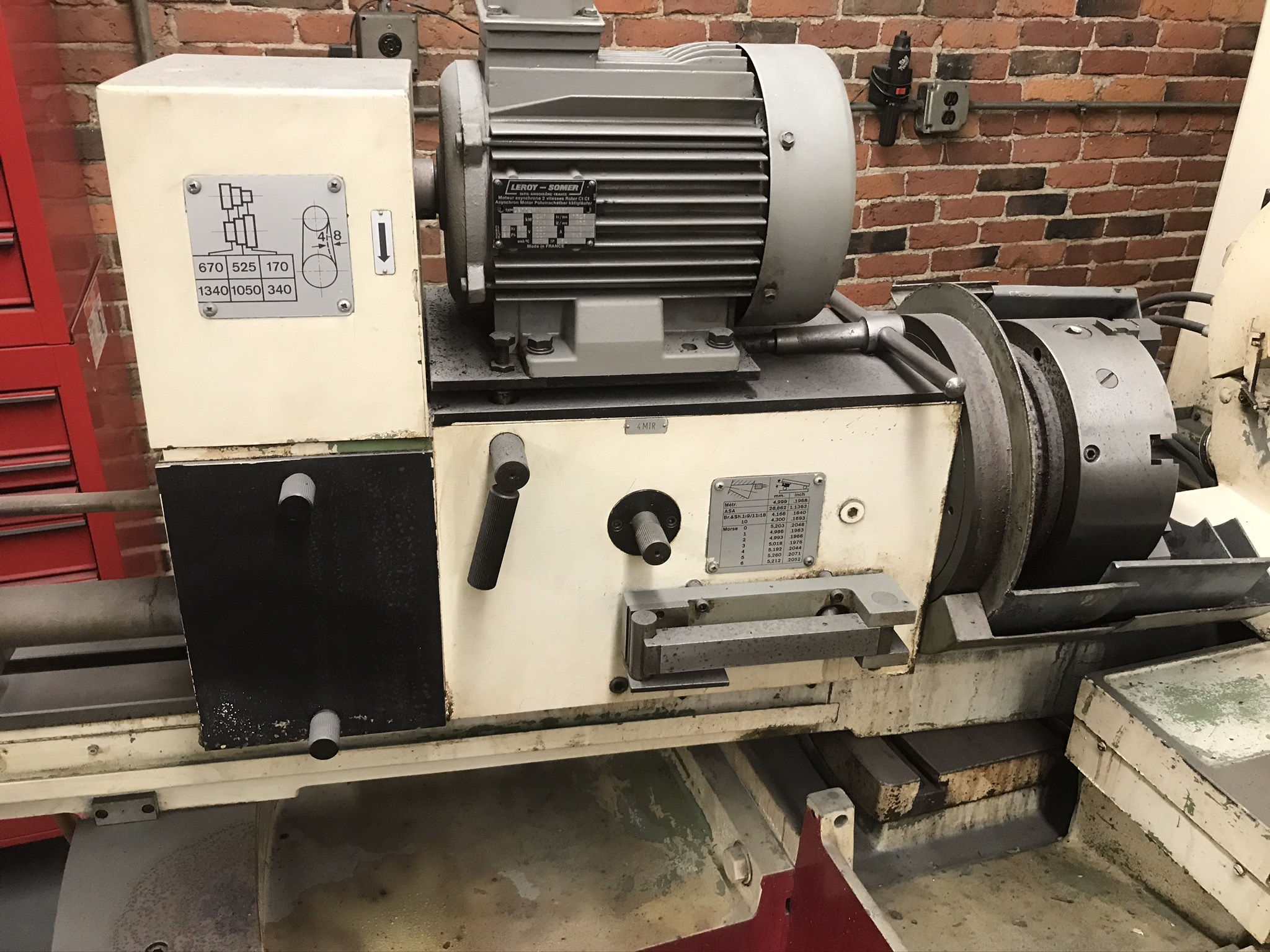

STD. WORKSPINDLE SPINDLE SPEEDS RPM ....... 140-435-560
                                            280-870-1120
MAXIMUM WORKHEAD SWIVEL ................... 90 DEGREES
MAXIMUM TABLE TRAVEL ...................... 23- 1/2"
MINIMUM TABLE RECIPROCATION ............... 1/8"
TABLE TRAVERSE SPEED ...................... 0 TO 400" IPM
STANDARD SPINDLE SPEED RPM ................ 3,600 TO 40,000
STD. SPINDLE DIAMETER ..................... 3.5433"
POWER RATING .............................. 9 - 15 KW
APPROXIMATE NET WEIGHT .................... 6,600 LBS.

FACTORY EXTENDED LENGTH (1500mm MODEL) FOR INCREASED LENGTH CAPACITY
WORKHEAD HAS A SINE BAR OPTION
10" PRATT BURNERED 6-JAW CHUCK
3-POINT STEADY REST
I.D. GRINDING SPINDLE

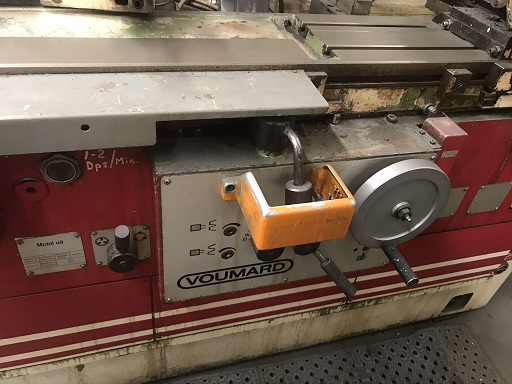

WHEELHEAD FEED HAS BOTH COARSE & FINE SELECTIONS
SPARKOUT TIMER

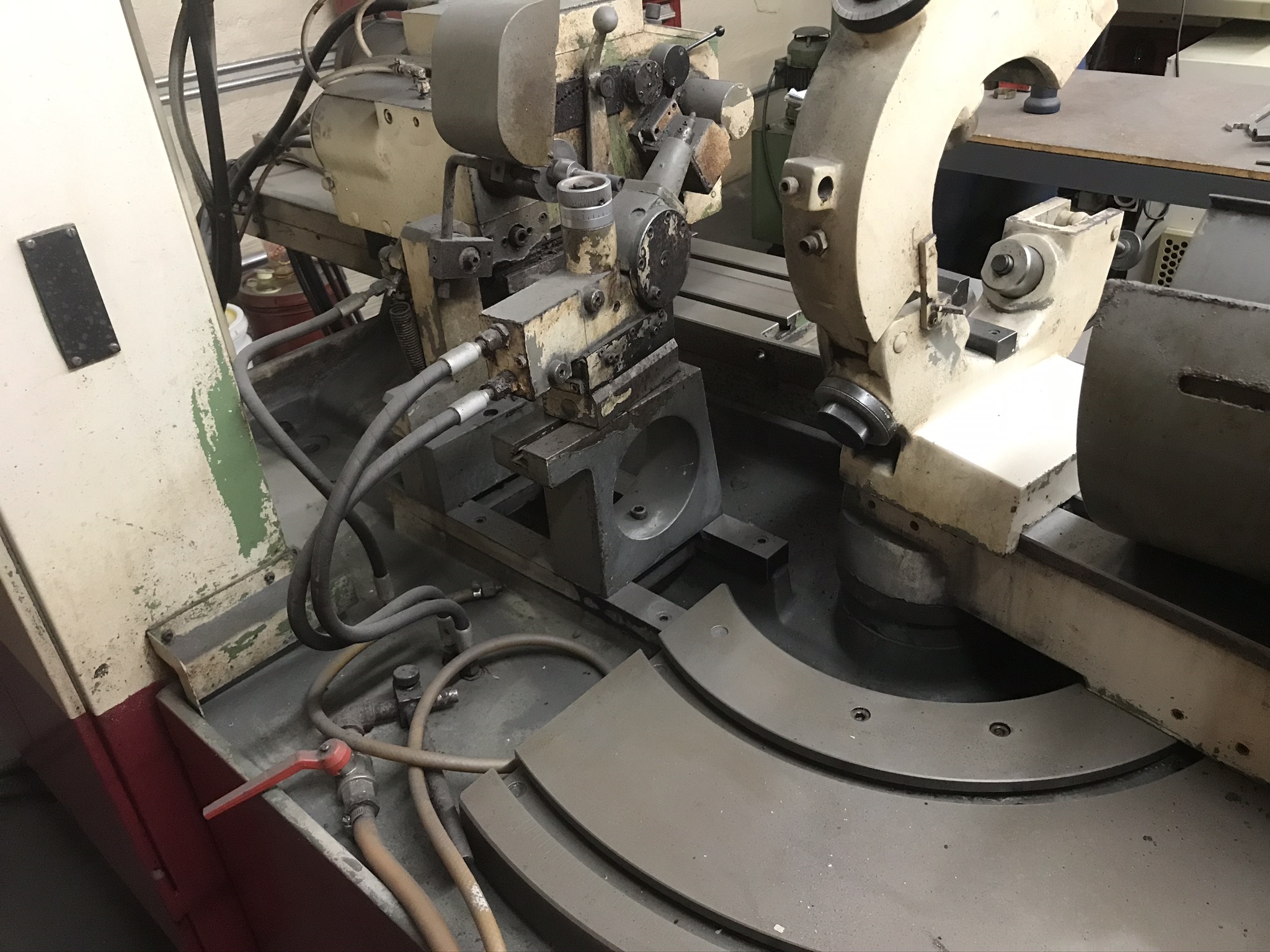

WHEEL DRESSER, POWER ACTUATED, WITH FINE MICROMETER ADJUSTMENT
COOLANT THRU WORKHEAD SPINDLE
COOLANT SYSTEM

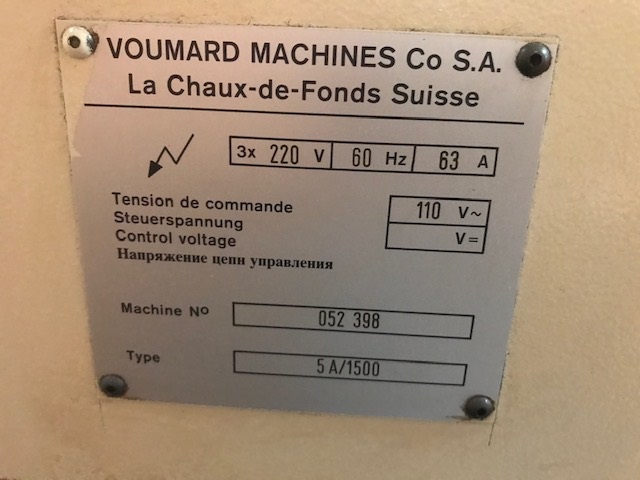

WIRED PRESENTLY FOR 3 PHASE/60 CYCLE/220 VOLT OPERATION, 63 AMPS SERVICE

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCEPTIONAL CONDITION & APPEARANCE **
