Whacheon 20-1/2" G x 80" ENGINE LATHES

$9,950

Make:: Whacheon

Model:: 20-1/2" G x 80"

Year:: 1985

Ref #:: 179002

Or call us for a quote at (973) 497-7500 or send us an email at toolroom@machineryvalues.com

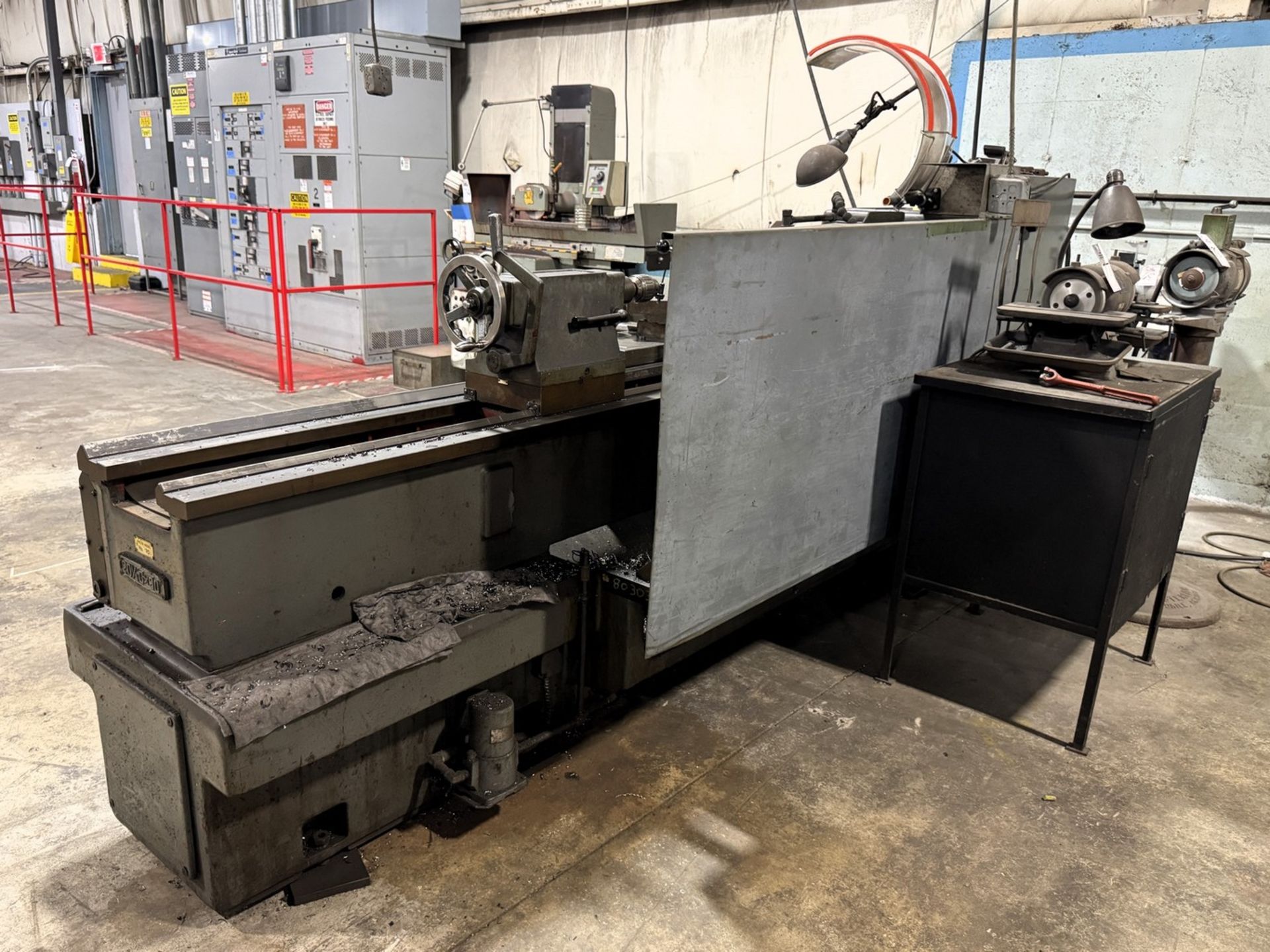

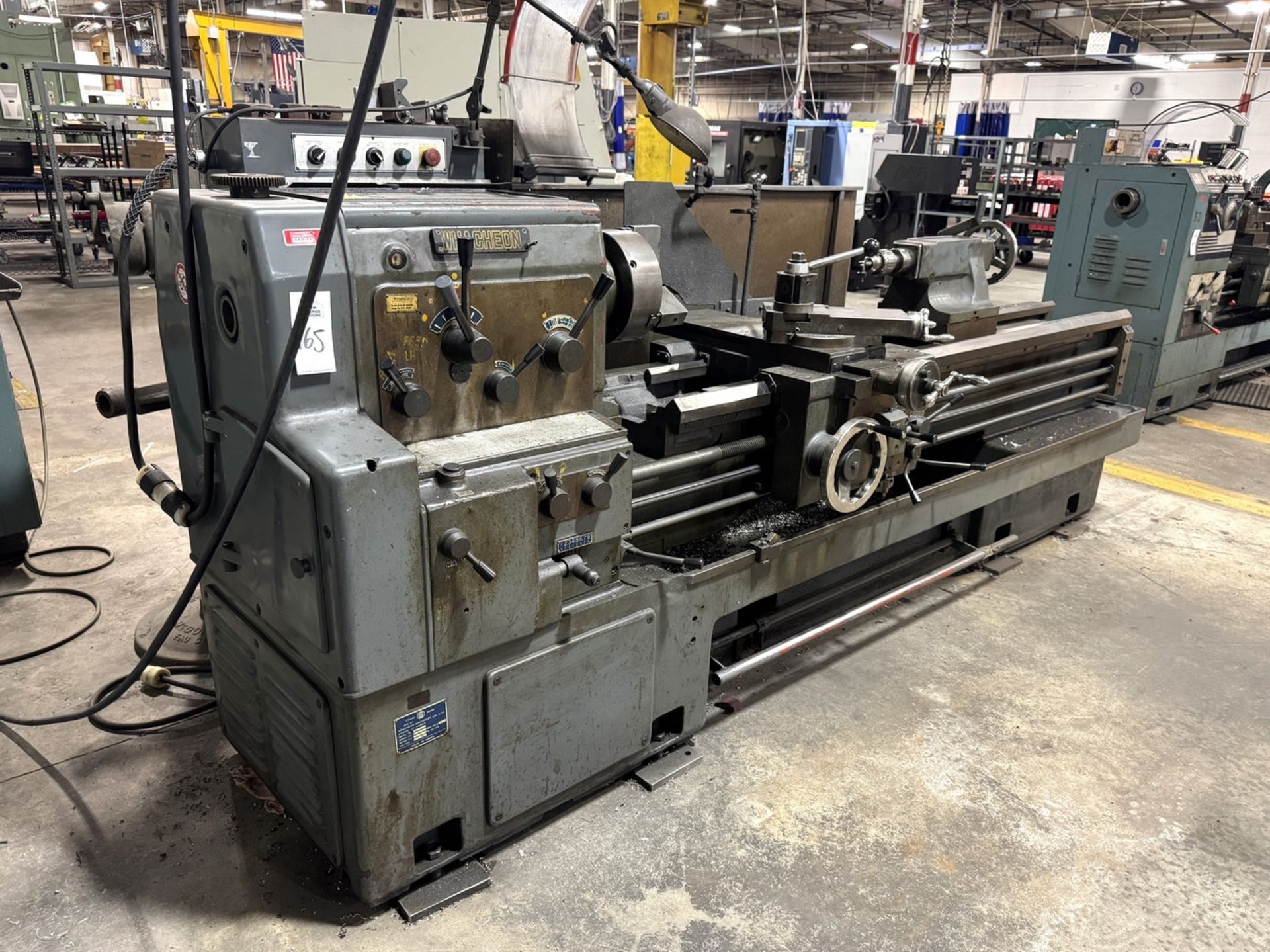

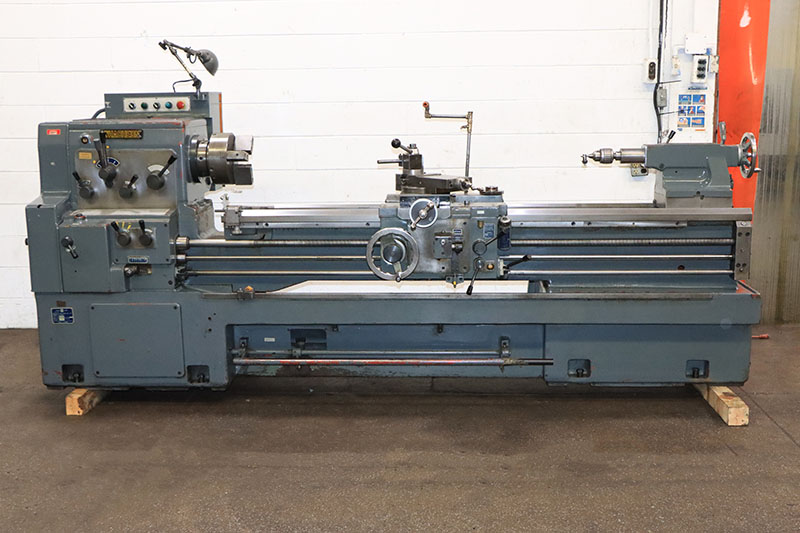

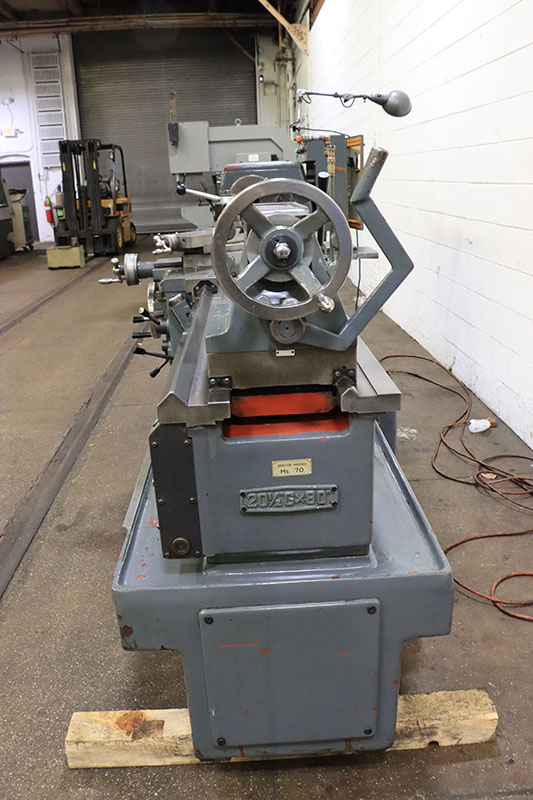

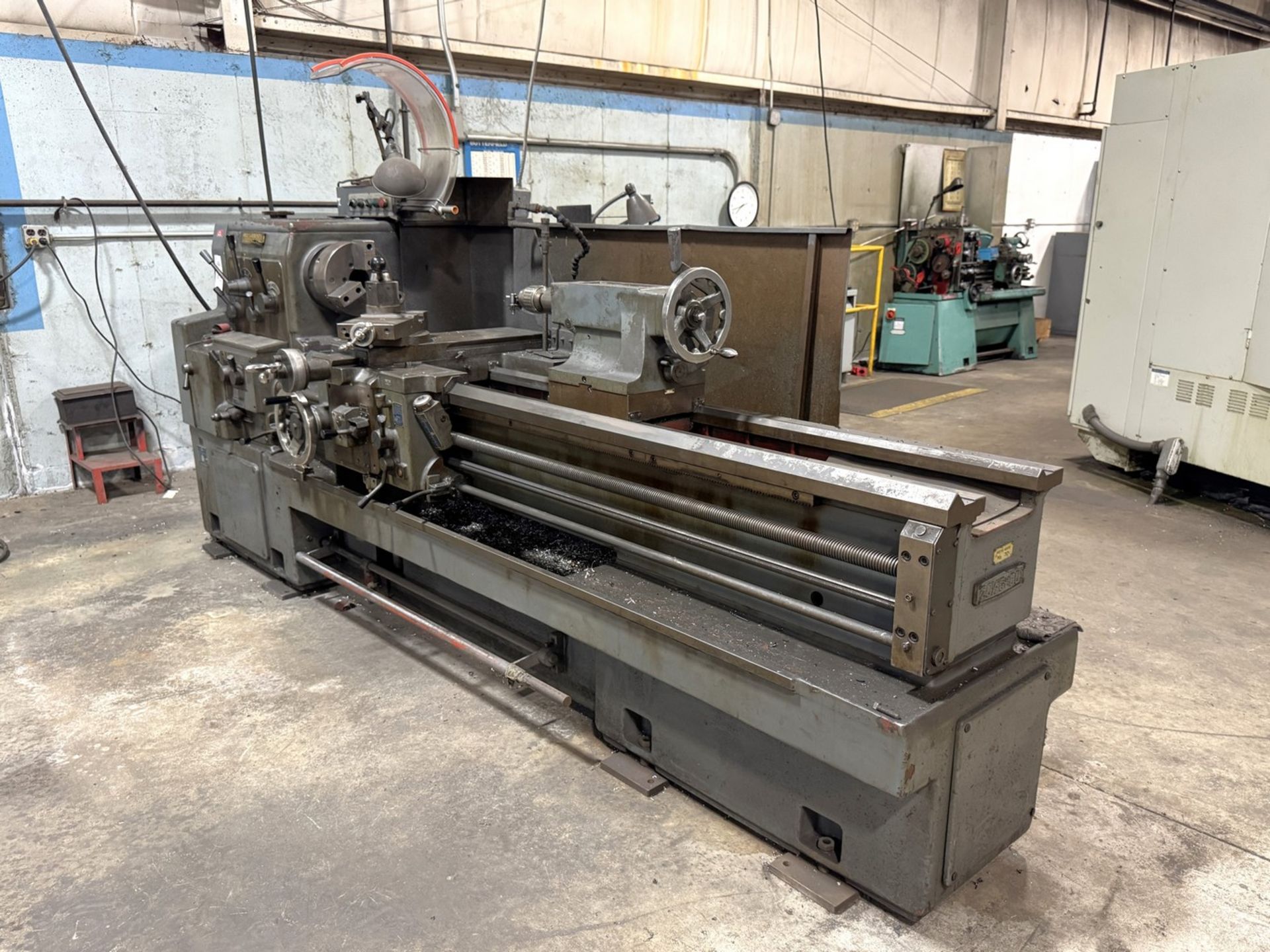

20.5"/29.5" x 80" WHACHEON GAP BED ENGINE LATHE

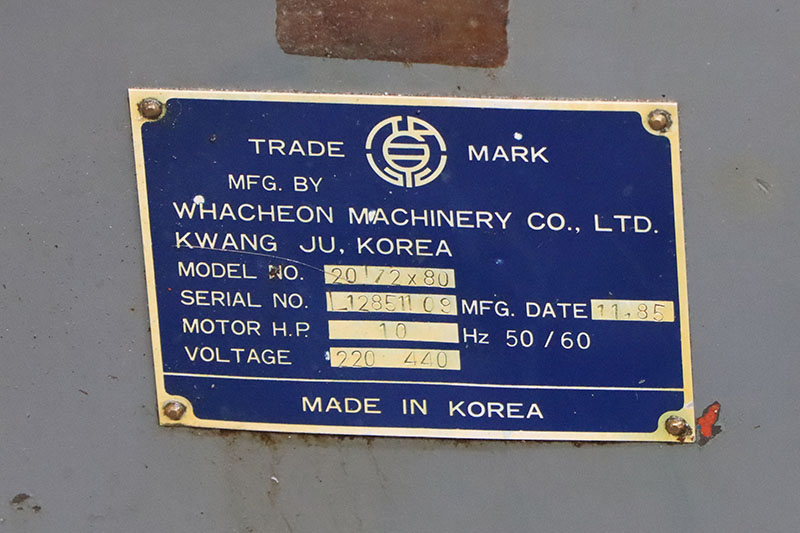

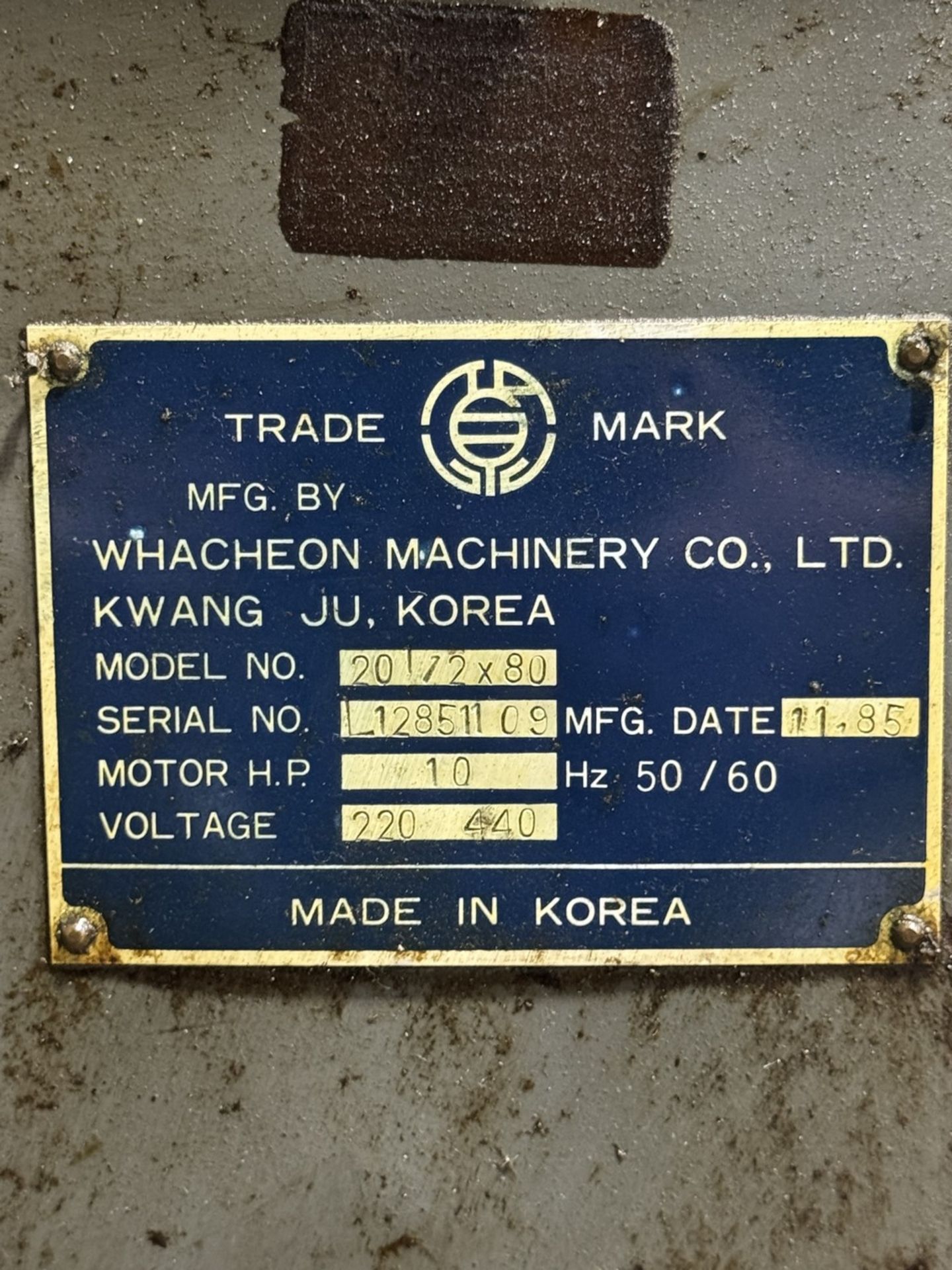

 S/N: L12851109, NEW 1985

SPECIFICATIONS:
SWING OVER BED AND CARRIAGE WINGS ......... 20-1/2"
SWING OVER GAP ............................ 29-1/2"
LENGTH OF GAP, APPROXIMATELY .............. 7-5/8"
SWING OVER CROSS SLIDE .................... 11-3/4"
DISTANCE BETWEEN CENTERS .................. 80"
SPINDLE HOLE .............................. 2-3/64"
SPINDLE NOSE CAMLOCK ...................... D1-6
HEADSTOCK SPINDLE CENTER TAPER ............ #4 MORSE
SPINDLE SPEEDS (12) ....................... 28 -1,350 R.P.M.
FEED CHANGES, LONGITUDINAL (40) ........... .0010 -.0196 IPR

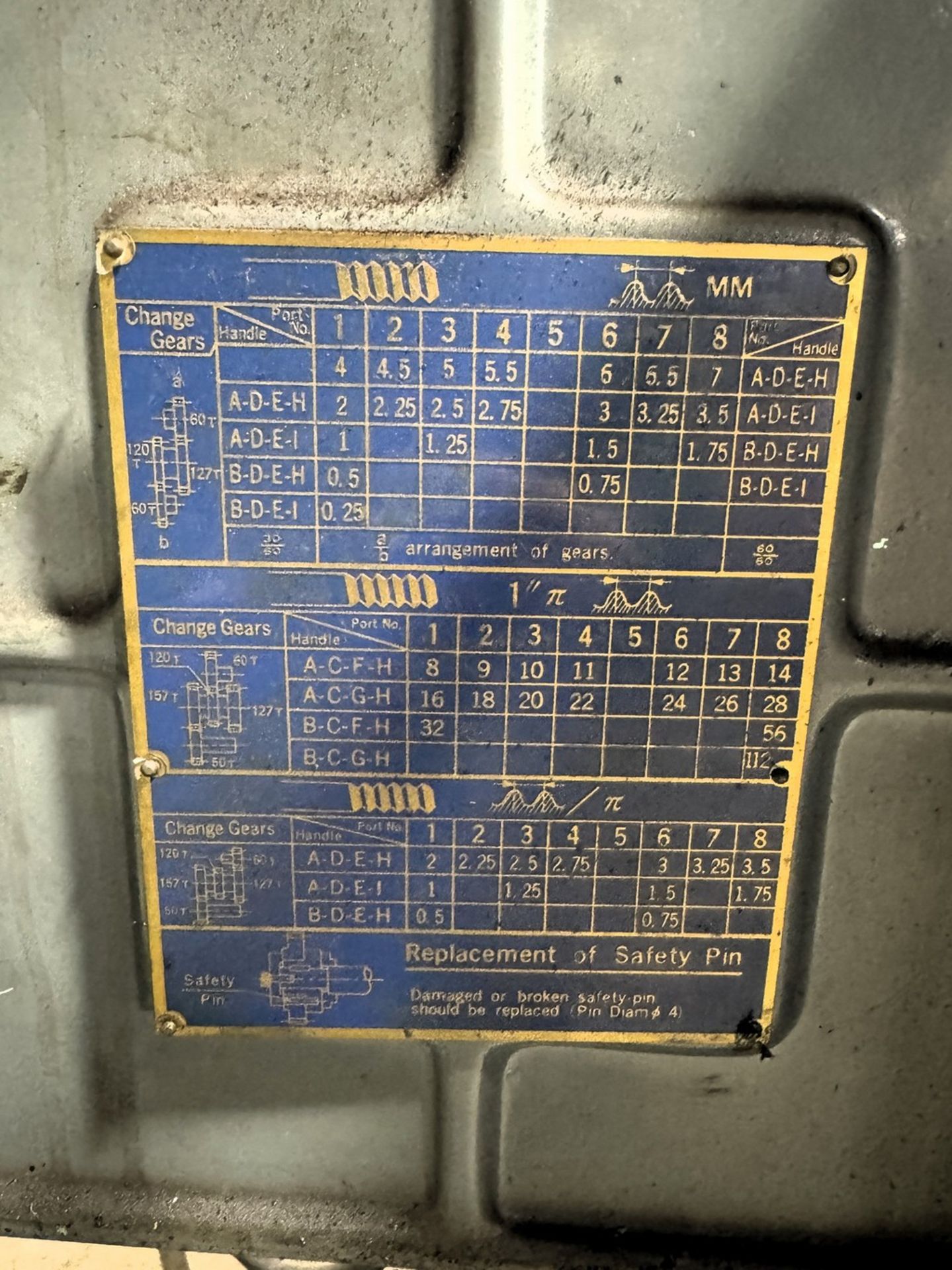

THREADS, INCH ............................. 4-80 T.P.I.
METRIC .................................... .25-7 MM
TAILSTOCK SPINDLE CENTER TAPER ............ #5 MORSE
TAILSTOCK SPINDLE TRAVEL .................. 6"
APPROXIMATE DIMENSIONS .................... 137"x 54"
APPROXIMATE WEIGHT ........................ 7,500 LBS.

EQUIPPED WITH:
- REMOVABLE GAP BED
- INCH AND METRIC THREADING CAPABILITY

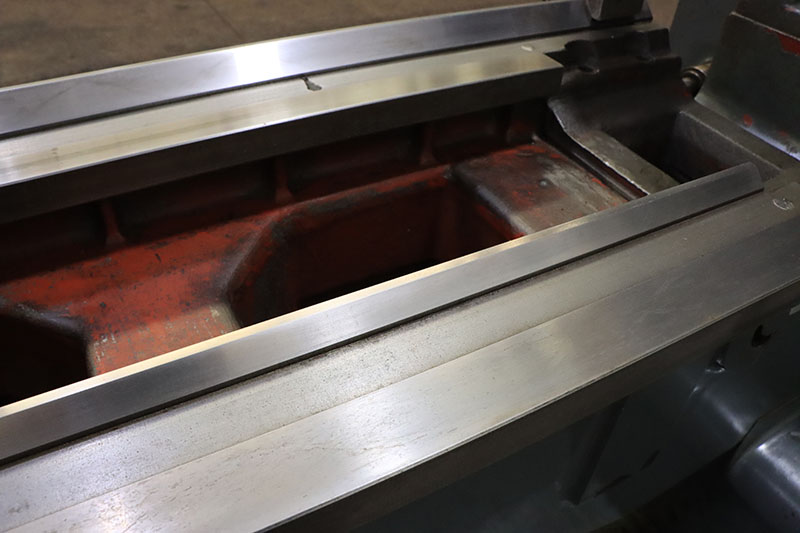

- HARDENED AND GROUND BED WAYS

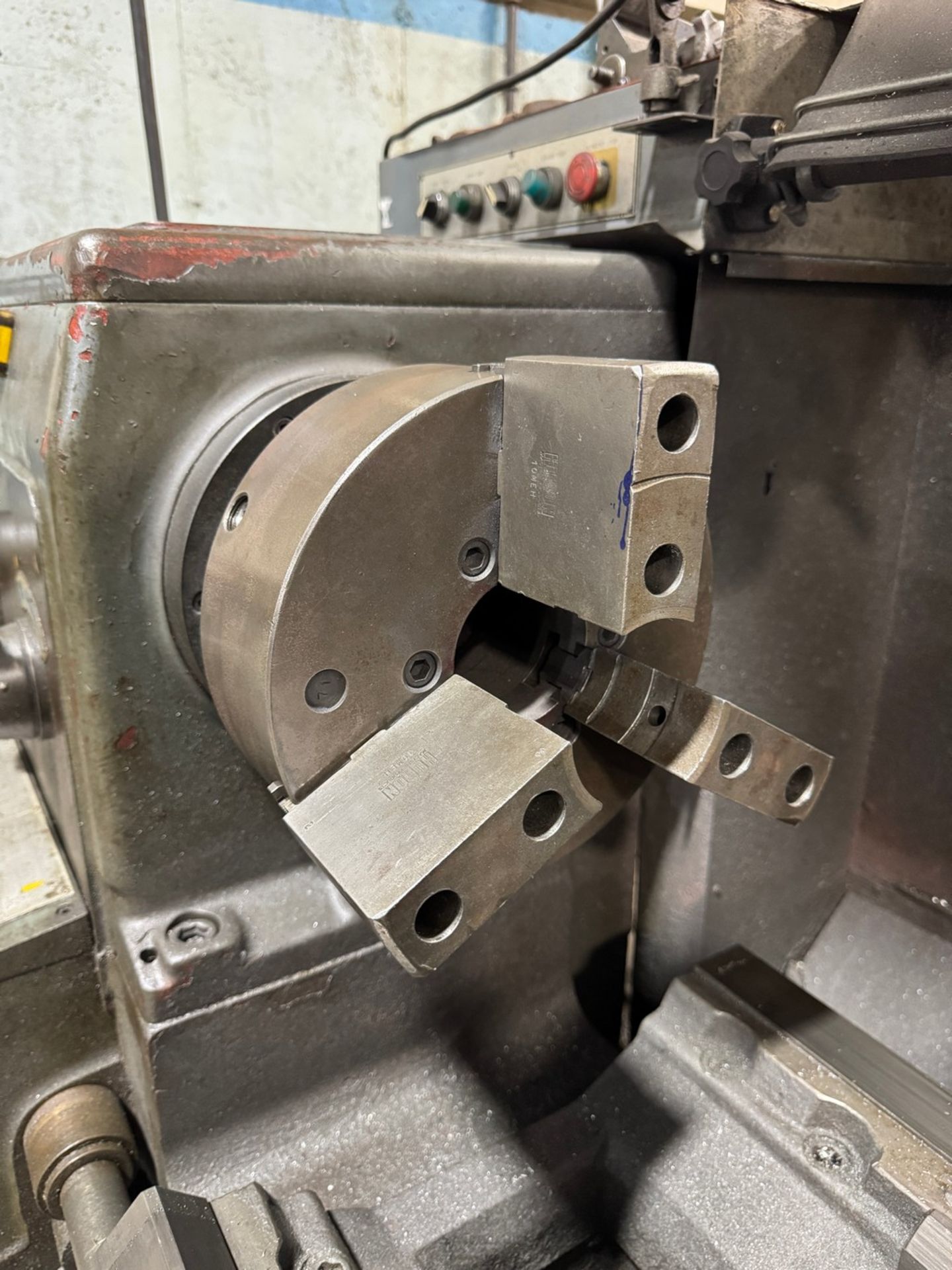

- THREE-JAW CHUCK
- QUICK CHANGE TOOLPOST WITH HOLDER
- FULL LENGTH FOOT TREADLE OPERATED SPINDLE BRAKE
- THREADING DIAL
- MICROMETER CARRIAGE STOP

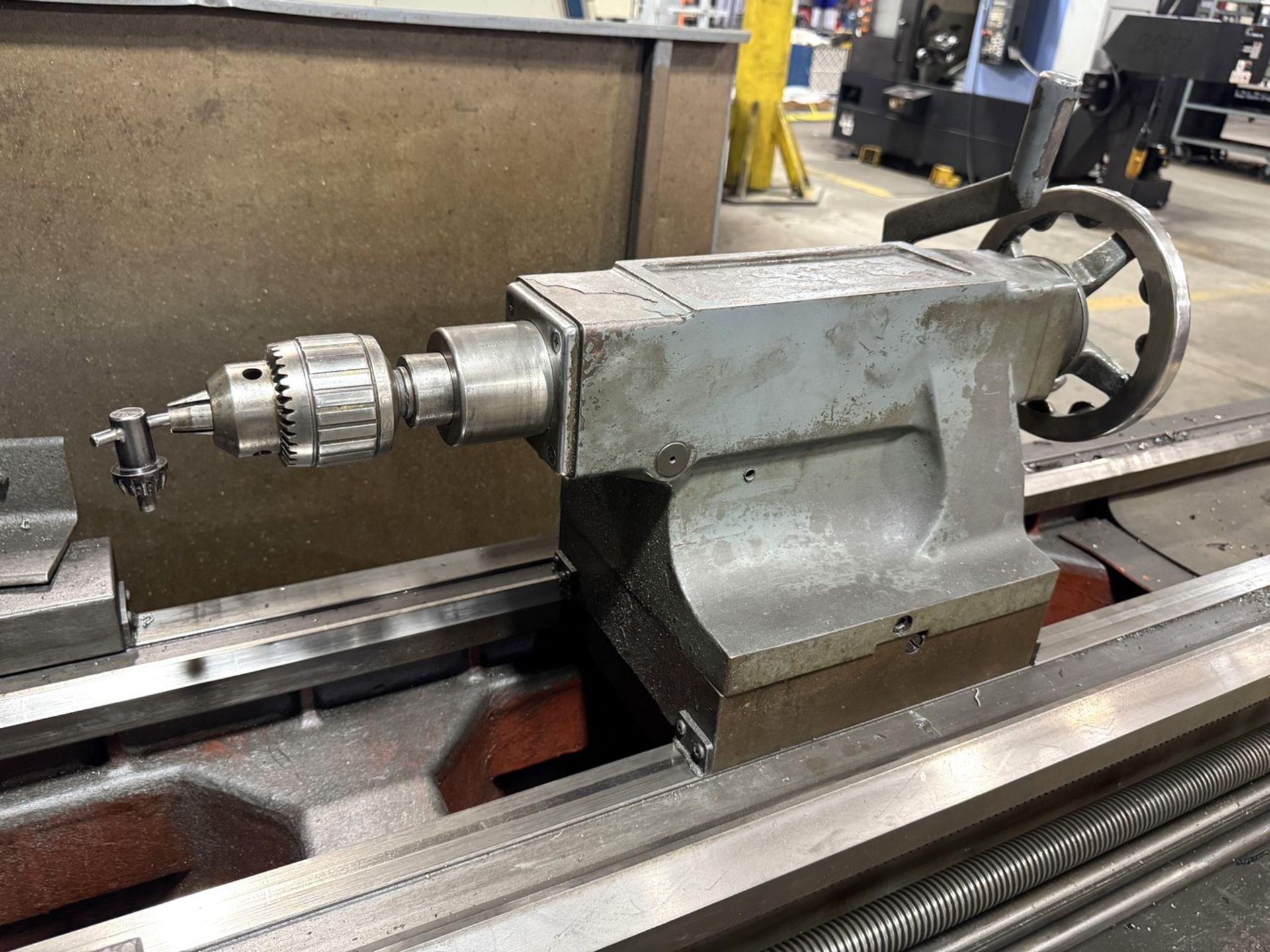

- JACOBS DRILL CHUCK FOR TAILSTOCK
- SELF-CONTAINED COOLANT SYSTEM WITH FULL LENGTH REAR SPLASH GUARD

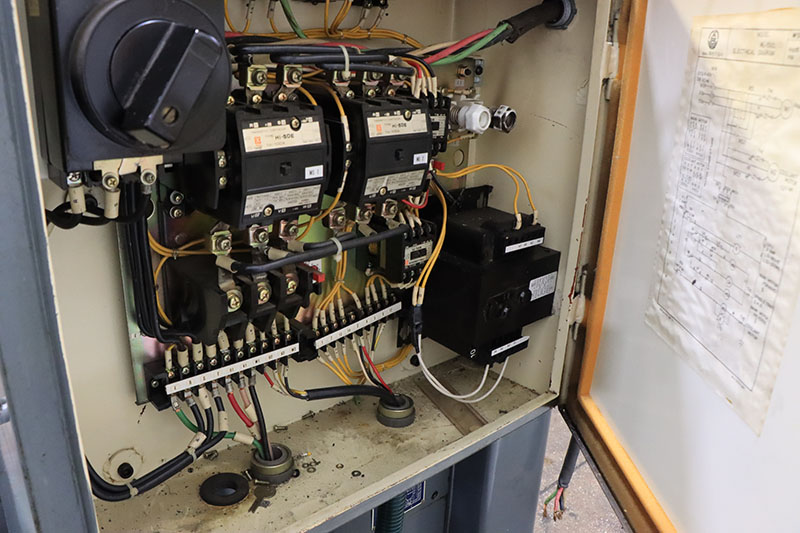

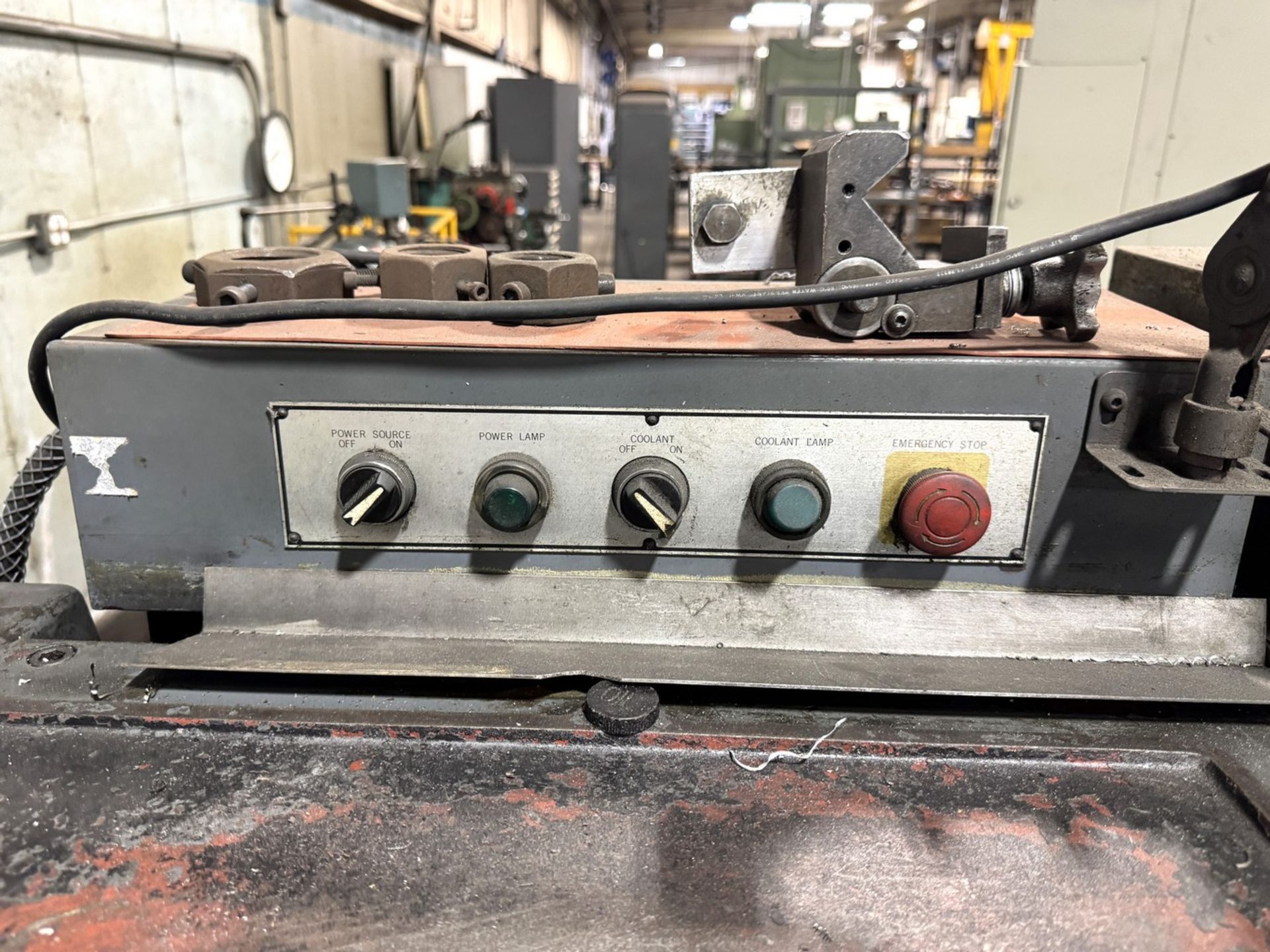

- 10 H.P. 3/60/220-440 VOLT SPINDLE DRIVE MOTOR AND ELECTRICAL CONTROLS
